GREAT WALL FLORID 2008 Service Manual

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual174
Central door locking, window regulator system
Rise
Off
Descend
Rise
Off
Descend
Rise
Off
Descend
Front door switch RH
Rear door switch LH
Rear door switch RH
Jam protection window regulator control system
Front window regulator mainly switch LH
Front door jam
protection motor LHFront door jam
protection motor RHRear door jam
protection motor LH Rear door jam
protection motor RH
Connected combination meter
Connected combination meter
Connected combination meter
Connected high beam relay
Connected airbag ECU
Central control module
Connected interior dome lamp Connected reading lamp
Open door indicator lamp
Airbag signal
Back door lamp switch
Rear door lamp switch LH
Rear door lamp switch RH
Front door lamp switch RH
Front door lamp switch LH
Trunk opener switch
Trunk motor
Unlock
signal
Lock signalFront door lock LH Lock
UnlockRise
Off
Descend
Rise
Off
Descend
Rise
Off
Descend
Rise
Off
Descend
Rise
Off
Descend
Rise
Off
Descend
Rise
Off
Descend
Rise
Off
Descend
Rise
Off
Descend
Rise
Off
DescendDoor lock is
locked
Stationary
state
Door lock is
on
Front door lock
motor RH
Rear door lock
motor LH
Rear door lock
motor RH
Left turn signal
Right turn signal
Lighting detect
Passenger side central ocntrol switch Central ocntrol switch
Driver side electric switch Window lock switch
Front door electric
switch RH
Rear door electric
switch LH
Rear door electric
switch RH
Window relay
Window lock switch
Front door switch RH
Rear door switch LH
Rear door switch RH Door electric door
mainly control switch
Front door electric
switch RH
Rear door electric
switch LH
Rear door electric
switch RH
Non jam protection window regulator control system
Front door motor LH
Connected central door
lock controller (white)
Connected front
window regulator LH Connected rear window regulator LH
(comfort, luxury) Connected rear window regulator RH (Elite)
Connected rear window
regulator RH (comfort, luxury)Front window regulator LH
Rear door lock motor LHRear door lock motor RHBack door lamp ONBack door open switch Back door lock motor
Front window regulator RH
Connected front
window regulator RH
Connected rear
window regulator LHConnected rear
window regulator RH Connected rear
window regulator LH Rear window regulator RH
Front door lamp
switch LHFront door lamp
switch RHRear door lamp
switch LHRear door lamp
switch RH Front door lock motor LH
Front door lock motor RHThe key is inserted into the
detected switch
Window regulator mainly switch, central door lock mainly
control switch (comfort, luxury) Window regulator mainly switch, central door lock
mainly control switch (Elite)Connected front passenger side
central door lock switchFront window regulator switch RH (Elite)
Connected front window regulator switch
RH (comfort, luxury) Connected front window regulator switch
RH (comfort, luxury)Connected rear window regulator switch
LH (Elite)
Front door motor RH
Rear door motor LHRear door motor RH
Front window regulator mainly control switch LH
Terminal
Location
Terminal
Location

Downloaded from www.Manualslib.com manuals search engine 175Vehicle Body Electronic System
Electric horn
Horn switch
High pitched Electric horn
Low pitched Electric horn
Front fog lamp LH
Front fog lamp RH
Left outer electric rearview mirror (left turn signal lamp) Right outer electric rearview mirror
(right turn signal lamp) Left combination switch (light)
Horn switch High pitched horn Low pitched horn Connected left
license plate lamp Connected light brightness
regulator switch Connected headlight vertical
adjustment switch
Front fog lamp LH
Front combination lamp RH Front combination lamp LH Rear combination lamp LH Rear combination lamp RH Rear defroster & alarm switch Connected rear fog lamp RH Connected rear fog lamp LH Connected left headlight
vertical adjustment motor Connected right headlight
vertical adjustment motor Connected right license
plate lamp
Front fog lamp RH
Rear fog lamp LH
Rear fog lamp RH
Rear fog indicator lamp
Left headlight adjustment motor
Right headlight adjustment motor High beam relay
Lamp
ON Low
beam
Low
beam High
beam
High
beam Over-
taking
Over-
taking
Lamp
Off
Low beam relay
Parking lamp relay
Flasher relay
Connected combination
meter A18
Connected central
control ECU #8
Connected central
control ECU #1
Connected central
control ECU #2
Connected central
control ECU #14
Front parking
lamp LH Front turn signal
lamp LH
Rear turn signal
lamp LH
Left turn
signal lamp
Left turn
signal lamp
Front turn
signal lamp RH
Rear turn signal
lamp RH
Right turn
signal lamp
Right turn
signal lamp
Front parking
lamp RH
Rear parking
lamp LH
Rear parking
lamp RH
Left license
plate lamp
Right license
plate lamp
Light main switch indicator
Turn signal lamp switch
Alarm switch Light brightness regulator switch
Ignition key cylinder light Glove box lamp
Reading lamp (Elite) Reading lamp
Rear interior dome lamp
Connected central control ECU #9
High beam indicator Left headlight
Right headlight Headlight vertical switch
red and
white
red and
white
Fog lamp switch
Pin
position Pin
position
Left turn
Right turn Off
Front fog
lamp
Rear fog
lamp Off
Horn relay
Front fog lamp relay
Rear fog lamp relay
Lighting system Steering & alarm lamp control system
Interior lighting system
Terminal
Location
Off On
Light, signal alarm system

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual176
Auxiliary system
To diagnostic port
To ECU 29#
To ECU 71#
Theft deterrent indicatorReverse lamp switch
Left reverse lamp
Right reverse lamp Detector No. 1
Detector No. 2
Detector No. 3
Detector No. 4
Theft deterrent coil
Connected theft deterrent ECU Connected diagnostic port Detector No. 1
Detector No. 2Detector No. 3 Detector No. 4
Connected theft deterrent indicator
Connected reverse sensor controller Connected reverse sensor buzzerBuzzer
Ignition switch IG1
Theft deterrent controller
Reverse sensor controller

Downloaded from www.Manualslib.com manuals search engine 177Electrical Accessories
Reverse Sensor ................................................................178
Combination Meter ...........................................................180
Central Door Lock.............................................................181
Power Windows ................................................................184
Immobilizer System ..........................................................186
CD Player ........................................................................\
.193
DVD Player .......................................................................195
Electrical Accessories

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual178
Reverse Sensor
Reverse sensor operation (ultrasonic wave distance-measurement)
Sound is a kind of wave. Sound frequency that can be heard by human beings range from 20 Hz to 20 KHz.
Those that exceed 20 KHz are called ultrasonic waves. Since an ultrasonic wave is also a kind of sound, its
velocity in the air also equals the sound velocity of 340 m/s. Part of the ultrasonic wave will rebound when it
encounters an obstacle. So the distance between the sound source and the obstacle can be calculated according
to the sonic speed and the time difference between the emission of sound and the receipt of sound.
Reverse sensor system composition
This system is composed of a reverse sensor head unit (ECU), four sensors (SENSOR) and an external buzzer.
Plug
numberDefinitionRemark
1GNDGround wire of the head unit's power supply
2BUZZER -Buzzer ground wire
3DATAReserve display data wire
4GNDReserve buzzer ground wire
5L (SENSOR)Inductor signal wire (four inductors)
6CL (SENSOR)
7CR (SENSOR)
8R (SENSOR)
9GNDInductor ground wire (four inductors)
10GND
11GND
12GND
13GND
14VCCReserve display power wire
15BUZZER +Buzzer power wire
16+ 12 VHead unit power wire
Reverse power supply:
Inductor L Inductor CL
Inductor CR Inductor R Controller
Red (+)
Black (-)

Downloaded from www.Manualslib.com manuals search engine 179Electrical Accessories
Functional description and display program
1. This system will be activated within the first second after engaging the reverse gear. There will be two
beeps indicating the system is working properly.
2. After the self-check, it will start its normal detection mode. The relationship between the obstacle
distance and the alarm frequency is as follows:
A Zone: When it is a long sounding alarm, the obstacle is within the distance of (0-40±4) cm.
B Zone: When the alarm frequency is an 8 Hz continuous sound, the obstacle is within the distance of
(40±4-90±4) cm.
C Zone: When the alarm frequency is a 4 Hz intermittent sound, the obstacle is within the distance of (90±4-
150±4) cm.
Areas of importance
1. When placed near a car equipped with the same system or a similar system (having been activated)
offered by other suppliers, though this system may receive interference, i\
t can still operate normally.
2. When the relative rate of travel between the obstacle and the car is lower than 1 m/s, this system will
operate as normal. When reverse speed is accelerated, the sensing accuracy of the reverse system
may decrease. A low speed of 6 km/h is suggested.
3. When it is a long sounding alarm, please stop the car at once, because there may be an obstacle
within 40cm.
4. The inductor precision level is high. It will be very difficult to return it to normal after opening the inner
portion.
5. The reflected signal may not be received due to the location, angle, size, or material of the object.
Furthermore, the reflected signal in a complex environment may not be ac\
curate.
System malfunction causes and solutions
1. A lack of power or a low supply voltage may lead to the abnormal operation of the reverse sensor
system. Under such circumstances, check whether the supply battery voltage is normal, or whether
the ignition switch connector and other connections are accurately place\
d.
2. If the power supply is on, irregular system operation may be caused by the incorrect position of the
socket. Under such circumstances, correctly re-place all the sockets.
3. A long sounding alarm from the buzzer may be caused by the inductor coming off, incorrect installa-
tion, damage to the inductor, or detecting the car or ground. Under such circumstances, please repair
or replace the sensor.
4. Incorrect indication of an obstacle's distance may be caused by abnormal battery voltage, inaccurate
socket positioning, or inductor connection damage. At this time, check whether the battery voltage
is normal, and whether the inductor connection is connected to the exhaust pipe and muffler. It is
suggested that the system be turned off and all the sockets be correctly placed.
Reverse sensor system parameters
Rated operation voltageDC 12 V
Operation voltage rangeDC (9.6-16) V
Operation temperature range-30-80 oC
Storage temperature range-40-85 oC
Power consumption< 2 W
Detect segment3 segments: 150-90-40 cm
Maximum sensing distance150±4 cm
Effective distance(15±4) cm- (150±4) cm
Detect modeUltrasonic wave
C Zone
(4 Hz intermittent sound)
40±4 cm 90±4 cm 150±4 cm
A Zone
(long alarm)
B Zone
(8 Hz continuous sound)

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual180

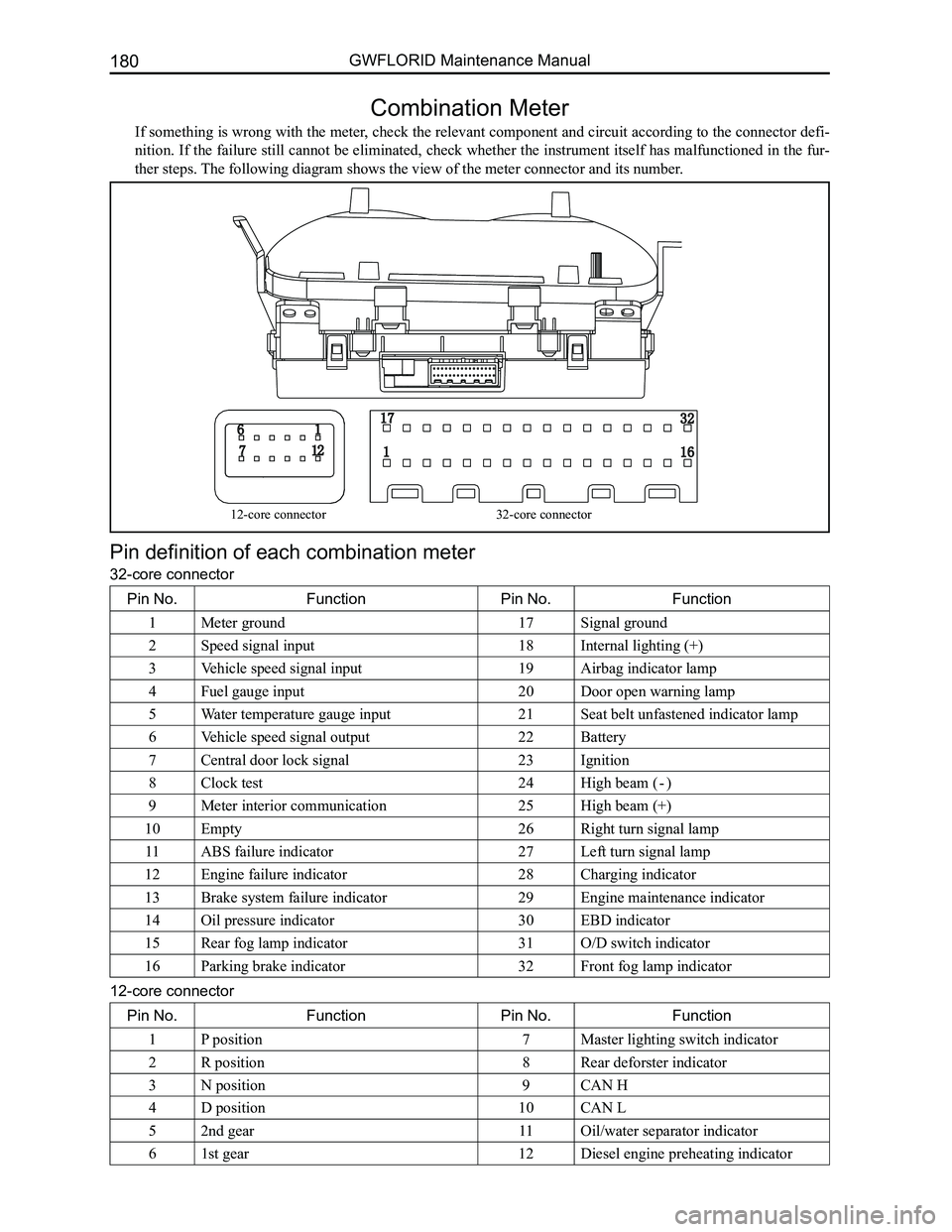

Combination Meter
If something is wrong with the meter, check the relevant component and circuit according to the connector defi-
nition. If the failure still cannot be eliminated, check whether the instrument itself has malfunctioned in the fur-
ther steps. The following diagram shows the view of the meter connector and its numb\
er.
Pin definition of each combination meter
32-core connector
Pin No.FunctionPin No.Function
1Meter ground17Signal ground
2Speed signal input18Internal lighting (+)
3Vehicle speed signal input19Airbag indicator lamp
4Fuel gauge input20Door open warning lamp
5Water temperature gauge input21Seat belt unfastened indicator lamp
6Vehicle speed signal output22Battery
7Central door lock signal23Ignition
8Clock test24High beam ( - )
9Meter interior communication25High beam (+)
10Empty26Right turn signal lamp
11ABS failure indicator27Left turn signal lamp
12Engine failure indicator28Charging indicator
13Brake system failure indicator29Engine maintenance indicator
14Oil pressure indicator30EBD indicator
15Rear fog lamp indicator31O/D switch indicator
16Parking brake indicator32Front fog lamp indicator
12-core connector
Pin No.FunctionPin No.Function
1P position7Master lighting switch indicator
2R position8Rear deforster indicator
3N position9CAN H
4D position10CAN L
52nd gear11Oil/water separator indicator
61st gear12Diesel engine preheating indicator
12-core connector32-core connector

Downloaded from www.Manualslib.com manuals search engine 181Electrical Accessories

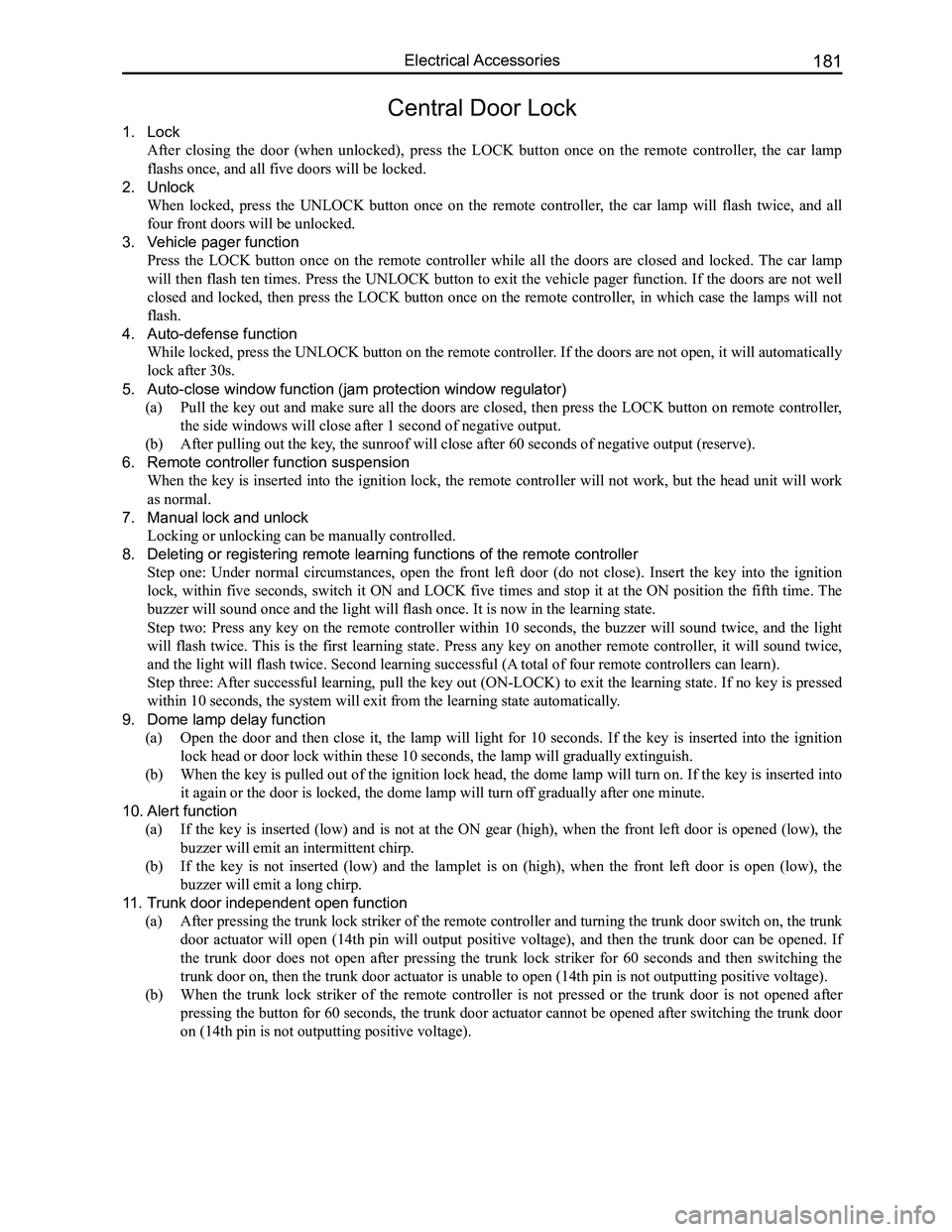

Central Door Lock
1. Lock
After closing the door (when unlocked), press the LOCK button once on the remote controller, the car lamp
flashs once, and all five doors will be locked.
2. Unlock
When locked, press the UNLOCK button once on the remote controller, the car lamp will flash twice, and all
four front doors will be unlocked.
3. Vehicle pager function
Press the LOCK button once on the remote controller while all the doors are closed and locked. The car lamp
will then flash ten times. Press the UNLOCK button to exit the vehicle pager function. If the doors are not well
closed and locked, then press the LOCK button once on the remote controller, in which case the lamps will not
flash.
4. Auto-defense function
While locked, press the UNLOCK button on the remote controller. If the doors are not open, it will automatically
lock after 30s.
5. Auto-close window function (jam protection window regulator)
(a) Pull the key out and make sure all the doors are closed, then press the LOCK button on remote controller,
the side windows will close after 1 second of negative output.
(b) After pulling out the key, the sunroof will close after 60 seconds of negative output (reserve)\
.
6. Remote controller function suspension
When the key is inserted into the ignition lock, the remote controller will not work, but the head unit will work
as normal.
7. Manual lock and unlock
Locking or unlocking can be manually controlled.
8. Deleting or registering remote learning functions of the remote controll\
er
Step one: Under normal circumstances, open the front left door (do not close). Insert the key into the ignition
lock, within five seconds, switch it ON and LOCK five times and stop it at the ON position the fifth time. The
buzzer will sound once and the light will flash once. It is now in the l\
earning state.
Step two: Press any key on the remote controller within 10 seconds, the buzzer will sound twice, and the light
will flash twice. This is the first learning state. Press any key on another remote controller, it will sound twice,
and the light will flash twice. Second learning successful (A total of four remote controllers can learn).
Step three: After successful learning, pull the key out (ON-LOCK) to exit the learning state. If no key is pressed
within 10 seconds, the system will exit from the learning state automati\
cally.
9. Dome lamp delay function
(a) Open the door and then close it, the lamp will light for 10 seconds. If the key is inserted into the ignition
lock head or door lock within these 10 seconds, the lamp will gradually \
extinguish.
(b) When the key is pulled out of the ignition lock head, the dome lamp will turn on. If the key is inserted into
it again or the door is locked, the dome lamp will turn off gradually after one minute.
10. Alert function
(a) If the key is inserted (low) and is not at the ON gear (high), when the front left door is opened (low), the
buzzer will emit an intermittent chirp.
(b) If the key is not inserted (low) and the lamplet is on (high), when the front left door is open (low), the
buzzer will emit a long chirp.
11. Trunk door independent open function
(a) After pressing the trunk lock striker of the remote controller and turning the trunk door switch on, the trunk
door actuator will open (14th pin will output positive voltage), and then the trunk door can be opened. If
the trunk door does not open after pressing the trunk lock striker for 60 seconds and then switching the
trunk door on, then the trunk door actuator is unable to open (14th pin\
is not outputting positive voltage).
(b) When the trunk lock striker of the remote controller is not pressed or the trunk door is not opened after
pressing the button for 60 seconds, the trunk door actuator cannot be opened after switching the trunk door
on (14th pin is not outputting positive voltage).

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual182

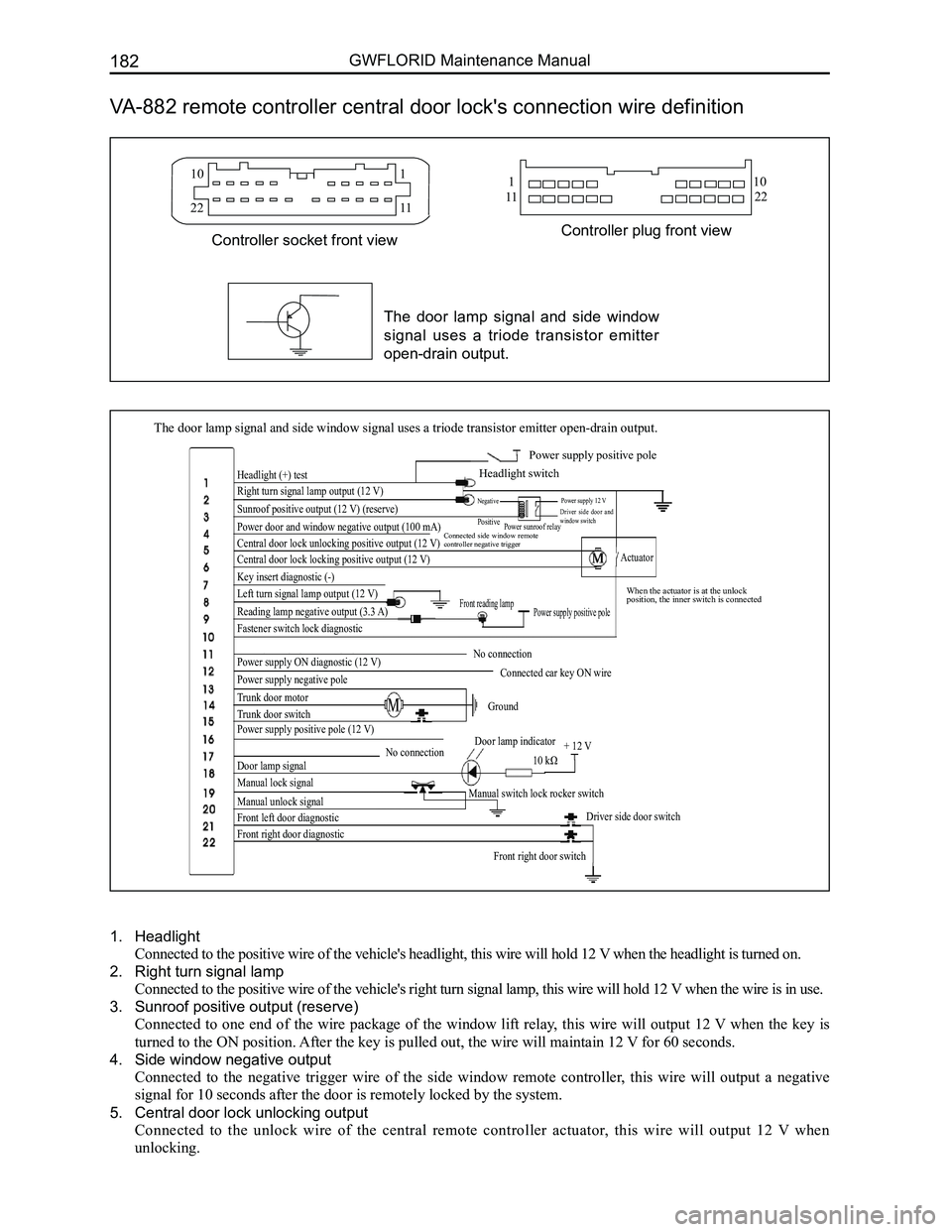

VA-882 remote controller central door lock's connection wire definition
The door lamp signal and side window signal uses a triode transistor emi\
tter open-drain output.
Headlight (+) test
Right turn signal lamp output (12 V)
Sunroof positive output (12 V) (reserve)
Power door and window negative output (100 mA)
Central door lock unlocking positive output (12 V)
Central door lock locking positive output (12 V)
Key insert diagnostic (-)
Left turn signal lamp output (12 V)
Reading lamp negative output (3.3 A)
Fastener switch lock diagnostic
Power supply ON diagnostic (12 V)
Power supply negative pole
Trunk door motor
Trunk door switch
Power supply positive pole (12 V)
Door lamp signal
Manual lock signal
Manual unlock signal
Front left door diagnostic
Front right door diagnostic
Front right door switch
Driver side door switch
Manual switch lock rocker switch
No connectionDoor lamp indicator
10 kΩ + 12 V
Ground
Connected car key ON wire
No connection
Power supply positive poleFront reading lamp
Actuator
When the actuator is at the unlock position, the inner switch is connected
Connected side window remote controller negative trigger
Power sunroof relay
Power supply 12 VDriver side door and window switch
Negative
Positive
Power supply positive pole
Headlight switch
10
22
110
1122
1
11
Controller plug front viewController socket front view
The door lamp signal and side window
signal uses a triode transistor emitter
open-drain output.
1. Headlight
Connected to the positive wire of the vehicle's headlight, this wire will hold 12 V when the headlight is turned on.
2. Right turn signal lamp
Connected to the positive wire of the vehicle's right turn signal lamp, this wire will hold 12 V when the wire is in use.
3. Sunroof positive output (reserve)
Connected to one end of the wire package of the window lift relay, this wire will output 12 V when the key is
turned to the ON position. After the key is pulled out, the wire will maintain 12 V for 60 seconds.
4. Side window negative output
Connected to the negative trigger wire of the side window remote controller, this wire will output a negative
signal for 10 seconds after the door is remotely locked by the system.
5. Central door lock unlocking output
Connected to the unlock wire of the central remote controller actuator, this wire will output 12 V when
unlocking.

Downloaded from www.Manualslib.com manuals search engine 183Electrical Accessories
6. Central door lock locking output
Connected to the locking wire of the central door lock actuator, this wire will output 12 V when locking.
7. Key insert diagnostic
Connected to the detecting wire of the lock head, the electric potential of this wire will lower when a key being
inserted into the lock is detected.
8. Left turn signal lamp
Connected to the positive wire of the left turn signal lamp, this wire o\
utputs 12 V during its use.
9. Reading lamp output
Connected to the negative trigger wire of the front reading lamp, this wire uses a low electric potential output to
control the reading lamp's lighting.
10. Fastener switch lock diagnostic
Connected to the inner switch wire of the driver side door fastener, the inside switches will be connected and the
wire's electric potential will lower when the fastener is unlocked.
11. No connection
12. Power supply ON diagnostic
Connected to the ON wire of the key switch, this wire holds 12 V when the key is turned to the ON position.
13. Power supply negative pole
Wire is grounded (too long a wire can create interference sources).
14. Trunk door motor
This wire is connected to the trunk door motor and will output 12 V when the UNLOCK button of the remote
controller or the manually unlock switch is pressed.
15. Trunk door switch
This wire is connected to the trunk door switch and will connect with the power supply's negative pole when in
use.
16. Power supply positive pole
This wire is connected to the battery positive (red fire wire).
17. No connection
18. Door lamp signal
This wire is connected to the door lamp indicator of the combination meter and holds 100 mA negative output
when in use (the indicator light is on when any door is detected open)\
.
19. Manual lock signal
This wire is connected to the locking control wire of the front left door's manual switch and will pass through
the power supply's negative pole (ground) when in use.
20. Manual unlock signal
This wire is connected to the unlocking control wire of the front left door's manual switch and will pass through
the power supply's negative pole (ground) when in use.
21. Front left door switch
This wire is connected to the front left door's switch control wire and will pass through the power supply's
negative pole (ground) when in use.
22. Front right door switch
This wire is connected to the front right door's switch control wire and will pass through the power supply's
negative pole (ground) when in use.
