Downloaded from www.Manualslib.com manuals search engine 11Overall Parameters
ItemS08 S16S12
GW413EFGW4G15YC4W75-31
Size Pa-
rameters
(no load)
(mm)
Length3907
Width1694
Height1521
Wheelbase2368
Tread: front/rear1459/1430
Front suspension813
Rear suspension726
Quality
Parameters
Load capacity (kg)5 people × (68±7) kg/person
Curb weight (kg)113511201118
Gross vehicle weight (kg)151014951493
Unload axle load distribution: front/rear (kg)646/434669/451689/429
Unload centroid location (x, y, z) (mm)951/27/285.9954/27/285.9909/27/285.9
Full load axle load distribution: front/rear (kg)748/707770/725791/702
Full load centroid location (x, y, z) (mm)1151/22/375.51148/22/375.51114/22/375.5
Passing
Ability
Parameters
Minimum turning diameter (m)11
Minimum ground clearance (mm)127 (full load)
Approach angle (°)17 (full load)
Departure angle (°)20 (full load)
Breakover angle (°)16 (full load)
Dynamic
Performance
Minimum stable speed of the direct gear (km/h)≤25
Direct drive 25 km/h - 100 km/h acceleration
time (s)≤32
Acceleration time from standstill with the first
gear to shifting gears until reaching 100 km/h (s)≤19
Maximum speed (km/h)162178152
Maximum climbing capacity (%)30.63434.3
Economy
Sliding distance (m) of 50 km/h initial speed≥500
F u e l c o n s u m p t i o n o f 9 0 k m / h s p e e d w i t h
constant velocity (L/100 km)5.796.14.25
Fuel consumption of 120 km/h speed with
constant velocity (L/100 km)≤8.5
U n d e r t h e u r b a n a n d s u b u r b d r i v i n g c y c l e
simulation (L/100 km)≤7.5≤8.1≤7.5
Braking
Performance
Service braking distance (m) of 50 km/h initial
braking speed19.0≤ (no load) ≤ 20 (full load)
Emergency braking distance (m) of 50 km/h
initial braking speed ≤38
Grade braking (%)≥18
Stability
Maximum angle of rolling stability when empty
or inactive (°)≥35
Handling stability (min)Nan≥60 and NZ≥60
Basic Parameters of the Overall Vehicle

Downloaded from www.Manualslib.com manuals search engine 30GWFLORID Maintenance Manual

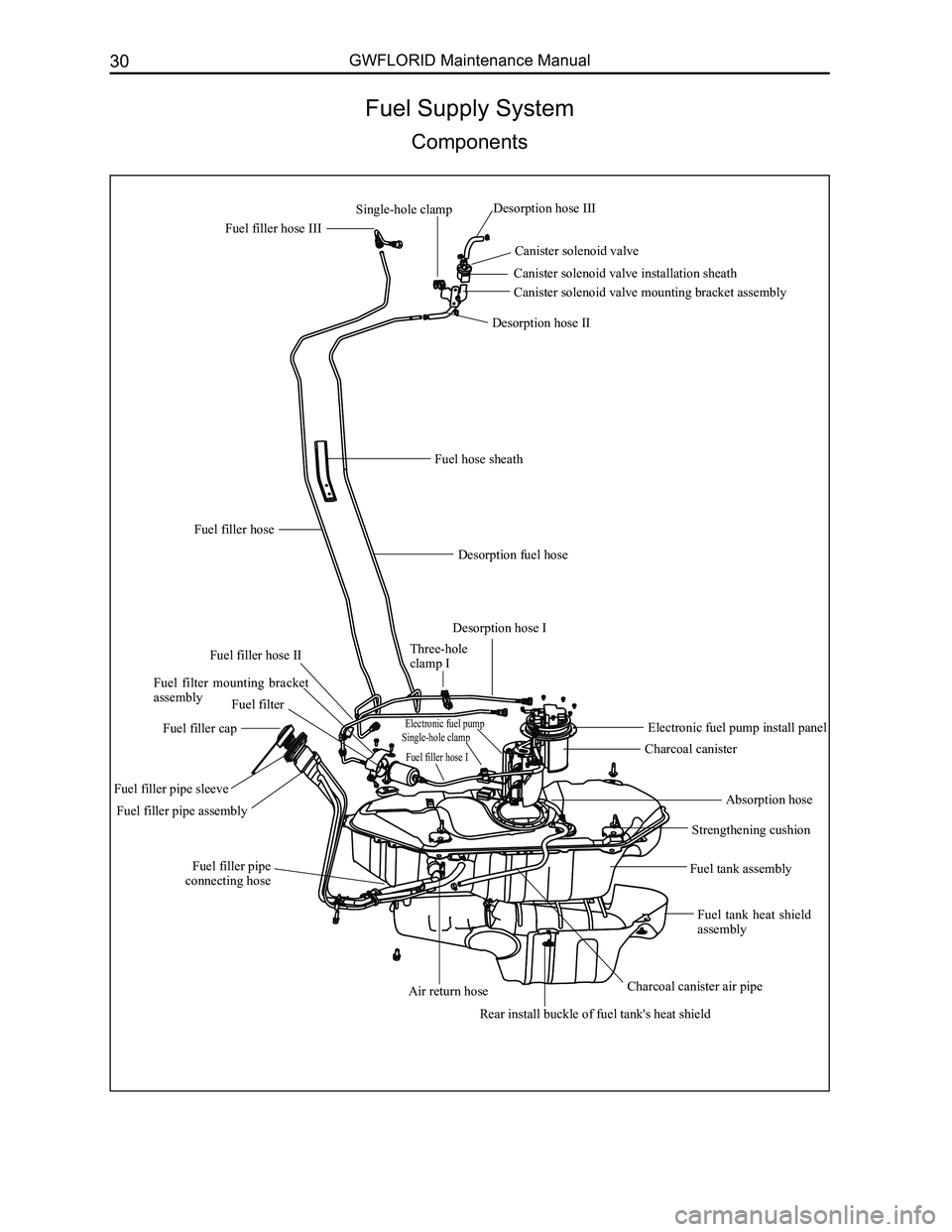

Fuel Supply System
Components
Fuel filler hose III
Canister solenoid valve
Canister solenoid valve installation sheath
Canister solenoid valve mounting bracket assembly
Fuel hose sheath
Desorption fuel hose
Fuel filler hose
Desorption hose I
Fuel filler hose IIThree-hole clamp I
Charcoal canister
Fuel tank assembly
Fuel tank heat shield assembly
Charcoal canister air pipeAir return hose
Fuel filler pipe assembly
Electronic fuel pumpSingle-hole clampElectronic fuel pump install panel
Strengthening cushion
Fuel filler pipe connecting hose
Absorption hoseFuel filler pipe sleeve
Single-hole clamp
Fuel filter
Rear install buckle of fuel tank's heat shield
Fuel filler cap
Fuel filler hose I
Desorption hose III
Desorption hose II
Fuel filter mounting bracket assembly

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual32

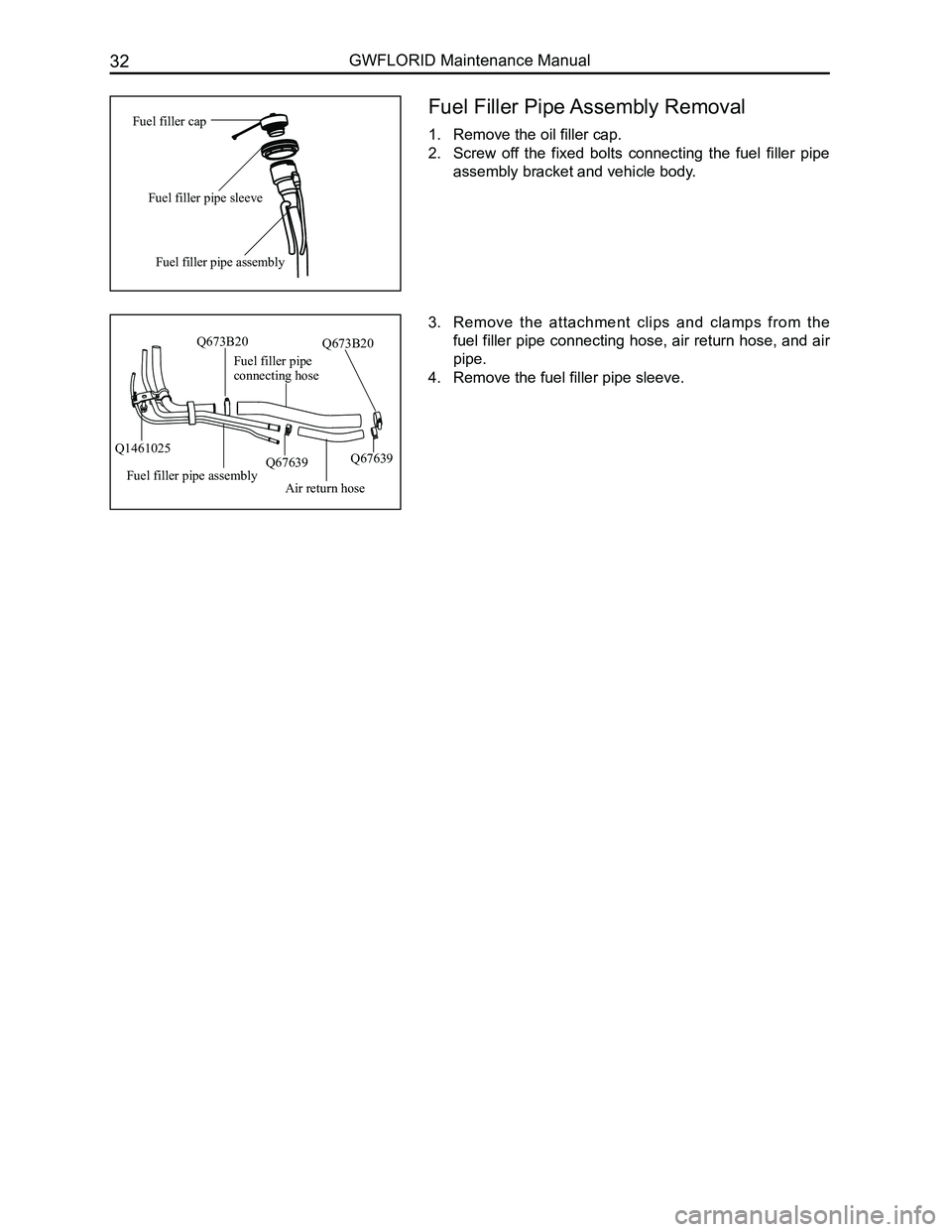

Fuel Filler Pipe Assembly Removal
1. Remove the oil filler cap.
2. Screw off the fixed bolts connecting the fuel filler pipe
assembly bracket and vehicle body.
Air return hose
Fuel filler pipe connecting hose
Fuel filler pipe assembly
Q1461025Q67639
Q673B20
Q67639
Q673B20
Fuel filler pipe assembly
Fuel filler pipe sleeve
Fuel filler cap
3. Remove the attachment clips and clamps from the
fuel filler pipe connecting hose, air return hose, and air
pipe.
4. Remove the fuel filler pipe sleeve.

Downloaded from www.Manualslib.com manuals search engine 155Vehicle Body Electronic System
Condenser fan motor
Connected compressor
Oil pressure switch
Front oxygen sensor
Connected reverse switch
Connected engine speed sensor Connected
ignition coil
Connected speed sensor Connected coolant temp. sensor
Canister control valve
Connected combination meter A
Connected antenna
Diagnostic port
Connected AC switch Connected air conditioner temperature sensor
Front passenger side airbag
Connected speed adjustive resistance, blower
Front window regulator RH
Front window regulator switch RH
Front medium woofer RH
Front tweeter LH Right outer electric mirror
Front passenger side central door lock switch
Front door lamp switch RH
Front passenger seat belt pretensioner Front door lock motor RH
Ground
plate 3
Connected cigarette lighter (lighting)
Connected cigarette lighter
Front passenger seat belt switch
Connected parking brake switch Connected air conditioner governor & front
passenger seat belt unfastened indicator lamp
Connected CD player
Connected engine ECUConnected ground P1#
Connected ground P2#
Connected starter
Connected knock sensor
Connected starter field coil
Connected inlet
temperature pressure
sensor
connected
electronic throttle
Rear oxygen sensor
Connected 4th
cylinder injection
nozzle
Connected 3rd
cylinder injection
nozzle
Connected 2nd
cylinder injection
nozzle
Connected 1st
cylinder
injection nozzle
Connected generator
Connected engine armature Connected front combination lamp RH
Connected front fog lamp RH
Connected rear washer motor
Connected front washer motor
Connected front wheel speed sensor RH
Right ground
Connected A/C pressure switch
Connected phase sensor
Connected low
pitched horn
Connected front
combination lamp LH
Rediator fan motor
Connected front
fog lamp LH
Connected high pitched horn
Battery
negative
Body
ground
Battery
Left ground Connected
brake lamp
switch Connected brake fluid warning switch
Connected theft deterrent indicator Theft deterrent ECU 1Connected lock
cylinder lightConnected ignition
switch (white)
The key is inserted into the switch
Right combination switch (wiper) Connected airbag ECU (yellow)Ground
plate 2
Ground
plate 4
Connected accelerator pedal
Ground plate 1
Left outer electric mirror
Front medium woofer LH Front door lock motor LH
Rear medium woofer LH
Rear window regulator switch LH
Rear door lock motor LH Rear door lamp switch LH
Ground point ACapacitor
Vehicle power supply
Rear fog lamp LH Left license plate lamp
High mounted brake lamp
Ground point Trunk opener switch
Trunk motorRear wiper motor
Rear windshield defroster “-”
Trunk lamp switch Right license plate lamp
Rear fog lamp RH
Rear combination lamp RHRear wheel speed sensor RH
Rear window
regulator RH
Rear window
regulator switch RH
Rear door lock motor RH
Rear door lamp switch RH Rear medium woofer RH
Ground point B
Rear combination lamp LH
Rear windshield defroster “+”
Rear wheel speed
sensor LH
Rear window regulator LH
Fuel pump, fuel sensor
Rear interior dome lamp
Front door lamp
switch LH
Driver seat belt pretensioner Driver seat belt switch
Front tweeter LH
Connected light brightness regulator switch
Connected rearview mirror switch (white)
Connected glove box lamp
Front window regulator LH Left combination switch (light)
Connected main airbag, horn switch
Window regulator mainly
control switch, central door
lock mainly control switch Connected central door lock controller (white)
Connected front wiper motor
Connected clutch
switch
Connected ABS ECUBattery
positive
Connected front wheel
speed sensor LH Engine groud
Starter connect to
battery positive
Generator connect to
battery positive
Wire Harness Relationship and Plug-in Connections Numbered Diagram
