BE-8Body Electric System
Protective Box Position and Content
Content of Protective Box
1 protective box I
fuse
1.Small lamp 10A
2.Rain brus 20A
3.Ceiling lamp 10A
4.(Cigarette lighter) 15A
5.Back -u 15A
6.Brake 10A
7.electric window 30A
8.Instrument 10A
fuel delivery/break electromagnetic valve10A(diesel

9.Central control lock 15A Dr
A
B
C



1
2
3
456
789
SL SK
U
N
O
V
P
Q
R NM
NN
NO
S
T NP
NQ
FUSE
1. Protection 10A
2. Unload
3. Charging 10A
4. Back-up 10A
5. ECU 10A
6. Unload
7. Rain wiper 10A
8. Stop lamp 10A
9. Ceiling lamp 10A
10. Central control lock 15A
11. Dual flasher 10A
12. EC 10A
13. Fuel pump 10A
14. Cigarette lighter 15Arelay
A electric window relay
B. small lamp relay
C.(flasher)

(plugging elements of ceiling
lamp wire harness)

(plugging elements of wire
harness in engine room)

BE-9Body Electric System
Protective Box Position and Content
fuse relay
1. Small lamp 10A A. electromagnetic fan relay
2. Brake 5A B. lasher
3. Ceiling lamp 5A C. electromagnetic fan relay
4. Central control lock 15A D. small lamp relay
5. Electric rocker gear 30A E. electric window relay
6. Dual flasher 10A
7. Cigarette lighter 15A
8. Rear vision mirror 5A (1) plugging elements of ceiling lamp wire harness
9. Unload (2) plugging elements of wire harness at front left door
10. Acoustic device 15A (3)plugging elements of wire harness in engine room
11. Rear window 20A
12. Electromagnetic fan 10A
13. Instrument 5A
14. Back-up lamp 5A
15. Rain brush 10A
16. Steering 5A
17. Unload
18. Unload




A
B
C
E D
123 456
78 9 101112
13 14 15
16 1718
SF
Protective bos I (continued)

BE-10Body Electric System
Protective Box Position Content
FuseVehicle
Model
1. Standby 30A
Standby 20A SJ
2. Standby 15A SY
Standby 10A SJ
3. Standby 10A SY SJ
4. Unload SY
Bass bubble 10A SJ
Power amplification 10 A top SY
5. Unload SY SJ
6. Unload SY SJ
7. Unload SY SJ
8. Air-conditioner 10A SY SJ
9. Charging 10A SY
Instrument 10A SJ
10. ECU 10A SY SJ
11. Back-up lamp 10A SY SJ
12. Cigarette lighter 30A SY SJ
receiver
13. Unload SY
Refrigerant 10A SJ top SY
14. Unload SY SJ
15. Steering electric window 10A SY
Humid display of steering 10A SJ
sindicating lamp
16. Stop lamp 10A SY SJ
17. Power aerial of inside lamp 10A SY SJ
18. Central control lock 20A SY SJ
19. Dual flasher 10A SY SJ
20. Front rain brush 10A SY SJ
21. Rear air-conditioner 15A SY
Unload SJ
22. Rear defroster 15A SY
Unload SJ
23. Rear rain brush 10A SY
Unload SJ
1Protective box I (continued)pv=pg
1
2
3
4
567
8
91011
12 13
14 15
16 17 18 19
20 21 22 23

BE-11Body Electric System
Protective Box Position and Content
Fuse Vehicle model
1. Standby 10A (SL diesel)(SY diesel)
2. Standby 15A (SL diesel) (SY diesel)
3. Standby 30A (SL diesel) (SY diesel)
4. Unload (SL diesel) (SY diesel)
5. Unload (SL diesel) (SY diesel)
6. Unload (SL diesel) (SY diesel)
7. Unload (SL diesel) (SY diesel)
8. Start 10A (SL diesel) (SY diesel)
9. Rear defroster 15A (SY diesel)
Unload (SL diesel)
10.Cigarette lighter
and receiver 30A (SY diesel)
Cigarette lighter 15A (SL diesel)
11.Rear rain brush 10A (SY diesel)
Unload (SL diesel)
12.Front rain brush 15A (SY diesel)
Rain brush 5A (SL diesel)
13.Steering 10A (SY diesel)
Dual flasher 10A (SL diesel)
14.Preheating 15A (SL diesel)(SY diesel)
15.Electric window 30A (SL diesel)(SY diesel)
16.Small lamp 10A (SL diesel)(SY diesel)
17.Stop lamp 10A (SL diesel)(SY diesel)
18.Inside lamp
and electric aerial 15A (SY diesel)
eiling lamp 10A (SL diesel)
19.Central control lock 20A (SY diesel)
Central control lock 15A (SL diesel)
20.Rear air-conditioner 15A (SY diesel)
Unload (SL diesel)
21.Unload (SL diesel)(SY diesel)
Refrigerant 10A (top SY diesel)
22.Unload (SL diesel )(SY diesel)
Power amplification 10A (top SY diesel)
23.Unload (SL diesel)(SY diesel)
1.Protective box I (continued)SLDiesel SYDiesel
1
2
3
4 567
89NM11
12 13 14 15
16 17 18 19
2021
22 23

BE-13Body Electric System
Protective Box Position and Content
Protective box II (continued)
Fuse Vehicle Relay Vehicle
1. Standby 10A SL SK A.electromagnetic fan relay SL SK
2. Standby 10A SL SK small lamp relay (SL diesel)
3. Standby 30A SL SK B.electric window relay SL SK
20A (SL diesel) cold start relay (SL diesel)
4. Rear fog lamp 10A SL SK C.frost relay SL SKLeft
large lamp 10A (SL diesel) charging relay) (SL diesel)
5. Front fog lamp 10A SL SK D.blower relay) SL SK
Right large lamp 10A (SL diesel) thermostatic relay (SL diesel)
6. Small lamp 10A SL SK E.small lamp relay SL SK
Air-conditioner 10A (SL diesel) heating relay (SL diesel)
7. Electric horn 10A SL SK F.large lamp relay SL SK
Warm air 20A (SL diesel) G.air-conditioner relay SL SK
8. Electric window 30A SL SK frost relay (SL diesel)
Unloa (SL diesel) H.rain-brusher intermissive relay SL SK
9. A/C 10A SL SK I.diod SL SK
Charging 10A (SL diesel)
10. Air blower 30A SL SK
Electric horn 10A (SL diesel)
11. Electronic fan 10A SL SK
Dual flasher 10A (SL diesel)
12. Right large lamp 10A SL SK
Unload (SL diesel)
13. Left large lamp 10A SL SK
Fog lamp 10A (SL diesel)
14. 60A fuse SL SK
15. 60A fuse SL SK
16. 30A fuse SL SK
17. 30A fuse SL SK
Unload SL diesel
123
H4567
14
15
GEFCD AB 8 9 10 11 12 13
SL SK
17
16
I

BE-14
Fuse Vehicle Relay Vehicle
1. Standby 10A SY SJ A. electromagnetic fan relay SY SJ
2. Standby 10A SY SJ small lamp relay (SY diesel)
3. Standby 30A SY SJ B. electric window relay SY SJ
4. Rear fog lamp 10A SY SJ cold start relay (SY diesel)
Left large lamp 10A (SY diesel) air-conditioner relay SJ
5. Front fog lamp 10A SY SJ C. frost relay SY SJ
Right large lamp 10A (SY diesel) charging relay (SY diesel)
6. Small lamp 10A SY SJ D. blower relay SY SJ
Air-conditioner 10A (SY diesel) thermostatic relay (SY diesel)
7. Electric horn 10A SY SJ E. small lamp relay SY SJ
Warm air 20A (SY diesel) heating relay (SY diesel)
8. ECM 10A SY SJ rear defrost relay SJ
Unload (SY diesel) F. large lamp SY SJ
9. Fuel pump 10A SY SJ H. rain-brusher intermissive relay SY SJ
Charging 10A (SY DIESEL) I. diode SY SJ
10. Air blower 30A SY SJ
Electric horn 10A (SY diesel)
11. Electronic fan 10A SY SJ
Dual flasher 10A (SY diesel)
12. Right large lamp 10A SY SJ
Rear fog lamp 10A (SY diesel)
13. Left large lamp 10A SY SJ
Front fog lamp 10A (SY diesel)
14. 60A fuse SY SJ
15. 60A fuse SY SJ
16. 30A fuse SY SJ
17. 30A fuse SY SJ
Unload (SY diesel)
Protective box II (continued)
Body Electric System
Protective Box Position and Content
12 3 4
17
1614
15
IH
G
EF CD A
B 5 6 7 8 9 1011 1213
SY SJ

BE-32Body Electric System
Combination Instrument
Combination instrument

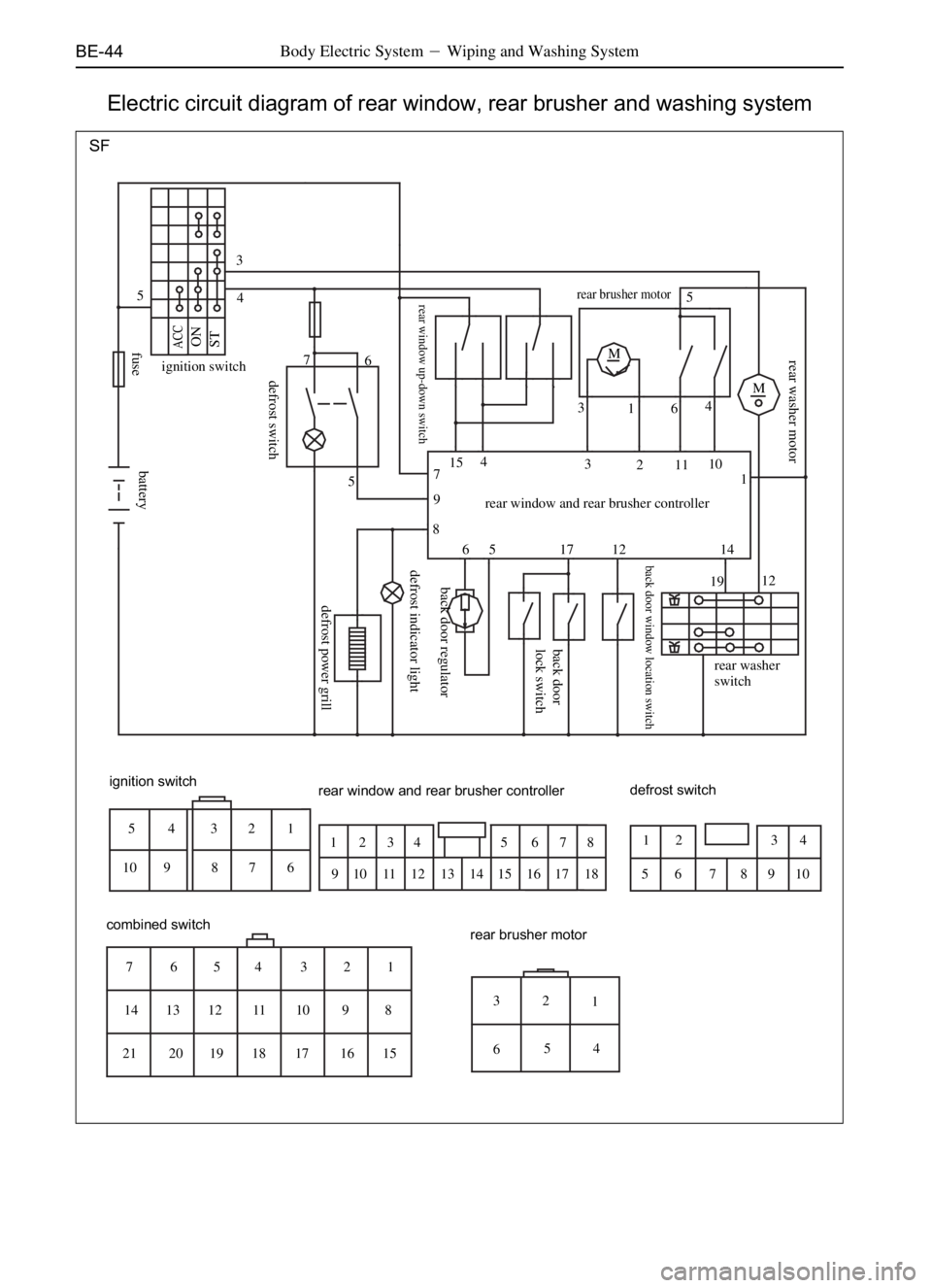

Electric circuit diagram





^N ^NS _N _ N P
DraêaáÉëÉärear fog lamp indicating lamp
rear window/defroster indicating lamp
upper beam indicating lamp
front fog-lamp indicating lamp
A13
B3

connected
with
negative
pole
A10
connected
with
positive
pole
A2
connected
with
negative
polewater
thermometer
tachometer
speedometerconnected with sensor
connected with revolution signal
connected with sensor anode
connected with sensor
fuel gauge
connected with sensor
braking liquid level indicating lamp
parking brake indicating lamp
safety airbag indicating lamp
low oil pressure indicating lamp
engine failure indicating lamp
four wheel drive indicating lamp
generator preheating indicating lamp
fuel alarming indicating lamp
accumulator charging indicating lamp
ABS failure indicating lamp
left turn indicating lamp
right turn indicating lamp
instrument interior
lighting lamp
liquid crystal back-light lamp
A1A16 B1 A5 A6A7 A8 A9 B6 B8 B9B10 B11A12 B4
A15
A14
A10
connected
with
positive
pole
A3
A4
B12
B13
B5
A13
B3

connected
with
negative
pole
A10
connected
with
positive
pole
A2
connected
with
negative
pole
liquid crystal back-light lampinstrument interior
lighting lamp
rear fog lamp indicating lamp
upper beam indicating lamp
front fog-lamp indicating lamp
water
thermometer
tachometer
speedometer
fuel gaugeconnection with sensor
connected with revolution signal
connected with sensor anode
connected with sensor
connected with sensor
oil-water separation indicating lamp
safety belt indicating lamp
parking brake indicating lamp
braking liquid level indicating lamp
low oil pressure indicating lamp
engine failure indicating lamp
four wheel drive indicating lamp
generator preheating indicating lamp
fuel alarming indicating lamp
accumulator charging indicating lamp
ABS failure indicating lamp
left turn indicating lamp
right turn indicating lamp
A1 A16 B1
A5 A6 A7A8
A9 B6 B8
B9 B10
B11 A4A12 A14 A15B4
A10
connected
with
positive
pole
A3
B12
B13
B5

BE-33Body Electric System
Combination Instrument
Electric circuit diagram (continued)
SF
A3 connected
with negative pole
A1 connected
with positive pole
B8 connected
with negative
pole
B7connected
with positive
pole
A4 connecting
with lighting
switch
A6 connected
with negative
pole
pressure-regulating
potential deviceirect-current
power supply
5-9Vdrive power
supply
110VEL
luminous
plate
left turn indicating lamp
right turn indicating lamp
upper beam indicating lamp
rear fog lamp indicating lamp
rear window/defroster indicating lamp
front fog-lamp indicating lamp
water
thermometer
tachometer
connected with sensor
connected with revolution signal
speedometer
digital clock
fuel gaugeconnect to the cathode of sensor
connected with sensor anode
connected with sensor
connected with sensor
back door indicating lamp
parking brake indicating lamp
safety airbag indicating lamp
low oil pressure indicating lamp
engine failure indicating lamp
four wheel drive indicating lamp
generator preheating indicating lamp
fuel alarming indicating lamp
accumulator charging indicating lamp
ABS failure indicating lamp75
B9
B2 A15 B1 A9 B11 B10
A14 B4 B6 A12
B14 connected
with positive
pole
B7 connected
with positive
pole
A11 A5A7 B12B5 B13 A16A13 B16 B15
A2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
In this drawing, A stands for the white plugging
elements, B for black plugging elements, they
use the same numerical order.
instrument
plugging element

BE-44Body Electric System
Wiping and Washing System
Electric circuit diagram of rear window, rear brusher and washing system
SF
ignition switch 5
4 3
7
6
5M
M
rear brusher motor5
3
6 14
rear washer
switch 1912 7
9
8
65 154
3
21110
1
14 12 17 rear window and rear brusher controller
ignition switch
rear window and rear brusher controllerdefrost switch
combined switch
rear brusher motor
3
62
4 1
5 1 2 3 4 5 6 7
8 9 10 11 12 13 14
15 16 17 18 19 20 211 2 3 4 5
6 7 8 9 101234 5 678
910 1112 1314151617 1812 34
5 6 7 8910
battery defrost switch
fuse
rear window up-down switch
rear washer motor
back door window location switch
back door
lock switch
back door regulator
defrost indicator light
defrost power grill
ACCON
ST
