The f luid should be between the
MIN and MAX marks on the side of
the reservoir. If it is not, add brake
f luid to bring it up to that level. Use
the same f luid specif ied f or the
brake system.
Low f luid level can indicate a leak in
the clutch system. Have this system
inspected as soon as possible.You should check the f luid level in
the power steering reservoir
monthly. Check the level when the
engine is cold. Look at the side of
the reservoir. The f luid should be
between the UPPER LEVEL and
LOWER LEVEL. If it is below the
LOWER LEVEL, add power steering
f luid to the UPPER LEVEL.
Power Steering
Clutch System
Brake and Clutch Fluid, Power Steering
Maint enance
252
UUPPPPEERRLLEEVVEELL
LLOOWWEERRLLEEVVEELL
MMAAXX
MMIINN
MMAAXX
MMIINN44--ccyylliinnddeerrmmooddeellss66--ccyylliinnddeerrmmooddeellss

The air cleaner element should be
cleaned or replaced according to the
time and distance recommendations
in the maintenance schedule.
Clean the air cleaner element by
blowing compressed air through it in
the opposite direction to normal air
f low. If you do not have access to
compressed air (such as a service
station), ask your Honda dealer to do
this service.
Follow the replacement procedure
for removal and reinstallation.
Always use Genuine Honda Power
Steering Fluid. If it is not available,
you may use another power steering
f luid as an emergency replacement.
However, continued use can cause
increased wear and poor steering in
cold weather. Have the power
steering system f lushed and ref illed
with Honda PSF as soon as possible.
A low power steering f luid level can
indicate a leak in the system. Check
the f luid level f requently and have
the system inspected as soon as
possible.
Cleaning (Severe Conditions)
A ir Cleaner Element
Power Steering, A ir Cleaner Element
Maint enance
253
UUPPPPEERRLLEEVVEELL
66--ccyylliinnddeerrmmooddeellssLLOOWWEERRLLEEVVEELL
T urning the steering wheel to f ull lef t
or right lock and holding it there can
damage the power steering pump.

The air cleaner element is inside the
air cleaner housing on the passenger’s
side of the engine compartment.
To replace it:Unsnap the f our hold-down clamps
and remove the air cleaner
housing cover.
Remove the old air cleaner
element.
Caref ully clean the inside of the
air cleaner housing with a damp
rag.Place the new air cleaner element
in the air cleaner housing.
Reinstall the air cleaner housing
cover, snap the four hold-down
clamps back into place.
1. 3. 4. 5.
2.
Replacement
A ir Cleaner Element (4-cylinder Models)
Maint enance
254
AAIIRRCCLLEEAANNEERREELLEEMMEENNTT
CCLLAAMMPPSS

Place the new air cleaner element
in the air cleaner housing.
Loosen the f our bolts and remove
the air cleaner housing cover.
Remove the old air cleaner
element. Reinstall the air cleaner housing
cover, tighten the four bolts.
To replace it:
The air cleaner element is inside the
air cleaner housing on the driver’s
side of the engine compartment.
Caref ully clean the inside of the
air cleaner housing with a damp
rag.
1. 3.
4. 5.
2.
Replacement
A ir Cleaner Element (6-cylinder Models)
Maint enance
255
AAIIRRCCLLEEAANNEERREELLEEMMEENNTT
BBOOLLTTSS

Clean up any dirt and oil around
the spark plug caps.
Remove the spark plug cap by
pulling it straight out.
Remove the spark plug with
a f ive-eighths inch (16 mm) spark
plug socket.
The spark plugs in your car should
be replaced according to the time
and distance recommendations in
the maintenance schedule.
Clean the hood latch assembly with a
mild cleaner, then lubricate it with a
multipurpose grease. Lubricate all
the moving parts, including the pivot.
Follow the time and distance
recommendations in the
Maintenance Schedule. If you are
not sure how to clean and grease the
latch, contact your Honda dealer. 1. 2.3.
ReplacementSpark Plugs
Hood L atch
Hood L atch, Spark Plugs (4-cylinder Models)
Maint enance
256
SSPPAARRKKPPLLUUGGCCAAPPLLAATTCCHHAASSSSEEMMBBLLYY

´ µ
Spark Plug Gap: Install the spark plug cap.
Repeat this procedure f or the
other three spark plugs.
Torque the spark plug. (If you do
not have a torque wrench, tighten
the spark plug two-thirds of a turn
af ter it contacts the cylinder head.)
Tightening torque:
Put the new spark plug into the
socket; then screw it into the hole.
Screw it in by hand so you do not
crossthread it.
5. 6. 7.
NGK:
DENSO:
4.
Specif ications:
Spark Plugs (4-cylinder Models)
Maint enance
257
PZFR5F-11PKJ16CR-L11
0.04 in (1.1 mm)
13 lbf·ft (18 N·m , 1.8 kgf·m) 0
0.1 mm
Tighten the spark plugs caref ully. A
spark plug that is too loose can
overheat and damage the engine.
Overtightening can cause damage to
the threads in the cylinder head.

The spark plugs in your car should
be replaced according to the time
and distance recommendations in
the maintenance schedule.Loosen the two holding clips by
turning the heads one-quarter turn
counterclockwise with a f lat-tipped
screwdriver. Remove the cover on
the f ront cylinder bank by pulling
it straight up. Disconnect the wire connector
f rom the ignition coil by pushing
on the lock tab and pulling on the
connector. Pull on the plastic
connector, not the wires.
Remove the spark plug with
a f ive-eighths inch (16 mm) spark
plug socket.
Use a wrench to remove the
hexagonsocketheadcapbolt
holding the ignition coil. Remove
the ignition coil by pulling it
straight out.
Clean up any dirt and oil that have
collected around the ignition coils.
1. 2. 3.
4. 5.
Replacement
Spark Plugs (6-cylinder Models)
Maint enance
258
HHOOLLDDIINNGGCCLLIIPP
HHEEXXAAGGOONNSSOOCCKKEETTHHEEAADDCCAAPPBBOOLLTT

´ µ
Torque the spark plug. (If you do
not have a torque wrench, tighten
the spark plug two-thirds of a turn
af ter it contacts the cylinder head.)
Tightening torque:
Put the new spark plug into the
socket; then screw it into the hole.
Screw it in by hand so you do not
crossthread it.
Install the ignition coil. Reinstall
the hexagon socket head cap bolt.Push the wire connector onto the
ignition coil. Make sure it locks in
place.
Spark Plug Gap: Reinstall the cover on the front
cylinder bank while putting its
mounting clip in the hole on the
passenger’s side. Secure the cover
by turning the heads of the two
holding clips one-quarter turn
clockwise with a f lat-tipped
screwdriver.
Repeat this procedure f or the
other f ive spark plugs.
NGK:
DENSO:
6. 7.
8.9.
10. 11.
Specif ications:
Spark Plugs (6-cylinder Models)
Maint enance 259
13 lbf·ft (18 N·m , 1.8 kgf·m)
0.04 in (1.1 mm)PKJ16CR-L11
PZFR5F-11
0
0.1 mm
Tighten the spark plugs caref ully. A
spark plug that is too loose can
overheat and damage the engine.
Overtightening can cause damage to
the threads in the cylinder head.

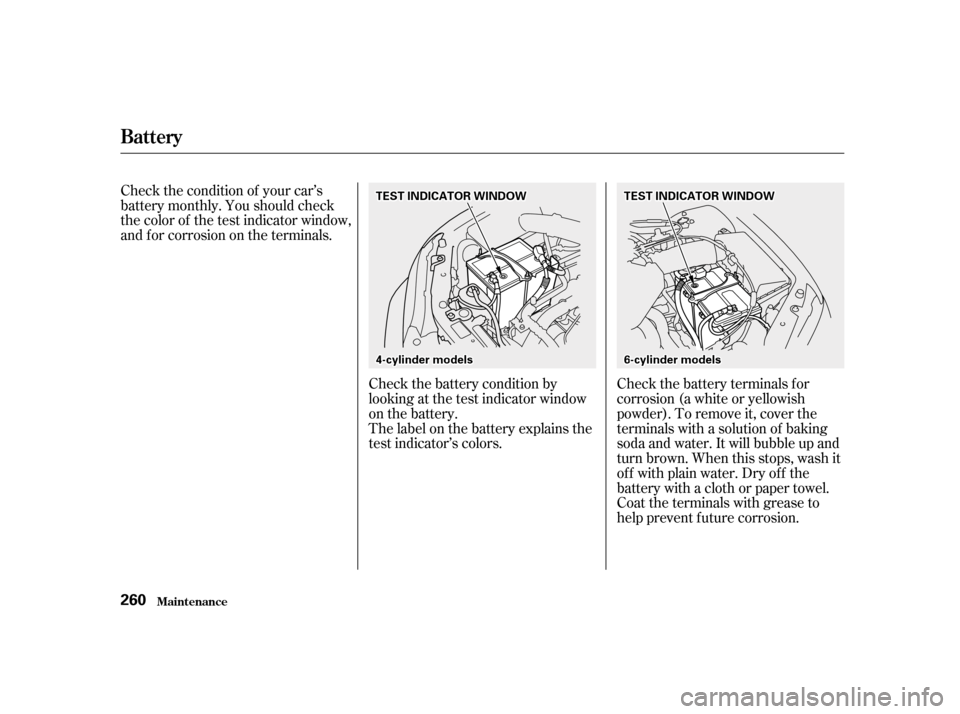

Check the battery condition by
looking at the test indicator window
on the battery.
The label on the battery explains the
test indicator’s colors.Check the battery terminals for
corrosion (a white or yellowish
powder). To remove it, cover the
terminals with a solution of baking
soda and water. It will bubble up and
turn brown. When this stops, wash it
of f with plain water. Dry of f the
battery with a cloth or paper towel.
Coat the terminals with grease to
help prevent f uture corrosion.
Check the condition of your car’s
battery monthly. You should check
the color of the test indicator window,
and f or corrosion on the terminals.
Battery
Maint enance
260
TTEESSTTIINNDDIICCAATTOORRWWIINNDDOOWW
44--ccyylliinnddeerrmmooddeellss
TTEESSTTIINNDDIICCAATTOORRWWIINNDDOOWW
66--ccyylliinnddeerrmmooddeellss

µIf you need to connect the battery to
a charger, disconnect both cables to
prevent damage to the car’s
electrical system.

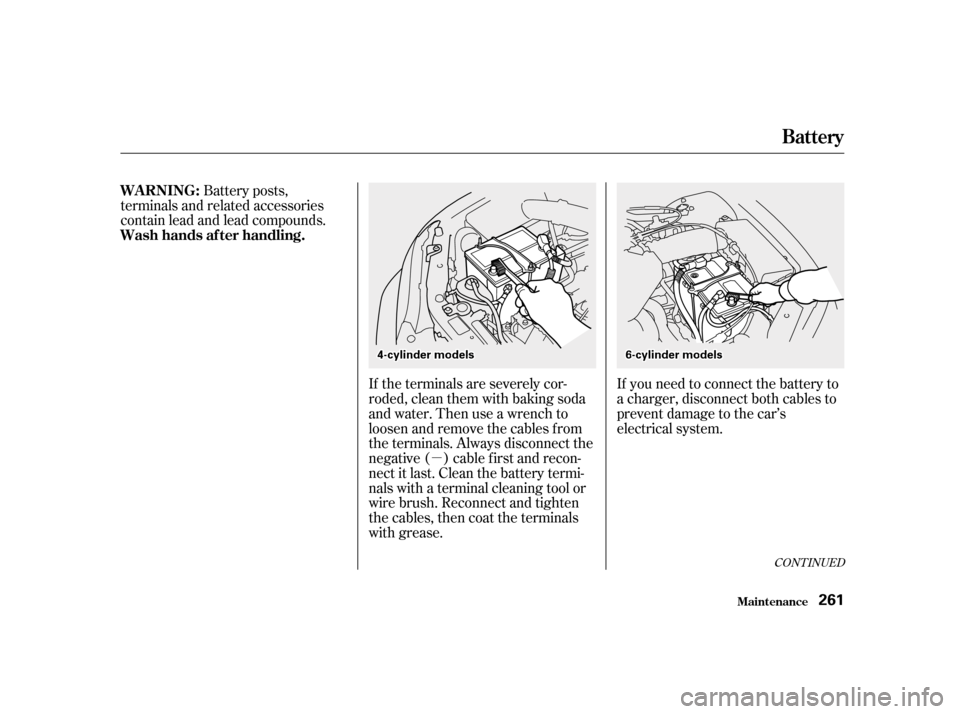

If the terminals are severely cor-
roded, clean them with baking soda
and water. Then use a wrench to
loosen and remove the cables f rom
the terminals. Always disconnect the
negative ( ) cable f irst and recon-
nect it last. Clean the battery termi-
nals with a terminal cleaning tool or
wire brush. Reconnect and tighten
the cables, then coat the terminals
with grease.
Battery posts,
terminals and related accessories
contain lead and lead compounds.
CONT INUED
Battery
Maint enance
WARNING:
Wash hands af ter handling.
261
44--ccyylliinnddeerrmmooddeellss66--ccyylliinnddeerrmmooddeellss
