Page 314 of 355

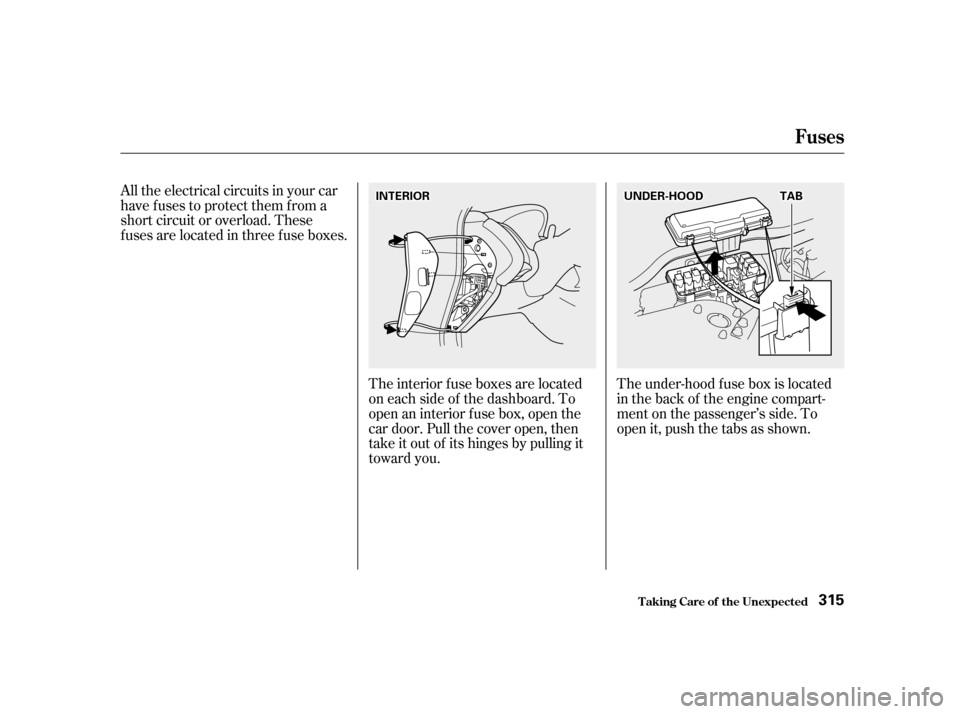

The under-hood f use box is located
in the back of the engine compart-
ment on the passenger’s side. To
open it, push the tabs as shown.
All the electrical circuits in your car
have fuses to protect them from a
short circuit or overload. These
f uses are located in three f use boxes.
Theinteriorfuseboxesarelocated
on each side of the dashboard. To
open an interior f use box, open the
car door. Pull the cover open, then
take it out of its hinges by pulling it
toward you.
Fuses
T aking Care of t he Unexpect ed315
IINNTTEERRIIOORRUUNNDDEERR--HHOOOODDTTAABB
Page 315 of 355
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover f rom the f use
box.Check each of the large f uses in
the under-hood f use box by
looking through the top at the wire
inside. Removing these f uses
requires a Phillips-head screw-
driver.
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each f use with the f use
puller provided in the under-hood
fuse box.
If something electrical in your car
stops working, the f irst thing you
should check f or is a blown f use.
Determine f rom the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that component. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
not the cause. Replace any blown
f uses and check the component’s
operation. 3.
1. 2. 4.
318 319
Checking and Replacing Fuses
Fuses
T aking Care of t he Unexpect ed
316
BBLLOOWWNN
FFUUSSEEPPUULLLLEERR
Page 317 of 355
µµ
No.
No.
Amps. Amps. Circuits Protected
Circuits Protected
1 23456789
1011 12131415161718192021
20 A
(7.5A) 20 A
20 A
20 A
15 A
30 A
15 A
100 A 20 A 40 A
40 A
40 A
20 A
40 A
40 A
20 A
20 A
50 A
Back Up, ACC
Power Window Motor
Spare Fuse
Power Seat
BSC
Heater Motor
Rear Defroster
Heated Seat
Condenser Fan
IG1 Main
Lef t Headlight
(DIMMER RELAY)
Right Headlight
ABS F/S
Stop
ACG
ABS Motor
Hazard
Spare Fuse
Battery
Cooling Fan
Fuses
T aking Care of t he Unexpect ed
318
UNDER-HOOD FUSE BOX
Page 318 of 355
ÎÎ
Î
Î
On Canadian models
1 23456 7 89
10111213 15 A
10 A
7.5 A
7.5 A
7.5 A 15 A
7.5 A
7.5 A
7.5 A
7.5 A 15 A
30 A
7.5 A IG1 Fuel Pump
IG1 SRS
IG2 HAC
R/C Mirror
IG2 Day Light
ECU (ECM/PCM), Cruise
Control
IG1 Moonroof , Washer
ACC
Instrument Panel, Back-up
Lights
IG1 Turn Signals
IG1 Coil
IG1 Wiper
STS Moonroof
Driver Power Seat Recline
Assistant Power Seat
Recline
Driver Power Seat Slide
Assistant Power Seat Slide
Daytime Running Light
Rear Lef t Power Window
Front Right Power Window
Radio, Cigarette Lighter
Small Lights
Interior Light, Courtesy
Lights
Power Door Locks
Clock
ABS Motor Check
Front Lef t Power Window
Rear Right Power Window
On Canadian models
123 4 56789
1011 12 13141516 30 A
20 A
20 A
20 A
20 A
10 A
20 A
20 A
20 A
10 A
7.5 A
20 A
7.5 A
7.5 A 20 A
20 A
No. Amps. Circuits Protected
Circuits Protected
No. Amps.
Fuses
T aking Care of t he Unexpect ed 319

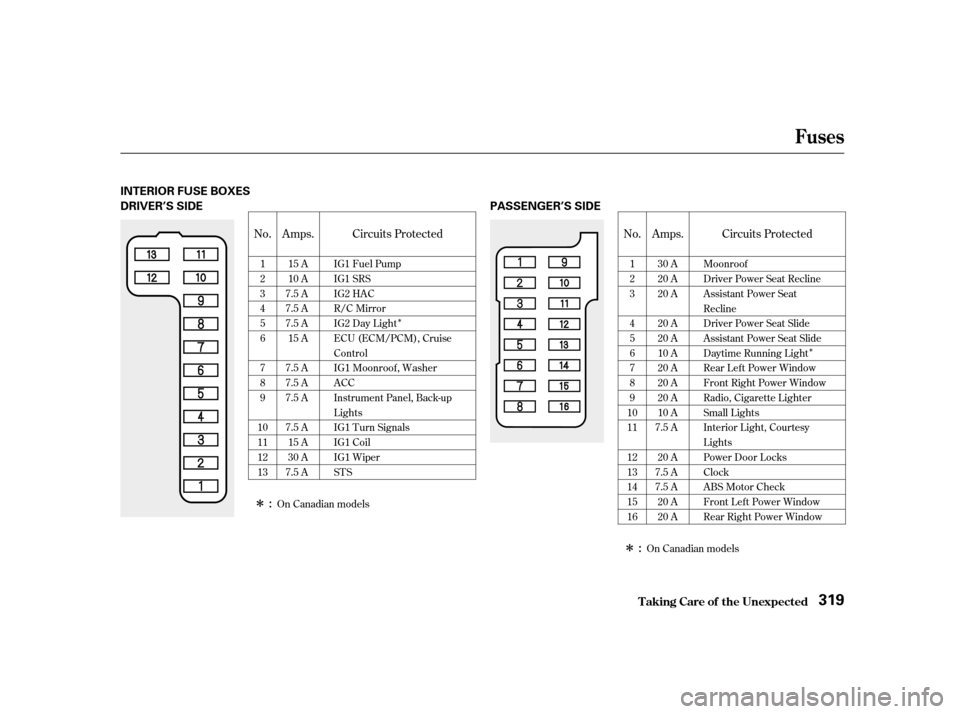

INTERIOR FUSE BOXES
:
DRIVER’S SIDE
PASSENGER’S SIDE
:
Page 326 of 355
µ
µ µµ µ µµµµµµµµµµ µ µ
ÎÎÎ Î
Î
ÎÎÎ
CONT INUED
Specif ications
T echnical Inf ormation 327
Lights Battery
Fuses
Alignment
Engine
3.39 x 3.82 in (86.0 x 97.0 mm)137.5 cu-in (2,254 cm
)
12 V 60 W (HB3)
12 V 51 W (HB4)
12 V 24/2.2 CP
12 V 3 CP
12 V 21 W
12 V 21/5 W
12 V 3 CP
12 V 21 W
12 V 21 W
12 V
12 V
12 V
12 V
12 V
3CP7W5W
2CP
1.8 W
12 V
12 V 52 AH/5 HR
55 AH/5 HR
3°00’0°30’0°
0.08 in (2.0 mm)
0.00 in (0.0 mm)
3.39 x 3.39 in (86.0 x 86.0 mm)
182.8 cu-in (2,997 cm)
8.8 : 1
9.3 : 1
9.4 : 1
Headlights
Front turn signal/Side marker
lights
Front parking lights
Rear turn signal lights
Stop/Taillights
Taillight
High-mount brake light
Back-up lights
License plate lights
Ceiling light
Trunk lights
Door courtesy lights
Vanity mirror light
Capacity
Interior
Under-hood
Toe-in
CamberCaster
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Water cooled 4-stroke SOHC,
SOHC VTEC 4-cylinder, SOHC
6-cylinder (V6), gasoline engine
See page 321 or the fuse label
attached to the inside of the fuse
box door on each side of the
dashboard.
See page 320 or the fuse box
cover. See spark plug maintenance sec-
tion pages 257 and 259 .
FrontRear
FrontRear
Front
HighLow
1: DX
2: LX,EX
3 : 6-cylinder models
4-cylinder
6-cylinder 3
3
123
