HONDA ACCORD 2003 CL7 / 7.G Owners Manual

µ
µµ The SCAN function
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan up
the band for a station with a strong
signal. When it f inds one, it will stop
and play that station for
approximately f ive seconds. If you do
nothing, the system will then scan
f or the next strong station and play
that f or f ive seconds. When it plays a
station that you want to continue
listening to, press the SCAN button
again.
Use the TUNE bar to tune
the radio to a desired f requency.
Press the side of the bar to tune
to a higher f requency, and the side to tune to a lower
f requency. The f requency numbers
will start to change rapidly. Release
the bar when the display reaches the
desired f requency. To change the
f requency in small increments, press
and release the TUNE bar quickly. The SEEK f unction
searches the band for a station with
a strong signal. To activate it, press
theSEEKbaroneitherthe or , then release it. Depending on
which side you press, the system
scans upward or downward f rom the
current f requency. It stops when it
finds a station with a strong signal.
CONT INUED
SCAN
T UNE SEEK
Audio System
Comf ort and Convenience Feat ures135
——y
y
(y
y

µµ
µ
To store a f requency:
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station. You can store the
f requencies of your f avorite radio
stations in the three preset bars.
Each side of the bars (1 6) will
store one f requency on the AM band,
and two f requencies on the FM band.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
bar.
Pick the preset number (1 6)
you want for that station. Press
the left or right side of the bar and
hold it until you hear a beep. Once a station’s f requency is stored,
simply press and release the lef t or
right side of the proper preset bar to
tune to it.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM. The preset f requencies will be lost if
your car’s battery goes dead, is
disconnected, or the radio f use is
removed.
1. 2. 3. 4.
Preset
Audio System
Comf ort and Convenience Feat ures136
A. SEL BUTTON
TUNE BAR
SCAN BUTTON
PRESET BARS
AM/FM
BUTTON
SEEK/SKIP
BAR
PWR/VOL KNOB
——y

y
(y
y

µµ
If you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.
Auto Select does not erase the
f requencies that you set previously.
When you return home, turn of f
Auto Select by pressing the A. SEL
button. The preset bars will then
select the f requencies you originally
set.
To activate Auto Select, press the
A. SEL button. A. SEL will f lash in
the display, and the system will go
into scan mode f or several seconds.
It automatically scans both bands,
looking f or stations with strong
signals. It stores the f requencies of
six AM stations and twelve FM
stations in the preset bars (1 6).
You can then use the preset bars to
select those stations.
If you are in a remote area, Auto
Select may not f ind six strong AM
stations or twelve strong FM stations.
If this happens, you will see a ‘‘0’’
displayed when you press the lef t or
right side of any preset bar that does
not have a station stored.
If you do not like the stations Auto
Select has stored, you can store
other f requencies in the preset bars.
UsetheTUNE,SEEK,orSCAN
function to find the desired
f requencies, then store them in the
selected preset bars as described
previously.
AUTO SELECT
Audio System
Comf ort and Convenience Feat ures137

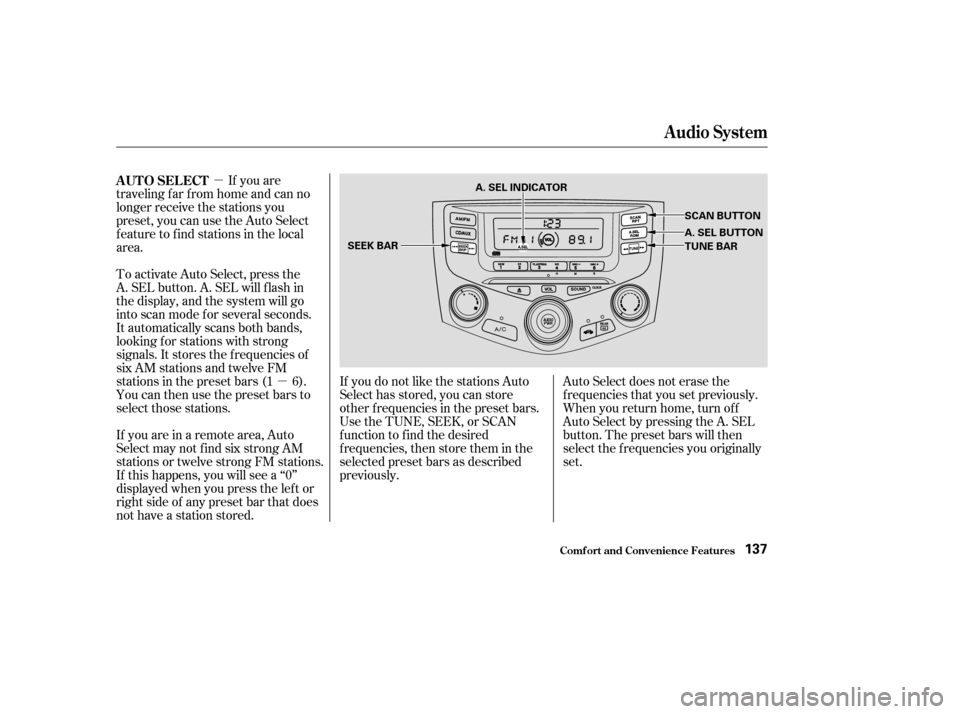

SCAN BUTTON
A. SEL BUTTON
TUNE BAR
A. SEL INDICATOR
SEEK BAR
——y
y
(y
y

µµ
These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength. The system will automatically return
the display to the selected audio
mode af ter you stop adjusting a
mode with the VOLUME knob.
Bass, Treble, Balance, and Fader are
each adjustable. You select which of
these you want to adjust by pressing
the SOUND button. The mode
changes from BAS to TRE to FAD to
BAL,andthenbacktotheselected
audio mode, each time you press the
SOUND button. Each mode is shown
in the display as it changes.
Select BAL or FAD by pressing the
SOUND button. Adjust the Balance
or Fader to your liking by turning
the VOLUME knob.
The displayed number shows you
the current setting.
When the adjustment level reaches
the center, you will see ‘‘ ’’.
Use these modes to
adjust the tone to your liking. Select
TRE or BAS by pressing the SOUND
button. Adjust the desired mode by
turning the VOLUME knob.
The displayed number shows you
the current setting.
When the adjustment level reaches
the center, you will see ‘‘ ’’.
Adjusting the Sound
Balance/Fader
Treble/Bass
Comf ort and Convenience Feat ures
Audio System
138
VOLUME KNOB SOUND BUTTON
——y

y
(y

y

If your car’s battery is disconnected
or goes dead, the time setting will be
lost. To set the time again, f ollow the
setting procedure.
The audio system usually shows the
time when the ignition switch is in
ACCESSORY (I) or ON (II). It
shows the operation mode of the
radio, CD player, or optional CD
changer when you operate them,
then goes back to the time display
af ter three seconds.
You can use the R (Preset 6) side of
the bar to quickly set the time to the
nearest hour. Press the R (Preset 6)
side of the bar while pressing the
SOUND button. If the displayed time
is bef ore the half hour, pressing R
sets the clock back to the previous
hour. If the displayed time is af ter
the half hour, pressing R sets the
clock f orward to the beginning of the
next hour.
To set the time, press and hold the
SOUND button until the audio
system beeps and the clock f lashes.
To set the hours, press and hold the
H (Preset 4) side of the bar until the
numbers advance to the desired time.
To set the minutes, press and hold
the M (Preset 5) side of the bar until
the numbers advance to the desired
time.
When you are f inished, press the
SOUND button again.
For example:
1:06 will reset to 1:00
1:52 will reset to 2:00
Digital Clock
Audio System
Comf ort and Convenience Feat ures139

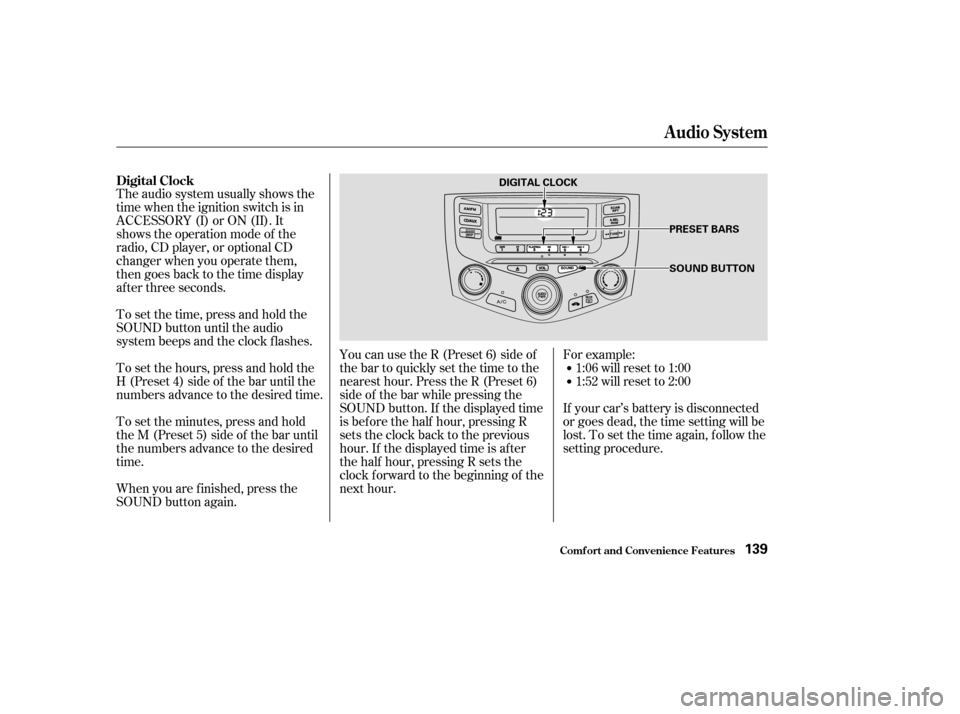

DIGITAL CLOCK
PRESET BARS
SOUND BUTTON
——y
y
(y
y

You can also play 3-inch (8-cm) discs
without using an adapter ring. Play
only standard round discs. Odd-
shaped CDs may jam in the drive or
cause other problems.For best results when using CD-R
discs, use only high quality discs
labeled f or audio use. When
recording a CD-R, the recording
must be closed in order f or the disc
to be used by CD players. CD-RW
discs will not work in this unit.
For inf ormation, see page .
You operate the CD player with the
same controls used f or the radio.
Examine the CD f or any labels or
other contamination on it that could
causeittojaminthedrive.Withthe
ignition switch in ACCESSORY (I)
or ON (II), insert the disc into the
CD slot. Push the disc in half way;
the drive will pull it in the rest of the
way and begin to play. The number
of the track that is playing is shown
in the display.
175
Audio System
Comf ort and Convenience Feat ures
Radio Frequencies and Reception
Operating the CD Player
140

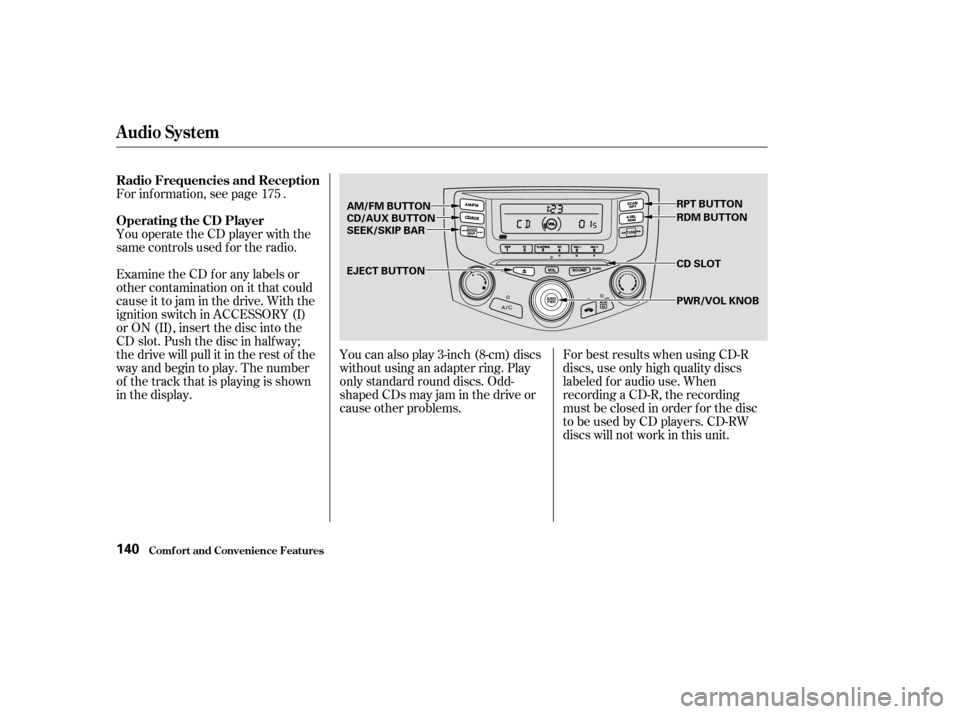

CD SLOT
AM/FM BUTTON
CD/AUX BUTTON
SEEK/SKIP BAR
EJECT BUTTON RPT BUTTON
RDM BUTTON
PWR/VOL KNOB
——y

y
(y
y

You can use the SEEK/SKIP bar
while a disc is playing to select
passages and change tracks.
Press the eject button to remove the
disc f rom the drive.
If you eject the disc, but do not
remove it from the slot, the system
will automatically reload the disc
af ter 15 seconds and put the CD
player in pause mode. To begin
playing the disc, press the CD button.
You can switch to the radio while a
CD is playing by pressing the AM/
FM button. Press the CD button to
return to playing the CD. The CD
will begin playing where it lef t of f .
When the system reaches the end of
the disc, it will return to the begin-
ning and play the disc again.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f . To move rapidly within a track, press
andholdtheSEEK/SKIPbar.Press
the sidetomoveforward.Press
the sidetomovebackward.
Release the bar when the system
reaches the point you want.
Each time you press and release the
side of the SEEK/SKIP bar,
the system skips forward to the
beginning of the next track. Press
and release the side to skip
backward to the beginning of the
current track. Press it again to skip
to the beginning of the previous
track.
CONT INUED
Comf ort and Convenience Feat ures
Audio System
141
——y

y
(y
y

µµ µ
´
To activate the Repeat
f eature, press and release the RPT
button. You will see RPT in the
display. The system continuously
replays the current track. Press the
RPT button again to turn it off. A Compact Disc changer is available
foryourcar.Itholdsuptosixdiscs,
providing several hours of
continuous entertainment. You
operate this CD changer with the
same controls used f or the in-dash
CD player.
Load the desired CDs in the
magazine and load the magazine in
the changer according to the
instructions that came with the unit.
Play only standard round discs. Odd-
shaped CDs may jam in the drive or
cause other problems.To select the CD changer, press the
CD button. The disc and track
numbers will be displayed.
For best results when using CD-R
discs, use only high quality discs
labeled f or audio use. When
recording a CD-R, the recording
must be closed in order f or the disc
to be used by CD players. CD-RW
discs will not work in this unit.
This feature,
when activated, plays the tracks on
the CD in random order, rather than
in the order they are recorded on the
CD. To activate Random Play, press
and release the RDM button. You
will see RDM in the display. The
system will then select and play
tracks randomly. This continues
until you deactivate Random Play by
pressing RDM again. To select a dif f erent disc, use the
Preset 5 (DISC ) side or Preset 6
(DISC ) side of the preset bar.
Press the Preset 6 side to select the
next disc in the magazine. Press the
Preset 5 side of the bar to select the
previous disc. If you select an empty
slot in the magazine, the changer will,
after finding that slot empty, try to
load the CD in the next slot. This
continues until it f inds a CD to load
and play.
For inf ormation on how to handle
and protect compact discs, see page .
186
Audio System
Comf ort and Convenience Feat ures
REPEA T Operating the CD Changer
(Optional)
RANDOM PLAY
Protecting Compact Discs
142
——y

y
(y
y

When you switch back to CD mode,
the system selects the same unit (in-
dash or changer) that was playing
when you switched out of CD mode.
To use the SKIP, REPEAT, and
RANDOM f unctions, ref er to the in-
dash player operating instructions.
If you load a CD in the in-dash player
while the changer is playing a CD,
the system will stop the changer and
begin playing the in-dash CD. To
select the changer again, press the
CD button. Play will begin where it
left off. Use the CD button to switch
between the player and the changer.
If youejectthediscinthein-dash
CD while it is playing, the system
will automatically switch to the CD
changer and begin play where it lef t
off. If there are no CDs in the
changer, the display will f lash. You
will have to select another mode
(AM or FM) with the button.
Audio System
Comf ort and Convenience Feat ures143
——y

y
(y
y

If you see an error indication in the
display while operating the CD
player,findthecauseinthechartto
the right. If you cannot clear the
error indication, take the car to your
Honda dealer.Indication Cause Solution
FOCUS Error
Mechanical Error
High TemperaturePress the eject button and pull out the disc.
Check if the disc is inserted correctly in the CDplayer.
Make sure the disc is not scratched or damaged.
Press the eject button and pull out the disc.
Check the disc for damage or deformation.
If the CD cannot be pulled out or the error
indication does not disappear after the disc is
ejected, see your Honda dealer.
Do not try to force the disc out of the player.
Will disappear when the temperature returns to
normal.
CD Player Error Indications
Audio System
Comf ort and Convenience Feat ures144
——y

y
(y
y
