The cassette system f eatures Dolby
noise reduction, automatic sensing of
chromium-dioxide (CrO ) tape, and
auto-reverse f or continuous play.
To operate the cassette player, the
ignition switch must be in
ACCESSORY(I) or ON(II). Make
sure the tape opening on the cassette
is f acing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of
the way, and begin to play.
2
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
CONT INUED
Operating the Cassette Player
(Optional)
Audio System
Comf ort and Convenience Feat ures165

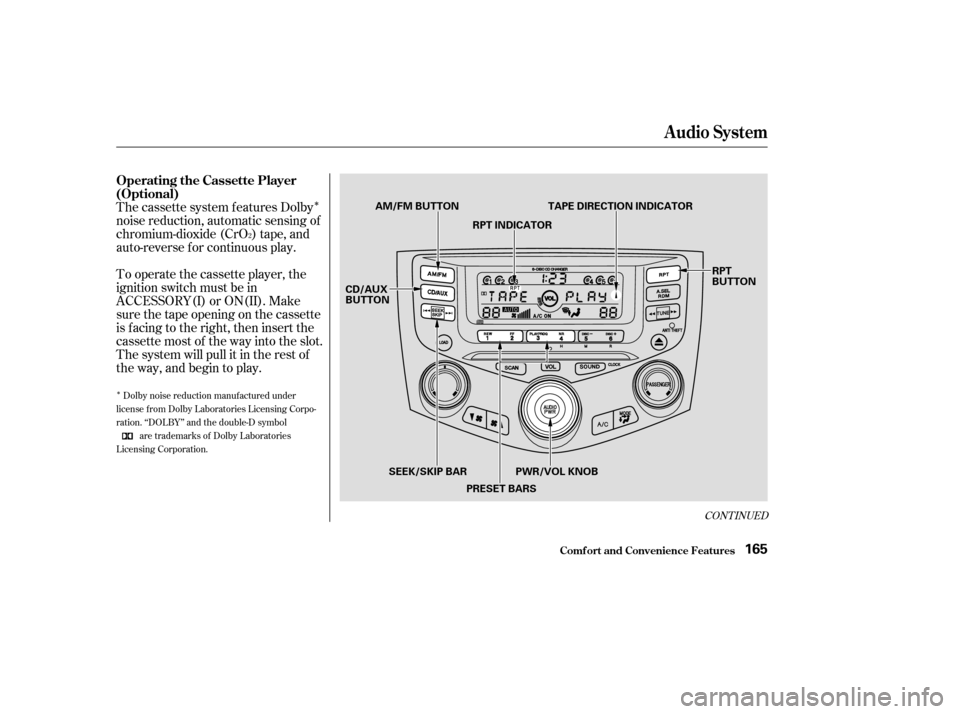

RPT
BUTTON
CD/AUX
BUTTON AM/FM BUTTON TAPE DIRECTION INDICATOR
RPT INDICATOR
PWR/VOL KNOB
SEEK/SKIP BAR
PRESET BARS
——y


y
(y
y

Û
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the Preset 3
(PLAY/PROG) side of the preset
bar. Dolby noise reduction turns on when
you insert a cassette. The indi-
cator will light in the display. If the
tape was not recorded with Dolby
noise reduction, turn it of f by
pressing the Preset 4 (NR) side of
the preset bar.
Noise reduction remains of f until you
turn it on by pressing the button
again.If you turn the system of f while a
tape is playing, either with the PWR/
VOL knob or by turning of f the
ignition, the cassette will remain in
the drive. When you turn the system
back on, the cassette player will be in
pause mode. To begin playing, press
thePreset3(PLAY/PROG)sideof
the preset bar.
When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
from the drive, press the eject button
on the cassette player. To switch to the radio or CD player
while a tape is playing, press the
AM/FM, or CD/AUX button. To
change back to the cassette player,
push the CD/AUX button.
Audio System
Comf ort and Convenience Feat ures166
——y

y
(y
y

µ
µ
With a cassette playing, you can use
the FF, REW, SKIP, or REPEAT
f unction to f ind a desired program. The Skip f unction allows
youtofindthebeginningof asong
or passage. To activate SKIP, press
the SEEK/SKIP bar. Press the side to advance to the
beginning of the next song or
passage, or the side to return to
the beginning of the current song or
passage. FF or REW will f lash in the
display as the tape moves. When the
system reaches the beginning of the
next song or passage (FF), or the
beginning of the current one (REW),
it goes back to PLAY mode.
Fast Forward and Re-
wind move the tape rapidly. To re-
wind the tape, push the Preset 1
(REW) side of the preset bar. You
will see REW in the display. To f ast
f orward the tape, push the Preset 2
(FF) side of the preset bar. You will
see FF displayed. Press the Preset 1,
2, or 3 side of the bars to take the sys-
tem out of rewind or f ast f orward.
When the system reaches the end of
the tape, it reverses direction and
begins to play.
CONT INUED
T ape Search Functions SK IP
FF/REW
Audio System
Comf ort and Convenience Feat ures167
——y
y
(y
y

µThe Repeat f unction
continuously replays the current
song or passage. Press the RPT
button to activate it; you will see RPT
displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind. When
it senses the beginning of the same
song or passage, the system returns
to PLAY mode. It will continue to
repeat this same program until you
deactivate REPEAT by pressing the
button again. The SKIP and REPEAT f unctions
use silent periods on the tape to f ind
the end of a song or passage. These
f eatures may not work to your
satisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of a selection.
Damaged cassettes can jam inside
the drive or cause other problems.
See page for information on
cassette care and protection.
191
REPEA T
Caring f or the Cassette Player
Audio System
Comf ort and Convenience Feat ures168
——y
y
(y

y

The in-dash CD changer holds up to
six discs. You operate the CD
changer with the same controls used
f or the radio. See page f or CD
changer operation.
The anti-thef t f eature will disable the
system if it is disconnected f rom the
car’s battery. To get the system
working again, you must enter a
code number (see page ).
Your Honda’s audio system provides
clear reception on both AM and FM
bands, while the preset icons in the
audio display allow you to easily
select your favorite stations.
193
177
A M/FM/CD Changer
Audio System
With Navigation System
Audio System
Comf ort and Convenience Feat ures169

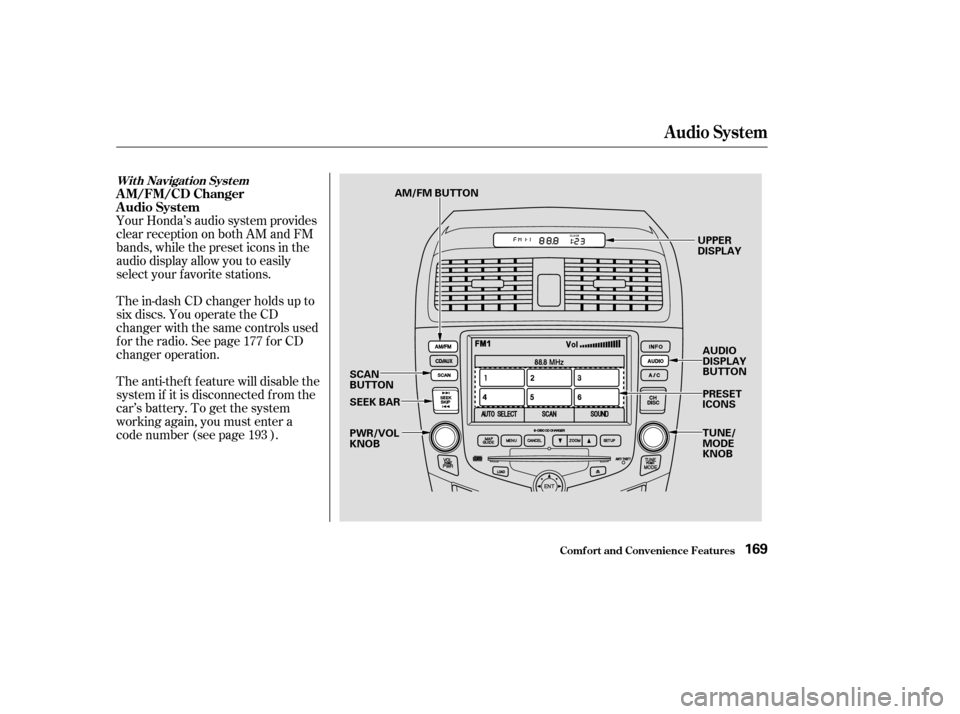

AM/FM BUTTON
TUNE/
MODEKNOB
SEEK BAR
SCAN
BUTTON
PWR/VOL KNOB UPPER
DISPLAY
AUDIO
DISPLAY
BUTTON
PRESET ICONS
——y
y
(y
y

µµ
The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pressing the PWR/
VOL knob, the AM/FM button, or
the AUDIO DISPLAY button. Adjust
the volume by turning the knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
seen in the upper display if the
stationisbroadcastinginstereo.
Stereo reproduction on AM is not
available.
You can use any of f ive methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN, AUTO
SELECT, and the preset icons. Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune to
a higher f requency, or to the lef t to
tune to a lower f requency. The SEEK f unction
searches the band for a station with
a strong signal. To activate it, press
the SEEK bar ( or ), then
release it. Depending on which side
of the SEEK bar you press, the
system scans upward or downward
f rom the current f requency. It stops
when it finds a station with a strong
signal.
Operating the Radio T UNE SEEK
Audio System
Comf ort and Convenience Feat ures170
——y
y
(y
y

µµTo store a f requency:
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station. Repeat steps 2 to 4 to store a total
of six stations on AM and twelve
on FM.
The preset f requencies will be lost if
your car’s battery goes dead, is
disconnected, or the radio f use is
removed.
The SCAN f unction
samples all the stations with strong
signals on the selected band. To
activate it, push and release the
SCAN button on the driver’s side of
the audio display or touch the SCAN
icon at the bottom of the display.
You will see SCAN in the display.
The system will scan up the band for
a station with a strong signal. When
it f inds one, it will stop and play that
station f or approximately f ive
seconds. If you do nothing, the
system will then scan f or the next
strong station and play that for five
seconds. When it plays a station that
you want to continue listening to,
press the SCAN button or touch the
SCAN icon again. Push the AUDIO DISPLAY button
to view the audio display. You will
see the six preset icons.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
icon.
Pick the preset icon you want f or
that station. Touch the icon, and
hold it until you hear a beep.Once a station’s frequency is stored,
simply touch the proper preset icon
to tune to it.
You can store the
f requencies of your f avorite radio
stations in the six preset icons. Each
icon will store one f requency on the
AM band, and two f requencies on
the FM band. 1. 2. 3. 4. 5.
CONT INUED
Audio System
Comf ort and Convenience Feat ures
SCA N Preset
171
——y
y
(y
y

µIf you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.
To activate Auto Select, touch the
Auto Select icon on the display. The
A.SEL indicator will f lash in the
upper display, and the system will go
into scan mode f or several seconds.
It automatically scans both bands,
looking f or stations with strong
signals. It stores the f requencies of
six AM stations and twelve FM
stations in the preset icons. You can
then use the preset icons to select
those stations.
If you are in a remote area, Auto
Select may not f ind six strong AM
stations or twelve strong FM stations.
If this happens, you will not see a
station number on the corresponding
preset icon. If you do not like the stations Auto
Select has stored, you can store
other f requencies in the preset icons.
UsetheTUNE,SEEK,orSCAN
function to find the desired
f requencies, then store them in the
selected preset icons as described
previously.Auto Select does not erase the
f requencies that you preset pre-
viously. When you return home, turn
of f Auto Select by touching the
AUTO SELECT icon. The preset
icons will then select the f requencies
you originally set.
AUTO SELECT
Audio System
Comf ort and Convenience Feat ures172

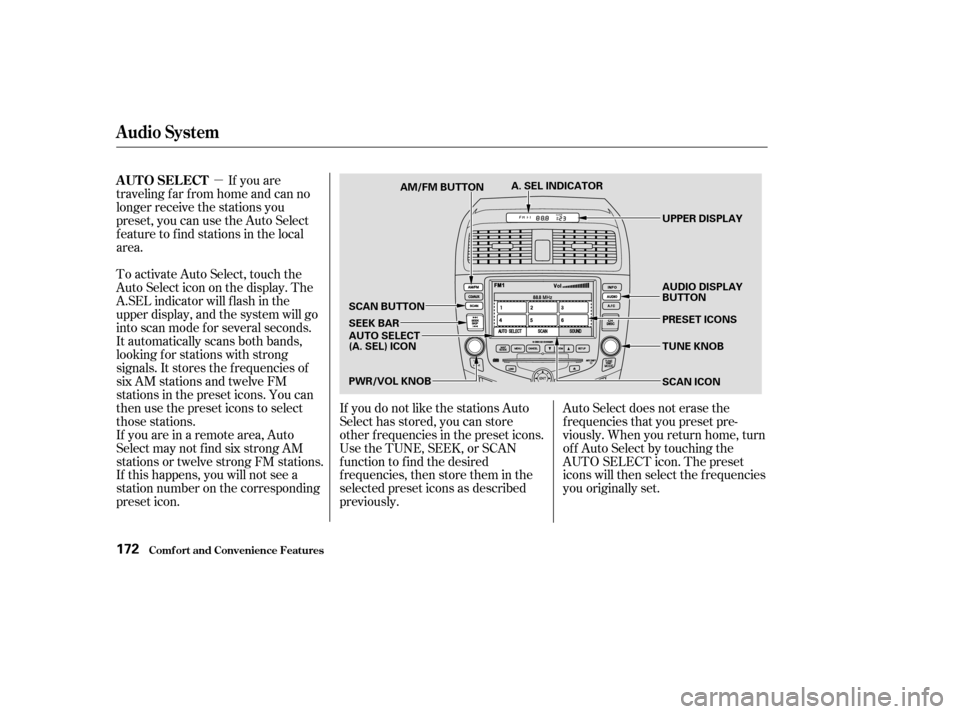

TUNE KNOB
A. SEL INDICATOR
AM/FM BUTTON
SEEK BAR
SCAN BUTTON UPPER DISPLAY
PWR/VOL KNOB
AUTO SELECT
(A. SEL) ICON AUDIO DISPLAY
BUTTON
PRESET ICONS
SCAN ICON
——y

y
(y
y

µµTo adjust the bass
and treble, touch the or arrows next to the BASS or
TRE icons. The adjustment bar
above each button shows you the
current setting.
These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength.
To see the audio screen when you
are f inished adjusting the sound,
touch the RETURN icon or wait five
seconds.
To adjust the balance, touch the left
or right arrows on the sound grid.
When you touch an arrow, the pink
bars on the grid move toward it,
changing the balance left or right. To
equalize the balance, touch the lef t or right arrow until each side has a
pink bar at the center of the sound
grid.
To adjust the fader, touch the front
or rear arrows on the sound grid.
When you touch an arrow, the blue
bars on the grid move toward it,
changing the f ader to the f ront orrear. To equalize the f ader, touch the
f ront or rear arrow until each side
has a blue bar at the center of the
sound grid.
Bass, Treble, Balance, and Fader are
each adjustable. To adjust them,
enter the sound grid by touching the
SOUNDicononthedisplayor
pressing the TUNE knob.
CONT INUED
Adjusting the Sound
Treble/Bass
Balance/Fader
Audio System
Comf ort and Convenience Feat ures173
TUNE/MODE KNOB
AUDIO DISPLAY
BUTTON
SOUND GRID
BASS ADJUSTICONS
TREBLE ADJUSTICONS FADER ADJUSTICONS
BALANCE ADJUST ICONS
RETURN ICON
——y
y
(y
y

If you want to adjust the sound while
the radio/CD is playing, push the
AUDIO DISPLAY button, then touch
the SOUND icon in the display.To return to the previous display,
push the AUDIO DISPLAY button
again.The upper display shows the time
when the ignition switch is in
ACCESSORY (I) or ON (II). Ref er to
the Navigation System Owner’s
Manual to set up the time.
Audio System
Comf ort and Convenience Feat ures

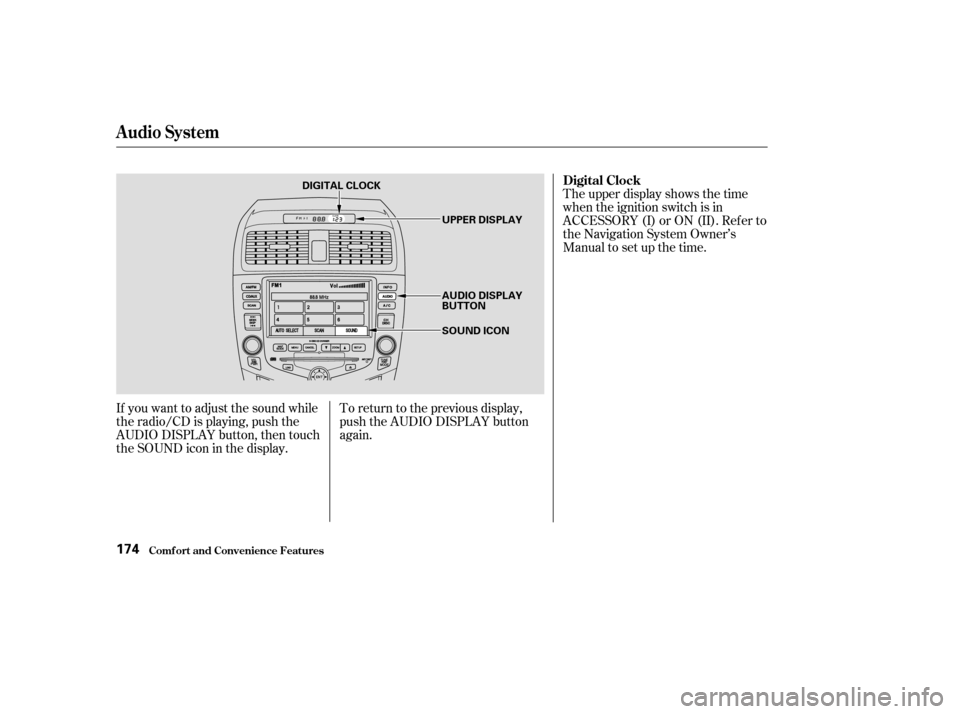

Digital Clock
174
DIGITAL CLOCK
SOUND ICON
AUDIO DISPLAY
BUTTON
UPPER DISPLAY
——y
y
(y
y
