headlights HONDA ACCORD 2005 CL7 / 7.G User Guide

Pull the inner f ender cover away
f rom the f ender and bumper.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
lef t, and turn of f the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Install the new bulb and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the headlights to test the
new bulb.
Reinstall the air intake duct
securely.
Put the inner f ender cover in place.
Install and lock each holding clip
bypushingonthecenter.

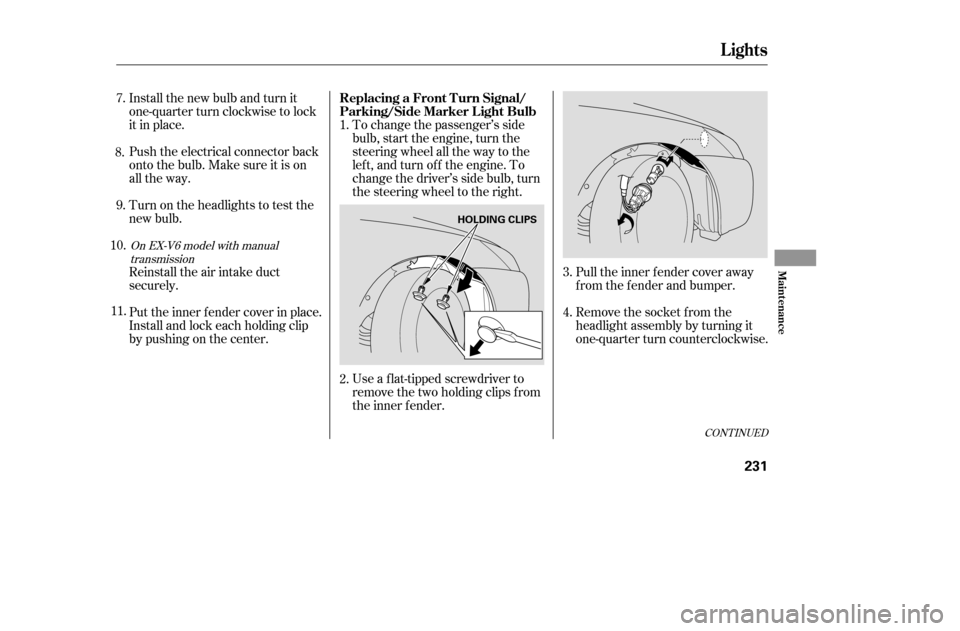

Use a f lat-tipped screwdriver to
remove the two holding clips f rom
the inner f ender.
1.
3.
2. 4.
9.
7.
8.
10. 11.
CONT INUED
On EX-V6 model with manual transmission
Lights
Replacing a Front T urn Signal/
Parking/Side Marker Light Bulb
Maint enance
231
HOLDING CLIPS
——y



y
(%yy

Store the jack in its holder. Turn
the jack’s end bracket to lock it in
place. Replace the cover. Store the
tools.
Store the wheel cover or center
cap in the trunk. Make sure it does
not get scratched or damaged.
Lower the trunk f loor, then close
the trunk lid.Diagnosing why the engine won’t
start f alls into two areas, depending
on what you hear when you turn the
key to START (III):
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
f aster than normal, but the engine
does not start up and run.
When you turn the ignition switch to
START (III), you do not hear the
normal noise of the engine trying to
start. You may hear a clicking sound
or series of clicks, or nothing at all.
Check these things: Check the transmission interlock.
If you have a manual transmission,
the clutch pedal must be pushed
all the way to the f loor or the
starter will not operate. With an
automatic transmission, it must be
in Park or Neutral.
Turn the ignition switch to ON (II).
Turn on the headlights, and check
their brightness. If the headlights
areverydimordonotcomeonat
all, the battery is discharged. See
on page .
Turn the ignition switch to START
(III). If the headlights do not dim,
check the condition of the f uses. If
the f uses are OK, there is
probably something wrong with
the electrical circuit f or the
ignition switch or starter motor.
You will need a qualif ied
technician to determine the
problem (see
on page ).
20.
21. 22. 256
269
If the Engine Won’t Start
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
Emergency T owing
Changing a Flat T ire, If the Engine Won’t Start
254
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
——y



y
(%yy

If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is
discharged or the connections are
corroded. Check the condition of the
battery and terminal connections
(see page ). You can then try
jump starting the vehicle from a
booster battery (see page ).If youfindnothingwrong,youwill
need a qualif ied technician to f ind
the problem. See
on page .
There may be an electrical
problem, such as no power to the
f uel pump. Check all the f uses
(see page ).
Do you have f uel? Check the f uel
gauge; the low f uel indicator may
not be working.
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
In this case, the starter motor’s
speed sounds normal, or even f aster
than normal, when you turn the
ignition switch to START (III), but
the engine does not run.
Are you using the proper starting
procedure? Ref er to on page .
244
256 175 269
264 59
If theEngineWon’tStart
Emergency
Towing
T he Starter Operates Normally
Starting the
Engine
T aking Care of t he Unexpect ed
255
——y


y
(%yy

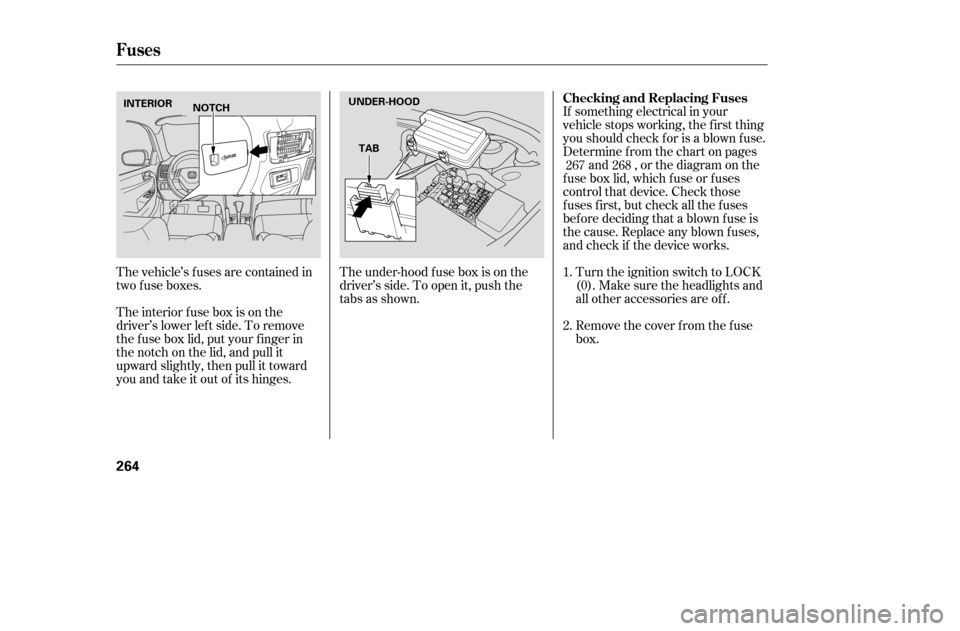

The under-hood f use box is on the
driver’s side. To open it, push the
tabs as shown.If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
and , or the diagram on the
f use box lid, which f use or f uses
control that device. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
the cause. Replace any blown f uses,
and check if the device works.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover f rom the f use
box.
The interior f use box is on the
driver’s lower lef t side. To remove
the f use box lid, put your f inger in
the notch on the lid, and pull it
upward slightly, then pull it toward
you and take it out of its hinges.
The vehicle’s f uses are contained in
two f use boxes.
1. 2.268
267
Checking and Replacing Fuses
Fuses
264
INTERIOR
UNDER-HOOD
TAB
NOTCH
——y


y
(%yy

µ
µ µµ µ µµµµµµµµµ µ µ
ÎÎ
ÎÎÎÎÎÎ
Specif ications (4-cylinder Models)
T echnical Inf ormation
275
Tires
Lights Battery
Fuses Engine
Alignment
12 V
12 V
24/2.2 CP
12 V
12 V
60 W (HB3)
51 W (HB4)
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
21 W
21/5 W
18 W
3CP8W
21 W5W
2CP
1.1 W8W
12 V
12 V 38 AH/5 HR
47 AH/20 HR 3.43 x 3.90 in (87.0 x 99.0 mm)
144 cu-in (2,354 cm
)
9.7 : 1
0.00 in (0.0 mm)
0.08 in (2.0 mm) 0°
1°
3°15’
P205/65R15 92H P205/60R16 91V
T135/90D15 100M
30 psi (210 kPa , 2.1 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm)
29 psi (200 kPa , 2.0 kgf/cm)
30 psi (210 kPa , 2.1 kgf/cm)
60 psi (420 kPa , 4.2 kgf/cm)
Size
Pressure Water cooled 4-stroke i-VTEC
4-cylinder gasoline engine
Headlights
Front turn signal/parking/side
marker lights
Rear turn signal lights
Back-up lights
License plate lights
Ceiling light
High-mount brake light
Trunk light
Door courtesy lights
Vanity mirror lights
Spotlights
Capacity
Interior
Under-hood Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Toe-in
CamberCaster
NGK:
DENSO:
IZFR6K-11SKJ20DR-M11
See page 268 or the fuse label
attached to the inside of the fuse
box lid.
See page 267 or the fuse box
cover. FrontRear
FrontRear
Front
HighLow
1: LX
2: EXFront/Rear
Spare
Front Rear
Spare
Stop/taillight/side marker lights
1 2
1212
——y


y
(%yy

µ
Î Î
µµµ µ µµµµµµµµµ µ µ
ÎÎ
ÎÎ
ÎÎ
Specif ications (6-cylinder Models)
T echnical Inf ormation
277
Lights Battery
Fuses Engine
Alignment
Tires
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V 63 W (HB3)
51 W (HB4)
24/2.2 CP
21 W
21/5 W
18 W
3CP8W
21 W5W
2CP
1.1 W8W
52 AH/5 HR
65 AH/20 HR
3.39 x 3.39 in (86.0 x 86.0 mm)
183 cu-in (2,997 cm
)
10.0 : 1
0.00 in (0.0 mm)
0.08 in (2.0 mm) 0°1°
3°15’
P215/50R17 93V
P205/60R16 91V
T135/90D15 100M
32 psi (220 kPa , 2.2 kgf/cm
)
T135/80R16 101M
60 psi (420 kPa , 4.2 kgf/cm
)
29 psi (200 kPa , 2.0 kgf/cm)
30 psi (210 kPa , 2.1 kgf/cm)
Headlights
Front turn signal/parking/side
marker lights
Rear turn signal lights
Back-up lights
License plate lights
Ceiling light
High-mount brake light
Trunk light
Door courtesy lights
Vanity mirror lights
Spotlights
Capacity
Interior
Under-hood Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Water cooled 4-stroke
SOHC VTEC
6-cylinder gasoline engine
Toe-in
CamberCaster Size
Pressure NGK:
DENSO:
IZFR6K-11SKJ20DR-M11
See page 268 or the fuse label
attached to the inside of the fuse
box lid.
See page 267 or the fuse box
cover. FrontRear
FrontRear
Front
HighLow
1:2:LX-V6, EX-V6 with automatic transmission
EX-V6 with manual transmission Front/Rear
Spare
Front Rear
Spare
Stop/taillight/side marker lights
1 2
12
12
——y

y
(%yy

CONT INUED
BatteryCharging System ...........................
Indicator . 56, 260
............................
Jump Starting . 256
..............................
Maintenance . 244
....................
Specif ications . 275, 277
..............................
Bef ore Driving . 159
....................................
Belts,Seat .8,17
...........................
Beverage Holders . 96 ..................................
Booster Seats . 46
Brakes
...........
Anti-lock System (ABS) . 185
.............
Break-in, New Linings . 160
....................
Bulb Replacement . 232
...........................................
Fluid . 225
.........................................
Parking . 94
..........................
System Design . 184
.................
System Indicator . 57, 262
........................
Wear Indicators . 184
.............................
Braking System . 184
.................
Break-in, New Vehicle . 160
..
Brightness Control, Instruments . 70
........................
Brights, Headlights . 68
Bulb Replacement
..........................
Back-up Lights . 232
..............................
Brake Lights . 232
................
Front Parking Lights . 231
.................................
Headlights . 228
.........
High-mount Brake Light . 233
....................
Specif ications . 275, 277
....................
Turn Signal Lights . 231
..............................
Bulbs, Halogen . 228
....................................
Accessories . 167
ACCESSORY (Ignition Key
.......................................
Position) . 75
..............
Accessory Power Sockets . 99
................
Adding Engine Coolant . 217
Additional Inf ormation About Your
.........................................
Airbags . 20
....................
Additives, Engine Oil . 214
.......
Adjusting the Steering Wheel . 72
...........................
Advanced Airbags . 24
.........
Advice f or Pregnant Women . 15
...............................
Airbag (SRS) . 9, 20
..............
Air Conditioning System . 104
.................................
Usage . 109, 111
...............
Air Pressure, Tires . 238, 239
.......................
Alcohol in Gasoline . 160
All Children Should Sit in a
.....................................
Back Seat . 32
......................................
Antif reeze . 217
Anti-lock Brakes (ABS)
...............................
Indicator . 58, 185
...................................
Operation . 185
..............
Anti-thef t, Audio System . 149
.
Anti-thef t Steering Column Lock . 75 ............................................
Armrest . 84
................................
Audio System . 116
...
Automatic Lighting Off Feature . 69
...
Automatic Seat Belt Tensioners . 18
..........
Automatic Climate Control . 111
.............
Automatic Speed Control . 152
..............
Automatic Transmission . 179
..................
Capacity, Fluid . 274, 276
.......
Checking Fluid Level . 221, 222
.......................................
Shif ting . 179
Shif t Lever Position
...............................
Indicators . 179
................
Shif t Lever Positions . 180
....................
Shif t Lock Release . 182
Index
A
B
INDEX
I
——y

y
(%yy

Î
CONT INUED
..............................
Economy, Fuel . 166
..................................
Emergencies . 247
.............
Battery, Jump Starting . 256
...........
Brake System Indicator . 262
................
Changing a Flat Tire . 249 .....
Charging System Indicator . 260
..................
Checking the Fuses . 264
.........
Hazard Warning Flashers . 70
............................
Jump Starting . 256
.....
Low Oil Pressure Indicator . 260
...
Malf unction Indicator Lamp . 261
...
Manually Closing Moonroof . 263
..................
Overheated Engine . 258
.......................................
Towing . 269
...........................
Emergency Brake . 94
......................
Emergency Flashers . 70
......................
Emergency Towing . 269
............
Emergency Trunk Opener . 80
.......................
Emissions Controls . 281
.............
Emissions Testing, State . 284 Engine
............
Adding Engine Coolant . 217
....................................
Additives . 214
.....
Changing the Oil and Filter . 214
....
Coolant Temperature Gauge . 65
.........................
If It Won’t Start . 254
Malf unction Indicator
......................................
Lamp . 261
........
Oil Pressure Indicator . 56, 260
.............................
Oil, Synthetic . 214
..............
Oil, What Kind to Use . 213 ...............................
Overheating . 258
....................
Specif ications . 275, 277
....................
Speed Limiter . 178, 181
.......................................
Starting . 175
..........
Engine Speed Limiter . 178, 181
......................
Ethanol in Gasoline . 160
.
Evaporative Emissions Controls . 281
...............................
Exhaust Fumes . 49
Expectant Mothers, Use of Seat
........................................
Belts by . 15
.........
Dimming the Headlights . 68, 69
Dipstick
.
Automatic Transmission . 221, 222
..................................
Engine Oil . 164
..........................
Directional Signals . 68
........
Disc Brake Wear Indicators . 184
.....................
Disposal of Used Oil . 216
Doors
..............
Locking and Unlocking . 76
......................
Power Door Locks . 76
........
DOT Tire Quality Grading . 278
Downshif ting, Manual
.............................
Transmission . 176
...........
Driver and Passenger Safety . 5
...........................................
Driving . 173
....................................
Economy . 166
..........
Dual Temperature Control . 113
..................
Dust and Pollen Filter . 235 ....................................
Fan Control . 106
.........................................
Features . 103
....................
Filling the Fuel Tank . 161
Filters
.........................
Dust and Pollen . 235
...............................................
Oil . 214
.............
Flashers, Hazard Warning . 70
...................
Flat Tire, Changing a . 249
Fluids
.
Automatic Transmission . 221, 222
..........................................
Brake . 225
.........................................
Clutch . 226
Index
E F
INDEX
III
——y


y
(%yy

ÎÎÎÎ...............
Gas Mileage, Improving . 166
..........................................
Gasohol . 160 .........................................
Gasoline . 160
...........................................
Gauge . 65
.....................
Low Fuel Indicator . 60
................
Octane Requirement . 160
........................
Tank, Ref ueling . 161
................
Gas Station Procedures . 161
Gauges
...
Engine Coolant Temperature . 65
...............................................
Fuel . 65
Gearshif t Lever Positions ..........
Automatic Transmission . 179
..............
Manual Transmission . 176
........................................
Glove Box . 96
Gross Axle Weight Rating
.....................................
(GAWR) . 191
Gross Vehicle Weight Rating .....................................
(GVWR) . 191
...
Identif ication Number, Vehicle . 272
..............
If the Engine Overheats . 258
.............
If the Engine Won’t Start . 254
Ignition
..............................................
Keys . 73
...........................................
Switch . 75
............
Timing Control System . 282
........................
Immobilizer System . 74
..............
Manual Transmission . 223
..........................
Power Steering . 226
..................
Windshield Washer . 220
...........................
Folding Rear Seat . 87
..........................
Four-way Flashers . 70
........................
Front Airbags . 9, 20, 22
..................................
Front Seat . 81, 83
................................
Adjusting . 81, 83
.........................................
Heaters . 88
.....................................
Airbags . 9, 22
.................................................
Fuel . 160
..........
Check Fuel Cap Indicator . 65
......................
Fill Door and Cap . 161
...........................................
Gauge . 65
.....................
Low Fuel Indicator . 60
................
Octane Requirement . 160
...............................
Oxygenated . 160
........................
Tank, Ref ueling . 161
...............................
Fuel Economy . 166
..............................
Fuse Locations . 267
.....................
Fuses, Checking the . 264 ............. Halogen Headlight Bulbs . 228
..............
Hazard Warning Flashers . 70
........................................
Headlights . 68
........................................
Aiming . 228
..............
Automatic Lighting Off . 69
.......
Daytime Running Lights . 69 ..................
High Beam Indicator . 61
....................
Lights On Indicator . 60
............
Low Beams, Turning on . 68
.........................
Reminder Chime . 68
........
Replacing Halogen Bulbs . 228
...................................
Turning on . 68
..............................
Head Restraints . 86
.....................
Heating and Cooling . 104
...........................
Heated Mirrors . 94
.....................................
Heater, Seat . 88
.............
High Altitude, Starting at . 175
HomeLink Universal
................................
Transceiver . 155
..
Hood, Opening and Closing the . 162
...........................
Hydraulic Clutch . 226
Index
G H
I
IV
——y


y
(%yy
