This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
gooffifyouhaveinserteda
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
This indicator comes on when you
turn on the cruise control master
button (see page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
inf ormation display. See page f or
more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
145
145 193
75
207Only on models equipped with Cruise Control System
Only on models equipped with CruiseControl System
Canadian models only
Immobilizer System
Indicator
Cruise Control Main
Indicator Maintenance Minder
Indicator
Cruise Control Indicator
Washer Level Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
63
— — y
y
( y y
Page 59 of 281
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
The odometer and the outside
temperature display use the same
display. To switch the display
between the odometer and the
outside temperature, press the
Select/Reset knob. When you turn
the ignition switch to ON (II), what
you last selected is displayed. This display shows the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset knob until the
temperature is displayed.
EX-L and EX-V6
Odometer
Odometer/Outside T emperature
Display Outside Temperature Display
Gauges
64
TACHOMETER
SPEEDOMETER
FUEL GAUGE
TEMPERATURE
GAUGE
TRIP METER
ODOMETER/OUTSIDE
TEMPERATURE INDICATOR
SELECT/RESET KNOB
U.S. model shown
— — y y
( y y
Page 60 of 281
¶¶µµµµ
µ µµµ This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display by pressing the
Select/Reset knob repeatedly. Each
trip meter works independently, so
you can keep track of two dif f erent
distances.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise into the
upperhalfofthegauge.Ifitreaches
the red (Hot) mark, pull safely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
knob f or 10 seconds. The f ollowing
sequences appear, 1 second at a
time:0,1,2,3,4,5, 5, 4, 3, 2,
1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When the temperature reaches the
desired value, release the Select/
Reset knob. You should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. When you turn the ignition switch to
ON (II), what you last selected is
displayed.
To reset a trip meter, display it, and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
248
Trip Meter Temperature Gauge
Gauges
Inst rument s and Cont rols
65
— — y y
( y y
Page 61 of 281
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.If the system still detects a loose or
missing f uel cap, the Malf unction
Indicator Lamp (MIL) comes on.
Turn the engine of f and check or
retighten the f uel cap at least 3 clicks.
The MIL goes out af ter 3 days of
normal driving once the cap is
tightened or replaced. If it does not
go out, have your dealer inspect the
vehicle. For more inf ormation, see
page .
If your f uel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message
appears as text in the odometer/
outside temperature display af ter
you start the engine. Turn the
engine of f and conf irm the f uel cap is
installed. If it is, loosen the cap, then
retighten it 1 click. When you restart
the engine, the message appears
again. To clear, press and hold the
Trip/Reset button until the message
is replaced by the odometer/outside
temperature display.
251
Fuel Gauge Check Fuel Cap Indicator
(odometer/outside temperature
message)
Gauges
66
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
— — y y
( y y
Page 96 of 281
Vents, Heating, and A/C

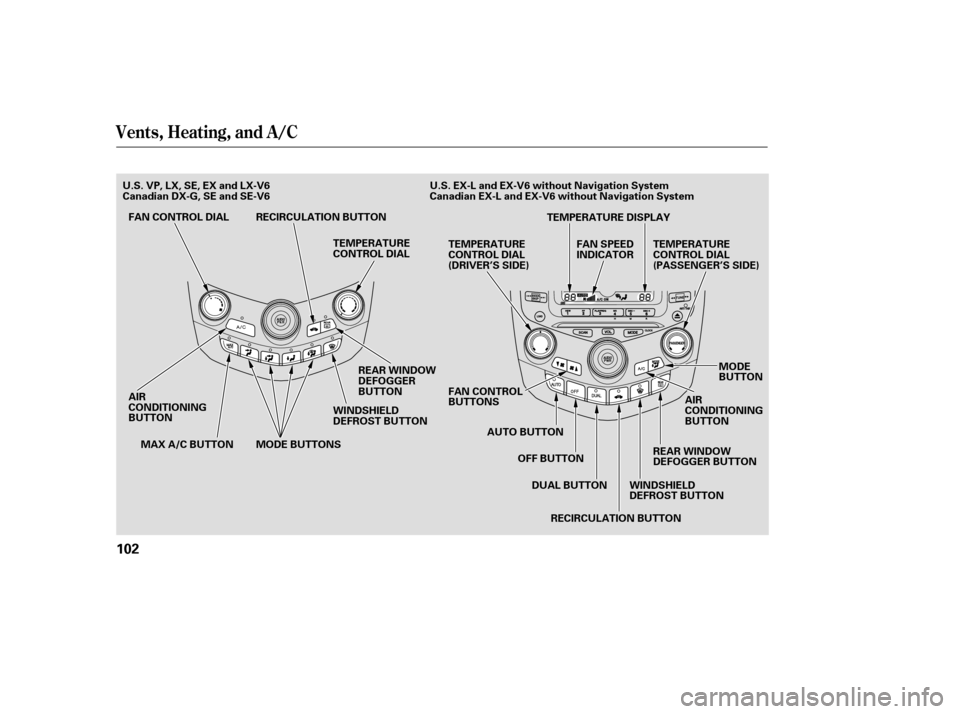

102
TEMPERATURE
CONTROL DIAL
MAX A/C BUTTON REAR WINDOW
DEFOGGER BUTTON
TEMPERATURE
CONTROL DIAL
(DRIVER’S SIDE)
FAN CONTROL
BUTTONS
TEMPERATURE
CONTROL DIAL
(PASSENGER’S SIDE)
MODE
BUTTON
RECIRCULATION BUTTON AIR
CONDITIONING
BUTTON
AUTO BUTTON
OFF BUTTONDUAL BUTTON WINDSHIELD DEFROST BUTTON
FAN SPEED
INDICATOR
AIR
CONDITIONING
BUTTON MODE BUTTONS
RECIRCULATION BUTTON
REAR WINDOW
DEFOGGER
BUTTON
WINDSHIELD
DEFROST BUTTON
FAN CONTROL DIAL
TEMPERATURE DISPLAY
U.S. VP, LX, SE, EX and LX-V6
Canadian DX-G, SE and SE-V6
U.S. EX-L and EX-V6 without Navigation System
Canadian EX-L and EX-V6 without Navigation System
— — y
y
( y
y
Page 97 of 281
Vents, Heating, and A/C
Features
103

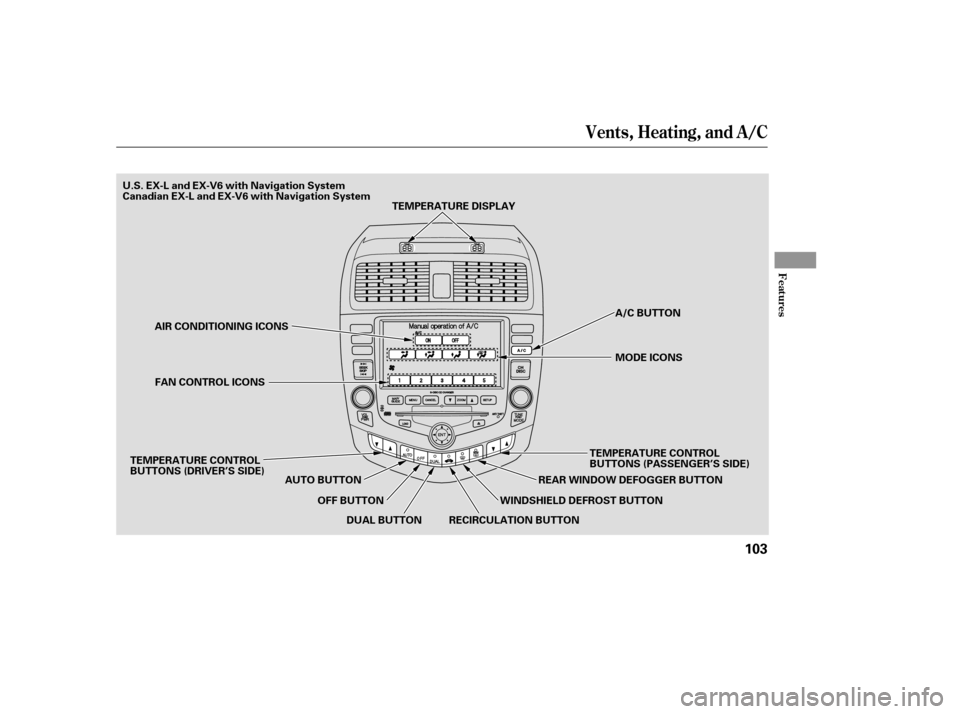

AUTO BUTTONMODE ICONS
A/C BUTTON
AIR CONDITIONING ICONS
FAN CONTROL ICONS
DUAL BUTTON TEMPERATURE CONTROL
BUTTONS (PASSENGER’S SIDE)
RECIRCULATION BUTTON WINDSHIELD DEFROST BUTTONREAR WINDOW DEFOGGER BUTTON
TEMPERATURE CONTROL
BUTTONS (DRIVER’S SIDE)
OFF BUTTONTEMPERATURE DISPLAY
U.S. EX-L and EX-V6 with Navigation System
Canadian EX-L and EX-V6 with Navigation System
— — y y
( y
y
Page 98 of 281
ÛÝ
The climate control system f or your
vehicle can also be operated using
the voice control system. See the
Navi section in your Quick Start
Guide f or an overview of this system,
and the Navigation System manual
f or complete details.
Turn this dial to increase or decrease
the fan speed and airflow.
You can manually select the f an
speed by pressing the f an control
buttons. The f an speed is
represented by vertical bars in the
display. You can manually select the f an
speed by pressing the A/C button
next to the display and then,
pressing the f an control icons.
Turning this dial clockwise increases
the temperature of the airflow.
The driver and passenger can select
independent temperature settings by
selecting the DUAL button.
Push the DUAL button. When the
indicator in the button is on, turn the
dials to adjust the temperature.Press the DUAL button. The
indicator in the button will come on.
The driver and passenger can each
select the temperature control
buttons ( or ) to the
desired setting.
When the indicator in the DUAL
button is off, both sides adjust to the
driver’s side temperature.
Only on models equipped with
Navigation System EX-L and EX-V6 without Navigation
System
Except EX-L and EX-V6 with NavigationSystem
EX-L and EX-V6
EX-L and EX-V6 without NavigationSystem EX-L and EX-V6 with Navigation System
EX-L and EX-V6
EX-L and EX-V6 with Navigation System
U.S. VP, LX, SE, EX and LX-V6
Canadian DX-G, SE and SE-V6
Vents, Heating, and A/C
Voice Control System
Fan Control T emperature Control
104
— — y y
( y
y
Page 99 of 281
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Press the A/C button to turn the
airconditioningonoroff.The
indicatorinthebuttonisonwhen
the air conditioning is on.
Press the A/C button to turn the air
conditioning on and of f . The display
shows ‘‘A/C ON’’ when the air
conditioning is on. The display
shows ‘‘A/C OFF’’ when the air
conditioning is of f .
The display shows ‘‘ON’’ and ‘‘OFF’’
after you press the A/C button. The
display shows ‘‘A/C ON’’ af ter you
touch ‘‘ON’’ to turn the air
conditioning on. The display shows
‘‘A/C OFF’’ af ter you touch ‘‘OFF’’ to
turn the air conditioning off. When the A/C is of f , the airf low
temperature does not f all below the
outside air temperature. When you
set the airf low temperature lower
than the outside air temperature,
make sure the A/C is on.
72
EX-L and EX-V6
Except EX-L and EX-V6
EX-L and EX-V6 without NavigationSystem
EX-L and EX-V6 with NavigationSystemAir Conditioning (A/C) Button
Rear Window Def ogger Button
Recirculation Button
Vents, Heating, and A/C
Features
105
— — y y
( y
y
Page 100 of 281
Use the mode control buttons or
icons to select the vents the air f lows
f rom. Some air f lows f rom the
dashboard corner vents in all modes.Air flows from the center
and corner vents in the dashboard.
Air f lows f rom the f loor
vents.
Air f lows f rom the def roster
vents at the base of the windshield. When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C. In these modes, the A/C stays
on with the indicator off.
When you select , the system
automatically switches to f resh air
mode.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield. The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
Each time you press the MODE
button, the display shows the mode
selected.
Press the A/C button to view the
display, then touch any of the mode
icons on the display. The system automatically
turns on the A/C, selects ,
and switches to recirculation mode.
Each indicator above the button is on
when the MAX A/C is turned on.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
1. 2. 3.4.
EX-L and EX-V6 without Navigation
System
EX-L and EX-V6 with NavigationSystem U.S. VP, SE, EX and LX-V6
Canadian DX-G, SE and SE-V6
Mode Control MAX A/C Button
Ventilation
Vents, Heating, and A/C
106
— — y y
( y
y
Page 101 of 281
ÛÝAir conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
ON button. The indicator in the
button comes on when a f an speed
is selected.
Make sure the temperature
control dial or button is set to
maximum cool.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed. Press the A/C button, the Manual
Operation A/C screen will appear.
Select the ON icon on the display.
Select the desired temperature
and MODE selections. If the
outside air is humid, select the
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
Press the A/C button, the manual
operation of A/C screen will
appear.
Select the desired mode and f an
speed icons on the display.
Adjustforwarmthwiththe
temperature buttons ( or ). To cool the interior with MAX A/C:
Set the f an to the desired speed.
Select the MAX A/C mode.
The system automatically turns on
the A/C, selects and
switches to Recirculation mode.
Make sure the temperature
control dial is all the way to the left.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming through the
system.
Select .
When you select , the system
automatically switches to the fresh
air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial. 1. 2. 3. 4. 5.
1.2. 3. 1.2. 3.
1. 2. 3. 1.2. 3.
65
If the interior is very warm,
Except EX-L and EX-V6 with Navigation
System Except EX-L and EX-V6 with Navigation SystemEX-L and EX-V6 with Navigation System
EX-L and EX-V6 with Navigation System Except EX-L and EX-V6
Using the Heater Using the A /C
Vents, Heating, and A/C
Features
107
— — y y
( y
y
