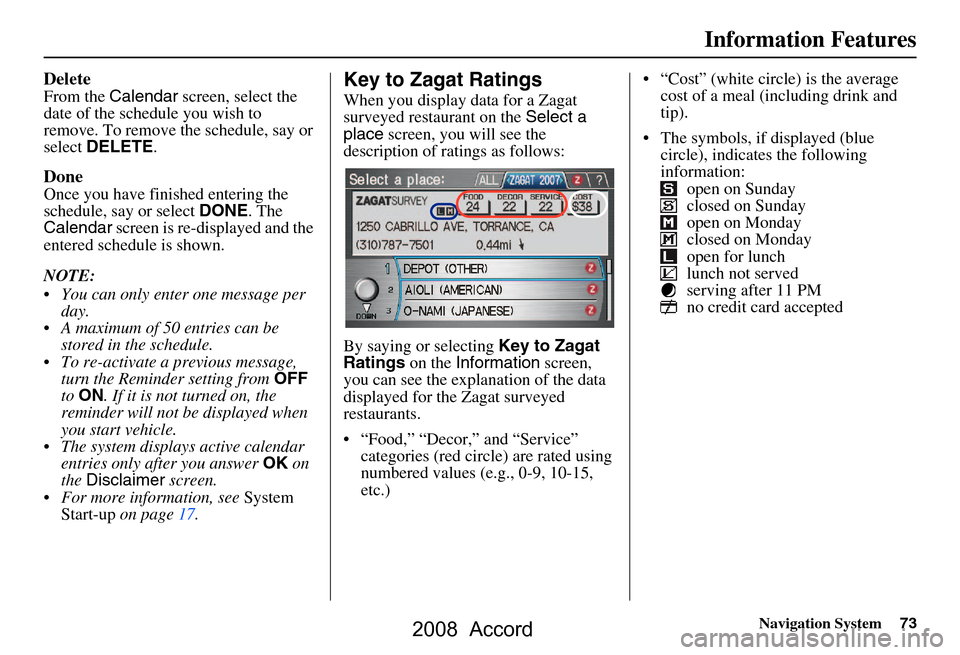

Navigation System73
Information Features
Delete
From the Calendar screen, select the
date of the schedule you wish to
remove. To remove the schedule, say or
select DELETE .
Done
Once you have finished entering the
schedule, say or select DONE. The
Calendar screen is re-displayed and the
entered schedule is shown.
NOTE:
 You can only enter one message per day.
 A maximum of 50 entries can be stored in the schedule.
 To re-activate a previous message, turn the Reminder setting from OFF
to ON . If it is not turned on, the
reminder will not be displayed when
you start vehicle.
 The system displays active calendar entries only after you answer OK on
the Disclaimer screen.
 For more information, see System
Start-up on page17.
Key to Zagat Ratings
When you display data for a Zagat
surveyed restaurant on the Select a
place screen, you will see the
description of ratings as follows:
By saying or selecting Key to Zagat
Ratings on the Information screen,
you can see the explan ation of the data
displayed for the Zagat surveyed
restaurants.
 “Food,” “Decor,” and “Service” categories (red circle) are rated using
numbered values (e.g., 0-9, 10-15,
etc.)  “Cost” (white circle) is the average
cost of a meal (including drink and
tip).
 The symbols, if displayed (blue circle), indicates the following
information: open on Sunday
closed on Sunday
open on Monday
closed on Monday
open for lunch
lunch not served
serving after 11 PM
no credit card accepted
2008 Accord

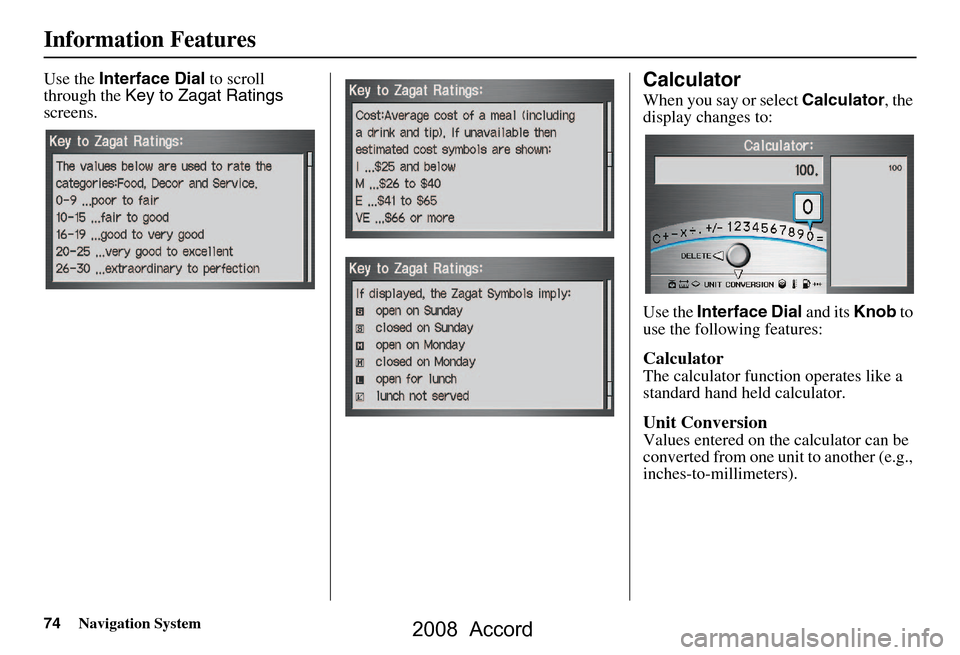

74Navigation System
Information Features
Use the Interface Dial to scroll
through the Key to Zagat Ratings
screens.Calculator
When you say or select Calculator, the
display changes to:
Use the Interface Dial and its Knob to
use the following features:
Calculator
The calculator function operates like a
standard hand held calculator.
Unit Conversion
Values entered on the calculator can be
converted from one unit to another (e.g.,
inches-to-millimeters).
2008 Accord

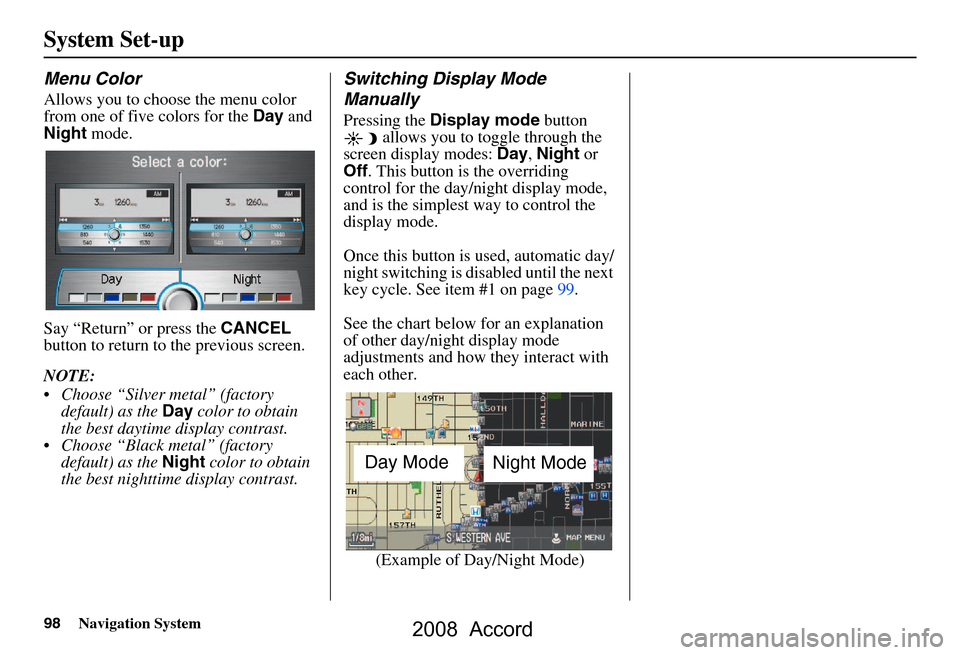

98Navigation System
System Set-up
Menu Color
Allows you to choose the menu color
from one of five colors for the Day and
Night mode.
Say “Return” or press the CANCEL
button to return to the previous screen.
NOTE:
 Choose “Silver metal” (factory default) as the Day color to obtain
the best daytime display contrast.
 Choose “Black metal” (factory default) as the Night color to obtain
the best nighttime display contrast.
Switching Display Mode
Manually
Pressing the Display mode button
allows you to toggle through the
screen display modes: Day, Night or
Off . This button is the overriding
control for the day/night display mode,
and is the simplest way to control the
display mode.
Once this button is used, automatic day/
night switching is disabled until the next
key cycle. See item #1 on page99.
See the chart below for an explanation
of other day/night display mode
adjustments and how th ey interact with
each other.
(Example of Day/Night Mode)
Day Mode Night Mode
2008 Accord

Navigation System99
System Set-up
Switching Display Mode AutomaticallyI
Recommended Display mode Day/Night settings:
 With the headlights on, select mid range for the dash illumination (see Own er’s manual for location of knob).
 With the headlights off, select mid range for the dash illumination (see Owner’s manual for location of knob).
 On the SETUP “Color” adjustment screen, choose White for the map Day display, and black for the map Night display (
see
page98). Inappropriate adjustment of these colors can cause the Day/Night modes to appear inoperative.
 Remember that once the Display mode button is selected, the other display mode controls are overridden until the
vehicle is restarted.
NOTE:
See the vehicle Owner’s manual for additional info rmation regarding the dash brightness adjustment.
llumination control Prior ity Operation But remember
Display mode button
(see page
11) 1 Allows selection of Day, Night or Off display
mode. This button has the highest priority and
overrides all other displa y control adjustments
listed below. Remember that once you pr
ess this button, you
assume full manual control of the display
mode until the ignition key is cycled again.
Dash illumination adjustment
knob (See Owner’s manual for
location) 2 When headlights are turned on, and you wish to
have the Day display mode, then adjust the
illumination to the full bright setting (beeps). Remember to adjust the dash brightness back
to mid-range to allow auto switching by
sensing the headlights are on or off.
Headlights (Auto/On/Off) 3 When turned on, it changes the display to the
Night display mode. The previous two
controls listed above ca n “cancel” this function. Use the
Display mode
button , or
adjust the dash illuminati on to full bright to set
the display to your desired choice.
Map Day/Night screen color
choice (see page
98 f
or the
Day and Night color choices) N/A The user can select the color of the screen that
will be displayed for the Day, and Night
display modes described above. For best contrast
, ensure that the Map “color”
is white for Day, and black for Night.
2008 Accord

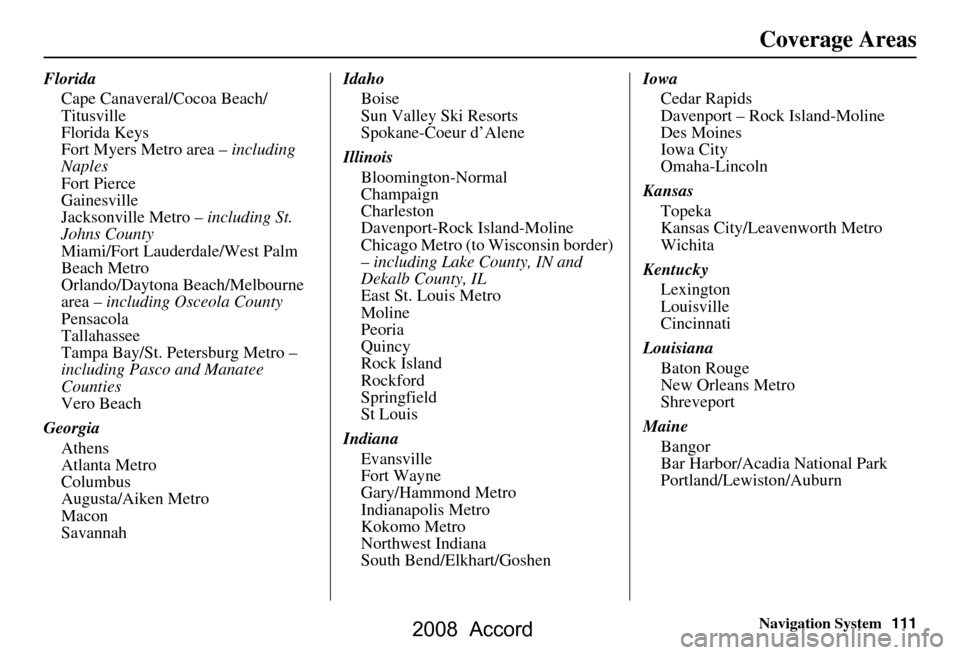

Navigation System111
Coverage Areas
Florida
Cape Canaveral/Cocoa Beach/
Titusville
Florida Keys
Fort Myers Metro area – including
Naples
Fort Pierce
Gainesville
Jacksonville Metro – including St.
Johns County
Miami/Fort Lauderdale/West Palm
Beach Metro
Orlando/Daytona Beach/Melbourne
area – including Osceola County
Pensacola
Tallahassee
Tampa Bay/St. Petersburg Metro –
including Pasco and Manatee
Counties
Vero Beach
Georgia Athens
Atlanta Metro
Columbus
Augusta/Aiken Metro
Macon
Savannah Idaho
Boise
Sun Valley Ski Resorts
Spokane-Coeur d’Alene
Illinois Bloomington-Normal
Champaign
Charleston
Davenport-Rock Island-Moline
Chicago Metro (to Wisconsin border)
– including Lake County, IN and
Dekalb County, IL
East St. Louis Metro
Moline
Peoria
Quincy
Rock Island
Rockford
Springfield
St Louis
Indiana Evansville
Fort Wayne
Gary/Hammond Metro
Indianapolis Metro
Kokomo Metro
Northwest Indiana
South Bend/Elkhart/Goshen Iowa
Cedar Rapids
Davenport – Rock Island-Moline
Des Moines
Iowa City
Omaha-Lincoln
Kansas Topeka
Kansas City/Leavenworth Metro
Wichita
Kentucky Lexington
Louisville
Cincinnati
Louisiana Baton Rouge
New Orleans Metro
Shreveport
Maine Bangor
Bar Harbor/Acadia National Park
Portland/Lewiston/Auburn
2008 Accord

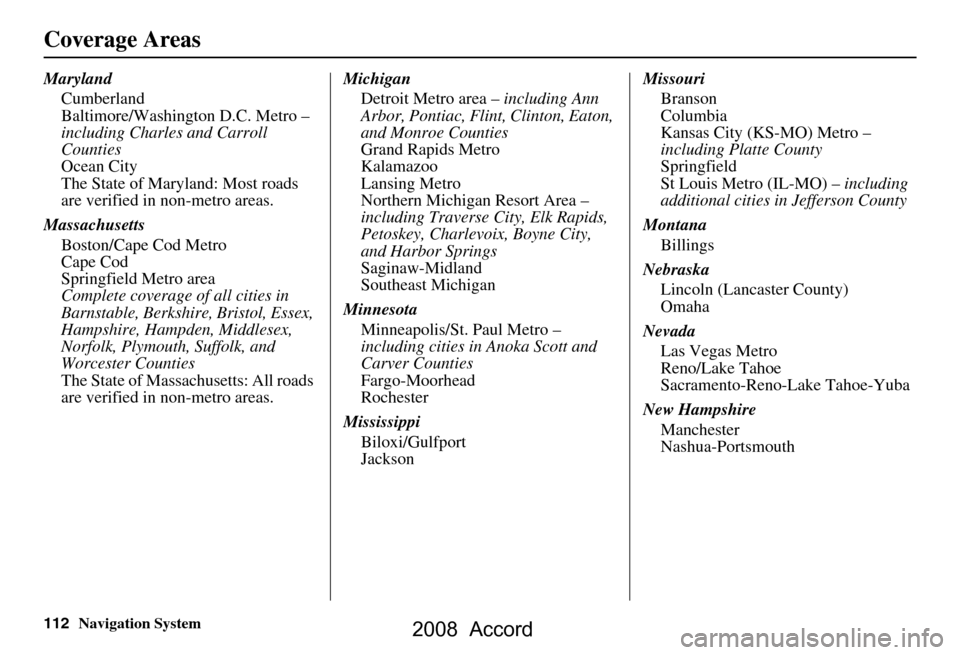

112Navigation System
Coverage Areas
MarylandCumberland
Baltimore/Washington D.C. Metro –
including Charles and Carroll
Counties
Ocean City
The State of Maryland: Most roads
are verified in non-metro areas.
Massachusetts Boston/Cape Cod Metro
Cape Cod
Springfield Metro area
Complete coverage of all cities in
Barnstable, Berkshire, Bristol, Essex,
Hampshire, Hampden, Middlesex,
Norfolk, Plymouth, Suffolk, and
Worcester Counties
The State of Massachusetts: All roads
are verified in non-metro areas. Michigan
Detroit Metro area – including Ann
Arbor, Pontiac, Flint, Clinton, Eaton,
and Monroe Counties
Grand Rapids Metro
Kalamazoo
Lansing Metro
Northern Michigan Resort Area –
including Traverse City, Elk Rapids,
Petoskey, Charlevoix, Boyne City,
and Harbor Springs
Saginaw-Midland
Southeast Michigan
Minnesota Minneapolis/St. Paul Metro –
including cities in Anoka Scott and
Carver Counties
Fargo-Moorhead
Rochester
Mississippi Biloxi/Gulfport
Jackson Missouri
Branson
Columbia
Kansas City (KS-MO) Metro –
including Platte County
Springfield
St Louis Metro (IL-MO) – including
additional cities in Jefferson County
Montana Billings
Nebraska Lincoln (Lancaster County)
Omaha
Nevada Las Vegas Metro
Reno/Lake Tahoe
Sacramento-Reno-Lake Tahoe-Yuba
New Hampshire Manchester
Nashua-Portsmouth
2008 Accord

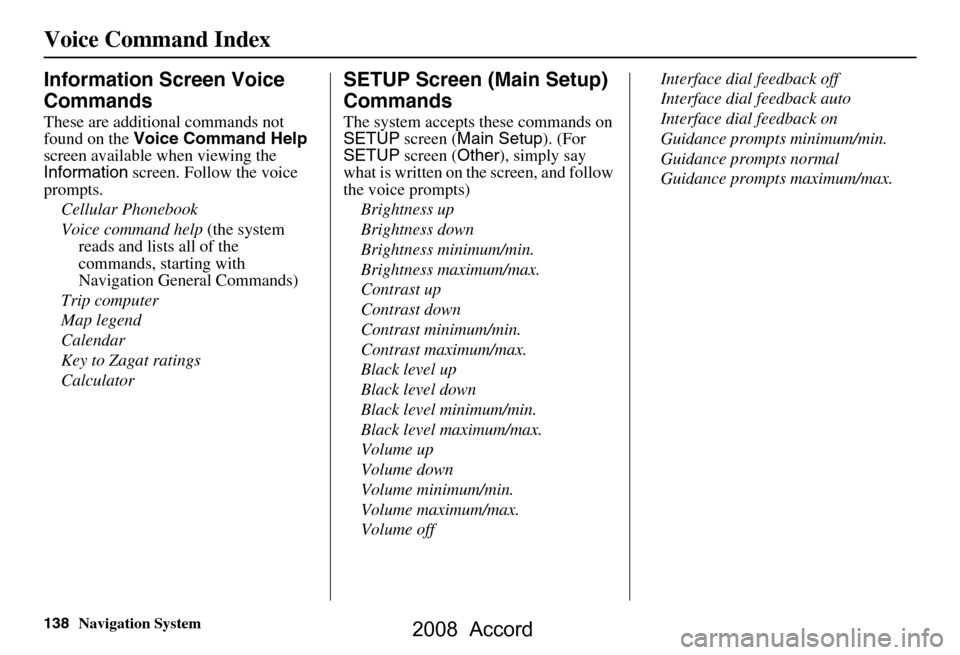

138Navigation System
Voice Command Index
Information Screen Voice
Commands
These are additional commands not
found on the Voice Command Help
screen available when viewing the
Information screen. Follow the voice
prompts.
Cellular Phonebook
Voice command help (the system
reads and lists all of the
commands, starting with
Navigation General Commands)
Trip computer
Map legend
Calendar
Key to Zagat ratings
Calculator
SETUP Screen (Main Setup)
Commands
The system accepts these commands on
SETUP screen ( Main Setup ). (For
SETUP screen ( Other), simply say
what is written on the screen, and follow
the voice prompts)
Brightness up
Brightness down
Brightness minimum/min.
Brightness maximum/max.
Contrast up
Contrast down
Contrast minimum/min.
Contrast maximum/max.
Black level up
Black level down
Black level minimum/min.
Black level maximum/max.
Volume up
Volume down
Volume minimum/min.
Volume maximum/max.
Volume off Interface dial feedback off
Interface dial feedback auto
Interface dial feedback on
Guidance prompts minimum/min.
Guidance prompts normal
Guidance prompts maximum/max.
2008 Accord

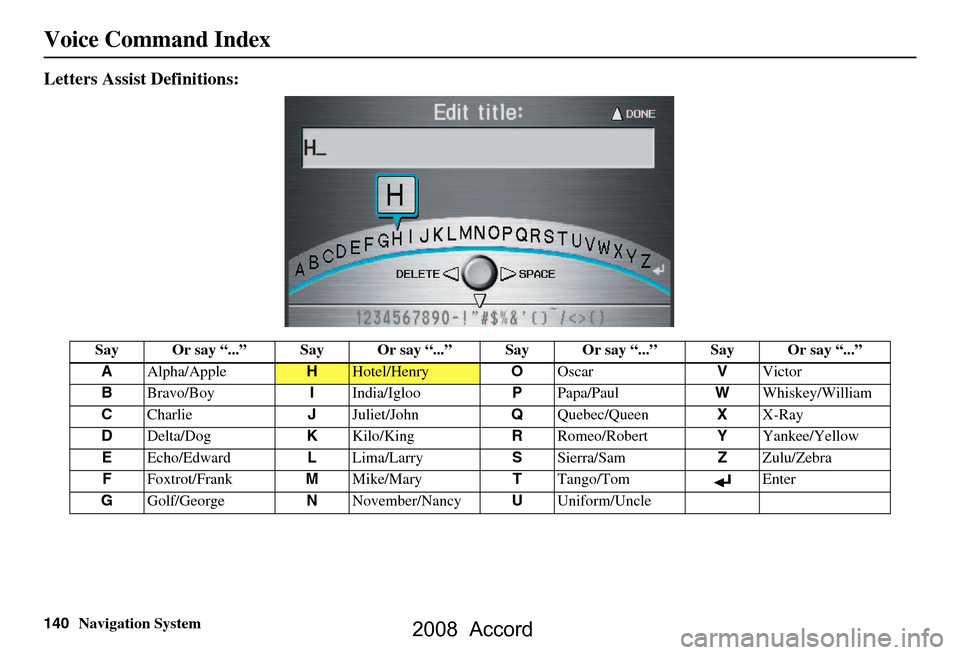

140Navigation System
Voice Command Index
Letters Assist Definitions:
Say Or say “...” Say Or say “...” Say Or say “...” Say Or say “...”
A Alpha/Apple
HHotel/Henry OOscar VVictor
B Bravo/Boy IIndia/Igloo PPapa/Paul WWhiskey/William
C Charlie JJuliet/John QQuebec/Queen XX-Ray
D Delta/Dog KKilo/King RRomeo/Robert YYankee/Yellow
E Echo/Edward LLima/Larry SSierra/Sam ZZulu/Zebra
F Foxtrot/Frank MMike/Mary TTango/Tom Enter
G Golf/George NNovember/Nancy UUniform/Uncle
2008 Accord

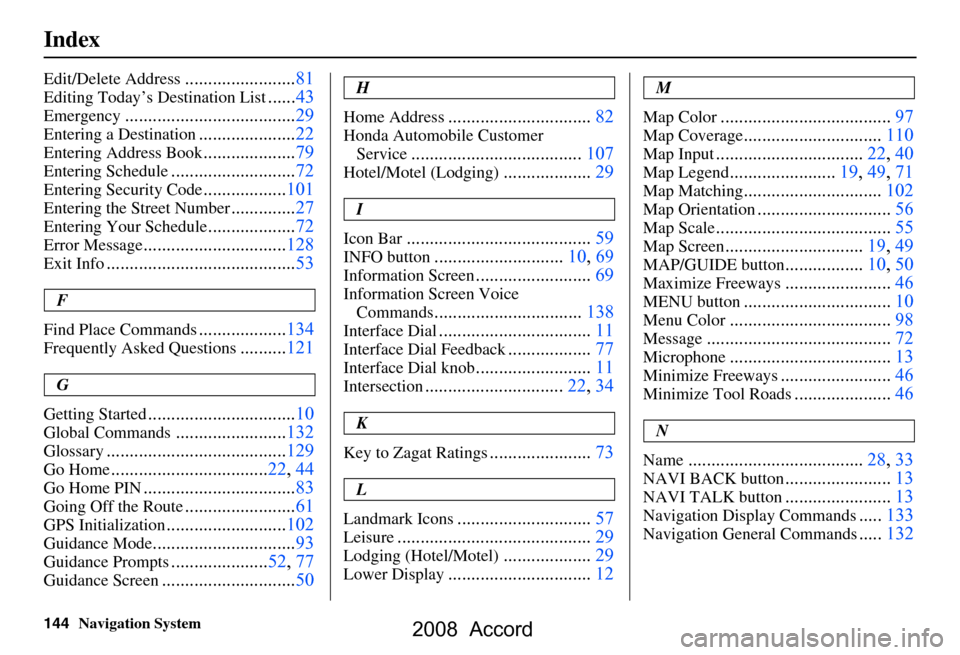

144Navigation System
Index
Edit/Delete Address........................81
Editing Today’s Destination List......43
Emergency.....................................29
Entering a Destination.....................22
Entering Address Book....................79
Entering Schedule...........................72
Entering Security Code..................101
Entering the Street Number..............27
Entering Your Schedule...................72
Error Message...............................128
Exit Info.........................................53
F
Find Place Commands
...................134
Frequently Asked Questions..........121
G
Getting Started
................................10
Global Commands........................132
Glossary.......................................129
Go Home..................................22, 44
Go Home PIN.................................83
Going Off the Route........................61
GPS Initialization..........................102
Guidance Mode...............................93
Guidance Prompts.....................52, 77
Guidance Screen.............................50
H
Home Address
...............................82
Honda Automobile Customer Service
.....................................107
Hotel/Motel (Lodging)...................29
I
Icon Bar
........................................59
INFO button............................10, 69
Information Screen.........................69
Information Screen Voice Commands
................................138
Interface Dial.................................11
Interface Dial Feedback..................77
Interface Dial knob.........................11
Intersection..............................22, 34
K
Key to Zagat Ratings
......................73
L
Landmark Icons
.............................57
Leisure..........................................29
Lodging (Hotel/Motel)...................29
Lower Display...............................12
M
Map Color
.....................................97
Map Coverage..............................110
Map Input................................22, 40
Map Legend.......................19, 49, 71
Map Matching..............................102
Map Orientation.............................56
Map Scale......................................55
Map Screen..............................19, 49
MAP/GUIDE button.................10, 50
Maximize Freeways.......................46
MENU button................................10
Menu Color...................................98
Message........................................72
Microphone...................................13
Minimize Freeways........................46
Minimize Tool Roads.....................46
N
Name
......................................28, 33
NAVI BACK button.......................13
NAVI TALK button.......................13
Navigation Display Commands.....133
Navigation General Commands.....132

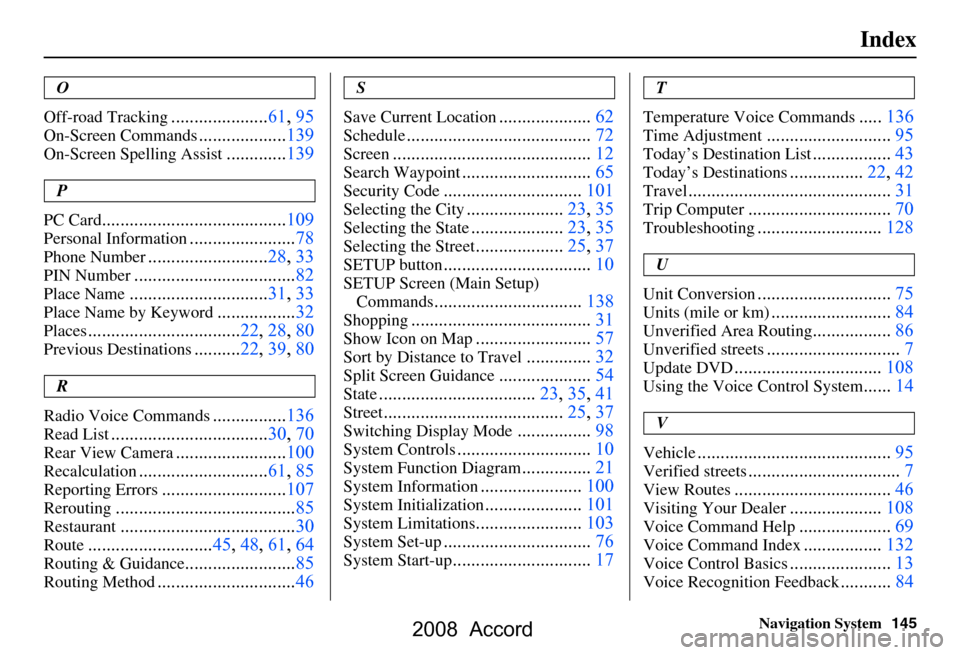

2008 Accord

Navigation System145
Index
O
Off-road Tracking
..................... 61, 95
On-Screen Commands...................139
On-Screen Spelling Assist.............139
P
PC Card
........................................ 109
Personal Information.......................78
Phone Number.......................... 28, 33
PIN Number...................................82
Place Name.............................. 31, 33
Place Name by Keyword.................32
Places................................. 22, 28, 80
Previous Destinations.......... 22, 39, 80
R
Radio Voice Commands
....... ......... 136
Read List.................................. 30, 70
Rear View Camera........................100
Recalculation............................ 61, 85
Reporting Errors...........................107
Rerouting....................................... 85
Restaurant......................................30
Route...........................45, 48, 61, 64
Routing & Guidance........................ 85
Routing Method.............................. 46
S
Save Current Location
.................... 62
Schedule........................................ 72
Screen........................................... 12
Search Waypoint............................65
Security Code..............................101
Selecting the City.....................23, 35
Selecting the State....................23, 35
Selecting the Street...................25, 37
SETUP button................................ 10
SETUP Screen (Main Setup)
Commands
................................ 138
Shopping....................................... 31
Show Icon on Map.........................57
Sort by Distance to Travel..............32
Split Screen Guidance....................54
State.................................. 23, 35, 41
Street....................................... 25, 37
Switching Display Mode................98
System Controls............................. 10
System Function Diagram...............21
System Information......................100
System Initialization.....................101
System Limitations....................... 103
System Set-up................................ 76
System Start-up..............................17
T
Temperature Voice Commands
..... 136
Time Adjustment........................... 95
Today’s Destination List................. 43
Today’s Destinations................22, 42
Travel............................................ 31
Trip Computer............................... 70
Troubleshooting........................... 128
U
Unit Conversion
............................. 75
Units (mile or km)..........................84
Unverified Area Routing.................86
Unverified streets............................. 7
Update DVD................................ 108
Using the Voice Control System......14
V
Vehicle
.......................................... 95
Verified streets................................. 7
View Routes..................................46
Visiting Your Dealer.................... 108
Voice Command Help.................... 69
Voice Command Index................. 132
Voice Control Basics...................... 13
Voice Recognition Feedback...........84
2008 Accord
