Page 332 of 435
µµµ
µ
µ
µ
Ì Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Automatic transmission Check
the f luid level monthly. See page
.
Brakes Check the f luid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page .
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed.
U.S. Vehicles:
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
perf ormed in accordance with the
intervals indicated by the
inf ormation display.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
person who is skilled in this type of
automotive service. Make sure to
have the service f acility or person
reset the display as previously
described. Keep all receipts as proof
of completion, and have the person
who does the work f ill out your
Honda Service History or Canadian
Maintenance Log. Check your
warranty booklet f or more
inf ormation.
We recommend using Honda parts
and fluids whenever you have
maintenance done. These are
manuf actured to the same high
quality standards as the original
components, so you can be conf ident
of their perf ormance and durability.
323
326
343
329
266
267
Maintenance Minder
Owner’s Maintenance Checks
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certif ied’’ to EPA
standards.
312
— —
y
y
) y
y
Page 333 of 435
Î Î
Ì Ì
µ
µ
Ì
Î
Maintenance Minder
313
Maintenance Main Items
Replace engine oil
Replace engine oil and oil filter
Inspect front and rear brakes
Check parking brake adjustment
Inspect these items: Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections Maintenance Sub Items
Rotate tires
Replace air cleaner element
Replace dust and pollen filter
Inspect drive belt
Replace transmission fluid
Replace spark plugs
Replace timing belt and inspect water pump
(V6 engine only)
Inspect valve clearance
Replace engine coolant
:
AB
Symbol
12 3 4 5
Symbol1 1
Inspect idle speed every 160,000 miles (256,000 km).
Adjust the valves during services A, B, 1, 2, or 3 only if they are noisy.
If the message ‘‘SERVICE’’ does not appear more than 12 months after the
display is reset, change the engine oil every year.
Independent of the maintenance messages in the information display,
replace the brake fluid every 3 years.
See information on maintenance and emissions warranty in the center
column on page .
NOTE: 1:
312
If you drive in dusty conditions, replace every 15,000
miles (24,000 km).
If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and from
diesel-powered vehicles, replace every 15,000 miles
(24,000 km).
If you drive regularly in very high temperatures (over
110°F, 43°C), or in very low temperatures (under 20°F,29°C), replace every 60,000 miles (U.S.)/100,000 km
(Canada).
Maintenance Minder
— —
y
y
) y
y
Page 334 of 435
Fluid Locations
2.4engine models
314
ENGINE OIL
FILL CAP
CLUTCH FLUID
(Manual
Transmission only)
(Light gray cap)
BRAKE FLUID
(Black cap)
RADIATOR CAP
ENGINE OIL DIPSTICK
(Orange handle)
POWER STEERING
FLUID (Red cap)
WASHER FLUID
(Blue cap)
ENGINE COOLANT
RESERVOIR AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
— —
y
y
) y
y
Page 335 of 435

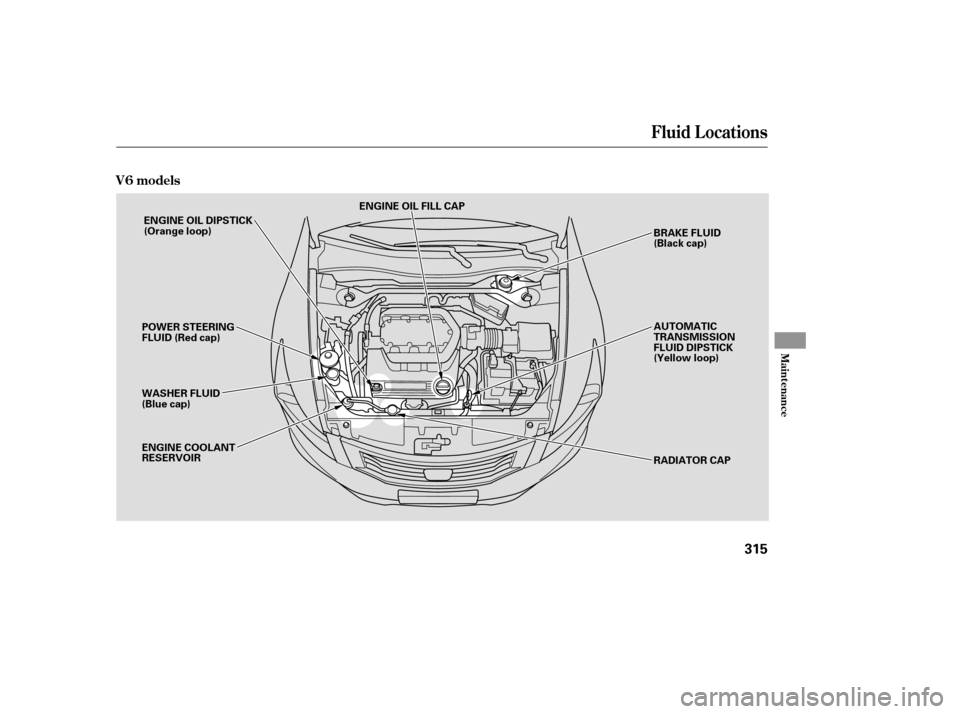

Fluid Locations
V6 models
Maint enance
315
ENGINE OIL FILL CAP
WASHER FLUID
(Blue cap) ENGINE OIL DIPSTICK
(Orange loop)
ENGINE COOLANT
RESERVOIR BRAKE FLUID
(Black cap)
POWER STEERING
FLUID (Red cap) AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
RADIATOR CAP
— —
y
y
) y y
Page 343 of 435
Check the f luid level with the engine
at normal operating temperature.Park the vehicle on level ground.
Start the engine, let it run until the
radiator f an comes on, then shut
of f the engine. For accurate
results, wait about 60 seconds (but
no longer than 90 seconds) bef ore

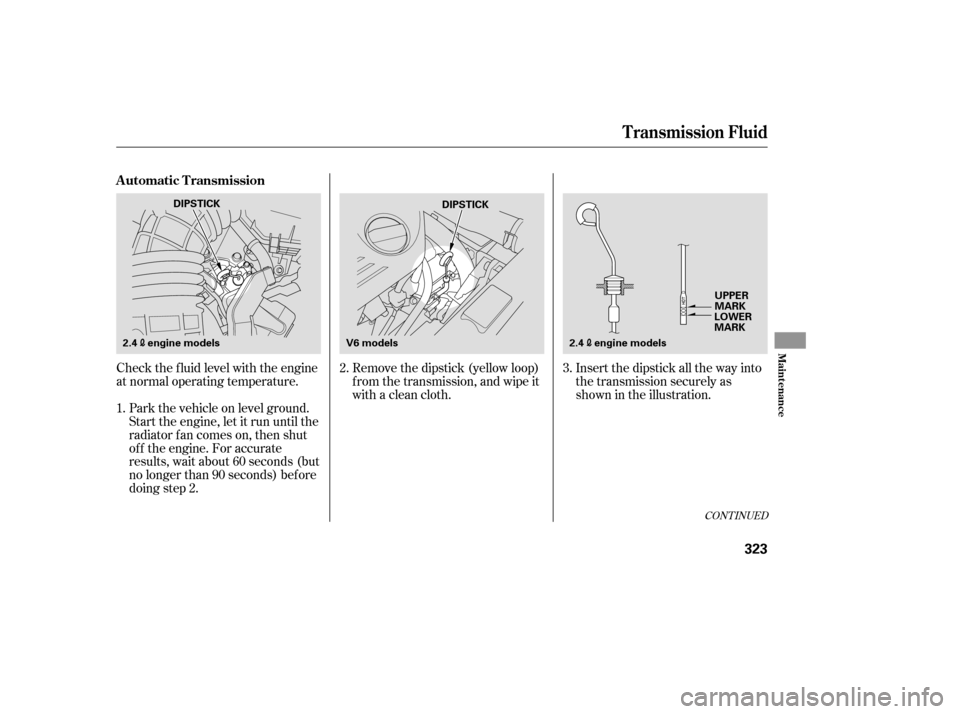

doing step 2. Remove the dipstick (yellow loop)
f rom the transmission, and wipe it
with a clean cloth.
Insert the dipstick all the way into
the transmission securely as
shown in the illustration.
1. 2.
3.
CONT INUED
Automatic Transmission
T ransmission Fluid
Maint enance
323
V6 models
DIPSTICK
DIPSTICK
UPPER
MARK
LOWER
MARK
2.4engine models 2.4engine models
— —
y
y
) y y
Page 344 of 435
Pour the f luid slowly and caref ully
so you do not spill any. Clean up
any spill immediately; it could
damage components in the engine
compartment.
Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks. If the level is below the lower
mark, add f luid into the dipstick
hole to bring it to the level
between the upper and lower
marks.
Always use Honda ATF-Z1
(automatic transmission f luid).
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
The transmission should be drained
and ref illed with new f luid according
to the maintenance minder (see page ).
If you are not sure how to add f luid,
contact your dealer.
5.
4. 6.
307
T ransmission Fluid
324
V6 models UPPER
MARK
LOWER
MARK
Use only Honda Genuine ATF-Z1
(Automatic Transmission Fluid). Do
not mix with other transmission f luids.
Using transmission f luid other than
Honda Genuine ATF-Z1 may cause
deterioration in transmission operation
and durability, and could result in
damage to the transmission.
Damage resulting f rom the use of
transmission f luid other than Honda
Genuine ATF-Z1 is not covered by the
Honda new vehicle warranty.
— —y y
) y y
Page 345 of 435
Check the f luid level with the
transmission at normal operating
temperature and the vehicle sitting
on level ground.Reinstall the under cover and put the
holding clips back in place. Make
sure the under cover is installed
under the edge of the f ront bumper.
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stif f er shif ting. Replace as
soon as it is convenient.
The transmission should be drained
and ref illed with new f luid according
to the maintenance minder (see page
).
If you are not sure how to check and
add f luid, contact your dealer.

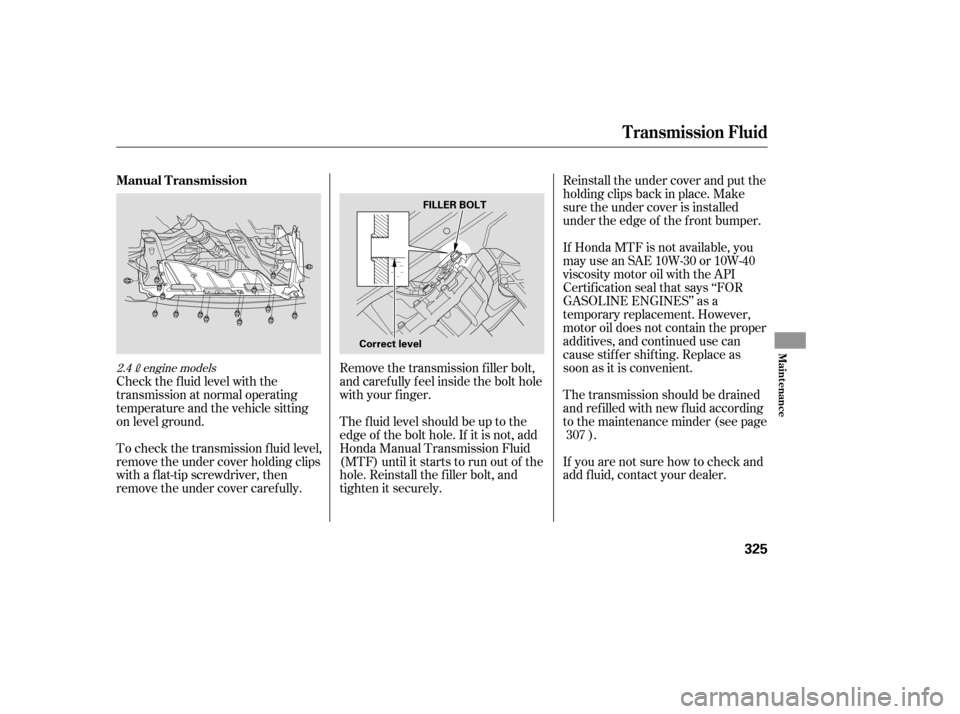

Remove the transmission f iller bolt,
and caref ully f eel inside the bolt hole
with your f inger.
The f luid level should be up to the
edge of the bolt hole. If it is not, add
Honda Manual Transmission Fluid
(MTF) until it starts to run out of the
hole. Reinstall the f iller bolt, and
tighten it securely.
To check the transmission f luid level,
remove the under cover holding clips
with a flat-tip screwdriver, then
remove the under cover caref ully. 307
2.4engine models
T ransmission Fluid
Manual Transmission
Maint enance
325
Correct levelFILLER BOLT
— —y y
) y y
Page 346 of 435
Check the f luid level in the
reservoirs monthly. There are up to
two reservoirs, depending on the
model. They are:Brake f luid reservoir (all models)
Clutch f luid reservoir
(manual transmission only)
Replace the brake f luid according to
the maintenance minder (see page ). Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 f luid, f rom a sealed
container, as a temporary
replacement.
Using any non-Honda brake f luid can
cause corrosion and decrease the lif e
of the system. Have the brake
system f lushed and ref illed with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Brake f luid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.

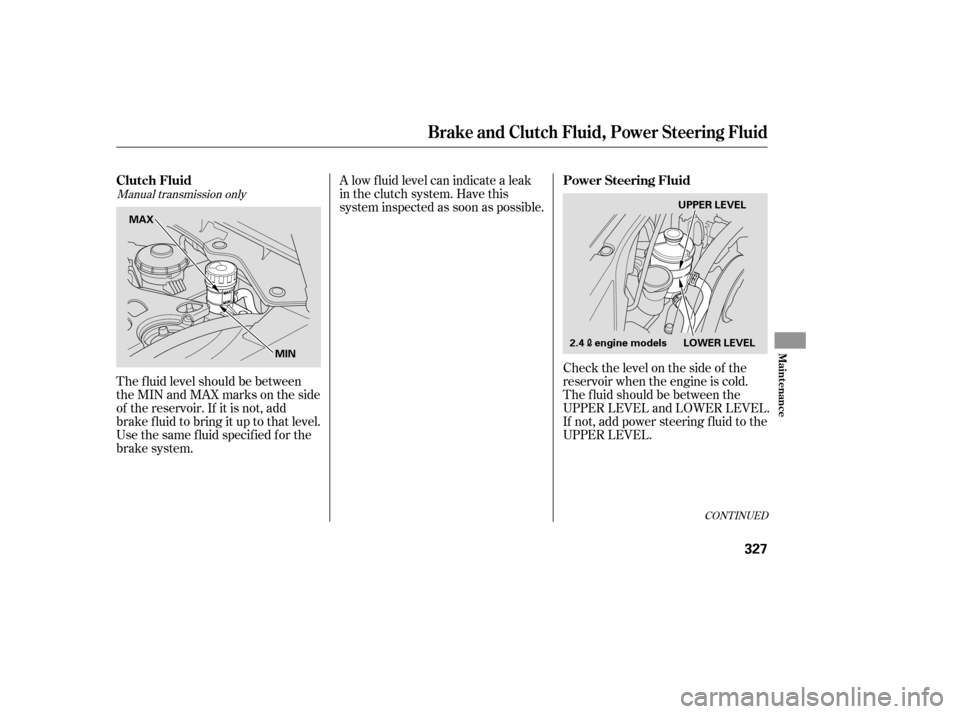

The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected f or leaks or
worn brake pads.
307
Brake and Clutch Fluid
Brake Fluid
326
MAX
MIN
— —
y
y
) y
y
Page 347 of 435
Check the level on the side of the
reservoir when the engine is cold.
The f luid should be between the
UPPER LEVEL and LOWER LEVEL.
If not, add power steering f luid to the
UPPER LEVEL.
The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake f luid to bring it up to that level.
Use the same fluid specified for the
brake system. A low f luid level can indicate a leak
in the clutch system. Have this
system inspected as soon as possible.
CONT INUED
Manual transmission only
Power Steering Fluid
Clutch Fluid
Brake and Clutch Fluid, Power Steering Fluid
Maint enance
327
MAX UPPER LEVEL
LOWER LEVEL
MIN 2.4
engine models
— —
y
y
) y y
Page 405 of 435
µµÎ Î
ÎÎ
Î Î
Î Î
Specif icat ions (2.4engine models)
384
Dimensions
Seating Capacities
Capacities
Weights
Air Conditioning
Engine 110.2 in (2,800 mm)
62.6 in (1,590 mm)
Length
Width
Height
Wheelbase
Track
194.1 in (4,930 mm)
72.7 in (1,847 mm)
58.1 in (1,475 mm)
4.8 US qt (4.5
)
2.6 US qt (2.5)
6.9 US qt (6.5
)
2.6 US qt (2.5)
2.1 US qt (2.0)
2.0 US qt (1.9)
5.6 US qt (5.3)
4.2 US qt (4.0)
4.4 US qt (4.2)
2.11 US gal (8.0
)
2.14 US gal (8.1)
1.56 US gal (5.9
)
1.59 US gal (6.0)
5 23
62.2 in (1,580 mm) Total
FrontRear
Fuel tank
Engine
coolant
Engine oil
Manual trans-
mission fluidAutomatic
transmission
fluid
Windshield
washer
reservoir
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.180 US gal (0.68
)
Excluding the oil remaining in the engine
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Refrigerant type
Charge quantity
Lubricant type HFC-134a (R-134a)
14.1 15.9 oz (400 450 g)
ND-OIL8
Water cooled 4-stroke
DOHC i-VTEC 4-cylinder gasoline engine
3.43 x 3.9 in (87.0 x 99.0 mm) 144 cu-in (2,354 cm
)
10.5 : 1
ILZKR7B11S SXU22HCR11S
Type
BorexStroke
Displacement
Compression ratio
Spark plugs (U.S.)
Spark plugs (Canada)
SXU22HCR11S
ILZKR7B11S
DILZKR7A11GS 18.5 US gal (70.0
)
Approx.
Change Manual Automatic
Total ManualAutomatic
1: 2:
NGK:
DENSO: Change
Including filter
Without filter
Total
ChangeTotal
ChangeTotal U.S.
Canada
Front/Rear
ULEV PZEV
1: 2: EX,EX-L
NGK:NGK:
DENSO:
LX, LX-P1 2
1 2
— —
y
y
) y y
