HONDA ACCORD 2009 8.G Owners Manual

Move the steering wheel up or
down, and in or out, so it points
toward your chest, not toward
your f ace. Make sure you can see
the instrument panel gauges and
indicators.Push the lever up to lock the
steering wheel in position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up, down, in,
and out.
Push the lever under the steering
column all the way down.
Make any steering wheel
adjustments before you start driving. 1.
2.3. 4.
Steering Wheel A djustments
Inst rument s and Cont rols
75
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
——y

y
)
yy

The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the driver’s
door lock. You can keep the trunk
release handle, rear seat trunk
access, and glove box locked when
you leave your vehicle and the valet
key at a parking f acility.Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.
Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The valet key does not contain a
battery. Do not try to take it apart.
Keys and Locks
76
KEY
NUMBERTAG VALET KEY
(Light Grey)
MASTER
KEY WITH
REMOTE
TRANSMITTER
——y
y
)
y
y

If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
If you lose your key and you cannot
start the engine, contact your dealer.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on
brief ly, then go of f . If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to the
LOCK (0) position, remove the key,
reinsert it, and turn the ignition
switch to the ON (II) position again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
chain) is near the ignition switch
when you insert the key.
The immobilizer system protects
your vehicle f rom thef t. If an
improperly coded key (or other
device) is used, the engine’s f uel
system is disabled. Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to the
f ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept any
interf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f or
compliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing two
conditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may cause
undesired operation of the device.
Immobilizer Syst em
Inst rument s and Cont rols
77
Always take the ignition key with you
whenever you leave the vehicle alone.
——y
y
)
yy

µµ
µ
µ
The ignition switch has f our
positions: LOCK (0), ACCESSORY
(I), ON (II), START (III) You can insert or
remove the key only in this position.
To turn the key, push it in slightly. If
your vehicle has an automatic
transmission, the shif t lever must
also be in Park. You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or the
ACCESSORY (I) position and open
the driver’s door. Remove the key to
turn of f the beeper.
If your vehicle has an automatic
transmission, the shif t lever must be
in Park bef ore you can remove the
key f rom the ignition switch.
If the f ront wheels are turned, the
anti-thef t lock may make it dif f icult
to turn the key. Firmly turn the
steering wheel to the lef t or right as
you turn the key.
Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key. This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch f rom the
ACCESSORY (I) to the ON (II)
position. You can
operate the audio system and the
accessory power sockets in this
position.
Ignition Switch
LOCK (0)
ST A RT (III)
ON (II)
A CCESSORY (I)
78
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control of thevehicle.
Remove the key from the
ignition switch only whenparked.
——y
y
)
yy

The lock tab on any passenger’s door
locks and unlocks that door.
When the door is unlocked, you can
seetheredindicatoronthelocktab
above the inner door handle.Youcanopenorclosethewindows
and the moonroof (if equipped) by
using the key in the driver’s door
(see page ).
All doors can be locked f rom the
outsidebyusingthekeyinthe
driver’s door. To unlock only the
driver’s door, insert the key, turn it
clockwise, and release it. The
remaining doors unlock when you
turn the key a second time within a
f ew seconds.
To lock all doors, push the f ront of
the master door lock switch on
either f ront door, pull the lock tab
rearward on the driver’s door, or use
the key on the outside lock on the
driver’s door.
Pushing the rear of either master
door lock switch will unlock all doors.
Pushing f orward the lock tab on the
driver’s door unlocks only that door. To lock any passenger’s door when
getting out of the vehicle, pull the
lock tab rearward and close the door.
To lock the driver’s door, remove the
key f rom the ignition switch, pull the
locktabrearwardorpushthefront
of the master switch, then close the
door.
105
CONT INUED
Door L ocks
Inst rument s and Cont rols
79
POWER DOOR LOCK MASTER SWITCH
RED INDICATORLock
Unlock
Lock
Unlock LOCK TAB
——y
y
)
yy

If you f orget and leave the key in the
ignition switch, lockout prevention
will not allow you to lock the driver’s
door. With any door open and the
key in the ignition switch, locking
with master door lock switch is
disabled. If the driver’s door is
closed, the lock tab on the driver’s
door is not disabled. Pulling the
driver’s lock tab rearward will lock
all doors. If you try to lock an open
driver’s door by pulling the lock tab
rearward, the driver’s door lock tab
pops out and unlocks the driver’s
door.The auto door locking f eature has
three possible settings:
The auto door locking is
deactivated all the time.
The doors lock whenever you
move the shift lever out of the
Park (P) position (A/T vehicles).
The doors lock when the vehicle
speed reaches 9 mph (15 km/h).
Your vehicle has customizable
settings f or the doors to
automatically lock and unlock. There
are default settings for each of these
f eatures. You can turn of f or change
the settings for these features as
described on the f ollowing pages.
This is the def ault setting.
When you customize the setting,
make sure your vehicle is parked
saf ely, the engine is of f , and the
parking brake is applied. Make all
settings bef ore you start driving.
L ockout Prevent ion
Door L ocks
A uto Door L ocking
A uto Door L ocking/Unlocking
80
——y
y
)
yy

If you f orget and leave the key in the
ignition switch, lockout prevention
will not allow you to lock the driver’s
door. With any door open and the
key in the ignition switch, locking
with master door lock switch is
disabled. If the driver’s door is
closed, the lock tab on the driver’s
door is not disabled. Pulling the
driver’s lock tab rearward will lock
all doors. If you try to lock an open
driver’s door by pulling the lock tab
rearward, the driver’s door lock tab
pops out and unlocks the driver’s
door.The auto door locking f eature has
three possible settings:
The auto door locking is
deactivated all the time.
The doors lock whenever you
move the shift lever out of the
Park (P) position (A/T vehicles).
The doors lock when the vehicle
speed reaches 9 mph (15 km/h).
Your vehicle has customizable
settings f or the doors to
automatically lock and unlock. There
are default settings for each of these
f eatures. You can turn of f or change
the settings for these features as
described on the f ollowing pages.
This is the def ault setting.
When you customize the setting,
make sure your vehicle is parked
saf ely, the engine is of f , and the
parking brake is applied. Make all
settings bef ore you start driving.
L ockout Prevent ion
Door L ocks
A uto Door L ocking
A uto Door L ocking/Unlocking
80
——y
y
)
yy

CONT INUED
Locks all doors when the shif t lever ismoved out of the Park (P) position (A/Tvehicles only).
Make sure the shif t lever is in the
Park (P) position (A/T vehicles).
Turn the ignition switch to the ON
(II) position, and open the driver’s
door. Pushandholdthefrontof the
master door lock switch on the
driver’s door until you hear a click
(af ter about 5 seconds).
Release the switch, and within 5
seconds, turn the ignition switch
to the LOCK (0) position.
Make sure the shif t lever is in the
Park (P) position.
Turn the ignition switch to the ON
(II) position, and make sure to
close the driver’s door.
1. 2.
1.2. 3. 4.
Door L ocks
To program the Park Lock mode:
T o t urn of f t he A ut o Door L ock
modes:
Inst rument s and Cont rols
81
——y
y
)
yy

Pushandholdthefrontof the
master door lock switch on the
driver’s door. You will hear a click.
Keep holding the switch until you
hear another click (after about 5
seconds).
Release the switch, and within 5
seconds, turn the ignition switch
to the LOCK (0) position.Release the switch, and within 5
seconds, turn the ignition switch
to the ACCESSORY (I) position.
move the shif t
lever to the Park (P) position.
Pushandholdthefrontof the
master door lock switch on the
driver’s door. You will hear a click.
Keep holding the switch until you
hear another click (after about 5
seconds).

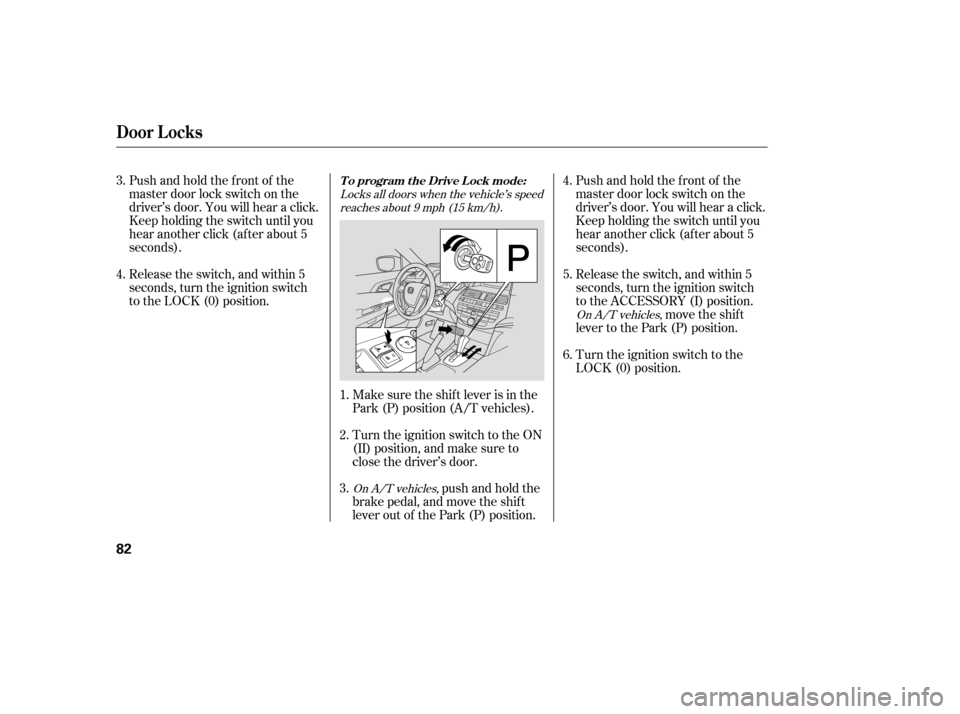

Make sure the shif t lever is in the
Park (P) position (A/T vehicles).
Turn the ignition switch to the ON
(II) position, and make sure to
close the driver’s door. push and hold the
brake pedal, and move the shift
lever out of the Park (P) position. Turn the ignition switch to the
LOCK (0) position.
1. 2. 3. 4. 5. 6.
3. 4.
Locks all doors when the vehicle’s speed
reaches about 9 mph (15 km/h).
On A/T vehicles,
On A/T vehicles,
Door L ocks
T o program t he Drive L ock mode:
82
——y

y
)
yy

CONT INUED
The auto door unlocking is
deactivated all the time.
The auto door unlocking f eature
has f ive possible settings:
Make sure the shif t lever is in the
Park (P) position (A/T vehicles).
Turn the ignition switch to the ON
(II) position, and open the driver’s
door.Pushandholdtherearof the
master door lock switch on the
driver’s door. You will hear a click,
and after about 5 seconds, you will
hear another click.
Release the switch, and within 5
seconds, turn the ignition switch
to the LOCK (0) position.
The driver’s door unlocks
whenever you turn the ignition
switch to the ACCESSORY (I)
position.
All doors unlock when you move
the shif t lever to the Park (P)
position (A/T vehicles). the driver’s door
unlocks when you move the shif t
lever to the Park (P) position.
This is the def ault setting on M/T
vehicles.
All doors unlock whenever you
turn the ignition switch to the
ACCESSORY (I) position.
This is the def ault setting.
1. 2. 3. 4.
On A/T vehicles,
Door L ocks
A uto Door UnlockingT o t urn of f t he A ut o Door Unlock
modes:
Inst rument s and Cont rols
83
——y
y
)
yy
