HONDA ACCORD 2009 8.G Owners Manual

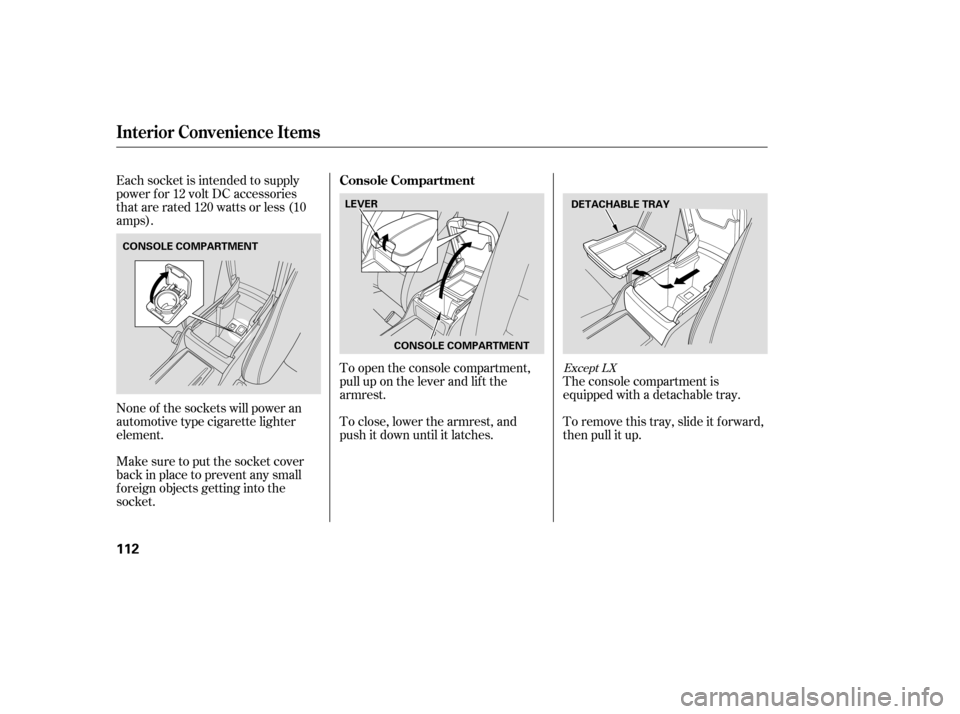

To close, lower the armrest, and
push it down until it latches.
To open the console compartment,
pull up on the lever and lif t the
armrest.
The console compartment is
equipped with a detachable tray.
To remove this tray, slide it f orward,
then pull it up.
Each socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
None of the sockets will power an
automotive type cigarette lighter
element.
Make sure to put the socket cover
back in place to prevent any small
foreign objects getting into the
socket.
Except LX
Console Compartment
Interior Convenience Items
112
CONSOLE COMPARTMENT
CONSOLE COMPARTMENT
LEVER
DETACHABLE TRAY
——y

y
)
y

y

To close, lower the armrest, and
push it down until it latches.
To open the console compartment,
pull up on the lever and lif t the
armrest.
The console compartment is
equipped with a detachable tray.
To remove this tray, slide it f orward,
then pull it up.
Each socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
None of the sockets will power an
automotive type cigarette lighter
element.
Make sure to put the socket cover
back in place to prevent any small
foreign objects getting into the
socket.
Except LX
Console Compartment
Interior Convenience Items
112
CONSOLE COMPARTMENT
CONSOLE COMPARTMENT
LEVER
DETACHABLE TRAY
——y

y
)
y

y

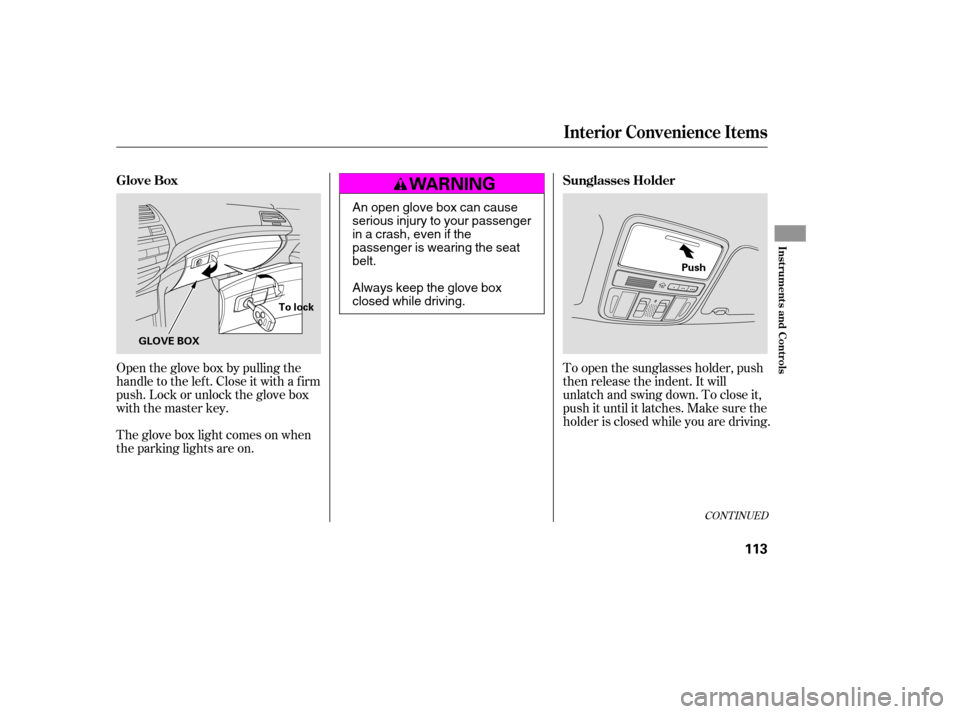

Open the glove box by pulling the
handle to the lef t. Close it with a f irm
push. Lock or unlock the glove box
with the master key.
The glove box light comes on when
the parking lights are on.To open the sunglasses holder, push
then release the indent. It will
unlatch and swing down. To close it,
push it until it latches. Make sure the
holder is closed while you are driving.
CONT INUED
Sunglasses Holder
Glove Box
Interior Convenience Items
Inst rument s and Cont rols
113
GLOVE BOX To lock Push
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seatbelt.
Always keep the glove box
closed while driving.
——y
y
)
y

y

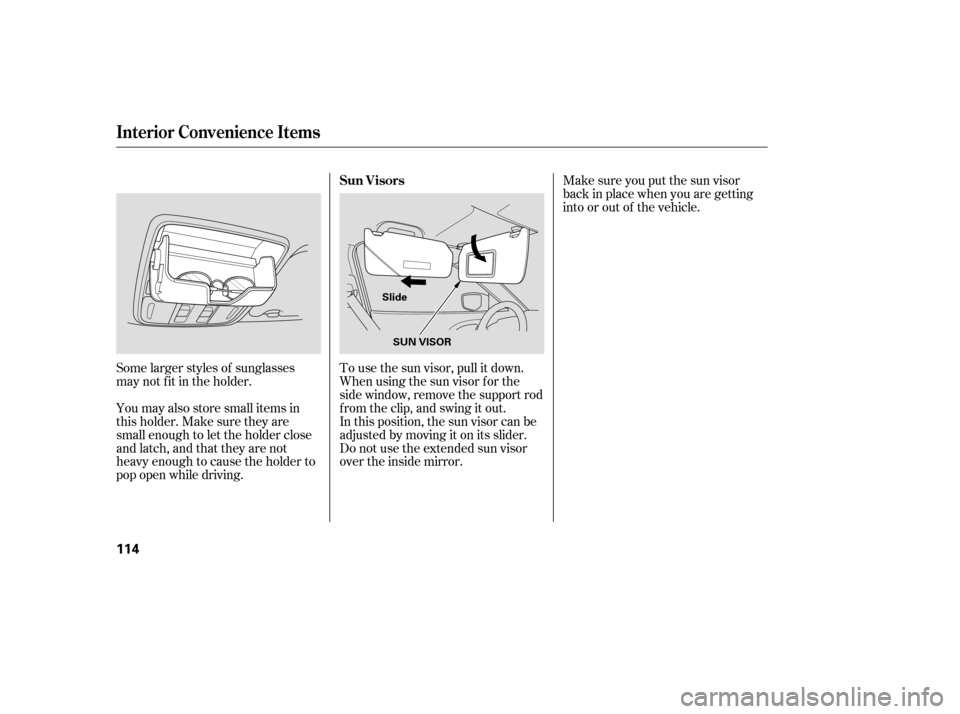

Some larger styles of sunglasses
may not f it in the holder.
You may also store small items in
thisholder.Makesuretheyare
small enough to let the holder close
and latch, and that they are not
heavy enough to cause the holder to
pop open while driving.To use the sun visor, pull it down.
Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip, and swing it out.
In this position, the sun visor can be
adjusted by moving it on its slider.
Do not use the extended sun visor
over the inside mirror.Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.
Interior Convenience Items
Sun Visors
114
SUN VISOR
Slide
——y
y
)
y

y

Some larger styles of sunglasses
may not f it in the holder.
You may also store small items in
thisholder.Makesuretheyare
small enough to let the holder close
and latch, and that they are not
heavy enough to cause the holder to
pop open while driving.To use the sun visor, pull it down.
Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip, and swing it out.
In this position, the sun visor can be
adjusted by moving it on its slider.
Do not use the extended sun visor
over the inside mirror.Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.
Interior Convenience Items
Sun Visors
114
SUN VISOR
Slide
——y
y
)
y

y

Tousethevanitymirrorontheback
of the sun visor, pull up the cover.
The vanity mirror lights come on
when you pull up the cover.Touseacoathook,slideitout
slightly, then pull it down.
Make sure the coat hook is f olded up
when you are not using it. This hook
is not designed f or large or heavy
items.Pull up the lid to open each pocket.
Interior Convenience Items
Vanity Mirror Coat Hook Center Pockets
Inst rument s and Cont rols
115
On models without navigation system
——y
y
)
y
y

The ceiling light has a three-position
switch; ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:After all doors are closed tightly, the
light dims slightly, then f ades out in
about 30 seconds.
The ceiling light (with the switch in
the center position) comes on when
you remove the key f rom the ignition
switch. If you do not open a door, the
light stays on, then f ades out in
about 30 seconds.
Turn on a spotlight by pushing the
lens. Push the lens again to turn it
of f . You can use the spotlights at all
times.
If you leave any door open without
the key in the ignition switch, the
ceiling light will go of f af ter about 15
minutes.
Unlock the driver’s door with the
keyorremotetransmitter.
Open any door.
Ceiling L ight
Spotlights
Interior Lights
116
DOOR ACTIVATED POSITION
LX, LX-P
——y
y
)
y

y

The spotlights have a two-position
switch. In the DOOR position, the
lights come on when you open any
door. The lights f ade out in about 30
seconds af ter the doors are closed
tightly. In the OFF position, the
lights do not come on.The spotlights (with the switch in
the DOOR position) also come on
when you unlock the door with the
key or the remote transmitter, and
when you remove the key f rom the
ignition switch.
The courtesy light in each f ront door
comes on when the door is opened,
and goes out when the door is closed.
Your vehicle also has a courtesy light
in the ignition switch. This light
comesonwhenyouopenthedriver’s
door. It f ades out in about 30
seconds af ter the door is closed.
CONT INUED
Except LX and LX-P
Interior Lights
Courtesy Lights
Inst rument s and Cont rols
117
DOOR ACTIVATED SPOTLIGHTOFF POSITION
——y
y
)
y
y

The courtesy light between the
spotlights comes on when you turn
the parking lights on. To adjust its
brightness, turn the select/reset
knob on the instrument panel, with
the ignition switch in the ON (II)
position.
Except LX and LX-P
Interior Lights
118
——y
y
)
y
y

Î
Î
: If equipped
Vents, Heating, and A/C
LX,LX-P,EX,andEXV6
120
MODE CONTROL
BUTTONS
FAN CONTROL DIAL RECIRCULATION BUTTON TEMPERATURE CONTROL DIAL
MAX A/C BUTTON AIR CONDITIONING (A/C)
BUTTON
REAR WINDOW DEFOGGER/
HEATED MIRROR BUTTON
REAR WINDOW DEFOGGER
BUTTON
