The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels. Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Large items carried on a roof rack.
CONT INUED
Playing t he XMSatellite Radio (EX-L and EX-L V6 models without navigation syste
m)
Features
161

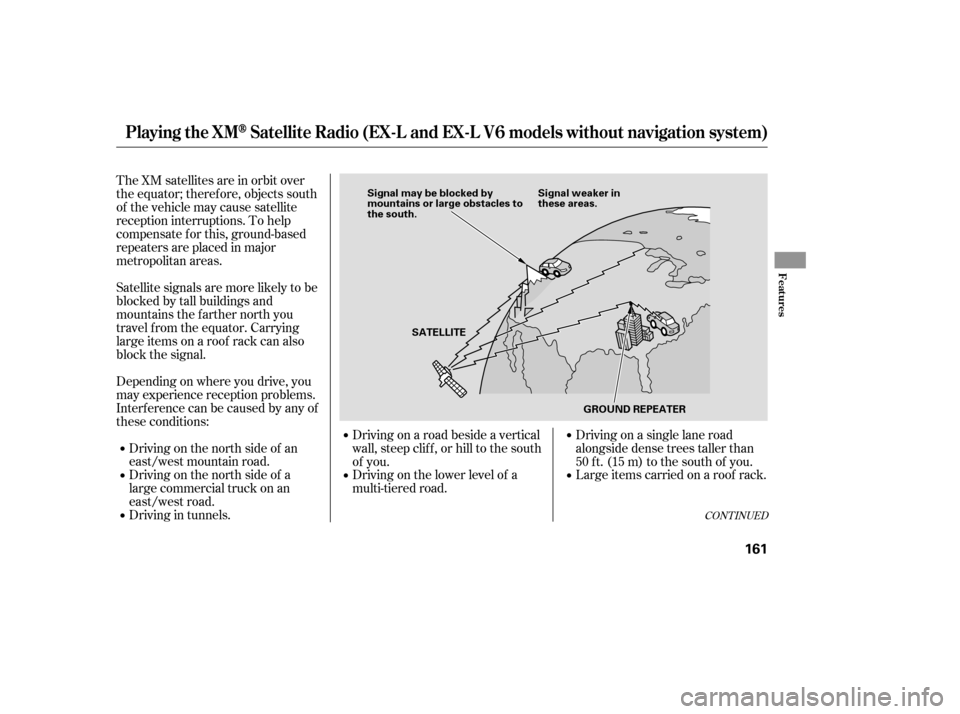

Signal may be blocked by
mountains or large obstacles to
the south.Signal weaker in
these areas.
SATELLITE GROUND REPEATER
——y



y
)
y
y

There may be other geographic
situations that could affect XM
Satellite Radio reception.After you’ve registered with XM
Radio, keep your audio system in the
XM Satellite Radio mode while you
wait f or activation. This should take
about 30 minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated,
‘‘CATEGORY’’ or ‘‘CHANNEL’’ will
appear in the display, and you’ll be
able to listen to XM Satellite Radio
broadcasts. XM Radio will continue
to send an activation signal to your
vehicle for at least 12 hours from the
activation request. If the service has
not been activated after 36 hours,
contact XM Radio.
If your XM Satellite Radio service
has expired or you purchased your
vehicle f rom a previous owner, you
can listen to a sampling of the
broadcasts available on XM Satellite
Radio. With the ignition switch in the
ACCESSORY (I) or the ON (II)
position, press the button. A
variety of music types and styles will
play.
If you decide to purchase XM
Satellite Radio service, contact XM
Radio at , or at
1-800-852-9696. In Canada, contact
, or call 1-877-438-
9677. You will need to give them
your radio I.D. number and your
credit card number. To get your
radio I.D. number, press the
button, then turn the
selector knob until ‘‘CH 000’’ appears
in the display. Your I.D. will appear
in the display.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f or
compliance could void the user’sauthority to operate the equipment.
www.xmradio.com
www.xmradio.ca
Playing t he XMSatellite Radio (EX-L and EX-L V6 models without navigation syste m)
Receiving Satellite Radio Service
162
——y


y
)
y
y

Playing Discs (EX, EX-L and V6 models without navigation system)
Features

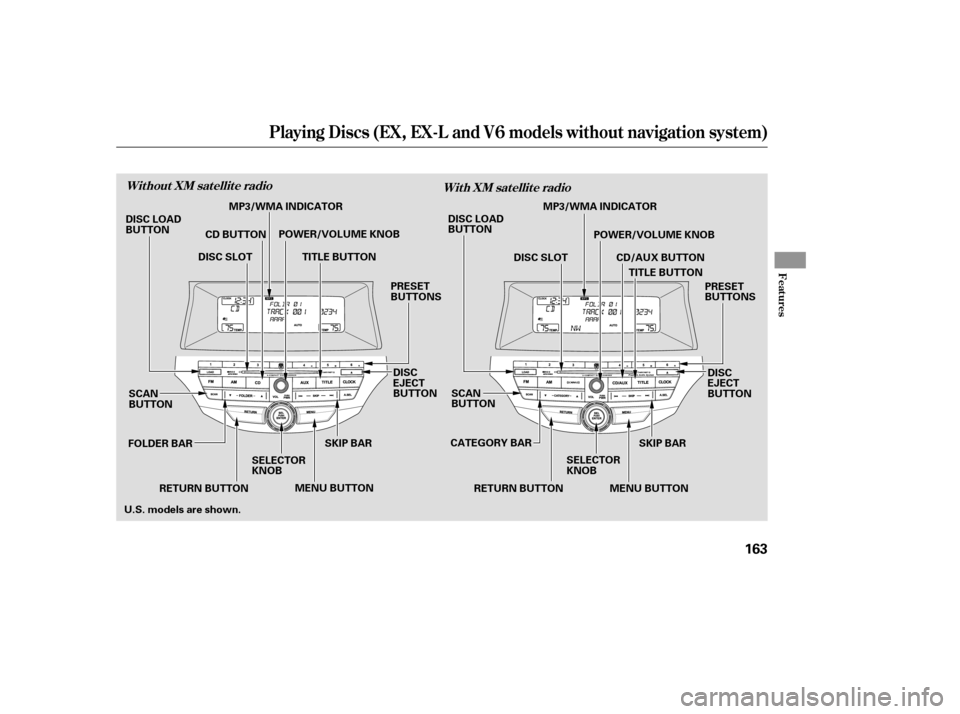

Without XM satellite radioWith XM satellite radio
163
SCAN
BUTTON
MENU BUTTONSKIP BAR
POWER/VOLUME KNOB
TITLE BUTTON
FOLDER BAR SELECTORKNOB PRESET
BUTTONS
RETURN BUTTON MP3/WMA INDICATOR
DISC LOAD
BUTTON
DISC SLOTCD BUTTON
DISC
EJECT
BUTTONSCAN
BUTTON
MENU BUTTONSKIP BAR
POWER/VOLUME KNOB
TITLE BUTTON
SELECTORKNOB PRESET
BUTTONS
RETURN BUTTON MP3/WMA INDICATOR
DISC LOAD
BUTTON
DISC
EJECT
BUTTON
DISC SLOT
CD/AUX BUTTON
CATEGORY BAR
U.S. models are shown.
——y


y
)
y
y

µ µ µ
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the disc changer with
the same controls used f or the radio.
To select the disc changer, press the
CD/AUX or CD button. You will see
‘‘CD’’ in the display. The disc and
track numbers, and the elapsed time
areshowninthedisplay.Youcan
also select the displayed inf ormation
with the TITLE button (see page
). The system will continuously
play a disc until you change modes. This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. You can select up to 99
f olders, or up to 255 tracks/f iles.
Video CDs and DVDs do not work in
this unit.
The specif ications f or compatible
MP3 f iles are:
Sampling f requency:
32/44.1/48 kHz (MPEG1)
16/22.05/24 kHz (MPEG2)
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
Compatible with variable bitrate
and multi-session
Maximum layers
(including ROOT): 8 layers
166
To Play a Disc
Playing Discs (EX, EX-L and V6 models without navigation system)
164
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
——y


y
)
y
y

µ µ µYour vehicle’s in-dash disc changer
holdsuptosixdiscs.
You cannot load and play 3-inch
(8-cm) discs in this unit.
When the disc load indicator turns
green and ‘‘LOAD’’ appears in the
display again, insert the next disc
in the slot. Do not try to insert a
disc until ‘‘LOAD’’ appears. You
could damage the audio unit.
Repeat this until all six positions
are loaded. If you are not loading
all six positions, the system begins
playing the last disc loaded.
You can also load a disc into an
empty position while a disc is playing
by pressing the appropriate preset
button. The system stops playing the
current disc and starts the loading
sequence. It then plays the disc just
loaded.
Press the LOAD button until you
hear a beep and see ‘‘LOAD’’ in
the display. To load only one disc,
press and release the LOAD
button.
The disc number f or an empty
position begins blinking.
Insert the disc into the disc slot
when the green disc load indicator
comes on. Insert it only about
half way; the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ in the display while the
disc load indicator turns red and
blinks as the disc is loaded.
The specif ications f or compatible
WMA f iles are:
Compatible with variable bitrate
and multi-session
Maximum layers
(including ROOT): 8 layers
Sampling f requency:
32/44.1/48 kHz
Bitrate:
48/64/80/96/128/160/192 kbps
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays UNSUPPORTED, and then
skips to the next f ile. 1. 2. 3.
4. 5.
CONT INUED
L oading Discs
Playing Discs (EX, EX-L and V6 models without navigation system)
Features
165
NOTE:
——y

y
)
y
y

With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
The display shows up to about 16
characters of selected text data (the
f older name, f ile name, etc.).
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
artist, album, and track tag.
If the text data has more than 16
characters, you will see the f irst 16
characters and the indicator in
the display. Press and hold the
TITLE button until the next 16
characters are shown. You can see
up to about 32 characters of the text
data.
Each time you press the TITLE
button, the display shows you the
text data on a disc, if the disc was
recorded with text data.
If youpressandholdtheTITLE
button again, the display shows the
f irst 16 characters again.
If any letter is not available, it is
replaced with ‘‘ . ’’ (dot) in the display.
When the disc has no text data, you
will see ‘‘NO INFO’’ on the display.
When you press and release the
TITLE button while a disc without
text data is playing, you will see ‘‘NO
INFO’’ on the display. When you turn on the audio system
next time, the system keeps your
selection with the TITLE button.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
When you insert a disc, and the
system begins to play.
When a new f older, f ile, or track is
selected.
You will also see some text data
under these conditions:
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
T ext Data Display Function
Playing Discs (EX, EX-L and V6 models without navigation system)
166
——y

y
)
y

y

µ
Use the SKIP bar while a disc is
playing to select passages and
change tracks (f iles in MP3 or WMA
mode).
In MP3 or WMA mode, use the
FOLDER bar (CATEGORY bar on
models with XM satellite radio) to
select f olders in the disc and use
either side of the skip bar to change
f iles.
To select a dif f erent disc, use the
appropriate preset buttons (1
through 6). If you select an empty
position, the system will go into the
loading sequence (see page ). Each time you press and
releasethe sideof theSKIPbar,
the player skips forward to the
beginning of the next track (f ile in
MP3 or WMA mode). Press and
releasethe sideof thebarto
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To move rapidly within a track or f ile,
press and hold either side ( or ) of the SKIP bar.
In MP3 or WMA mode, you can also
select a f older or track/f ile f rom the
list by using the selector knob. Push
the selector knob (ENTER) to
switch the display to the list
displayed with three segments, then
turn the knob to select a f older.
Press the selector knob (ENTER) to
change the display to the track/file
list, then turn the same knob to
select a track/f ile. Press the selector
knob (ENTER) to set your selection.
165
CONT INUED
T o Change or Select T racks/Files
Playing Discs (EX, EX-L and V6 models without navigation system)
SK IP
Features
167
Folder Selection
Press ENTER
Track Selection
——y

y
)
y
y

µ
ÛÝ
Û Ý

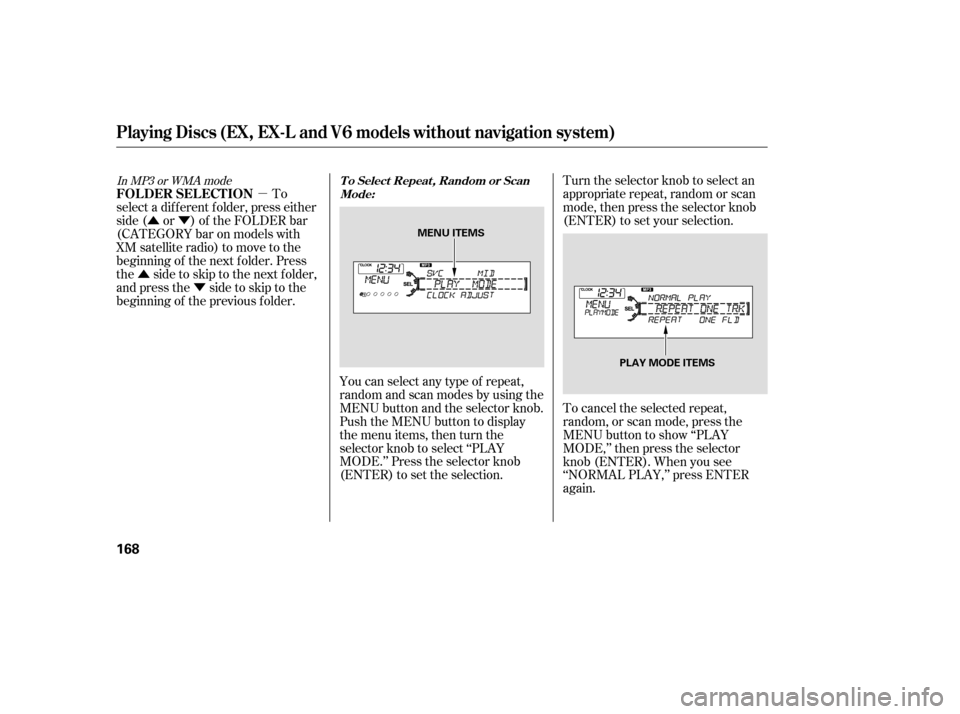

You can select any type of repeat,
random and scan modes by using the
MENU button and the selector knob.
Push the MENU button to display
themenuitems,thenturnthe
selector knob to select ‘‘PLAY
MODE.’’ Press the selector knob
(ENTER) to set the selection.
To
select a dif f erent f older, press either
side ( or ) of the FOLDER bar
(CATEGORY bar on models with
XM satellite radio) to move to the
beginning of the next f older. Press
the sidetoskiptothenextfolder,
andpressthe sidetoskiptothe
beginning of the previous f older. Turn the selector knob to select an
appropriate repeat, random or scan
mode, then press the selector knob
(ENTER) to set your selection.
To cancel the selected repeat,
random, or scan mode, press the
MENU button to show ‘‘PLAY
MODE,’’ then press the selector
knob (ENTER). When you see
‘‘NORMAL PLAY,’’ press ENTER
again.
In MP3 or WMA mode
Playing Discs (EX, EX-L and V6 models without navigation system)
T o Select Repeat , Random or Scan
Mode:
FOLDER SELECTION
168
MENU ITEMS
PLAY MODE ITEMS
——y

y
)
y
y

µ
µ
µ µ
µ This
f eature, when activated, plays the
f iles within a current f older in
random order, rather than in the
order they are compressed in MP3
or WMA. To activate folder random
play, select the f older random mode
from the menu items. You will see
F-RANDOM in the display. The
system will then select and play f iles
randomly. This continues until you
deactivate f older random play by
selecting the normal play mode, or
you select a dif f erent f older with the
FOLDERbar(CATEGORYbaron
models with XM Satellite radio).
To
continuously replay a track (f ile in
MP3 or WMA mode), select the
track repeat mode f rom the menu
items. You will see REPEAT in the
display. Select the normal play mode
to turn it off.
Pressing either side of the SKIP bar
also turns of f the repeat f eature.
This feature,
when activated, replays all the f iles
in the selected f older in the order
they are compressed in MP3 or
WMA. To activate folder repeat
mode, select the f older repeat mode
from the menu items. You will see
F-REPEAT in the display. The
system continuously replays the
current f older. Select the normal
play mode to turn it of f . Selecting a
different folder with the FOLDER
bar (CATEGORY bar on models
with XM Satellite Radio) also turns
of f the repeat f eature. This feature
continuously replays the current disc.
To activate disc repeat, select the
disc repeat mode f rom the menu
items. You will see D-REPEAT in the
display. Select the normal play mode
to turn it off.
This f eature plays the
tracks within a disc (the f iles in MP3
or WMA mode) in random order. To
activate random play, select the disc
random play f rom the menu items.
You will see RANDOM in the display.
Selectthenormalplaymodeto
return to normal play.
CONT INUED
In MP3 or WMA mode In MP3 or WMA mode
Playing Discs (EX, EX-L and V6 models without navigation system)
FOLDER RANDOM
REPEAT (Track Repeat)
FOLDER REPEAT DISC REPEAT
RANDOM (Random within a disc)
Features
169
——y

y
)
y
y

µµ
The SCAN f unction
samples all the tracks on the disc in
the order they are recorded on the
disc (all f iles in the selected f older in
MP3 or WMA mode). To activate the
scan feature, press and release the
SCAN button. You will see ‘‘SCAN’’
in the display. You will get a 10
second sampling of each track/f ile in
the disc/f older. Press and hold the
SCAN button to get out of scan
mode and play the last track sampled. This f eature, when
activated, samples the first file in
each f older on the disc in the order
they are recorded. To activate the
f older scan f eature, press and
release the SCAN button repeatedly.
You will see ‘‘F-SCAN’’ in the display.
The system will then play the first
f ile in the main f olders f or about 10
seconds. If you do nothing, the
system will then play the f ollowing
f irst f iles f or 10 seconds each. When
it plays a file that you want to
continue listening to, press and hold
the SCAN button.
You can also select the scan feature
from the menu items with the
selector knob (see page ).
You can also select the folder scan
f eature f rom the menu items with
the selector knob (see page ).Pressing either side of the skip bar,
or selecting a dif f erent disc (using
the preset buttons) or f older (using
the FOLDER or CATEGORY bar)
turns off the SCAN or F-SCAN
feature.
168
168In MP3 or WMA modeSCAN
F-SCAN
Playing Discs (EX, EX-L and V6 models without navigation system)
170
——y

y
)
y
y
