HONDA ACCORD 2010 8.G Owners Manual

The driver’s and f ront passenger’s
seats have active head restraints. If
the vehicle is struck severely f rom
the rear, the occupant properly
secured with the seat belt will be
pushed against the seat-back and the
head restraint will automatically
move forward.
This reduces the distance between
the restraint and the occupant’s head.
It also helps protect the occupantsagainst the likelihood of whiplash
and injuries to the neck and upper
spine.
For a head restraint system to work
properly:
Do not hang any items on the head
restraints, or f rom the restraint
legs.
Do not place any object between
an occupant and the seat-back.
Install each restraint in its proper
location.
Only use genuine Honda
replacement head restraints.
Af ter a collision, the activated
restraint should return to its normal
position.
If the restraints do not return to their
normal position, or in the event of a
severe collision, have the vehicle
inspected by a Honda dealer.
Seats
A ct ive Head Rest raint s
96
Table of Contents

When storing cargo, you can move
therearcentershoulderbeltoutof
the way by removing the belt f rom
the guide.
The back of the rear seat folds down,
giving you direct access to the trunk.
The seat-back is released f rom inside
the trunk.
Remove any items from the seat
beforeyoufolddowntheseat-back.
Make sure the rear seat armrest is
stored.
To release the seat-back from inside
the trunk, pull the release under the
trunk panel. Push the seat-back
down f rom inside the trunk, or pull
the seat-back down f rom inside the
vehicle.
CONT INUED
Folding Rear Seat
Seats
Inst rument s and Cont rols
97
Pull
GUIDE RELEASE
——
y
y
)y
y
Table of Contents

Make sure that the folded seat-back
does not press against the f ront
passenger’s seat, as this could cause
the weight sensors to work
improperly.Never drive with the seat-back
f olded down and the trunk lid open.
See on
page .
Make sure all rear shoulder belts are
positioned in f ront of the rear seat-
back, and the center shoulder belt is
re-positioned in the guide whenever
the seat-back is in its upright position.
Be sure there are no twists in any
shoulder belt.
Do not put any heavy items on the
seat-back when it is folded down.
Make sure all items in the trunk, or
items extending through the opening
into the back seat, are secured.
Looseitemscanflyforwardand
cause injury if you have to brake
hard. See on page
. To use the console lid as an armrest,
slide it to one of its three positions.
If the rear head restraints get caught
on the f ront seat backs and you
cannot fold down the rear seat-back
f ully, you can remove the head
restraints (see page ).
Make sure the removed head
restraints are securely stored.
To lock the seat-back upright, push it
f irmly against the trunk panel. Make
sure it is latched in place by pulling
on the top of the seat.
51
95
269
Seats
Carbon Monoxide HazardCarrying Cargo Armrests
98
Front
——
y

y
)y
y
Table of Contents

The rear seat armrest is in the
center of the rear seat. Pivot it down
to use it.
A beverage holder is located in the
armrest.Never drive with this cover open and
the trunk lid open.
See on
page .
For security, this cover can be
locked and unlocked only with the
master key. To lock the cover, insert
thekeyandturnitclockwise.
Make sure all items in the trunk and
those extending through the pass-
through are secured.
The trunk pass-through cover can be
opened f rom inside the vehicle; it
f olds down onto the center armrest.
Open the cover by sliding the knob
downward and pulling on the cover.
To close the cover, swing it up and
push f irmly on the top. Make sure it
latches properly. 51
Seats
T runk Pass-through Cover
Carbon Monoxide Hazard
Inst rument s and Cont rols
99
KEY CYLINDER
LID
Rear
KNOB
——
y
y
)y
y
Table of Contents

Both f ront seats are equipped with
seat heaters. Because of the sensors
f or the side airbag cutof f system,
there is no heater in the passenger’s
seat-back. The ignition switch must
be in the ON (II) position to use the
heaters.Push the right side of the switch, HI,
to rapidly heat up the seat. Af ter the
seat reaches a comfortable
temperature, select LO by pushing
the lef t side of the switch. This will
keep the seat warm.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters even on the LO
setting. It can weaken the battery,
causing hard starting.
Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
Follow these precautions whenever
you use the seat heaters:
In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes.
In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
EX-L and EX-L V6
Seat Heaters
100
Driver’s Seat
Passenger’sSeat
HEATERS
——
y
y
)y
y
Table of Contents

The inside mirror can automatically
darken to reduce glare. To turn on
this feature, press the button on the
bottom of the mirror. The AUTO
indicator comes on as a reminder.
When it is on, the mirror darkens
when it senses the headlights of a
vehicle behind you, then returns to
normal visibility when the lights are
gone. Press the button again to turn
of f this f eature.
Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
LX, LX-P, EX and EX V6
EX-L and EX-L V6
Mirrors
Inst rument s and Cont rols
101
AUTO BUTTON
INDICATOR SENSOR
TAB
There is also a sensor on the back of
the mirror. Items hung on the mirror
may block this sensor and af f ect its
perf ormance.
——
y
y
)y
y
Table of Contents

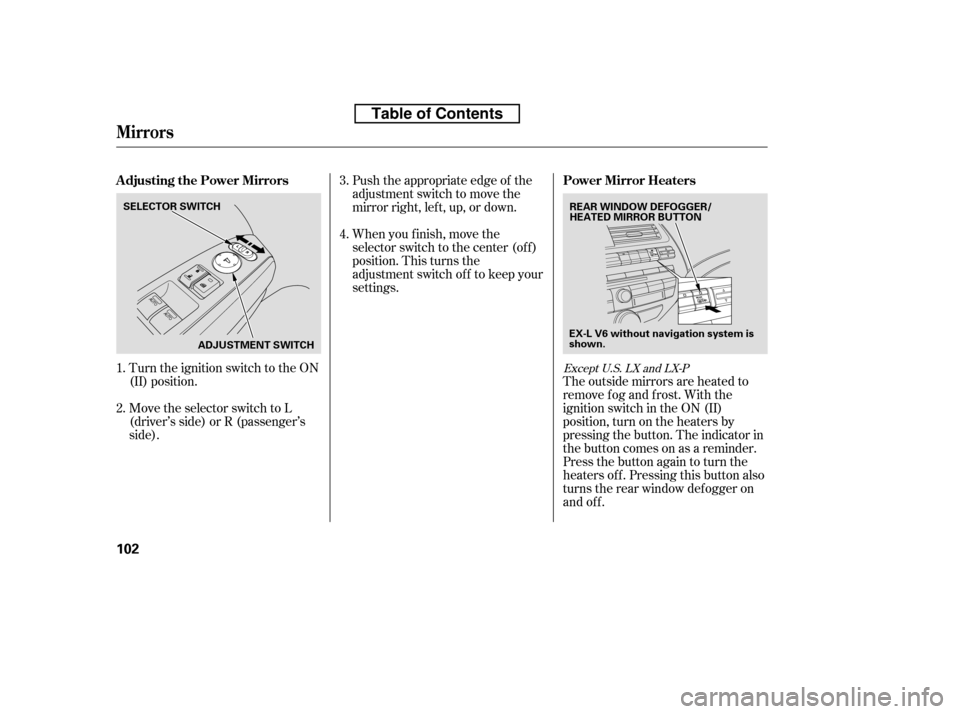

Turn the ignition switch to the ON
(II) position.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off. Pressing this button also
turns the rear window def ogger on
and off.
1. 3.
2. 4.Except U.S. LX and LX-P
Mirrors
PowerMirrorHeaters
Adjusting the Power Mirrors
102
SELECTOR SWITCH
ADJUSTMENT SWITCH EX-L V6 without navigation system is
shown.REAR WINDOW DEFOGGER/
HEATED MIRROR BUTTON
——
y
y
)y
y
Table of Contents

µ

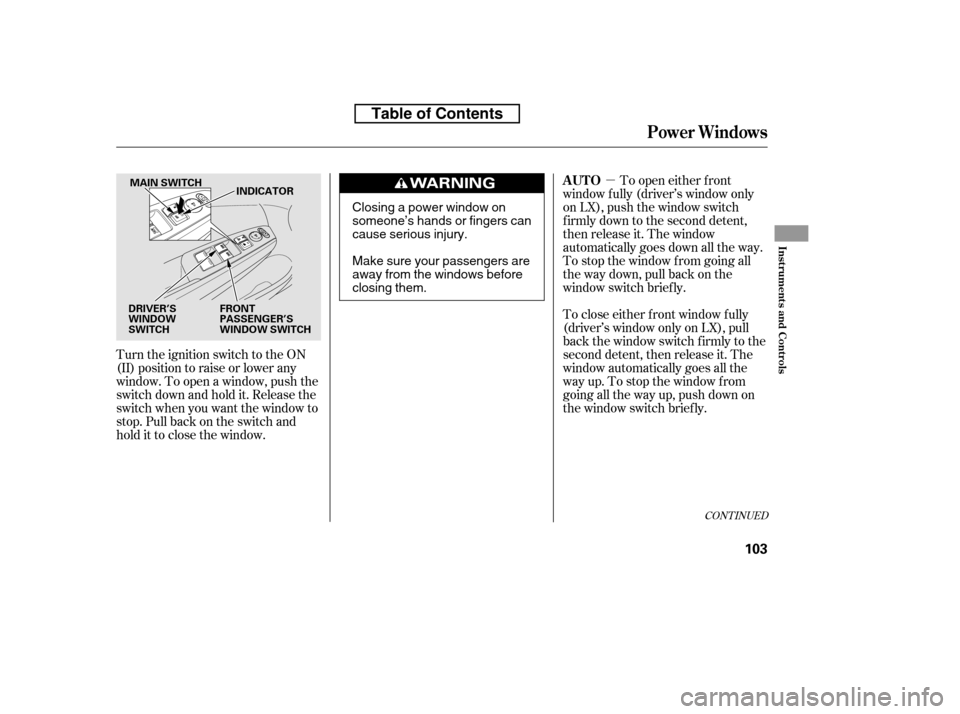

Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open a window, push the
switchdownandholdit.Releasethe
switch when you want the window to
stop. Pull back on the switch and
hold it to close the window. To open either f ront
window f ully (driver’s window only
on LX), push the window switch
f irmly down to the second detent,
then release it. The window
automatically goes down all the way.
To stop the window f rom going all
the way down, pull back on the
window switch briefly.
To close either f ront window f ully
(driver’s window only on LX), pull
back the window switch f irmly to the
second detent, then release it. The
window automatically goes all the
way up. To stop the window f rom
going all the way up, push down on
the window switch briefly.
CONT INUED
AUTO
Power Windows
Inst rument s and Cont rols
103
MAIN SWITCH
DRIVER’S
WINDOW
SWITCH FRONT
PASSENGER’S
WINDOW SWITCHINDICATOR
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
Table of Contents

µ
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
bef ore closing it. If either f ront
window (driver’s window only on
LX) senses any obstacle while it is
closing automatically, it will reverse
direction, and then stop. To close the
window, remove the obstacle, then
use the window switch again.
When you push the main switch in,
the indicator comes on and the
passengers’ windows cannot be
raised or lowered. Use the main
switchwhenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally. To cancel
this feature, push on the switch
again. The switch will pop out and
the indicator will go of f .
The windows and the main switch
feature will operate for up to 10
minutes after you turn off the
ignition switch. Opening either f ront
door cancels this f unction.
The indicators inside the window
switches come on when the light
control switch is in either or
position with the ignition
switch in the ON (II) position
(driver’s window switch only on LX). The driver’s window auto
reverse f unction is disabled when
you continuously pull up the switch.
Power Windows
AUTO REVERSE
104
NOTE:
——
y

y
)y
y
Table of Contents

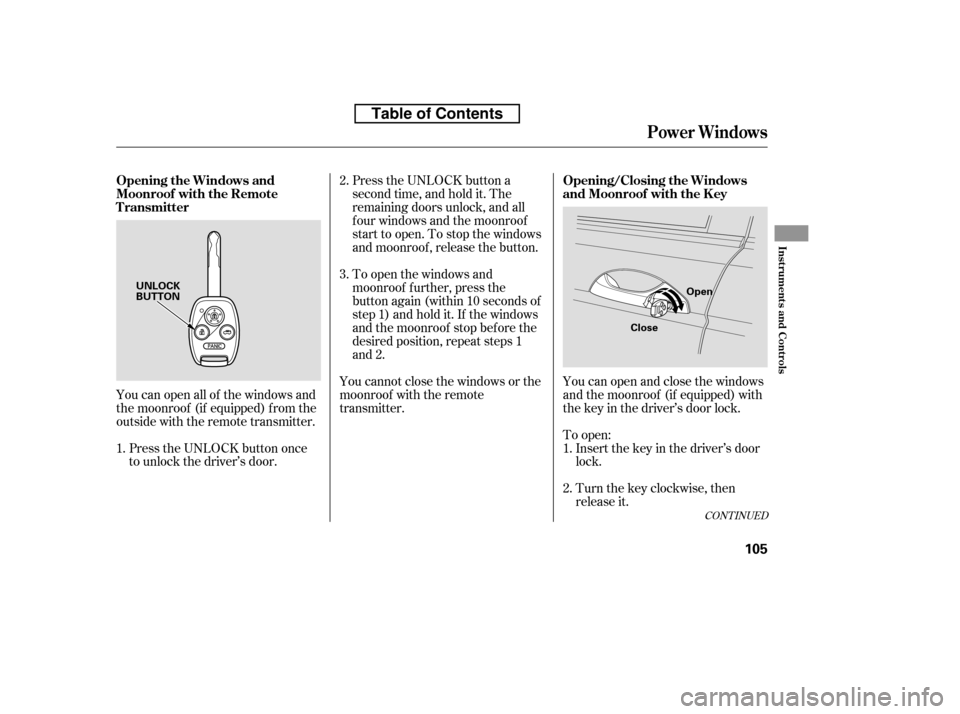

Press the UNLOCK button a
second time, and hold it. The
remaining doors unlock, and all
f our windows and the moonroof
start to open. To stop the windows
and moonroof , release the button.You can open and close the windows
and the moonroof (if equipped) with
the key in the driver’s door lock.Turn the key clockwise, then
release it.
Insert the key in the driver’s door
lock.
To open:
Press the UNLOCK button once
to unlock the driver’s door.
You can open all of the windows and
the moonroof (if equipped) f rom the
outside with the remote transmitter. To open the windows and
moonroof f urther, press the
button again (within 10 seconds of
step 1) and hold it. If the windows
and the moonroof stop bef ore the
desired position, repeat steps 1
and 2.
You cannot close the windows or the
moonroof with the remote
transmitter.
1. 2. 3.
1. 2.
CONT INUED
Power Windows
Opening the Windows and
Moonroof with the Remote
Transmitter Opening/Closing the Windows
and Moonroof with the K ey
Inst rument s and Cont rols
105
Open
Close
UNLOCK
BUTTON
——
y
y
)y

y
Table of Contents
