Page 71 of 416
The instrument panel has many
indicators to give you important
inf ormation about your vehicle.The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more inf ormation, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
See page .
If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on. 18
365
365 366
L ow Oil Pressure
Indicator
Charging System
Indicator
Malf unction Indicator
Lamp
Seat Belt Reminder
Indicator
Instrument Panel Indicators
56
— —
y
y
) y
y
Table of Contents
Page 72 of 416
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your f ront
airbags. This indicator will also alert
you to a potential problem with your
side airbags, passenger’s side airbag
cutof f system, side curtain airbags,
automatic seat belt tensioners,
driver’s seat position sensor, or the
f ront passenger’s weight sensors.
For more inf ormation, see page .
This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
If it remains lit af ter you f ully
release the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page . This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
inf ormation, see page .
1. 2. 29
367 30
Supplemental Restraint
System Indicator
Parking Brake and Brake System
Indicator Side Airbag Of f Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
57
U.S. Canada
Canada
U.S.
— —
y
y
) y y
Table of Contents
Page 73 of 416
If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See pagef or more inf ormation on the
VSA system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator has three f unctions:
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. For more inf ormation, see
page .
2. 3.
1.
289
287
289
289
Instrument Panel Indicators
VSA A ctivation Indicator
Vehicle Stability Assist
(VSA ) System Indicator
Anti-lock Brake System
(A BS) Indicator
58
— —
y
y
) y y
Table of Contents
Page 74 of 416
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on while driving,
it indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure, and determine
the cause. If it is because of a flat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). For more
inf ormation, see page .This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked.
While the engine is operating in its
most economical range, this
indicator may come on and stay on.
353
375 291V6 models
Tire Pressure Monitoring
System (T PMS) Indicator
Low Tire Pressure
Indicator Fuel Economy Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
59
— —
y
y
) y y
Table of Contents
Page 75 of 416
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door.
This indicator will also come on
when the light switch is in AUTO
and the lights turn on automatically. The appropriate indicator comes on
if the trunk or any door is not closed
tightly.
All the indicators come on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position.
328 330
EX-L and EX-L V6
Instrument Panel Indicators
Turn Signal and Hazard Warning
Indicators
Lights On Indicator Door and Trunk Open Indicator
60
DRIVER’S
DOOR OPEN
INDICATOR
TRUNK
OPEN
INDICATOR
— —
y
y
) y y
Table of Contents
Page 76 of 416
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
If this indicator comes on when you
turn the ignition switch to the ON
(II) position and release the parking
brake, it means there is a problem
with the DRL. There may also be a
problem with the high beam
headlights. Have your vehicle
checked by your dealer.
This indicator comes on when the
security system is set. See page
f or more inf ormation on the
security system.
This indicator comes on as a
reminder that you must ref uel soon.
When the indicator comes on, there
are about 2.8 U.S. gal (10.5
)of fuel
remaining in the tank.
When the needle reaches E, there is
a very small amount of f uel in the
tank. 69
71
217
If equipped
High Beam Indicator
Daytime Running L ights
Indicator
Security System Indicator
Low Fuel Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
61
SECURITY SYSTEM INDICATOR
— —
y
y
) y y
Table of Contents
Page 77 of 416
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the inf ormation display. See pagef or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
This indicator comes on when you
turn on the f og lights. For more
inf ormation, see page . This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly coded
ignition key. If it is not a properly
coded key, the indicator will blink,
and the engine’s f uel system will be
disabled (see page ).
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
(see page ).
72
223
223 77
303
318
If equipped Canadian models only
Immobilizer System
Indicator
Maintenance Minder
Indicator
Cruise Control Indicator Washer Level Indicator
Cruise Control Main
Indicator
Fog L ight Indicator
Instrument Panel Indicators
62
— —
y
y
) y y
Table of Contents
Page 78 of 416
Î
ÎIf equipped
:

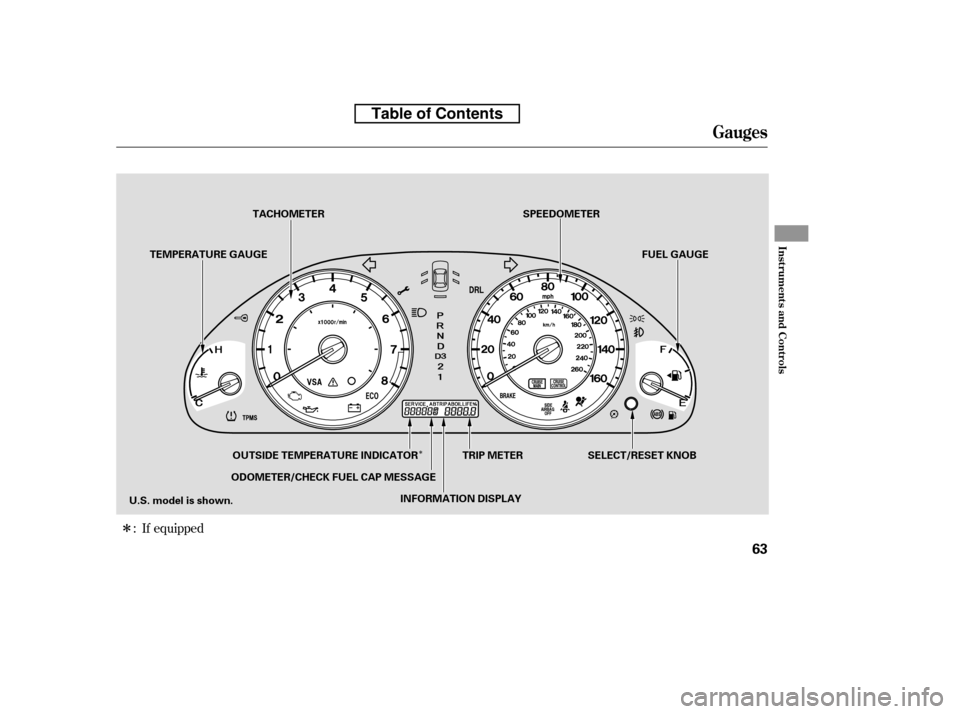

Gauges
Inst rument s and Cont rols
63
SELECT/RESET KNOB
TRIP METER
ODOMETER/CHECK FUEL CAP MESSAGE TACHOMETER
TEMPERATURE GAUGE SPEEDOMETER
U.S. model is shown. INFORMATION DISPLAY
OUTSIDE TEMPERATURE INDICATOR FUEL GAUGE
— —
y
y
) y y
Table of Contents
Page 79 of 416
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.

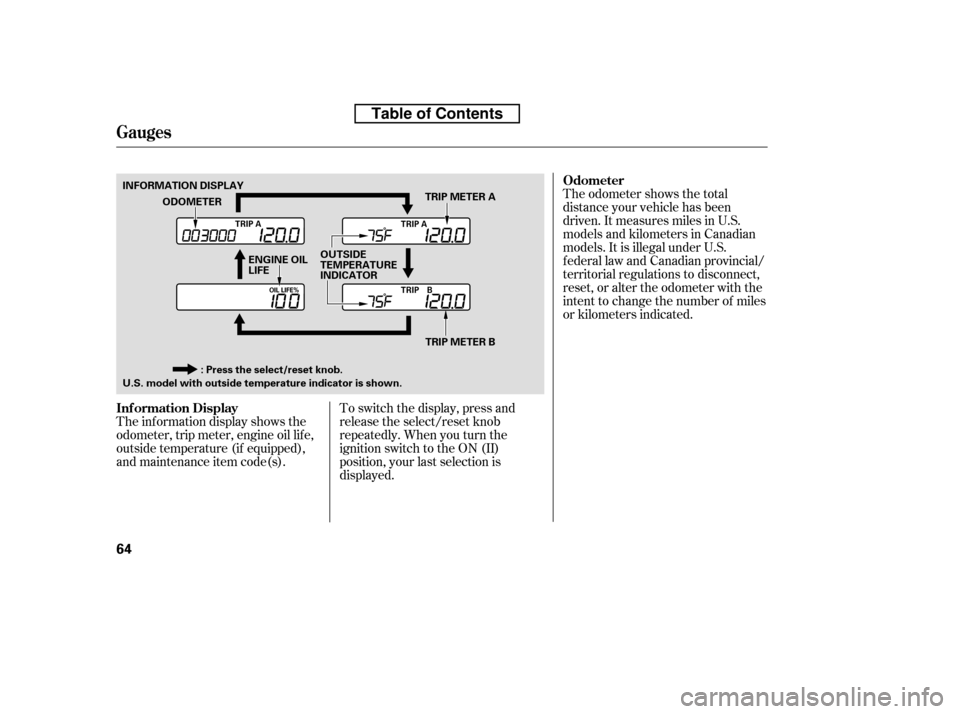

The inf ormation display shows the
odometer, trip meter, engine oil lif e,
outside temperature (if equipped),
and maintenance item code(s). To switch the display, press and
release the select/reset knob
repeatedly. When you turn the
ignition switch to the ON (II)
position, your last selection is
displayed.
Gauges
Odometer
Inf ormation Display
64
INFORMATION DISPLAY TRIP METER A
TRIP METER B
ENGINE OIL LIFE
OUTSIDE
TEMPERATURE
INDICATOR
: Press the select/reset knob.
U.S. model with outside temperature indicator is shown. ODOMETER
— —
y
y
) y y
Table of Contents
Page 80 of 416
¶¶µ
µµµµ µµµIf equipped
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
If the outside temperature is incorrectly displayed, you can adjust
it up to 5°F in U.S. models ( 3°C
in Canadian models) warmer or
cooler.
The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press and hold the
select/reset knob f or 10 seconds.
The f ollowing sequence will appear
for1secondeach:0,1,2,3,4,5, 5, 4, 3, 2, 1, 0 (U.S.) or 0, 1, 2,
3, 3, 2, 1, 0 (Canada).
When the temperature reaches the
desired value, release the select/
reset knob. You should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. The trip meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the select/reset
knob repeatedly.
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
When you turn the ignition switch to
the ON (II) position, your last
selection is displayed.
To reset a trip meter, display it, and
then press and hold the select/reset
knob until the number resets to ‘‘0.0’’.
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Celsius (Canadian
models). To see the outside
temperature, press and release the
select/reset knob until the
temperature is displayed.
Gauges
Outside Temperature Indicator
Trip Meter
Inst rument s and Cont rols
65
NOTE:
— —
y
y
) y y
Table of Contents
