A child seat with a tether can be
installed in any seating position in
the back seat, using one of the
anchorage points shown above.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.Af ter properly securing the child
seat (see page ), lif t the head
restraint, then route the tether
strap through the head restraint
legs.
Tighten the strap according to the
seat maker’s instructions.
Lift the anchor cover, then attach
the tether strap hook to the
anchor, making sure the strap is
not twisted.
1. 2.
3.
44
Installing a Child Seat with a
Tether
Installing a Child Seat
Using an A nchor
46
TETHER ANCHORAGE P
OINTS ANCHOR
ANCHOR
TETHER STRAP HOOK
TETHER STRAP HOOK
Center Position
Outer Position
— —
y
y
) y
y
Table of Contents
Page 62 of 416
To determine if a lap/shoulder belt
properly f its a child, have the child
put on the seat belt, then ask
yourself :
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear the lap/
shoulder belt.
Does the child sit all the way back
against the seat?
Do the child’s knees bend
comf ortably over the edge of the
seat?
The f ollowing pages give
instructions on how to check proper
seat belt f it, what kind of booster
seat to use if one is needed, and
important precautions f or a child
who must sit in f ront.
1. 2.
CONT INUED
Protecting L arger Children
Checking Seat Belt Fit
Driver and Passenger Saf ety
47
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger’s front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
Table of Contents
Page 63 of 416
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this f or the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a f orward- f acing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt f its them
properly without the booster.Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
f ederal saf ety standards (see page
) and that you f ollow the booster
seat maker’s instructions.
If a child who uses a booster seat
must ride in f ront, move the vehicle
seat as far back as possible and be
sure the child is wearing the seat
belt properly.
Some states, Canadian provinces and
territories also require children to
use a booster seat until they reach a
given age or weight (e.g., 6 years or
60lbs).Besuretocheckcurrent
laws in the states, provinces or
territories where you intend to drive.
4. 5.
3.
40
Using a Booster Seat
Protecting L arger Children
48
— —
y
y
) y y
Table of Contents
Page 64 of 416
CONT INUED
Of course, children vary widely. And
while age may be one indicator of
when a child can saf ely ride in f ront,
there are other important f actors you
should consider.
Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it (see pages and ). If
the seat belt does not f it properly,
with or without the child sitting on a
booster seat, the child should not sit
in f ront.
To saf ely ride in f ront, a child must
be able to f ollow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in a back seat.
If the passenger’s f ront airbag
inf lates in a moderate to severe
f rontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.
14 47
Protecting L arger Children
Physical Size
Maturity
When Can a L arger Child Sit in
Front
Driver and Passenger Saf ety
49
— —
y
y
) y y
Table of Contents
Page 65 of 416
Devices intended to
improve a child’s comf ort or
reposition the shoulder part of a
seat belt can make the belt less
ef f ective and increase the chance
of serious injury in a crash.
This could result
in serious neck injuries during a
crash.
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
If they do, they
could be very seriously injured in a
crash.
If you decide that a child can saf ely
ride up f ront, be sure to:
Caref ully read the owner’s manual,
and make sure you understand all
seat belt instructions and all saf ety
inf ormation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the f loor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly.
Protecting L arger Children
Do not put any accessories on aseat belt .
Do not let a child wear a seat belt
across t he neck.
Do not let a child put the shoulderpart of a seat belt behind t he backor under t he arm.
T wo children should never use t hesame seat belt .Additional Saf ety Precautions
50
— —
y
y
) y y
Table of Contents
Page 66 of 416
Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in a collision that
may have damaged the underside. With the trunk open, airf low can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows and
set the heating and cooling system/
climate control system as shown
below.
Select the f resh air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
If you must sit in your parked vehicle
with the engine running, even in an
unconf ined area, adjust the heating
and cooling system/climate control
system as f ollows: 1. 2.3.4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety
51
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even killyou.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
Table of Contents
Page 67 of 416
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury or death. Read these labels
caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label which may be
removed by the owner), contact your
dealer f or a replacement.
U.S. models Canadian models
Canadian models
U.S. models
U.S. models only
Saf ety L abels
52
DASHBOARD DOORJAMBS
RADIATOR CAP SUN VISORS
— —
y
y
) y y
Table of Contents
Page 68 of 416
This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations . 54............................
Instrument Panel . 55
..........
Instrument Panel Indicators . 56
.............................................
Gauges . 63
....................
Inf ormation Display . 64 .....................................
Odometer . 64
Outside Temperature
...................................
Indicator . 65
...................................
Trip Meter . 65
..........
Check Fuel Cap Message . 66
..................
Maintenance Minder . 66
...................
Temperature Gauge . 66
..................................
Fuel Gauge . 66
Controls Near the Steering ...........................................
Wheel . 67
.
Windshield Wipers and Washers . 68
.........
Turn Signals and Headlights . 69
........................................
Fog Lights . 72
........
Instrument Panel Brightness . 72
.................
Hazard Warning Button . 73
.................
Rear Window Def ogger . 74
........
Steering Wheel Adjustments . 75
...............................
Keys and Locks . 76
........................
Immobilizer System . 77
................................
Ignition Switch . 78
......................................
Door Locks . 79
.
Auto Door Locking/Unlocking . 80
..............
Childproof Door Locks . 86
.......................
Remote Transmitter . 86
................................................
Trunk . 90
........
Emergency Trunk Opener . 91 .................................................
Seats . 92
.
Front Seat Power Adjustments . 92
FrontSeatManual
............................
Adjustments . 93
Driver’s Seat Manual Height
..............................
Adjustment . 94
..........................
Head Restraints . 94
.......................
Folding Rear Seat . 97
......................................
Armrests . 98
..................................
Seat Heaters . 100
...........................................
Mirrors . 101
............................
Power Windows . 103
.......................................
Moonroof . 107
...............................
Parking Brake . 109
.........
Interior Convenience Items . 110
.....................
Beverage Holders . 111
........
Accessory Power Sockets . 111
.............
Console Compartment . 112
..................................
Glove Box . 113
....................
Sunglasses Holder . 113
..................................
Sun Visors . 114
............................
Vanity Mirror . 115
..................................
Coat Hook . 115
..........................
Center Pockets . 115
...............................
Interior Lights . 116
Instruments and Controls
Inst rument s and Cont rols
53
— —
y
y
) y y
Page 69 of 416
Î
ÎÎÎ
Î
If equipped
:

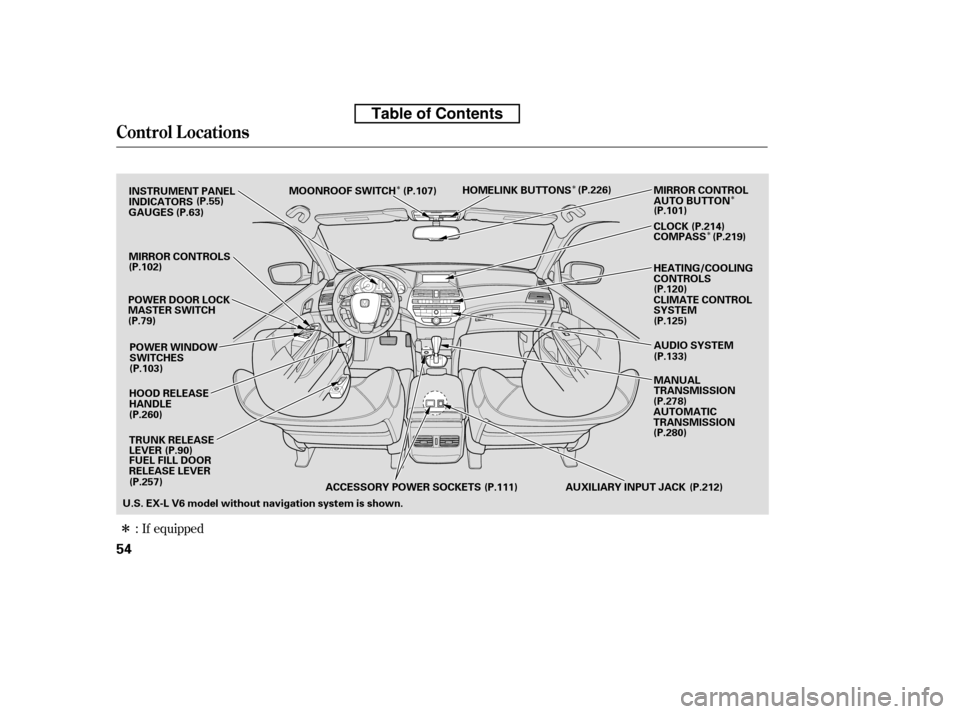

Control L ocations
54
MIRROR CONTROLS
CLIMATE CONTROL
SYSTEM
HEATING/COOLING
CONTROLS
POWER DOOR LOCK
MASTER SWITCH
POWER WINDOW
SWITCHES
TRUNK RELEASE
LEVER AUTOMATIC
TRANSMISSIONMANUAL
TRANSMISSION
INSTRUMENT PANEL
INDICATORS
(P.55)
(P.63)
(P.102)
(P.79) (P.103)
(P.90) (P.120)
(P.125)
FUEL FILL DOOR
RELEASE LEVER (P.133)
GAUGES
AUDIO SYSTEM(P.214)
(P.219)
AUXILIARY INPUT JACK (P.212)
HOOD RELEASE
HANDLE
ACCESSORY POWER SOCKETS (P.111)
U.S. EX-L V6 model without navigation system is shown. MOONROOF SWITCH
(P.107)
CLOCK
COMPASS
(P.101)
MIRROR CONTROL
AUTO BUTTON
(P.260) (P.257) (P.278)
(P.280)
HOMELINK BUTTONS
(P.226)
— —
y
y
) y y
Table of Contents
Page 70 of 416
ÎÎ
Î
Î

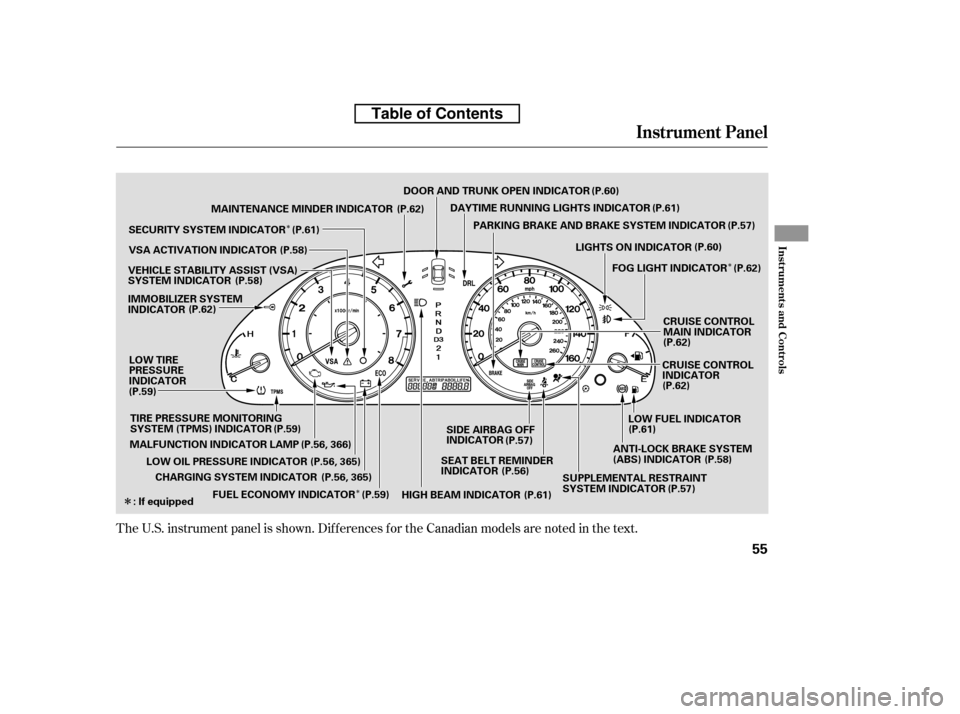

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
55
(P.57)
(P.62)
: If equipped LOW FUEL INDICATOR
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
HIGH BEAM INDICATOR DAYTIME RUNNING LIGHTS INDICATOR
SEAT BELT REMINDER
INDICATOR LIGHTS ON INDICATOR
CRUISE CONTROL
INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
SIDE AIRBAG OFF
INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
MALFUNCTION INDICATOR LAMP LOW OIL PRESSURE INDICATOR (P.62)
(P.62) (P.61)
(P.61)
(P.61)
SECURITY SYSTEM INDICATOR
(P.57)(P.57)(P.58)
(P.62)
PARKING BRAKE AND BRAKE SYSTEM INDICATOR
CRUISE CONTROL
MAIN INDICATOR
(P.62)
MAINTENANCE MINDER INDICATOR
CHARGING SYSTEM INDICATOR (P.61)
(P.56)(P.60)
FOG LIGHT INDICATOR
VSA ACTIVATION INDICATOR
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR (P.58)(P.58)
(P.59)
FUEL ECONOMY INDICATOR
LOW TIRE
PRESSURE
INDICATOR
(P.59)
TIRE PRESSURE MONITORING
SYSTEM (TPMS) INDICATOR (P.59)DOOR AND TRUNK OPEN INDICATOR (P.60)
(P.56, 366) (P.56, 365) (P.56, 365)
— —
y
y
) y y
Table of Contents
