Page 1 of 595

ContentsThis owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular model may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.
2 Safe Driving P. 27For Safe Driving P. 28 Seat Belts P. 32 Airbags P. 392Instrument Panel P. 67Indicators P. 68 Gauges and Displays P. 892Controls P. 105Setting the Clock P. 106 Locking and Unlocking the Doors P. 108
Opening and Closing the Moonroof
* P. 130
Adjusting the Seats P. 148
Climate Control System
* P. 169
2 Features P. 173Audio System P. 174 Audio System Basic Operation P. 180, 203, 236
Customized Features P. 299 HomeLink® Universal Transceiver
* P. 337
2 Driving P. 417Before Driving P. 418 Towing a Trailer P. 423
Refueling P. 480 Fuel Economy P. 4822Maintenance P. 485Before Performing Maintenance P. 486 Maintenance Minder
TM P. 489
Checking and Maintaining Wiper Blades P. 523
Heating and Cooling System
*/Climate Control System
* Maintenance P. 537
2 Handling the Unexpected P. 543Tools P. 544 If a Tire Goes Flat P. 545
Overheating P. 558 Indicator, Coming On/Blinking P. 5602Information P. 569Specifications P. 570 Identification Numbers P. 574
Emissions Testing P. 577 Warranty Coverages P. 579
Page 2 of 595

Contents
Child Safety P. 52Exhaust Gas Hazard P. 64 Safety Labels P. 65Opening and Closing the Trunk P. 120 Security System P. 124 Opening and Closing the Windows P. 127
Operating the Switches Around the Steering Wheel P. 131 Adjusting the Mirrors P. 146
Interior Lights/Interior Convenience Items P. 156 Heating and Cooling
* P. 166
Audio Error Messages P. 289General Information on the Audio System P. 295
Bluetooth ® HandsFreeLink ® P. 289, 376 Compass
* P. 414
When Driving P. 427 Braking P. 473 Parking Your Vehicle P. 477
Accessories and Modifications P. 483Maintenance Under the Hood P. 497 Replacing Light Bulbs P. 513
Checking and Maintaining Tires P. 525 Battery P. 534 Remote Transmitter Care P. 535
Cleaning P. 538Engine Does Not Start P. 551 Jump Starting P. 554 Shift Lever Does Not Move P. 557
Fuses P. 564 Emergency Towing P. 567Devices that Emit Radio Waves P. 575 Reporting Safety Defects P. 576
Authorized Manuals P. 581 Customer Service Information P. 582
Quick Reference Guide
P. 2
Safe Driving
P. 27
Instrument Panel
P. 67
Controls
P. 105
Features
P. 173
Driving
P. 417
Maintenance
P. 485
Handling the Unexpected
P. 543
Information
P. 569
Index
P. 586
Page 7 of 595

Visual Index
6Quick Reference Guide
❙Maintenance Under the Hood
(P 497)
❙Windshield Wipers
(P 140, 523)
❙Tires
(P 525, 545)
❙Door Lock/Unlock Control
(P 111)
❙Power Door Mirrors
(P 147)
❙Headlights
(P 136, 513)
❙How to Refuel
(P 481)
❙High-Mount Brake Light
(P 522)
❙Emergency Trunk Release Lever
(P 123)
❙Opening/Closing the Trunk
(P 120)
❙Parking Lights
(P 136, 519)
❙Front Turn Signal/Side Marker Lights
(P 136, 518)
❙Fog Lights
* (P 138, 515)
❙Multi-View Rear Camera
(P 478)
❙Trunk Release Button
* (P 121)
❙Back-Up Lights
(P 521)
❙Taillights
(P 521)
❙Brake/Taillights
(P 520)
❙Rear Turn Signal/Sid e Marker Lights
(P 520)
❙Rear Camera
(P 479)
Page 10 of 595

9Quick Reference Guide
Instrument Panel
(P 67)
CanadaU.S.
Low Fuel IndicatorAnti-lock Brake
System (
ABS)
Indicator
Parking Brake
and Brake System
Indicator (Red)
Canada U.S.
Washer Level
Indicator
*
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Vehicle Stability
Assist (VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
Electric Power
Steering (EPS) System
Indicator
Lights Reminders
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator
*
Adaptive Cruise
Control ( ACC)
Indicator
*
CRUISE MAIN
Indicator
*
Tachometer Speedometer
Fuel Gauge
Security System
Alarm Indicator
Shift Lever
Position
Indicator
*
Gauges
(P 89)
/Information Display
* (P 90)
/
Multi-Information Display
* (P 93)
/System Indicators
(P 68) Turn Signal and
Hazard Warning
Indicators
System Indicators
Temperature Gauge
M (7-speed manual
shift mode) Indicator/
Shift Indicator
*
Maintenance Minder
Indicator
*
Smart Entry System
Indicator
*
Starter System
Indicator
*
System Message
Indicator
*
ECON mode
IndicatorForward Collision
Warning (
FCW
) Indicator
*
Lane Departure Warning
(LDW
) Indicator
*
Light Control
Indicator
*
Door and Trunk
Open Indicator Brake System
Indicator (Amber)
Supplemental
Restraint System
Indicator
Canada U.S.
Models with
information
display
Models with
information
display
*
Not available on all models
Page 21 of 595

20Quick Reference Guide
Maintenance
(P 485)
Under the Hood
(P 497)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid and clutch* fluid.
● Check the battery regularly.
a
Pull the hood release handle under the corner of the
dashboard.
b
Locate the hood latch lever, pull the lever up, and lift up
the hood.
c
When finished, close the hood and make sure it is firmly
locked in place.
Lights
(P 513)
● Inspect all lights regularly.
Wiper Blades
(P 523)
● Replace blades if they leave streaks
across the windshield.
Tires
(P 525)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
Page 30 of 595

29
uuFor Safe Driving uImportant Safety Precautions
Safe Driving
■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles, and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all regularly scheduled maintenance.
Page 52 of 595

51
uuAirbags uAirbag Care
Safe Driving
Airbag CareYou do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by a dealer in the following situations:■When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt tensioner has been activated, it must be
replaced.■When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not inflate, have your dealer inspect the following: the driver’s
seat position sensor, weight sensors in the passenger’s seat, front seat belt
tensioners, and each seat belt that was worn during the crash.■Do not remove or modify a front seat without consulting a dealer
This would likely disable the driver's seat position sensor or the weight sensors in the
passenger's seat. If it is necessary to remove or modify a front seat to accommodate
a person with disabilities, contact a Honda dealer, or for U.S. vehicles, American
Honda Automobile Customer Service at 800-999-1009 and for Canadian vehicles,
Honda Canada Customer Relations at 888-9-HONDA-9.
1 Airbag Care
We recommend against the use of salvaged airbag
system components, including the airbag, tensioners,
sensors, and control unit.

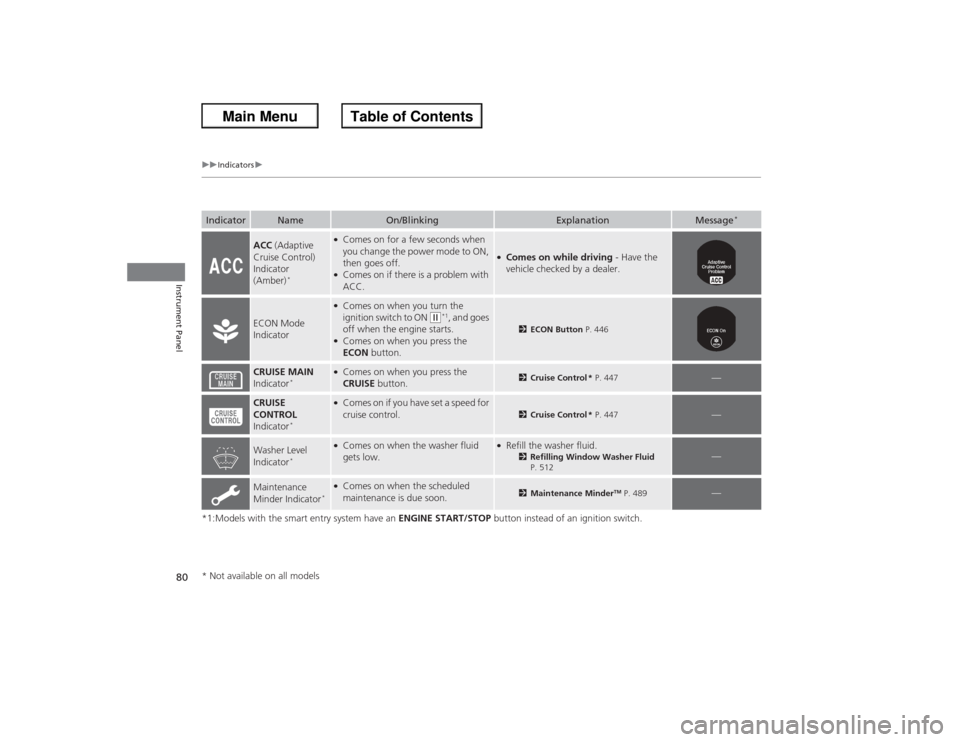

Page 81 of 595

80
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.Indicator
Name
On/Blinking
Explanation
Message
*
ACC (Adaptive
Cruise Control)
Indicator
(Amber)
*
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.●Comes on if there is a problem with
ACC.
●Comes on while driving - Have the
vehicle checked by a dealer.
ECON Mode
Indicator
●Comes on when you turn the
ignition switch to ON
(w*1, and goes
off when the engine starts.
●Comes on when you press the
ECON button.
2ECON Button P. 446
CRUISE MAIN
Indicator
*
●Comes on when you press the
CRUISE button.
2Cruise Control * P. 447
—
CRUISE
CONTROL
Indicator
*
●Comes on if you have set a speed for
cruise control.
2 Cruise Control * P. 447
—
Washer Level
Indicator
*
●Comes on when the washer fluid
gets low.
●Refill the washer fluid.
2Refilling Window Washer Fluid
P. 512
—
Maintenance
Minder Indicator
*●Comes on when the scheduled
maintenance is due soon.
2 Maintenance Minder
TM P. 489
—
* Not available on all models

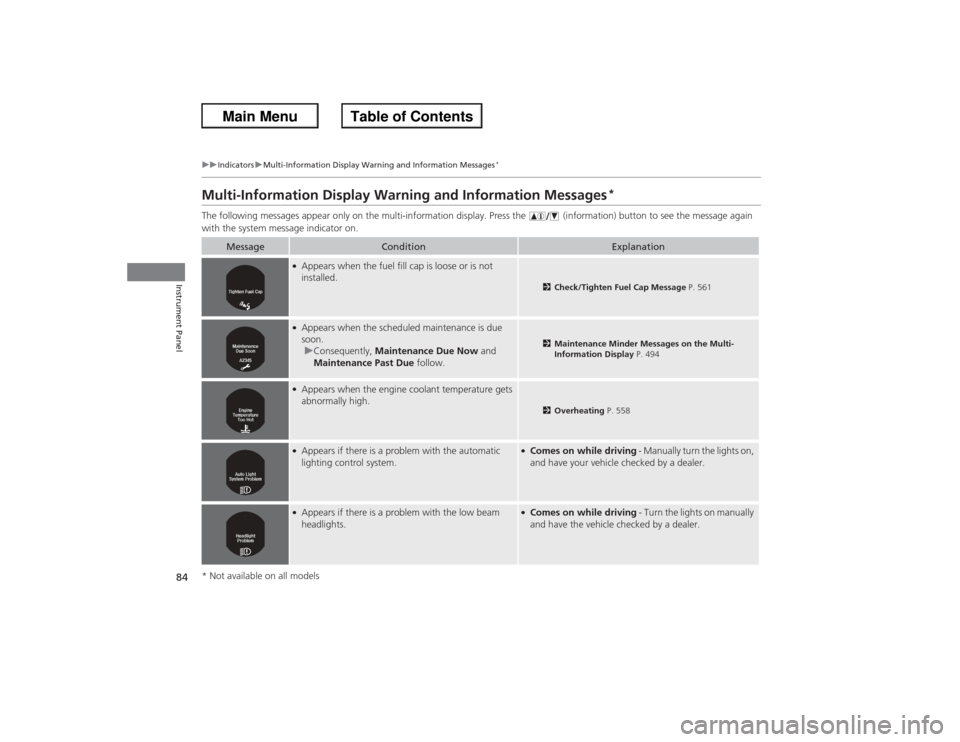

Page 85 of 595

84
uuIndicators uMulti-Information Display Warning and Information Messages
*
Instrument Panel
Multi-Information Display Warning and Information Messages
*
The following messages appear only on the multi-information display. Press the (information) button to see the message again
with the system message indicator on.
Message
Condition
Explanation
●Appears when the fuel fill cap is loose or is not
installed.
2 Check/Tighten Fuel Cap Message P. 561
●Appears when the scheduled maintenance is due
soon.
u Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Multi-
Information Display P. 494
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 558
●Appears if there is a problem with the automatic
lighting control system.
●Comes on while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
●Appears if there is a problem with the low beam
headlights.
●Comes on while driving - Turn the lights on manually
and have the vehicle checked by a dealer.
* Not available on all models

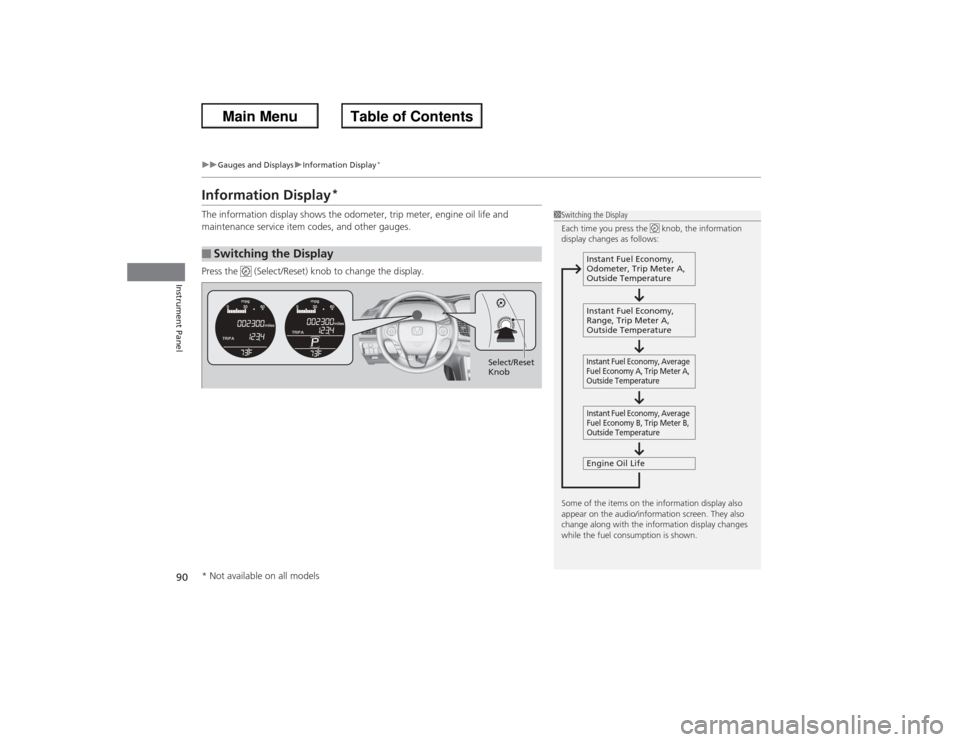

Page 91 of 595

90
uuGauges and Displays uInformation Display
*
Instrument Panel
Information Display
*
The information display shows the odometer, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the (Select/Reset) knob to change the display.■Switching the Display
1 Switching the Display
Each time you press the knob, the information
display changes as follows:
Some of the items on the information display also
appear on the audio/information screen. They also
change along with the information display changes
while the fuel consumption is shown.
Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature
Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature
Engine Oil LifeInstant Fuel Economy, Average
Fuel Economy A, Trip Meter A,
Outside Temperature Instant Fuel Economy, Average
Fuel Economy B, Trip Meter B,
Outside Temperature
Select/Reset
Knob
* Not available on all models
