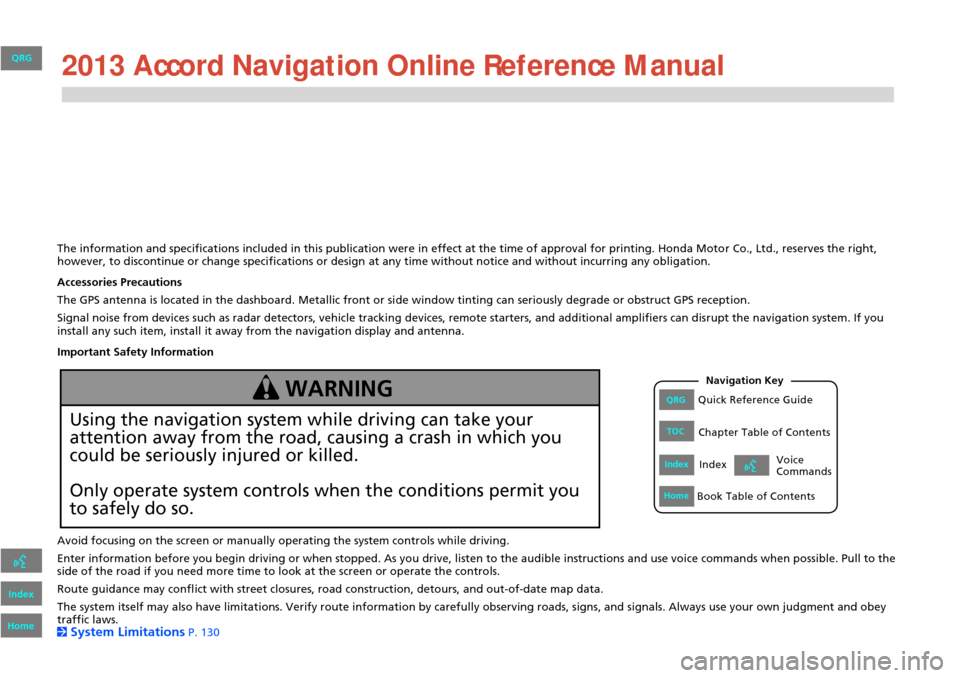

HONDA ACCORD 2013 9.G Navigation Manual

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd., reserves the right,
however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.
Accessories Precautions
The GPS antenna is located in the dashboard. Metallic front or side window tinting can seriously degrade or obstruct GPS recept ion.
Signal noise from devices such as radar detectors, vehicle tracking devices, remote starters, and additional amplifiers can dis rupt the navigation system. If you
install any such item, install it away from the navigation display and antenna.
Important Safety Information
Avoid focusing on the screen or manually operating the system controls while driving.
Enter information before you begin driving or when stopped. As yo u drive, listen to the audible instructions and use voice commands when possible. Pull to the
side of the road if you need more time to look at the screen or operate the controls.
Route guidance may conflict with street closures, road construction, detours, and out-of-date map data.
The system itself may also have limitations. Verify route info rmation by carefully observing roads, signs, and signals. Always use your own judgment and obey
traffic laws.
2
System Limitations P. 130
Using the navigation system while driving can take your
attention away from the road, causing a crash in which you
could be seriously injured or killed.
Only operate system controls when the conditions permit you
to safely do so.
WARNING
QRG
Index
Home
QRGQuick Reference Guide
IndexIndex
HomeBook Table of Contents
TOCChapter Table of Contents
Navigation Key
Voice
Commands 2013

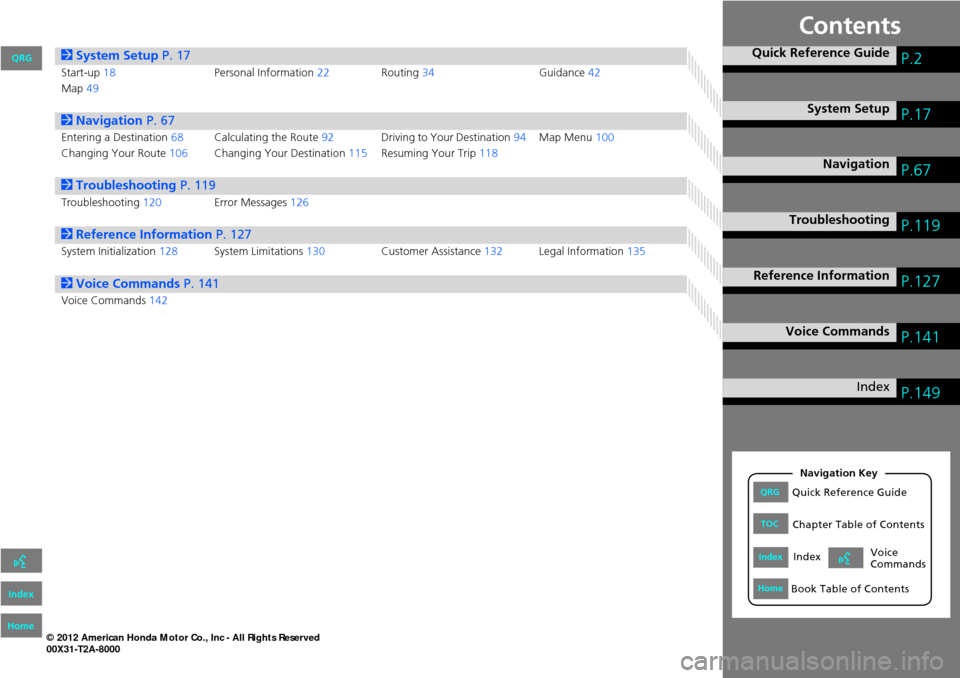

Contents
2System Setup P. 17
Start-up18 Personal Information22Routing34 Guidance42
Map 49
2Navigation P. 67
Entering a Destination 68Calculating the Route 92 Driving to Your Destination 94Map Menu 100
Changing Your Route 106Changing Your Destination 115Resuming Your Trip 118
2Troubleshooting P. 119
Troubleshooting120Error Messages 126
2Reference Information P. 127
System Initialization128System Limitations 130Customer Assistance 132Legal Information 135
2Voice Commands P. 141
Voice Commands142
Quick Reference GuideP.2
System SetupP.17
NavigationP.67
TroubleshootingP.119
Reference InformationP.127
Voice CommandsP.141
IndexP.149
QRGQuick Reference Guide
IndexIndex
HomeBook Table of Contents
TOCChapter Table of Contents
Navigation Key
Voice
Commands
QRG
Index
Home

Quick Reference Guide - 2013 Accord
2

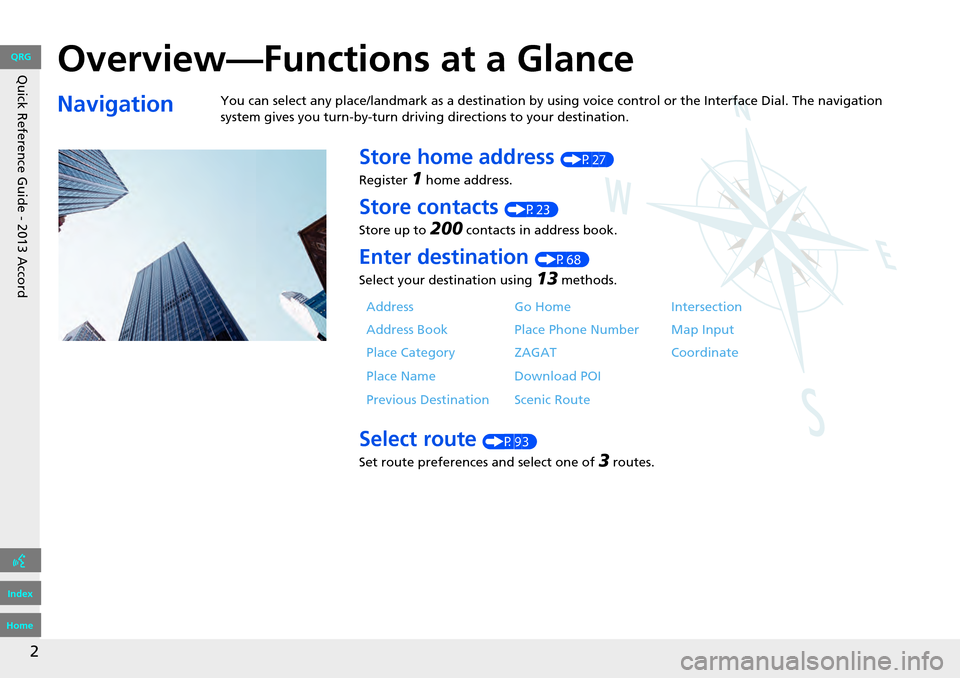

Overview—Functions at a Glance
NavigationYou can select any place/landmark as a destination by using voice control or the Interface Dial. The navigation
system gives you turn-by-turn driving directions to your destination.
Store home address (P27)
Register
1 home address.
Store contacts (P23)
Store up to
200 contacts in address book.
Enter destination (P68)
Select your destination using
13 methods.
Select route (P93)
Set route preferences and select one of
3 routes.
Address Go Home Intersection
Address Book Place Phone Number Map Input
Place Category ZAGAT Coordinate
Place Name Download POI
Previous Destination Scenic Route
QRG
Index
Home

3
Quick Reference Guide - 2013 Accord

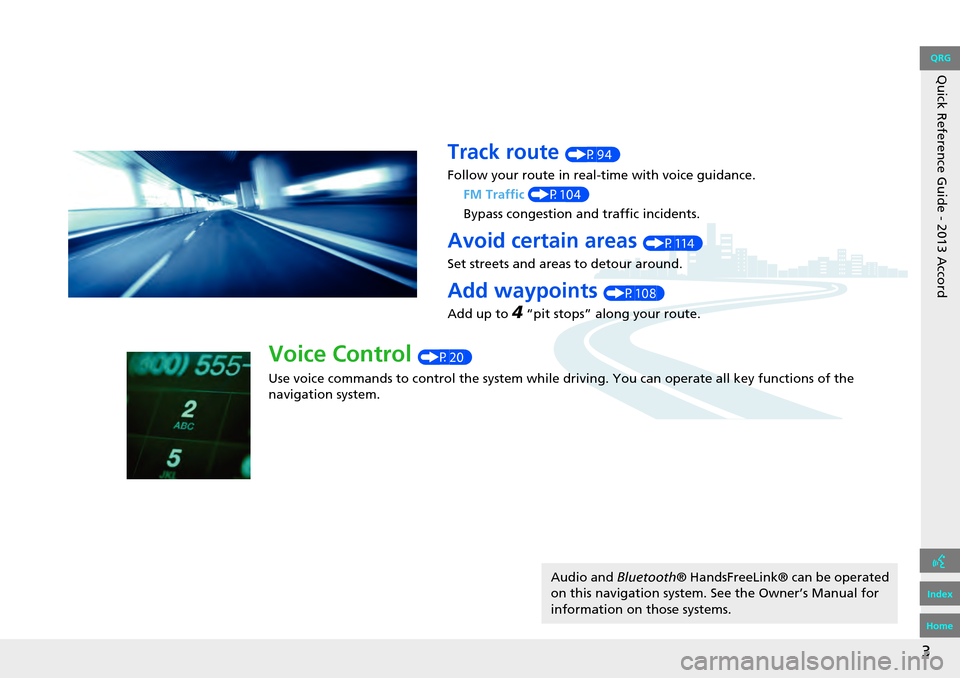

Track route (P94)
Follow your route in real-time with voice guidance. FM Traffic (P104)
Bypass congestion an d traffic incidents.
Avoid certain areas (P114)
Set streets and areas to detour around.
Add waypoints (P108)
Add up to
4 “pit stops” along your route.
Voice Control (P20)
Use voice commands to control th e system while driving. You can operate all key functions of the
navigation system.
Audio and Bluetooth ® HandsFreeLink® can be operated
on this navigation system. See the Owner’s Manual for
information on those systems.
QRG
Index
Home

4

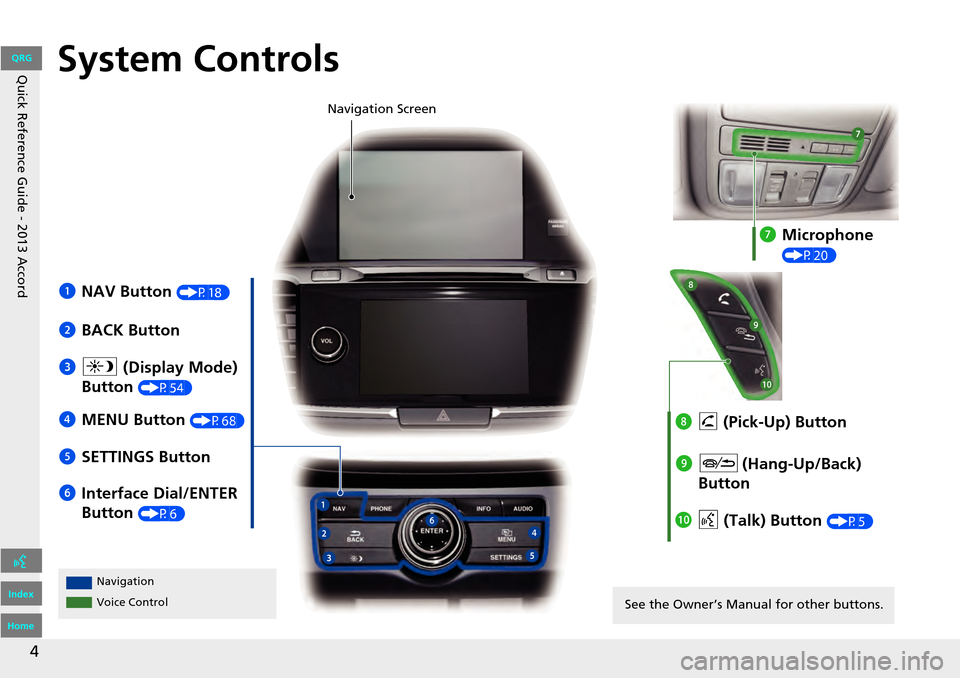

Quick Reference Guide - 2013 AccordSystem Controls
1NAV Button (P18)
2BACK Button
6 Interface Dial/ENTER
Button
(P6) Navigation Screen
Navigation
Voice Control
5
SETTINGS Button
4
MENU Button
(P68)
3a (Display Mode)
Button
(P54)
7 Microphone
(P20)
la d (Talk) Button (P5)
9 J (Hang-Up/Back)
Button
8
h (Pick-Up) Button
See the Owner’s Manual for other buttons.
QRG
Index
Home

5

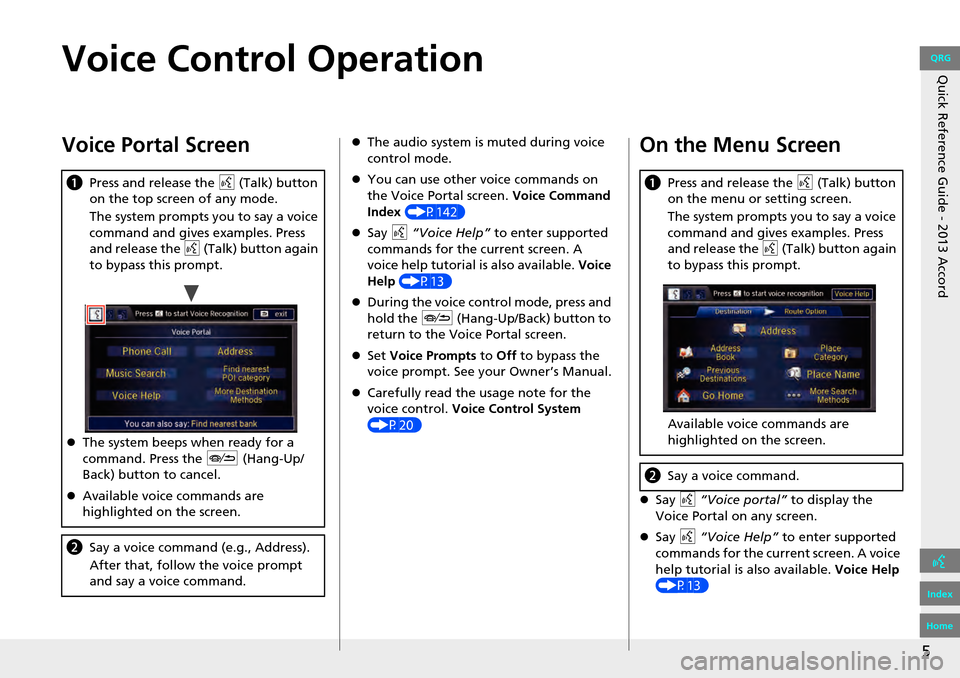

Quick Reference Guide - 2013 AccordVoice Control Operation
Voice Portal Screen
aPress and release the d (Talk) button
on the top screen of any mode.
The system prompts you to say a voice
command and gives examples. Press
and release the d (Talk) button again
to bypass this prompt.
 The system beeps when ready for a
command. Press the J (Hang-Up/
Back) button to cancel.
 Available voice commands are
highlighted on the screen.
b Say a voice command (e.g., Address).
After that, follow the voice prompt
and say a voice command.
The audio system is muted during voice
control mode.
 You can use other voice commands on
the Voice Portal screen. Voice Command
Index (P142)
 Say d “Voice Help” to enter supported
commands for the current screen. A
voice help tutorial is also available. Voice
Help (P13)
 During the voice con trol mode, press and
hold the J (Hang-Up/Back) button to
return to the Voice Portal screen.
 Set Voice Prompts to Off to bypass the
voice prompt. See your Owner’s Manual.
 Carefully read the usage note for the
voice control. Voice Control System
(P20)On the Menu Screen
 Say d “Voice portal” to display the
Voice Portal on any screen.
 Say d “Voice Help” to enter supported
commands for the current screen. A voice
help tutorial is also available. Voice Help
(P13)
a Press and release the d (Talk) button
on the menu or setting screen.
The system prompts you to say a voice
command and gives examples. Press
and release the d (Talk) button again
to bypass this prompt.
Available voice commands are
highlighted on the screen.
b Say a voice command.
QRG
Index
Home

6

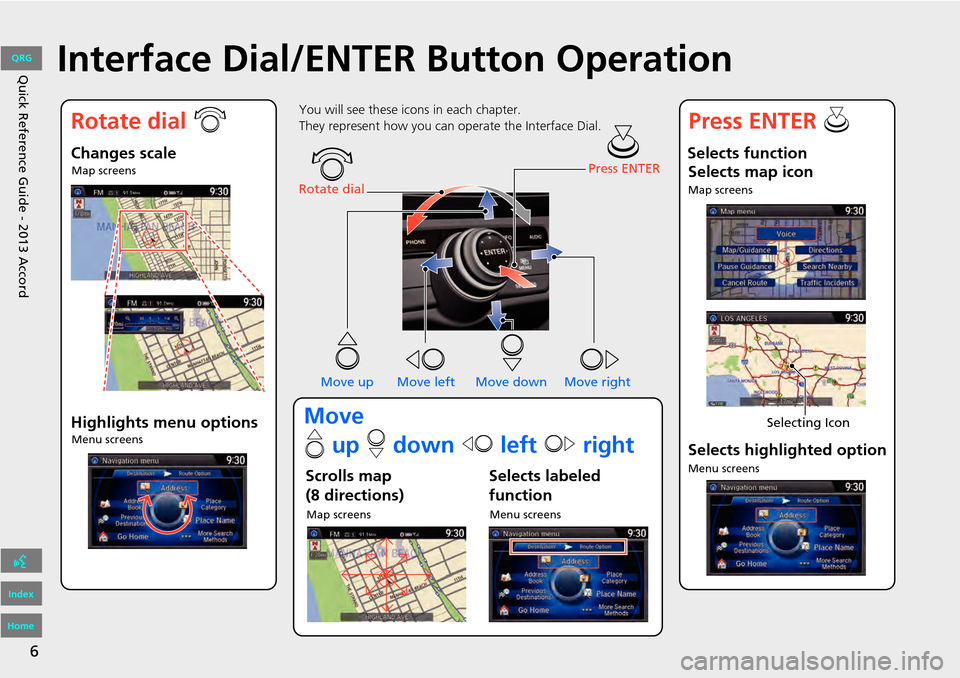

Quick Reference Guide - 2013 AccordInterface Dial/ENTER Button Operation
You will see these icons in each chapter.
They represent how you can operate the Interface Dial.
Changes scaleMap screens
Highlights menu optionsMenu screens
Rotate dial Press ENTER
Move up Move left Move down Move right
Scrolls map
(8 directions)
Map screens
Selects labeled
function
Menu screens
Selects function Selects map icon
Map screens
Selecting Icon
Selects highlighted option
Menu screens
Rotate dial i Press ENTER u
Move
e up r down w left y right
QRG
Index
Home

7

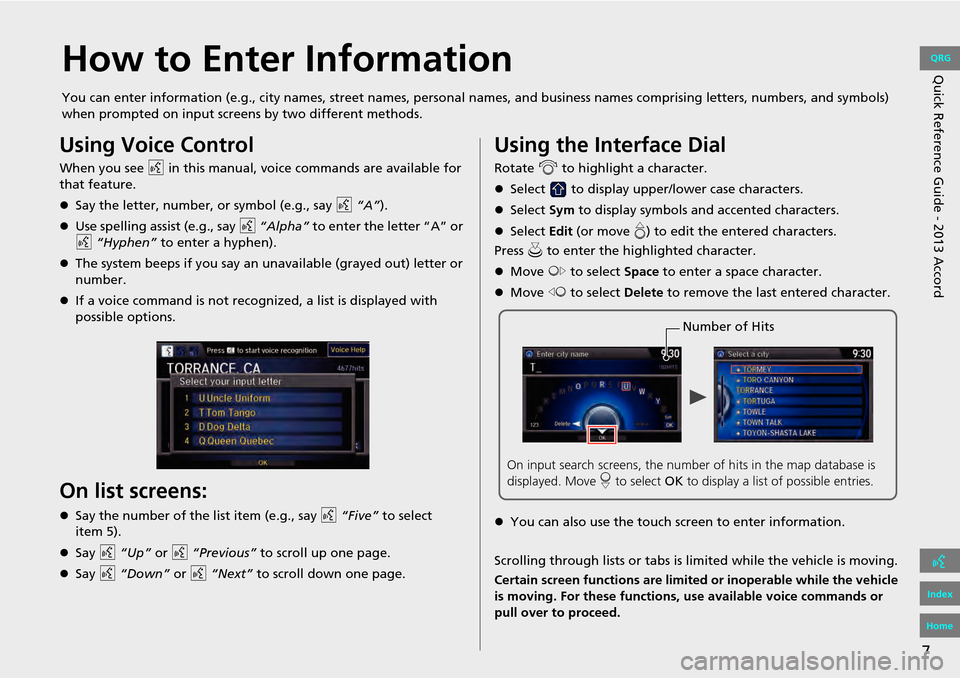

Quick Reference Guide - 2013 AccordHow to Enter Information
You can enter information (e.g., city names, street names, personal names, and business names comprising letters, numbers, and symbols)
when prompted on input screens by two different methods.
Using Voice Control
When you see d in this manual, voice commands are available for
that feature.
 Say the letter, number, or symbol (e.g., say d “A”).
 Use spelling assist (e.g., say d “Alpha” to enter the letter “A” or
d “Hyphen” to enter a hyphen).
 The system beeps if you say an unavailable (grayed out) letter or
number.
 If a voice command is not recognized, a list is displayed with
possible options.
On list screens:
Say the number of the list item (e.g., say d “Five” to select
 Say d “Up” or d “Previous” to scroll up one page.
 Say d “Down” or d “Next” to scroll down one page.
Using the Interface Dial
Rotate i to highlight a character.
 Select to display upper/lower case characters.
 Select Sym to display symbols an d accented characters.
 Select Edit (or move e) to edit the entered characters.
Press u to enter the highlighted character.
 Move y to select Space to enter a space character.
 Move w to select Delete to remove the last entered character.
 You can also use the touch screen to enter information.
Scrolling through lists or tabs is limited while the vehicle is moving.
Certain screen functions are limited or inoperable while the vehicle
is moving. For these functions, use available voice commands or
pull over to proceed.
Number of Hits
On input search screens, the number of hits in the map database is
displayed. Move r to select OK to display a list of possible entries.
QRG
Index
Home
item 5).

8

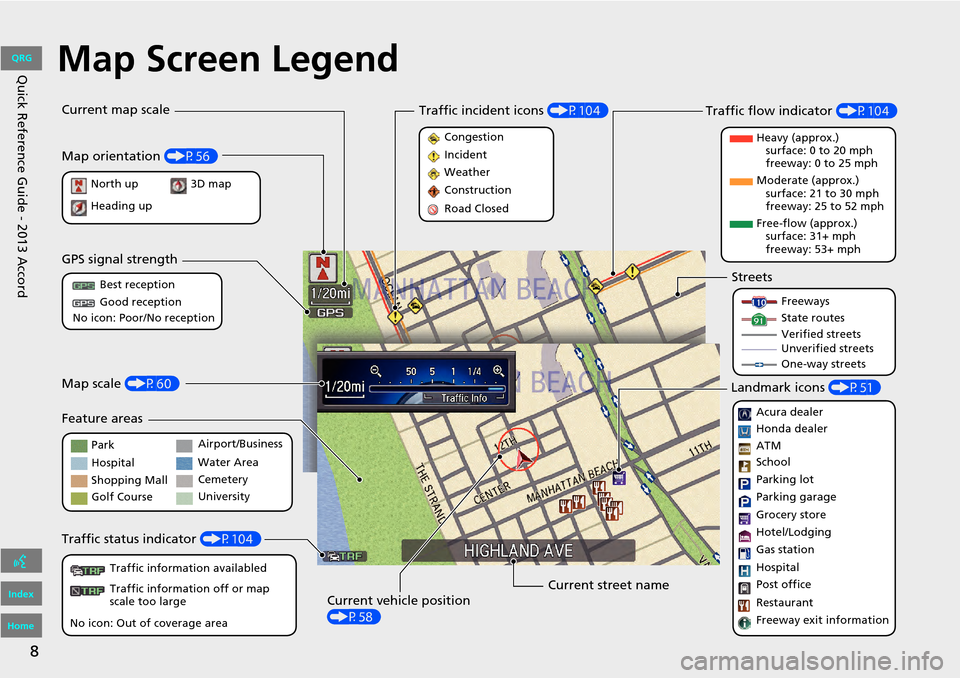

Quick Reference Guide - 2013 AccordMap Screen Legend
Map orientation (P56)
GPS signal strength
North up
Heading up Best reception
Good reception
No icon: Poor/No reception
Traffic status indicator (P104)
Traffic information availabled
Traffic information off or map
scale too large
Current map scale
Current street name
Map scale
(P60)
Current vehicle position
(P58)
Feature areas
Streets
Landmark icons (P51)
Park
Hospital
Shopping Mall
Golf Course Airport/Business
Water Area
Cemetery
University Freeways
State routes
Verified streets
Unverified streets
One-way streets
Acura dealer
Honda dealer
ATM
School
Parking lot
Parking garage
Grocery store
Hotel/Lodging
Gas station
Hospital
Post office
Restaurant
Freeway exit information
Traffic flow indicator (P104)
Heavy (approx.)
surface: 0 to 20 mph
freeway: 0 to 25 mph
Moderate (approx.) surface: 21 to 30 mph
freeway: 25 to 52 mph
Congestion
Incident
Weather
Construction
Road Closed
Traffic incident icons
(P104)
No icon: Out of coverage area 3D map
Free-flow (approx.)surface: 31+ mph
freeway: 53+ mph
QRG
Index
Home

9

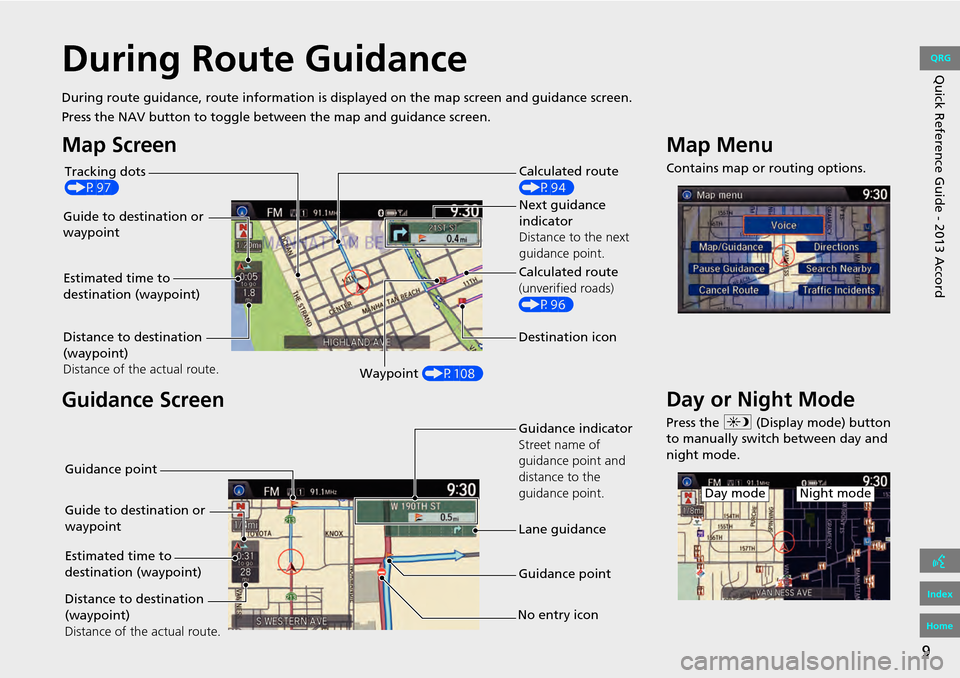

Quick Reference Guide - 2013 AccordDuring Route Guidance
During route guidance, route information is displayed on the ma p screen and guidance screen.
Press the NAV button to toggle between the map and guidance screen.
Map Screen
Guidance Screen
Calculated route
(P94)
Guide to destination or
waypoint Next guidance
indicator
Distance to the next
guidance point.
Distance to destination
(waypoint)
Distance of the actual route. Estimated time to
destination (waypoint)
Waypoint (P108) Destination icon Calculated route
(unverified roads)
(P96)
Tracking dots
(P97)
Guidance indicator
Street name of
guidance point and
distance to the
guidance point.
Lane guidance
No entry icon
Guide to destination or
waypoint
Distance to destination
(waypoint)
Distance of the actual route. Estimated time to
destination (waypoint)
Guidance point
Guidance point
Map Menu
Contains map or routing options.
Day or Night Mode
Press the
a (Display mode) button
to manually switch between day and
night mode.
Night modeDay mode
