HONDA ACCORD 2015 9.G Owners Manual

510

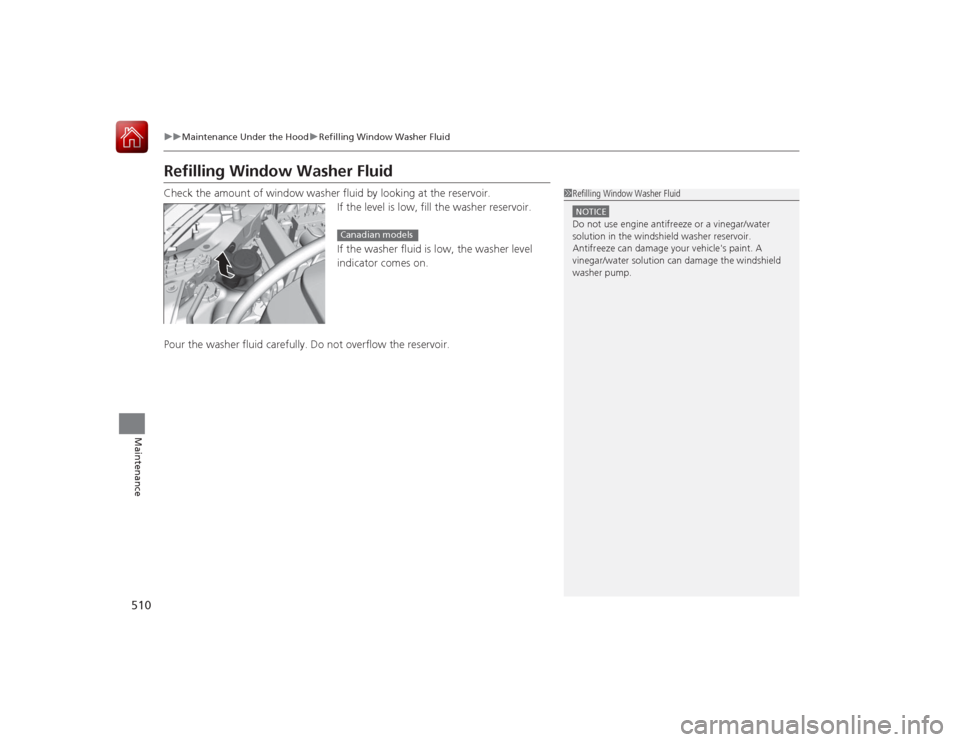

uuMaintenance Under the Hood uRefilling Window Washer Fluid
Maintenance
Refilling Window Washer FluidCheck the amount of window washer fluid by looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, the washer level
indicator comes on.
Pour the washer fluid carefully. Do not overflow the reservoir.
1 Refilling Window Washer FluidNOTICEDo not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle's paint. A
vinegar/water solut ion can damage the windshield
washer pump.
Canadian models

511
Continued
Maintenance
Replacing Light BulbsHeadlight BulbsWhen replacing, use the following bulbs.1.Unlock the holding clips, then remove the
upper part of the air intake duct and the air
intake tube.
1. Remove the reserve tank.High beam headlight:
60 W (HB3 for halogen bulb type)
Low beam headlight:
LED type
*
Low beam headlight:
55 W (H11 for halogen bulb type)
*
■
High Beam Headlight
1Headlight BulbsNOTICEHalogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overheat and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the trunk or tow a trailer, have the
aiming readjusted at a dealer or by a qualified
technician.
When replacing a halogen bulb, handle it by its base,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Tube
Holding Clip
Holding Clips
Driver side6-cylinder modelsPassenger sideAll models
* Not available on all models

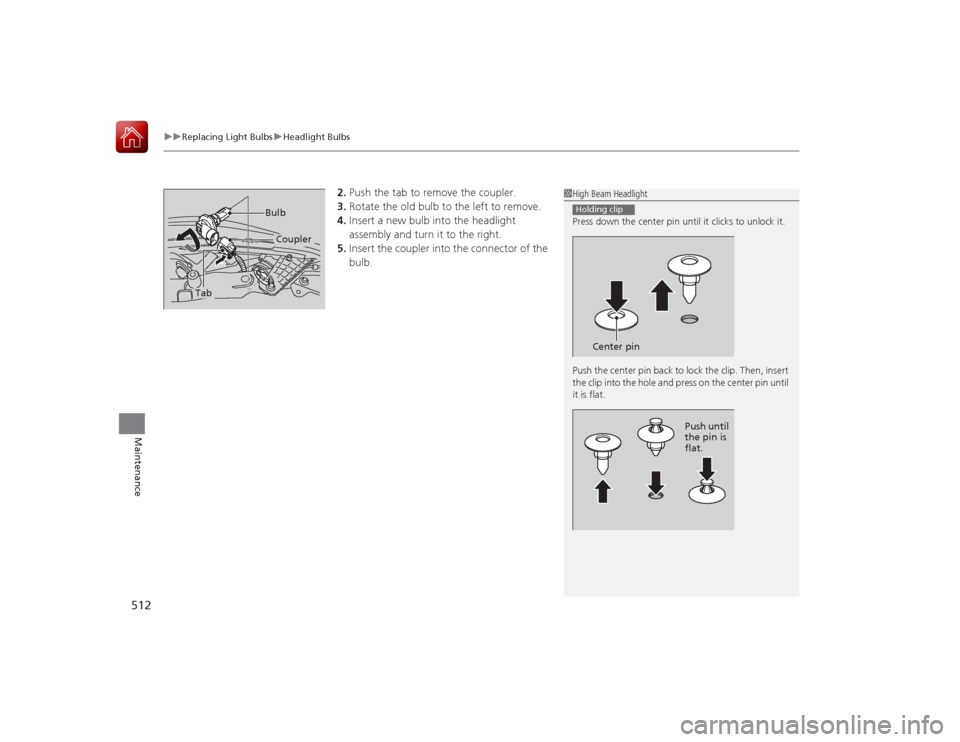

uuReplacing Light Bulbs uHeadlight Bulbs
512Maintenance
2. Push the tab to remove the coupler.
3. Rotate the old bulb to the left to remove.
4. Insert a new bulb into the headlight
assembly and turn it to the right.
5. Insert the coupler into the connector of the
bulb.
1High Beam Headlight
Press down the center pin until it clicks to unlock it.
Push the center pin back to lock the clip. Then, insert
the clip into the hole and press on the center pin until
it is flat.Holding clip
Center pin
Push until
the pin is
flat.
Tab
Coupler
Bulb

Continued
513

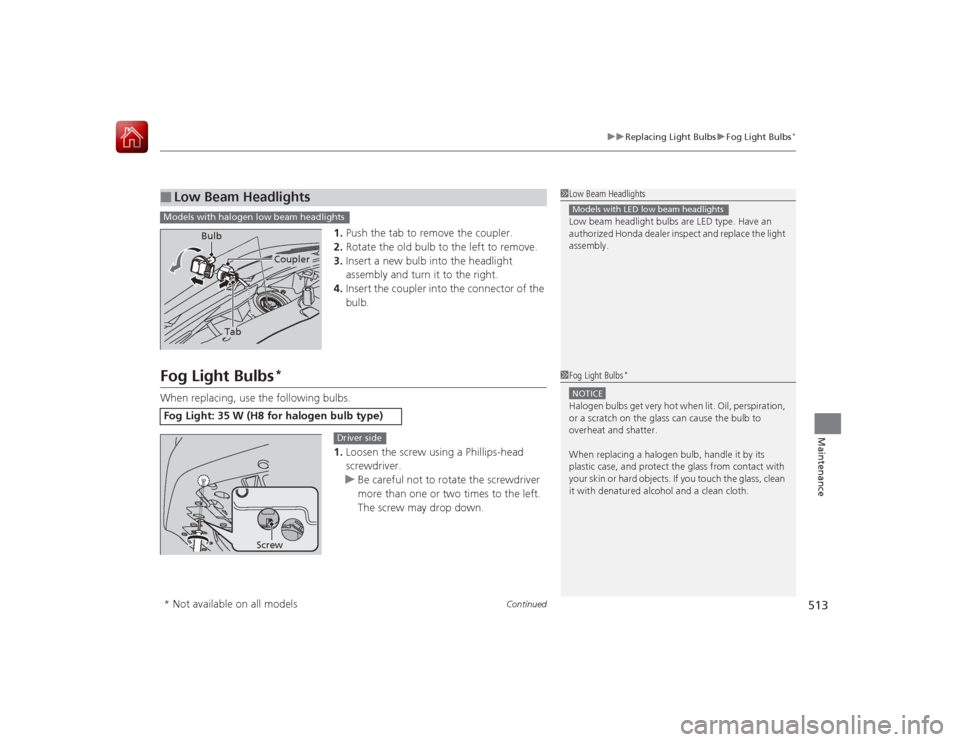

uuReplacing Light Bulbs uFog Light Bulbs
*
Maintenance
1. Push the tab to remove the coupler.
2. Rotate the old bulb to the left to remove.
3. Insert a new bulb into the headlight
assembly and turn it to the right.
4. Insert the coupler into the connector of the
bulb.
Fog Light Bulbs
*
When replacing, use the following bulbs.
1.Loosen the screw using a Phillips-head
screwdriver.
u Be careful not to rotate the screwdriver
more than one or two times to the left.
The screw may drop down.■
Low Beam Headlights
1Low Beam Headlights
Low beam headlight bulbs are LED type. Have an
authorized Honda dealer inspect and replace the light
assembly.Models with LED low beam headlights
Models with halogen low beam headlights
Tab
Coupler
Bulb
Fog Light: 35 W (H8 fo
r halogen bulb type)
1Fog Light Bulbs
*
NOTICEHalogen bulbs get very hot when li t. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect the glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alcohol and a clean cloth.
Screw
Driver side
* Not available on all models

514

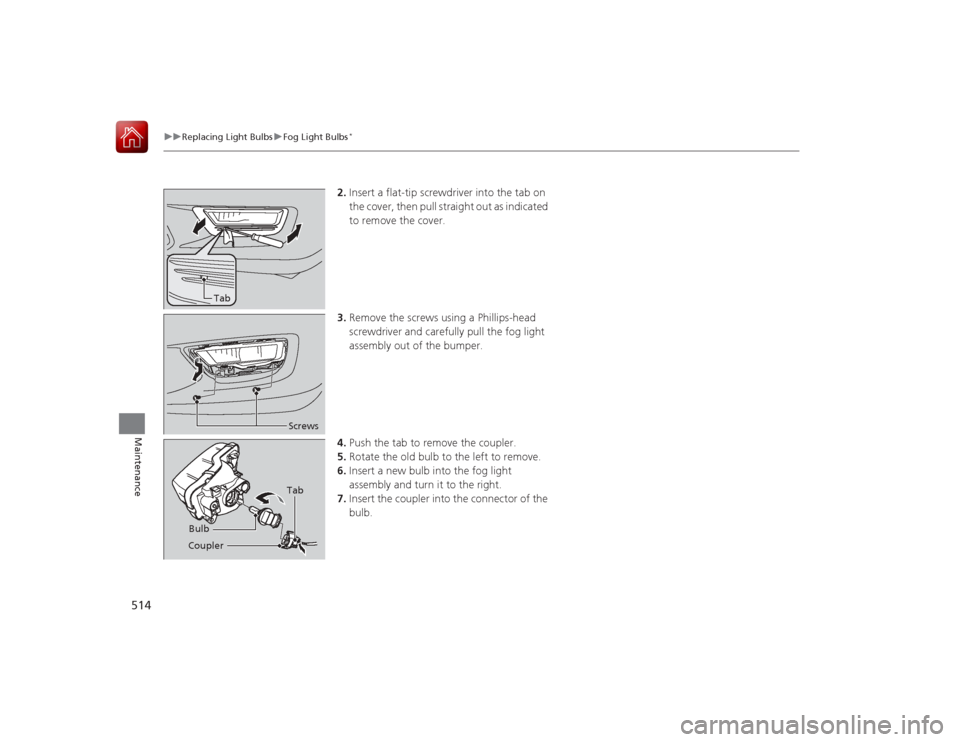

uuReplacing Light Bulbs uFog Light Bulbs
*
Maintenance
2. Insert a flat-tip screwdriver into the tab on
the cover, then pull straight out as indicated
to remove the cover.
3. Remove the screws using a Phillips-head
screwdriver and carefully pull the fog light
assembly out of the bumper.
4. Push the tab to remove the coupler.
5. Rotate the old bulb to the left to remove.
6. Insert a new bulb into the fog light
assembly and turn it to the right.
7. Insert the coupler into the connector of the
bulb.
Tab
ScrewsTab
Coupler Bulb

515

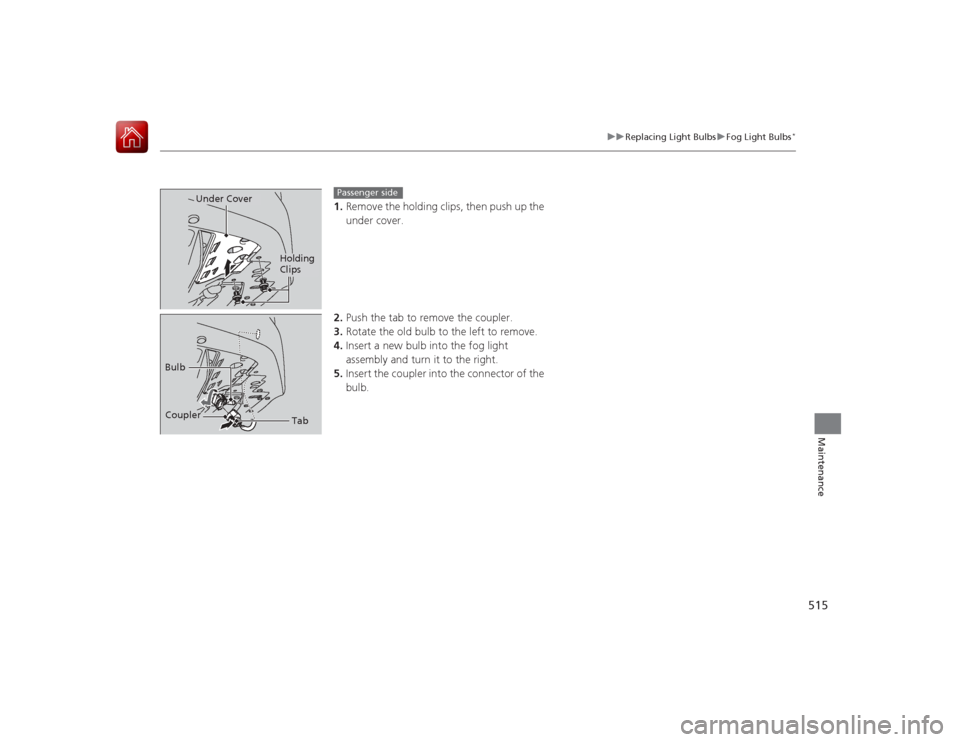

uuReplacing Light Bulbs uFog Light Bulbs
*
Maintenance
1. Remove the holding clip s, then push up the
under cover.
2. Push the tab to remove the coupler.
3. Rotate the old bulb to the left to remove.
4. Insert a new bulb into the fog light
assembly and turn it to the right.
5. Insert the coupler into the connector of the
bulb.
Holding
Clips
Under Cover
Passenger side
Tab
Coupler
Bulb

516

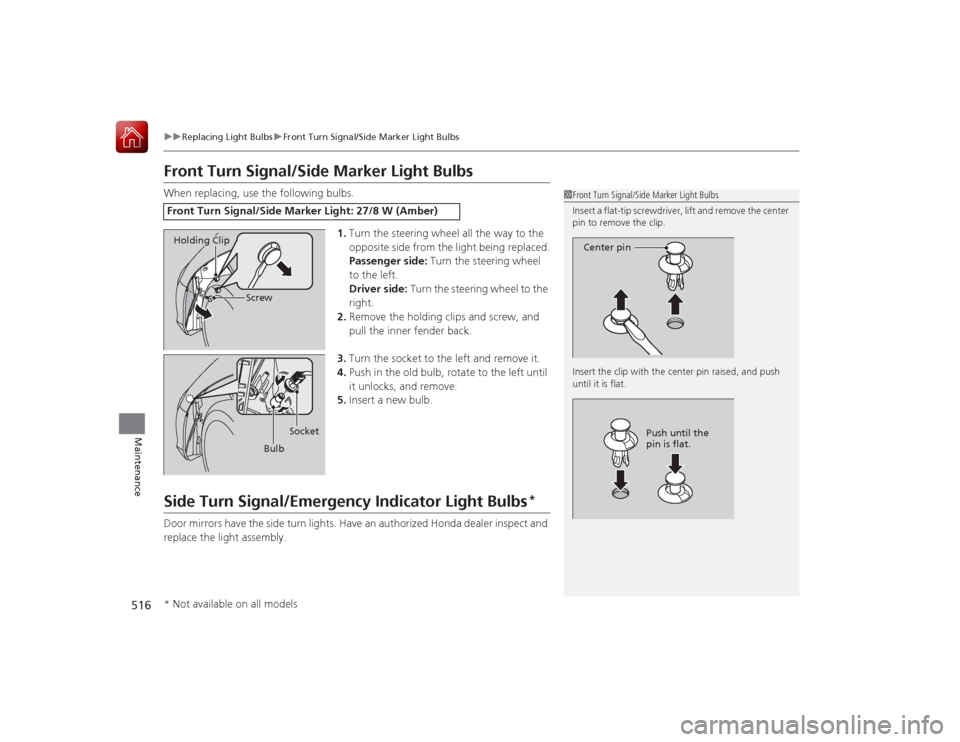

uuReplacing Light Bulbs uFront Turn Signal/Side Marker Light Bulbs
Maintenance
Front Turn Signal/Side Marker Light BulbsWhen replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clips and screw, and
pull the inner fender back.
3. Turn the socket to the left and remove it.
4. Push in the old bulb, rotate to the left until
it unlocks, and remove.
5. Insert a new bulb.Side Turn Signal/Emergency Indicator Light Bulbs
*
Door mirrors have the side turn lights. Have an authorized Honda dealer inspect and
replace the light assembly.Front Turn Signal/Side Marker Light: 27/8 W (Amber)
1Front Turn Signal/Side Marker Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the cl ip with the center pin raised, and push
until it is flat.
Center pin
Push until the
pin is flat.
Holding Clip
Screw
BulbSocket
* Not available on all models

517

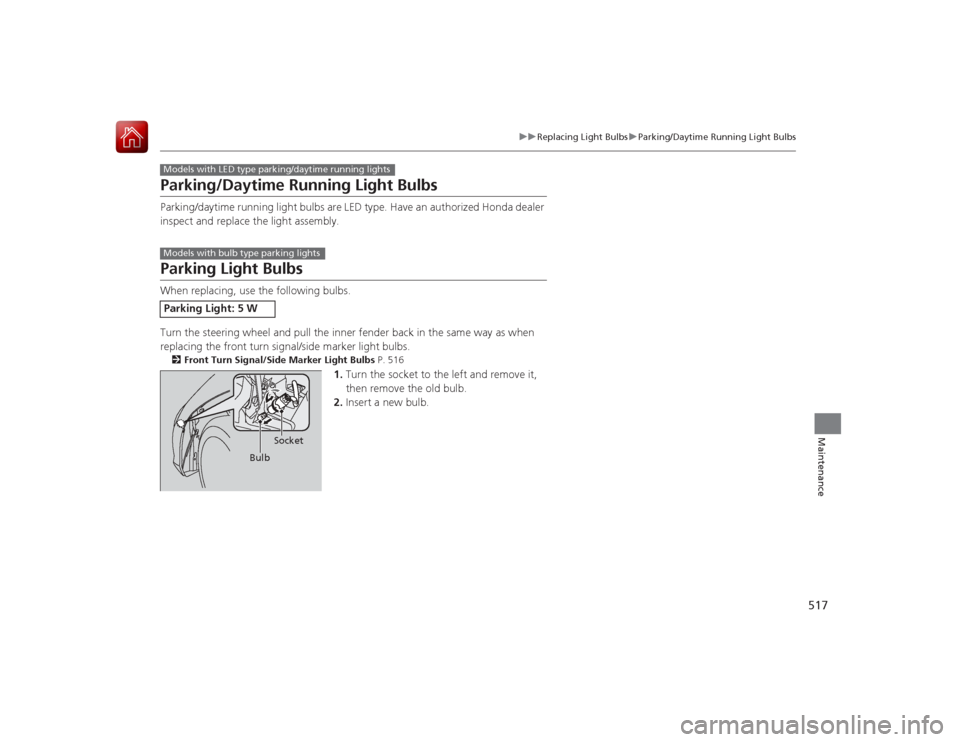

uuReplacing Light Bulbs uParking/Daytime Running Light Bulbs
Maintenance
Parking/Daytime Running Light BulbsParking/daytime running light bulbs are LED typ e. Have an authorized Honda dealer
inspect and replace the light assembly.Parking Light BulbsWhen replacing, use the following bulbs.
Turn the steering wheel and pull the inner fender back in the same way as when
replacing the front turn signal/side marker light bulbs.2 Front Turn Signal/Side Marker Light Bulbs P. 516
1.Turn the socket to the left and remove it,
then remove the old bulb.
2. Insert a new bulb.
Parking Light: 5 WModels with LED type parking/daytime running lightsModels with bulb type parking lights
Bulb Socket

518

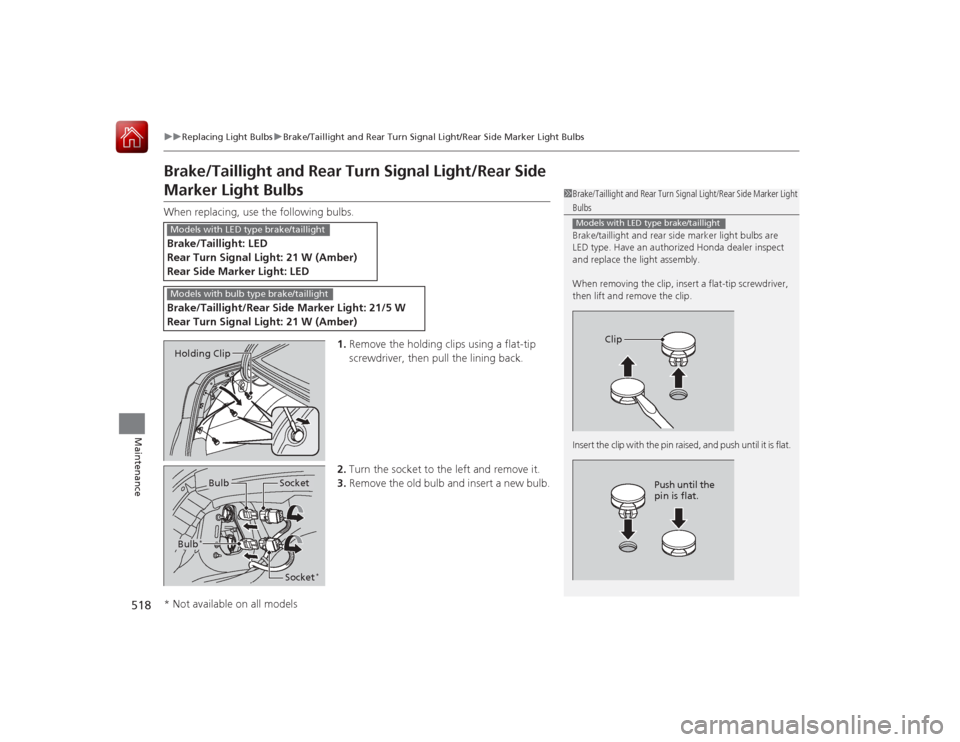

uuReplacing Light Bulbs uBrake/Taillight and Rear Turn Signal Light/Rear Side Marker Light Bulbs
Maintenance
Brake/Taillight and Rear Turn Signal Light/Rear Side Marker Light BulbsWhen replacing, use the following bulbs.
1.Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2. Turn the socket to the left and remove it.
3. Remove the old bulb and insert a new bulb.Brake/Taillight: LED
Rear Turn Signal Light: 21 W (Amber)
Rear Side Marker Light: LEDBrake/Taillight/Rear Side Marker Light: 21/5 W
Rear Turn Signal Light: 21 W (Amber)
1Brake/Taillight and Rear Turn Signal Light/Rear Side Marker Light Bulbs
Brake/taillight and rear side marker light bulbs are
LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
When removing the clip, inser t a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is flat.Models with LED type brake/taillight
Clip
Push until the
pin is flat.
Models with LED type brake/taillightModels with bulb type brake/taillightHolding Clip
Bulb
Socket
Bulb
*
Socket
*
* Not available on all models

519

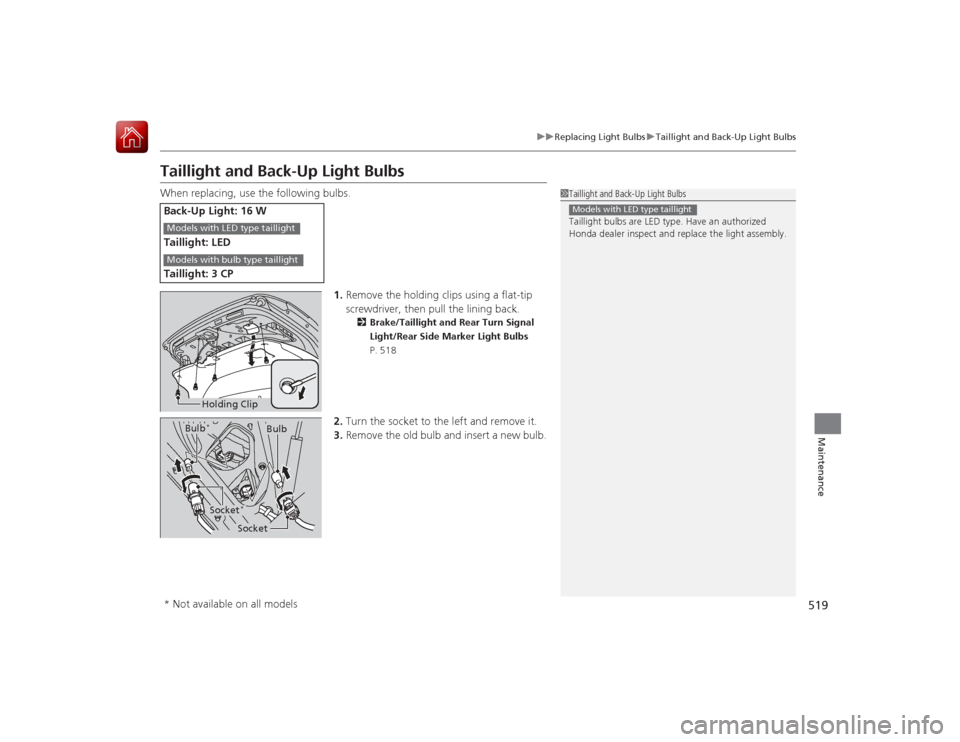

uuReplacing Light Bulbs uTaillight and Back-Up Light Bulbs
Maintenance
Taillight and Back-Up Light BulbsWhen replacing, use the following bulbs.
1.Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2 Brake/Taillight and R ear Turn Signal
Light/Rear Side Marker Light Bulbs
P. 518
2. Turn the socket to the left and remove it.
3. Remove the old bulb and insert a new bulb.
Back-Up Light: 16 W
Taillight: LED
Taillight: 3 CP
1Taillight and Back-Up Light Bulbs
Taillight bulbs are LED type. Have an authorized
Honda dealer inspect and replace the light assembly.Models with LED type taillight
Models with LED type taillightModels with bulb type taillight
Holding Clip
Bulb
Socket
Bulb
*Socket
*
* Not available on all models
