MAINTENANCEMAINTENANCE
Engine Oil
Park the vehicle on level ground, and wait approximately three minutes after turning
the engine off before you check the oil.
Checking the Oil
1. remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or paper 
towel.
3. Insert the dipstick back all the way into its hole.
4. remove the dipstick again, and check the level.
It should be between the upper and lower marks. 
Add oil if necessary.
4-cylinder models
4-cylinder models
Upper mark
Lower mark
6-cylinder models
Upper mark
Lower mark
6-cylinder models
Recommended Engine Oil
• Honda Genuine Motor Oil
•  Premium-grade 0W-20 detergent oil with an API Certification Seal on the
container
This seal indicates the oil is energy conserving and
that it meets the American Petroleum Institute’s 
latest requirements.
Use Honda Genuine Motor oil or another
commercial engine oil of suitable viscosity for the 
ambient temperature as shown.
You may also use synthetic motor oil if it is labeled 
with the API Certification Seal and is of the 
specified viscosity grade.
Do not fill the engine oil above the upper mark. Overfilling the engine oil can result 
in leaks and engine damage.
NOTICE
Adding Oil
1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. reinstall the engine oil fill cap, and tighten it
securely.
4. Wait for three minutes and recheck the engine oil 
dipstick.
Ambient temperature
4-cylinder models
Engine oil ll cap
6-cylinder models
Engine oil ll cap

140 || 141
MAINTENANCEMAINTENANCE

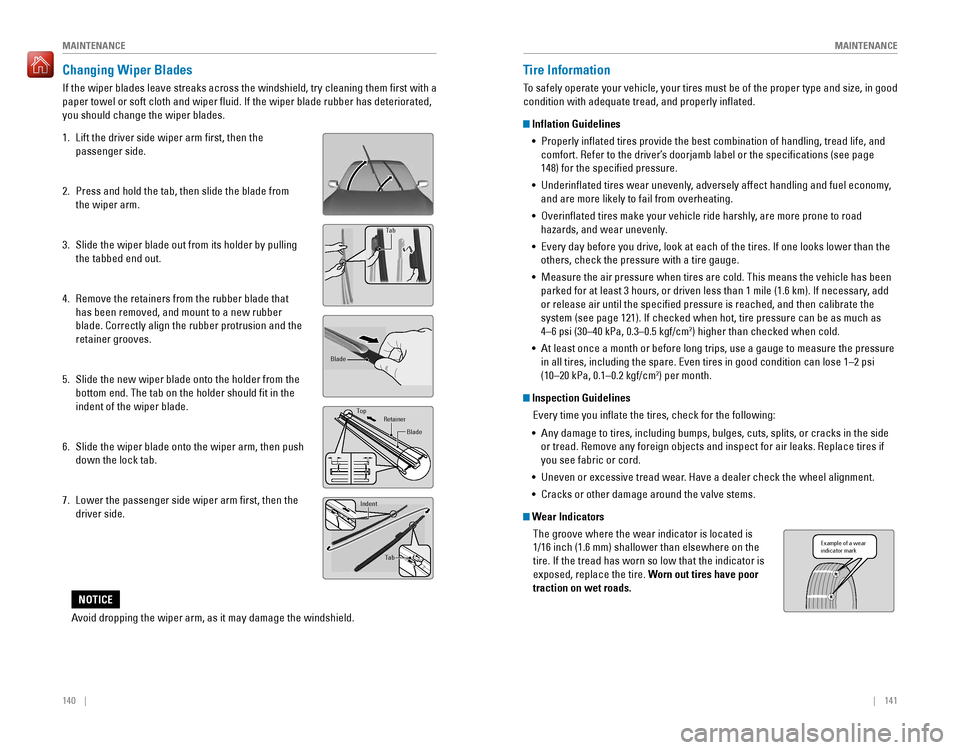

Changing Wiper Blades
If the wiper blades leave streaks across the windshield, try cleaning them first with a 
paper towel or soft cloth and wiper fluid. If the wiper blade rubber has deteriorated, 
you should change the wiper blades.
1. Lift the driver side wiper arm first, then the
passenger side.
2. Press and hold the tab, then slide the blade from 
the wiper arm.
3. Slide the wiper blade out from its holder by pulling 
the tabbed end out.
4. Remove the retainers from the rubber blade that 
has been removed, and mount to a new rubber 
blade. Correctly align the rubber protrusion and the 
retainer grooves.
5. Slide the new wiper blade onto the holder from the 
bottom end. The tab on the holder should fit in the 
indent of the wiper blade.
6. Slide the wiper blade onto the wiper arm, then push 
down the lock tab.
7. Lower the passenger side wiper arm first, then the
driver side.
end cap at the bottom
Holder
Holder Cap
Tab
Blade
TopRetainer
Blade
Tab
Indent
Avoid dropping the wiper arm, as it may damage the windshield.
NOTICE
Tire Information
To safely operate your vehicle, your tires must be of the proper type and size, in good 
condition with adequate tread, and properly inflated.
Inflation Guidelines
• 
Properly inflated tires provide the best combination of handling, tread life, and 
comfort. Refer to the driver’s doorjamb label or the specifications (see page 
148) for the specified pressure.
•  Underinflated tires wear unevenly, adversely affect handling and fuel economy,
and are more likely to fail from overheating.
• 
overinflated tires make your vehicle ride harshly, are more prone to road
hazards, and wear unevenly.
• Every day before you drive, look at each of the tires. If one looks lower than the 
others, check the pressure with a tire gauge.
• 
Measure the air pressure when tires are cold. This means the vehicle has been 
parked for at least 3 hours, or driven less than 1 mile (1.6 km). If necessary, add 
or release air until the specified pressure is reached, and then calibrate the 
system (see page 121). If checked when hot, tire pressure can be as much as 
4–6 psi (30–40 kPa, 0.3–0.5 kgf/cm2) higher than checked when cold.
• 
At least once a month or before long trips, use a gauge to measure the pressure 
in all tires, including the spare. even tires in good condition can lose 1–2 psi
(10–20 kPa, 0.1–0.2 kgf/cm2) per month.
Inspection Guidelines
every time you inflate the tires, check for the following:
• Any damage to tires, including bumps, bulges, cuts, splits, or cracks in the side 
or tread. Remove any foreign objects and inspect for air leaks. Replace tires if 
you see fabric or cord. 
•  Uneven or excessive tread wear. Have a dealer check the wheel alignment.
•  Cracks or other damage around the valve stems.
Wear Indicators
The groove where the wear indicator is located is
1/16 inch (1.6 mm) shallower than elsewhere on the 
tire. If the tread has worn so low that the indicator is 
exposed, replace the tire. Worn out tires have poor
traction on wet roads.
Example of a wear
indicator mark

152 || 153
CUSTOMER INFORMATION
CUSTOMER INFORMATION
Contact Us
Honda dealer personnel are trained professionals. They should be able to answer 
all your questions. If you encounter a problem that your dealership does not solve 
to your satisfaction, please discuss it with the dealership’s service manager or
general manager. If you are dissatisfied with the decision made by the dealership’s 
management, contact Honda Automobile Customer Service.
U.S. owners
American Honda Motor Co., Inc.
Honda Automobile Customer Service
1919 Torrance Blvd.
Mail Stop 500-2N-7A
Torrance, CA 90501-2746
Tel: (800) 999-1009
In Puerto Rico and
the U.S. Virgin Islands
Bella International
P.o. Box 190816
San Juan, Pr 00919-0816
Tel: (787) 620-7546
When you call or write, please give us the following information:
• Vehicle Identification Number
•  Date of purchase
• 
odometer reading of your vehicle
• Your name, address, and telephone number
• A detailed description of the problem
•  Name of the dealer who sold the vehicle to you
Canadian owners
Honda
 Canada, Inc.
Customer
relations
180 Honda Blvd.
Markham,
oN
L6C 0H9
T

el: (888) 946-6329
Fax: (877) 939-0909
e-mail: [email protected]
*if equipped
Honda Roadside Assistance
24-hour emergency road service is available to you in the United States and
Canada throughout your 3-year/36,000-mile warranty term. Services include
jump starting, flat tire and lockout assistance, towing, and more (li\
mitations apply).
Call (866) 864-5211 (U.S.) or (800) 465-7587 (Canada).
Warranty Coverages
Below is a brief summary of the warranties covering your new vehicle. 
New Vehicle Limited Warranty: Covers your new vehicle, except for the emissions
control system and accessories, against defects in materials and workman\
ship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty: Covers your vehicle’s emissions control systems. Time, mileage, and
coverage are conditional.
Seat Belt Limited Warranty:
Covers seat belts that fail to function properly. 
Rust Perforation Limited Warranty: Covers all exterior body panels that rust through 
from the inside.
Accessory Limited Warranty: Covers Honda accessories.
Replacement Parts Limited Warranty: Covers all Honda replacement parts against
defects in materials and workmanship.
Replacement Battery Limited Warranty: Provides prorated coverage for a
replacement battery purchased from a Honda dealer. 
Replacement Muffler Lifetime Limited Warranty: Covers a replacement muffler for
the duration of the ownership.
Restrictions and exclusions apply to all these warranties. See the Warranty Manual 
on the Owner Information CD or at owners.honda.com (U.S.) or myhonda.ca
(Canada) for complete descriptions of each warranty, including time, mileage, and
other conditional limitations.
Your vehicle’s original tires are covered by their manufacturer. Tire warranty 
information can be found on the Owner Information CD or at owners.honda.com 
(U.S.) or myhonda.ca (Canada).
