buttons HONDA ACCORD 2017 9.G Navigation Manual

6
Quick Reference GuideMap Screen Legend
The color of the map is different depending on the selected language.
Map operation icons
(P79)Map menu (P80)
Map scale
(P79)
Current vehicle position Streets Landmark icons
Traffic incident icons Traffic flow indicator
Traffic is flowing
normally.Traffic is slightly
congested.
Traffic is heavily
congested or stopped.
Searching specific category (P71)
Traffic has not
updated.
Map buttons (P32)
Feature areas

15
System Setup
This section describes the start-up procedure and the navigation and setup functions.
Start-up....................................................16
Voice Control System ..............................17
Voice Recognition ...................................17
Personal Information ...............................18
Setting Home Location ............................18
Saved Locations ......................................19
Display Mode Settings ............................26
Switching Display Mode Manually ...........26
Map & Vehicle ..........................................28
Vehicle....................................................29
Driving Map View (Map Orientation) .......29
Map Detail ..............................................30
Map Theme ............................................31
Map Buttons ...........................................32 Map Layers ............................................ 33
Dashboards ............................................ 33
myMaps ................................................. 34
Navigation ............................................... 35
Calculation Mode................................... 36
Avoidances ............................................ 37
Custom Avoidances ............................... 38
Traffic ....................................................... 43
Other Settings ......................................... 44
Units ...................................................... 44
Language & Keyboard ............................ 45
Device .................................................... 48
Data Reset ............................................... 50
Reset Factory Default Settings ................ 50

17
System Setup
Voice Control System
Your vehicle has a voice control system that allows hands-free operation of the
navigation system functions.
The voice control system uses the ( Talk) and (Hang-Up/Back) buttons on
the steering wheel and a microphone near the map lights on the ceiling.
For details of the (Talk) button, (Hang-Up/Back) button and microphone
position, see the Owner's Manual.
Voice Recognition
To achieve optimum voice recognition wh en using the navigation voice control
system:
• Make sure the correct screen is displa yed for the voice command that you are
using.
• Close the windows and moonroof
*.
• Adjust the dashboard and side vents so air does not blow onto the microphone on the ceiling.
• Speak clearly in a clear, natural speaking voice without pausing between words.
• Reduce any background noise if possible. The system may misinterpret your
command if more than one person is speaking at the same time.
1Voice Control System
When you press the (Talk) button, the system
prompts you to say a voice command. Press and
release the (Talk) butt on again to bypass this
prompt and give a command.
1 Voice Recognition
The voice control system can only be used from the
driver’s seat because the microphone unit removes
noises from the front passenger’s side.
* Not available on all models

27
uuDisplay Mode Settings uSwitching Display Mode Manually
System SetupIllumination
control Priority Operation
button1Selects Day or Night display mode when the user
wants to change the brightness of the display
temporarily.
Remember:
This button overrides all other display
brightness adjustment that is set by the sunlight
sensor automatically or you changed manually from
the System settings screen.
Sunlight sensor
(see your Owner’s
Manual for
location) 2 If the sunlight sensor detects daylight and the
headlights are turned on, the system automatically
overrides the Nigh t display and displays the Day
display mode.
Remember: If desired, use the button to
override this automatic choice.
Dash illumination
adjustment
buttons (see your
Owner’s Manual
for location)3When the headlights are turn ed on, and you wish to
have the Day display mode, adjust the illumination
to the full brightness (beeps).
Remember: Adjust the dash brightness back to
midrange to allow auto switching by sensing the
headlights are on or off.
Headlights
(Auto/On/Off) 4 When turned on, the di
splay changes to Night
display mode.
The previous three controls listed above can
“cancel” this function.
Remember: Use the button, or adjust the
dash illumination to full brightness, to set the display
to your desired choice.

28
System Setup
Map & Vehicle
Hu (Back) uSettings uMap & Vehicle
Change the map settings. Select an option.1Map & Vehicle
The following opti ons are available:
•Vehicle: Changes the icon to represent your
position on the map. 2 Vehicle P. 29
•Driving Map View : Sets the perspective on the
map. 2 Driving Map View (Map Orientation)
P. 29
•Map Detail: Sets the level of detail on the map.
More detail may cause th e map to draw slower.
2 Map Detail P. 30
•Map Theme : Changes the color of the map data.
2 Map Theme P. 31
•Map Buttons : Sets which icons are included on
the map. Up to three icons can be included on the
map. 2 Map Buttons P. 32
•Map Layers: Sets the data that appears on the
map.
2 Map Layers P. 33
•Dashboards : Sets the map dashboard layout.
2 Dashboards P. 33
•myMaps: Sets which installed maps the system
uses.
2 myMaps P. 34

32
uuMap & Vehicle uMap Buttons
System Setup
Map Buttons
H u (Back) uSettings uMap & Vehicle uMap Buttons
Sets up to three shortcuts that appear in the map tools menu.
1.Select if you want to delete a
shortcut and then select OK.
2. Select to add a new shortcut.
3. Select an option.
4. Select Save.1Map Buttons
Reset to Defaults
Resets the settings to the factory defaults.

52
Navigation

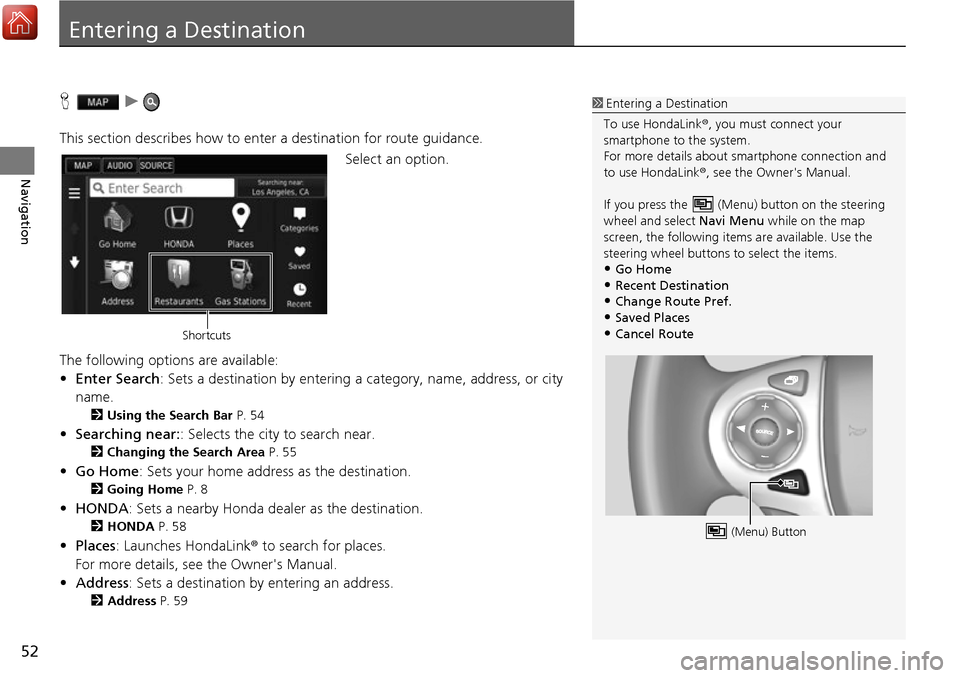

Entering a Destination
Hu
This section describes how to enter a destination for route guidance. Select an option.
The following options are available:
• Enter Search : Sets a destination by entering a category, name, address, or city
name.
2 Using the Search Bar P. 54
•Searching near: : Selects the city to search near.
2Changing the Search Area P. 55
•Go Home : Sets your home address as the destination.
2Going Home P. 8
•HONDA: Sets a nearby Honda dealer as the destination.
2 HONDA P. 58
•Places: Launches HondaLink ® to search for places.
For more details, see the Owner's Manual.
• Address : Sets a destination by entering an address.
2Address P. 59
1Entering a Destination
To use HondaLink ®, you must connect your
smartphone to the system.
For more details about sm artphone connection and
to use HondaLink ®, see the Owner's Manual.
If you press the (Me nu) button on the steering
wheel and select Navi Menu while on the map
screen, the following items are available. Use the
steering wheel buttons to select the items.
•Go Home•Recent Destination
•Change Route Pref.
•Saved Places•Cancel Route
(Menu) Button
Shortcuts

Index
141
Index
Index
Symbols
a (Display Mode) Button ............. 3, 7, 26
d (Talk) Button .............................. 5, 11, 17
Numbers
3D Map....................................................... 29
A
Adding Waypoints ..................................... 92
Apps Menu ............................................... 108
Avoidances ................................................. 37
C
Calculating the Route ................................ 72
Calculation Mode ....................................... 36
Calculator ................................................. 119
Cancel Route .............................................. 10
Categories List of Categories .................................... 140
Changing Your Destination ...................... 93
Changing Your Route ................................ 89
Custom Avoidances .................................... 38
Customer Assistance ................................ 132
D
Dashboards................................................. 33
Data Reset .................................................. 50 Detour
......................................................... 90
Device .......................................................... 48
Display Mode Settings ................................ 26
Driving to Your Destination ...................... 75
E
ecoChallenge............................................ 114
ecoRouteTM................................................ 109
Editing the Destination List ..................... 101
Entering a Destination ............................... 52
Address ..................................................... 59
Categories ................................................. 64
HONDA ..................................................... 58
Map Input ................................................. 71
Recent ....................................................... 70
Saved ........................................................ 70
Entering a New Destination ...................... 96
F
Fuel Economy.................................... 113, 115
G
Go Home....................................................... 8
GPS Information ....................................... 121
H
Help..................................................... 10, 117
Home Location ........................................... 18 HOME Screen
................................................ 3
Honda Customer Service .......................... 132
I
Information Functions............................. 117
L
Language & Keyboard............................... 45
Legal Information .................................... 134
M
Map & Vehicle............................................ 28
Map Buttons ............................................... 32
Map Coverage .......................................... 133
Map Detail .................................................. 30
Map Layers .................................................. 33
Map Legend .................................................. 6
Map Menu .................................................. 80
Map Operation ........................................... 79
Map Screen ................................................. 75
Icon............................................................. 6
Map Theme ................................................. 31
Map Update Obtaining Update Data ........................... 132
Map view .................................................... 29
Mileage Report ......................................... 116
myMaps ....................................................... 34
