uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
120
Controls

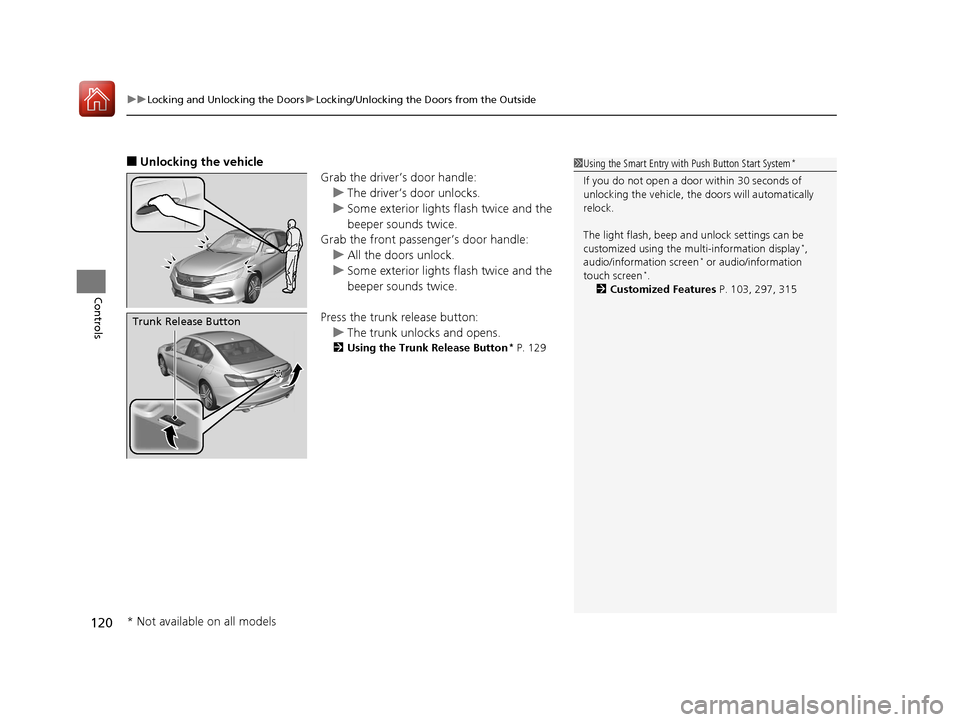

■Unlocking the vehicle
Grab the driver’s door handle:u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All the doors unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button: u The trunk unlocks and opens.
2 Using the Trunk Release Button* P. 129
Trunk Release Button
1Using the Smart Entry with Push Button Start System*
If you do not open a door within 30 seconds of
unlocking the vehicle, th e doors will automatically
relock.
The light flash, beep a nd unlock settings can be
customized using the mu lti-information display
*,
audio/information screen* or audio/information
touch screen*.
2 Customized Features P. 103, 297, 315
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 120 ページ ２０１６年６月７日　火曜日　午後５時６分

Continued121
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
lock, and the security system sets.
Twice (within five se conds after the first
push): u The beeper sounds and verifies the
security system is set.

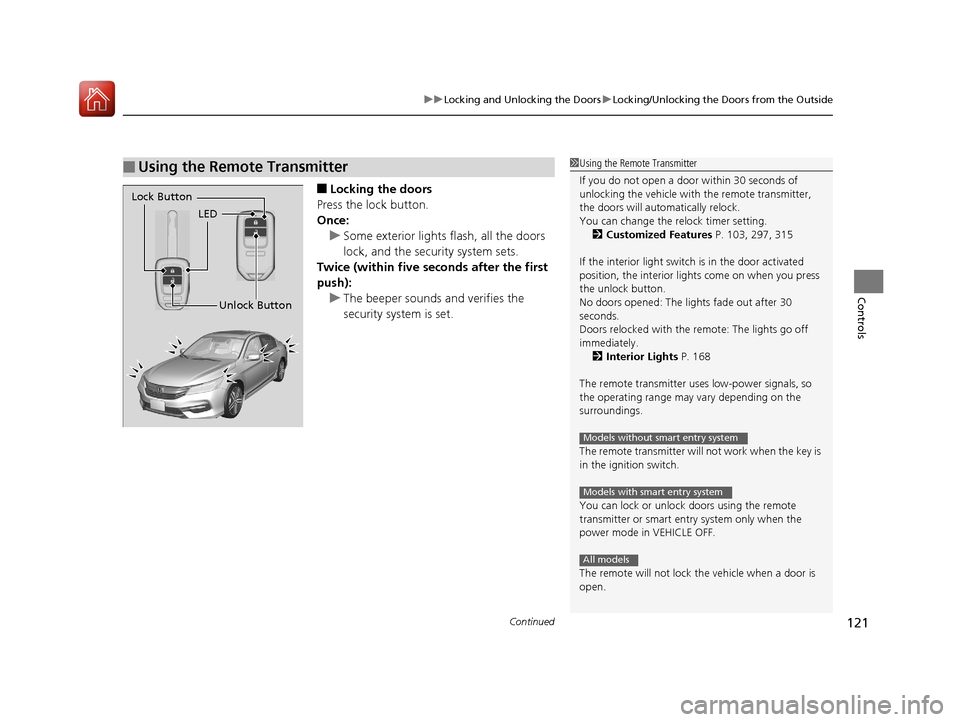

■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will auto matically relock.
You can change the relock timer setting. 2 Customized Features P. 103, 297, 315
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 168
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote transmitter will not work when the key is
in the ignition switch.
You can lock or unlock doors using the remote
transmitter or smart entry system only when the
power mode in VEHICLE OFF.
The remote will not lock th e vehicle when a door is
open.
Models without smart entry system
Models with smart entry system
All models
LED
Unlock Button
Lock Button
17 ACCORD 4D GAS-31T2A6400.book 121 ページ ２０１６年６月７日　火曜日　午後５時６分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
122
Controls

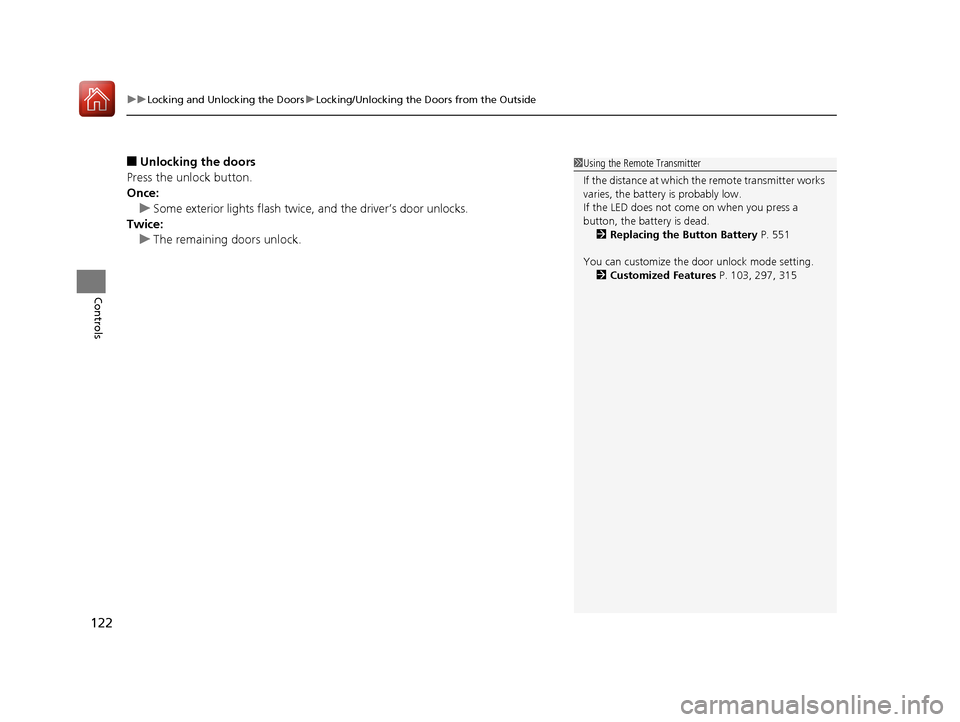

■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver’s door unlocks.
Twice: u The remaining doors unlock.1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 551
You can customize the door unlock mode setting. 2 Customized Features P. 103, 297, 315
17 ACCORD 4D GAS-31T2A6400.book 122 ページ ２０１６年６月７日　火曜日　午後５時６分

123
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

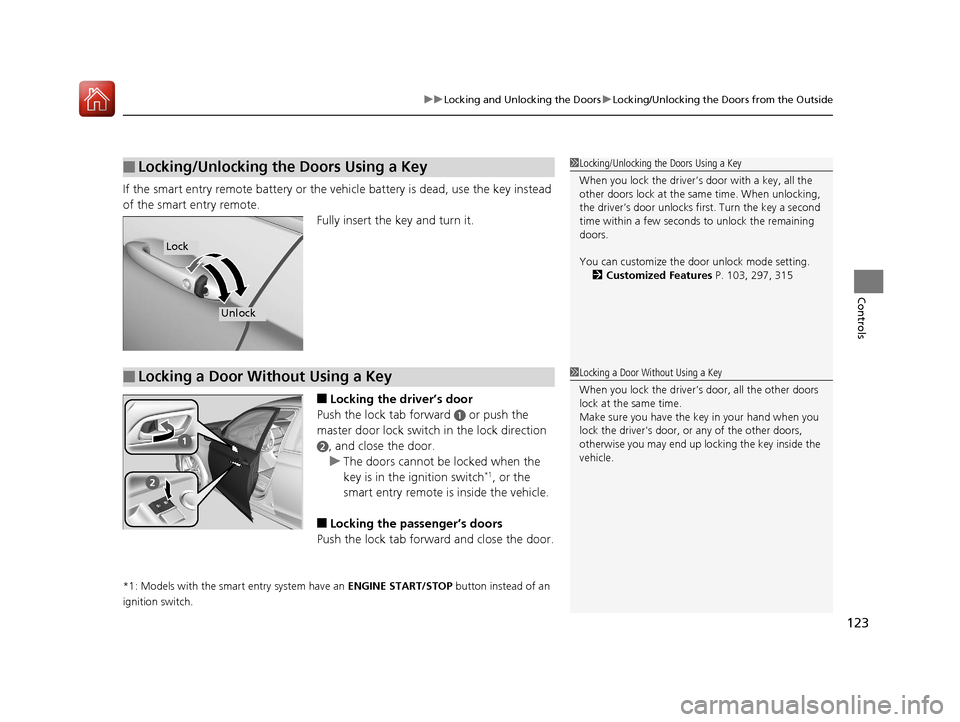

If the smart entry remote battery or the ve hicle battery is dead, use the key instead
of the smart entry remote. Fully insert the key and turn it.
■Locking the driver’s door
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door. u The doors cannot be locked when the
key is in the ignition switch
*1, or the
smart entry remote is inside the vehicle.
■Locking the passenger’s doors
Push the lock tab forward and close the door.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Locking/Unlocking the Doors Using a Key1 Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors lock at the sa me time. When unlocking,
the driver’s door unlocks first. Turn the key a second
time within a few seconds to unlock the remaining
doors.
You can customize the door unlock mode setting. 2 Customized Features P. 103, 297, 315
Lock
Unlock
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
lock at the same time.
Make sure you have the key in your hand when you
lock the driver's door, or any of the other doors,
otherwise you may end up lo cking the key inside the
vehicle.
17 ACCORD 4D GAS-31T2A6400.book 123 ページ ２０１６年６月７日　火曜日　午後５時６分

124
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

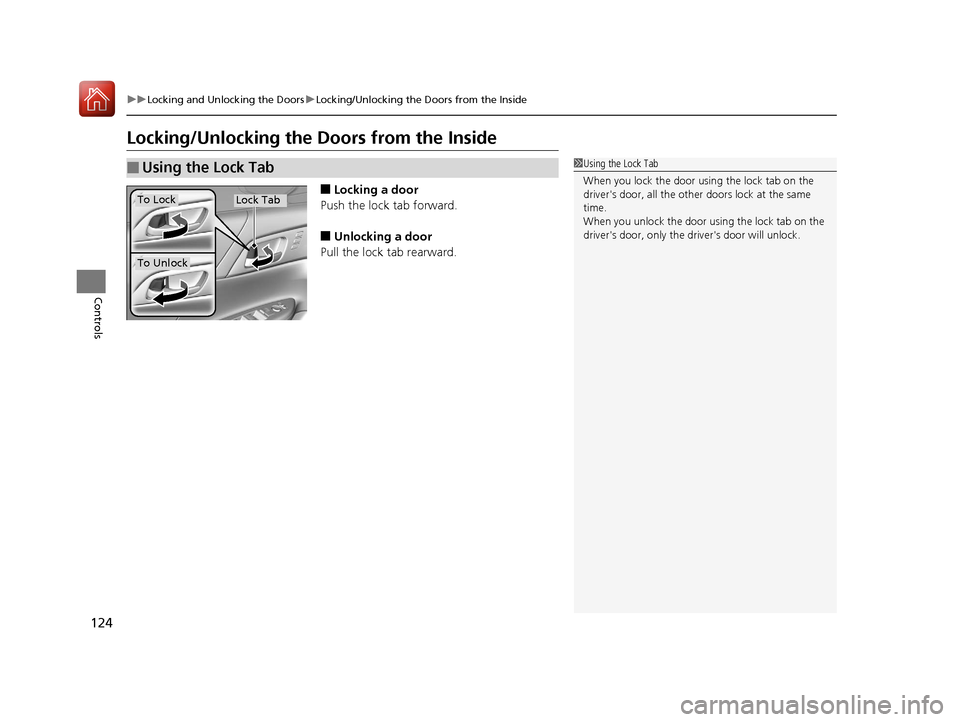

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, all the other doors lock at the same
time.
When you unlock the door using the lock tab on the
driver's door, only the driv er's door will unlock.
To Unlock
Lock TabTo Lock
17 ACCORD 4D GAS-31T2A6400.book 124 ページ ２０１６年６月７日　火曜日　午後５時６分

Continued125
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

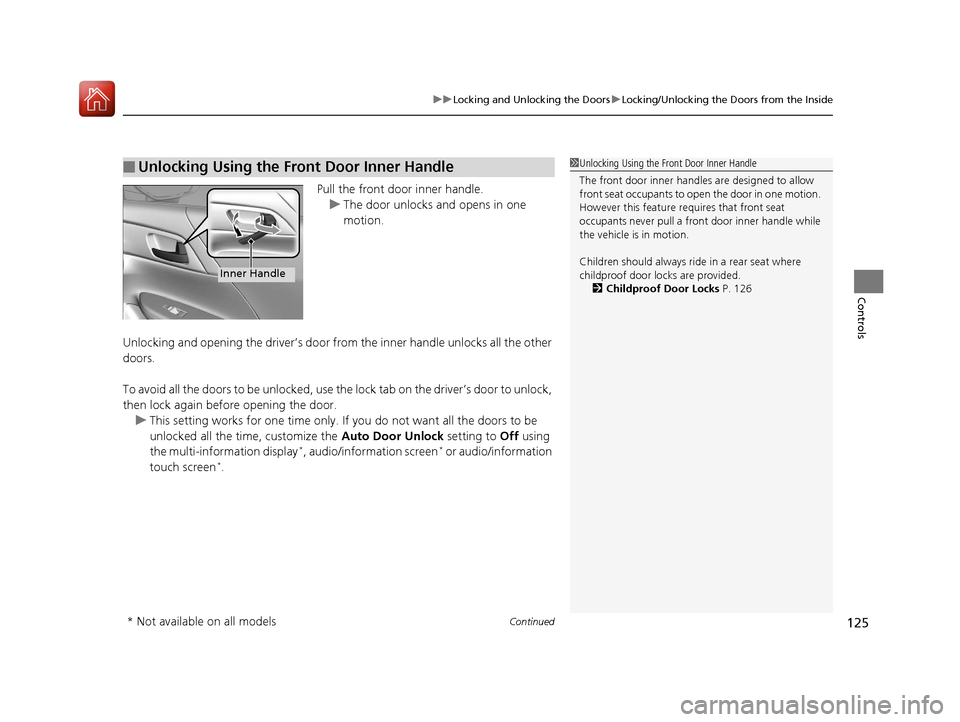

Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only. If you do not want all the doors to be
unlocked all the time, customize the Auto Door Unlock setting to Off using
the multi-information display
*, audio/information screen* or audio/information
touch screen*.
■Unlocking Using the Front Door Inner Handle1 Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 126
Inner Handle
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 125 ページ ２０１６年６月７日　火曜日　午後５時６分

uuLocking and Unlocking the Doors uChildproof Door Locks
126
Controls

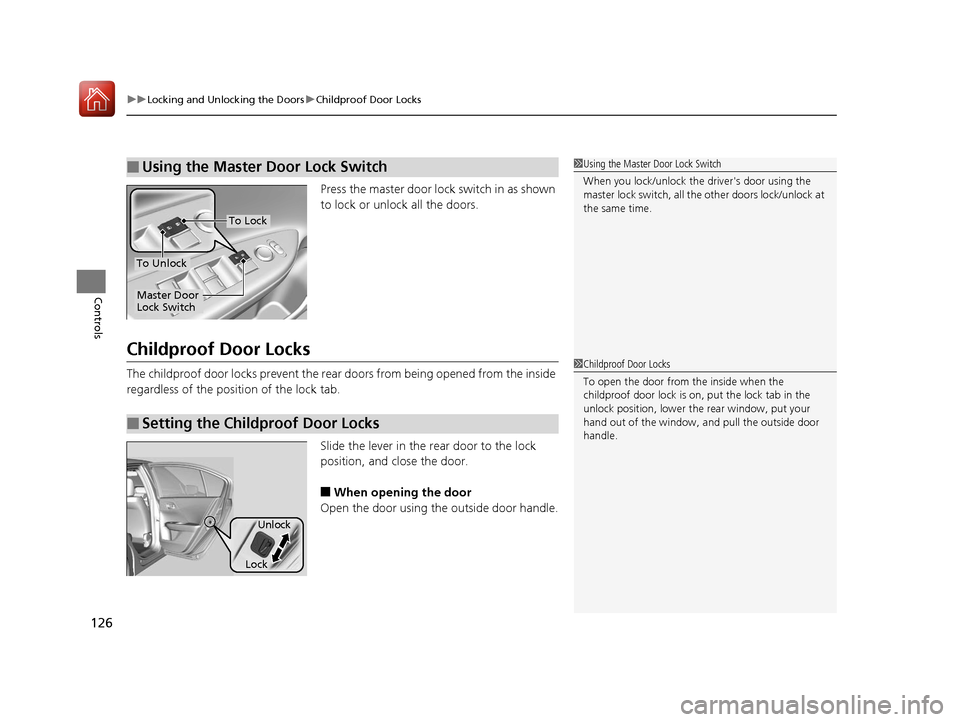

Press the master door lock switch in as shown
to lock or unlock all the doors.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock the driver's door using the
master lock switch, all th e other doors lock/unlock at
the same time.
To Unlock
Master Door
Lock Switch
To Lock
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Unlock
Lock
17 ACCORD 4D GAS-31T2A6400.book 126 ページ ２０１６年６月７日　火曜日　午後５時６分

127
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls

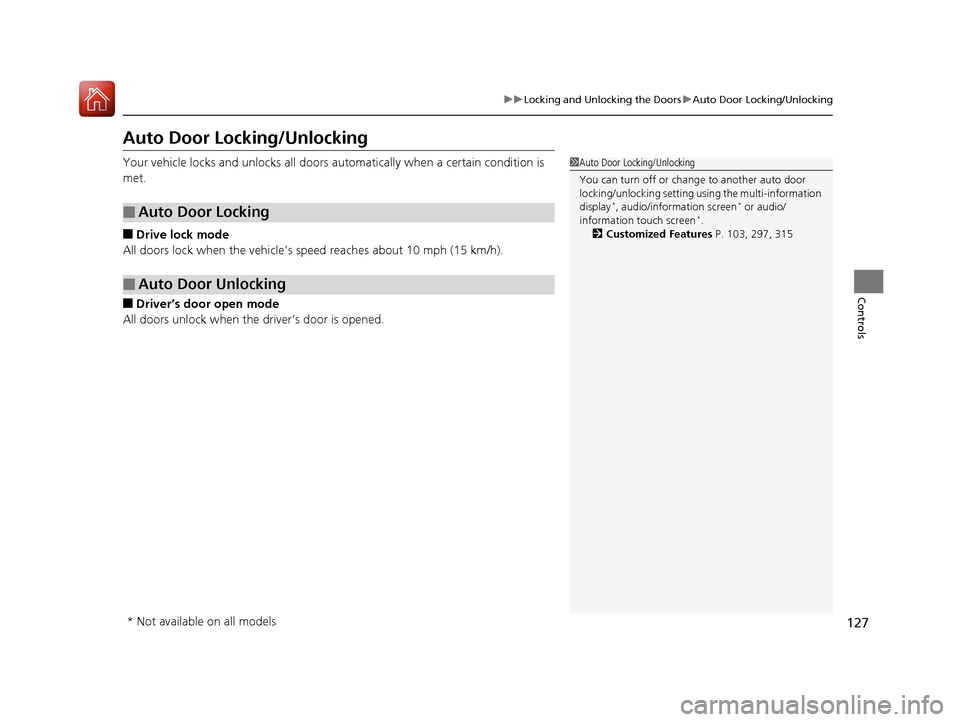

Auto Door Locking/Unlocking
Your vehicle locks and unlocks all doors au tomatically when a certain condition is
met.
■Drive lock mode
All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the multi-information
display
*, audio/information screen* or audio/
information touch screen*.
2 Customized Features P. 103, 297, 315
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 127 ページ ２０１６年６月７日　火曜日　午後５時６分

128
Controls

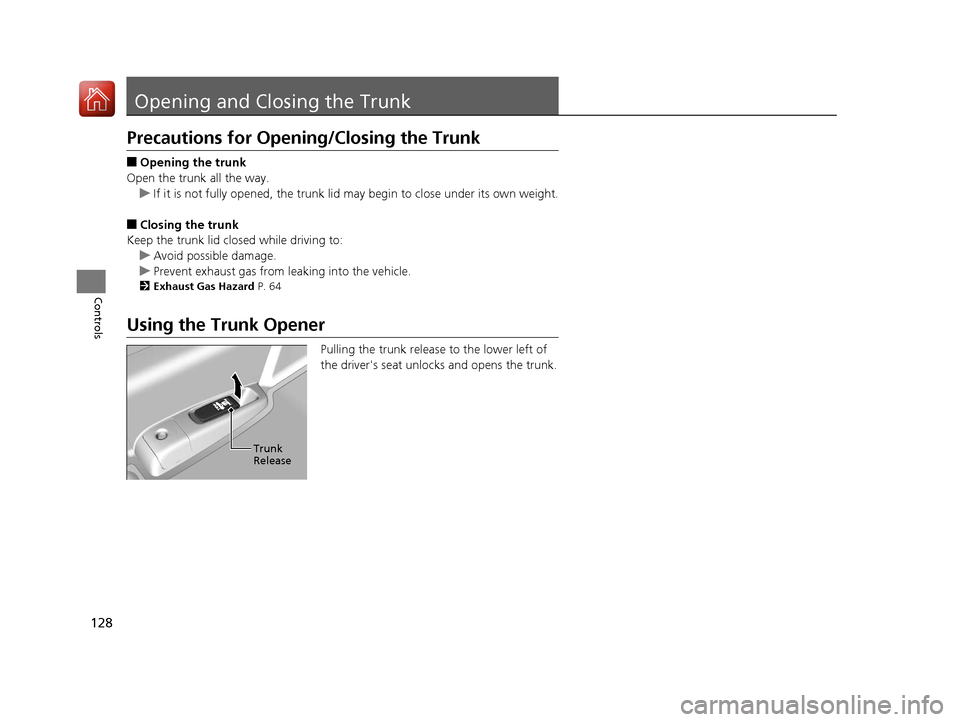

Opening and Closing the Trunk
Precautions for Opening/Closing the Trunk
■Opening the trunk
Open the trunk all the way. u If it is not fully opened, the trunk lid may begin to close under its own weight.
■Closing the trunk
Keep the trunk lid clos ed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 64
Using the Trunk Opener
Pulling the trunk release to the lower left of
the driver's seat unlocks and opens the trunk.
Trunk
Release
17 ACCORD 4D GAS-31T2A6400.book 128 ページ ２０１６年６月７日　火曜日　午後５時６分

129
uuOpening and Closing the Trunk uUsing the Trunk Release Button*
Controls

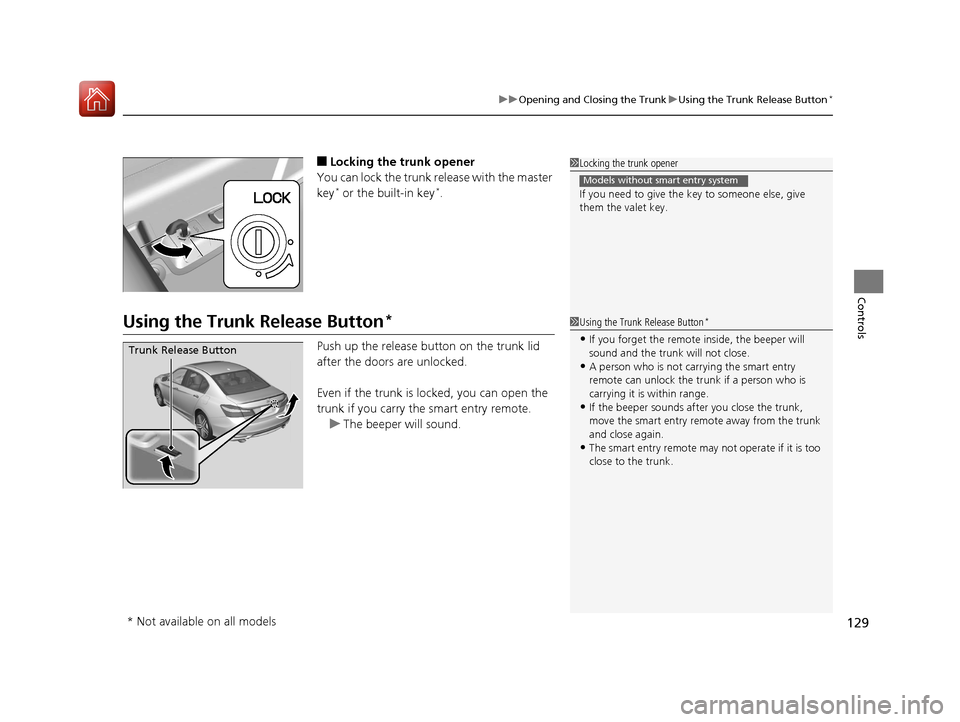

■Locking the trunk opener
You can lock the trunk release with the master
key
* or the built-in key*.
Using the Trunk Release Button*
Push up the release bu tton on the trunk lid
after the doors are unlocked.
Even if the trunk is locked, you can open the
trunk if you carry the smart entry remote.
u The beeper will sound.
1Locking the trunk opener
If you need to give the key to someone else, give
them the valet key.
Models without smart entry system
1Using the Trunk Release Button*
•If you forget the remote inside, the beeper will
sound and the trunk will not close.
•A person who is not carrying the smart entry
remote can unlock the tr unk if a person who is
carrying it is within range.
•If the beeper sounds after you close the trunk,
move the smart entry remote away from the trunk
and close again.
•The smart entry remote may not operate if it is too
close to the trunk.
Trunk Release Button
* Not available on all models
