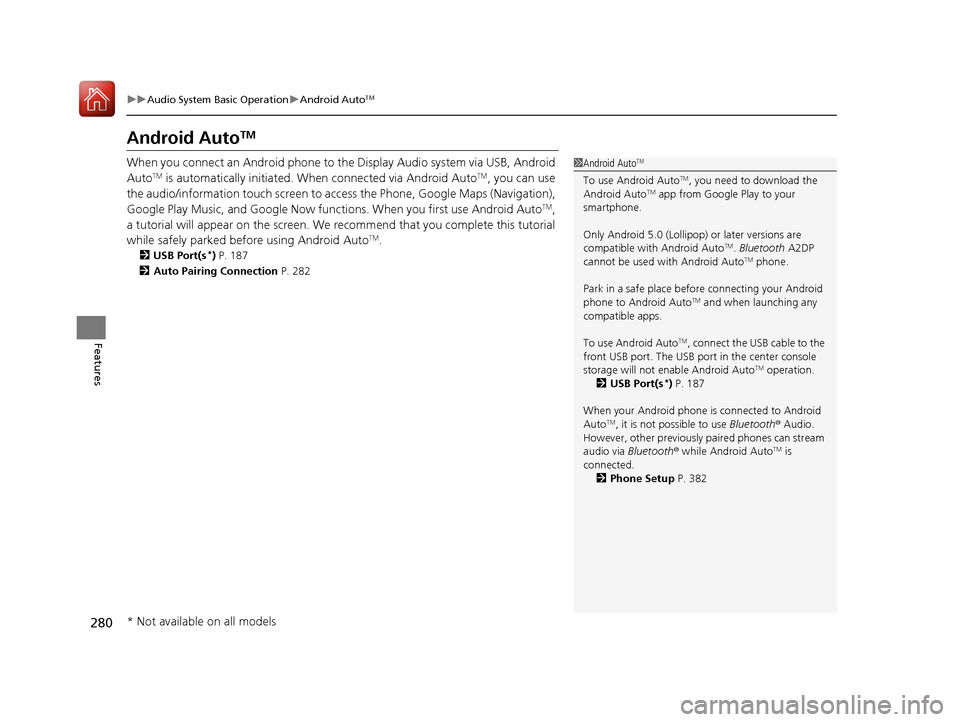

HONDA ACCORD 2017 9.G Owners Manual

280
uuAudio System Basic Operation uAndroid AutoTM
Features
Android AutoTM
When you connect an Android phone to the Display Audio system via USB, Android
AutoTM is automatically initiated. When connected via Android AutoTM, you can use
the audio/information touch screen to access the Phone, Google Maps (Navigation),
Google Play Music, and Google Now functions. When you first use Android Auto
TM,
a tutorial will appear on the screen. We recommend that you complete this tutorial
while safely parked before using Android Auto
TM.
2 USB Port(s*) P. 187
2 Auto Pairing Connection P. 282
1Android AutoTM
To use Android AutoTM, you need to download the
Android AutoTM app from Google Play to your
smartphone.
Only Android 5.0 (Lollipop) or later versions are
compatible with Android Auto
TM. Bluetooth A2DP
cannot be used with Android AutoTM phone.
Park in a safe place befo re connecting your Android
phone to Android Auto
TM and when launching any
compatible apps.
To use Android Auto
TM, connect the USB cable to the
front USB port. The USB port in the center console
storage will not enable Android Auto
TM operation.
2 USB Port(s*) P. 187
When your Android phone is connected to Android
Auto
TM, it is not possible to use Bluetooth® Audio.
However, other previously paired phones can stream
audio via Bluetooth ® while Android Auto
TM is
connected. 2 Phone Setup P. 382
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 280 ページ ２０１６年６月７日　火曜日　午後５時６分

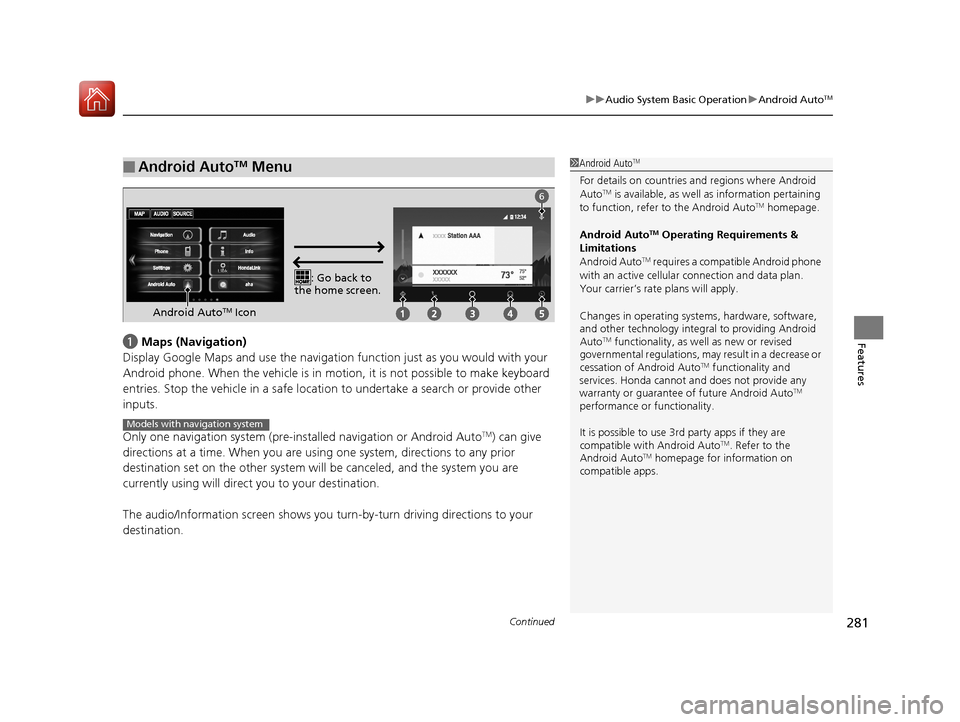

Continued281
uuAudio System Basic Operation uAndroid AutoTM
Featuresa Maps (Navigation)
Display Google Maps and use the navigation function just as you would with your
Android phone. When the vehicle is in motion, it is not possible to make keyboard
entries. Stop the vehicle in a safe locati on to undertake a search or provide other
inputs.
Only one navigation system (pre-installed navigation or Android Auto
TM) can give
directions at a time. When you are using one system, directions to any prior
destination set on the other system will be canceled, and the system you are
currently using will direct you to your destination.
The audio/Information screen shows you turn-by-turn dr iving directions to your
destination.
■Android AutoTM Menu1 Android AutoTM
For details on c ountries and regions where Android
AutoTM is available, as well as information pertaining
to function, refer to the Android AutoTM homepage.
Android Auto
TM Operating Requirements &
Limitations
Android Auto
TM requires a compatible Android phone
with an active cellular connection and data plan.
Your carrier’s rate plans will apply.
Changes in operating system s, hardware, software,
and other technology integral to providing Android
Auto
TM functionality, as we ll as new or revised
governmental regulations, may result in a decrease or
cessation of Android Auto
TM functionality and
services. Honda cannot a nd does not provide any
warranty or guarantee of future Android Auto
TM
performance or functionality.
It is possible to use 3r d party apps if they are
compatible with Android Auto
TM. Refer to the
Android AutoTM homepage for information on
compatible apps.
: Go back to
the home screen.
Android AutoTM Icon
6
Models with navigation system
17 ACCORD 4D GAS-31T2A6400.book 281 ページ ２０１６年６月７日　火曜日　午後５時６分

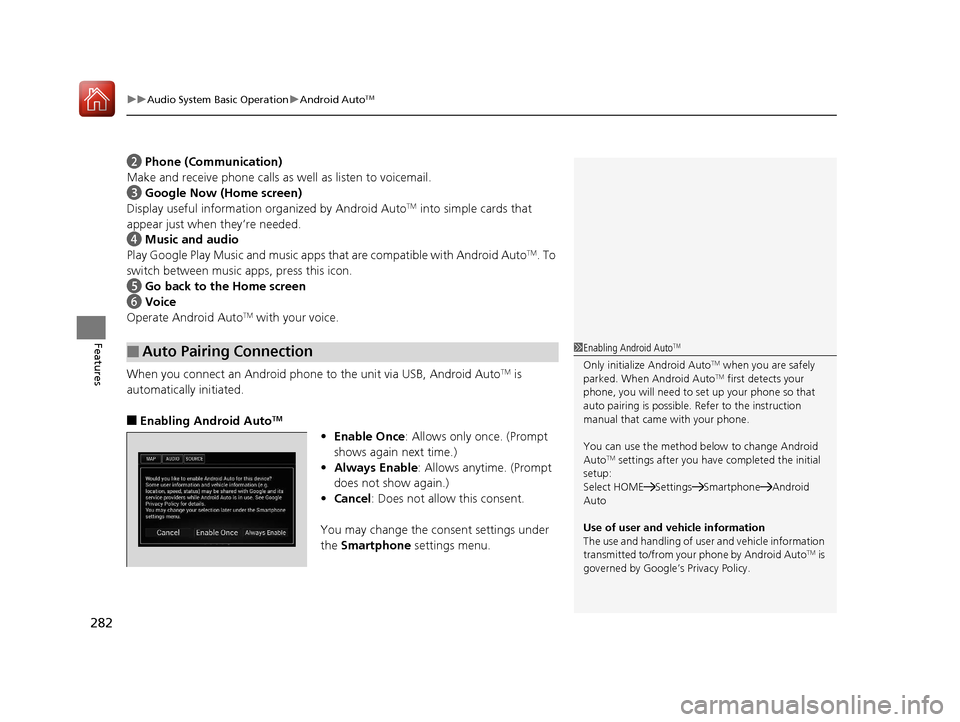

uuAudio System Basic Operation uAndroid AutoTM
282
Features
b Phone (Communication)
Make and receive phone calls as well as listen to voicemail.
c Google Now (Home screen)
Display useful information organized by Android Auto
TM into simple cards that
appear just when they’re needed.
d Music and audio
Play Google Play Music and music apps that are compatible with Android Auto
TM. To
switch between music apps, press this icon.
e Go back to the Home screen
f Voice
Operate Android Auto
TM with your voice.
When you connect an Android phone to the unit via USB, Android Auto
TM is
automatically initiated.
■Enabling Android AutoTM
• Enable Once : Allows only once. (Prompt
shows again next time.)
• Always Enable: Allows anytime. (Prompt
does not show again.)
• Cancel : Does not allo w this consent.
You may change the consent settings under
the Smartphone settings menu.
■Auto Pairing Connection1Enabling Android AutoTM
Only initialize Android AutoTM when you are safely
parked. When Android AutoTM first detects your
phone, you will need to set up your phone so that
auto pairing is possible. Refer to the instruction
manual that came with your phone.
You can use the method below to change Android
Auto
TM settings after you have completed the initial
setup:
Select HOME Settings Smartphone Android
Auto
Use of user and vehicle information
The use and handling of user and vehicle information
transmitted to/from your phone by Android Auto
TM is
governed by Google’s Privacy Policy.
17 ACCORD 4D GAS-31T2A6400.book 282 ページ ２０１６年６月７日　火曜日　午後５時６分

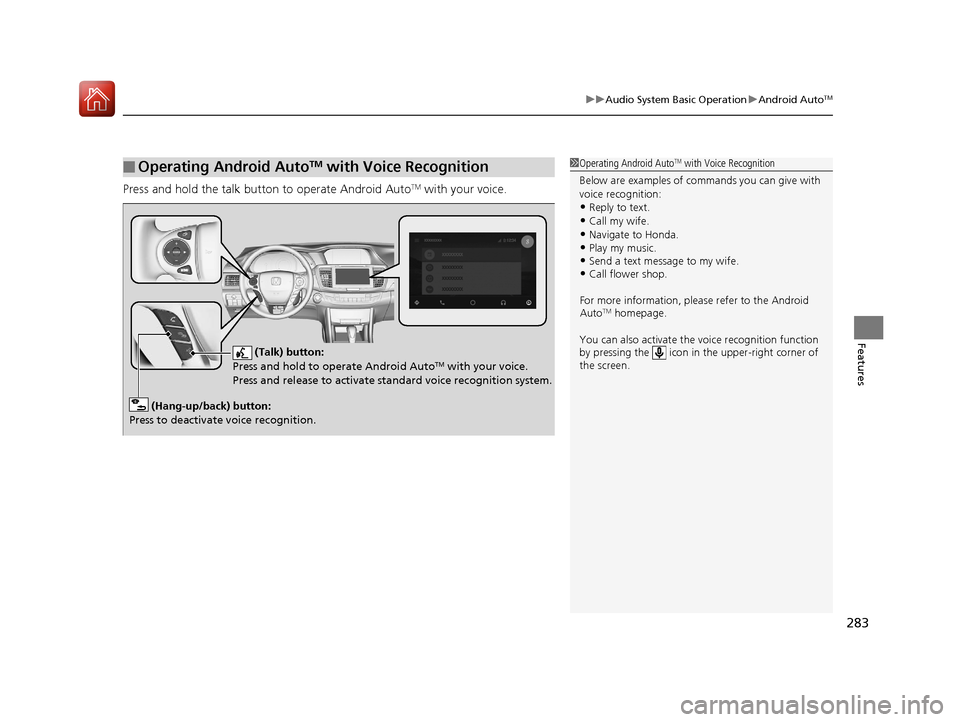

283
uuAudio System Basic Operation uAndroid AutoTM
Features
Press and hold the talk button to operate Android AutoTM with your voice.
■Operating Android AutoTM with Voice Recognition1Operating Android AutoTM with Voice Recognition
Below are examples of co mmands you can give with
voice recognition:
•Reply to text.
•Call my wife.•Navigate to Honda.
•Play my music.•Send a text message to my wife.•Call flower shop.
For more information, please refer to the Android
Auto
TM homepage.
You can also activate the voice recognition function
by pressing the icon in the upper-right corner of
the screen.
(Talk) button:
Press and hold to operate Android AutoTM with your voice.
Press and release to activate st andard voice recognition system.
(Hang-up/back) button:
Press to deactivate voice recognition.
17 ACCORD 4D GAS-31T2A6400.book 283 ページ ２０１６年６月７日　火曜日　午後５時６分

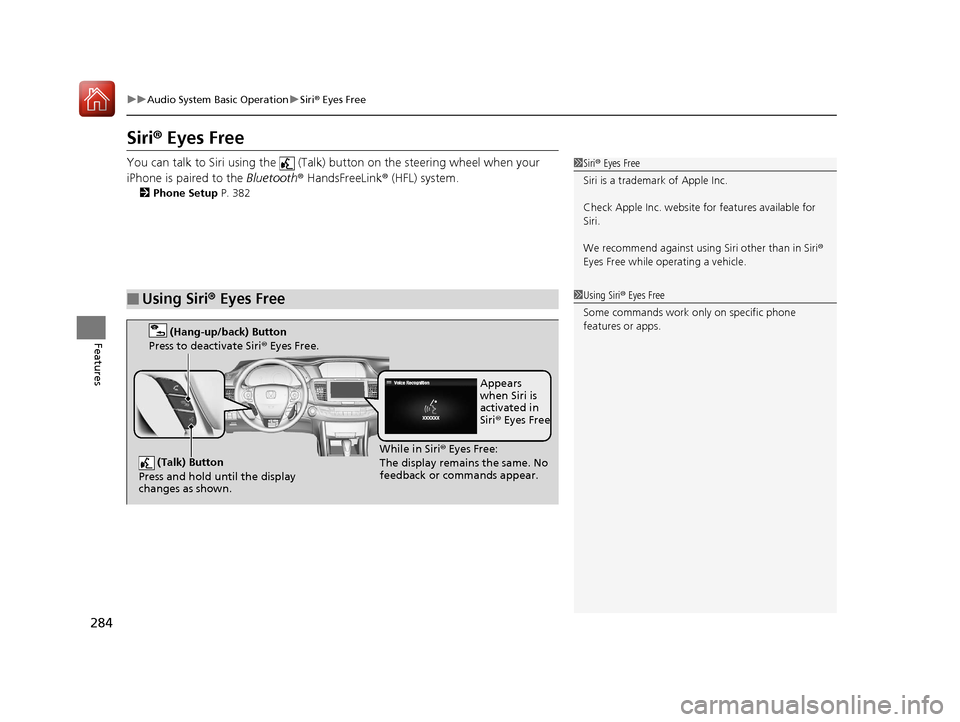

284
uuAudio System Basic Operation uSiri ® Eyes Free
Features
Siri ® Eyes Free
You can talk to Siri using the (Talk) button on the steering wheel when your
iPhone is paired to the Bluetooth® HandsFreeLink ® (HFL) system.
2Phone Setup P. 382
■Using Siri® Eyes Free
1Siri ® Eyes Free
Siri is a trademark of Apple Inc.
Check Apple Inc. website for features available for
Siri.
We recommend against using Siri other than in Siri ®
Eyes Free while operating a vehicle.
1 Using Siri ® Eyes Free
Some commands work only on specific phone
features or apps.
(Talk) Button
Press and hold until the display
changes as shown.
(Hang-up/back) Button
Press to deactivate Siri ® Eyes Free.
While in Siri ® Eyes Free:
The display remains the same. No
feedback or commands appear. Appears
when Siri is
activated in
Siri
® Eyes Free
17 ACCORD 4D GAS-31T2A6400.book 284 ページ ２０１６年６月７日　火曜日　午後５時６分

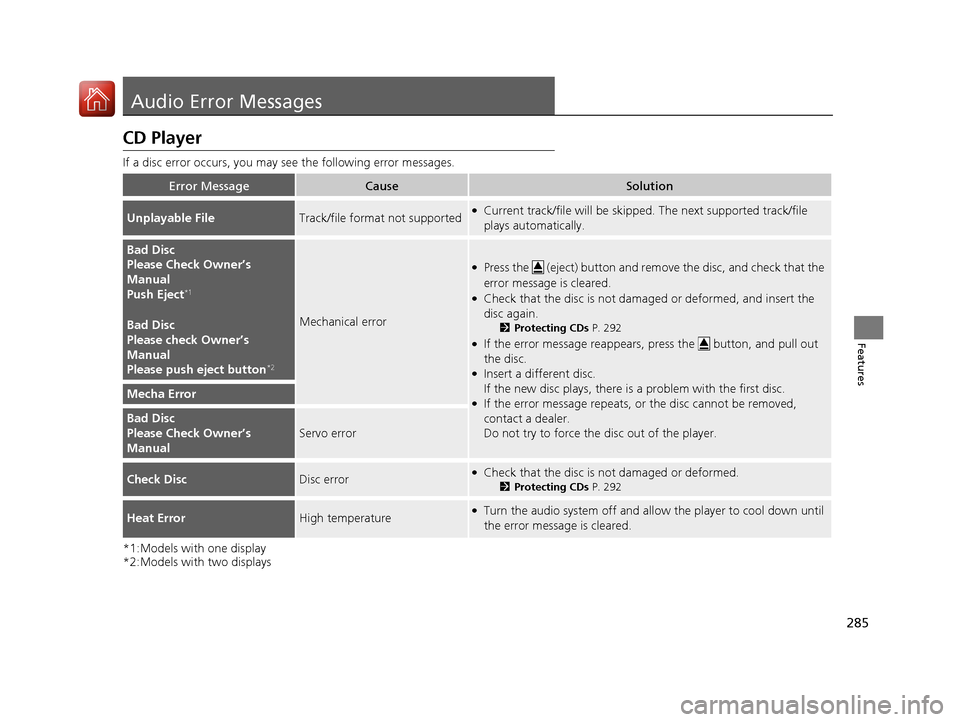

285
Features
Audio Error Messages
CD Player
If a disc error occurs, you may see the following error messages.
*1:Models with one display
*2:Models with two displays
Error MessageCauseSolution
Unplayable FileTrack/file format not supported●Current track/file will be skipped. The next supported track/file
plays automatically.
Bad Disc
Please Check Owner’s
Manual
Push Eject
*1
Bad Disc
Please check Owner’s
Manual
Please push eject button
*2
Mechanical error
●Press the (eject) button and remo ve the disc, and check that the
error message is cleared.
●Check that the disc is not dama ged or deformed, and insert the
disc again.
2 Protecting CDs P. 292
●If the error message reappears, press the button, and pull out
the disc.
●Insert a different disc.
If the new disc plays, there is a problem with the first disc.
●If the error message repeats, or the disc cannot be removed,
contact a dealer.
Do not try to force the disc out of the player.Mecha Error
Bad Disc
Please Check Owner’s
Manual
Servo error
Check DiscDisc error●Check that the disc is not damaged or deformed.
2Protecting CDs P. 292
Heat ErrorHigh temperature●Turn the audio system off and allo w the player to cool down until
the error message is cleared.
17 ACCORD 4D GAS-31T2A6400.book 285 ページ ２０１６年６月７日　火曜日　午後５時６分

286
uuAudio Error Messages uiPod/USB Flash Drive
Features
iPod/USB Flash Drive
If an error occurs while play ing an iPod or USB flash driv e, you may see the following
error messages. If you cannot clear the error message, contact a dealer.
*1:Models with one display
*2:Models with two displays
Error MessageSolution
USB ErrorAppears when there is a problem with the USB adapter unit. Check if the device is compatible with the
USB adapter unit.
Incompatible USB Device
Please Check Owner’s
Manual
*1
The connected USB device
has a problem.
See Owner’s Manual
*2
Appears when an incompatible devi ce is connected. Disconnect the device. Then turn the audio system
off, and turn it on again. Do not rec onnect the device that caused the error.
Unsupported VersionAppears when an unsupported iPod is connected. If it appears when a supported iPod is connected,
update the iPod software to the newer version.
Connect RetryAppears when the system does not acknowledge the iPod. Reconnect the iPod.
Unplayable FileAppears when the files in the USB flash drive are DRM or an unsupported format. This error message
appears for about 3 seconds, then plays the next song.
No Data
Appears when the iPod is empty.
Appears when the USB flash drive is empty or there are no MP3, WM A, or AAC files in the USB flash
drive.
Check that compatible files are stored on the device.
UnsupportedAppears when an unsupported device is connected. If it appears when a supported device is connected,
reconnect the device.
iPod
USB flash drive
iPod and USB flash drive
17 ACCORD 4D GAS-31T2A6400.book 286 ページ ２０１６年６月７日　火曜日　午後５時６分

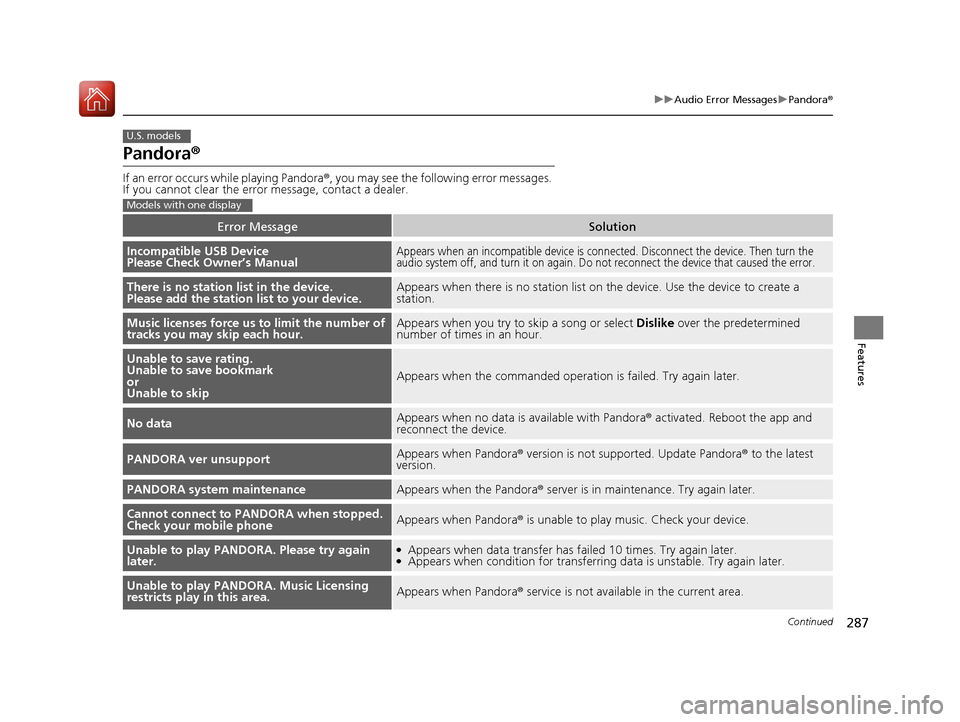

287
uuAudio Error Messages uPandora ®
Continued
Features
Pandora ®
If an error occurs while playing Pandora ®, you may see the following error messages.
If you cannot clear the error message, contact a dealer.
Error MessageSolution
Incompatible USB Device
Please Check Owner’s ManualAppears when an incompatible device is c onnected. Disconnect the device. Then turn the
audio system off, and turn it on again. Do not reconnect the device that caused the error.
There is no station list in the device.
Please add the station list to your device.Appears when there is no station list on the device. Use the device to create a
station.
Music licenses force us to limit the number of
tracks you may skip each hour.Appears when you try to skip a song or select Dislike over the predetermined
number of times in an hour.
Unable to save rating.
Unable to save bookmark
or
Unable to skip
Appears when the comm anded operation is failed. Try again later.
No dataAppears when no data is available with Pandora® activated. Reboot the app and
reconnect the device.
PANDORA ver unsupportAppears when Pandora ® version is not supported. Update Pandora ® to the latest
version.
PANDORA system maintenanceAppears when the Pandora ® server is in maintenance. Try again later.
Cannot connect to PANDORA when stopped.
Check your mobile phoneAppears when Pandora ® is unable to play music. Check your device.
Unable to play PANDORA. Please try again
later.●Appears when data transfer has failed 10 times. Try again later.●Appears when condition for transferring data is unstable. Try again later.
Unable to play PANDORA. Music Licensing
restricts play in this area.Appears when Pandora ® service is not available in the current area.
U.S. models
Models with one display
17 ACCORD 4D GAS-31T2A6400.book 287 ページ ２０１６年６月７日　火曜日　午後５時６分

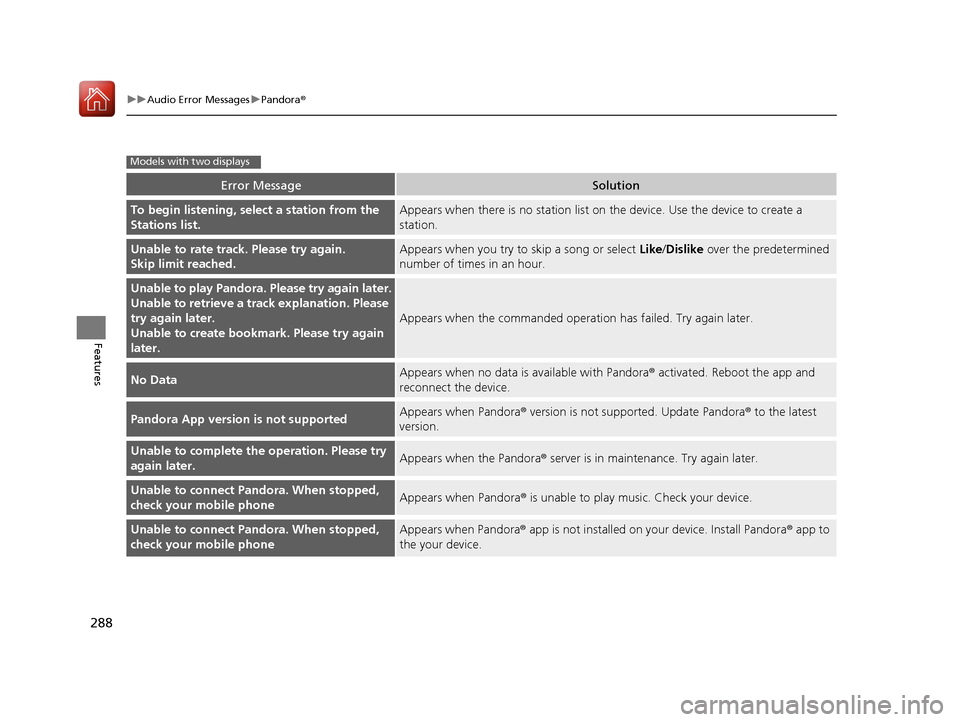

288
uuAudio Error Messages uPandora®
Features
Error MessageSolution
To begin listening, select a station from the
Stations list.Appears when there is no station list on the device. Use the device to create a
station.
Unable to rate track. Please try again.
Skip limit reached.Appears when you try to skip a song or select Like/Dislike over the predetermined
number of times in an hour.
Unable to play Pandora. Please try again later.
Unable to retrieve a trac k explanation. Please
try again later.
Unable to create bookmark. Please try again
later.
Appears when the commanded operation has failed. Try again later.
No DataAppears when no data is available with Pandora® activated. Reboot the app and
reconnect the device.
Pandora App version is not supportedAppears when Pandora ® version is not supported. Update Pandora ® to the latest
version.
Unable to complete the operation. Please try
again later.Appears when the Pandora ® server is in maintenance. Try again later.
Unable to connect Pandora. When stopped,
check your mobile phoneAppears when Pandora® is unable to play music. Check your device.
Unable to connect Pandora. When stopped,
check your mobile phoneAppears when Pandora® app is not installed on your device. Install Pandora ® app to
the your device.
Models with two displays
17 ACCORD 4D GAS-31T2A6400.book 288 ページ ２０１６年６月７日　火曜日　午後５時６分

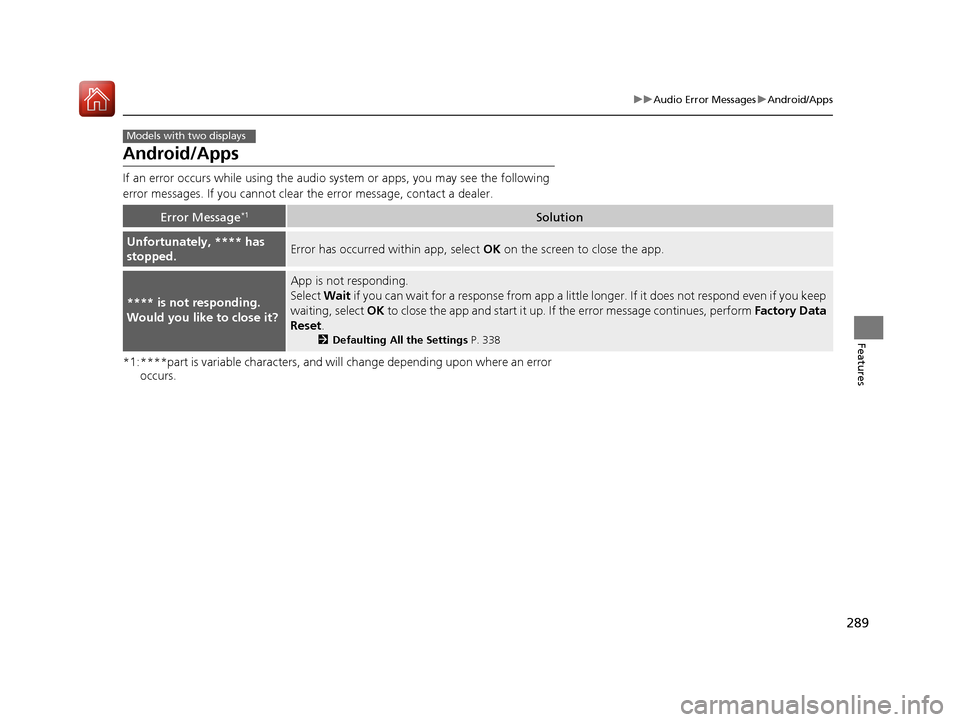

289
uuAudio Error Messages uAndroid/Apps
Features
Android/Apps
If an error occurs while using the audio system or apps, you may see the following
error messages. If you cannot clear the error message, contact a dealer.
*1:****part is variable characters, and will change depending upon where an error
occurs.
Error Message*1Solution
Unfortunately, **** has
stopped.Error has occurred within app, select OK on the screen to close the app.
**** is not responding.
Would you like to close it?
App is not responding.
Select Wait if you can wait for a response from app a little longer. If it does not respond even if you keep
waiting, select OK to close the app and start it up. If the error message continues, perform Factory Data
Reset .
2Defaulting All the Settings P. 338
Models with two displays
17 ACCORD 4D GAS-31T2A6400.book 289 ページ ２０１６年６月７日　火曜日　午後５時６分
