HONDA ACCORD 2022 User Guide

9

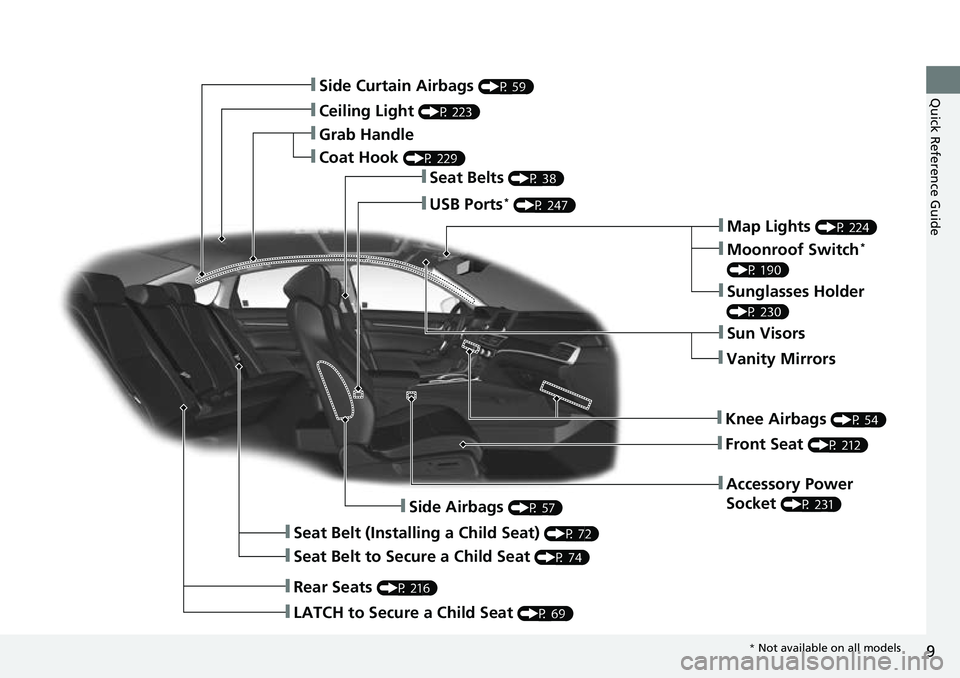

Quick Reference Guide❚Side Curtain Airbags (P 59)
❚Ceiling Light (P 223)
❚Grab Handle
❚Coat Hook (P 229)
❚Seat Belts (P 38)
❚Map Lights (P 224)
❚Moonroof Switch*
(P 190)
❚Sunglasses Holder
(P 230)
❚Sun Visors
❚Vanity Mirrors
❚Knee Airbags (P 54)
❚Front Seat (P 212)
❚Accessory Power
Socket
(P 231)❚Side Airbags (P 57)
❚Seat Belt (Installing a Child Seat) (P 72)
❚Seat Belt to Secure a Child Seat (P 74)
❚LATCH to Secure a Child Seat (P 69)
❚Rear Seats (P 216)
❚USB Ports* (P 247)
* Not available on all models

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P 548)
❚Windshield Wipers (P 202, 572)
❚Door Lock/Unlock Control (P 170)
❚Power Door Mirrors (P 211)
❚Headlights (P 564)
❚High-Mount Brake Light (P 571)
❚Emergency Trunk Opener (P 183)
❚Opening/Closing the Trunk (P 181)
❚Parking/Daytime Running Lights (P 198, 566)
❚Front Turn Signal Lights/Front Side Marker Lights
(P 194, 566)
❚Fog Lights* (P 197, 566)
❚Trunk Release Button* (P 182)
❚Brake Lights (P 567)
❚Rear Turn Signal Lights (P 567)
❚Back-Up Lights (P 569)
❚How to Refuel (P 532)
❚Tires (P 575, 597)
❚Brake Lights* (P 569)
❚Taillights (P 569)
❚Multi-View Rear Camera (P 529)
❚Rear License Plate Light (P 571)
❚Taillights (P 567)
❚Rear Side Marker Lights (P 567)

11
Quick Reference Guide
Auto Idle Stop Function*
To improve fuel economy, the engine stops and then restarts as detailed below. When Auto Idle Stop is on, the Auto Idle Stop in dicator
(green) comes on. (P435)
At Continuously variable transmissionEngine status
Deceleration
Stop
Start-up
Stop the vehicle and depress the brake pedal.
Automatic Brake Hold Off Automatic Brake Hold On
On
Keep the brake pedal depressed. With the automatic brake hold system
activated, you can release the brake pedal
when the indicator comes on.
Canada
U.S.
Off
Release the brake pedal. With the automatic brake hold system
activated, depress the accelerator pedal.
Restarting
*
Not available on all models

12
Quick Reference Guide

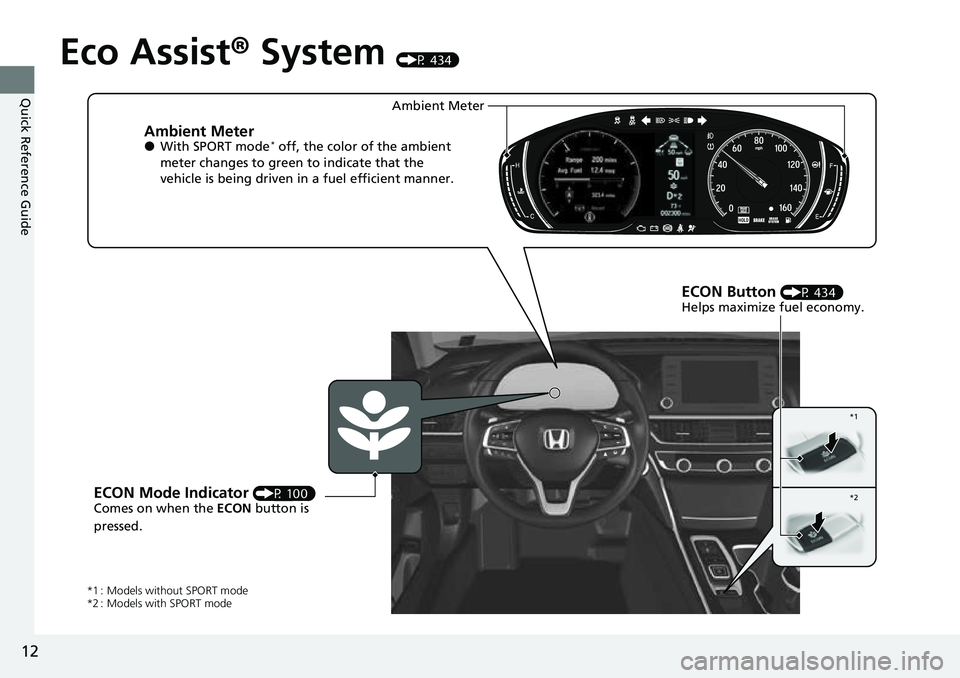

Eco Assist® System (P 434)
Ambient Meter●With SPORT mode* off, the color of the ambient
meter changes to green to indicate that the
vehicle is being driven in a fuel efficient manner.
ECON Button (P 434)
Helps maximize fuel economy.
ECON Mode Indicator (P 100)
Comes on when the ECON button is
pressed. Ambient Meter*2 *1
*1 : Models without SPORT mode
*2 : Models with SPORT mode

13
Quick Reference Guide
Safe Driving (P 33)
Airbags (P 46)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 64)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restra ined in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P 78)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
●Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 38)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
* Not available on all models

14
Quick Reference Guide

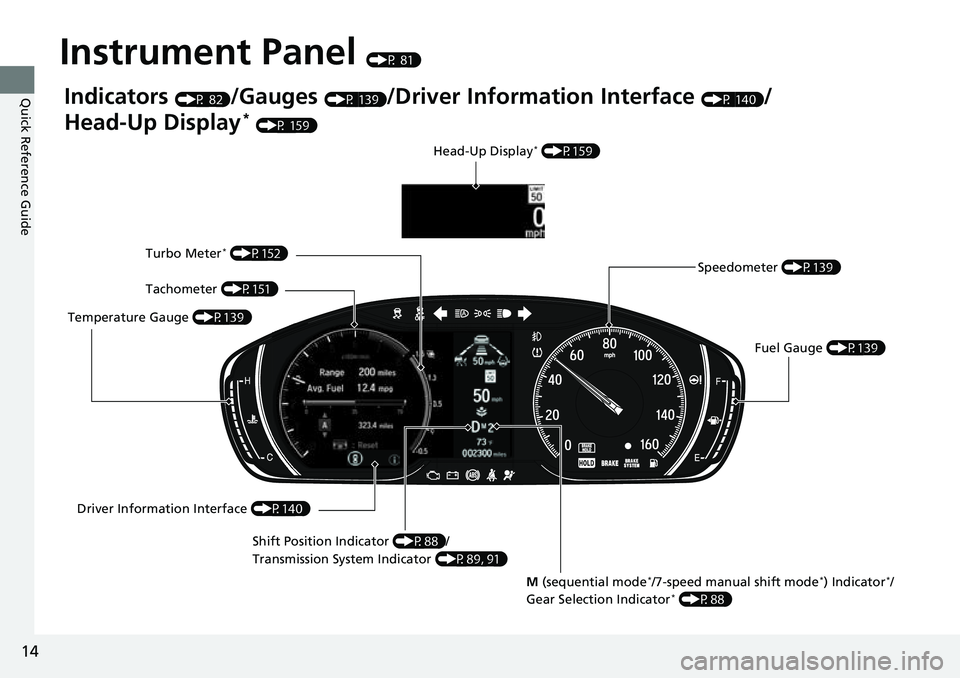

Instrument Panel (P 81)
Indicators (P 82)/Gauges (P 139)/Driver Information Interface (P 140)/
Head-Up Display
* (P 159)
Speedometer (P139)
Fuel Gauge (P139)
Driver Information Interface (P140)
Temperature Gauge
(P139)
Tachometer
(P151) Head-Up Display
* (P159)
Shift Position Indicator (P88)/
Transmission System Indicator (P89, 91)
Turbo Meter* (P152)
M (sequential mode*/7-speed manual shift mode*) Indicator*/
Gear Selection Indicator* (P88)

15
Quick Reference Guide
Controls (P 165)
Clock (P166)
To adjust time
To adjust date
aPress , then select Settings.
bSelect System , then Day & Time.
cSelect Set Date & Time .
dSelect Automatic Date & Time , then
select OFF.
eSelect Set Date or Set Time .
fAdjust the dates, ho urs, and minutes
by selecting / .
gSelect Save to set the date or time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
34
Models with navigation system
ENGINE START/STOP
Button
(P191)
Press the button to change the vehicle’s
power mode.
* Not available on all models

16
Quick Reference Guide

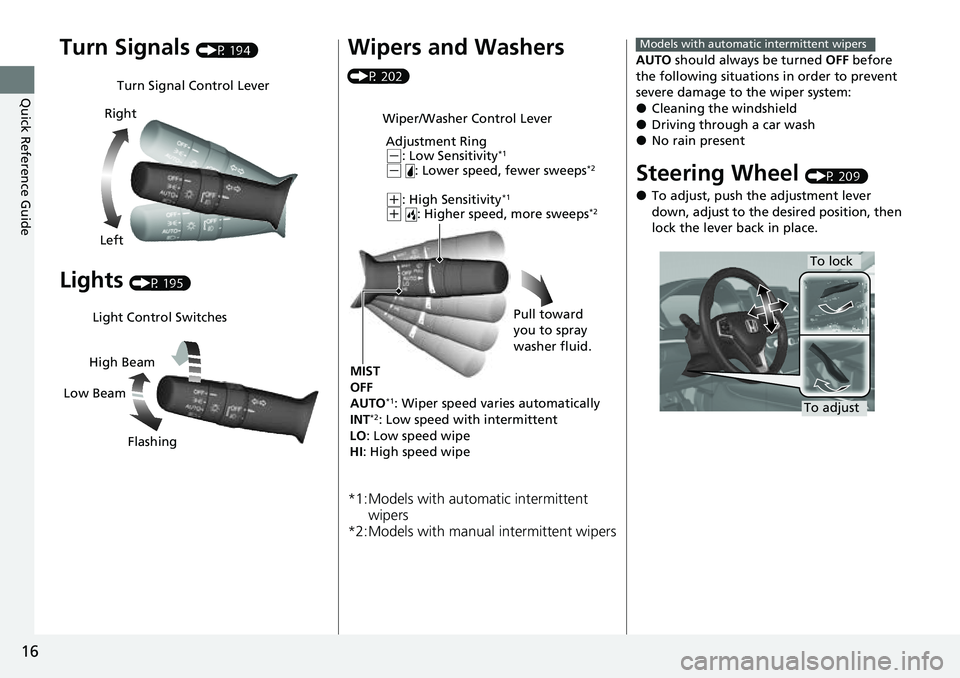

Turn Signals (P 194)
Lights (P 195)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 202)
*1:Models with automatic intermittent wipers
*2:Models with manual intermittent wipers
Wiper/Washer Control Lever
Adjustment Ring
(-: Low Sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High Sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
AUTO
should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P 209)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Models with automatic intermittent wipers
To lock
To adjust

17
Quick Reference Guide

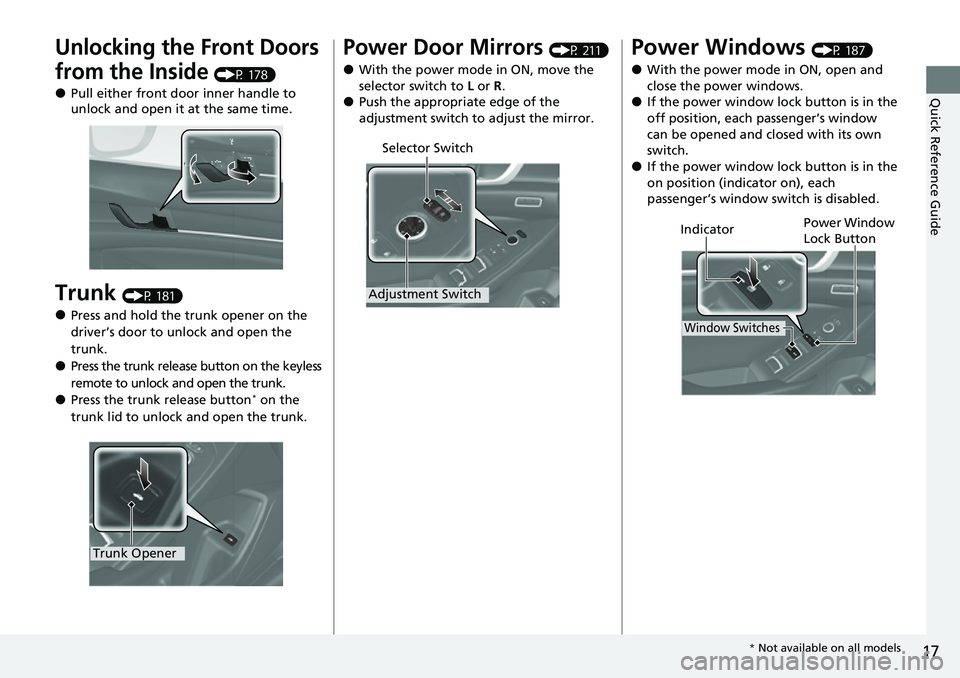

Unlocking the Front Doors
from the Inside
(P 178)
●Pull either front door inner handle to
unlock and open it at the same time.
Trunk (P 181)
●Press and hold the trunk opener on the
driver’s door to unlock and open the
trunk.
●Press the trunk release button on the keyless
remote to unlock and open the trunk.
●Press the trunk release button* on the
trunk lid to unlock and open the trunk.
Trunk Opener
Power Door Mirrors (P 211)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P 187)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Power Window
Lock Button
Window Switches
Indicator
* Not available on all models

18
Quick Reference Guide
Climate Control System (P 240)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Driver’s Side Temperature
Control Dial
(Windshield Defroster) Button
SYNC (Synchronization) Button
AUTO Button
(ON/OFF) Button
(Recirculation) Button
MODE Control Button Fan Control Dial
A/C
(Air Conditioning) Button
Passenger’s Side Temperature
Control Dial
Floor vents
Dashboard vents
and back of the
center console
*
Dashboard and floor
vents, and back of
the center console
*
Floor and
defroster
vents
