613
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears
■Reasons for the warning to appear
Appears when the engine oil pressure is low.
■What to do as soon as the warning
appears
1. Immediately park the vehicle on level
ground in a safe place.
2. If necessary, turn the hazard warning lights
on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for
approximately three minutes.
2. Open the hood and ch eck the oil level.
u Add oil as necessary.
2 Oil Check P. 552
3.Start the engine and check the low oil
pressure warning.
u The warning disappears: Start driving
again.
u The warning does not disappear within
10 seconds: Immediately stop the engine
and contact a dealer for repairs.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when there is a prob lem with the charging system.
■What to do when the indicator comes on
Stop in a safe place and have y our vehicle checked by a dealer
immediately.
1 If the Low Oil Pressure Warning Appears
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.

615
uuIndicator, Comi ng On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected

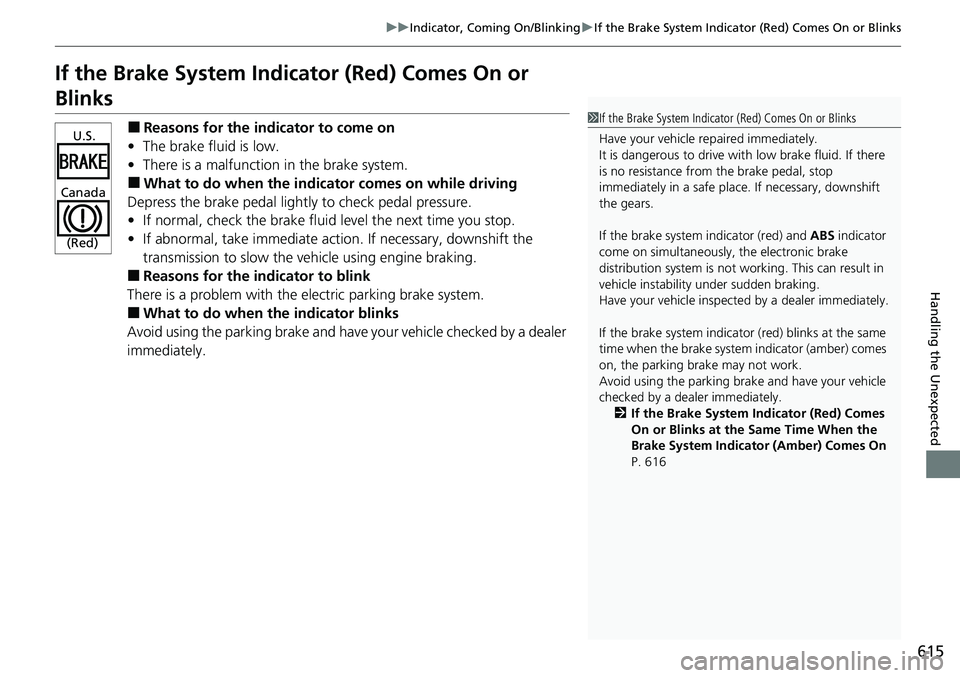

If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indica tor comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reasons for the indicator to blink
There is a problem with the electric parking brake system.
■What to do when the indicator blinks
Avoid using the parking brake and have your vehicle checked by a dealer
immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator (red) and ABS indicator
come on simultaneously , the electronic brake
distribution system is not wo rking. This can result in
vehicle instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately. 2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 616
U.S.
Canada (Red)

619
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
a dealer.
• Put the transmission into
(N after starting
the engine.
u Check if the
(N position on the driver
information interface and the indicator
on the
(N button light/blink.
2 Starting the Engine P. 412
Automatic transmission models
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 626

625
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Open the fuse box cover in the engine
compartment.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 620
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller

648
Index
Shift Lever Does Not Move....................... 609
Shifting............................................ 427, 429
Controls ..................................................... 165
Coolant (Engine) ....................................... 559
Adding to the Engine Coolant Reserve
Tank ...................................................... 559
Adding to the Radiator ............................ 560
Overheating............................................. 611
Creeping (Automatic Transmission/ Continuously Variable Transmission) ..... 419
Cross Traffic Monitor ................................ 525
Cup Holders ............................................... 227
Customer Service Information ................. 645
Customized Features ................................ 351
D
Daytime Running Lights ........................... 198
Dead Battery ............................................. 606
Defaulting All the Settings ...................... 370
Defrosting the Windshield and
Windows .................................................. 241
Devices that Emit Radio Waves ................ 637
Dimming
Headlights ............................................... 195
Rearview Mirror ....................................... 210
Dipstick (Engine Oil) ................................. 552
Directional Signals (Turn Signal) .............. 194
Door Mirrors ............................................. 211 Doors
......................................................... 167
Auto Door Locking .................................. 180
Auto Door Unlocking .............................. 180
Door and Trunk Open Message ................. 37
Keys ........................................................ 167
Locking/Unlocking the Doors from the Inside ...................................... 177
Locking/Unlocking the Doors
from the Outside ................................... 170
Lockout Prevention System ...................... 176
DOT Tire Quality Grading ........................ 578
Driver Attention Monitor ........................ 154
Driver Information Interface ................... 140
Switching the Display .............................. 140
Warning and Information Messages ........ 109
Driving ...................................................... 401
Automatic Transmission/Continuously Variable
Transmission.......................................... 419
Braking ................................................... 508
Shifting Position ...................... 420, 427, 429
Starting the Engine.................................. 412
Driving Position Memory System ............ 207
Driving Support Information ................... 157
Dust and Pollen Filter ............................... 587
E
Eco Assist® System ...................................... 12
ECON Button ............................................ 434
Econ Mode
Indicator.................................................. 100 Elapsed Time
............................................ 147
Electric Power Steering (EPS) System
Indicator ........................................... 95, 617
Electronic Stability Control (ESC) ............ 441
Emergency ................................................ 626
Emergency Engine Stop ........................... 605
Emergency Trunk Opener ....................... 183
Emissions Testing (Readiness Codes) ...... 639
Engine ....................................................... 636
Coolant .................................................. 559
Jump Starting ......................................... 606
Oil .......................................................... 551
Starting................................................... 412
Engine Coolant ........................................ 559
Adding to the Engine Coolant Reserve Tank ..................................................... 559
Adding to the Radiator ........................... 560
Overheating ............................................ 611
Temperature Gauge ................................ 139
Engine Oil ................................................. 551
Adding ................................................... 554
Checking ................................................ 552
Displaying Oil Life ................................... 542
Low Oil Pressure Warning ....................... 613
Recommended Engine Oil ....................... 551
ENGINE START/STOP Button .................... 191
EPS (Electric Power Steering) System ...... 617
Exhaust Gas Hazard
(Carbon Monoxide) .................................. 78
Exterior Care (Cleaning) .......................... 590
Exterior Mirrors ........................................ 211

651
Index
L
Lane Keeping Assist System (LKAS)........ 486
Language (HFL) ........................................ 376
LATCH (Child Seats) ................................... 69
Lights ................................................ 195, 564
Auto High-Beam ..................................... 199
Automatic............................................... 196
Bulb Replacement ................................... 564
Daytime Running Lights .......................... 198
Fog Lights ............................................... 197
High Beam Indicator ................................. 97
Interior.................................................... 223
Light Switches......................................... 195
Lights On Indicator.................................... 97
Turn Signals ............................................ 194
Load Limits ............................................... 405
Locking/Unlocking ................................... 167
Auto Door Locking/Unlocking ................. 180
Childproof Door Locks ............................ 179
From Inside ............................................. 177
From Outside .......................................... 170
Keys........................................................ 167
Using a Key............................................. 175
Lockout Prevention System ..................... 176
Low Battery Charge ................................. 613
Low Fuel Indicator ..................................... 93
Low Keyless Remote Signal Strength ..... 169
Low Oil Pressure Warning ....................... 613
Low Speed Braking Control .................... 465
Lower Anchors ........................................... 69
Lubricant Specifications Chart ........ 632, 634Luggage (Maximum Load Limit)
............. 405
Lumbar Support Adjustment Switch ....... 213
M
Maintenance..................................... 149, 537
Battery .................................................... 584
Brake Fluid .............................................. 562
Cleaning .................................................. 588
Climate Control System ........................... 587
Coolant ................................................... 559
Maintenance Minder
TM............................ 541
Oil ........................................................... 552
Precautions .............................................. 538
Radiator .................................................. 560
Remote Transmitter ................................. 586
Replacing Light Bulbs ............................... 564
Safety ...................................................... 539
Service Items ........................................... 545
Tires ........................................................ 575
Transmission Fluid ................................... 561
Under the Hood ...................................... 548
Malfunction Indicator Lamp .............. 87, 614
Map Lights ................................................ 224
Maximum Load Limit ............................... 405
Meters, Gauges ......................................... 139
Mirrors ....................................................... 210
Adjusting ................................................. 210
Door ........................................................ 211
Exterior .................................................... 211
Interior Rearview ..................................... 210 Modifications (and Accessories)
.............. 593
Moonroof ................................................. 190
MP3 ........................................................... 296
MP3/WMA/AAC ........................................ 296
Multi-View Rear Camera .......................... 529
N
Navigation........................................ 148, 163
Numbers (Identification) .......................... 636
O
Odometer................................................. 142
Oil (Engine) ............................................... 551
Adding .................................................... 554
Checking................................................. 552
Displaying Oil Life .................................... 542
Low Oil Pressure Warning........................ 613
Recommended Engine Oil ....................... 551
Viscosity .................................................. 551
Open Source Licenses ............................... 345
Opening
Trunk ...................................................... 628
Opening/Closing Hood....................................................... 550
Moonroof ............................................... 190
Power Windows ...................................... 187
Trunk ...................................................... 181
Outside Temperature ............................... 143
Overheating .............................................. 611

653
Index
Shifting (Transmission)............ 420, 427, 429
Shoulder Anchor ........................................ 43
Side Airbags ............................................... 57
Side Curtain Airbags .................................. 59
Siri Eyes Free ............................................. 312
SiriusXM ® Radio ....................................... 282
Snow Tires ................................................ 583
Spare Tire ................................. 597, 633, 635
Spark Plugs ....................................... 632, 634
Specifications ........................................... 632
Specified Fuel ........................... 531, 632, 634
Speedometer ............................................ 139
SPORT Mode ............................................. 433
Indicator ................................................. 101
SRS Airbags (Airbags) ................................ 49
Starting Assist Brake Function ................ 439
Starting the Engine .................................. 412
Does Not Start ........................................ 603
Jump Starting ......................................... 606
Steering Wheel Adjusting ................................................ 209
Stopping ................................................... 518
Summer Tires ............................................ 583
Sunglasses Holder .................................... 230
Supplemental Restraint System (SRS) ....... 49
Switches (Around the Steering Wheel) ........ 6, 7, 191
System Message Indicator ......................... 99
System Updates ........................................ 266T
Tachometer....................................... 151, 162
Temperature Gauge ..................................................... 139
Outside Temperature ............................... 143
Temperature Sensor ......................... 143, 243
Time (Adjusting) ....................................... 166
Tire Pressure Monitoring System
(TPMS) ..................................................... 444
Indicator ............................................ 96, 618
Tires ........................................................... 575
Air Pressure ............................. 576, 633, 635
Checking and Maintaining ....................... 575
Inspection ................................................ 575
Labeling .................................................. 576
Puncture (Flat Tire) ................................... 597
Regulations ............................................. 578
Rotation .................................................. 582
Spare Tire ................................ 597, 633, 635
Summer .................................................. 583
Tire Chains .............................................. 583
Wear Indicators ....................................... 580
Winter ..................................................... 583
Tools .......................................................... 596
Towing a Trailer ....................................... 407
Equipment and Accessories ..................... 409
Load Limits .............................................. 407
Towing Your Vehicle ................................ 411
Emergency .............................................. 626 TPMS
(Tire Pressure Monitoring System) ........ 444
Indicator............................................ 96, 618
Traffic Sign Recognition System .............. 498
Transmission ..................... 419, 420, 427, 429
Automatic ............................................... 420
Continuously Variable ..................... 427, 429
Fluid ........................................................ 561
Number................................................... 636
Shift Position Indicator............................... 88
Transmission System
Indicator.............................................. 89, 91
TRIP Button ............................................... 142
Trip Computer .................................. 144, 146
Trip Meter ................................. 143, 145, 147
Troubleshooting ....................................... 595
Blown Fuse.............................. 620, 622, 624
Brake Pedal Vibrates .................................. 30
Buzzer Sounds When Opening Door.......... 31
Emergency Towing .................................. 626
Engine Won’t Start .................................. 603
Noise When Braking .................................. 32
Overheating ............................................ 611
Puncture/Flat Tire .................................... 597
Rear Door Won’t Open...................... 31, 179
Shift Lever Won’t Move ........................... 609
Warning Indicators .................................... 82
Trunk ......................................................... 181
Lid........................................................... 181
Light Bulb........................................ 632, 634
Main Switch ............................................ 183
