fuse box HONDA ACCORD 2022 Owners Manual

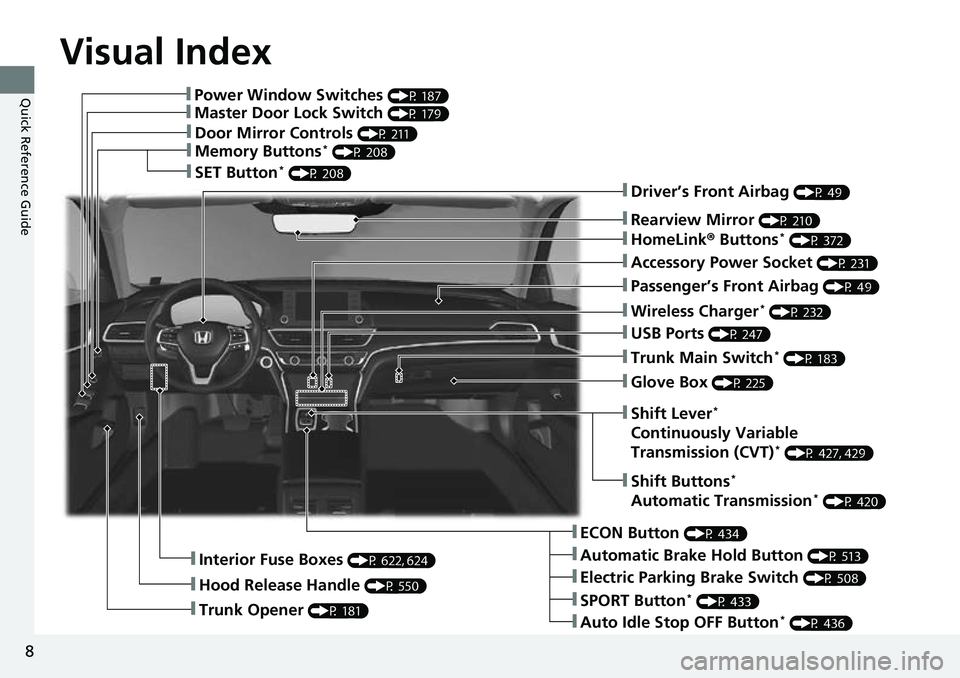

Visual Index
8
Quick Reference Guide❚Power Window Switches (P 187)
❚Master Door Lock Switch (P 179)
❚Door Mirror Controls (P 211)
❚Memory Buttons* (P 208)
❚SET Button* (P 208)
❚Trunk Opener (P 181)
❚Interior Fuse Boxes (P 622, 624)
❚Hood Release Handle (P 550)
❚Driver’s Front Airbag (P 49)
❚Rearview Mirror (P 210)
❚HomeLink® Buttons* (P 372)
❚Accessory Power Socket (P 231)
❚Passenger’s Front Airbag (P 49)
❚Wireless Charger* (P 232)
❚USB Ports (P 247)
❚Trunk Main Switch* (P 183)
❚Glove Box (P 225)
❚ECON Button (P 434)
❚Automatic Brake Hold Button (P 513)
❚Electric Parking Brake Switch (P 508)
❚Auto Idle Stop OFF Button* (P 436)
❚SPORT Button* (P 433)
❚Shift Buttons*
Automatic Transmission* (P 420)
❚Shift Lever*
Continuously Variable
Transmission (CVT)* (P 427, 429)

620
Handling the Unexpected

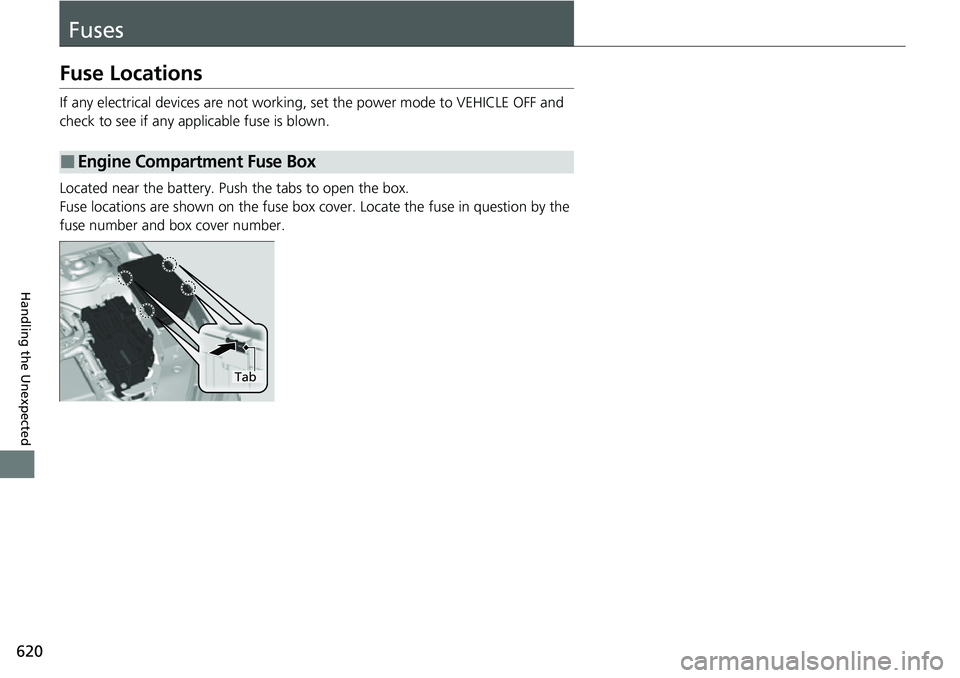

Fuses
Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any app licable fuse is blown.
Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Tab

621
uuFuses uFuse Locations
Continued
Handling the Unexpected

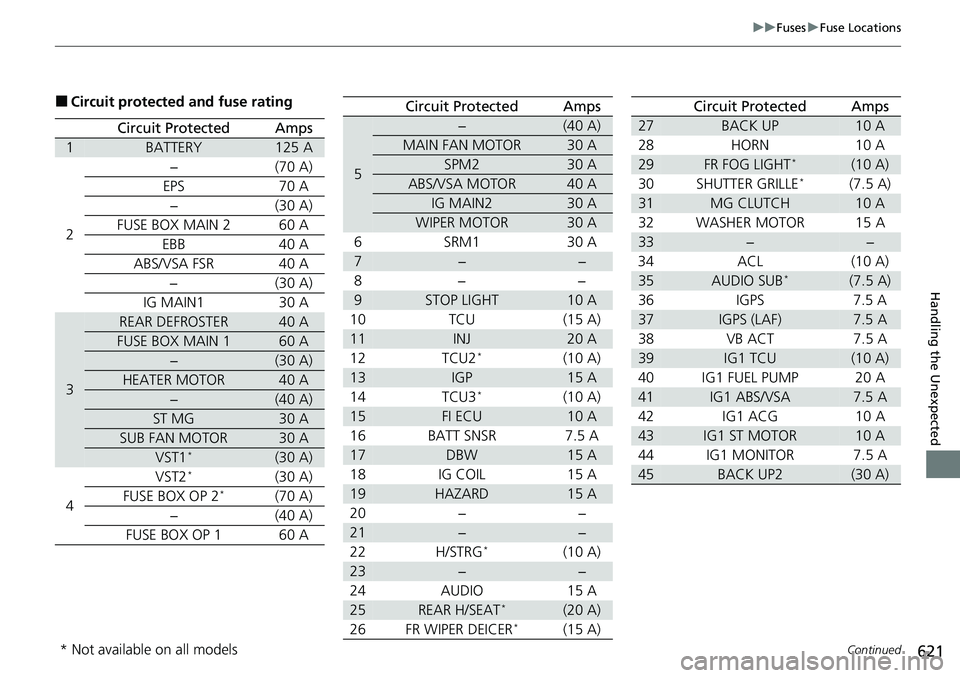

■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY125 A
2
−(70 A)
EPS70 A
−(30A)
FUSE BOX MAIN 260 A
EBB40 A
ABS/VSA FSR 40 A −(30A)
IG MAIN1 30 A
3
REAR DEFROSTER40 A
FUSE BOX MAIN 160 A
−(30 A)
HEATER MOTOR40 A
−(40 A)
ST MG30 A
SUB FAN MOTOR30 A
VST1*(30 A)
4 VST2*(30 A)
FUSE BOX OP 2*(70 A)
−(40A)
FUSE BOX OP 1 60 A
5
−(40 A)
MAIN FAN MOTOR30 A
SPM230 A
ABS/VSA MOTOR40 A
IG MAIN230 A
WIPER MOTOR30 A
6SRM1 30A
7−−
8− −
9STOP LIGHT10 A
10 TCU (15 A)
11INJ20 A
12 TCU2*(10 A)
13IGP15 A
14 TCU3*(10 A)
15FI ECU10 A
16 BATT SNSR 7.5 A
17DBW15 A
18 IG COIL 15 A
19HAZARD15 A
20 − −
21−−
22 H/STRG*(10 A)
23−−
24 AUDIO 15 A
25REAR H/SEAT*(20 A)
26 FR WIPER DEICER*(15 A)
Circuit ProtectedAmps
27BACK UP10 A
28 HORN 10 A
29FR FOG LIGHT*(10 A)
30 SHUTTER GRILLE*(7.5 A)
31MG CLUTCH10 A
32 WASHER MOTOR 15 A
33−−
34 ACL (10 A)
35AUDIO SUB*(7.5 A)
36 IGPS 7.5 A
37IGPS (LAF)7.5 A
38 VB ACT 7.5 A
39IG1 TCU(10 A)
40 IG1 FUEL PUMP 20 A
41IG1 ABS/VSA7.5 A
42 IG1 ACG 10 A
43IG1 ST MOTOR10 A
44 IG1 MONITOR 7.5 A
45BACK UP2(30 A)
Circuit ProtectedAmps
* Not available on all models

622
uuFuses uFuse Locations
Handling the Unexpected

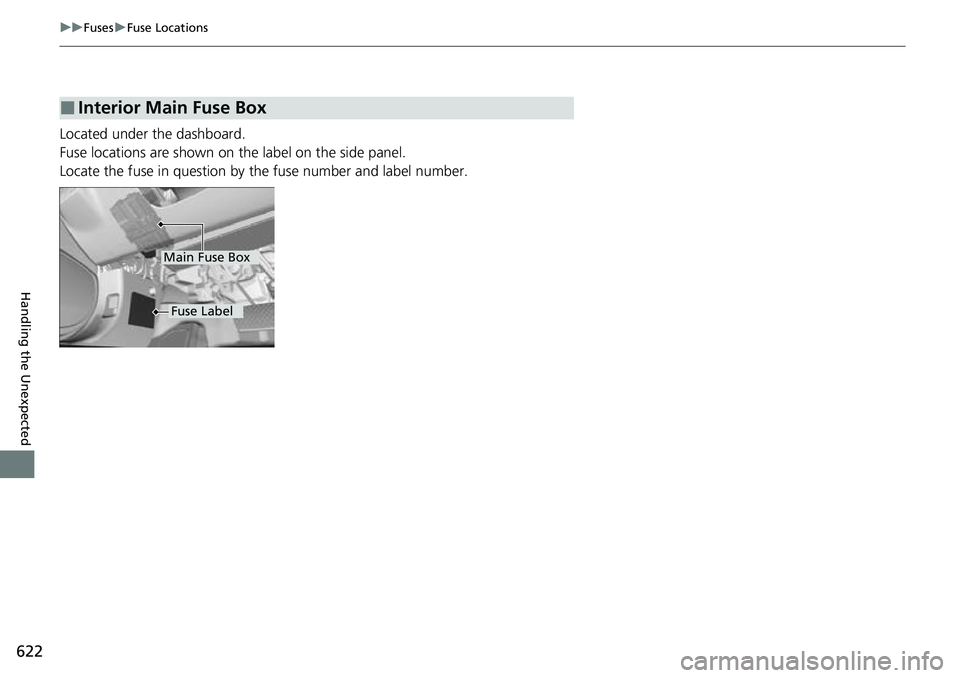

Located under the dashboard.
Fuse locations are shown on the label on the side panel.
Locate the fuse in question by the fuse number and label number.
■Interior Main Fuse Box
Fuse Label
Main Fuse Box

624
uuFuses uFuse Locations
Handling the Unexpected

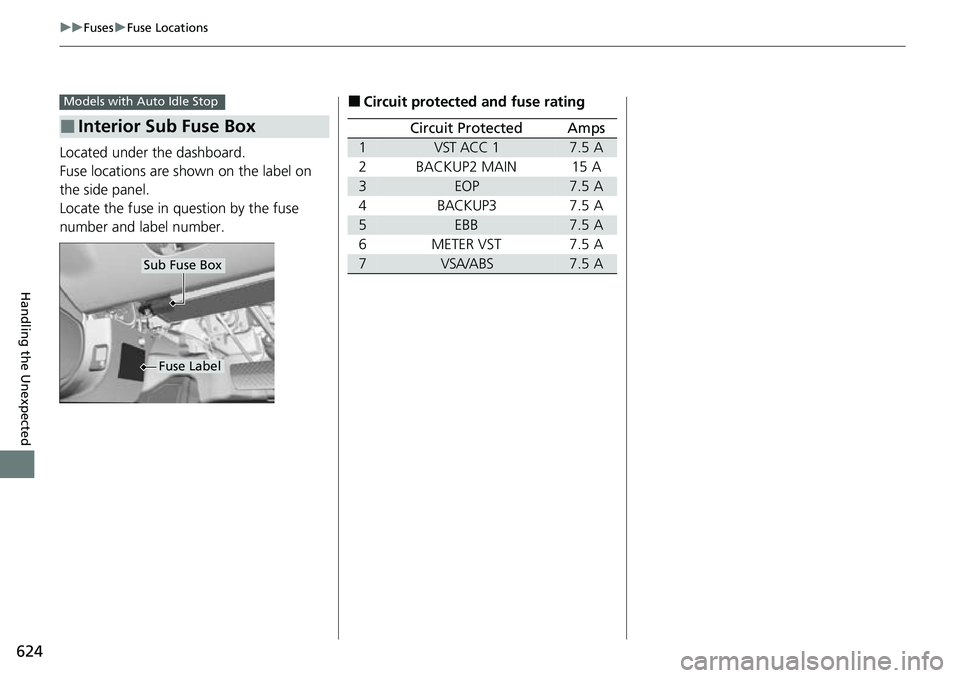

Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Interior Sub Fuse Box
Models with Auto Idle Stop
Fuse Label
Sub Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1VST ACC 17.5 A
2BACKUP2 MAIN15 A
3EOP7.5 A
4BACKUP37.5 A
5EBB7.5 A
6METER VST7.5 A
7VSA/ABS7.5 A

625
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

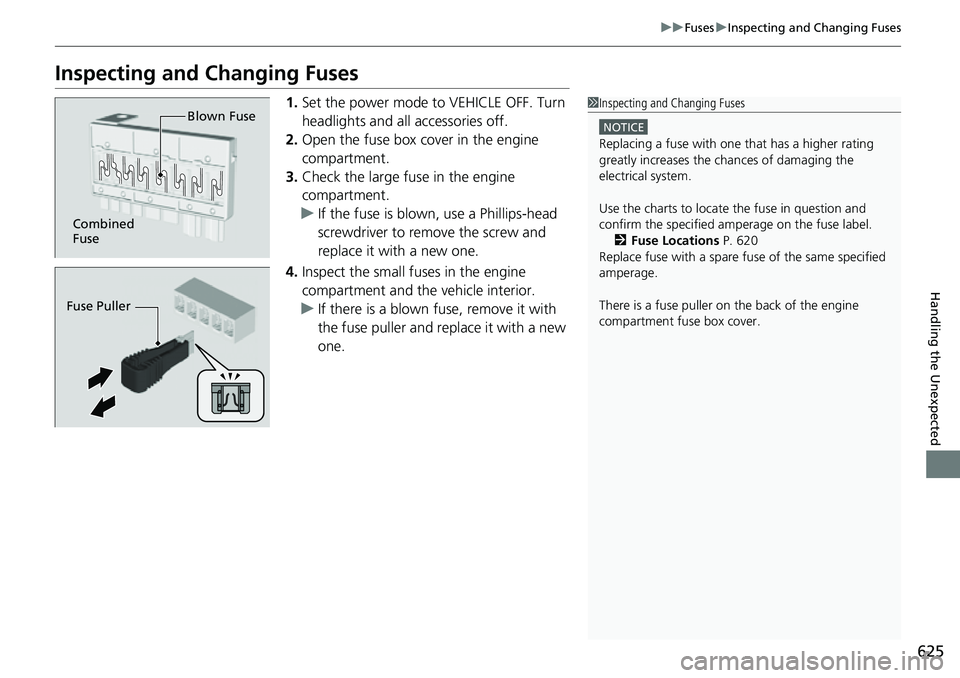

Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Open the fuse box cover in the engine
compartment.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 620
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller

649
Index
F
Features.................................................... 245
Filters Dust and Pollen....................................... 587
Oil .......................................................... 555
Flat Tire ..................................................... 597
Floor Mats ................................................ 589
Fluids
Automatic Transmission .......................... 561
Brake ...................................................... 562
Continuously Variable Transmission ........ 561
Engine Coolant ....................................... 559
Windshield Washer ................................. 563
FM/AM Radio ........................................... 278
Fog Lights ................................................. 197
Indicator ................................................... 97
Folding Down the Rear Seat ................... 216
Foot Brake ................................................ 512
Front Airbags (SRS) .................................... 49
Front Seat Heaters ................................... 237
Front Seat Heaters and Seat Ventilation .............................................. 238
Front Seats Adjusting ................................................ 212
Front Sensor Camera ............................... 504
Fuel ..................................................... 25, 531
Economy................................................. 534
Gauge .................................................... 139
Instant Fuel Economy .............................. 145
Low Fuel Indicator..................................... 93
Range ..................................................... 145 Recommendation .................................... 531
Refueling ................................................. 531
Fuel Economy and CO2 Emissions ............ 534
Fuel Fill Door ....................................... 25, 532
Unable to Unlock ..................................... 627
Fuses .......................................................... 620
Inspecting and Changing ......................... 625
Locations ................................. 620, 622, 624
