horn HONDA ACCORD 2022 Owners Manual

7
Quick Reference Guide❚Headlights/Turn Signals (P 194, 195)
❚Fog Lights* (P 197)
❚Paddle Shifter (Shift down)* (P 426, 432)
❚Left Selector Wheel (P 140)
❚ (home) Button (P 140)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P 471)
❚Wipers/Washers (P 202)
❚Paddle Shifter (Shift up)* (P 426, 432)
❚Lane Keeping Assist System (LKAS) Button
(P 488)
❚Interval Button (P 480, 484)
❚Steering Wheel Adjustments (P 209)
❚Bluetooth® HandsFreeLink ® System Voice Control Buttons (P 374)
❚Audio Remote Controls (P 250)
❚Horn (Press an area around .)
❚ (HUD) Button* (P161 )
❚Heated Steering Wheel* (P 236)
Canadian models
* Not available on all models

185
uuSecurity System uSecurity System Alarm
Continued
Controls
Security System Alarm
The security system alarm activates when the trunk, hood or doors are forcibly
opened. The alarm does not activate if the trunk or doors are opened with the key,
remote transmitter, or keyless access system
*.
However, the alarm activates if a door is opened with the key and then the
transmission is taken out of
(P (continuously variable transmission models) or the
hood is opened before the power mode is in ON.
■When the security system alarm activates
The horn sounds intermittently, and some exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter or keyless access system*, or set
the power mode to ON. The system, along with the horn and flashing lights, is
deactivated.
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF.
• The hood is closed.
• All doors and trunk are locked from outsid e with the key, remote transmitter, or
keyless access system
*.
■When the security system alarm sets
The security system alarm in dicator in the instrument panel blinks and the blinking
interval changes after about 15 seconds.
■To cancel the security system alarm
The security system alarm is canceled wh en the vehicle is unlocked using the key,
remote transmitter or keyless access system
*, or when the power mode is set to ON.
The security system alarm indicator goes off at the same time.
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security system alarm continues for a maximum
of two minutes until the security system alarm
deactivates.
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.
•Opening the trunk with the trunk opener or the
emergency trunk opener.
•Opening the hood with the hood release.
•Taking the transmission out of ( P.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the ke y, remote transmitter,
or keyless access system
*.
Continuously variable transmission models
* Not available on all models

186
uuSecurity System uSecurity System Alarm
Controls

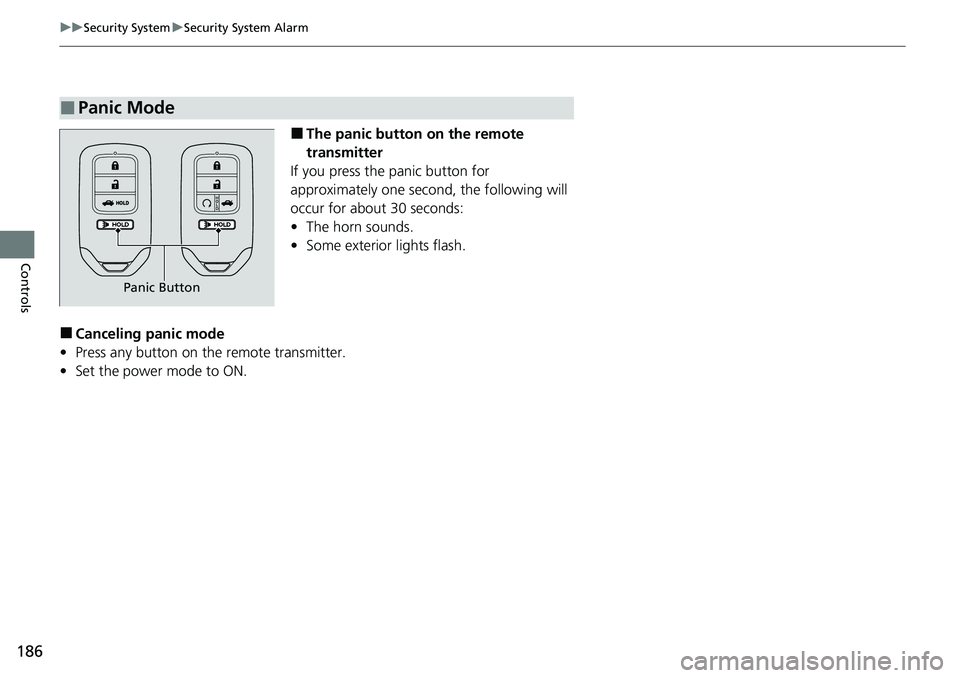

■The panic button on the remote
transmitter
If you press the panic button for
approximately one seco nd, the following will
occur for about 30 seconds:
• The horn sounds.
• Some exterior lights flash.
■Canceling panic mode
• Press any button on the remote transmitter.
• Set the power mode to ON.
■Panic Mode
Panic Button

Continued307

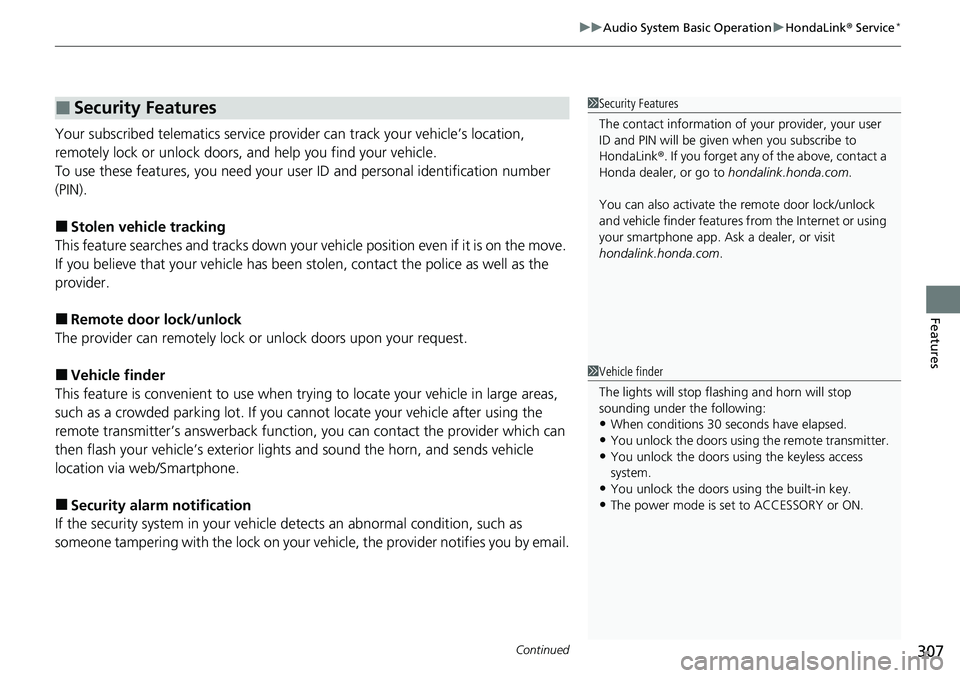

uuAudio System Basic Operation uHondaLink® Service*
Features
Your subscribed telematics service prov ider can track your vehicle’s location,
remotely lock or unlock doors, and help you find your vehicle.
To use these features, you n eed your user ID and personal identification number
(PIN).
■Stolen vehicle tracking
This feature searches and tracks down your vehicle position even if it is on the move.
If you believe that your vehicle has been stolen, contact the police as well as the
provider.
■Remote door lock/unlock
The provider can remotely lock or unlock doors upon your request.
■Vehicle finder
This feature is convenient to use when trying to locate your vehicle in large areas,
such as a crowded parking lot. If you cannot locate your vehicle after using the
remote transmitter’s answerback function, you can contact the provider which can
then flash your vehicle’s exterior light s and sound the horn, and sends vehicle
location via web/Smartphone.
■Security alarm notification
If the security system in your vehicl e detects an abnormal condition, such as
someone tampering with the lock on your vehicle, the provider notifies you by email.
■Security Features1Security Features
The contact information of your provider, your user
ID and PIN will be given when you subscribe to
HondaLink ®. If you forget any of the above, contact a
Honda dealer, or go to hondalink.honda.com.
You can also activate the remote door lock/unlock
and vehicle finder features from the Internet or using
your smartphone app. As k a dealer, or visit
hondalink.honda.com .
1Vehicle finder
The lights will stop flas hing and horn will stop
sounding under the following:
•When conditions 30 seconds have elapsed.
•You unlock the doors using the remote transmitter.
•You unlock the doors using the keyless access
system.
•You unlock the doors us ing the built-in key.
•The power mode is set to ACCESSORY or ON.

621
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY125 A
2
−(70 A)
EPS70 A
−(30A)
FUSE BOX MAIN 260 A
EBB40 A
ABS/VSA FSR 40 A −(30A)
IG MAIN1 30 A
3
REAR DEFROSTER40 A
FUSE BOX MAIN 160 A
−(30 A)
HEATER MOTOR40 A
−(40 A)
ST MG30 A
SUB FAN MOTOR30 A
VST1*(30 A)
4 VST2*(30 A)
FUSE BOX OP 2*(70 A)
−(40A)
FUSE BOX OP 1 60 A
5
−(40 A)
MAIN FAN MOTOR30 A
SPM230 A
ABS/VSA MOTOR40 A
IG MAIN230 A
WIPER MOTOR30 A
6SRM1 30A
7−−
8− −
9STOP LIGHT10 A
10 TCU (15 A)
11INJ20 A
12 TCU2*(10 A)
13IGP15 A
14 TCU3*(10 A)
15FI ECU10 A
16 BATT SNSR 7.5 A
17DBW15 A
18 IG COIL 15 A
19HAZARD15 A
20 − −
21−−
22 H/STRG*(10 A)
23−−
24 AUDIO 15 A
25REAR H/SEAT*(20 A)
26 FR WIPER DEICER*(15 A)
Circuit ProtectedAmps
27BACK UP10 A
28 HORN 10 A
29FR FOG LIGHT*(10 A)
30 SHUTTER GRILLE*(7.5 A)
31MG CLUTCH10 A
32 WASHER MOTOR 15 A
33−−
34 ACL (10 A)
35AUDIO SUB*(7.5 A)
36 IGPS 7.5 A
37IGPS (LAF)7.5 A
38 VB ACT 7.5 A
39IG1 TCU(10 A)
40 IG1 FUEL PUMP 20 A
41IG1 ABS/VSA7.5 A
42 IG1 ACG 10 A
43IG1 ST MOTOR10 A
44 IG1 MONITOR 7.5 A
45BACK UP2(30 A)
Circuit ProtectedAmps
* Not available on all models
