HONDA ACCORD 2023 Owners Manual

189
uuSeats uArmrest
Controls

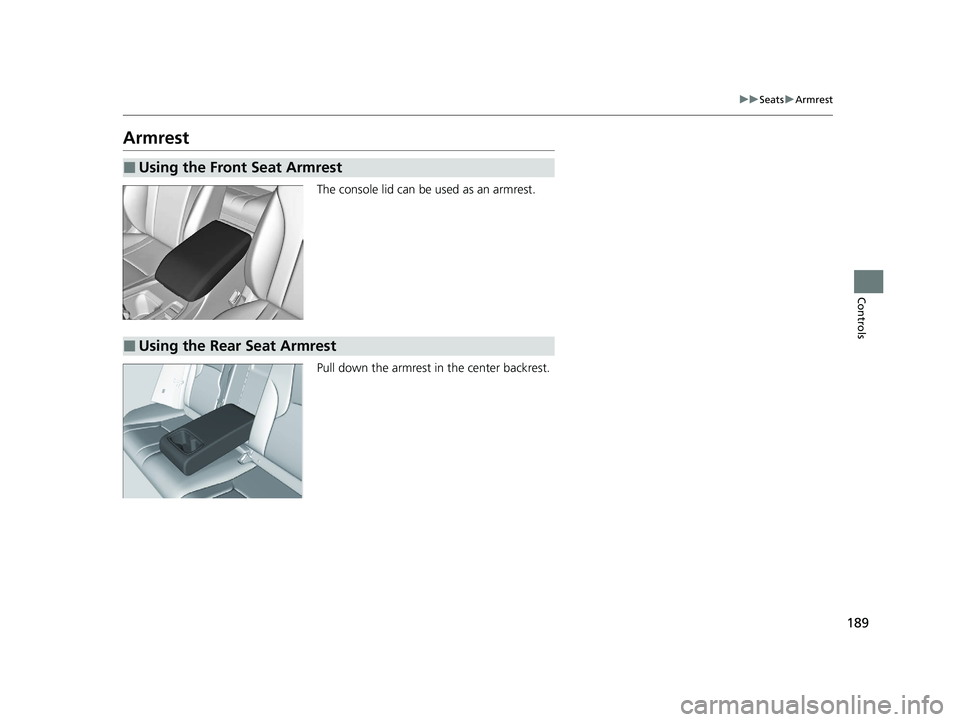

Armrest
The console lid can be used as an armrest.
Pull down the armrest in the center backrest.
■Using the Front Seat Armrest
■Using the Rear Seat Armrest
23 ACCORD 4D US PET MAP-3130A6000_01.book 189 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

190
Controls

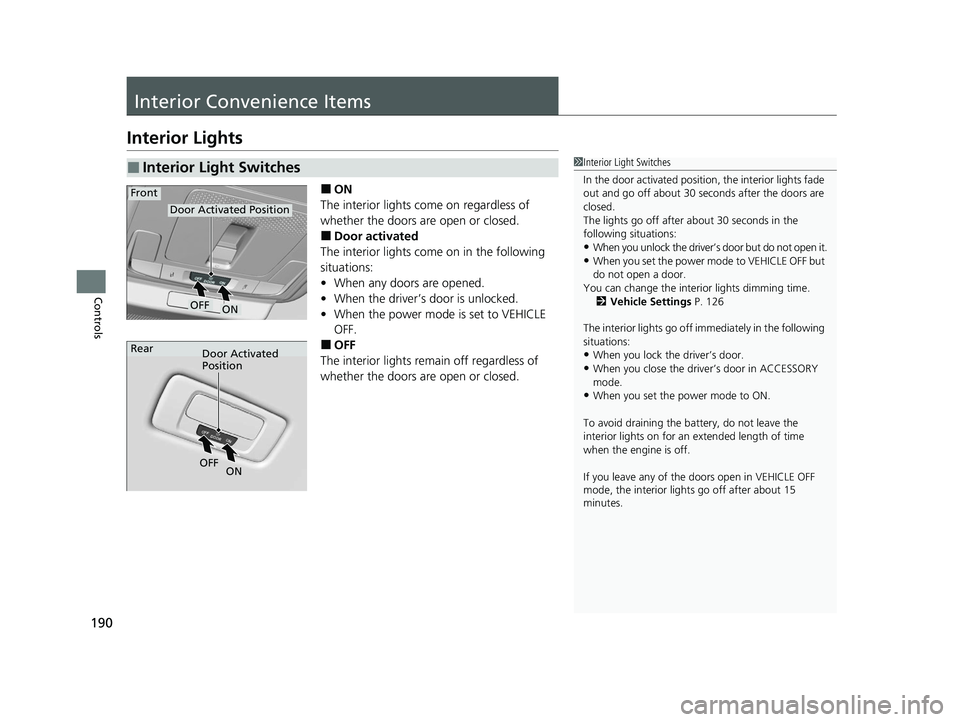

Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• When the driver’s door is unlocked.
• When the power mode is set to VEHICLE
OFF.
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 seconds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open it.
•When you set the power mode to VEHICLE OFF but
do not open a door.
You can change the interi or lights dimming time.
2 Vehicle Settings P. 126
The interior lights go off im mediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
To avoid draining the ba ttery, do not leave the
interior lights on for an extended length of time
when the engine is off.
If you leave any of the doors open in VEHICLE OFF
mode, the interior light s go off after about 15
minutes.
Door Activated Position
ON
Front
OFF
Door Activated
Position
Rear
ON
OF
F
23 ACCORD 4D US PET MAP-3130A6000_01.book 190 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

191
uuInterior Convenience Items uInterior Lights
Controls

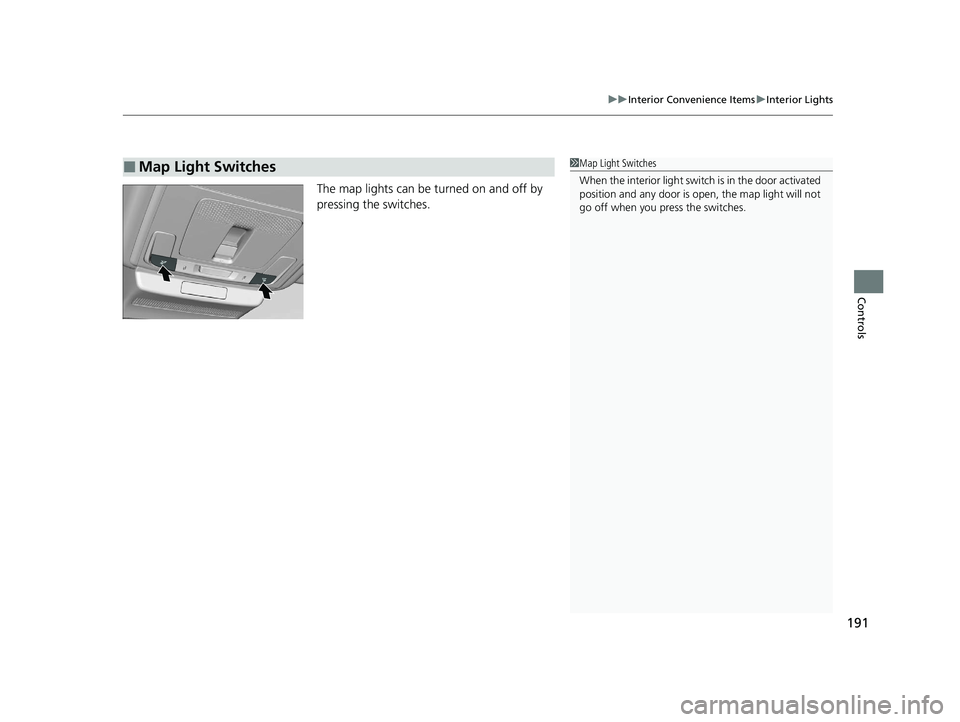

The map lights can be turned on and off by
pressing the switches.
■Map Light Switches1Map Light Switches
When the interior light swit ch is in the door activated
position and any door is open, the map light will not
go off when you press the switches.
23 ACCORD 4D US PET MAP-3130A6000_01.book 191 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

192
uuInterior Convenience Items uStorage Items
Controls

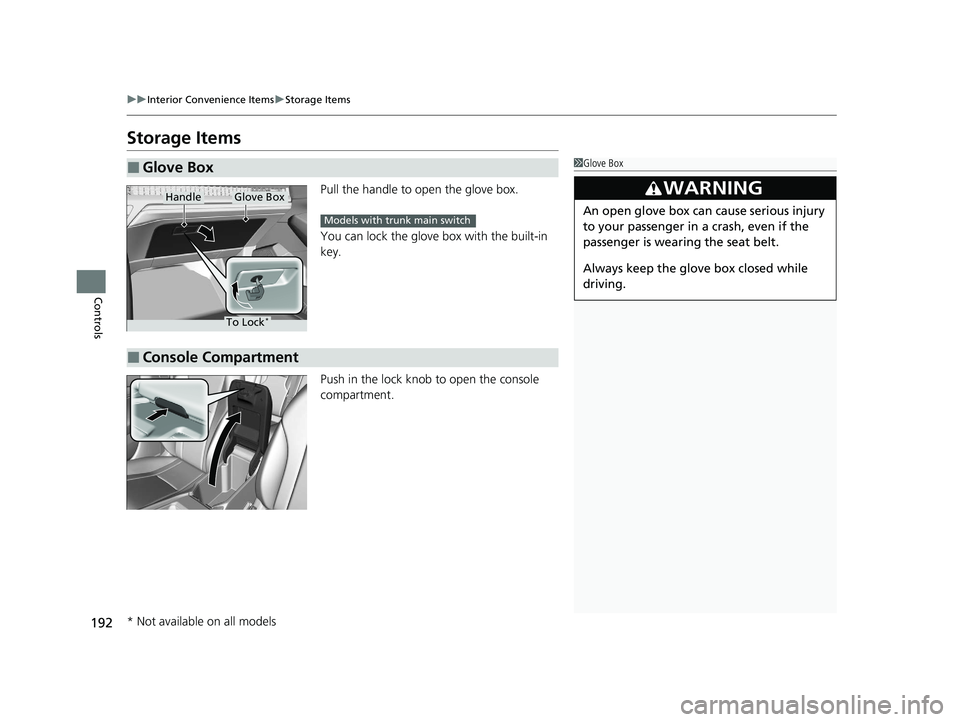

Storage Items
Pull the handle to open the glove box.
You can lock the glove box with the built-in
key.
Push in the lock knob to open the console
compartment.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove BoxHandle
To Lock*
Models with trunk main switch
■Console Compartment
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 192 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

Continued193
uuInterior Convenience Items uStorage Items
Controls

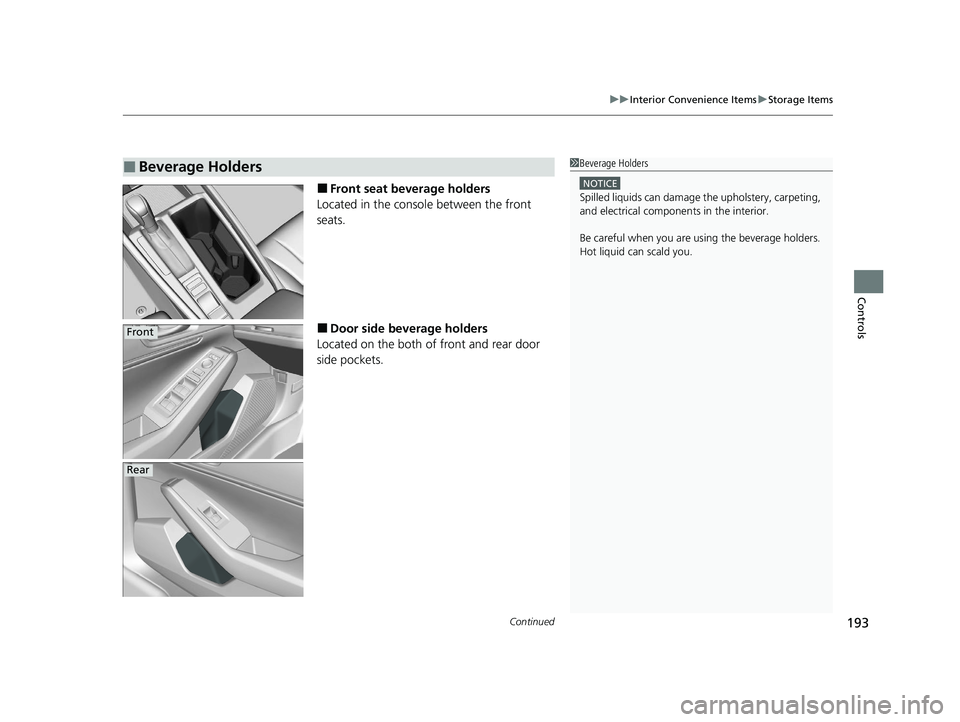

■Front seat beverage holders
Located in the console between the front
seats.
■Door side beverage holders
Located on the both of front and rear door
side pockets.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Front
Rear
23 ACCORD 4D US PET MAP-3130A6000_01.book 193 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

194
uuInterior Convenience Items uStorage Items
Controls

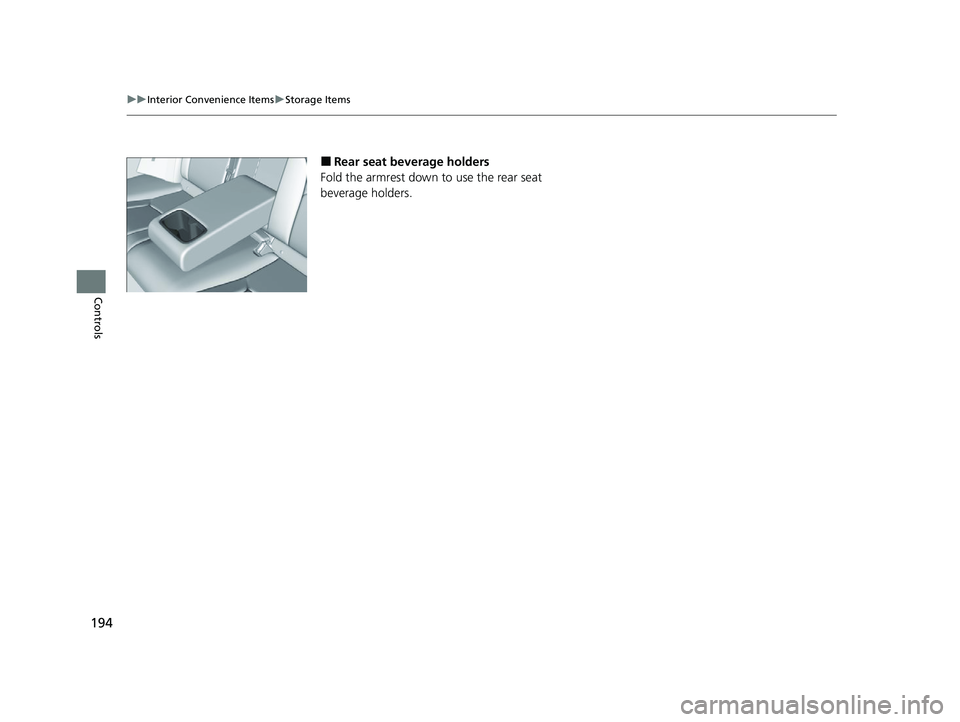

■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
23 ACCORD 4D US PET MAP-3130A6000_01.book 194 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

Continued195
uuInterior Convenience Items uStorage Items
Controls

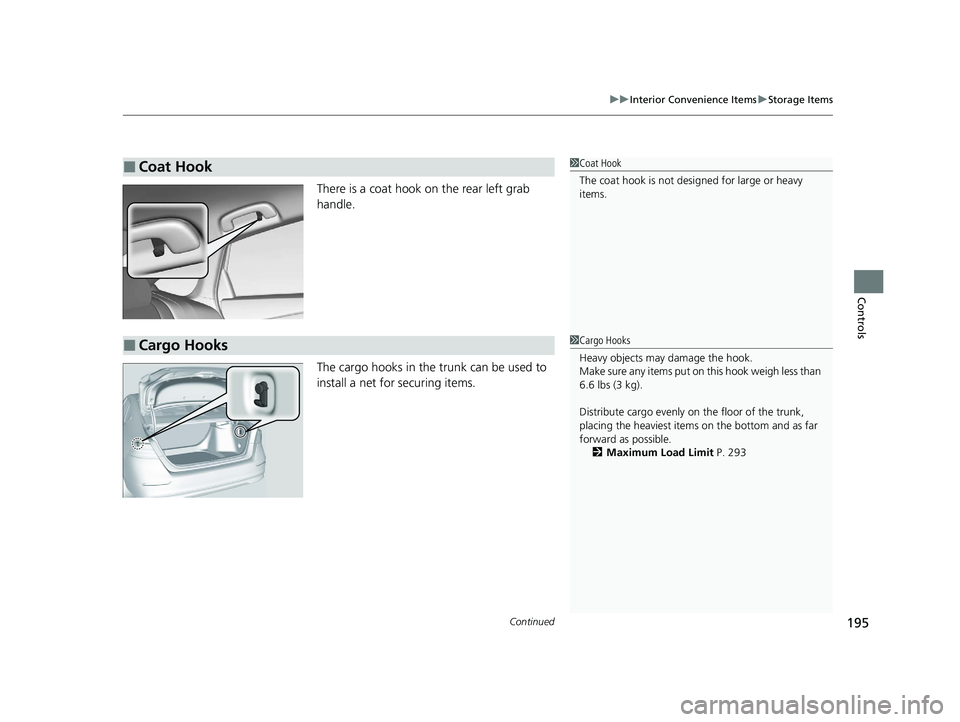

There is a coat hook on the rear left grab
handle.
The cargo hooks in the trunk can be used to
install a net for securing items.
■Coat Hook1Coat Hook
The coat hook is not desi gned for large or heavy
items.
■Cargo Hooks1 Cargo Hooks
Heavy objects may damage the hook.
Make sure any items put on this hook weigh less than
6.6 lbs (3 kg).
Distribute cargo evenly on the floor of the trunk,
placing the heaviest item s on the bottom and as far
forward as possible. 2 Maximum Load Limit P. 293
23 ACCORD 4D US PET MAP-3130A6000_01.book 195 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuInterior Convenience Items uStorage Items
196
Controls

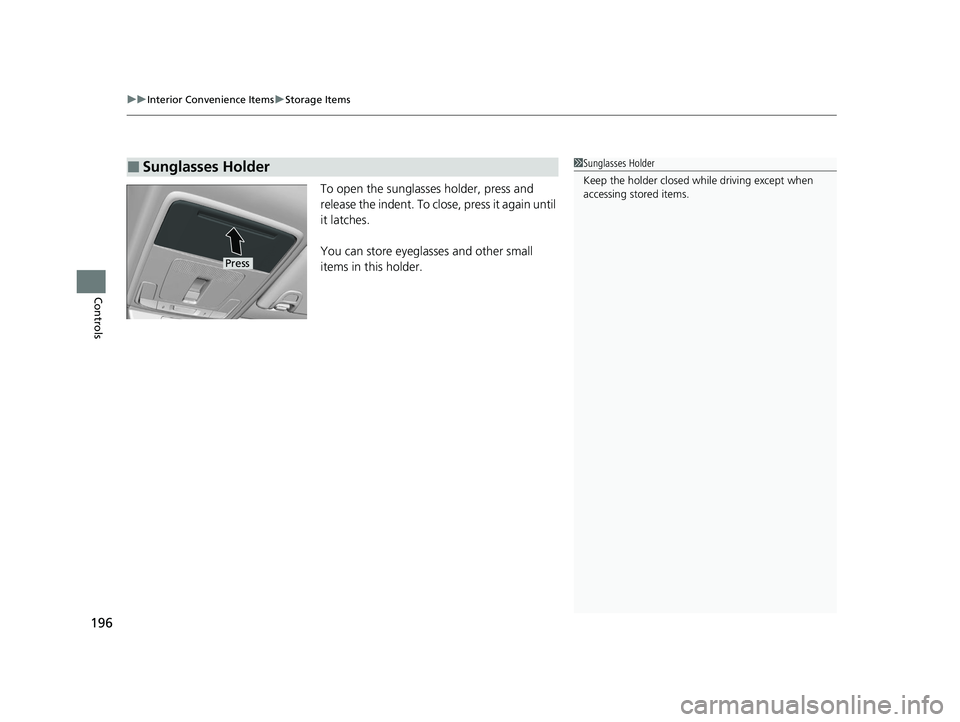

To open the sunglasses holder, press and
release the indent. To close, press it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Sunglasses Holder1Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Press
23 ACCORD 4D US PET MAP-3130A6000_01.book 196 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

197
uuInterior Convenience Items uOther Interior Convenience Items
Continued
Controls

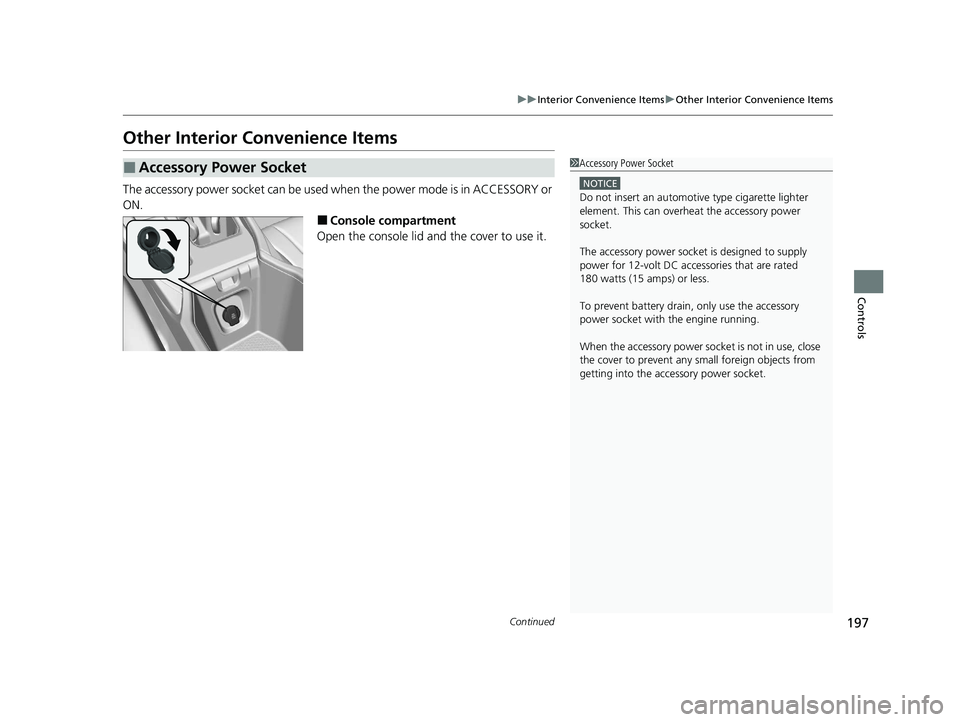

Other Interior Convenience Items
The accessory power socket can be used when the power mode is in ACCESSORY or
ON.
■Console compartment
Open the console lid and the cover to use it.
■Accessory Power Socket1 Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element. This can overheat the accessory power
socket.
The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated
180 watts (15 amps) or less.
To prevent battery drain, only use the accessory
power socket with the engine running.
When the accessory power soc ket is not in use, close
the cover to prevent any small foreign objects from
getting into the accessory power socket.
23 ACCORD 4D US PET MAP-3130A6000_01.book 197 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuInterior Convenience Items uOther Interior Convenience Items
198
Controls
The seat heaters can be used when the power
mode is in ON.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
When the power mode is turned on after it is
turned off, the previous setting is maintained.
Press the AUTO button:
Both the air conditioner and seat temperature
will automatically change to the setting most
suitable to the ambient environment. u When any seat heater button is pressed,
settings will switch to manual mode.
■Front Seat Heaters*1Front Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
After a certain period of time, the strength setting for
the front seat heaters will automatically be reduced
by one level at a ti me until the front seat heaters shut
off. The elapsed time varies according to the interior
environment.
As time passes, the set temperature will fall, and
eventually the seat heater will shut off.
The seat heater may turn on if sensors detect weight
on the passenger seat due to luggage, etc.
To prevent automatic activation, you can turn off
automatic climate control for the front seat. 2 Vehicle Settings P. 126
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lowerlimb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
AUTO Button
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 198 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分
