Page 8 of 533
Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
The images throughout this owner’s manual (including the front
cover) that depict features, equipment, and Audio/Information
screen, Meter screens are only examples and may not be
representative of your particular model.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 35
For Safe Driving P. 36 Seat Belts P. 40 Airbags P. 49
2Instrument Panel P. 83
Indicators P. 84 Gauges and Driver Information Interface P. 104
2Controls P. 135
Clock P. 136 Locking and Unlocking the Doors P. 137
Moonroof* P. 162
Seats P. 181 Interior Convenience Items P. 190
2 Features P. 205
Audio System P. 206 Audio System Basic Operation P. 211
Customized Features P. 259 Bluetooth® HandsFreeLink ® P. 265
2 Driving P. 289
Before Driving P. 290 Towing a Trailer P. 295
Multi-View Rear Camera P. 415 Refueling P. 417
2 Maintenance P. 423
Before Performing Maintenance P. 424 Maintenance MinderTM P. 427
Checking and Maintaining Wiper Blades P. 448
Climate Control System Maintenance P. 463
2Handling the Unexpected P. 471
Tools P. 472 If a Tire Goes Flat P. 473
Overheating P. 486 Indicator Coming On/Blinking P. 488
If You Cannot Open the Trunk P. 503
2Information P. 507
Specifications P. 508 Identification Numbers P. 510
Emissions Testing P. 513 Warranty Coverages P. 515
Open Source Licenses P. 520
23 ACCORD 4D US PET MAP-3130A6000_01.book 6 ページ 2022年10月19日 水曜日 午前11時49分
Page 11 of 533
9
Quick Reference Guide❚ Headlights/ Turn Signals (P167, 168)
❚Left Selector Wheel (P209)
❚ Adaptive Cruise Control (ACC) with
Low Speed Follow Buttons
(P342)
❚ Wipers/ Washers (P175)
❚ Lane Keeping Assist System (LKAS)
Button
(P365)
❚ Interval Button (P355)
❚Steering Wheel Adjustments (P178)
❚Right Selector Wheel (P112)
❚Bluetooth ® HandsFreeLink ® System Buttons (P265)
❚Audio Remote Controls (P209)
❚Horn (Press an area around .)
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 9 ページ 2022年10月19日 水曜日 午前11時49分
Page 24 of 533
22
Quick Reference Guide
Features (P205)
Audio Remote Controls
(P209)
●VOL(+ / VOL(- (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
USB flash drive:
Press and hold / to change a
folder.
Left Selector Wheel
/ (Seek/Skip) Buttons
VOL(
+/VOL(- (Volume) Switch
●Left Selector Wheel
Roll up or down: To cycle through the
modes, roll up or down and then press
the left selector wheel:
Back
AM
USB
Bluetooth ® Audio
Smartphone
(Apple CarPlay/Android Auto)
Customize display
Phone
FM
23 ACCORD 4D US PET MAP-3130A6000_01.book 22 ページ 2022年10月19日 水曜日 午前11時49分
Page 110 of 533
108
uuGauges and Driver Information Interface uDriver Information Interface (Left Side Area)
Instrument Panel
Driver Information Interface (Left Side Area)
Shows the current mode for audio and phone information, etc.
2 Audio Remote Controls P. 209
2 Bluetooth ® HandsFreeLink ® P. 265
Shows the clock.
■Clock1 Clock
You can adjust the time manually and change the
clock display to show the 12 hour clock or 24 hour
clock. 2 Clock P. 136
You can choose whether the clock is displayed on the
driver information interface. 2 Customize Display P. 109
23 ACCORD 4D US PET MAP-3130A6000_01.book 108 ページ 2022年10月19日 水曜日 午前11時49分
Page 207 of 533

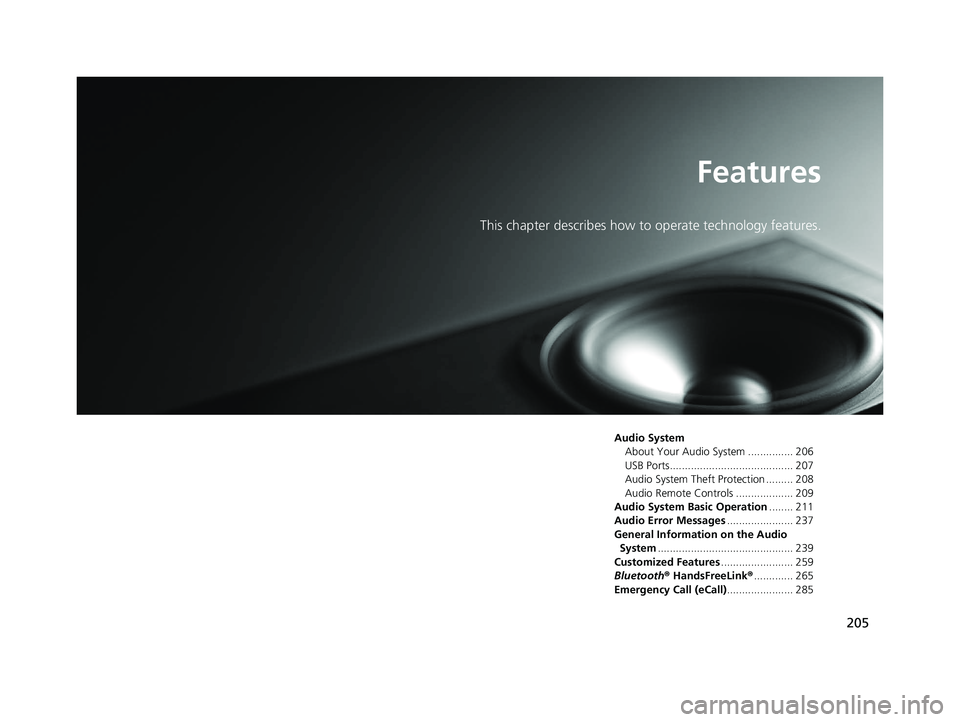

205
Features
This chapter describes how to operate technology features.
Audio System
About Your Audio System ............... 206
USB Ports......................................... 207
Audio System Theft Protection ......... 208
Audio Remote Controls ................... 209
Audio System Basic Operation ........ 211
Audio Error Messages ...................... 237
General Information on the Audio System ............................................. 239
Customized Features ........................ 259
Bluetooth® HandsFreeLink® ............. 265
Emergency Call (eCall) ...................... 285
23 ACCORD 4D US PET MAP-3130A6000_01.book 205 ページ 2022年10月19日 水曜日 午前11時49分
Page 208 of 533
206
Features
Audio System
About Your Audio System
The audio system features AM/FM radio. It can also play USB flash drives, iPod,
iPhone and Bluetooth ® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface.1 About Your Audio System
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
Remote Controls iPod
USB Flash
Drive
23 ACCORD 4D US PET MAP-3130A6000_01.book 206 ページ 2022年10月19日 水曜日 午前11時49分
Page 211 of 533
209
uuAudio System uAudio Remote Controls
Continued
Features
Audio Remote Controls
Allow you to operate the audio system whil e driving. The information is shown on
the driver information interface. VOL
(+/VOL(- (Volume) Switch
Press Up: To increase the volume.
Press Down: To decrease the volume.
/ (Seek/Skip) Buttons
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next strong station.
Press and hold : To select the previous strong station.
• When listening to an iPod, USB flash drive, Bluetooth® Audio, or Smartphone
Connection
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
• When listening to a USB flash drive
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
1Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions may not be available.
/ (Seek/Skip) Buttons
Left Selector
WheelVOL(+/VOL(-
(Volume) Switch
23 ACCORD 4D US PET MAP-3130A6000_01.book 209 ページ 2022年10月19日 水曜日 午前11時49分
Page 212 of 533
210
uuAudio System uAudio Remote Controls
Features
Left Selector Wheel
Roll up or down:
Back
AM
USB
Bluetooth ® Audio
Smartphone
(Apple CarPlay/Android Auto)
Customize display
Phone
FM
To cycle through the modes, roll up or down and
then press the left selector wheel:
23 ACCORD 4D US PET MAP-3130A6000_01.book 210 ページ 2022年10月19日 水曜日 午前11時49分
Page 214 of 533
212
uuAudio System Basic Operation uStart Up
Features
Start Up
The 7 inch Color Touchscreen starts automatically when you set the power mode to
ACCESSORY or ON. At start-up, the following screen about the data upload will be
displayed. When adding a new user, entry of user information is required at start-up.
Select OK.
u If you want to change the settings for
data upload, select Data Sharing, then
select the ON/OFF settings on the Data
Sharing Setting screen.
u If you do not select OK, the system will
automatically be switched to the home
screen, or the top screen of the last
executed application, after a certain
period of time.
u If there is no registered device, select OK
and the Bluetooth ® pairing screen will be
displayed.1 Start Up
Data Sharing Setting
ON : Data communicati on is available.
OFF: Data communication is not available.
23 ACCORD 4D US PET MAP-3130A6000_01.book 212 ページ 2022年10月19日 水曜日 午前11時49分
Page 225 of 533
223
uuAudio System Basic Operation uPlaying Bluetooth ® Audio
Continued
Features
Playing Bluetooth ® Audio
Your audio system allows you to listen to music from your Bluetooth-compatible
phone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth ® HandsFreeLink ® (HFL) system.
2Phone Setup P. 270
1Playing Bluetooth ® Audio
Not all Bluetooth -enabled phones with streaming
audio capabilities are compatible with the system.
For a list of compatible phones:
•U.S.: Visit automobiles.honda.com/handsfreelink/ ,
or call 1-888-528-7876.
•Canada: For more info rmation on smartphone
compatibility, call 1-855-490-7351.
In some states, it may be il legal to perform some data
device functions while driving.
Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the system automatically connects to the
prioritized phone. You can a ssign priority to a phone
in the Bluetooth Settings menu.
2 HFL Menus P. 268
To manually change the searched phone, select Go
to Device List .
In some cases, the name of the artist, album, or track
may not appear correctly.
Some functions may not be available on some
devices.
If a phone is currently conne cted via Apple CarPlay or
Android Auto, Bluetooth® Audio from that phone is
unavailable. 2 Phone Setup P. 270
MEDIA Button
Press to select Bluetooth ® Audio.
VOL/ AUDIO
(Volume/Power) Knob
Press to turn the audio
system on and off.
Turn to adjust the
volume.
MENU Button
Press to display the
menu items.
Audio/Information Screen
Bluetooth Ind icator
App
ears when your phone
is connected to HFL.
Track Buttons
Press or to
change files.
Repeat Icon
Select to repeat the current file. Shuffle Icon
Select to play all files in the current
category in random order.Selector Knob
Turn to change files.
Press and turn to
select an item, then
press to set your
selection.
(Back) Button
Pr e
ss to go back to
the previous display.
Play/Pause Icon
Select to play/pause a file.
23 ACCORD 4D US PET MAP-3130A6000_01.book 223 ページ 2022年10月19日 水曜日 午前11時49分
