HONDA ACCORD 2023 Owners Manual

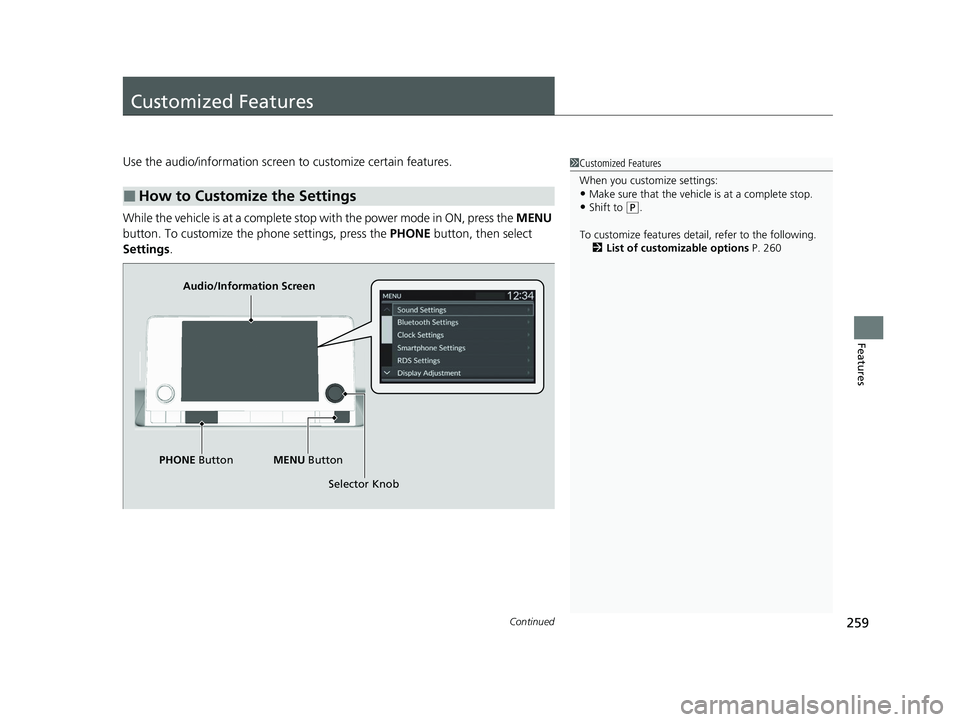

259Continued
Features
Customized Features
Use the audio/information screen to customize certain features.
While the vehicle is at a complete stop with the power mode in ON, press the MENU
button. To customize the phone settings, press the PHONE button, then select
Settings .
■How to Customize the Settings
1Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
To customize features detail, refer to the following. 2 List of customizable options P. 260
Audio/Information Screen
MENU Button
Selector Knob
PHONE
Button
23 ACCORD 4D US PET MAP-3130A6000_01.book 259 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

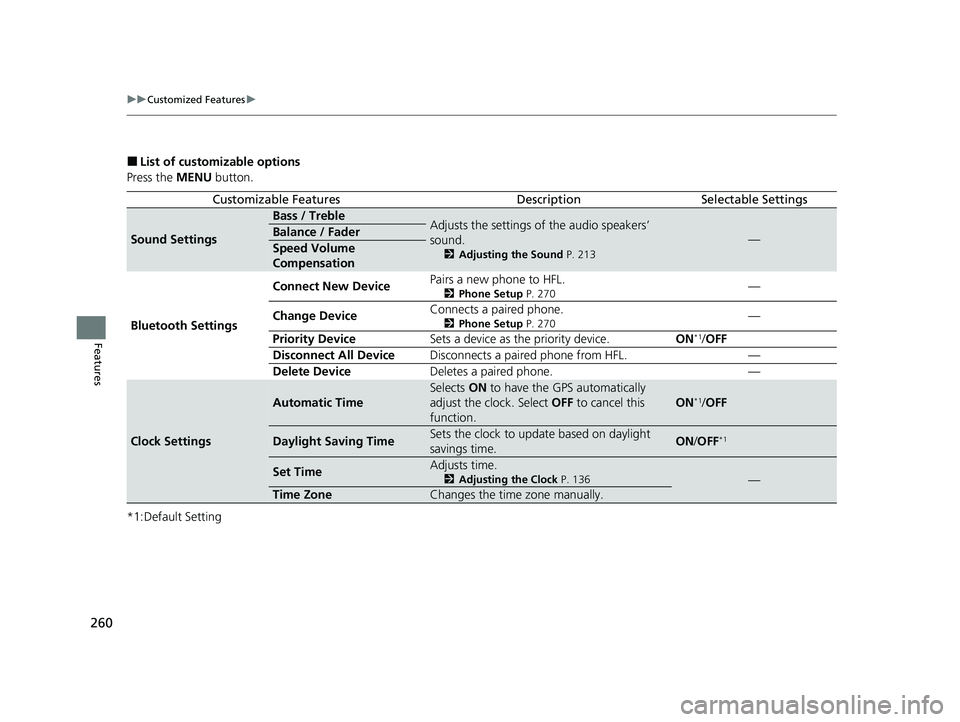

260
uuCustomized Features u
Features
■List of customizable options
Press the MENU button.
*1:Default Setting
Customizable FeaturesDescriptionSelectable Settings
Sound Settings
Bass / TrebleAdjusts the settings of the audio speakers’
sound.
2 Adjusting the Sound P. 213
—Balance / Fader
Speed Volume
Compensation
Bluetooth Settings Connect New Device
Pairs a new phone to HFL.
2
Phone Setup P. 270—
Change Device Connects a paired phone.
2
Phone Setup P. 270—
Priority Device Sets a device as the priority device. ON
*1/OFF
Disconnect All Device Disconnects a paired phone from HFL. —
Delete Device Deletes a paired phone. —
Clock Settings
Automatic Time
Selects ON to have the GPS automatically
adjust the clock. Select OFF to cancel this
function.
ON*1/ OFF
Daylight Saving TimeSets the clock to update based on daylight
savings time.ON /OFF*1
Set TimeAdjusts time.
2 Adjusting the Clock P. 136—
Time ZoneChanges the time zone manually.
23 ACCORD 4D US PET MAP-3130A6000_01.book 260 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

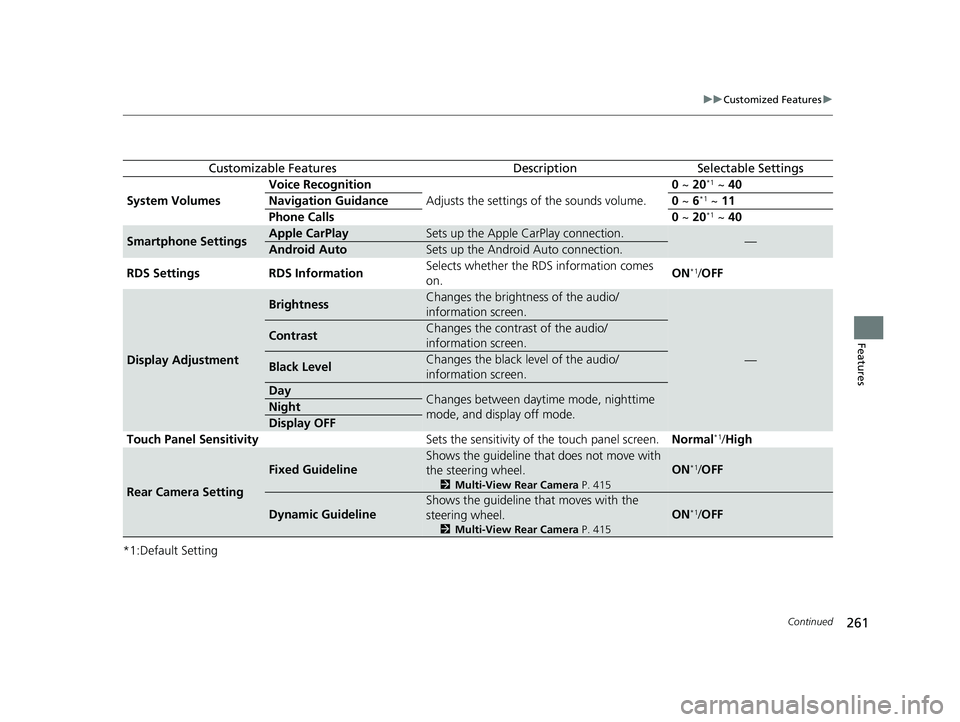

261
uuCustomized Features u
Continued
Features
*1:Default Setting
Customizable FeaturesDescriptionSelectable Settings
System Volumes Voice Recognition
Adjusts the settings of the sounds volume. 0
~ 20*1 ~ 40
Navigation Guidance 0 ~ 6*1 ~ 11
Phone Calls 0 ~ 20*1 ~ 40
Smartphone SettingsApple CarPlaySets up the Apple CarPlay connection.—Android AutoSets up the Android Auto connection.
RDS Settings RDS Information Selects whether the RDS information comes
on.ON
*1/
OFF
Display Adjustment
BrightnessChanges the brightness of the audio/
information screen.
—
ContrastChanges the contrast of the audio/
information screen.
Black LevelChanges the black level of the audio/
information screen.
DayChanges between daytime mode, nighttime
mode, and display off mode.Night
Display OFF
Touch Panel Sensitivity Sets the sensitivity of the touch panel screen.Normal*1/High
Rear Camera Setting
Fixed Guideline
Shows the guideline that does not move with
the steering wheel.
2 Multi-View Rear Camera P. 415
ON*1/OFF
Dynamic Guideline
Shows the guideline th at moves with the
steering wheel.
2 Multi-View Rear Camera P. 415
ON*1/OFF
23 ACCORD 4D US PET MAP-3130A6000_01.book 261 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

262
uuCustomized Features u
Features*1:Default Setting
Customizable FeaturesDescriptionSelectable Settings
Cross Traffic Monitor
*Shows arrows on the rear camera image to
indicate vehicles approaching from the sides.
2 Cross Traffic Monitor* P. 411
ON*1/OFF
LanguageChanges the display language.English*1/Español /Français
Data Sharing Turns the location data and vehicle data
sharing function on and off through the
connected service.Disable
/Enable
*1
LicenseShows the legal information.—
Factory Data Reset Resets all the settings to their factory default.
2
Defaulting All the Settings P. 264—
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 262 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

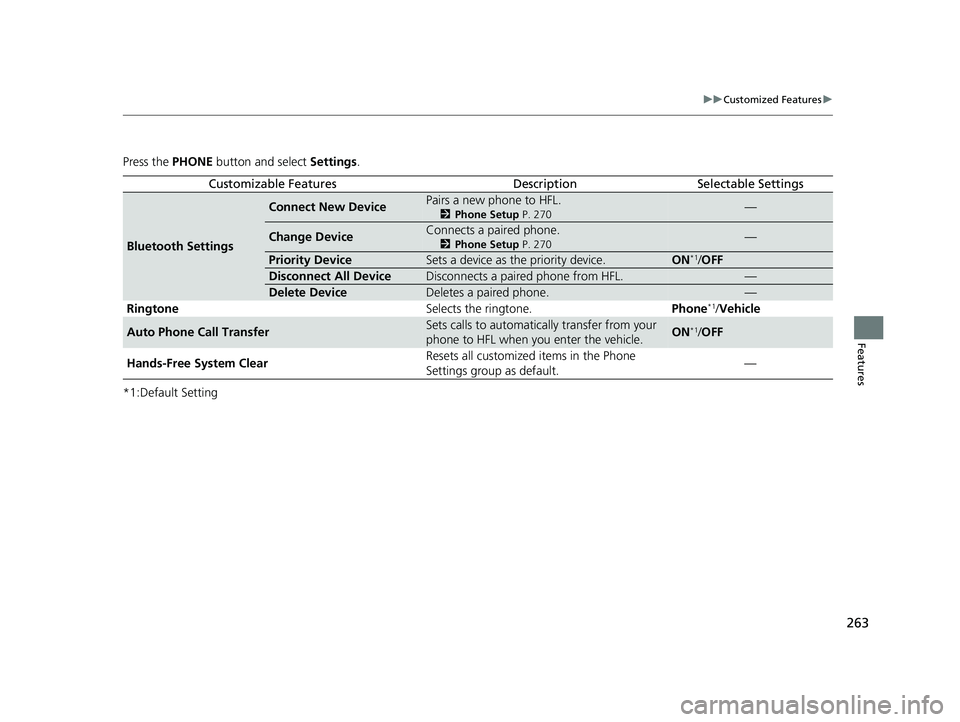

263
uuCustomized Features u
Features
Press the PHONE button and select Settings.
*1:Default Setting
Customizable FeaturesDescriptionSelectable Settings
Bluetooth Settings
Connect New DevicePairs a new phone to HFL.
2 Phone Setup P. 270—
Change DeviceConnects a paired phone.
2Phone Setup P. 270—
Priority DeviceSets a device as the priority device.ON*1/OFF
Disconnect All DeviceDisconnects a paired phone from HFL.—
Delete DeviceDeletes a paired phone.—
Ringtone Selects the ringtone.Phone*1/Vehicle
Auto Phone Call TransferSets calls to automatically transfer from your
phone to HFL when you enter the vehicle.ON*1/OFF
Hands-Free System Clear Resets all customized items in the Phone
Settings group as default.
—
23 ACCORD 4D US PET MAP-3130A6000_01.book 263 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

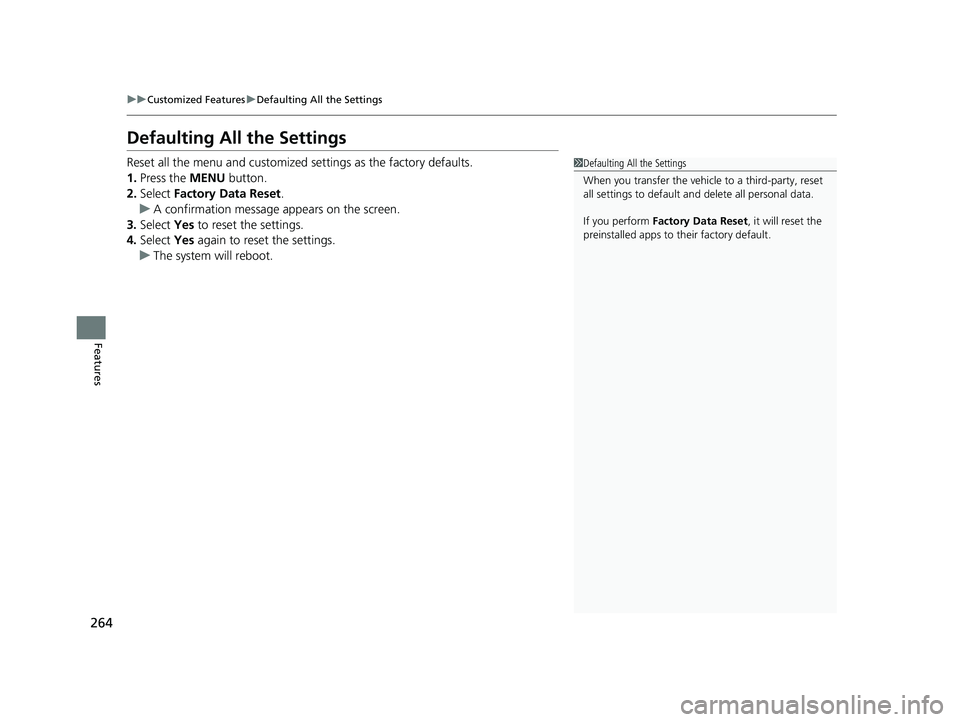

264
uuCustomized Features uDefaulting All the Settings
Features
Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1. Press the MENU button.
2. Select Factory Data Reset .
u A confirmation message appears on the screen.
3. Select Yes to reset the settings.
4. Select Yes again to reset the settings.
u The system will reboot.1Defaulting All the Settings
When you transfer the vehicle to a third-party, reset
all settings to default a nd delete all personal data.
If you perform Factory Data Reset , it will reset the
preinstalled apps to their factory default.
23 ACCORD 4D US PET MAP-3130A6000_01.book 264 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

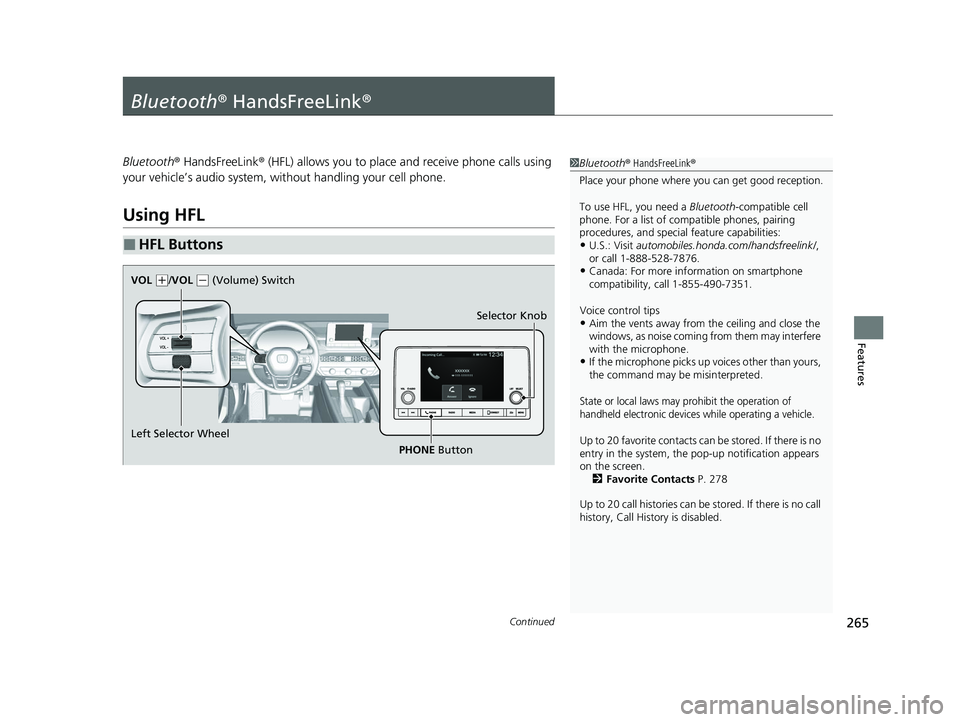

265Continued
Features
Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL
■HFL Buttons
1 Bluetooth ® HandsFreeLink ®
Place your phone where y ou can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit automobiles.honda.com/handsfreelink/ ,
or call 1-888-528-7876.
•Canada: For more info rmation on smartphone
compatibility, call 1-855-490-7351.
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphone.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a vehicle.
Up to 20 favorite contacts ca n be stored. If there is no
entry in the system, the pop-up notification appears
on the screen. 2 Favorite Contacts P. 278
Up to 20 call histories can be stored. If there is no call
history, Call History is disabled.
Selector Knob
Left Selector Wheel PHONE Button
VOL
(
+/VOL (- (Volume) Switch
23 ACCORD 4D US PET MAP-3130A6000_01.book 265 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

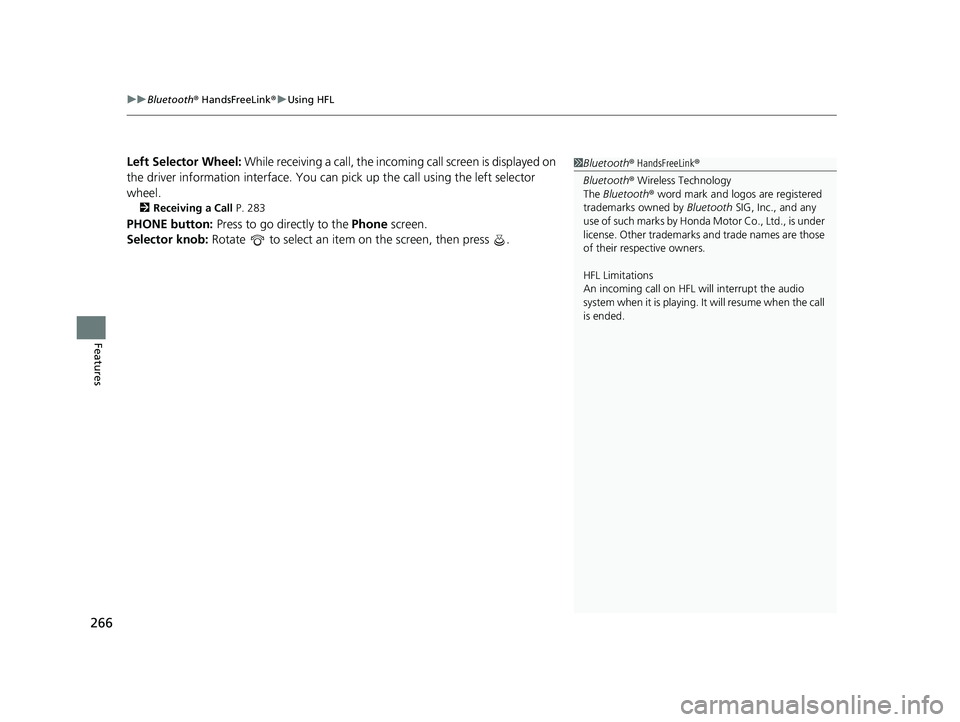

uuBluetooth ® HandsFreeLink ®u Using HFL
266
Features
Left Selector Wheel: While receiving a call, the incoming call screen is displayed on
the driver information interface. You can pi ck up the call using the left selector
wheel.
2 Receiving a Call P. 283
PHONE button: Press to go directly to the Phone screen.
Selector knob: Rotate to select an item on the screen, then press .
1 Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call
is ended.
23 ACCORD 4D US PET MAP-3130A6000_01.book 266 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

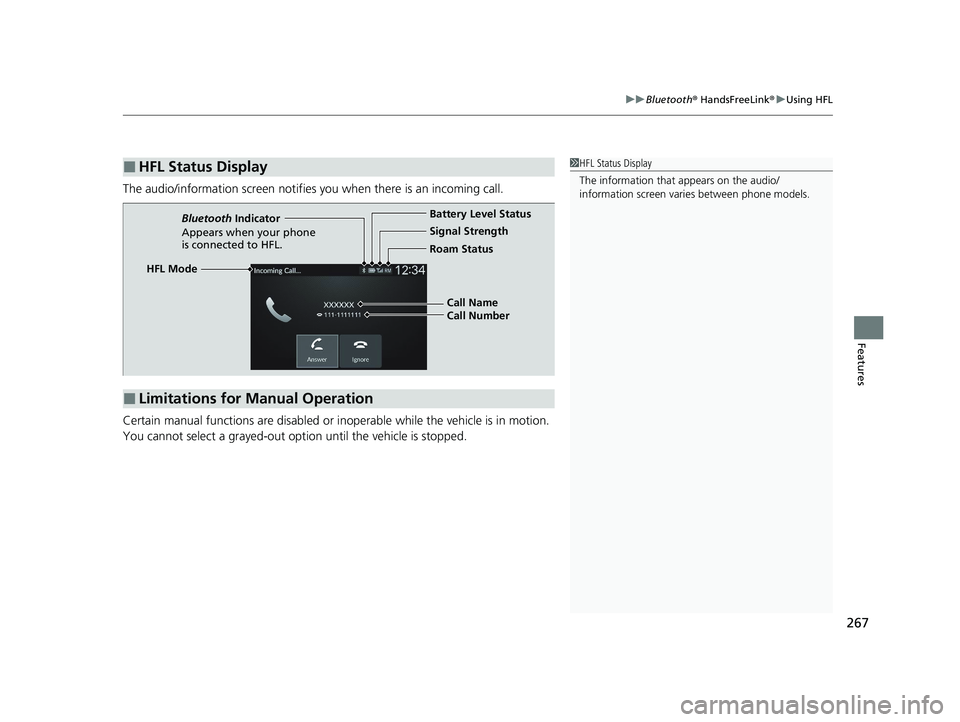

267
uuBluetooth ® HandsFreeLink ®u Using HFL
Features
The audio/information scr een notifies you when there is an incoming call.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
■HFL Status Display1 HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
■Limitations for Manual Operation
HFL Mode Battery Level Status
Signal Strength
Bluetooth
Indicator
Appears when your phone
is connected to HFL. Roam Status
Call Name
Call Number
23 ACCORD 4D US PET MAP-3130A6000_01.book 267 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

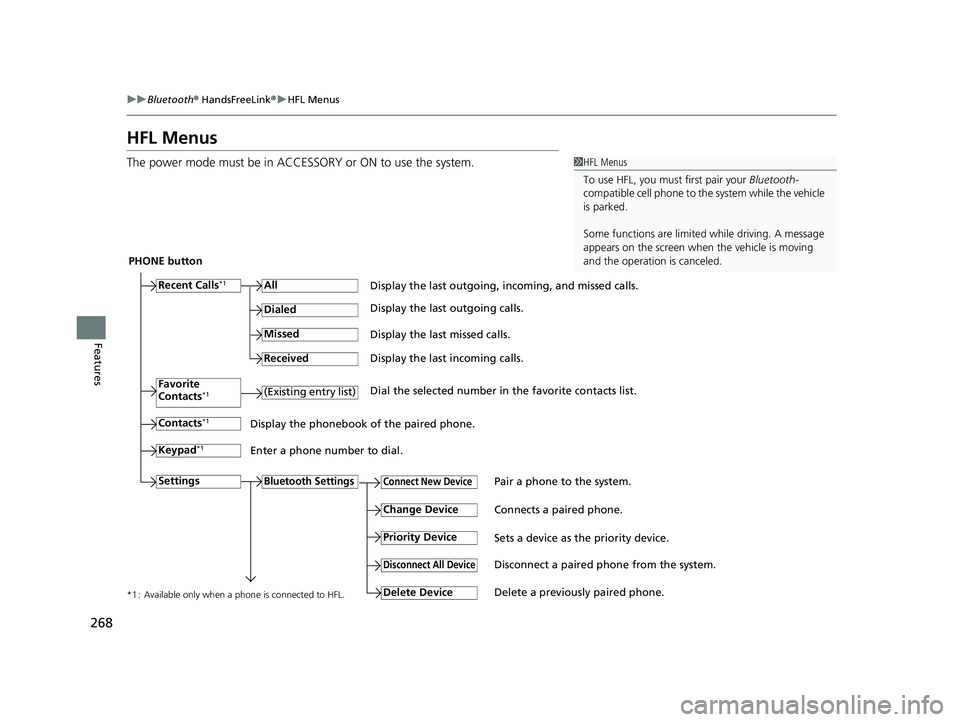

268
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
HFL Menus
The power mode must be in ACCESSORY or ON to use the system.1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to th e system while the vehicle
is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.
PHONE button
Recent Calls
*1All
Pair a phone to the system.Connect New Device
Change DeviceConnects a paired phone.
Priority Device
Sets a device as the priority device.
Bluetooth Settings
Keypad*1
Settings
Favorite
Contacts*1(Existing entry list)
Contacts*1
Dialed
Missed
Received
Display the last outgoing, incoming, and missed calls.
Display the last outgoing calls.
Display the last missed calls.
Display the last incoming calls.
Dial the selected number in the favorite contacts list.
Display the phonebook of the paired phone.
Enter a phone number to dial.
Disconnect All DeviceDisconnect a paired phone from the system.
Delete Device
Delete a previously paired phone.*1 : Available only when a phone is connected to HFL.
