HONDA ACCORD 2023 Owners Manual

Continued319
uuWhen Driving uTire Pressure Monitoring System (TPMS)*
Driving

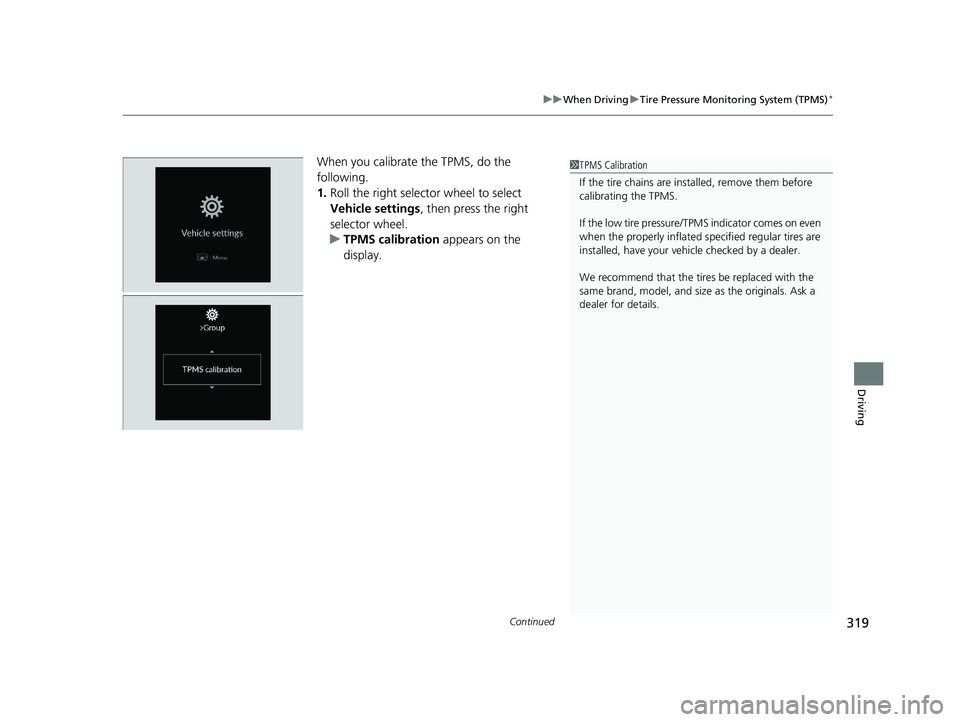

When you calibrate the TPMS, do the
following.
1. Roll the right selector wheel to select
Vehicle settings , then press the right
selector wheel.
u TPMS calibration appears on the
display.1TPMS Calibration
If the tire chains are installed, remove them before
calibrating the TPMS.
If the low tire pressure/TPMS indicator comes on even
when the properly inflated specified regular tires are
installed, have your vehi cle checked by a dealer.
We recommend that the tires be replaced with the
same brand, model, and size as the originals. Ask a
dealer for details.
23 ACCORD 4D US PET MAP-3130A6000_01.book 319 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

320
uuWhen Driving uTire Pressure Monitoring System (TPMS)*
Driving

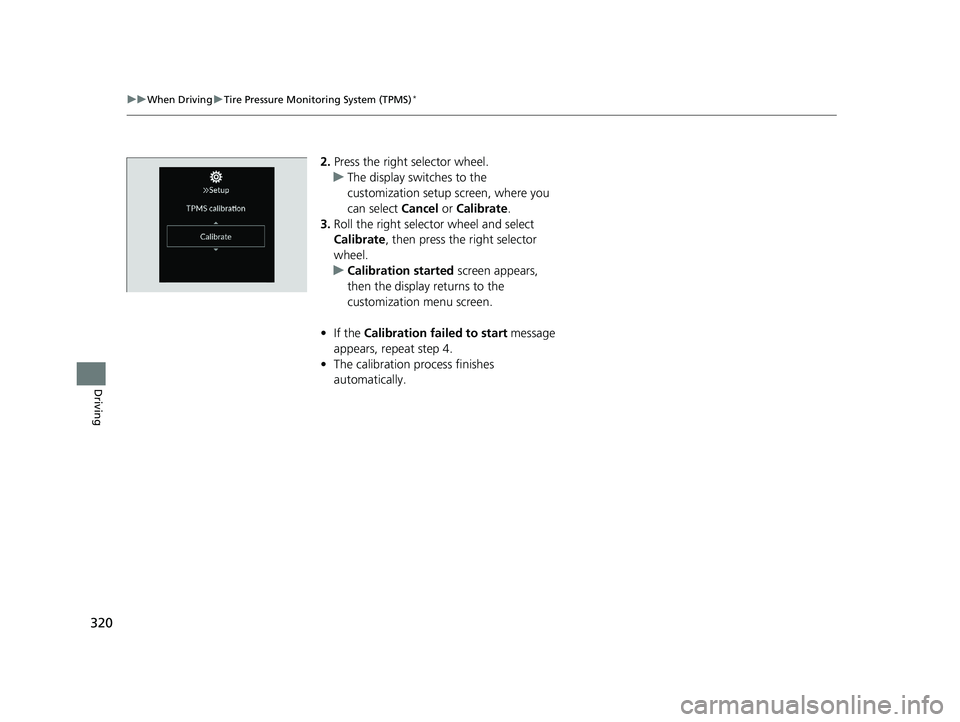

2. Press the right selector wheel.
u The display switches to the
customization setup screen, where you
can select Cancel or Calibrate .
3. Roll the right selector wheel and select
Calibrate , then press the right selector
wheel.
u Calibration started screen appears,
then the display returns to the
customization menu screen.
• If the Calibration failed to start message
appears, repeat step 4.
• The calibration pr ocess finishes
automatically.
23 ACCORD 4D US PET MAP-3130A6000_01.book 320 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

321
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Continued
Driving

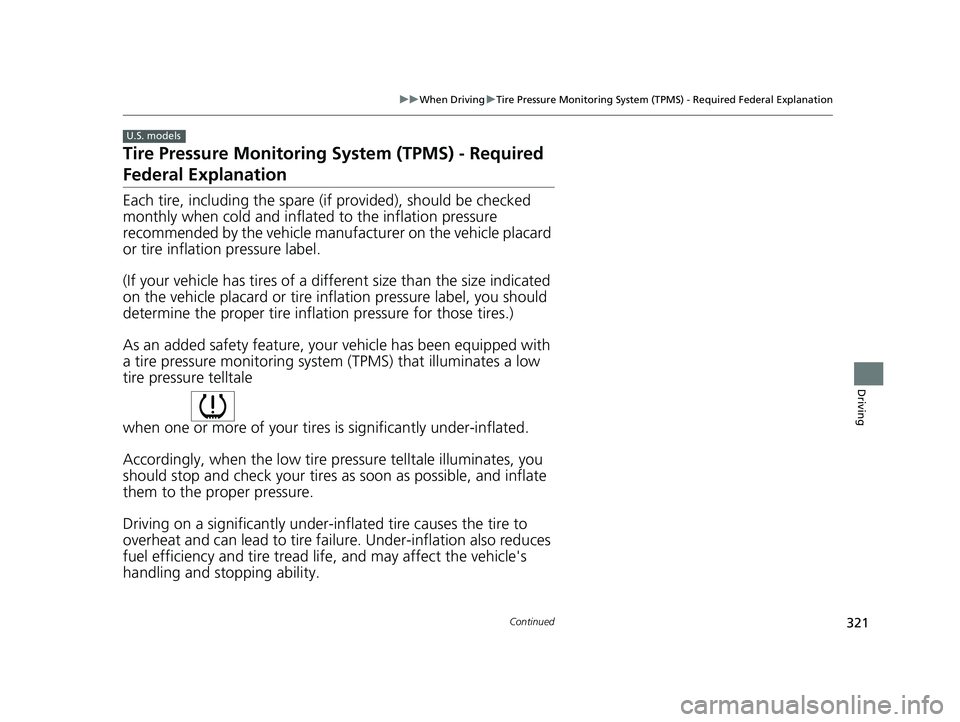

Tire Pressure Monitoring System (TPMS) - Required
Federal Explanation
Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure
recommended by the vehicle manufa cturer on the vehicle placard
or tire inflation pressure label.
(If your vehicle has tires of a diff erent size than the size indicated
on the vehicle placard or tire inflation pressure label, you should
determine the proper tire inflat ion pressure for those tires.)
As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale
when one or more of your tires is significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate
them to the proper pressure.
Driving on a significantly under-inf lated tire causes the tire to
overheat and can lead to tire fail ure. Under-inflation also reduces
fuel efficiency and tire tread life, and may affect the vehicle's
handling and stopping ability.
U.S. models
23 ACCORD 4D US PET MAP-3130A6000_01.book 321 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

322
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving

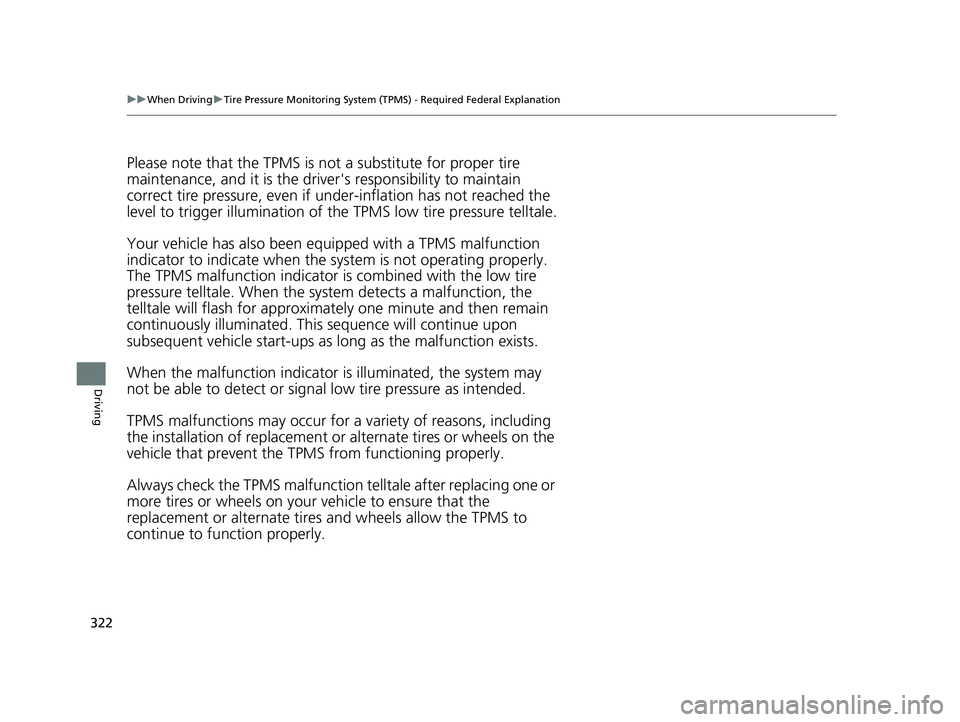

Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver 's responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumina tion of the TPMS low ti re pressure telltale.
Your vehicle has also been eq uipped with a TPMS malfunction
indicator to indicate when the sy stem is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the system detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
23 ACCORD 4D US PET MAP-3130A6000_01.book 322 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

323
uuWhen Driving uBlind Spot Information System*
Continued
Driving
Blind Spot Information System*
When the system detects vehicles approaching from behind in adjacent lanes, the
appropriate indicator comes on, providin g assistance when you change lanes.
The system activates when your vehicle is moving forward at about 20 mph (32 km/h)
or above.
Alert zone range
A: Approx. 1.6 ~ 10 feet (0.5 ~ 3 meters) from vehicle side.
B: Approx. 10 feet (3 meters) from rear bumper.
C: Approx. 10 ~ 82 feet (3 ~ 25 meters) behind from rear bumper. (The faster the
approaching vehicle, the further away it will be detected.)
The initially set alert zone is alert zone 1. Over time, after the vehicle has been driven
on straight roads with traffic and roadside objects, the system will adapt and expand
the alert zone (alert zone 1 and 2).
■How the System works
1 Blind Spot Information System*
Important Safety Reminder
Like all assistance systems, the blind spot information
system has limitations. Always look in your mirrors, to
either side of your vehicl e, and behind you for other
vehicles before changing la nes. Overreliance on the
blind spot information sy stem may result in a
collision.
Have your vehicle checked by a dealer in the
following situations:
•The rear bumper or area around the radar sensors
is strongly impacted.
•The indicator does not come on even if a vehicle in
the alert zone should have been detected.
•The rear bumper or any system components need
to be repaired.
If the rear bumper or any system components are
repaired, the system will re vert to alert zone 1 only
until it is able to adapt and expand to alert zone 1
and 2.
Radar Sensors: underneath the
rear bumper corners : Alert Zone 1
A BC : Alert Zone 2
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 323 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuWhen Driving uBlind Spot Information System*
324
Driving
■When the system detects a vehicle
Blind spot information system alert indicator:
Located on the outside door mirror on both
sides.
Comes on when:
• A vehicle approaches you from behind to
overtake you at a speed difference of no
more than about 31 mph (50 km/h).
• You pass a vehicle at a speed difference of
no more than about 12 mph (20 km/h).
Blinks and a beeper sounds when:
You use the turn signal lever to signal a turn in
the direction of the detected vehicle while the
blind spot information system alert indicator is
on. u The beeper sounds three times.1Blind Spot Information System*
For proper blind spot information system operation:•Always keep the rear bumper and area around the
radar sensors clean.
•Do not cover the rear bumper corner area with
labels or sticke rs of any kind.
The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur:
•The blind spot informatio n system alert indicator
does not come on and the message Blind spot
information system not available appears on
the driver information interface.
•The blind spot informatio n system alert indicator
may come on even with the message displayed.
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC) with Low Speed Follow, low tire
pressure/TPMS
*, safety support, and parking brake
and brake system (amber) indicators may come on in
amber along with a message in the gauge when you
set the power mode to ON after reconnecting the
battery.
Drive a short distance at more than 12 mph (20
km/h). Each indicator should go off. If any do not,
have your vehicle ch ecked by a dealer.
Comes On
Blinks
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 324 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

Continued325
uuWhen Driving uBlind Spot Information System*
Driving

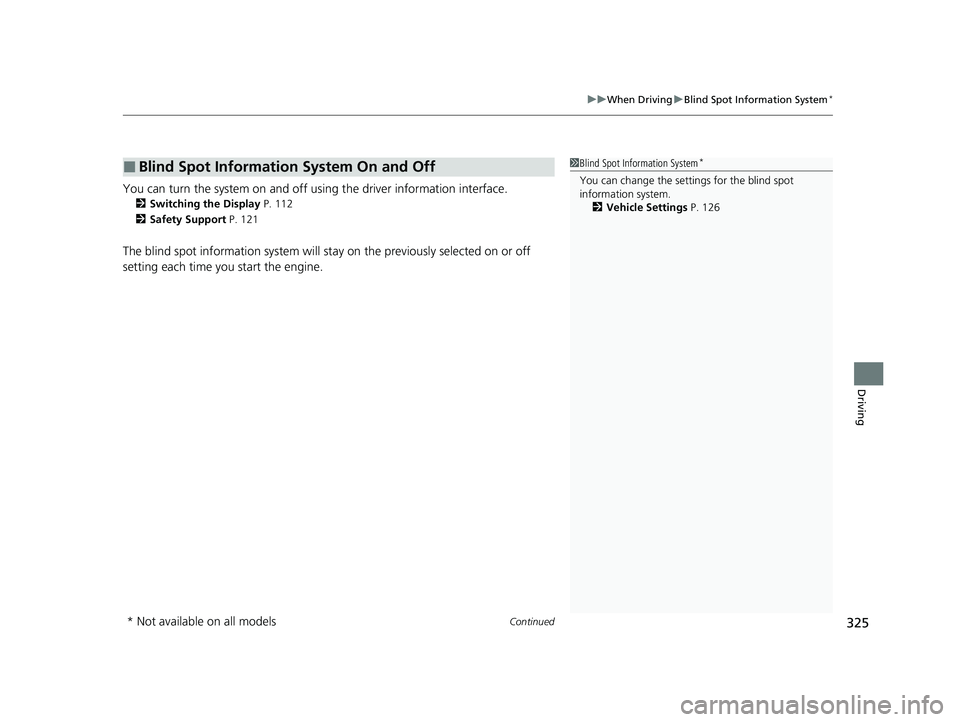

You can turn the system on and off using the driver information interface.
2 Switching the Display P. 112
2 Safety Support P. 121
The blind spot information system will stay on the previously selected on or off
setting each time you start the engine.
■Blind Spot Information System On and Off1Blind Spot Information System*
You can change the settings for the blind spot
information system.
2 Vehicle Settings P. 126
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 325 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

326
uuWhen Driving uBlind Spot Information System*
Driving
The blind spot information system alert indicator may not come on under the
following conditions:
• There is a large speed difference betwee n your vehicle and the vehicle in the
adjacent lane.
• A vehicle is parked in a side lane.
• An object not detected by the radar se nsors approaches or passes your vehicle.
• The vehicle driving in the adjacent lane is a motorcycle or other small vehicle.
The blind spot information system may not operate correctly under the following
conditions:
• Making a turn at an intersection.
• Objects (guard rails, poles, trees, etc.) are detected.
• An object that does not reflect radio wave s well or a motorcycle is in the alert
zone.
• Driving on a curved road.
• A vehicle is moving from a far lane to the adjacent lane.
• The system picks up signal interference such as other radar sensors from another
vehicle or strong radio wave transmitted from a facility nearby.
• The rear bumper or the area around the radar sensors is covered by dirt, mud,
snow, ice, etc.
• The rear bumper or the area around the radar sensors has been damaged or
deformed.
• In bad weather (heavy rain, snow, and fog).
• Making a short turn or driving on a bumpy road that slightly tilts the vehicle.
• An object such as a bicycle rack is attached to the rear of the vehicle.
■Blind Spot Information System Conditions and Limitations
23 ACCORD 4D US PET MAP-3130A6000_01.book 326 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

327Continued
Driving
Honda Sensing®
Honda Sensing® is a driver support system which employs the use of two distinctly
different kinds of sensors: a radar sensor located behind the Honda emblem on the
front grille and a front sensor camera moun ted to the interior side of the windshield
behind the rearview mirror.
Honda Sensing ® has the following functions.
■The functions which do not requir e switch operations to activate
• Collision Mitigation Braking SystemTM (CMBSTM) 2 P. 330
• Road Departure Mitigation System 2 P. 382
• Traffic Sign Recognition System 2 P. 390
■The functions wh ich require switch operations to activate
• Adaptive Cruise Control ( ACC) with Low Speed Follow
2 P. 342
• Lane Keeping Assist System (LKAS) 2 P. 362
• Traffic Jam Assist 2 P. 373
23 ACCORD 4D US PET MAP-3130A6000_01.book 327 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

328
uuHonda Sensing ®u
Driving

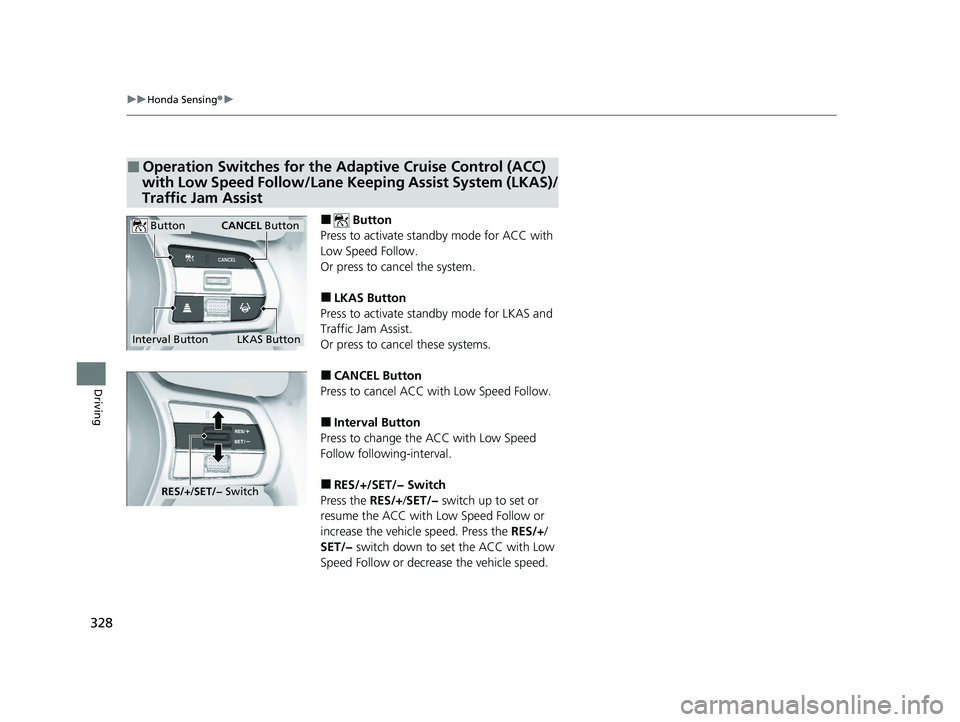

■ Button
Press to activate standby mode for ACC with
Low Speed Follow.
Or press to cancel the system.
■LKAS Button
Press to activate standby mode for LKAS and
Traffic Jam Assist.
Or press to cancel these systems.
■CANCEL Button
Press to cancel ACC with Low Speed Follow.
■Interval Button
Press to change the ACC with Low Speed
Follow following-interval.
■RES/+/SET/− Switch
Press the RES/+/SET/− switch up to set or
resume the ACC with Low Speed Follow or
increase the vehicl e speed. Press the RES/+/
SET/− switch down to set the ACC with Low
Speed Follow or decrease the vehicle speed.
■Operation Switches for the Adaptive Cruise Control (ACC)
with Low Speed Follow/Lane Keeping Assist System (LKAS)/
Traffic Jam Assist
Interval Button
Button
LKAS Button
CANCEL Button
RES/+/SET/− Switch
23 ACCORD 4D US PET MAP-3130A6000_01.book 328 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分
