HONDA ACCORD 2023 Owners Manual

489
uuIndicator Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
23 ACCORD 4D US PET MAP-3130A6000_01.book 489 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

490
uuIndicator Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reasons for the in dicator to blink
There is a problem with the electric parking brake system.
■What to do when the indicator blinks
Avoid using the parking brake and have your vehicle checked by a dealer
immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator (red) and ABS indicator
come on simultaneously , the electronic brake
distribution system is not wo rking. This can result in
vehicle instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately. 2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 491
U.S.
Canada (Red)
23 ACCORD 4D US PET MAP-3130A6000_01.book 490 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

491
uuIndicator Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On
Handling the Unexpected

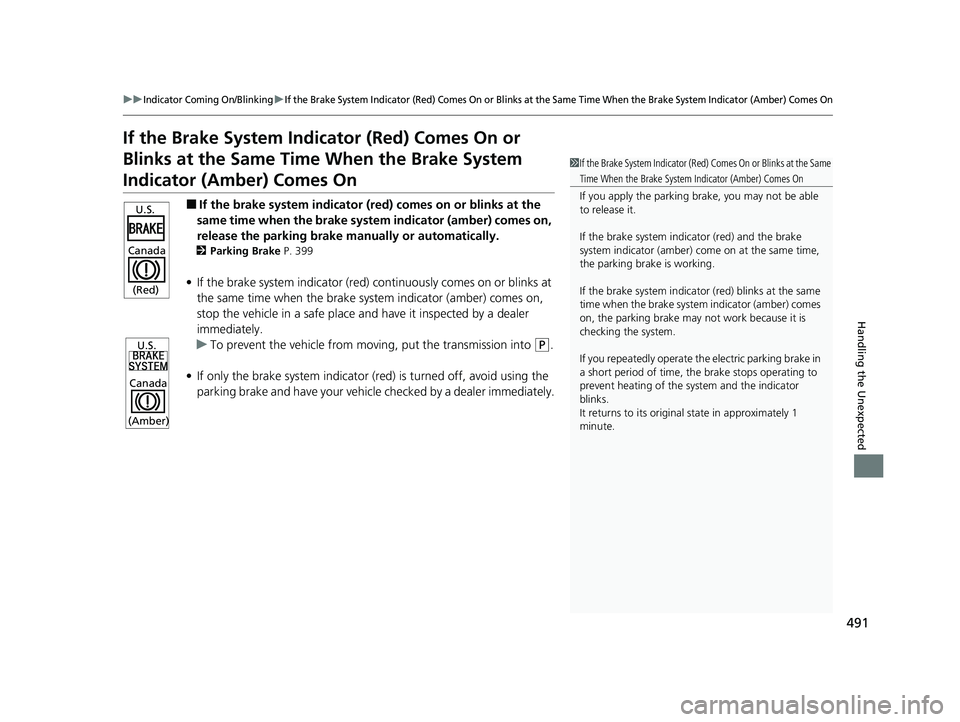

If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On
■If the brake system indicator (red) comes on or blinks at the
same time when the brake syst em indicator (amber) comes on,
release the parking brake ma nually or automatically.
2Parking Brake P. 399
•If the brake system indicator (red) co ntinuously comes on or blinks at
the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place a nd have it inspected by a dealer
immediately.
u To prevent the vehicle from movi ng, put the transmission into
(P.
• If only the brake system indicator (red) is turned off, avoid using the
parking brake and have your vehicle checked by a dealer immediately.
1If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On
If you apply the parking br ake, you may not be able
to release it.
If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.
If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.
U.S.
Canada (Red)
U.S.
Canada
(Amber)
23 ACCORD 4D US PET MAP-3130A6000_01.book 491 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

492
uuIndicator Coming On/Blinking uIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when there is a problem with the EPS system.
■What to do when the indicator comes on
• Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
• If Do not drive displays on the driv er information interface,
immediately stop in a safe place and contact a dealer.
23 ACCORD 4D US PET MAP-3130A6000_01.book 492 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

493
uuIndicator Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks*
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks*
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire is installed, the indicator will either come on or
it will first blink for about one minute, then stay on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 318
If the compact spare tire causes th e indicator to come on, change the
tire to a full-size tire. The indicato r goes off after calibrating the TPMS.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to firs t blink, and then stay on, change the
tire to a full-size tire. The indicato r goes off after calibrating the TPMS.
2TPMS Calibration P. 318
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks*
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 493 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

494
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any app licable fuse is blown.
Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Tab
23 ACCORD 4D US PET MAP-3130A6000_01.book 494 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

495
uuFuses uFuse Locations
Continued
Handling the Unexpected

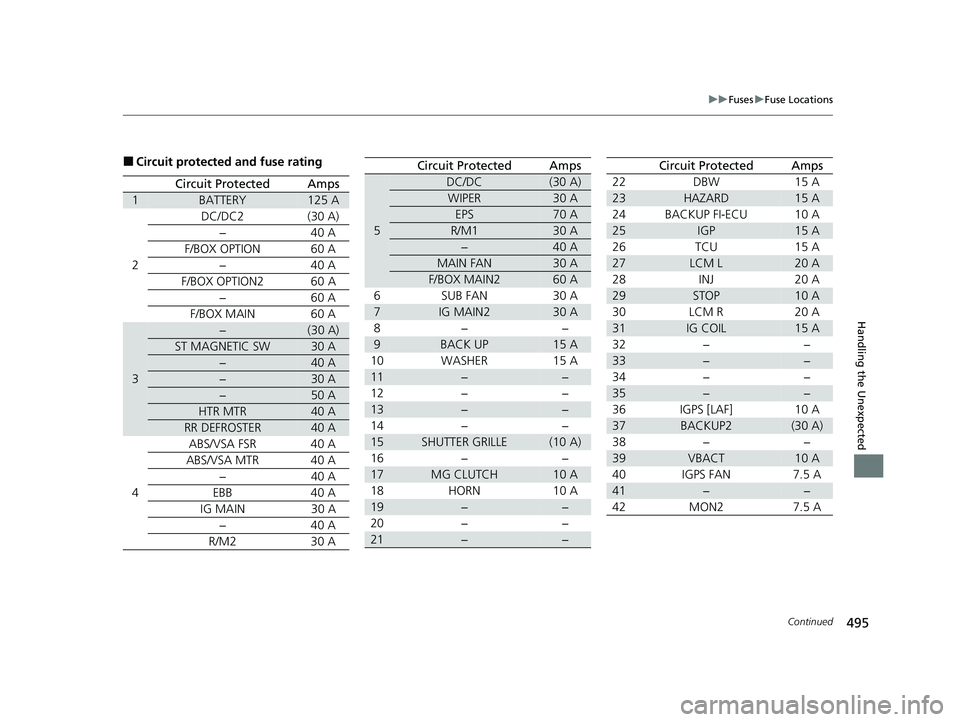

■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY125 A
2 DC/DC2 (30 A)
−40 A
F/BOX OPTION 60 A −40 A
F/BOX OPTION2 60 A −60 A
F/BOX MAIN 60 A
3
−(30 A)
ST MAGNETIC SW30 A
−40 A
−30 A
−50 A
HTR MTR40 A
RR DEFROSTER40 A
4 ABS/VSA FSR 40 A
ABS/VSA MTR 40 A −40 A
EBB 40 A
IG MAIN 30 A −40 A
R/M2 30 A
5
DC/DC(30 A)
WIPER30 A
EPS70 A
R/M130 A
−40 A
MAIN FAN30 A
F/BOX MAIN260 A
6SUB FAN30 A
7IG MAIN230 A
8−−
9BACK UP15 A
10WASHER15 A
11−−
12−−
13−−
14−−
15SHUTTER GRILLE(10 A)
16−−
17MG CLUTCH10 A
18HORN10 A
19−−
20−−
21−−
Circuit ProtectedAmps
22DBW15 A
23HAZARD15 A
24BACKUP FI-ECU10 A
25IGP15 A
26TCU15 A
27LCM L20 A
28INJ20 A
29STOP10 A
30LCM R20 A
31IG COIL15 A
32−−
33−−
34−−
35−−
36IGPS [LAF]10 A
37BACKUP2(30 A)
38−−
39VBACT10 A
40IGPS FAN7.5 A
41−−
42MON27.5 A
Circuit ProtectedAmps
23 ACCORD 4D US PET MAP-3130A6000_01.book 495 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

496
uuFuses uFuse Locations
Handling the Unexpected

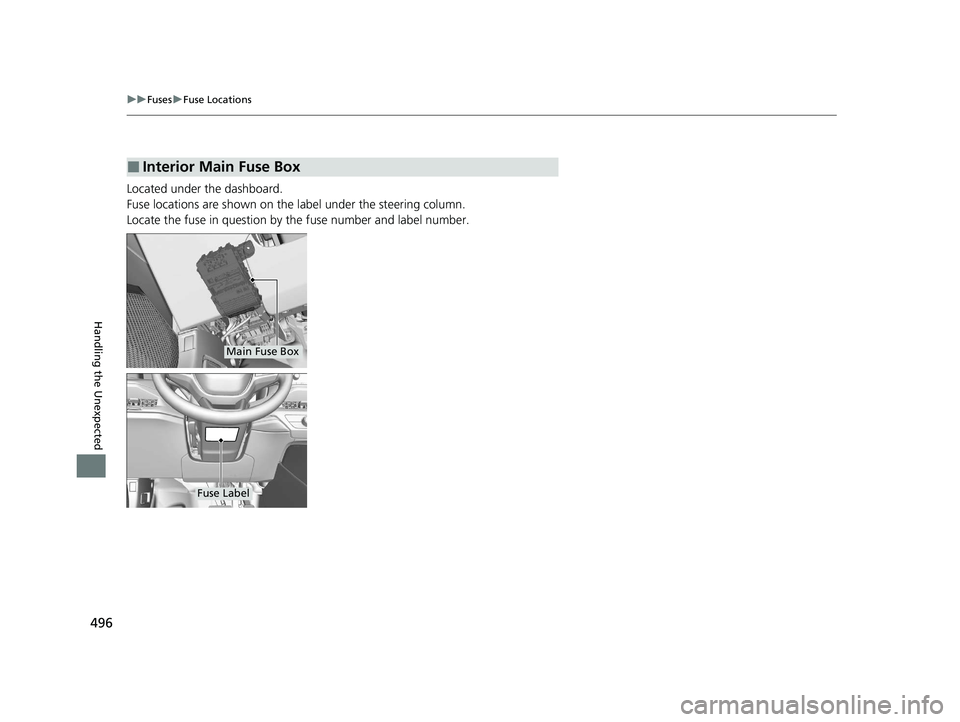

Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.
■Interior Main Fuse Box
Main Fuse Box
Fuse Label
23 ACCORD 4D US PET MAP-3130A6000_01.book 496 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

497
uuFuses uFuse Locations
Continued
Handling the Unexpected

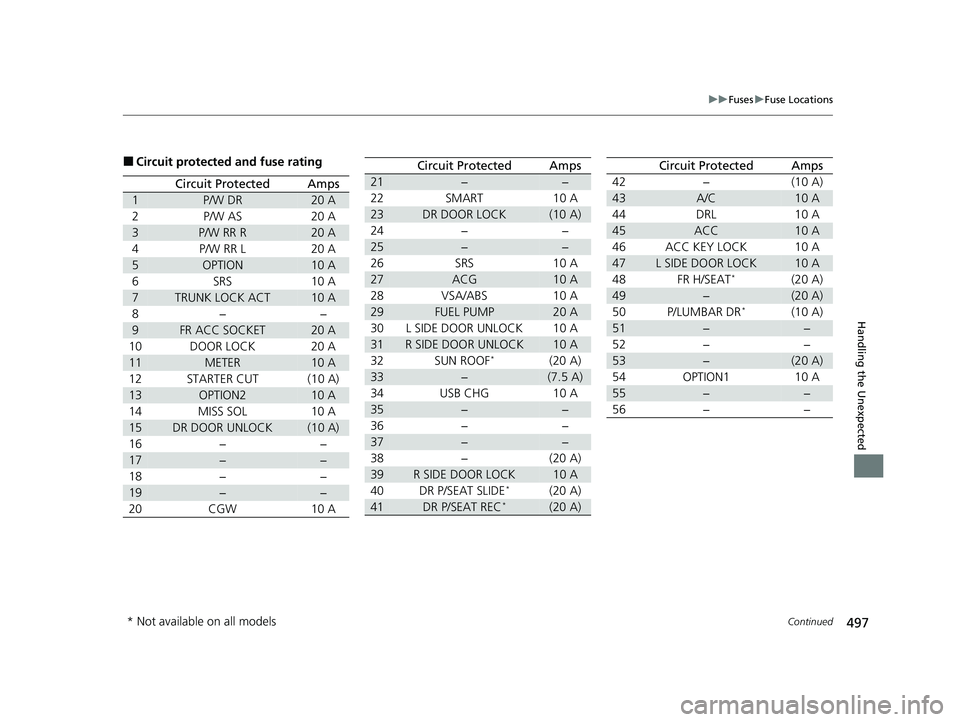

■Circuit protected and fuse rating
Circuit ProtectedAmps
1P/W DR20 A
2P/W AS20 A
3P/W RR R20 A
4P/W RR L20 A
5OPTION10 A
6SRS10 A
7TRUNK LOCK ACT10 A
8−−
9FR ACC SOCKET20 A
10DOOR LOCK20 A
11METER10 A
12STARTER CUT(10 A)
13OPTION210 A
14MISS SOL10 A
15DR DOOR UNLOCK(10 A)
16−−
17−−
18−−
19−−
20CGW10 A
21−−
22SMART10 A
23DR DOOR LOCK(10 A)
24−−
25−−
26SRS10 A
27ACG10 A
28VSA/ABS10 A
29FUEL PUMP20 A
30L SIDE DOOR UNLOCK10 A
31R SIDE DOOR UNLOCK10 A
32SUN ROOF*(20 A)
33−(7.5 A)
34USB CHG10 A
35−−
36−−
37−−
38−(20 A)
39R SIDE DOOR LOCK10 A
40DR P/SEAT SLIDE*(20 A)
41DR P/SEAT REC*(20 A)
Circuit ProtectedAmps
42−(10 A)
43A/C10 A
44DRL10 A
45ACC10 A
46ACC KEY LOCK10 A
47L SIDE DOOR LOCK10 A
48FR H/SEAT*(20 A)
49−(20 A)
50P/LUMBAR DR*(10 A)
51−−
52−−
53−(20 A)
54OPTION110 A
55−−
56−−
Circuit ProtectedAmps
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 497 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

498
uuFuses uFuse Locations
Handling the Unexpected

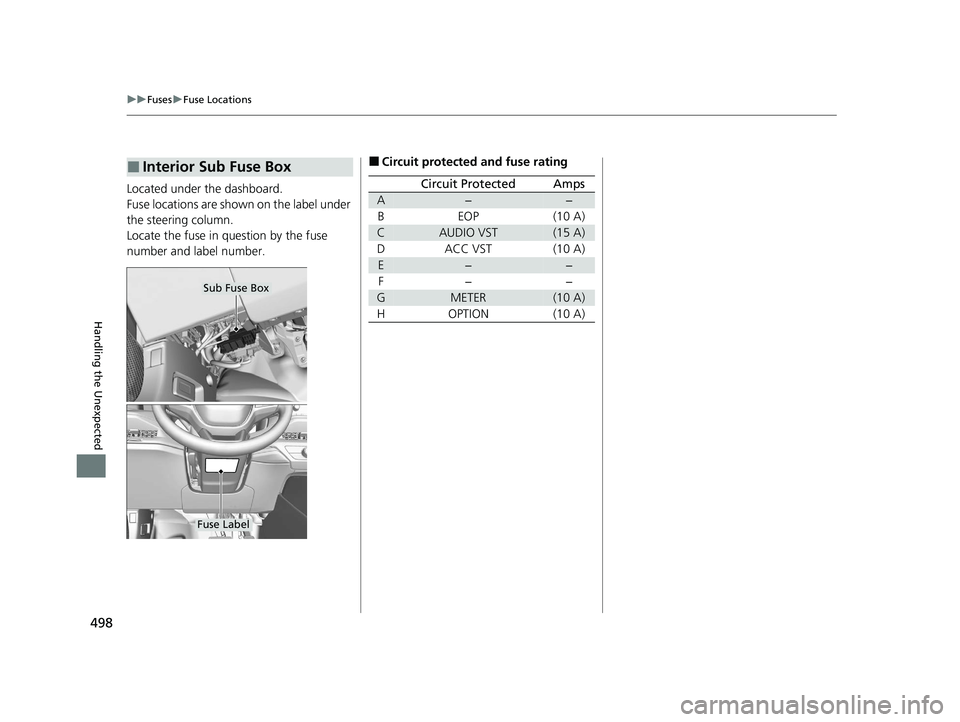

Located under the dashboard.
Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.
■Interior Sub Fuse Box
Sub Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
A−−
BEOP(10 A)
CAUDIO VST(15 A)
DACC VST(10 A)
E−−
F−−
GMETER(10 A)
HOPTION(10 A)
