HONDA ACCORD 2023 Owners Manual

499
uuFuses uInspecting and Changing Fuses
Continued
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the main fuse in the engine
compartment fuse box.
u Look at the fuse through the hole.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 494
Replace a fuse with a spare fuse of the same specified
amperage.
Main Fuse
Hole
23 ACCORD 4D US PET MAP-3130A6000_01.book 499 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuFuses uInspecting and Changing Fuses
500
Handling the Unexpected
4. Check the combined fuses in the engine
compartment fuse box.
u Look into the space between the fuses.
u If the fuse is blown, have it replaced by a
dealer.
5. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
23 ACCORD 4D US PET MAP-3130A6000_01.book 500 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

501
Handling the Unexpected

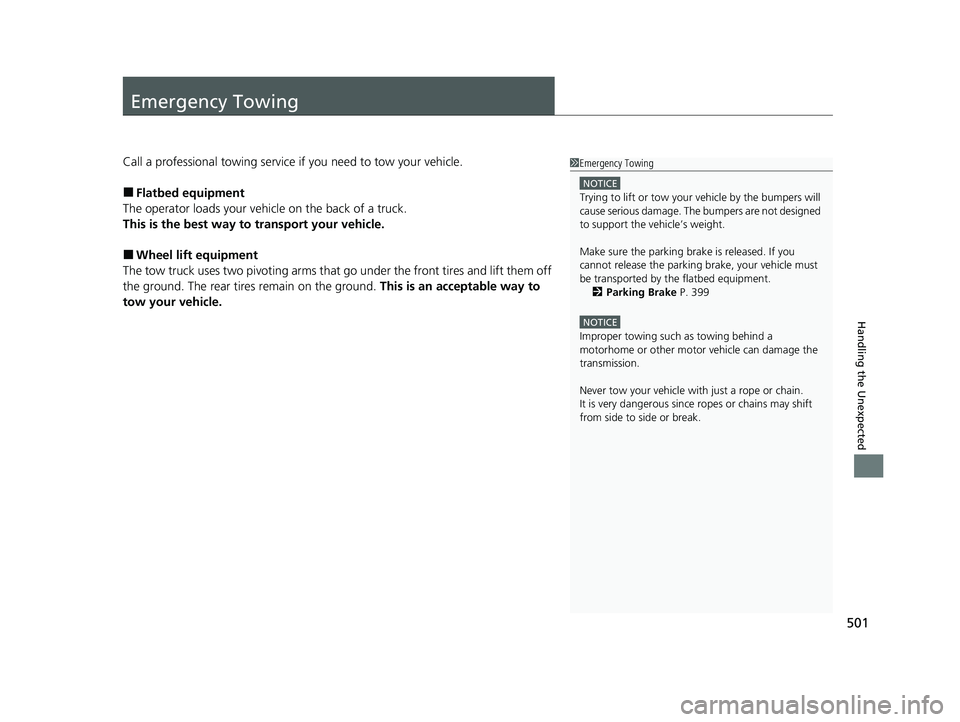

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flatbed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flatbed equipment. 2 Parking Brake P. 399
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
23 ACCORD 4D US PET MAP-3130A6000_01.book 501 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

502
Handling the Unexpected

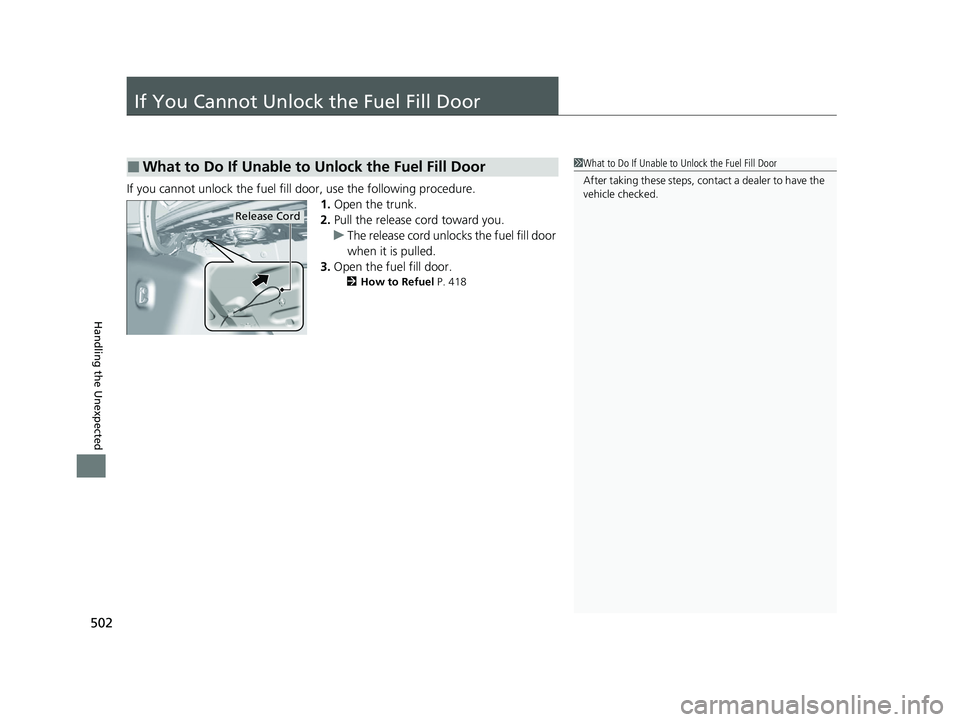

If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the trunk.
2. Pull the release cord toward you.
u The release cord unlocks the fuel fill door
when it is pulled.
3. Open the fuel fill door.
2 How to Refuel P. 418
■What to Do If Unable to Unlock the Fuel Fill Door1What to Do If Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Release Cord
23 ACCORD 4D US PET MAP-3130A6000_01.book 502 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

503Continued
Handling the Unexpected

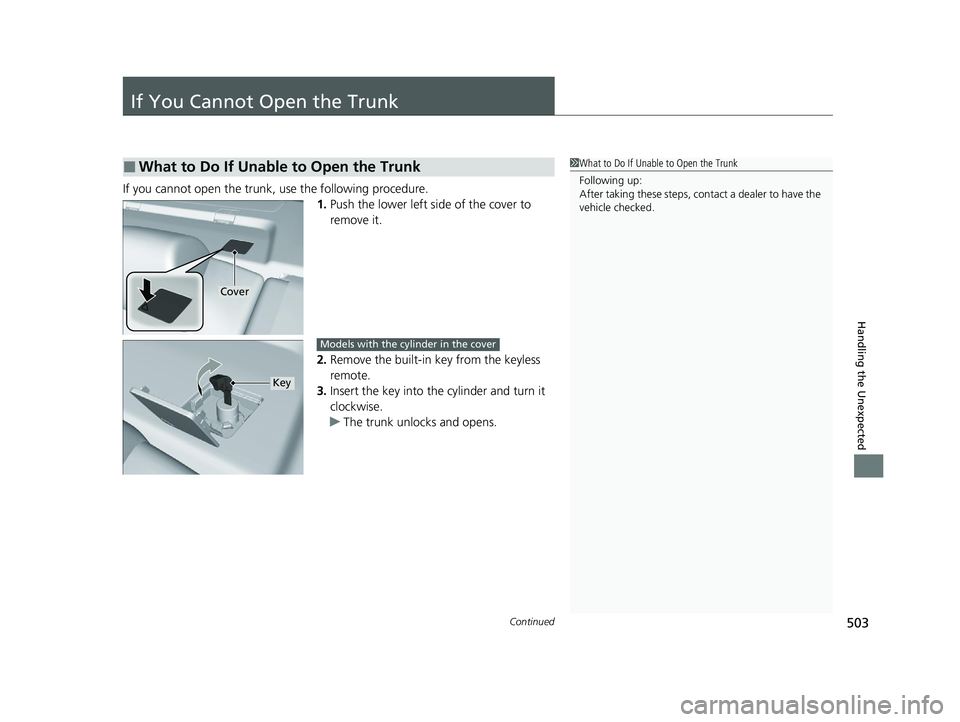

If You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Push the lower left si de of the cover to
remove it.
2. Remove the built-in key from the keyless
remote.
3. Insert the key into th e cylinder and turn it
clockwise.
u The trunk unlocks and opens.
■What to Do If Unable to Open the Trunk1What to Do If Unable to Open the Trunk
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Key
Models with the cylinder in the cover
23 ACCORD 4D US PET MAP-3130A6000_01.book 503 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

504
uuIf You Cannot Open the Trunk u
Handling the Unexpected

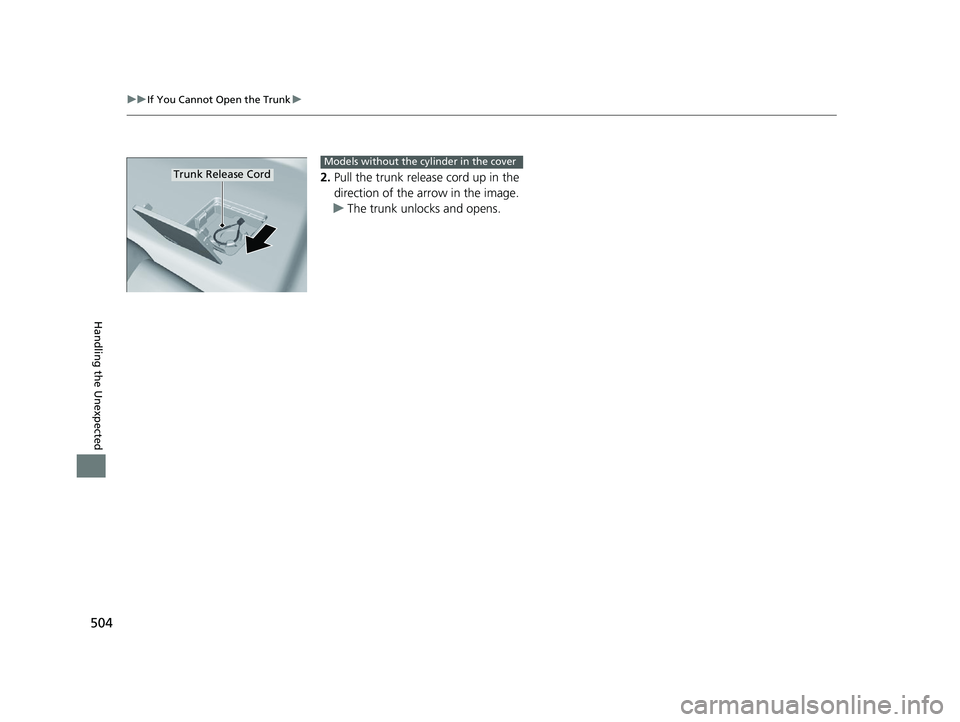

2.Pull the trunk release cord up in the
direction of the arrow in the image.
u The trunk unlocks and opens.Trunk Release CordModels without the cylinder in the cover
23 ACCORD 4D US PET MAP-3130A6000_01.book 504 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

505
Handling the Unexpected

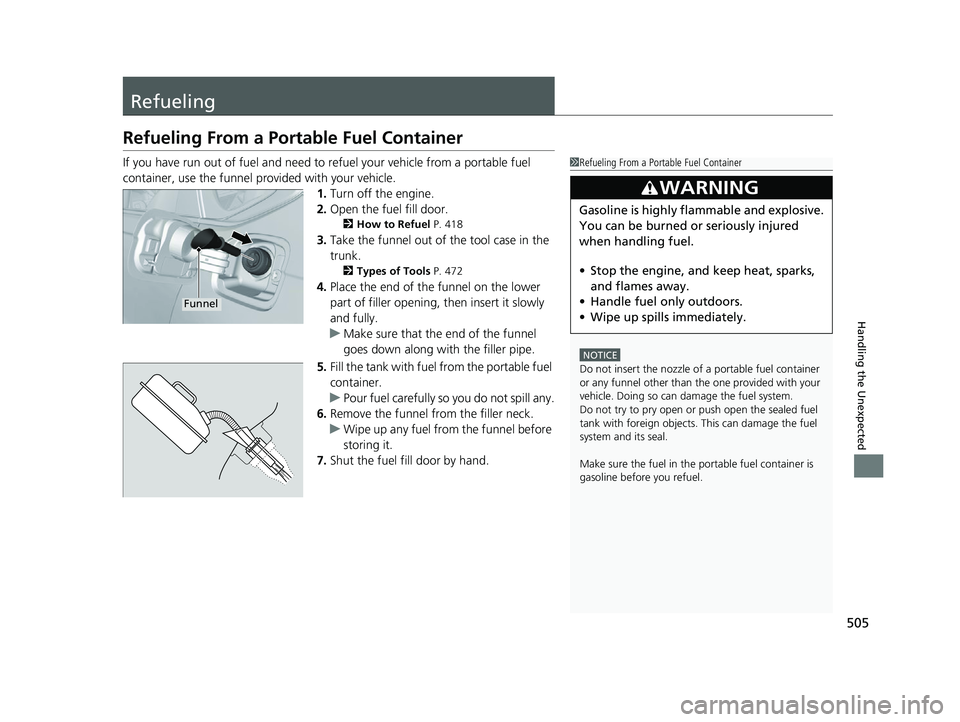

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Open the fuel fill door.
2 How to Refuel P. 418
3.Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 472
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
23 ACCORD 4D US PET MAP-3130A6000_01.book 505 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

506

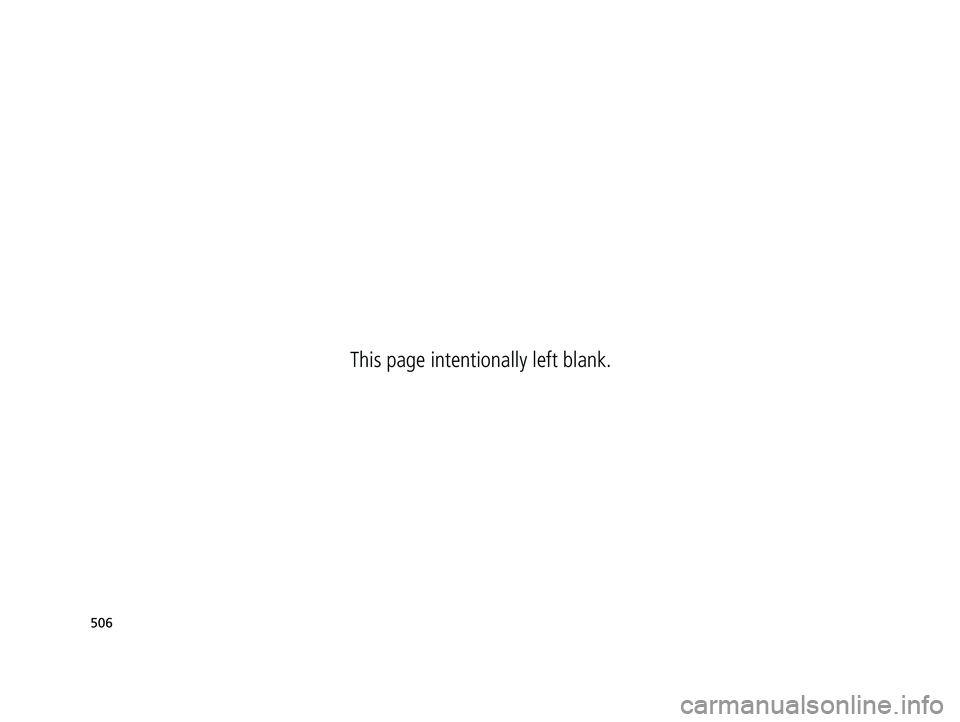

23 ACCORD 4D US PET MAP-3130A6000_01.book 506 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分This page intentionally left blank.

507

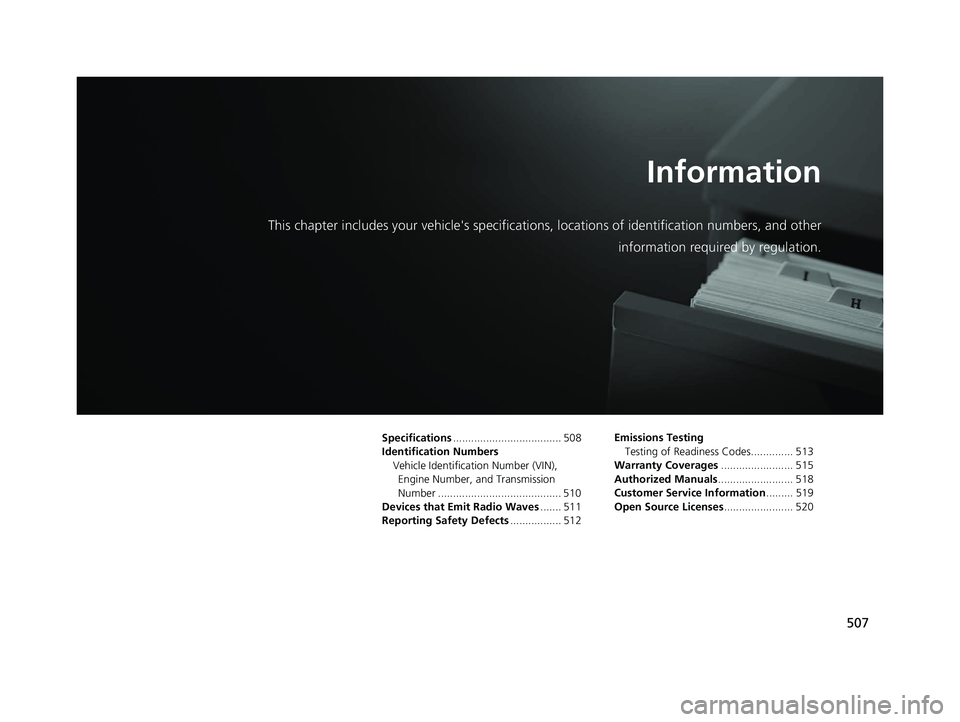

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 508
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 510
Devices that Emit Radio Waves ....... 511
Reporting Safety Defects ................. 512Emissions Testing
Testing of Readiness Codes.............. 513
Warranty Coverages ........................ 515
Authorized Manuals ......................... 518
Customer Service Information ......... 519
Open Source Licenses ....................... 520
23 ACCORD 4D US PET MAP-3130A6000_01.book 507 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

508
Information

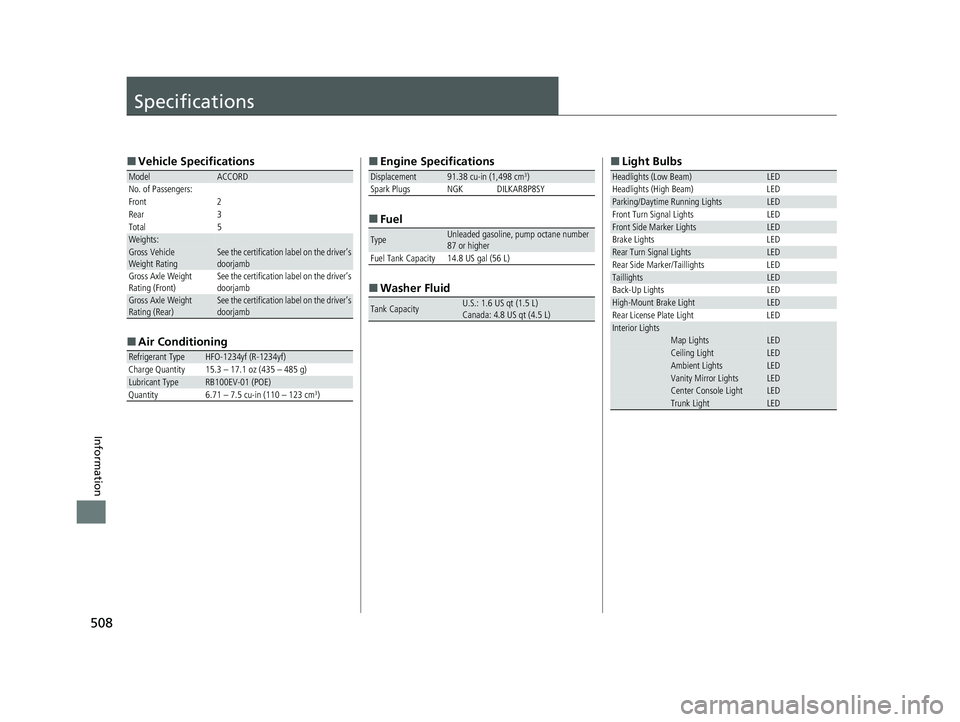

Specifications
■Vehicle Specifications
■ Air Conditioning
ModelACCORD
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 15.3 – 17.1 oz (435 – 485 g)
Lubricant TypeRB100EV-01 (POE)
Quantity 6.71 – 7.5 cu-in (110 – 123 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGK DILKAR8P8SY
TypeUnleaded gasoline, pump octane number
87 or higher
Fuel Tank Capacity 14.8 US gal (56 L)
Tank CapacityU.S.: 1.6 US qt (1.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Parking/Daytime Running LightsLED
Front Turn Signal Lights LED
Front Side Marker LightsLED
Brake Lights LED
Rear Turn Signal LightsLED
Rear Side Marker/Taillights LED
TaillightsLED
Back-Up Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap LightsLEDCeiling LightLEDAmbient LightsLEDVanity Mirror LightsLEDCenter Console LightLEDTrunk LightLED
