buttons HONDA ACCORD 2023 Owners Manual

8
Quick Reference Guide
Quick Reference Guide
Visual Index
❚System Indicators (P84)
❚Gauges (P104)
❚Driver Information Interface (P108, 111)
❚ENGINE START/STOP Button (P164)
❚Climate Control System (P199)
❚ Rear Defogger (P177)
❚ Heated Door Mirror Button* (P177)
❚ Hazard Warning Button
❚ Front Seat Heater Buttons* (P198)
❚Audio System (P206)
23 ACCORD 4D US PET MAP-3130A6000_01.book 8 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

9

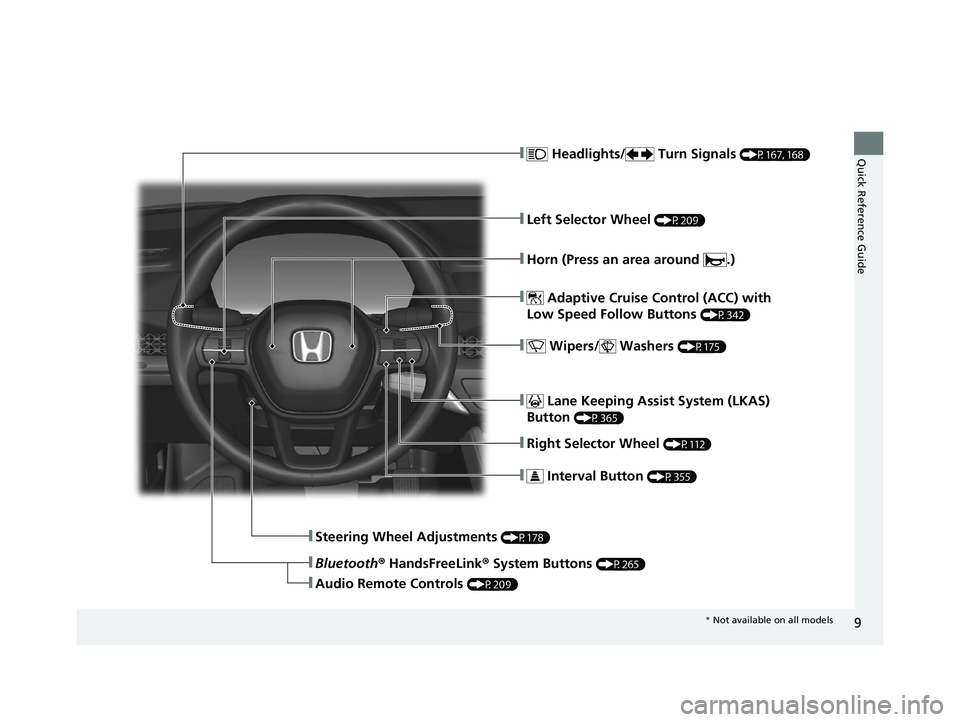

Quick Reference Guide❚ Headlights/ Turn Signals (P167, 168)
❚Left Selector Wheel (P209)
❚ Adaptive Cruise Control (ACC) with
Low Speed Follow Buttons
(P342)
❚ Wipers/ Washers (P175)
❚ Lane Keeping Assist System (LKAS)
Button
(P365)
❚ Interval Button (P355)
❚Steering Wheel Adjustments (P178)
❚Right Selector Wheel (P112)
❚Bluetooth ® HandsFreeLink ® System Buttons (P265)
❚Audio Remote Controls (P209)
❚Horn (Press an area around .)
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 9 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

22
Quick Reference Guide
Features (P205)
Audio Remote Controls
(P209)
●VOL(+ / VOL(- (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
USB flash drive:
Press and hold / to change a
folder.
Left Selector Wheel
/ (Seek/Skip) Buttons
VOL(
+/VOL(- (Volume) Switch
●Left Selector Wheel
Roll up or down: To cycle through the
modes, roll up or down and then press
the left selector wheel:
Back
AM
USB
Bluetooth ® Audio
Smartphone
(Apple CarPlay/Android Auto)
Customize display
Phone
FM
23 ACCORD 4D US PET MAP-3130A6000_01.book 22 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

23
Quick Reference Guide

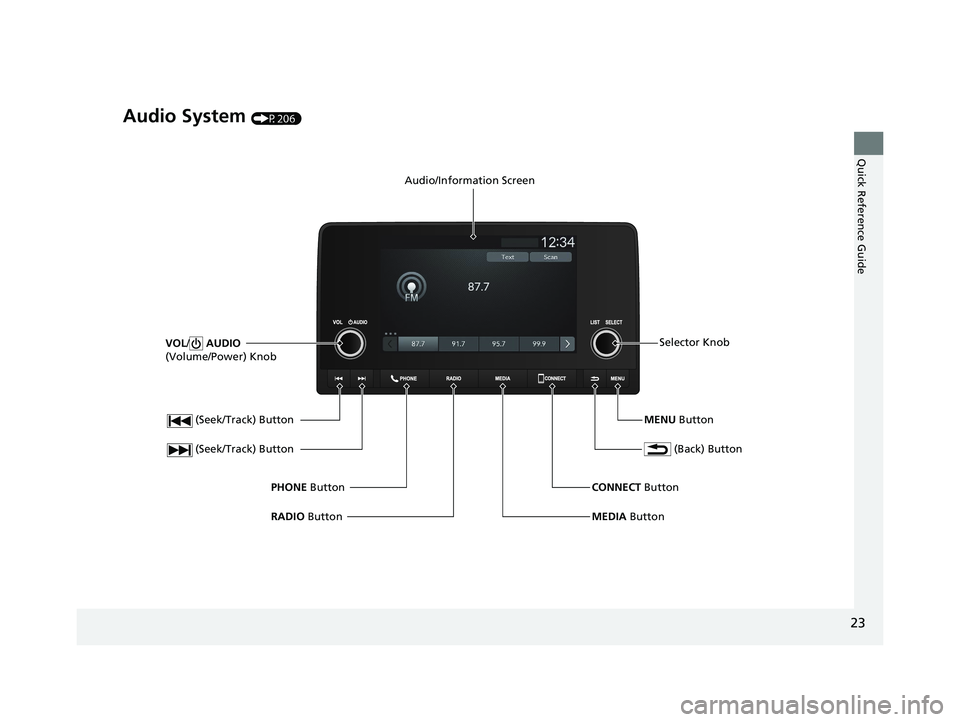

Audio System (P206)
(Seek/Track) Button
RADIO Button
PHONE
Button
(Seek/Track) Button
VOL
/ AUDIO
(Volume/Power) Knob
Audio/Information Screen
(Back) Button
MENU ButtonSelector Knob
MEDIA Button
CONNECT
Button
23 ACCORD 4D US PET MAP-3130A6000_01.book 23 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

83
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 84
Gauges and Driver Information Interface Gauges ............................................ 104
Driver Information Interface (Left Side Area) ............................................. 108
Driver Information Interface (Right Side Area) ............................................. 111
23 ACCORD 4D US PET MAP-3130A6000_01.book 83 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

199Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
dial.
3. Press the (ON/OFF) button to cancel.1Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The auto button indicator
*/AUTO indicator* will go
off, but functions unrelated to the button that was
pressed will be cont rolled automatically.
During idle-stops, air-conditioning is suspended, and
only the blower remains active.
If you do not want air-cond itioning suspended, press
the Auto Idle Stop OFF button to cancel idle-stop.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.Models with SYNC button
Floor and
defroster
vents
Floor vents
Dashboard
and floor
vents
Dashboard
vents
AUTO Button
Driver’s Side
Temperature
Control Dial
(Recirculation)
Button
Fan Control Dial
A/C (Air Conditioning)
Button Passenger’s Side
Temperature
Control Dial
(ON/OFF) Button
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 199 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

206
Features

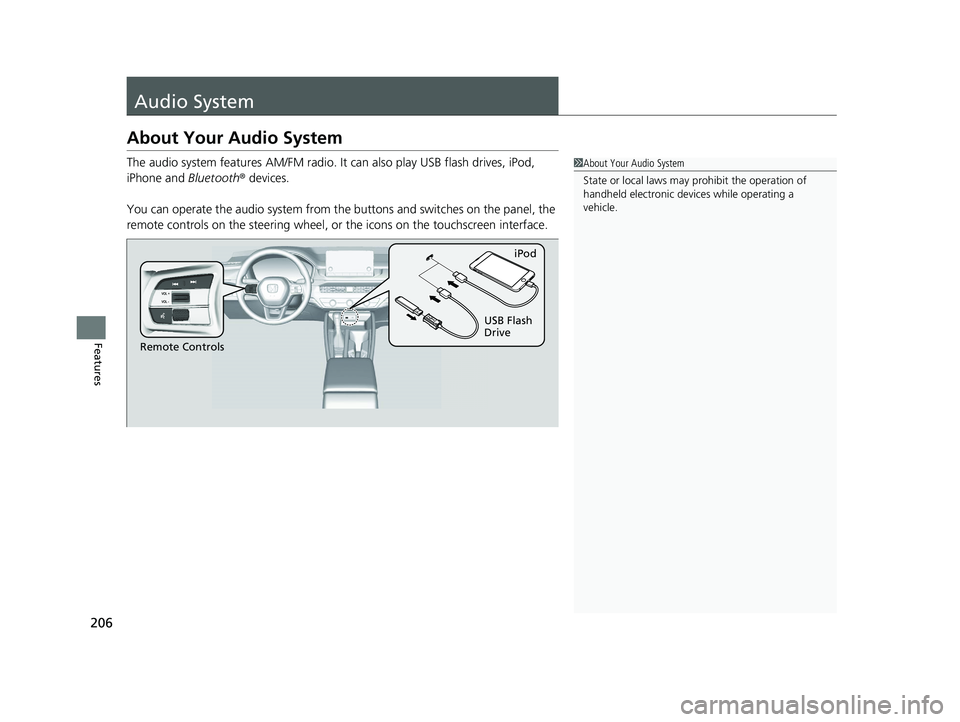

Audio System
About Your Audio System
The audio system features AM/FM radio. It can also play USB flash drives, iPod,
iPhone and Bluetooth ® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface.1 About Your Audio System
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
Remote Controls iPod
USB Flash
Drive
23 ACCORD 4D US PET MAP-3130A6000_01.book 206 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

209
uuAudio System uAudio Remote Controls
Continued
Features

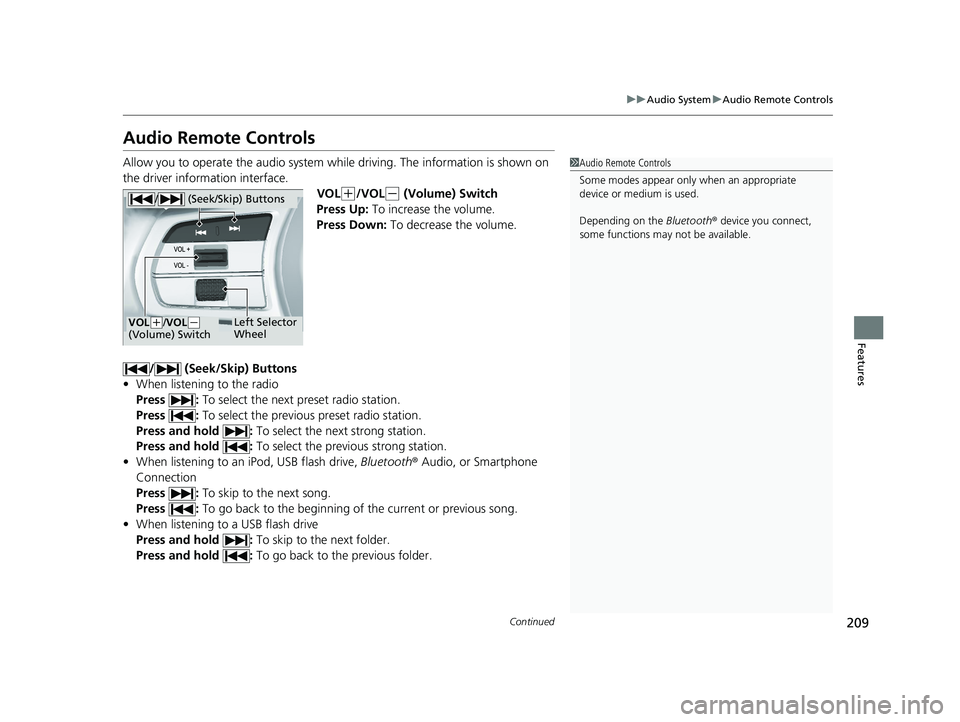

Audio Remote Controls
Allow you to operate the audio system whil e driving. The information is shown on
the driver information interface. VOL
(+/VOL(- (Volume) Switch
Press Up: To increase the volume.
Press Down: To decrease the volume.
/ (Seek/Skip) Buttons
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next strong station.
Press and hold : To select the previous strong station.
• When listening to an iPod, USB flash drive, Bluetooth® Audio, or Smartphone
Connection
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
• When listening to a USB flash drive
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
1Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions may not be available.
/ (Seek/Skip) Buttons
Left Selector
WheelVOL(+/VOL(-
(Volume) Switch
23 ACCORD 4D US PET MAP-3130A6000_01.book 209 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

211
Features

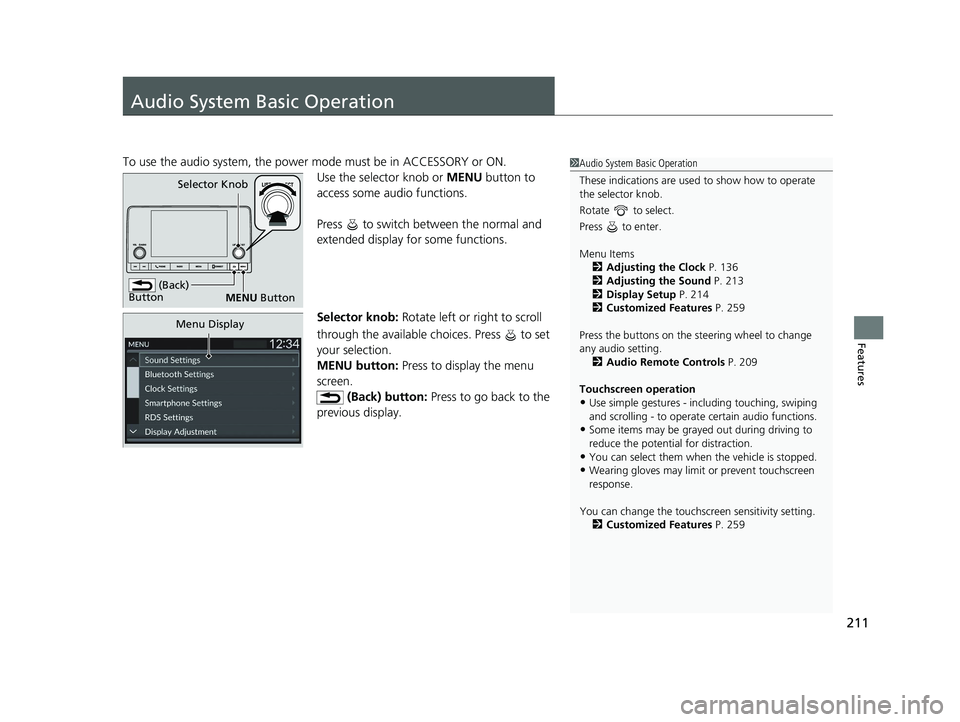

Audio System Basic Operation
To use the audio system, the power mode must be in ACCESSORY or ON.Use the selector knob or MENU button to
access some au dio functions.
Press to switch between the normal and
extended display fo r some functions.
Selector knob: Rotate left or right to scroll
through the available choices. Press to set
your selection.
MENU button: Press to display the menu
screen.
(Back) button: Press to go back to the
previous display.1 Audio System Basic Operation
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Menu Items 2 Adjusting the Clock P. 136
2 Adjusting the Sound P. 213
2 Display Setup P. 214
2 Customized Features P. 259
Press the buttons on the steering wheel to change
any audio setting. 2 Audio Remote Controls P. 209
Touchscreen operation
•Use simple gestures - in cluding touching, swiping
and scrolling - to operate certain audio functions.
•Some items may be grayed out during driving to
reduce the potential for distraction.
•You can select them when the vehicle is stopped.•Wearing gloves may limit or prevent touchscreen
response.
You can change the touchs creen sensitivity setting.
2 Customized Features P. 259
(Back)
Button
Selector Knob
MENU Button
Menu Display
23 ACCORD 4D US PET MAP-3130A6000_01.book 211 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

215
uuAudio System Basic Operation uPlaying AM/FM Radio
Continued
Features

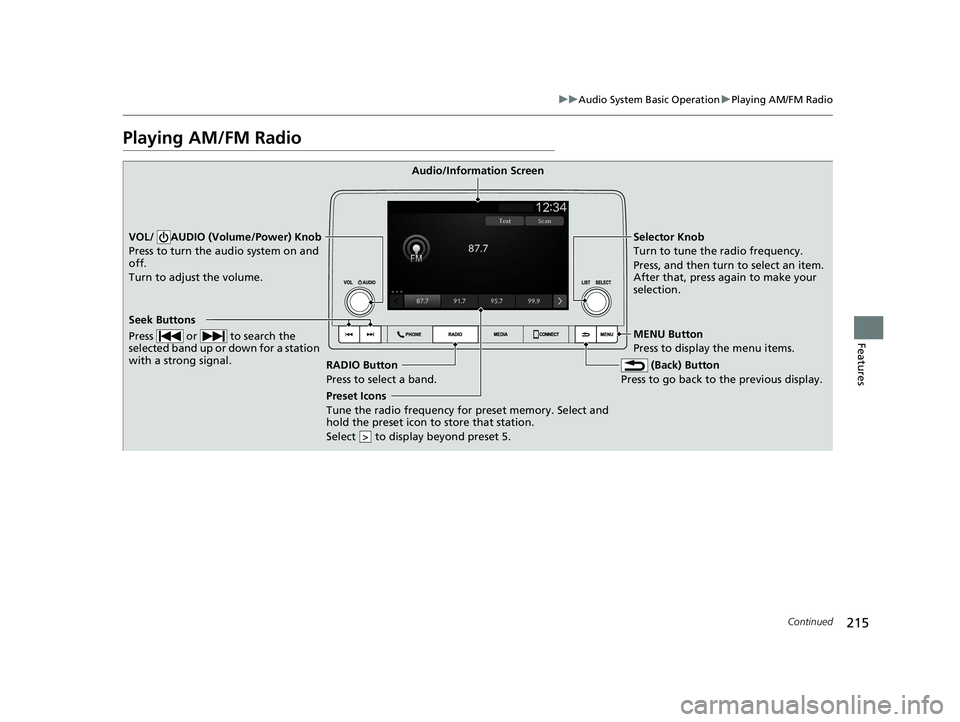

Playing AM/FM Radio
RADIO Button
Press to select a band. (Back) Button
Press to go back to the previous display.
Seek Buttons
Press or to search the
selected band up or down for a station
with a strong signal.
VOL/ AUDIO (Volume/Power) Knob
Press to turn the audio system on and
off.
Turn to adjust the volume.Selector Knob
Turn to tune the radio frequency.
Press, and then turn to select an item.
After that, press again to make your
selection.
MENU Button
Press to display the menu items.
Audio/Information Screen
Preset Icons
Tune the radio frequency for preset

memory. Select and
hold the preset icon to store that station.
Select to display beyond preset 5.
>
23 ACCORD 4D US PET MAP-3130A6000_01.book 215 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分
