spark plugs replace HONDA ACCORD 2023 Owners Manual

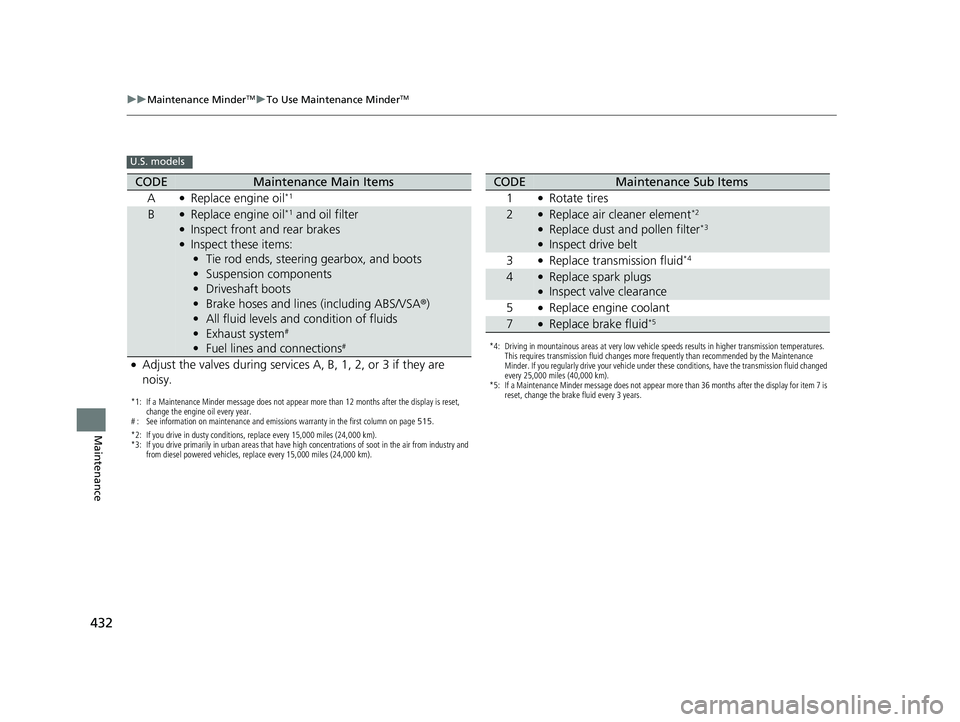

432
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 515.
*2: If you drive in dusty conditions, replace every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel powered vehicles, replace every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
●Adjust the valves during services A, B, 1, 2, or 3 if they are
noisy.
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
23 ACCORD 4D US PET MAP-3130A6000_01.book 432 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

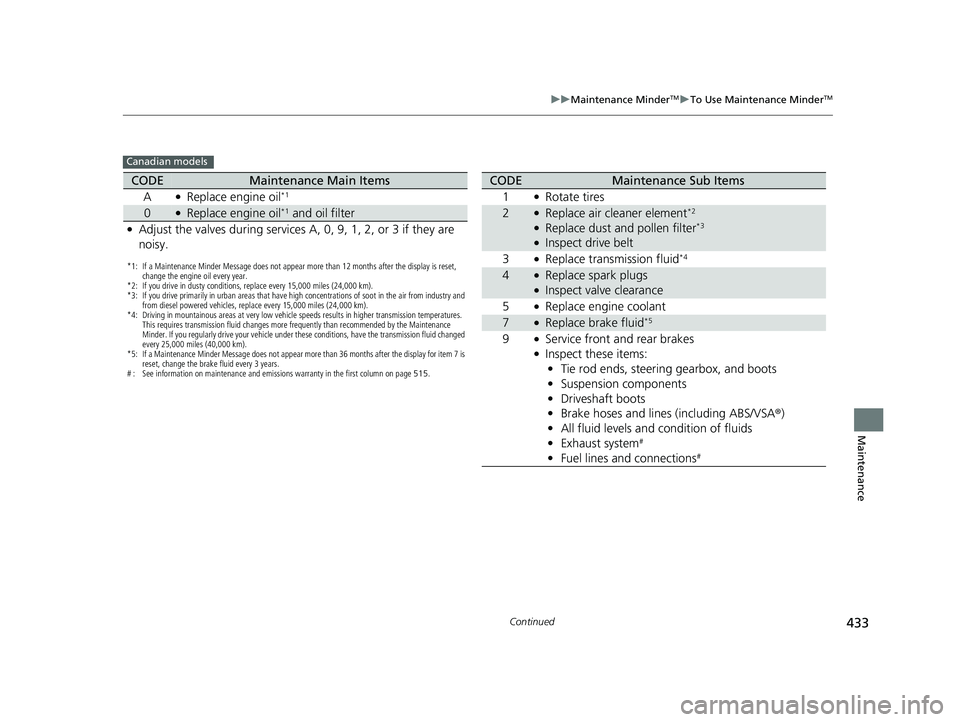

433
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
Canadian models
*1: If a Maintenance Minder Message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel powered vehicles, replace every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder Message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 515.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
●Adjust the valves during services A, 0, 9, 1, 2, or 3 if they are
noisy.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
23 ACCORD 4D US PET MAP-3130A6000_01.book 433 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

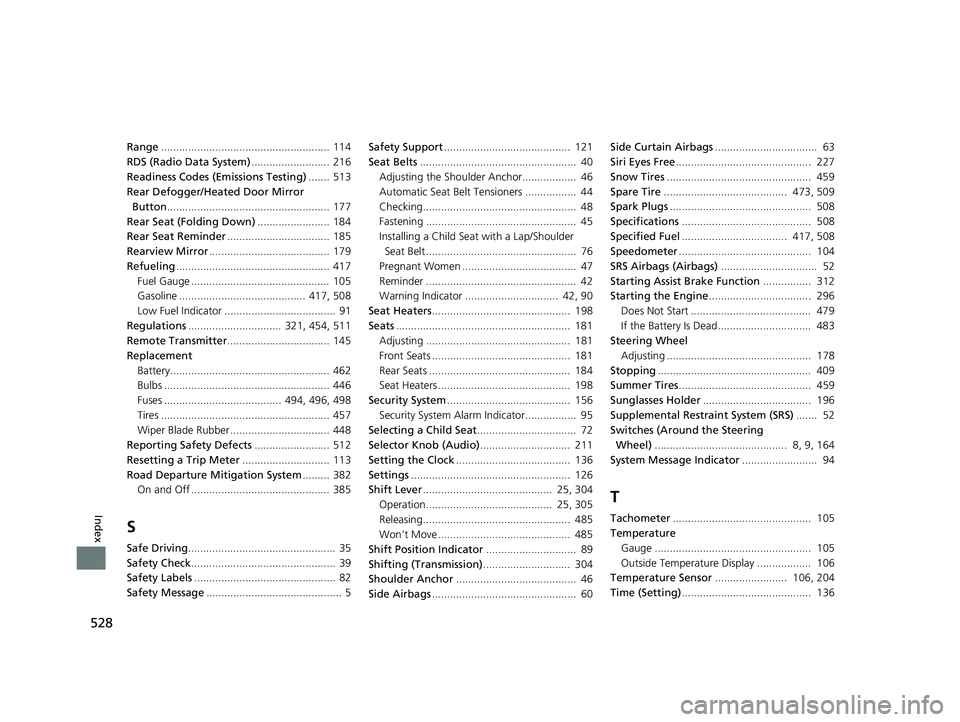

528
Index
Range........................................................ 114
RDS (Radio Data System) .......................... 216
Readiness Codes (Emissions Testing) ....... 513
Rear Defogger/Heated Door Mirror Button ...................................................... 177
Rear Seat (Folding Down) ........................ 184
Rear Seat Reminder .................................. 185
Rearview Mirror ........................................ 179
Refueling ................................................... 417
Fuel Gauge .............................................. 105
Gasoline .......................................... 417, 508
Low Fuel Indicator ..................................... 91
Regulations ............................... 321, 454, 511
Remote Transmitter .................................. 145
Replacement Battery..................................................... 462
Bulbs ....................................................... 446
Fuses ....................................... 494, 496, 498
Tires ........................................................ 457
Wiper Blade Rubber ................................. 448
Reporting Safety Defects ......................... 512
Resetting a Trip Meter ............................. 113
Road Departure Mitigation System ......... 382
On and Off .............................................. 385
S
Safe Driving ................................................. 35
Safety Check ................................................ 39
Safety Labels ............................................... 82
Safety Message ............................................. 5 Safety Support
.......................................... 121
Seat Belts .................................................... 40
Adjusting the Shoulder Anchor.................. 46
Automatic Seat Belt Tensioners ................. 44
Checking................................................... 48
Fastening .................................................. 45
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 76
Pregnant Women ...................................... 47
Reminder .................................................. 42
Warning Indicator ............................... 42, 90
Seat Heaters .............................................. 198
Seats .......................................................... 181
Adjusting ................................................ 181
Front Seats .............................................. 181
Rear Seats ............................................... 184
Seat Heaters ............................................ 198
Security System ......................................... 156
Security System Alarm Indicator................. 95
Selecting a Child Seat ................................. 72
Selector Knob (Audio) .............................. 211
Setting the Clock ...................................... 136
Settings ..................................................... 126
Shift Lever ........................................... 25, 304
Operation.......................................... 25, 305
Releasing................................................. 485
Won’t Move ............................................ 485
Shift Position Indicator .............................. 89
Shifting (Transmission) ............................. 304
Shoulder Anchor ........................................ 46
Side Airbags ................................................ 60 Side Curtain Airbags
.................................. 63
Siri Eyes Free ............................................. 227
Snow Tires ................................................ 459
Spare Tire ......................................... 473, 509
Spark Plugs ............................................... 508
Specifications ........................................... 508
Specified Fuel ................................... 417, 508
Speedometer ............................................ 104
SRS Airbags (Airbags) ................................ 52
Starting Assist Brake Function ................ 312
Starting the Engine .................................. 296
Does Not Start ........................................ 479
If the Battery Is Dead............................... 483
Steering Wheel
Adjusting ................................................ 178
Stopping ................................................... 409
Summer Tires ............................................ 459
Sunglasses Holder .................................... 196
Supplemental Restraint System (SRS) ....... 52
Switches (Around the Steering Wheel) ............................................ 8, 9, 164
System Message Indicator ......................... 94
T
Tachometer.............................................. 105
Temperature
Gauge .................................................... 105
Outside Temperature Display .................. 106
Temperature Sensor ........................ 106, 204
Time (Setting) ........................................... 136
