stop start HONDA ACCORD 2023 Owners Manual

8
Quick Reference Guide
Quick Reference Guide
Visual Index
❚System Indicators (P84)
❚Gauges (P104)
❚Driver Information Interface (P108, 111)
❚ENGINE START/STOP Button (P164)
❚Climate Control System (P199)
❚ Rear Defogger (P177)
❚ Heated Door Mirror Button* (P177)
❚ Hazard Warning Button
❚ Front Seat Heater Buttons* (P198)
❚Audio System (P206)
23 ACCORD 4D US PET MAP-3130A6000_01.book 8 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

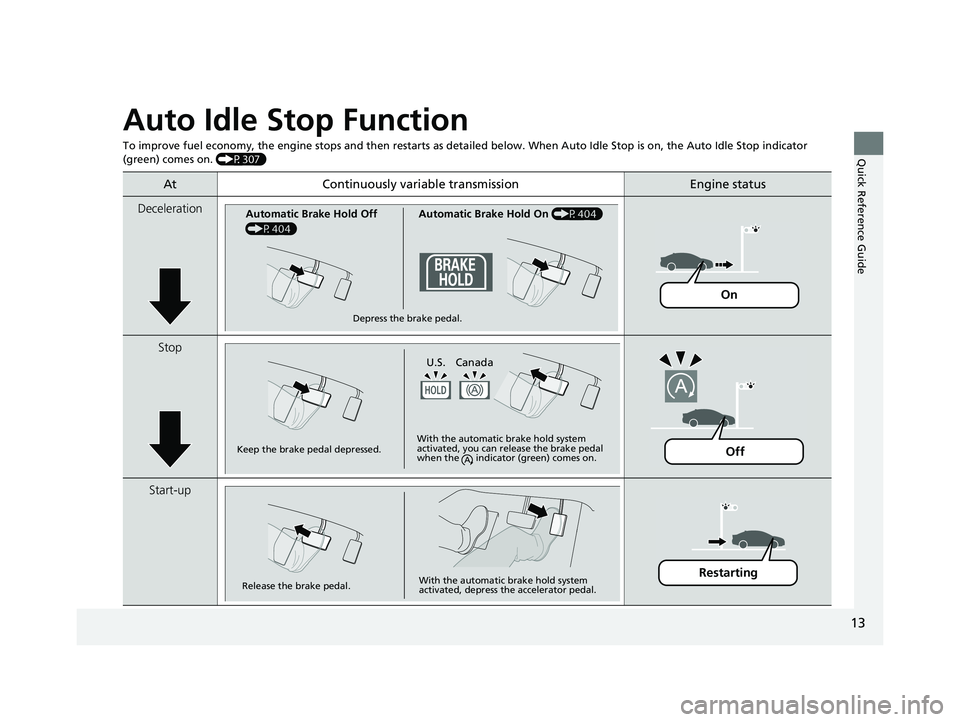

13
Quick Reference Guide
Auto Idle Stop Function
To improve fuel economy, the engine stops and then restarts as detailed below. When Auto Idle Stop is on, the Auto Idle Stop in dicator
(green) comes on. (P307)
At Continuously variable transmissionEngine status
Deceleration
Stop
Start-up
Automatic Brake Hold Off
(P404) Automatic Brake Hold On
(P404)
Depress the brake pedal.
On
Keep the brake pedal depressed. With the automatic brake hold system
activated, you can release the brake pedal
when the indicator (green) comes on.
Canada
U.S.
Off
Release the brake pedal. With the automatic brake hold system
activated, depress the accelerator pedal.Restarting
23 ACCORD 4D US PET MAP-3130A6000_01.book 13 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

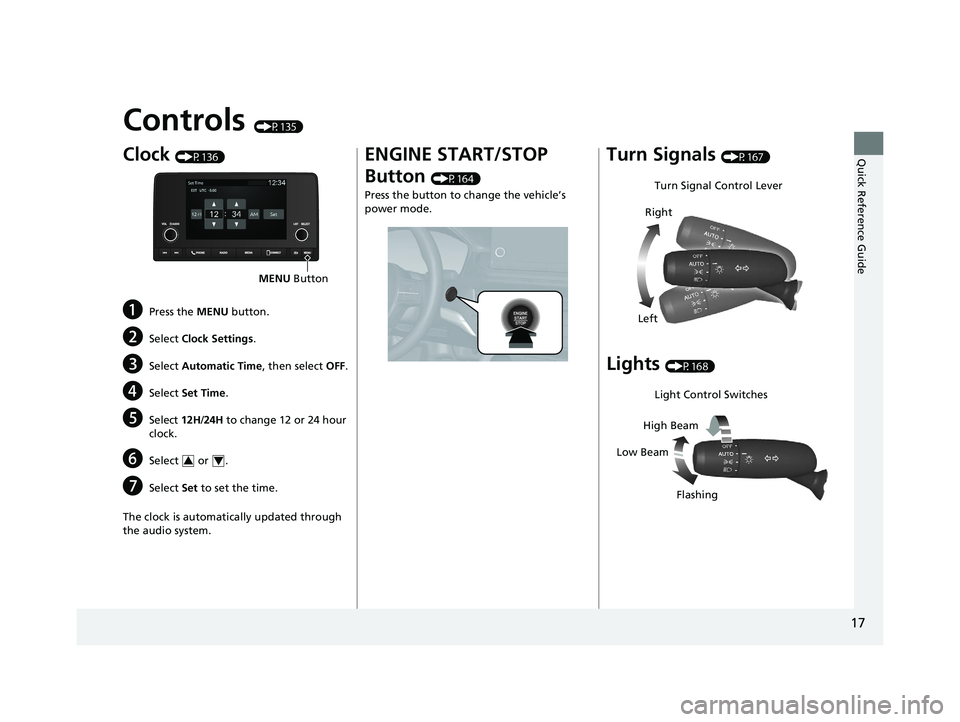

17
Quick Reference Guide
Controls (P135)
Clock (P136)
aPress the MENU button.
bSelect Clock Settings .
cSelect Automatic Time , then select OFF.
dSelect Set Time .
eSelect 12H/24H to change 12 or 24 hour
clock.
fSelect or .
gSelect Set to set the time.
The clock is automatically updated through
the audio system.
MENU Button
34
ENGINE START/STOP
Button
(P164)
Press the button to ch ange the vehicle’s
power mode.
Turn Signals (P167)
Lights (P168)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
23 ACCORD 4D US PET MAP-3130A6000_01.book 17 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

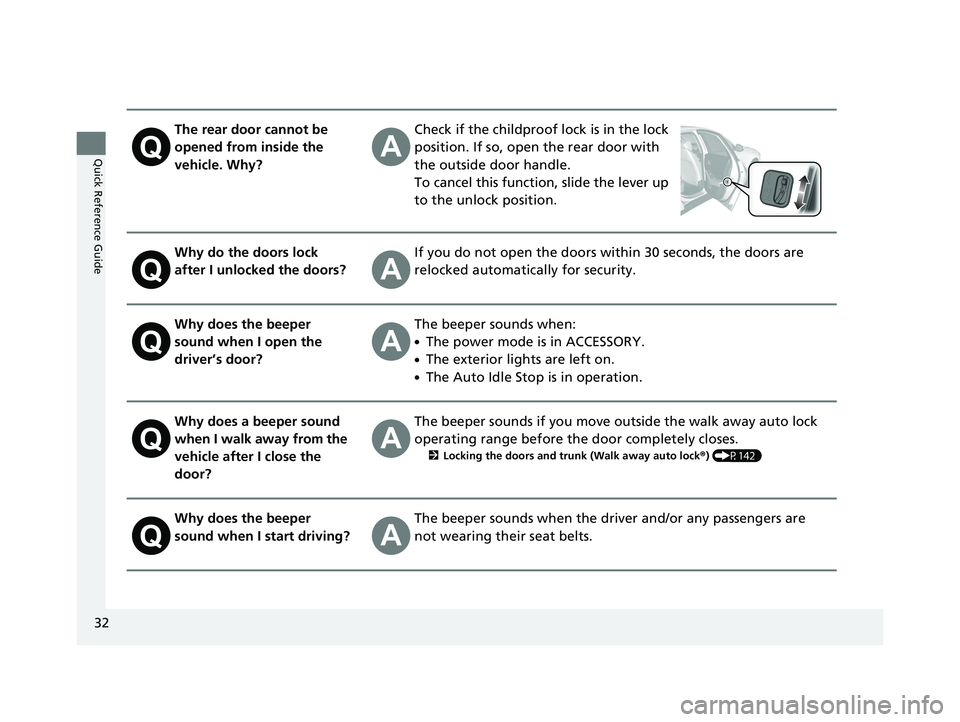

32
Quick Reference Guide
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the lock
position. If so, open the rear door with
the outside door handle.
To cancel this function, slide the lever up
to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
●The Auto Idle Stop is in operation.
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and trunk (Walk away auto lock ®) (P142)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or any passengers are
not wearing their seat belts.
23 ACCORD 4D US PET MAP-3130A6000_01.book 32 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

85
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, ther e may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.
Auto High-Beam
Indicator
Low Tire Pressure/
TPMS Indicator*
Turn Signal and
Hazard Warning
Indicators
Lights On
Indicator
High Beam
Indicator
System Message
Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator
(Amber)
Lane Keeping Assist
System (LKAS) Indicator
(Amber)
Safety Support
Indicator (Green/Gray)

P. 93
A
uto Idle Stop System
Indi
cator (Amber) 
P. 96
 P. 94 
P. 98
*1
 P. 94
 P. 94

P. 94
Immobilizer System
Indica
tor 
P. 95
Se
curity System Alarm
Indica
tor 
P. 95
 P. 94 
P. 99
 P. 103
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator
(White/Green)
 P. 98
*1
Lane Keeping Assist
System (LKAS) Indicator
(White/Green) 
P. 99*1
*1
Safety Support
Indicator (Amber)
P. 100
*1
ECON Mode
Indicator 
P. 95
Auto Idle Stop OFF
Indicator 
P. 96
Aut
o Idle Stop
Sus
pend Indicator P. 97
Cruise Mode Indicator
(W

hite/Green) 
P. 99
Adaptive Cruise Control
(ACC) with Low Speed
Follow Interval
Indicator 
P. 99
Auto Idle Stop
Indicator (Green) 
P. 96
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 85 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

135
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 136
Locking and Unlocking the Doors Key .................................................. 137
Low Keyless Remote Signal Strength ... 139
Locking/Unlocking the Doors from the Outside .......................................... 140
Locking/Unlocking the Doors from the Inside ............................................. 149
Childproof Door Locks ..................... 151
Auto Door Locking/Unlocking .......... 152
Opening and Closing the Trunk ....... 153Security System
Immobilizer System .......................... 156
Security System Alarm...................... 156
Windows ........................................... 159
Moonroof
*........................................ 162
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 164
Turn Signals ..................................... 167
Light Switches.................................. 168
Daytime Running Lights ................... 171
Auto High-Beam .............................. 172 Wipers and Washers ........................ 175
Rear Defogger/Heated Door Mirror
*
Button ........................................... 177
Adjusting the Steering Wheel .......... 178
Mirrors Interior Rearview Mirror ................... 179
Power Door Mirrors ......................... 180
Seats .................................................. 181
Interior Convenience Items .............. 190
Climate Control System Using Automatic Climate Control .... 199
Automatic Climate Control Sensors ... 204
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 135 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

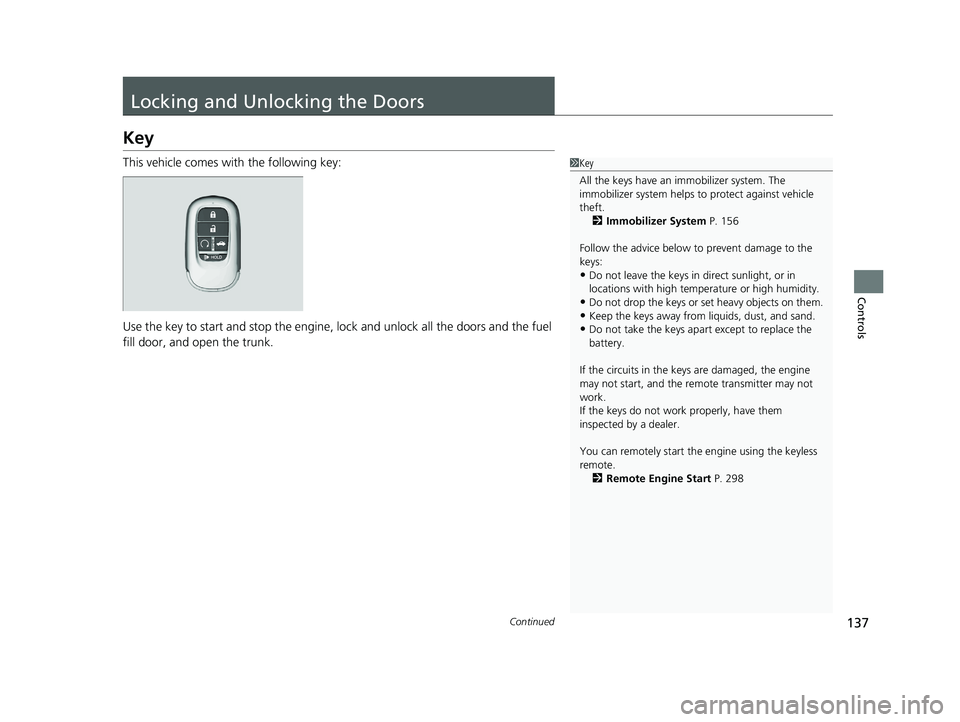

137Continued
Controls
Locking and Unlocking the Doors
Key
This vehicle comes with the following key:
Use the key to start and stop the engine, lock and unlock all the doors and the fuel
fill door, and open the trunk.1 Key
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 156
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust, and sand.
•Do not take the keys apart except to replace the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start th e engine using the keyless
remote. 2 Remote Engine Start P. 298
23 ACCORD 4D US PET MAP-3130A6000_01.book 137 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

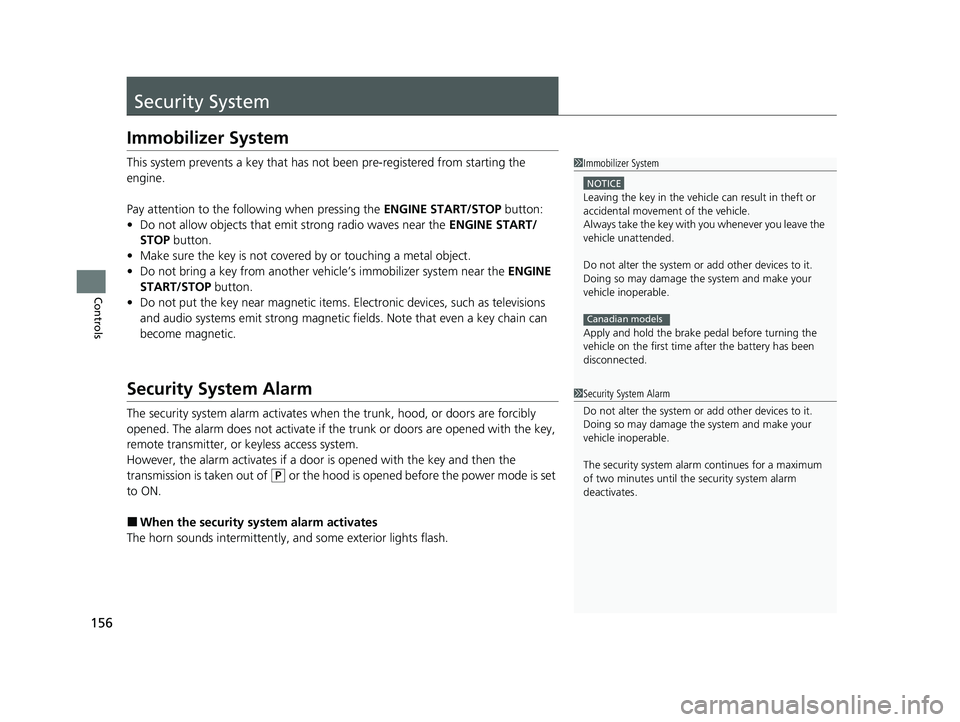

156
Controls
Security System
Immobilizer System
This system prevents a key that has not been pre-registered from starting the
engine.
Pay attention to the follo wing when pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ENGINE START/
STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehi cle’s immobilizer system near the ENGINE
START/STOP button.
• Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the trunk, hood, or doors are forcibly
opened. The alarm does not activate if th e trunk or doors are opened with the key,
remote transmitter, or keyless access system.
However, the alarm activates if a door is opened with the key and then the
transmission is taken out of
(P or the hood is opened before the power mode is set
to ON.
■When the security sy stem alarm activates
The horn sounds intermittently, and some exterior lights flash.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Apply and hold the brake pedal before turning the
vehicle on the first time after the battery has been
disconnected.
Canadian models
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security system alarm continues for a maximum
of two minutes until the security system alarm
deactivates.
23 ACCORD 4D US PET MAP-3130A6000_01.book 156 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

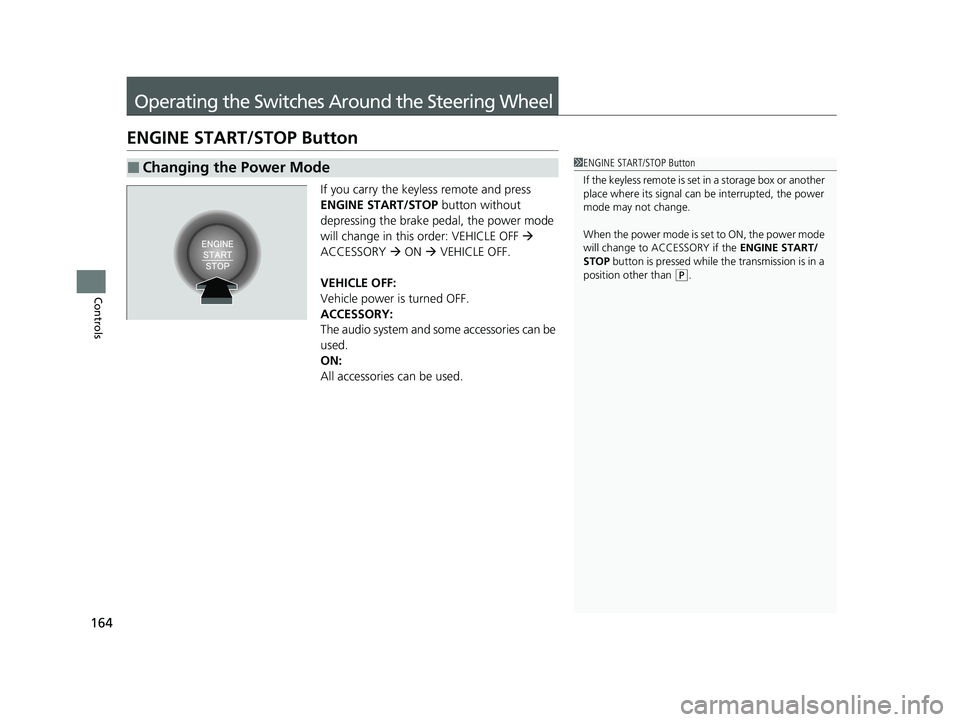

164
Controls
Operating the Switches Around the Steering Wheel
ENGINE START/STOP Button
If you carry the keyless remote and press
ENGINE START/STOP button without
depressing the brake pedal, the power mode
will change in this order: VEHICLE OFF 
ACCESSORY  ON  VEHICLE OFF.
VEHICLE OFF:
Vehicle power is turned OFF.
ACCESSORY:
The audio system and some accessories can be
used.
ON:
All accessories can be used.
■Changing the Power Mode1 ENGINE START/STOP Button
If the keyless remote is set in a storage box or another
place where its signal can be interrupted, the power
mode may not change.
When the power mode is set to ON, the power mode
will change to ACCESSORY if the ENGINE START/
STOP button is pressed while th e transmission is in a
position other than
( P.
23 ACCORD 4D US PET MAP-3130A6000_01.book 164 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

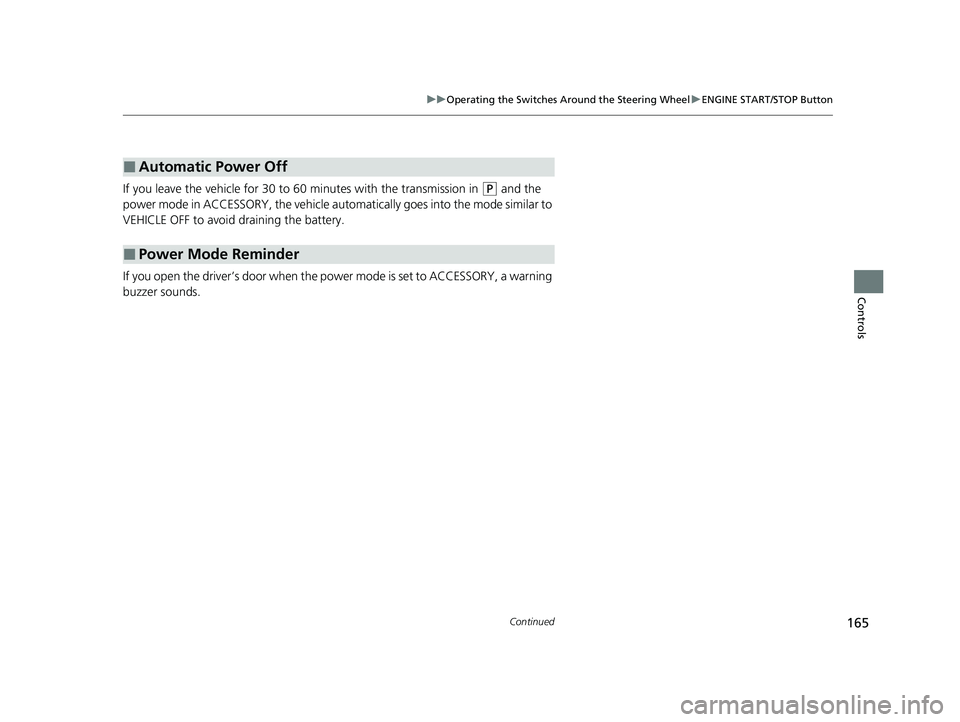

165
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
Continued
Controls
If you leave the vehicle for 30 to 60 minutes with the transmission in (P and the
power mode in ACCESSORY, the vehicle automa tically goes into the mode similar to
VEHICLE OFF to avoid draining the battery.
If you open the driver’s door when the pow er mode is set to ACCESSORY, a warning
buzzer sounds.
■Automatic Power Off
■Power Mode Reminder
23 ACCORD 4D US PET MAP-3130A6000_01.book 165 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分
