HONDA ACCORD COUPE 2004 CL7 / 7.G Owners Manual

µµ
When you push the MAIN switch in,
the switch is OFF, and the
passenger’s window cannot be raised
or lowered. To cancel this f eature,
push on the switch again to get it to
pop out. Keep the MAIN switch off
whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the window
unintentionally.
To open the driver’s
window f ully, push the window
switch f irmly down, then release it.
The window automatically goes
down all the way. To stop the
window f rom going all the way down,
pull back on the window switch
brief ly.
To close the driver’s window f ully,
pull back the window switch f irmly,
then release it. The window
automatically goes all the way up. To
stop the window f rom going all the
way up, push down on the window
switch brief ly.
To open or close the driver’s window
partially, push down or pull back on
the window switch lightly and hold it.
The window will stop when you
release the switch. If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window f use is removed, the
AUTO f unction will be disabled. The
power window system needs to be
reset af ter reconnecting the battery
or installing the f use.
Start the engine. Push down and
hold the driver’s window switch
until the window is f ully open.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
f or a second or two more.
If the power windows do not operate
properly af ter resetting, have your
vehicle checked by a Honda dealer.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
bef ore closing it. If the driver’s
window runs into any obstacle while
it is closing automatically, it will
reverse direction and then stop. To
close the window, remove the
obstacle, then use the window switch
again. 1.
2.
Power Windows
Inst rument s and Cont rols
AUTO
Auto Reverse
92
——y

y
(%
yy

CONT INUED
You can open and close the windows
with the key in the driver’s door lock.
To open:Insert the key in the driver’s door
lock.
Turn the key clockwise, then
release it.
You can open both windows f rom the
outside with the remote transmitter.
Press the UNLOCK button once
to unlock the driver’s door.
Press the UNLOCK button a
second time, and hold it. The
passenger’s door unlocks, and
both windows start to open. To
stop the windows, release the
button.
To open the windows f urther,
press the button again.
You cannot close the windows with
the remote transmitter.
The power window system has a key-
of f delay f unction. The windows will
stilloperateforupto10minutes
after you turn off the ignition.
Opening either door cancels the
delay function. You must turn the
ignition switch to ON (II) again
bef ore you can raise or lower the
windows.
1. 2. 3.
1. 2.
Power Windows
Inst rument s and Cont rols
Opening/Closing the Windows
with the Key
Opening the Windows with the
Remote Transmitter
93
UNLOCK BUTTON
CloseOpen
——y

y
(%
yy

The moonroof has two positions: it
can be tilted up in the back f or
ventilation, or it can be slid back into
the roof . Use the switch under the
lef t dashboard vent to operate the
moonroof . The ignition switch must
be ON (II).
To close the windows f urther, turn
andholdthekeyagain(within
10 seconds).
NOTE: If the window stops bef ore
the desired position, repeat steps 2
and 3.
Turn the key counterclockwise
again, and hold it. Both windows
starttoclose.Tostopthewindows,
release the key.
Turn the key counterclockwise,
then release it.
Insert the key in the driver’s door
lock.
To close: Turnthekeyclockwiseagain,and
hold it. Both windows start to open.
To stop the windows, release thekey.
To open the windows f urther, turn
andholdthekeyagain(within
10 seconds).
NOTE: If the window stops bef ore
the desired position, repeat steps 2
and 3. 1.2.3.
4.
3.
4.
On all EX and EX-V6 models
Power Windows, Moonroof
Inst rument s and Cont rols
Moonroof
94
MOONROOF SWITCH
——y

y
(%
yy

CONT INUED
Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
The moonroof has a key-of f delay.
You can still open and close the
moonroof f or up to 10 minutes af ter
you turn of f the ignition. The key-of f
delay cancels as soon as you open
either door. You must then turn the
ignition to ON (II) f or the moonroof
to operate.
To tilt up the back of the moonroof ,
press and hold the center button
( ). To close the moonroof ,
press and hold the upper part of the
switch ( ). To open the
moonroof , press and hold the lower
part of the switch ( ). Release
the switch when the moonroof gets
to the desired position. Make sure
everyone’s hands are away f rom the
moonroof bef ore opening or closing
it.
Moonroof , Mirrors
Inst rument s and Cont rols
Mirrors
95
NOTICE:
TAB
Opening or closing the
moonroof on someone’s hands
or fingers can cause seriousinjury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it. If you try to open the
moonroof in below-f reezing
temperatures, or when it is covered
with snow or ice, you can damage the
moonroof panel or motor.
——y

y
(%
yy

Push or pull the adjustment knob
right, left, up, or down to move the
mirror.
When you f inish, turn the
adjustment knob to the center
(of f ) position. This turns of f the
adjustment knob to keep your
settings.
Turn the ignition switch to ON (II).
Turn the adjustment knob to L
(driver’s side) or R (passenger’s
side). The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters of f .
3. 4.
1. 2.
On all Canadian models
Mirrors
Inst rument s and Cont rols
Adjusting the Power Mirrors
96
HEATED MIRROR BUTTON
ADJUSTMENT KNOB
——y

y
(%
yy

To apply the parking brake, pull the
lever up f ully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is f ully released with the
engine running (see page ).
If you drive at certain speeds without
f ully releasing the parking brake, the
beeper sounds continuously.59
Parking Brake
Inst rument s and Cont rols97
NOTICE:
PARKING BRAKE LEVER
Driving the vehicle with the
parking brake applied can damage the
rear brakes and axles.
——y

y
(%
y
y

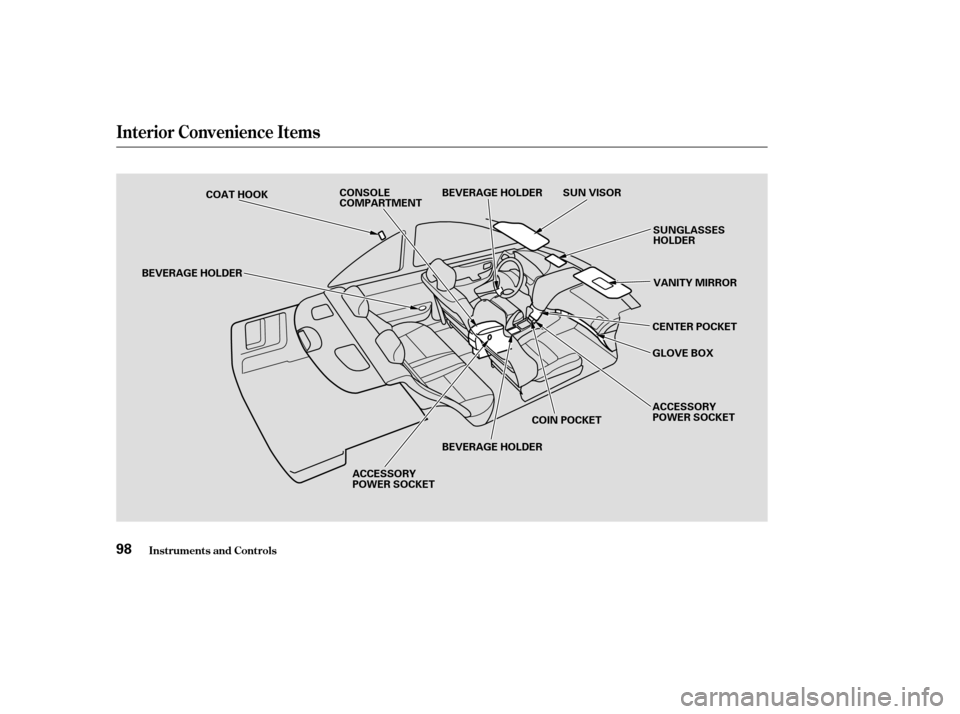

Interior Convenience Items
Inst rument s and Cont rols98
BEVERAGE HOLDERCOIN POCKET
ACCESSORY
POWER SOCKETVANITY MIRROR
SUNGLASSES
HOLDER
BEVERAGE HOLDER SUN VISOR
ACCESSORY
POWER SOCKET
BEVERAGE HOLDER
COAT HOOK
GLOVE BOX
CONSOLE
COMPARTMENT
CENTER POCKET
——y


y
(%
y

y

Open the glove box by pulling the
handle to the lef t. Close it with a f irm
push. Lock or unlock the glove box
with the master key.
The glove box light comes on when
the parking lights are on.Spilled liquids can damage the
upholstery, carpeting, and electrical
components in the interior.
Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Liquid can also spill
f rom the door pocket beverage
holders when you open or close the
doors. Use only resealable
containers in the door pockets.
Interior Convenience Items
Glove Box
Beverage Holders
Inst rument s and Cont rols99
GLOVE BOX
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seatbelt.
Always keep the glove box
closed while driving.
——y
y
(%
y
y

To open the console compartment,
pull up on the right lever and lif t the
armrest.
To close, lower the armrest, and
push it down until it latches.You can put small items in the tray
located in the console compartment
lid. To use the tray, pull up on the
lef t lever and lif t up the armrest.
Thetrayintheconsolecompartment
has a coin holder.
To open the center CD pocket, push-
down on the center of the lid to
unlatch it. It will swing open
automatically. To close it, push the
lid down until it latches. This pocket
can store up to 12 CDs.On U.S. vehicles without navigation
system and all Canadian models
Interior Convenience Items
Inst rument s and Cont rols
Console Compartment Center CD Pocket
100
CONSOLE COMPARTMENT
RIGHT LEVER
LEFT LEVER
Push
——y

y
(%
y
y

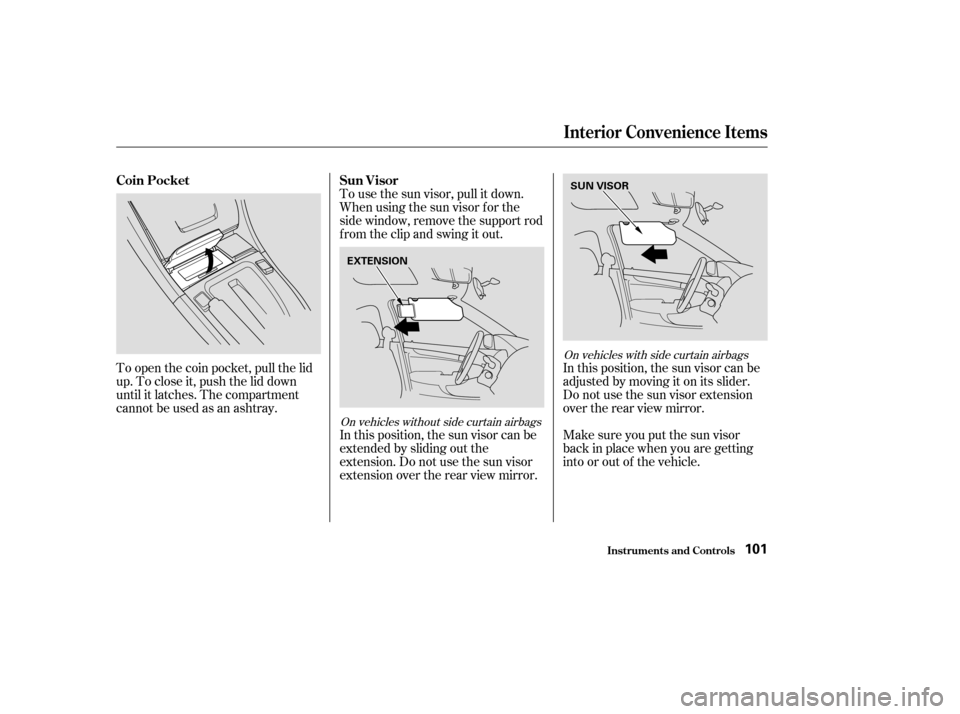

To open the coin pocket, pull the lid
up. To close it, push the lid down
until it latches. The compartment
cannotbeusedasanashtray.Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.
Do not use the sun visor extension
over the rear view mirror.
In this position, the sun visor can be
adjusted by moving it on its slider.
To use the sun visor, pull it down.
Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip and swing it out.
In this position, the sun visor can be
extended by sliding out the
extension. Do not use the sun visor
extension over the rear view mirror.
On vehicles without side curtain airbags
On vehicles with side curtain airbags
Interior Convenience Items
Inst rument s and Cont rols
Sun Visor
Coin Pocket
101
EXTENSION SUN VISOR
