HONDA ACCORD COUPE 2007 CL7 / 7.G Owners Manual

Check the f luid level with the
transmission at normal operating
temperature and the vehicle
sitting on level ground. Remove
the transmission f iller bolt, and
caref ully f eel inside the bolt hole
with your f inger.Check the f luid level with the
transmission at normal operating
temperature and the vehicle sitting
on level ground.
The f luid level should be up to the
edge of the bolt hole. If it is not, add
Honda Manual Transmission Fluid
(MTF) until it starts to run out of the
hole. Reinstall the f iller bolt, and
tighten it securely.
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
If you are not sure how to check and
add f luid, contact your dealer. Remove the check bolt and look f or
transmission f luid coming out of the
bolt hole. If a small amount of f luid
drips out of the bolt hole, reinstall
the check bolt.
On 4-cylinder models On EX-V6 model
T ransmission Fluid
Manual TransmissionManual Transmission
242
FILLER BOLT
Correct level CHECK BOLT
WASHER
DRAIN BOLT
——y
y
(#yy

CONT INUED
If no f luid comes out, remove the
f iller bolt. Slowly add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the check bolt
hole. Let the f luid run out until it
stops, then reinstall the check bolt
and the f iller bolt.If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
If you are not sure how to check and
add f luid, contact your dealer.Check the f luid level in the
reservoirs monthly. There are up to
two reservoirs, depending on the
model. They are:
Brake f luid reservoir (all models)
Clutch f luid reservoir
(manual transmission only)
Check the brake f luid level in the
reservoir monthly.
Replace the brake f luid according to
the time recommendation in the
maintenance minder schedule.
Pour the f luid to the f iller hole slowly
and caref ully so you do not spill.
Clean up any spills immediately; it
could damage components in the
engine compartment.
Brake and Clutch Fluid
Transmission Fluid, Brake and Clutch Fluid
Maint enance
243
FILLER BOLT
WASHER
——y
y
(#yy

Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 f luid, f rom a sealed
container, as a temporary
replacement.
Using any non-Honda brake f luid can
cause corrosion and decrease the lif e
of the system. Have the brake
system f lushed and ref illed with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Brake f luid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.A low f luid level can indicate a leak
in the clutch system. Have this
system inspected as soon as possible.

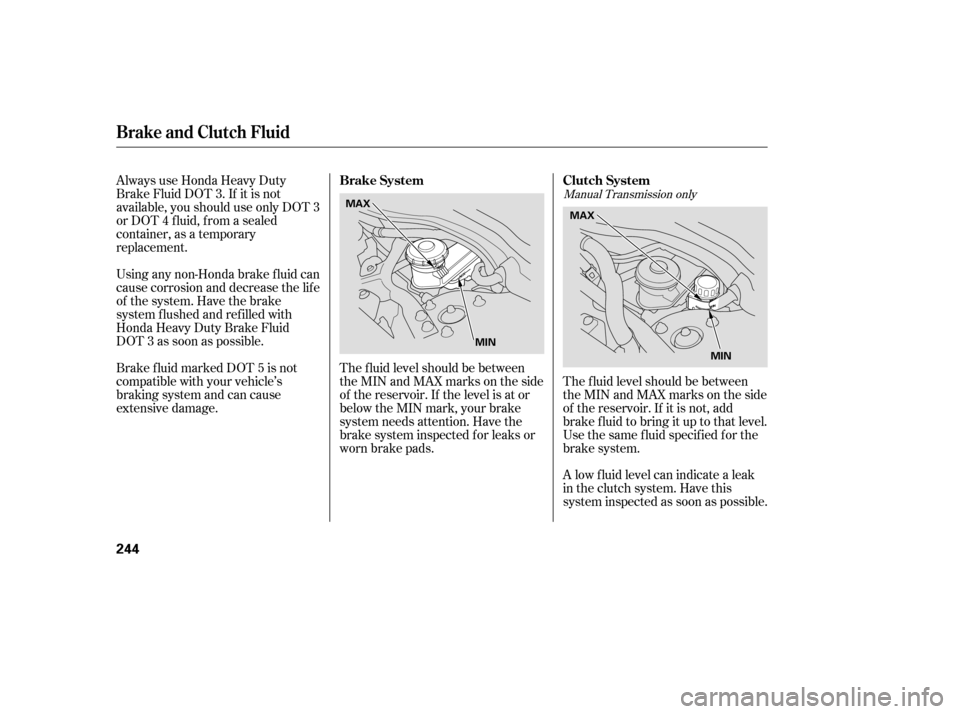

The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected f or leaks or
worn brake pads.
The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake f luid to bring it up to that level.
Use the same fluid specified for the
brake system.
Manual Transmission only
Brake and Clutch Fluid
Brake System Clutch System
244
MAX
MINMAX
MIN
——y
y
(#yy

Check the level on the side of the
reservoir when the engine is cold.
The f luid should be between the
UPPER LEVEL and LOWER LEVEL.
If not, add power steering f luid to the
UPPER LEVEL mark.Always use Honda Power Steering
Fluid. You may use another power
steering f luid as an emergency
replacement, but have the power
steering system f lushed and ref illed
with Honda PSF as soon as possible.
A low power steering f luid level can
indicate a leak in the system. Check
the f luid level f requently, and have
the system inspected as soon as
possible.
Pour the f luid slowly and caref ully so
you do not spill any. Clean up any
spills immediately; it could damage
components in the engine
compartment.
Power Steering Fluid
Maint enance
245
UPPER LEVEL
4-cylinder models LOWER LEVEL
LOWER LEVEL
UPPER LEVEL
6-cylinder models
T urning the steering wheel to f ull lef t
or right lock and holding it there can
damage the power steering pump.
——y
y
(#yy

µµTheheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk or pull a trailer, readjustment
may be required. Adjustments
should be done by your dealer or
other qualif ied mechanic.
Open the hood. To change a bulb
on the driver’s side, undo the two
f asteners and remove the air
intake cover.
Your vehicle has halogen headlight
bulbs. When replacing a bulb, handle
it by its base, and protect the glass
f rom contact with your skin or hard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth.
If you f requently tow a trailer.
Replace the belt at 60,000 miles (U.S.)
or 100,000 km (Canada) if you
regularly drive your vehicle in one or
more of these conditions:
The timing belt should be replaced
at the intervals shown in the
maintenance minder schedule.
In very high temperatures
(over 110°F, 43°C).
In very low temperatures
(under 20°F, 29°C). 1.
Timing Belt, Lights
Headlight A iming
Replacing a Headlight Bulb
Timing BeltHigh Beam Headlight
246
FASTENERS
AIR INTAKE
COVER
4-cylinder models
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
——y


y
(#y
y
V6 models only

Remove the electrical connector
f rom the bulb by squeezing the
connector to unlock the tab, then
slide the connector of f the bulb.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
Install the new bulb, and turn it
one-quarter turn clockwise to lock
it in place.Reinstall the air intake cover.
Reinstall the two fasteners and
secure them by pushing on the
heads until they lock.
(Driver’s side)
Turn on the headlights to test the
new bulb.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
3.
2. 4. 5. 6. 7.
Lights
Maint enance
247
FASTENERS
4-cylinder modelsTAB BULB
TABBULB
AIR INTAKE
COVER
——y
y
(#yy
V6 models
V6 models

Remove the electrical connector
fromthebulbbysqueezingthe
connector to unlock the tab, then
slide the connector of f the bulb.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
lef t, and turn of f the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Use a f lat-tipped screwdriver to
remove the two holding clips f rom
the inner f ender. Pull the inner f ender cover away
f rom the f ender and bumper.
To change the low beam headlight
bulb on the driver’s side, remove
the air intake duct. You can reach
the air intake duct f rom the back
side of the inner f ender.
6.
5.
4.
1. 2. 3.
On EX-V6 model with manual
transmission
L ow Beam Headlight
Lights
248
AIR INTAKE DUCT
EX-V6 with M/T
HOLDING CLIPS
——y
y
(#yy

Install the new bulb, and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the headlights to test the
new bulb.
Reinstall the air intake duct
securely.
(Driver’s side)
Put the inner f ender cover in place.
Install and lock each holding clip
bypushingonthecenter. To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
lef t, and turn of f the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Use a f lat-tipped screwdriver to
remove the two holding clips f rom
the inner f ender.Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the inner f ender cover away
f rom the f ender and bumper.
1.
3.
2. 4.
9.
7.
8.
11.
10.
CONT INUED
On EX-V6 model with manual
transmission
Replacing a Front Side Marker/
Parking/Turn Signal Light Bulb
Lights
Maint enance
249
HOLDING CLIPS
——y
y
(#yy

Remove the burned out bulb f rom
thesocketbypushingitinand
turning the bulb counterclockwise
until it unlocks.
Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Put the inner f ender cover in place.
Install and lock each holding clip
bypushingonthecenter.Open the trunk.
Remove the light assembly cover
by pulling its outside edge.Determine which bulb is burned
out: turn signal or back-up light.
Remove the socket by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Turn on the lights to make sure
the new bulb is working.
Install the light assembly cover.
Make sure it snaps into place.
1. 3.
2. 4. 5.6. 7.
5. 6. 7. 8. 9.
Replacing Rear Bulbs
Lights
250
COVER
——y
y
(#yy

Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
If your seat belts get dirty, use a sof t
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air dry bef ore
you use the vehicle. The driver’s and the right-rear
passenger’s f loor mats that came
with your vehicle hook over the f loor
mat anchors. This keeps the f loor
mat f rom sliding f orward and
possibly interf ering with the pedals
or making the f ront passenger’s
weight sensors inef f ective.
CONT INUED
Floor Mats
Cleaning the Seat Belts
Cleaning the Seat Belts, Floor Mats
Maint enance
251
LOOP
