Store tapes in their cases to protect
them f rom dust and moisture. Never
placetapeswheretheywillbe
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in
the player.
Never try to insert f oreign objects
into the tape player. If you see the error message
‘‘ ’’ on the display (on the
upper display on models with
navigation system), press the tape
eject button to remove the tape f rom
the unit. Make sure the tape is not
damaged. If the tape will not eject or
the error message stays on after the
tape ejects, take the vehicle to your
dealer.
Thetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player af ter every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam in the drive.
Optional
Caring f or the Tape Player
170
——y

y
(#y
y

ÛÝ´
µ ´
µ
´ µ
The VOL button adjusts the volume
up ( ) or down ( ). Press the top
or bottom of the button, hold it until
the desired volume is reached, then
release it.
If you are listening to the radio, use
the CH button to change stations.
Each time you press the top ( ) of
the button, the system goes to the
next preset station on the band you
are listening to. Press the bottom
( ) to go back to the previous
station. If youareplayingaCD,thesystem
skips to the beginning of the next
track each time you press the top
( ) of the CH button. Press the
bottom ( ) to return to the
beginning of the current track. Press
it twice to return to the previous
track. You will see the disc and track
numbers in the display.
If youareplayingatapeinthe
optional tape player, press the top
( ) of the CH button to advance to
the next selection. Press the bottom
( ) to go back to the previous
selection. The system senses a silent
period, then resumes playing.
The MODE button changes the
mode. Pressing the button
repeatedly selects FM1, FM2, AM,
CD (if a CD is loaded), or a tape (if
equipped). On models with satellite
radio system, you can also select
XM1 and XM2.
Three control buttons f or the audio
system are mounted in the steering
wheel hub. These buttons let you
control basic audio f unctions without
removing your hand f rom the wheel.
On all models except the 4-cylinder LX
Remote Audio Controls
Features
171
VOL BUTTON MODE BUTTON
CH BUTTON
——y
y
(#y
y

µ
Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual. If you make a mistake entering the
code, do not start over; complete the
sequence, then enter the correct
code. You have ten tries to enter the
correct code. If you are unsuccessf ul
in ten attempts, you must then leave
the system on f or 1 hour bef ore
trying again.You will have to store your favorite
stations on each side of the preset
bars (1 6) or icons af ter the system
begins working. Your original
settings were lost when the power
was disconnected.
If you lose the card, you must obtain
the code number f rom a dealer. To
do this, you will need the system’s
serial number.
Your vehicle’s audio system may
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic code using the preset
bars or the TUNE knob. Because
there are hundreds of number
combinations possible, making the
system work without knowing the
exact code is nearly impossible.
If your vehicle’s battery is
disconnected or goes dead, or the
radio f use is removed, the audio
system may disable itself . If this
happens, you will see ‘‘ ’’/
‘‘ ’’ in the f requency display
the next time you turn on the system.
Use the preset bars to enter the code.
Thecodeisontheradiocodecard
included in your owner’s manual kit.
When it is entered correctly, the
radio will start playing.
On models except the 4-cylinder LX
Radio T hef t Prot ect ion
172
——y
y
(#y
y

The upper display shows the time
when the ignition switch is in the
ACCESSORY (I) or ON (II) position.
The navigation system receives
signals f rom the Global Positioning
System (GPS), and the displayed
time is updated automatically by the
GPS. Ref er to the navigation system
owner’s manual to set up the time.
To set the time, press the clock set
(SOUND) button until you hear a
beep. The displayed time begins to
blink.
Press and hold the H (preset 4) side
of the bar until the hour advances to
the desired time. Press and hold the
M (preset 5) side of the bar until the
minutes advance to the desired time.
Press the clock set (SOUND) button
again to enter the set time.
You can quickly set the time to the
nearest hour. If the displayed time is
bef ore the half hour, pressing the
clock set (SOUND) button until you
hear a beep, then pressing the R
(preset 6) side of the bar sets the
clockbacktotheprevioushour.If
the displayed time is after the half
hour, the clock sets f orward to the
beginning of the next hour.
For example:
1:06 will reset to 1:00
1:53 will reset to 2:00
If your vehicle’s battery is
disconnected or goes dead, you may
need to set the clock.
On models without navigation system
On models with navigation system
Setting the Clock
Features
173
CLOCK SET BUTTON
PRESET BARS
CLOCK
EX-L and EX-V6 models without navigation system is shown.
——y
y
(#y
y

Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower lef t corner of the dashboard.
The hood will pop up slightly.
Stop f illing the tank af ter the f uel
nozzle automatically clicks of f . Do
not try to ‘‘top off’’ the tank. Leave
some room f or the f uel to expand
with temperature changes.
even though the tank is not f ull,
there may be a problem with your
vehicle’s fuel vapor recovery
system. The system helps keep
f uel vapor f rom going into the
atmosphere. Try f illing at another
pump. If this does not f ix the
problem, consult your dealer.
Remove the f uel f ill cap slowly.
You may hear a hissing sound as
pressure inside the tank escapes.
The fuel fill cap is attached to the
f uel f iller with a tether. Insert the
attachment on the f uel f ill cap into
the slit on the f uel f ill door.
Push the f uel f ill door closed until
it latches.
Screw the f uel f ill cap back on
until it clicks at least once. If you
do not properly tighten the cap,
the malf unction indicator lamp
maycomeon(seepage ).You
will also see a ‘‘CHECK FUEL
CAP’’ message on the inf ormation
display.
5. 6.
1.
3. 4.
277If the f uel nozzle keeps clicking of f
Service Station Procedures
Opening and Closing the Hood
186
HOOD RELEASE HANDLE
——y
y
(#y

y

Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehicle uses extra
f uel. Use cruise control when
appropriate.
Combine several short trips into
one.
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
Always maintain your vehicle
according to the maintenance
messages displayed in the
inf ormation display. See
on page
.
an underinf lated tire
causes more ‘‘rolling resistance,’’
which uses more f uel.
The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your f uel
mileage and reduces the chance of
corrosion.
Always drive in the highest gear
possible.
Drive moderately. Rapid
acceleration, abrupt cornering,
and hard braking use more f uel. 226
For example,
Fuel Economy
Improving Fuel Economy
Owner’s
Maintenance Checks
190
——y
y
(#y
y

µ
µ µµµµµµµµ µ
µ
CONT INUED
Calculated Engine Oil Lif e (%)
100 % 91 % 90 % 81 %
80 % 71 %
70 % 61 %
60 % 51 %
50 % 41 %
40 % 31 %
30 % 21 %
20 % 16 %
15 % 11 %10 % 6 % 5% 1% 0% Displayed
Engine Oil Lif e (%) 100 %90 %
80 %
70 %
60 %
50 %
40 %
30 %
20 %
15 %
10 %5%0%
Based on the engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil lif e and displays it as a
percentage.
To see the current engine oil lif e,
turn the ignition switch to the ON
engine oil lif e display appears (see
page ).The remaining engine oil lif e is
shownonthedisplayaccordingto
this table:
Your vehicle displays engine oil lif e
and maintenance service items on
the inf ormation display to show you
when you should have your dealer do
engine oil replacement and indicated
maintenance service.
63
Maintenance Minder
Engine Oil L if e Display
Maint enance
221
ENGINE OIL LIFE
DISPLAYSELECT/RESETKNOB
——y
y
(#yy
(II) position, and press the select/
reset knob repeatedly until the

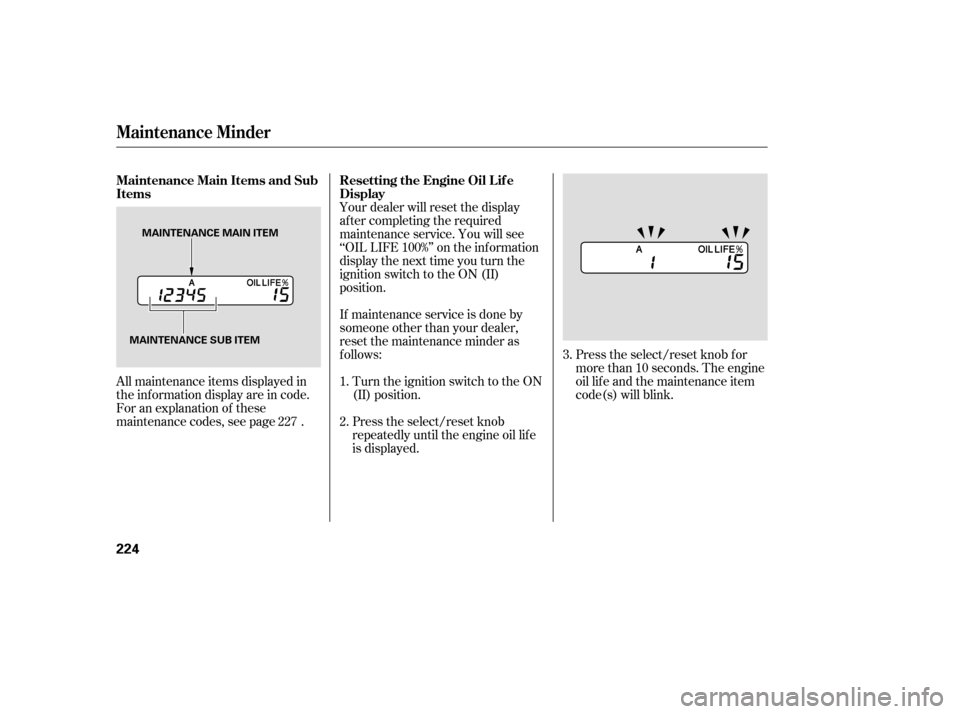

The maintenance item code or codes
indicate the main and sub items
required at the time of the oil change
(see page ).When the remaining engine oil lif e is
5 to 1 percent, you will see a
‘‘SERVICE’’ message along with the
same maintenance item code(s),
everytimeyouturntheignition
switch to the ON (II) position.

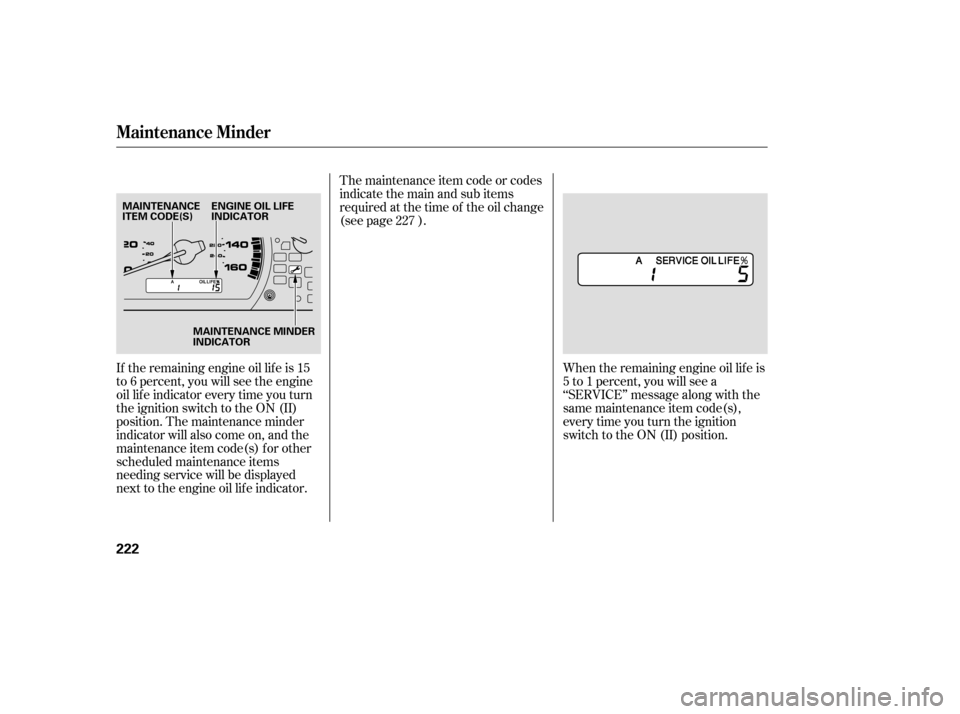

If the remaining engine oil lif e is 15
to 6 percent, you will see the engine
oil lif e indicator every time you turn
the ignition switch to the ON (II)
position. The maintenance minder
indicator will also come on, and the
maintenance item code(s) for other
scheduled maintenance items
needing service will be displayed
next to the engine oil lif e indicator. 227
Maintenance Minder
222
MAINTENANCE
ITEM CODE(S)
ENGINE OIL LIFE
INDICATOR
MAINTENANCE MINDER
INDICATOR
——y

y
(#yy

If you still do not perf orm the
indicated maintenance, you will see a
negative mileage. It is displayed
when you drive over 10 miles (f or
U.S. models) or 10 km (f or Canadian
models) af ter seeing the 0 percent
message.Afterward,itshowsyour
driving distance if you continue to
drive. Immediately have the
indicated maintenance done by your
dealer.

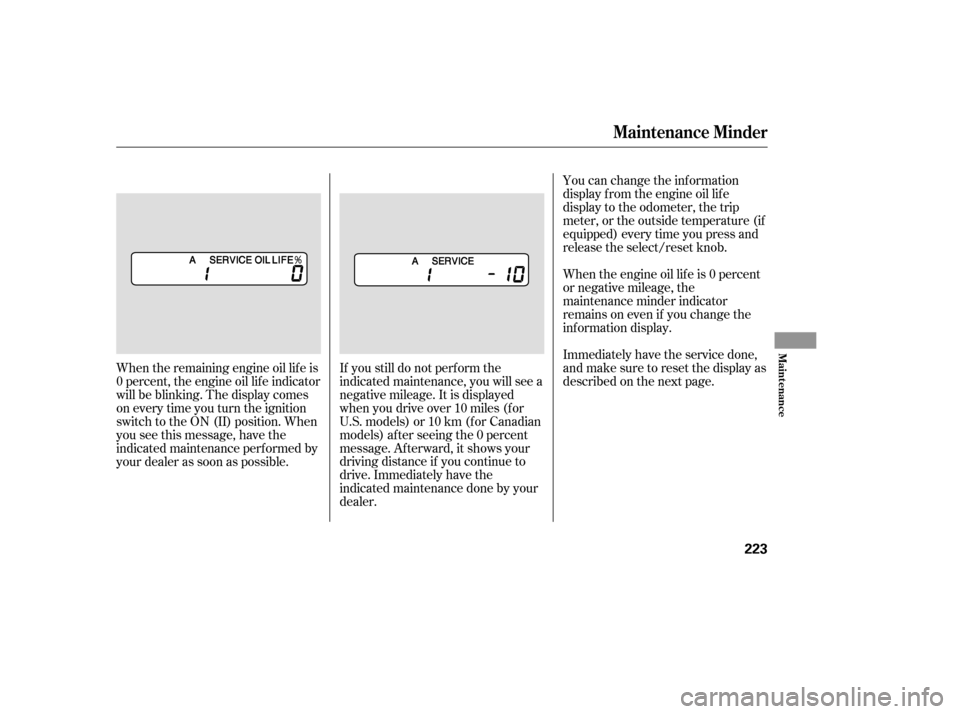

When the remaining engine oil lif e is
0 percent, the engine oil lif e indicator
will be blinking. The display comes
oneverytimeyouturntheignition
switch to the ON (II) position. When
you see this message, have the
indicated maintenance perf ormed by
your dealer as soon as possible. You can change the inf ormation
display f rom the engine oil lif e
display to the odometer, the trip
meter, or the outside temperature (if
equipped) every time you press and
When the engine oil lif e is 0 percent
or negative mileage, the
maintenance minder indicator
remainsonevenif youchangethe
inf ormation display.
Immediately have the service done,
and make sure to reset the display as
described on the next page.
Maintenance Minder
Maint enance
223
——y

y
(#yy
release the select/reset knob.

All maintenance items displayed in
the inf ormation display are in code.
For an explanation of these
maintenance codes, see page .Your dealer will reset the display
af ter completing the required
maintenance service. You will see
‘‘OIL LIFE 100%’’ on the inf ormation
display the next time you turn the
ignition switch to the ON (II)
position.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
f ollows:
Turn the ignition switch to the ON
(II) position.
repeatedly until the engine oil lif e
is displayed. more than 10 seconds. The engine
oil lif e and the maintenance item
code(s) will blink.
1.
227
Maintenance Minder
Maintenance Main Items and Sub
Items Resetting the Engine Oil Lif e
Display
224
MAINTENANCE MAIN ITEM
MAINTENANCE SUB ITEM
——y


y
(#yy
2. Press the select/reset knob 3.
Press the select/reset knob f or
