You cannot load and play 3-inch
(8-cm)discsinthissystem.
Repeat this until all six positions
are loaded. If you are not loading
all six positions, the system begins
playing the last CD loaded.
Do not try to insert a disc until
‘‘LOAd’’ appears. You could
damage the audio unit.
When the CD load indicator turns
green and ‘‘LOAd’’ appears in the
screen again, insert the next CD in
the slot. You can also load a CD into an empty
position while a CD is playing by
touching a disc icon. The system
stops playing the current CD and
starts the loading sequence. It plays
the CD just loaded.
You operate the CD changer with
the same controls used f or the radio.
The numbers of the disc and track
playingareshowninthedisplay.
These numbers also appear in the
upper display.
To select a dif f erent disc, touch the
appropriate disc icon or press the
or side of the CH/DISC bar. If
you select a loaded position in the
CD changer, the system will try to
load the CD in the next available slot.
Insert a disc into the CD slot when
the green CD load indicator comes
on. Insert it only about half way;
the drive will pull it in the rest of
the way. You will see ‘‘BUSY’’ in
the upper display as the CD load
indicator turns red and blinks as
the CD is loaded.
When you touch
this icon on the audio display or
press the SCAN button, you will get
a10secondsamplingof eachtrack
on the current CD. You will see
TRACK SCAN highlighted on the
audioscreenandSCANintheupper
display. Press the icon or button
again to get out of the system.
To use the controls, press the
AUDIO button.
4. 5.
3.
CONT INUED
To Change or Select Tracks
TRACK SCAN
A M/FM/CD Changer
Features
157
——y

y
(#y
y

µ
µ
µ µ
µ
µÛ Ý
When you touch the
RANDOM icon on the audio display,
the system plays the tracks on the
current CD in random order. You
will see RANDOM highlighted on
the audio screen and RDM in the
upper display. To turn this f eature
of f , touch RANDOM again or select
a dif f erent disc icon.
When you touch
the TRACK RPT icon, the system
continuously plays the same track.
You will see TRACK RPT
highlighted on the audio screen and
RPT in the upper display. Press the
icon again to get out of track repeat.
When you touch the
DISC RPT icon on the audio display,
the system continuously replays the
current CD. You will see DISC RPT
highlighted on the audio screen and
D-RPT in the upper display. Touch
the icon to turn the feature off. When you touch the
DISC SCAN icon on the audio
display, the system gives you a 10
second sampling of the f irst track on
each disc in the in-dash CD changer.
You will see DISC SCAN highlighted
on the audio screen and D-SCAN in
the upper display. Touch the icon
again to get out of disc scan.
Each time you
press and release , the system
skips forward to the beginning of the
next track. Press and release to
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To move rapidly within a track, press
and hold or .
Press the or to
select an icon and play the disc. PresstheAM/FMorCD/AUX/XM
button to switch to the AM/FM
radio or satellite radio while a CD is
playing. To play the CD, press the
CD/AUX/XM button again.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
Press the AM/FM button to switch
to the AM/FM radio while a CD is
playing. To play the CD, press the
CD/AUX button.
If a tape is in the optional tape player,
press the CD/AUX/XM or CD/AUX
button to switch to the tape while a
CD is playing. Press the CD/AUX/
XM or CD/AUX button again to
switch back to the CD changer.
On Canadian models
On U.S. models
To Stop Playing a CD
RANDOM
TRACK RPT
DISC RPT
DISC SCAN
SEEK /SK IP CH/DISC
A M/FM/CD Changer
158
——y
y
(#y
y

ÝÛ
You can also eject discs when the
ignition switch is of f . The disc that
was last selected is ejected f irst.
Load the desired CDs into the
magazine, and load the magazine
into the changer according to the
instructions that came with the unit.
To remove the disc currently in play,
press the eject ( ) button. When
a disc is removed f rom a slot, the
system automatically begins the load
sequence so you can load another
CD in that position. If you do not
remove the disc f rom the changer
within 15 seconds, the system
returns to the previous mode (AM/
FM or satellite radio). The disc will
reload into the system and will
remainthereinapausemode.
An optional eight disc CD changer is
available for your vehicle from your
dealer.
This disc changer uses the same
controls used f or the in-dash CD
changer or the radio.
To remove a different CD from the
changer,firstselectitwiththe
appropriate icon or the CH/DISC bar.
When that CD begins playing, press
the eject button. Continue pressing
the eject button to remove all the
discs f rom the changer. To select the CD changer, press the
CD/AUX/XM or CD/AUX button.
The disc and track numbers will be
displayed. To select a dif f erent disc,
use the CH/DISC bar. To select the
previous disc, press the side, or
side to select the next disc in
sequence.
If you select an empty slot in the
magazine, the changer will search
f or the next available CD to load and
play.
Operating the Optional CD
Changer
Removing CDs f rom the In-dash
CD Changer
A M/FM/CD Changer
Features
159
——y
y
(#y
y

Error Message Cause Solution
FOCUS Error
Mechanical ErrorPress the CD eject button, and pull out the CDs.
Check f or an error message, and insert the CDs
again. If the message does not disappear or the
CDs cannot be pulled out, see your dealer.
Press the CD eject button, and pull out the CDs.
Check f or an error message, and insert the CDs
again. If the message does not disappear, or the
CDs cannot be pulled out, see your dealer.
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
If there is still a problem, the error
message will change to PUSH
EJECT. Press the eject button, and
pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.
CD Changer Error Messages
A M/FM/CD Changer
160
——y
y
(#y
y

Û
ÎÎ
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Make sure the open side of
thetapeisfacingright,theninsert
thetapemostof thewayintotheslot.
Thesystemwillpullthetapeinthe
rest of the way and begin to play it.
Thetapedirectionindicatorcomes
on to show you which side of the
tape is playing. The indicates the
sideyouinsertedupwardisnow
playing. If you want to play the other
side, touch the PLAY/PROG icon.
When the player reaches the end of
the tape, it will automatically reverse
direction and play the other side.
:
On Canadian models Optional
A M/FM/CD Changer
To Play a Tape
Features
161

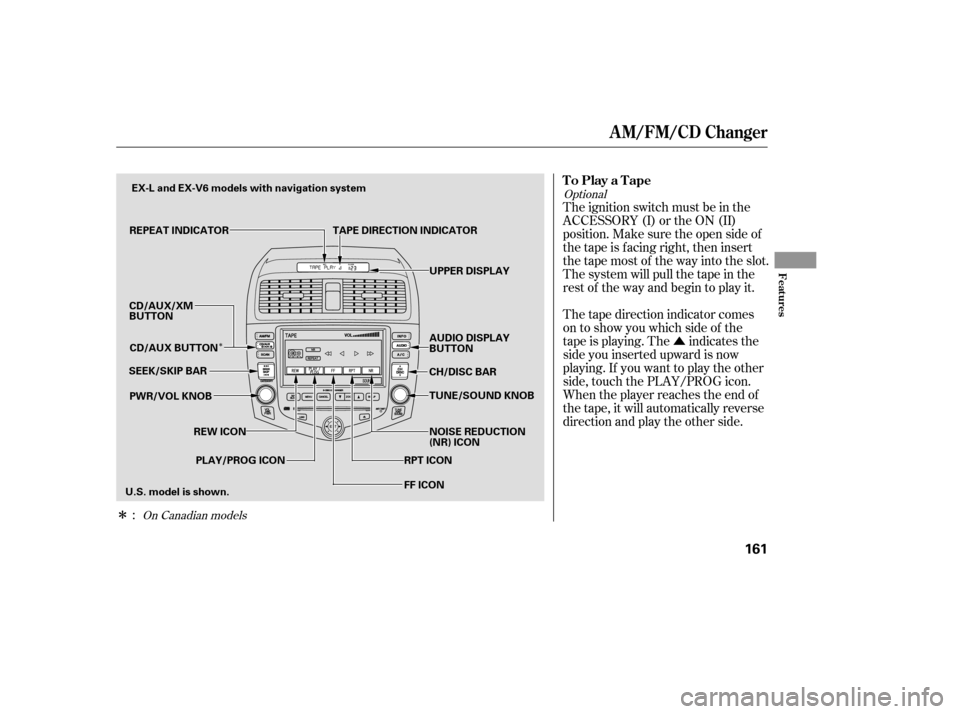

TUNE/SOUND KNOB
FF ICON
PLAY/PROG ICON
REW ICON
PWR/VOL KNOB
SEEK/SKIP BAR
CH/DISC BAR
REPEAT INDICATOR
UPPER DISPLAY
AUDIO DISPLAY
BUTTON
NOISE REDUCTION
(NR) ICON
TAPE DIRECTION INDICATOR
RPT ICON
CD/AUX/XM
BUTTON
CD/AUX BUTTON
U.S. model is shown. EX-L and EX-V6 models with navigation system
——y

y
(#y
y

Î
µÛ
Ý
Î
Dolby noise reduction is manuf actured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
To remove the tape, press the eject
button on the tape player. If you
want to turn the player off, press the
PWR/VOL knob or turn of f the
ignition. The tape will remain in the
drive. When you turn the system
back on, the tape will be in pause
mode. Touch the PLAY/PROG icon. To fast forward the
tape, push the upper side ( ) of the
CH/DISC bar. You will see FF in the
upper display. To rewind the tape,
push the lower side ( ) of the CH/
DISC bar. You will see REW
displayed. Press either side of the
CH/DISC bar or touch the FF, REW
or PLAY/PROG icon to take the
system out of rewind or f ast f orward.
Dolby noise reduction comes on
when you insert a tape. The NR
indicator in the display also comes
on. If the tape was not recorded in
Dolby, turn it of f by touching the NR
icon. Dolby remains of f until you
touch the NR icon again. To switch to the AM/FM radio,
satellite radio (U.S. models), or CD
changer while a tape is playing, press
the AM/FM or CD/AUX/XM button
(CD/AUXbuttononCanadian
models). To change back to the tape
player, push the CD/AUX/XM or
CD/AUX button.
First push the AUDIO button bef ore
selecting any of the audio icons on
the audio screen.
A M/FM/CD Changer
T o Stop Playing a T ape T ape Search Functions
FF/REW
162
——y
y
(#y
y

µµ
Press the side to f ind
the beginning of the current song or
passage. Press the side to f ind
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
Touch the RPT icon to
continuously play a song or passage.
You will see RPT displayed in the
upper display. The track will repeat
until you touch the RPT icon again. The skip and repeat
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection.
A M/FM/CD Changer
SK IP
REPEAT
Features
163
NOTE:
——y
y
(#y
y

The radio can receive the complete
AM and FM bands.
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHzHow well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
Radio stations on the AM band are
assigned f requencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned f requencies at
least 0.2 MHz apart (87.9, 88.1, 88.3).
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’ Radio Reception
A M/FM Radio Frequencies
A M/FM Radio Reception
164
——y
y
(#y
y
frequencies:
Those bands cover these

Satellite radio receives signals f rom
two satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, satellite
radio also allows you to view channel
and category selections in the audio
display.
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel from the equator.
Available on some U.S. models
Satellite Radio Signals
XMSatellite Radio Reception
166

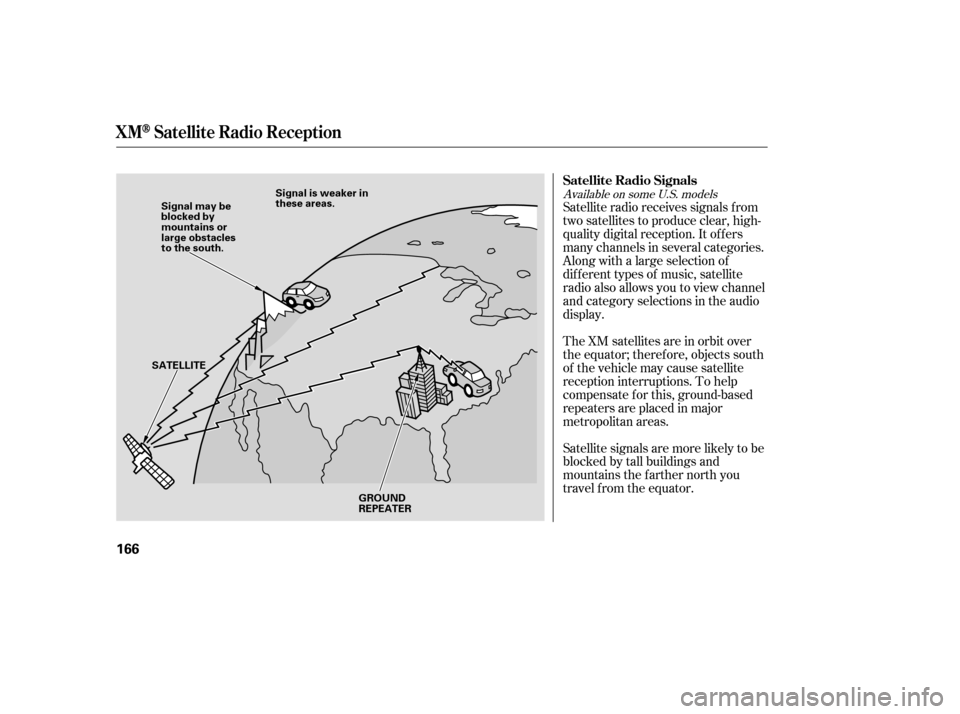

Signal may be
blocked by
mountains or
large obstacles
to the south.
SATELLITE
GROUND
REPEATER
Signal is weaker in
these areas.
——y
y
(#y

y

If you decide to purchase XM
satellite radio service, contact XM
Radio at , or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number.
To get your radio I.D. number:
Turn the TUNE knob or press the
TUNE bar until ‘‘0’’ appears in the
display. Your I.D. will appear in the
display.After you’ve registered with XM
Radio, keep your audio system in the
Satellite Radio mode while you wait
f or activation. This should take about
30 minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, ‘‘category’’
or ‘‘CH’’ will appear in the display,
andyou’llbeabletolistentoXM
Radio broadcasts. XM Radio will
continue to send an activation signal
to your vehicle for at least 12 hours
from the activation request. If the
service has not been activated after
36 hours, contact XM Radio.
www.xmradio.com
XMSatellite Radio Reception
168
——y
y
(#y
y
