CD player HONDA ACCORD COUPE 2007 CL7 / 7.G Owners Manual
[x] Cancel search | Manufacturer: HONDA, Model Year: 2007, Model line: ACCORD COUPE, Model: HONDA ACCORD COUPE 2007 CL7 / 7.GPages: 313, PDF Size: 5.3 MB
Page 126 of 313
To operate your vehicle’s audio
system ref er to the appropriate
pages below.For FM/AM/CD Player systems,
see pages thru .
For AM/FM/CD Changer
systems without navigation, see
page thru .
For AM/FM/CD Changer
systems with navigation, see page to thru . 135
148
136
149 163 126
Audio System
124

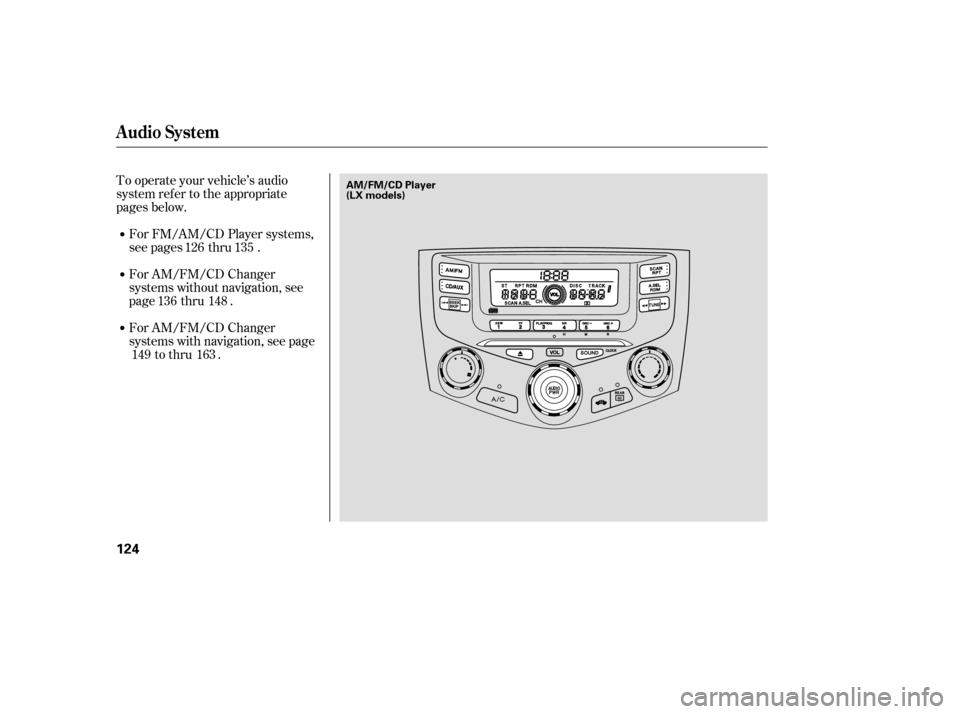

AM/FM/CD Player
(LX models)
— — y
y
(# y
y
Page 128 of 313
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/
FM button. On the FM band, ST
will be displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not
available.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
AUDIO PWR knob or the AM/FM
button. Adjust the volume by turning
the AUDIO PWR knob.
To Play the AM/FM Radio
AM/FM/CD Player
126

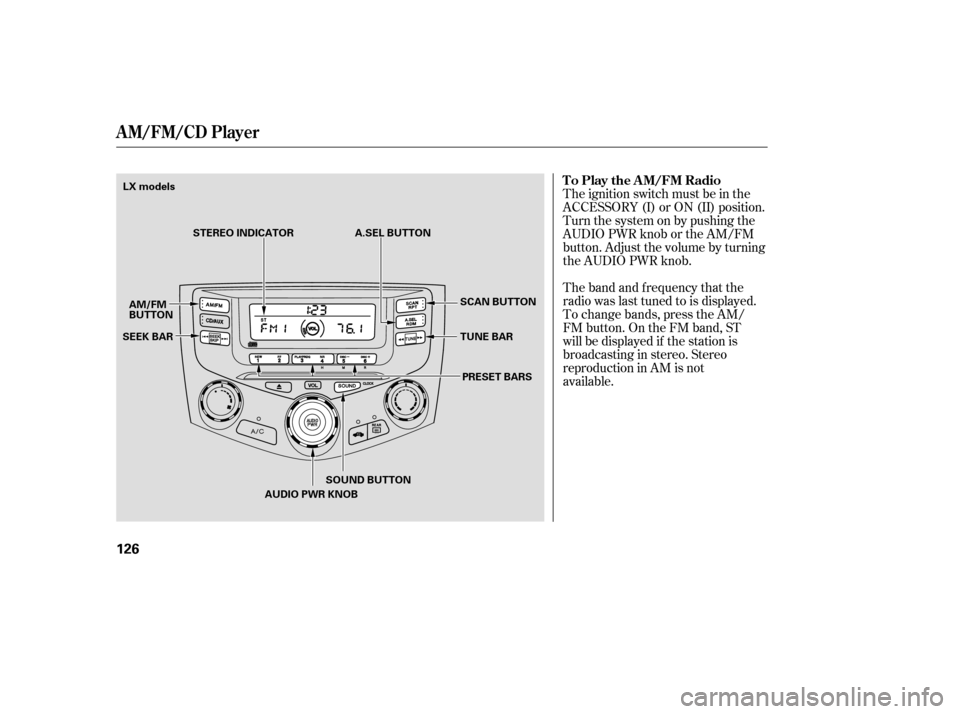

STEREO INDICATOR
SCAN BUTTON
SOUND BUTTON
AM/FM
BUTTON
SEEK BAR
PRESET BARS
TUNE BAR
LX models
A.SEL BUTTON
AUDIO PWR KNOB
— — y
y
(# y
y
Page 129 of 313
µ
µ µµ
µ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN, the
preset bars, and AUTO SELECT.
Use the TUNE bar to tune
the radio to a desired f requency.
Press the side of the bar to tune
to a higher f requency, and press the side to tune to a lower
f requency.
The seek f unction
searches up and down f rom the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
bar, then release it. The scan f unction samples
all the stations with strong signals on
the selected band. To activate it,
press the SCAN button, then release
it. You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 5 seconds. If you do
nothing, the system will then scan
f or the next strong station and play it
for 5 seconds. When it plays a station
SCAN button again. Each side of the bars
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each side of
the preset bar.
Pick a preset number (1 6), you
want for that station. Press the left
or right side of the bar, and hold it
until you hear a beep.
The preset f requencies may be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed.
1. 2. 3. 4.
To Select a Station
TUNE SEEK
SCA N Preset
AM/FM/CD Player
Features
127
— — y
y
(# y
y
AM and two f requencies on FM.
that you want to listen to, press the (1 - 6) can store one f requency on
Page 130 of 313
µµ µµ
µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area. You will see a ‘‘0’’ displayed af ter
pressing a preset bar if auto select
cannot f ind a strong station f or every
preset bar.
,pressthe
A. SEL (auto select) button. This
restores the presets you originally
set.
Press the A. SEL button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset bars.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset bars
as previously described.Press the SOUND button repeatedly
to display the bass (BAS), treble
(TRE), f ader (FAD), and balance
(BAL) settings.
The system will return to the audio
display about 5 seconds af ter you
stop adjusting a mode.Adjusts the bass.
Adjusts the treble.
Adjusts the fader, or the
f ront-to-back strength of the sound.
Adjusts the balance, or side-
to-side strength of the sound.
Eachmodeisshowninthedisplayas
it changes. Turn the AUDIO PWR
knob to adjust the setting to your
liking. When the level reaches the
center, you will see a ‘‘ ’’ in the
display.
To turn of f auto select
AUTO SELECT Adjusting the Sound
BAS
TRE
FAD
BAL
AM/FM/CD Player
128
— — y
y
(# y
y
Page 131 of 313
CONT INUED
To play a CD, the ignition switch
must be in the ACCESSORY (I) or
ON(II) position.
You can also play 3-inch (8-cm)
discs without using an adapter
ring.
You operate the CD player with
the same controls used f or the
radio. To select the CD player,
press the CD/AUX button. You
will see ‘‘CD’’ in the display. The
number of the track playing is
shown in the display. The system
will continuously play a disc until
you change modes.
Insert a CD about half way into the
CD slot. The drive will pull the CD
in the rest of the way and begin to
play it. When the system reaches
the end of the disc, it will return to
the beginning and play the disc
again.
AM/FM/CD Player
To Play a CD
Features
129

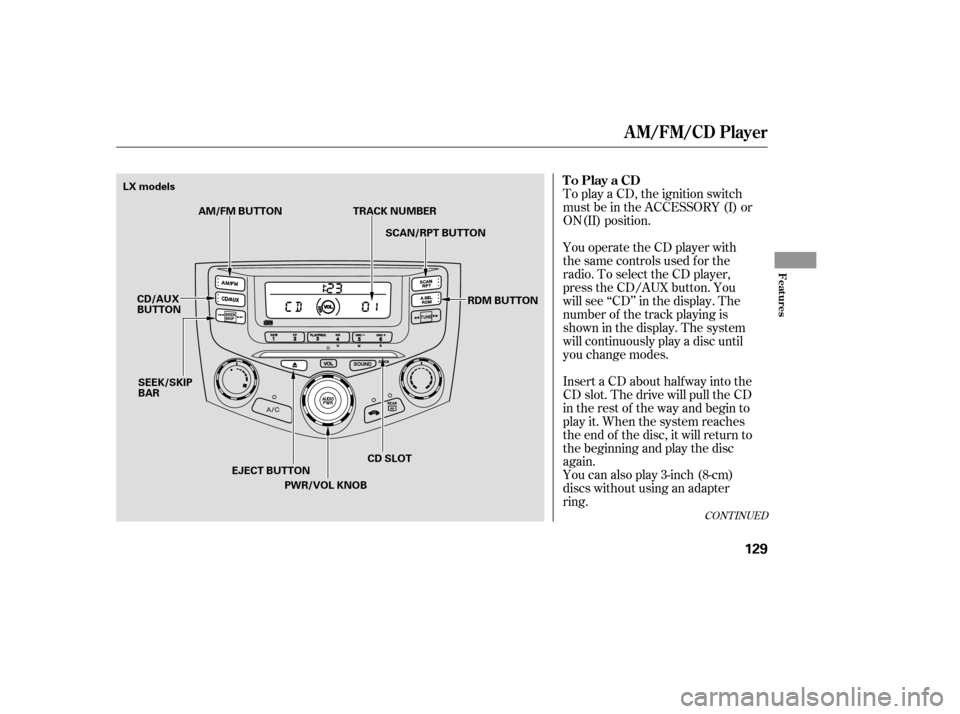

AM/FM BUTTON TRACK NUMBER
CD SLOT
EJECT BUTTON
SEEK/SKIP
BAR
PWR/VOL KNOB
LX models
CD/AUX
BUTTON SCAN/RPT BUTTON
RDM BUTTON
— — y
y
(# y
y
Page 132 of 313
µµ
µµ
Each time you
press and release , the player
skips forward to the beginning of the
next track. Press and release to
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track. The scan f unction samples
all the tracks on the disc in the order
they are recorded on the CD. To
activate it, press and hold the SCAN
button. You will see SCAN in the
display. You will get a 10 second
sampling of each track on the CD.
Press the SCAN button again to get
out of the system and play the last
track sampled.
To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press it again to turn it of f .
Press and release the
RDM button to play the tracks in
random order. You will see RDM in
the display. Press it again to return
to normal play.
To play the radio when a CD is
playing, press the AM/FM button.
Press the CD/AUX button again to
switch back to the CD player.

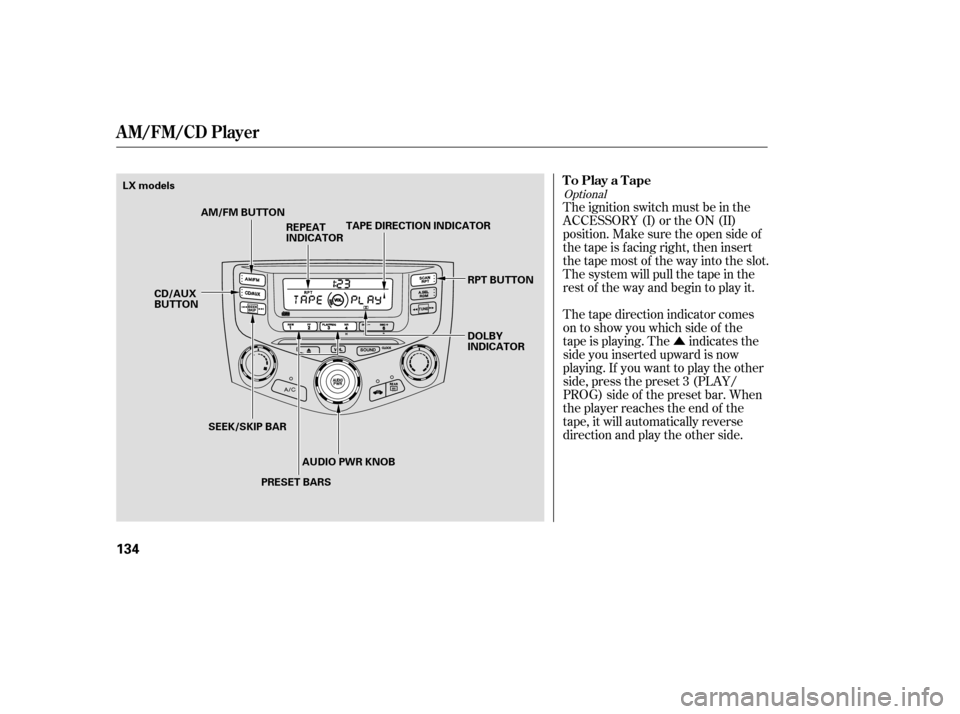

To play a tape when a CD is playing,
insert a tape in the player (optional).
If a tape is in the player, press the
CD/AUX button. Press the CD/AUX
button again to switch back to the
CD player. To move rapidly within a track, press
and hold or .
If you turn the system of f while a CD
is playing, either with the AUDIO
PWR knob or by turning of f the
ignition, the disc will stay in the drive.
When you turn the system back on,
the CD will begin playing where it
left off. To Change or Select Tracks
SEEK /SK IP
SCAN
REPEAT
RANDOM
AM/FM/CD Player
130
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
— — y
y
(# y
y
Page 133 of 313
µ´ µ´
If you select an empty slot in the
magazine, the changer will search
f or the next available CD to load and
play.
If there are no CDs in the changer,
the display will f lash, and you will
have to select another mode.
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 15 seconds and put it in
pause mode. To begin playing, press
the CD/AUX button.
Press the AM/FM button to switch
to the AM/FM radio while a CD is
playing. To play the CD, press the
CD/AUX button.
If a tape is in the optional tape player,
press the CD/AUX button to switch
to the tape while a CD is playing.
Press the CD/AUX button again to
switch back to the CD player. To select the CD changer, press the
CD/AUX button. The disc and track
numbers will be displayed. To select
a dif f erent disc, use the preset 5
(DISC ) side or preset 6 (DISC )
side of the preset bar. To select the
previous disc, press the preset 5
(DISC ), or preset 6 (DISC ) to
select the next disc in sequence.
If you turn the system of f while a CD
is playing, either with the AUDIO
PWR knob or by turning of f the
ignition, the disc will stay in the drive.
When you turn the system back on,
the CD will begin playing where it
left off. An optional six or eight disc CD
changer is available f or your vehicle
f rom your dealer.
This disc changer uses the same
controls used f or the in-dash CD
player or the radio.
Load the desired CDs into the
magazine, and load the magazine
into the changer according to the
instructions that came with the unit.
To Stop Playing a CD Operating the Optional CD
Changer
AM/FM/CD Player
Features
131
— — y
y
(# y
y
Page 134 of 313
Error Message Cause Solution
FOCUS Error
Mechanical Error
High TemperaturePress the eject button, and pull out the CD.
Check if it is inserted correctly in the CD player.
Make sure the CD is not scratched or damaged.
Press the eject button, and pull out the CD.
Check the CD for damage or deformation.
If the CD cannot be pulled out, or the error
message does not disappear after the CD is
ejected, see your dealer.
Will disappear when the temperature returns to
normal.
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.
If there is still a problem, the error
message will change to PUSH
EJECT. Press the eject button, and
pull out the disc.
CD Player Error Messages
AM/FM/CD Player
132
— — y
y
(# y
y
Page 135 of 313
Error MessageSolution
Cause
Press the magazine eject button, pull the
magazine out, and check f or an error message.
Insertthemagazineagain.Ifthemessagedoes
not disappear, or the magazine cannot be pulled
out, see your dealer.
Press the magazine eject button, pull the
magazine out, and check f or an error message.
Insertthemagazineagain.Ifthemessagedoes
not disappear, or the magazine cannot be pulled
out, see your dealer.
Will disappear when the temperature returns to
normal.
FOCUS Error
Mechanical Error
High Temperature
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
If there is still a problem, the error
message will change to PUSH
EJECT. Press the eject button, and
pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.
AM/FM/CD Player
Optional CD Changer Error
Messages
Features
133
— — y
y
(# y
y
Page 136 of 313
Û
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Make sure the open side of
thetapeisfacingright,theninsert
thetapemostof thewayintotheslot.
Thesystemwillpullthetapeinthe
rest of the way and begin to play it.
Thetapedirectionindicatorcomes
on to show you which side of the
tape is playing. The indicates the
sideyouinsertedupwardisnow
playing. If you want to play the other
side, press the preset 3 (PLAY/
PROG) side of the preset bar. When
the player reaches the end of the
tape, it will automatically reverse
direction and play the other side.
Optional
To Play a Tape
AM/FM/CD Player
134
TAPE DIRECTION INDICATOR
CD/AUX
BUTTON REPEAT
INDICATOR
AM/FM BUTTON
SEEK/SKIP BAR PRESET BARS
LX models
RPT BUTTON
DOLBY
INDICATOR
AUDIO PWR KNOB
— — y
y
(# y
y
