Seats
Power Front Seats (if equipped)Driver’s Seat Height Adjustment (if equipped)
12
• Pull up and releasethe lever repeatedly
to raise the seat to
the desired height.
• Push down and release the lever
repeatedly to lower
the seat to the
desired height.
•Driver’s and passenger’s
seat: Moves the seat
forward and backward.
• Driver’s and passenger’s
seat: Adjusts the seat-back
angle forward or backward.
• Driver’s seat only: 1
moves the front of the seat
up or down. 2 raises or
lowers the whole seat.
• Driver’s seat only: Adjusts
the whole seat up and
forward or down and back.
• Driver’s Power Lumbar (if
equipped): Press either
side of the bar to increase
or decrease lumbar support.
• Pull up on the bar under the seat cushion’s front
edge to move the seat
forward and backward.
Release the bar to lock
the seat into position.
• Pull up on the lever on the outside of the seat to
change the angle of the
seat-back. Release the
lever to lock the seat-
back into position.
Manual Seat Adjustment
09 AccordCoupe:09 Accord Coupe.qxd 6/16/2008 1:41 PM Page 9
Page 12 of 30
* Check the owner’s manual for additional information and instructions.
Seats

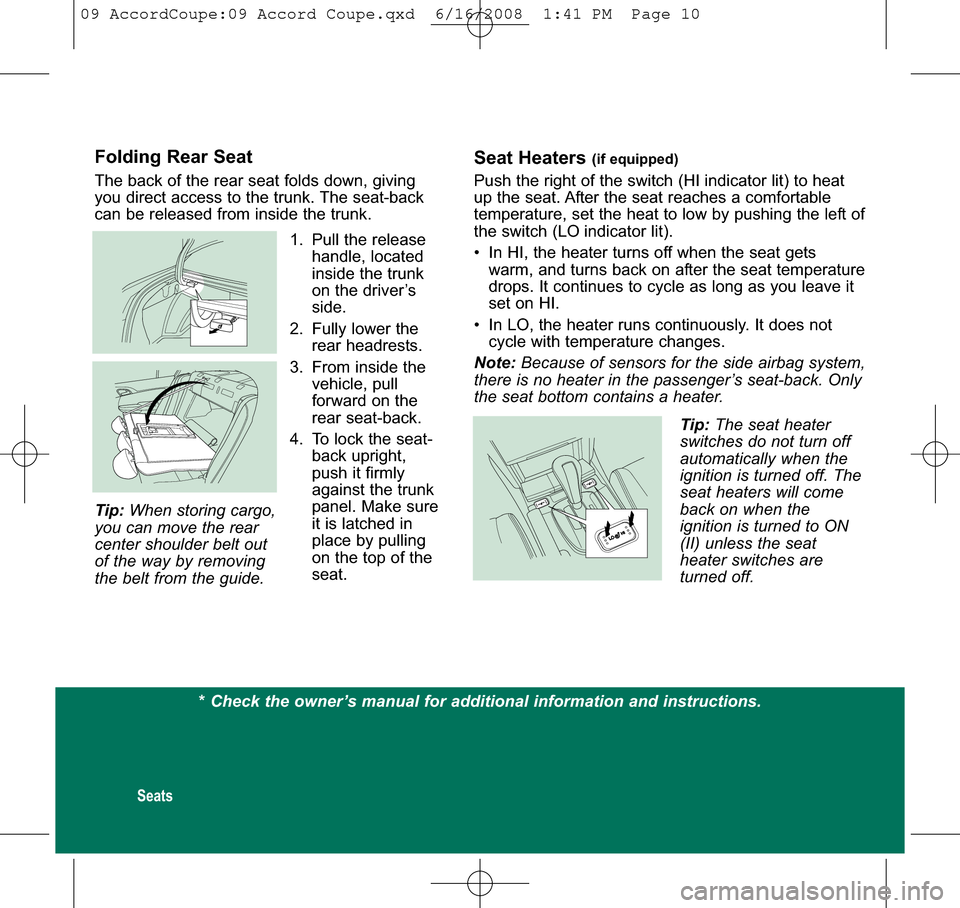

Folding Rear Seat
The back of the rear seat folds down, giving
you direct access to the trunk. The seat-back
can be released from inside the trunk.
Tip: When storing cargo,
you can move the rear
center shoulder belt out
of the way by removing
the belt from the guide.
1. Pull the release handle, located
inside the trunk
on the driver’s
side.
2. Fully lower the rear headrests.
3. From inside the vehicle, pull
forward on the
rear seat-back.
4. To lock the seat- back upright,
push it firmly
against the trunk
panel. Make sure
it is latched in
place by pulling
on the top of the
seat.
Seat Heaters (if equipped)
Push the right of the switch (HI indicator lit) to heat
up the seat. After the seat reaches a comfortable
temperature, set the heat to low by pushing the left of
the switch (LO indicator lit).
• In HI, the heater turns off when the seat getswarm, and turns back on after the seat temperature
drops. It continues to cycle as long as you leave it
set on HI.
• In LO, the heater runs continuously. It does not cycle with temperature changes.
Note: Because of sensors for the side airbag system,
there is no heater in the passenger’s seat-back. Only
the seat bottom contains a heater.
Tip: The seat heater
switches do not turn off
automatically when the
ignition is turned off. The
seat heaters will come
back on when the
ignition is turned to ON
(II) unless the seat
heater switches are
turned off.
09 AccordCoupe:09 Accord Coupe.qxd 6/16/2008 1:41 PM Page 10
Page 13 of 30

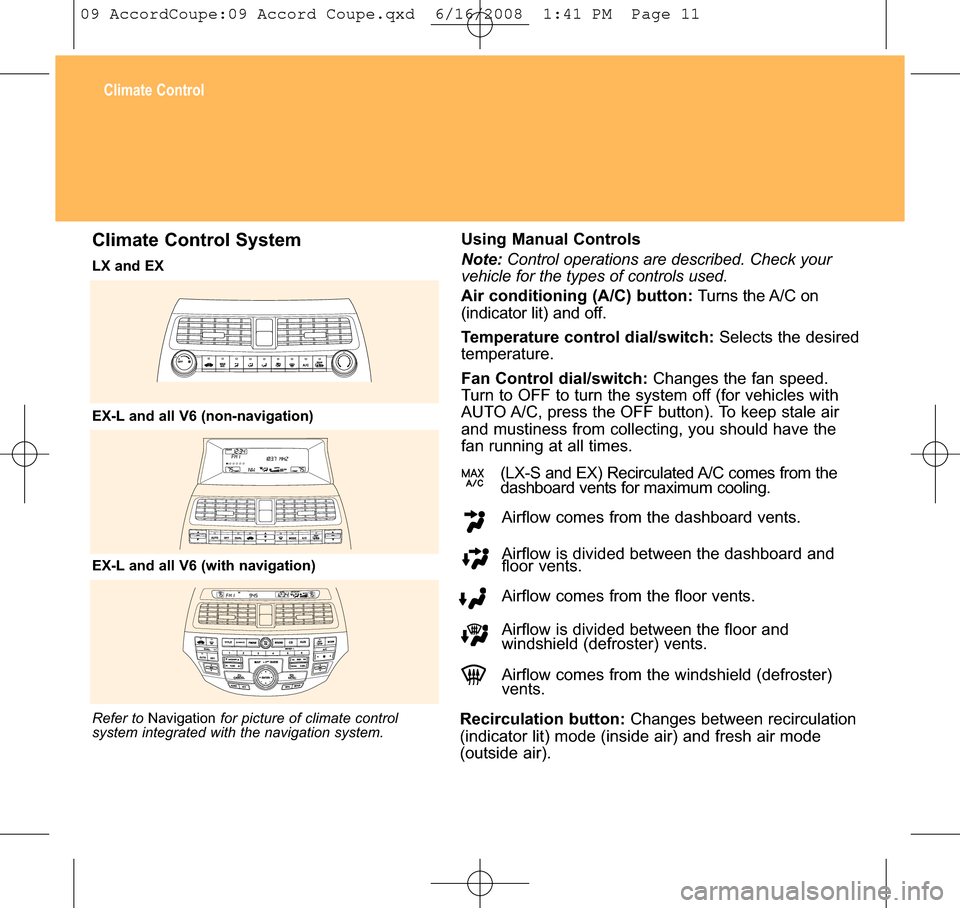

Climate Control
Using Manual Controls
Note:Control operations are described. Check your
vehicle for the types of controls used.
Air conditioning (A/C) button: Turns the A/C on
(indicator lit) and off.
Temperature control dial/switch: Selects the desired
temperature.
Fan Control dial/switch: Changes the fan speed.
Turn to OFF to turn the system off (for vehicles with
AUTO A/C, press the OFF button). To keep stale air
and mustiness from collecting, you should have the
fan running at all times.
(LX-S and EX) Recirculated A/C comes from the
dashboard vents for maximum cooling.
Airflow comes from the dashboard vents.
Airflow is divided between the dashboard and
floor vents.
Airflow comes from the floor vents.
Airflow is divided between the floor and
windshield (defroster) vents.
Airflow comes from the windshield (defroster)
vents.
Recirculation button: Changes between recirculation
(indicator lit) mode (inside air) and fresh air mode
(outside air).
Climate Control System
Refer to Navigation for picture of climate control
system integrated with the navigation system.
LX and EX
EX-L and all V6 (non-navigation)
EX-L and all V6 (with navigation)
09 AccordCoupe:09 Accord Coupe.qxd 6/16/2008 1:41 PM Page 11
Page 14 of 30
* Check the owner’s manual for additional information and instructions. Climate Control
Defroster button: Turns the defroster on
(indicator lit) and off to clear the windshield of fog
or frost.
Tip: If there is frost on the windows, select
Recirculation mode. If the windows are fogged,
select Fresh Air mode.
Rear window defogger button: Turns the
defogger on (indicator lit) and off to clear the rear
window of fog or frost.
Tip: The top part of the rear window is the radio
antenna; it may take longer for that part to clear.
AUTO button: Turns on the automatic climate
control system, which regulates the interior
temperature, mode controls, and fan speed.
“AUTO” is not displayed when the system is in
semiautomatic mode. If you press the mode
and/or fan control buttons while in AUTO mode,
the system is changed to semiautomatic mode.
The system no longer controls the mode controls
and fan speed.On models with navigation – In auto mode, the
system regulates each temperature based on
information from a sunlight sensor and the
navigation global positioning system (GPS). If one
side of the vehicle is getting direct sunlight, the
system will adjust that side to a lower temperature.
Tip: When you set the temperature to its lower
limit (LO) or its upper limit (HI), the system runs at
full cooling or heating capacity. It does not regulate
the interior temperature or fan speed.
Dual Mode Temperature Controls (if equipped)DUAL button: Allows for independent driver’s and
passenger’s side temperature control. When
selected, the indicator in the button is lit. Press
again to return temperature control to the driver
side control. The indicator will turn off.
Note: When defroster mode is selected, dual
mode function is cancelled.
OFF button: Completely turns off the climate
control system.
09 AccordCoupe:09 Accord Coupe.qxd 6/16/2008 1:41 PM Page 12
Page 15 of 30
Audio
Audio System
LX Models
EX, EX-L Models (EX-L model shown)
With Navigation
Audio Controls
Note:Control operations are described. Check your
vehicle for the types of controls used.
TUNE/Selector knob/bar:
Changes the radio station.
AM/FM/XM buttons:
Selects AM, FM1, FM2, XM1, or XM2 (if equipped).
Preset buttons:
Selects the desired station stored in a band (AM/FM1/
FM2/XM1/XM2). To store a station, press and hold the
desired preset button until you hear a beep, then
release.
SKIP buttons/bar:
Seeks upward (>>) or downward (<<) to find the next
station with a strong signal.
A.SEL button/bar:
Turns on AUTO SELECT – this scans the AM and FM
bands and stores the strongest stations in the preset
buttons of each band.
Tip: You will not lose your selected presets. They will
come back when you turn off AUTO SELECT.
CD (CD/AUX) button:
Selects the CD changer.
09 AccordCoupe:09 Accord Coupe.qxd 6/16/2008 1:41 PM Page 13
Page 16 of 30
SOUND AdjustmentSound level adjustment is accessed by pressing
the SOUND button. On EX and EX-L models, the
selector knob (non-navigation models) can be
used. For these models, do this:
1. Press and release the MENU button.
2. Turn the selector knob to move to any of these settings:
BASS TREBLE FADER BALANCE SUBW (EX-
L only) SVC CLOCK ADJUST (on 6-CD system, this is
accessed by the MENU button).
3. Press the selector knob to choose the desired setting.
4. Turn the selector knob to adjust the setting up or down.
5. Press MENU to return to the original display.
Using the Remote Audio Controls
VOL buttons: Adjusts the
volume.
MODE button: Changes
the system to the next
mode: AM/FM1/FM2/CD/
XM1/XM2.
CH buttons
Radio: • Press and release to change to the next or previous preset station.
• Press and hold until you hear a beep. The next station (+ or -) is selected.
CD: Skips to the beginning of the next track or
the start of the current track.
* Check the owner’s manual for additional information and instructions.
(EX, EX-L display shown)
Audio DisplayAudio information is shown in the center display.
Note: With headlights on, the instrument panel
brightness control knob can be used to adjust
audio illumination.
Selector Knob/Interface Dial (if equipped)
Most audio system functions can be controlled by
standard controls. You can access some audio
and navigation functions by using the selector
knob/interface dial on the audio system. Press
ENTER to select an item.
Interface Dial (models with Navigation)
The dial consists of:
• KNOB: Turns left and right to scroll through the display items and adjust the levels.
• SELECTOR (ENTER): Use to select items.
(Navigation display shown)
Selector KnobInterface Dial
Enter
Knob
Selector
09 Accord Coupe 13ab:ExtraPages.qxd 6/16/2008 1:43 PM Page a13
Page 17 of 30
Auxiliary Input JackThe auxiliary input jack is located inside the
center console compartment. It will accept
auxiliary input from standard audio accessories
(3.5mm stereo mini-plug). To use, connect a
compatible audio unit to the jack. To use a
connected compatible accessory unit, press the
AUX or CD/AUX button.Radio Data System (RDS)When an RDS radio station is selected, the station
frequency and name are displayed. Otherwise, only
the frequency is displayed.
Program Service (PS) Name Display: When
selected, the name of the selected RDS station is
displayed. To turn ON or OFF, press and release
the TITLE button. “PS ON” or “PS OFF” appears in
the display.
When either FM band is selected, RDS program
category can be selected, using either side ( =or >)
of the CATEGORY (models with XM)/ FOLDER
(models without XM) bar to display and select an
RDS group. See the owner’s manual for the
principal RDS categories.
RDS Search: Press and release either side of the
SKIP bar to search up and down for the next RDS
station in your selected category with a strong
signal. If ALL is selected, all RDS stations will be
searched.
RDS SCAN: Press and release the SCAN button to
sample all available RDS stations in your selected
RDS category. If ALL is selected, all available RDS
stations will be scanned. Press the button again
when a desired station is reached.
Note: RDS Search and SCAN features function
with the PS name display on or off.
09 Accord Coupe 13ab:ExtraPages.qxd 6/16/2008 1:43 PM Page b13
Page 18 of 30
LX and EX Models
EX-L and All V6 Models
(without navigation system)
With Navigation* Check the owner’s manual for additional information and instructions.
Disc Player ControlsNote:
• Control operations for all trim levels aredescribed. Check your vehicle for the types of
controls used.
• Files in MP3/WMA mode are the equivalent of tracks in CD mode. LOAD button:
Loads a CD in the selected or next
available slot.
Eject button: Ejects the disc currently selected.
SKIP bar: Press and release <
next track, or I;; to skip backward to the beginning of
the current track. Press and hold either side to move
rapidly within a track.
FOLDER bar (non-XM)/CATEGORY bar (XM
equipped) (MP3, WMA Mode): Press (=) to skip to the
beginning of the next folder, or ( >) to skip to the
beginning of the previous folder.
Press the MENU button to select the following items:
DISC REPEAT**: Turn the selector knob to PLAY
MODE, and press ENTER. Select REPEAT DISC to
continuously replay the current disc.
REPEAT** (Track or File): Turn the selector knob to
PLAY MODE, and press ENTER. Select REPEAT ONE
TRK to continuously replay a track (files in WMA or MP3
mode).
FOLDER REPEAT** (MP3, WMA Mode): Turn the
selector knob to PLAY MODE, and press ENTER.
Select REPEAT ONE FLD to replay in order all files in a
selected folder, in recorded order.
RANDOM** (within a disc): Turn the selector knob to
PLAY MODE, and press ENTER. Select RANDOM IN
DISC to play all the tracks on a disc in random order.
(continued on next page)**Models with Navigation: Use the interface dial to access
PLAY MODE, then select the adjustment to be made.
09 Accord Coupe 13ab:ExtraPages.qxd 6/16/2008 1:43 PM Page c13
Page 19 of 30
Playing Discs
To load a single CD in the player:
Press the LOAD button, then insert the CD halfway
into the CD slot. The drive pulls it in the rest of the
way. It takes a few seconds for the CD to load.
To remove a CD:
1. Press the Eject button.
2. Remove the CD as it comes out.
To load multiple CDs in the 6-CD changer:
1. Press and hold LOAD button until the systembeeps.
2. When “LOAD” is displayed, insert a CD into CD slot.
3. When “LOAD” is displayed again, insert the next CD.
4. Repeat until all six positions are loaded.
Tip: If you are not loading CDs into all six positions,
press the CD button after the last CD is loaded, or
wait 10 seconds and the system stops the load
operation.
To remove multiple CDs in the 6-CD changer:
1. Press and hold the Eject button until system beeps.
2. Remove the CDs as they come out.
Tip: If you eject the disc, but do not remove it, the
system automatically reloads it after 10 seconds.Disc Player Controls (continued)
FOLDER RANDOM** (MP3, WMA Mode): Turn
the selector knob to PLAY MODE, and press
ENTER. Select RANDOM IN FLD to play all files
in a selected folder in random order.
SCAN TRACK/DISC**: Turn the selector knob to
PLAY MODE, and press ENTER. Select SCAN
TRK to hear 10-second samples of each track/file
of each disc in recorded order. Select SCAN
DISC to hear 10-second samples of the first
track/file of each disc.
FOLDER SCAN (MP3, WMA Mode)**: Turn the
selector knob to PLAY MODE, and press ENTER.
Select SCAN FLD to sample 10 seconds of the
first file of each folder.
TITLE button: Press to display information about
tracks (CD mode), files or folders (MP3/WMA
format).
**Models with Navigation: Use the interface dial to
access PLAY MODE, then select the adjustment to be
made.
09 Accord Coupe 13ab:ExtraPages.qxd 6/16/2008 1:43 PM Page d13
Page 20 of 30
* Check the owner’s manual for additional information and instructions. Audio
Play Mode
Press the TITLE button; the following is
displayed:
• CD text data: Album, artist, track name.
• MP3 or WMA format: Folder, file name, artist, album, and track tag.
Models with Navigation: Use the interface dial
to access PLAY MODE, then select the
adjustment to be made.
Changing Folders, Tracks/Files
(MP3 and WMA modes)
1. The selector knob can be used to select a folder or track/file on the list.
2. Press ENTER (push in the selector knob). The display changes to a three-folder list.
3. Turn the knob to scroll to a desired folder, then press ENTER. The display changes to a
three-track list. Turn the knob to scroll to a
desired track, then press ENTER.Select Repeat, Random, or Scan Modes
To select any of these modes:
1. Press the MENU button to display menuselections.
2. Turn the selector knob to display PLAY MODE, and press ENTER.
3. Turn the selector knob to the desired mode, and press ENTER.
To turn off any of these features:
1. Press the MENU button, select PLAY MODE, and press ENTER.
2. Select NORMAL PLAY, and press ENTER.
09 AccordCoupe:09 Accord Coupe.qxd 6/16/2008 1:41 PM Page 14
