* Check the owner’s manual for additional information and instructions. Climate Control

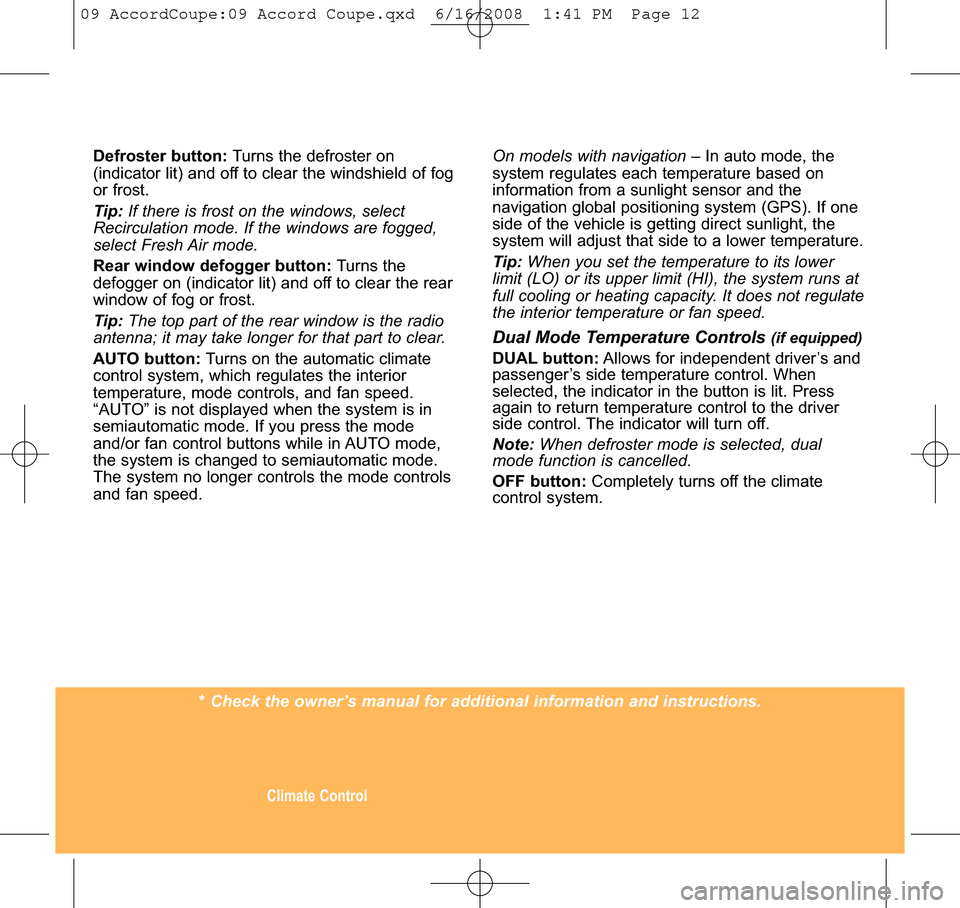

Defroster button: Turns the defroster on
(indicator lit) and off to clear the windshield of fog
or frost.
Tip: If there is frost on the windows, select
Recirculation mode. If the windows are fogged,
select Fresh Air mode.
Rear window defogger button: Turns the
defogger on (indicator lit) and off to clear the rear
window of fog or frost.
Tip: The top part of the rear window is the radio
antenna; it may take longer for that part to clear.
AUTO button: Turns on the automatic climate
control system, which regulates the interior
temperature, mode controls, and fan speed.
“AUTO” is not displayed when the system is in
semiautomatic mode. If you press the mode
and/or fan control buttons while in AUTO mode,
the system is changed to semiautomatic mode.
The system no longer controls the mode controls
and fan speed.On models with navigation – In auto mode, the
system regulates each temperature based on
information from a sunlight sensor and the
navigation global positioning system (GPS). If one
side of the vehicle is getting direct sunlight, the
system will adjust that side to a lower temperature.
Tip: When you set the temperature to its lower
limit (LO) or its upper limit (HI), the system runs at
full cooling or heating capacity. It does not regulate
the interior temperature or fan speed.
Dual Mode Temperature Controls (if equipped)DUAL button: Allows for independent driver’s and
passenger’s side temperature control. When
selected, the indicator in the button is lit. Press
again to return temperature control to the driver
side control. The indicator will turn off.
Note: When defroster mode is selected, dual
mode function is cancelled.
OFF button: Completely turns off the climate
control system.
09 AccordCoupe:09 Accord Coupe.qxd 6/16/2008 1:41 PM Page 12
Page 15 of 30

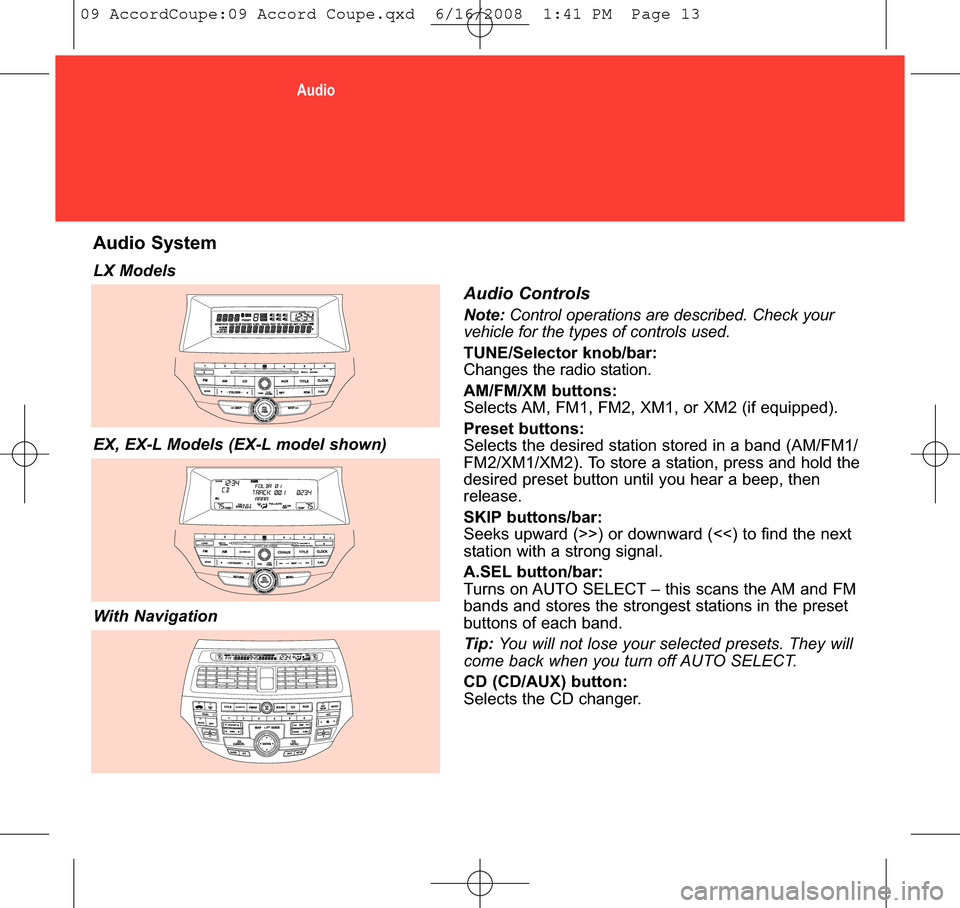

Audio
Audio System
LX Models
EX, EX-L Models (EX-L model shown)
With Navigation
Audio Controls
Note:Control operations are described. Check your
vehicle for the types of controls used.
TUNE/Selector knob/bar:
Changes the radio station.
AM/FM/XM buttons:
Selects AM, FM1, FM2, XM1, or XM2 (if equipped).
Preset buttons:
Selects the desired station stored in a band (AM/FM1/
FM2/XM1/XM2). To store a station, press and hold the
desired preset button until you hear a beep, then
release.
SKIP buttons/bar:
Seeks upward (>>) or downward (<<) to find the next
station with a strong signal.
A.SEL button/bar:
Turns on AUTO SELECT – this scans the AM and FM
bands and stores the strongest stations in the preset
buttons of each band.
Tip: You will not lose your selected presets. They will
come back when you turn off AUTO SELECT.
CD (CD/AUX) button:
Selects the CD changer.
09 AccordCoupe:09 Accord Coupe.qxd 6/16/2008 1:41 PM Page 13
Page 16 of 30

SOUND AdjustmentSound level adjustment is accessed by pressing
the SOUND button. On EX and EX-L models, the
selector knob (non-navigation models) can be
used. For these models, do this:
1. Press and release the MENU button.
2. Turn the selector knob to move to any of these settings:
BASS TREBLE FADER BALANCE SUBW (EX-
L only) SVC CLOCK ADJUST (on 6-CD system, this is
accessed by the MENU button).
3. Press the selector knob to choose the desired setting.
4. Turn the selector knob to adjust the setting up or down.
5. Press MENU to return to the original display.
Using the Remote Audio Controls
VOL buttons: Adjusts the
volume.
MODE button: Changes
the system to the next
mode: AM/FM1/FM2/CD/
XM1/XM2.
CH buttons
Radio: • Press and release to change to the next or previous preset station.
• Press and hold until you hear a beep. The next station (+ or -) is selected.
CD: Skips to the beginning of the next track or
the start of the current track.
* Check the owner’s manual for additional information and instructions.
(EX, EX-L display shown)
Audio DisplayAudio information is shown in the center display.
Note: With headlights on, the instrument panel
brightness control knob can be used to adjust
audio illumination.
Selector Knob/Interface Dial (if equipped)
Most audio system functions can be controlled by
standard controls. You can access some audio
and navigation functions by using the selector
knob/interface dial on the audio system. Press
ENTER to select an item.
Interface Dial (models with Navigation)
The dial consists of:
• KNOB: Turns left and right to scroll through the display items and adjust the levels.
• SELECTOR (ENTER): Use to select items.
(Navigation display shown)
Selector KnobInterface Dial
Enter
Knob
Selector
09 Accord Coupe 13ab:ExtraPages.qxd 6/16/2008 1:43 PM Page a13
Page 21 of 30

HFL/
HomeLink®
Bluetooth® HandsFreeLink®(Navi models)Your vehicle is equipped with Bluetooth
HandsFreeLink (HFL). HFL uses Bluetooth
technology to link your cell phone to your vehicle, and
you can place and receive calls through the audio
system. To use this feature, you need a Bluetooth-
compatible cell phone with the hands-free profile. For
more information (including pairing information), and
a list of compatible cell phones, visit
handsfreelink.honda.com , or call (888) 528-7876.
Tip: The maximum range between your phone and
the vehicle is 30 feet.
HFL TALK button: Activates HFL
(audio system mutes). Press and
release the button, wait for a beep,
then give a voice command in a
clear, natural speaking voice
(without pause). If a voice
command is not given within 3
seconds, the system times out (two
beeps).
HFL BACK button: Use to end a
call, to go back to the previous
command, or to cancel an
operation.HFL DisplayWhen operating HFL, the following appears in
the main and center displays.
Using Voice Control•If HFL does not recognize a command, its
response is “Pardon, please repeat.”
• To hear a list of available options at any time, say “HandsFree help.”
• Many commands can be spoken together. For example, you can say “Dial 123-456-7891.”
• To skip a voice prompt, press the HFL TALK button while HFL is speaking. HFL is then ready
for your next command.
• To end a command sequence, press and hold the HFL BACK button, or press the HFL TALK button
and say “Cancel.” The next time you press the
HFL TALK button, HFL begins from the main
menu.
• Make sure that the airflow from the A/C vents does not interfere with the system microphone in
the ceiling console.
• Close the windows/moonroof.
• If the microphone picks up other voices or if you don’t speak clearly, the system may not
understand your command.
HFL
BUTTONS
09 AccordCoupe:09 Accord Coupe.qxd 6/16/2008 1:41 PM Page 15
Page 24 of 30

* Check the owner’s manual for additional information and instructions. HFL/

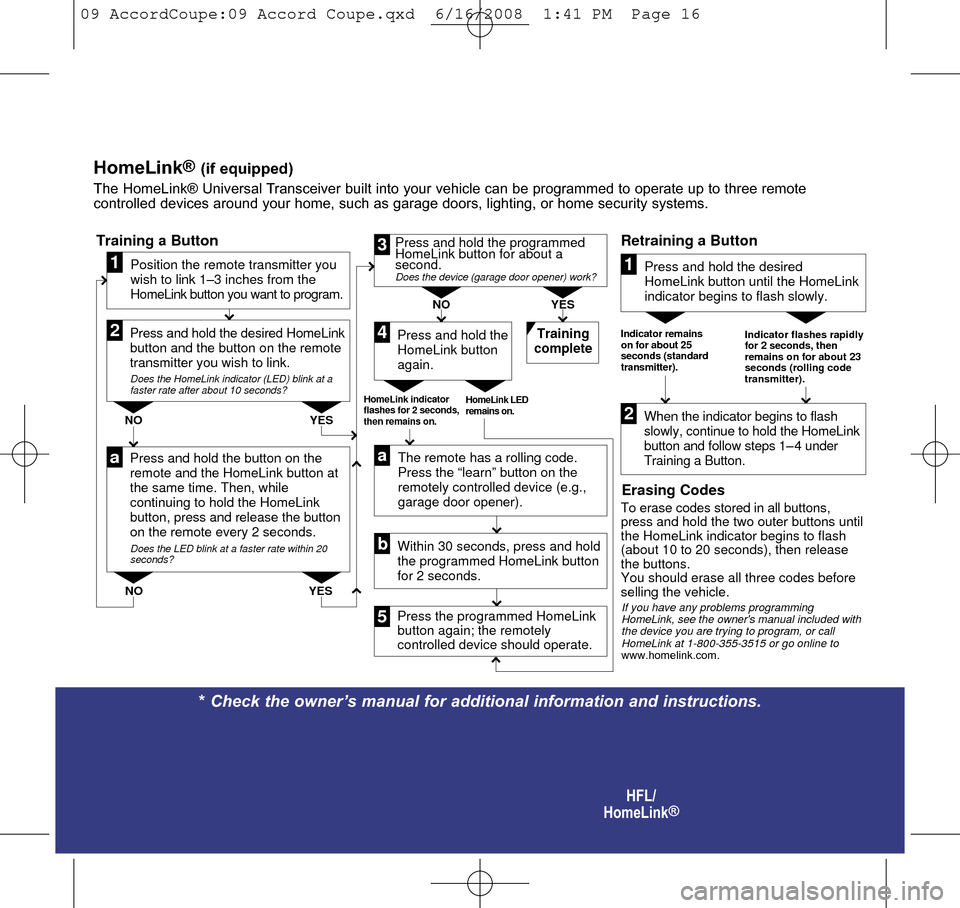

HomeLink
®
Press and hold the button on the
remote and the HomeLink button at
the same time. Then, while
continuing to hold the HomeLink
button, press and release the button
on the remote every 2 seconds.
Does the LED blink at a faster rate within 20
seconds?
Press and hold the
HomeLink button
again. Training
complete
YES
NO
HomeLink indicator
flashes for 2 seconds,
then remains on. HomeLink LED
remains on.
YES
NO YES
NO
Position the remote transmitter you
wish to link 1–3 inches from the
HomeLink button you want to program.1
Press and hold the desired HomeLink
button and the button on the remote
transmitter you wish to link.
Does the HomeLink indicator (LED) blink at a
faster rate after about 10 seconds?
2
aThe remote has a rolling code.
Press the “learn” button on the
remotely controlled device (e.g.,
garage door opener).
Press the programmed HomeLink
button again; the remotely
controlled device should operate. Within 30 seconds, press and hold
the programmed HomeLink button
for 2 seconds.a
Press and hold the programmed
HomeLink button for about a
second.
Does the device (garage door opener) work?
3
b
4
5
Training a Button
Indicator remains
on for about 25
seconds (standard
transmitter). Indicator flashes rapidly
for 2 seconds, then
remains on for about 23
seconds (rolling code
transmitter).
Press and hold the desired
HomeLink button until the HomeLink
indicator begins to flash slowly.
When the indicator begins to flash
slowly, continue to hold the HomeLink
button and follow steps 1– 4 under
Training a Button.1
2
Retraining a Button
Erasing CodesTo erase codes stored in all buttons,
press and hold the two outer buttons until
the HomeLink indicator begins to flash
(about 10 to 20 seconds), then release
the buttons.
You should erase all three codes before
selling the vehicle.
If you have any problems programming
HomeLink, see the owner's manual included with
the device you are trying to program, or call
HomeLink at 1-800-355-3515 or go online to
www.homelink.com .
HomeLink®(if equipped)The HomeLink® Universal Transceiver built into your vehicle can be programmed to operate up to th\
ree remote
controlled devices around your home, such as garage doors, lighting, or \
home security systems.
09 AccordCoupe:09 Accord Coupe.qxd 6/16/2008 1:41 PM Page 16
Page 27 of 30

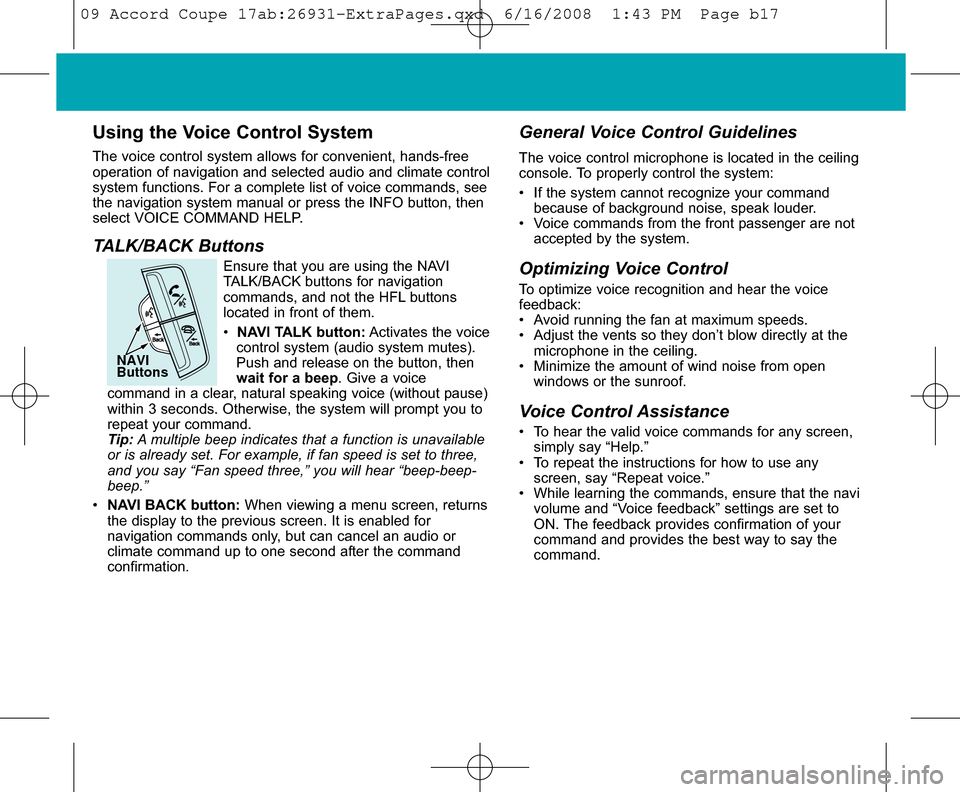

Using the Voice Control System
The voice control system allows for convenient, hands-free
operation of navigation and selected audio and climate control
system functions. For a complete list of voice commands, see
the navigation system manual or press the INFO button, then
select VOICE COMMAND HELP.
TALK/BACK ButtonsEnsure that you are using the NAVI
TALK/BACK buttons for navigation
commands, and not the HFL buttons
located in front of them.
• NAVI TALK button:Activates the voice
control system (audio system mutes).
Push and release on the button, then
wait for a beep . Give a voice
command in a clear, natural speaking voice (without pause)
within 3 seconds. Otherwise, the system will prompt you to
repeat your command.
Tip: A multiple beep indicates that a function is unavailable
or is already set. For example, if fan speed is set to three,
and you say “Fan speed three,” you will hear “beep-beep-
beep.”
• NAVI BACK button: When viewing a menu screen, returns
the display to the previous screen. It is enabled for
navigation commands only, but can cancel an audio or
climate command up to one second after the command
confirmation.
General Voice Control Guidelines
The voice control microphone is located in the ceiling
console. To properly control the system:
• If the system cannot recognize your command because of background noise, speak louder.
• Voice commands from the front passenger are not accepted by the system.
Optimizing Voice ControlTo optimize voice recognition and hear the voice
feedback:
• Avoid running the fan at maximum speeds.
• Adjust the vents so they don’t blow directly at themicrophone in the ceiling.
• Minimize the amount of wind noise from open windows or the sunroof.
Voice Control Assistance• To hear the valid voice commands for any screen,simply say “Help.”
• To repeat the instructions for how to use any screen, say “Repeat voice.”
• While learning the commands, ensure that the navi volume and “Voice feedback” settings are set to
ON. The feedback provides confirmation of your
command and provides the best way to say the
command.
NAVI
Buttons
