In MP3 or WMA mode, you can also
select a f older or track/f ile f rom the
list by using the selector knob. Push
the selector knob (ENTER) to
switch the display to the list
displayed with three segments, then
turn the knob to select a f older.
Press the selector knob (ENTER) to
change the display to the track/file
list, then turn the same knob to
select a track/f ile. Press the selector
knob (ENTER) to set your selection.
Use the SKIP bar while a disc is
playing to select passages and
change tracks (f iles in MP3 or WMA
mode).
To select a dif f erent disc, use the
appropriate preset buttons (1
through 6). If you select an empty
position, the system will go into the
loading sequence (see page ).
You will also see some text data
under these conditions:
When you insert a disc, and the
system begins to play. When a new f older, f ile, or track is
selected.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA. In MP3 or WMA mode, use the
FOLDER bar (CATEGORY bar on
models with XM Radio) to select
f olders in the disc and use either
side of the skip bar to change f iles.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
When you turn on the audio system
next time, the system keeps your
selection with the TITLE button. 166
T o Change or Select T racks/Files
Playing Discs (EX, EX-L, Canadian SE, and V6 models without navigation system)
168
Folder Selection
Press ENTER
Track Selection
10/06/18 16:04:32 31TA5630_173
2011 Accord Sedan

µµ
ÛÝ
Û
Ý
CONT INUED
Each time you press and
releasethe sideof theSKIPbar,
the player skips forward to the
beginning of the next track (f ile in
MP3 or WMA mode). Press and
releasethe sideof thebarto
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To move rapidly within a track or f ile,
press and hold either side ( or ) of the SKIP bar. To
select a dif f erent f older, press either
side ( or ) of the FOLDER bar
(CATEGORY bar on models with
XM Radio) to move to the beginning
of the next f older. Press the side
to skip to the next folder, and press
the side to skip to the beginning
of the previous f older.
You can select any type of repeat,
random and scan modes by using the
MENU button and the selector knob.
Push the MENU button to display
themenuitems,thenturnthe
selector knob to select ‘‘PLAY
MODE.’’ Press the selector knob
(ENTER) to set the selection.In MP3orWMA modeSK IP
FOLDER SELECTION
Playing Discs (EX, EX-L, Canadian SE, and V6 models without navigation system)
T o Select Repeat , Random or Scan
Mode:
Features
169
MENU ITEMS
10/06/18 16:04:39 31TA5630_174
2011 Accord Sedan

µ
Turn the selector knob to select an
appropriate repeat, random or scan
mode, then press the selector knob
(ENTER) to set your selection. To cancel the selected repeat,
random, or scan mode, press the
MENU button to show ‘‘PLAY
MODE,’’ then press the selector
knob (ENTER). When you see
‘‘NORMAL PLAY,’’ press ENTER
again.
To
continuously replay a track (f ile in
MP3 or WMA mode), select
REPEAT ONE TRK f rom the menu
items. You will see REPEAT in the
display. Select normal play to turn it
of f .
Pressing either side of the SKIP bar
also turns of f the repeat f eature.
Playing Discs (EX, EX-L, Canadian SE, and V6 models without navigation system)
REPEAT ONE TRK
170
PLAY MODE ITEMS
10/06/18 16:04:45 31TA5630_175
2011 Accord Sedan

µ
µ
µ
µ
CONT INUED
This feature
plays the tracks within a disc (the
f iles in MP3 or WMA mode) in
random order. To activate random
play, select RANDOM IN DISC f rom
the menu items. You will see
RANDOM in the display. Select
normal play to return to normal play.
This feature,
when activated, plays the f iles within
the current f older in random order,
rather than in the order they are
compressedinMP3orWMA.To
activate folder random play, select
RANDOM IN FLD f rom the menu
items. You will see F-RANDOM in
the display. The system will then
select and play f iles randomly. This
continues until you deactivate f older
random play by selecting normal play,
or you select a dif f erent f older with
the FOLDER bar (CATEGORY bar
on models with XM Radio). This feature
continuously replays the current disc.
To activate disc repeat, select
REPEAT DISC from the menu items.
You will see D-REPEAT in the
display. Select normal play to turn it
off.
This feature,
when activated, replays all the f iles
on the selected f older in the order
they are compressed in MP3 or
WMA. To activate folder repeat
mode, select REPEAT ONE FLD
from the menu items. You will see
F-REPEAT in the display. The
system continuously replays the
current f older. Select normal play to
turn it of f . Selecting a dif f erent
folder with the FOLDER bar
(CATEGORY bar on models with
XM Radio) also turns of f the repeat
feature.In MP3 orWMA mode
In MP3orWMA modeRANDOM IN DISC
RANDOM IN FLD REPEAT DISC
REPEAT ONE FLD
Playing Discs (EX, EX-L, Canadian SE, and V6 models without navigation system)
Features
171
10/06/18 16:04:50 31TA5630_176
2011 Accord Sedan

µµ
You can also select the scan feature
from the menu items with the
selector knob (see page ). Pressing either side of the skip bar,
or selecting a dif f erent disc (using
the preset buttons) or f older (using
the FOLDER or CATEGORY bar)
turns off the SCAN or F-SCAN
feature.
The SCAN f unction
samples all the tracks on the disc in
the order they are recorded on the
disc (all f iles in the selected f older in
MP3 or WMA mode). To activate the
scan feature, press and release the
SCAN button. You will see SCAN in
the display. You will get a 10 second
sampling of each track/f ile in the
disc/f older. Press and hold the
SCAN button to get out of scan
mode and play the last track sampled. This f unction
samples the f irst f ile in each f older in
the order they are stored. To
activate the folder scan feature,
press and release the SCAN button
repeatedly. You will see F-SCAN in
the display. You will get a 10 second
sampling of the f irst f ile in each
folder.PressandholdtheSCAN
button to get out of the f older scan
mode and play the last f ile sampled.
You can also select the folder scan
f eature f rom the menu items with
the selector knob (see page ).
169 169In MP3orWMA modeSCAN T RK
SCAN FL D
Playing Discs (EX, EX-L, Canadian SE, and V6 models without navigation system)
172
10/06/18 16:04:56 31TA5630_177
2011 Accord Sedan

µ
CONT INUED
Each time you press and release the
SCAN button, the mode changes
from scan, disc scan, then to normal
play.
Each time you press and release the
SCAN button, the mode changes
f rom f ile scan, f older scan, disc scan,
then to normal play. When the f irst track on the last disc,
or the f irst f ile in the last main f older
in the last disc begins to play, the
disc scan mode will be canceled.
Pressing either side of the skip bar
or selecting a dif f erent f older with
the FOLDER or CATEGORY bar
also turns off the scan feature.
You can also select the disc scan
f eature f rom the menu items with
the selector knob (see page ).Press the eject button ( ) to
remove the disc. If you eject the disc,
but do not remove it f rom the slot,
the system will automatically reload
the disc af ter 10 seconds and begin
playing.
You can also eject the disc when the
ignition switch is of f .
To play the radio when a disc is
playing,presstheAM,FMorXM(if
equipped) button. Press the CD
(CD/AUX on models with XM
Radio) button again to switch back to
the disc changer.
You can also press the MODE
buttononthesteeringwheelto
change modes.
This f eature, when
activated, samples the first track on
each disc in order (the f irst f ile in
themainfolderoneachdiscinMP3
or WMA mode). To activate the disc
scan feature, press and release the
SCAN button repeatedly until
D-SCAN shows in the display. The
system will then play the f irst track/
f ile in the f irst main f older on the
f irst disc f or about 10 seconds. If you
do nothing, the system will then play
the f ollowing f irst track/f ile f or 10
seconds each. When it plays a track/
file that you want to continue
listening to, press and hold the
SCAN button again.
169
In MP3orWMA mode
To Stop Playing a Disc
SCAN DISC
Playing Discs (EX, EX-L, Canadian SE, and V6 models without navigation system)
Features
173
10/06/18 16:05:04 31TA5630_178
2011 Accord Sedan

If you turn the system of f while a
disc is playing, either with the
power/volume knob or by turning
of f the ignition switch, the disc will
stay in the drive. When you turn the
system back on, the disc will begin
playing where it lef t of f .For inf ormation on how to handle
and protect compact discs, see
.
To remove the disc currently in play,
press the eject button. When a disc is
removed f rom a slot, the system
automatically begins the load
sequence so you can load another
disc in that position. If you do not
remove the disc f rom the changer
within 10 seconds, the disc will
reload into the slot. Then the system
returns to the previous mode (AM,
FM, or XM Radio).
To remove a different disc from the
changer,firstselectitwiththe
appropriate preset button. When that
disc begins playing, press the eject
button. Continue pressing the eject
button to remove all the discs from
the changer.
You can also eject discs when the
ignition switch is of f . The disc that
was last selected is ejected f irst. Protecting DiscsRemoving Discs f rom t he In-dash
Disc Changer
Playing Discs (EX, EX-L, Canadian SE, and V6 models without navigation system)
174
10/06/18 16:05:10 31TA5630_179
page 245
2011 Accord Sedan

Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
For additional information on
damaged discs, see page .
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.Cause
Solution
Error Message
246
High Temperature
Track/File format not
supported
Mechanical Error
Servo Error Will disappear when the temperature returns to
normal.
Current track will be skipped. The next
supported track or file plays automatically.
Press the EJECT button and pull out the disc(s).
Check the disc for serious damage, signs of
deformation, excessive scratches, and/or dirt
(see page
246). Insert the disc again. If the code
does not disappear, or the disc(s) cannot be
removed, consult your dealer. Do not try to
force the disc out of the player.
Disc Changer Error Messages (EX, EX-L, Canadian SE, and V6 models without navigation system)
Features
175
HEAT ERROR
UNSUPPORTED BAD DISC
PLEASE CHECK OWNERS
MANUAL PUSH EJECT
MECH ERROR
CHANGER ERROR
CHECKDISCLOAD BAD DISC
PLEASE CHECK OWNERSMANUAL
10/06/18 16:05:16 31TA5630_180
2011 Accord Sedan

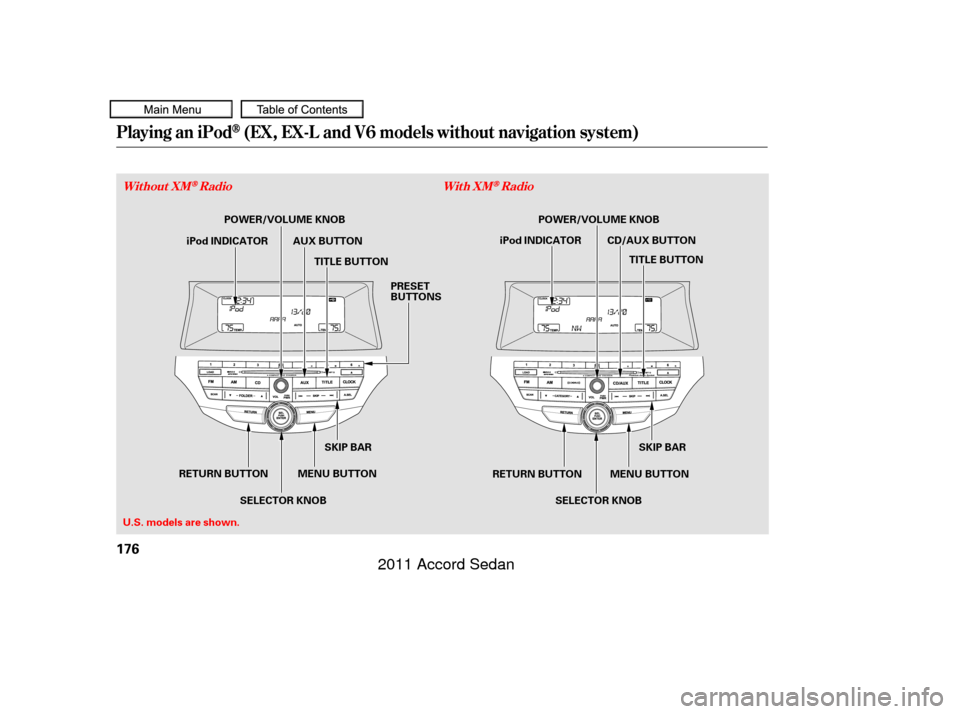

Playing an iPod(EX, EX-L and V6 models without navigation system)
Without XMRadioWith XMRadio
176
SKIP BAR
TITLE BUTTON
PRESET
BUTTONS
MENU BUTTONSKIP BAR
TITLE BUTTON
CD/AUX BUTTON
U.S. models are shown. POWER/VOLUME KNOB
POWER/VOLUME KNOB
SELECTOR KNOB
MENU BUTTON
SELECTOR KNOB RETURN BUTTON
RETURN BUTTON AUX BUTTON
iPod INDICATOR iPod INDICATOR
10/06/18 16:05:23 31TA5630_181
2011 Accord Sedan

This audio system can select and
play the audio f iles on the iPod
with
the same controls used f or the disc
player. To play an iPod, connect it to
the USB adapter cable in the console
compartment by using your dock
connector, then press the CD/AUX
button (AUX button on models
without XM Radio). The ignition
switch must be in the ACCESSORY
(I) or ON (II) position. The iPod will
also be recharged with the ignition
switch in these positions.
The audio system reads and plays
playable sound f iles on the iPod. The
system cannot operate an iPod as a
mass storage device. The system will
only play songs stored on the iPod
with iTunes.
iPod and iTunes are registered
trademarks owned by Apple Inc. iPods compatible with your audio
system using the USB adapter cable
are:
UseonlycompatibleiPodswiththe
latest sof tware. iPods that are not
compatible will not work in this audio
unit.
CONT INUED
Model
iPod classic
(80/160 G)
iPod classic
(120 G)
iPod with video
(iPod 5th
generation)
iPod nano
iPod nano
2nd generation
iPod nano
3rd generation
iPod nano
4th generation
iPod nano
5th generation
iPod touch
iPod touch
2nd generation Sof tware
Ver. 1.1.2 or more
Ver. 2.0.1 or more
Ver. 1.3.0 or more
Ver. 1.3.1 or more
Ver. 1.1.3 or more
Ver. 1.1.3 or more
Ver. 1.0.3 or more
Ver. 1.0.1 or more
Ver. 1.1.5 or more
Ver. 2.2.1 or more
To Play an iPod
Playing an iPod(EX, EX-L and V6 models without navigation system)
Features
177
10/06/18 16:05:30 31TA5630_182
2011 Accord Sedan
