HONDA ACCORD COUPE 2011 8.G Technology Reference Guide

T E C H N O L O G YR E F E R E N C E G U I D E
2 0 1 1 A C C O R D C O U P E
w w w . o w n e r s . h o n d a . c o m1 2 \f 4 5
\f 1 T E 0 Q \f 0 2 0 1 1 H o n d a A c c o r d C o u p e T e c h n o l o g y R e f e r e n c e G u i d e 1 2 \f 4 . 5 6 7 8 . 9 1 . 0
0 0 X \f 1 T E 0 Q \f 0 0 ©2010 American Honda Motor Co., Inc. — All Rights Reserved P r i n t e d i n U . S . A .
3 1 T E 0 Q 3 0
11 Accord 2D TRG\fATG_NEW STYLE 8/3/2010 10\f49 AM Page 1

HomeLink®(if equipped) ....................................\1....................................\1..............11
Voice Recognition (if equipped) ....................................\1...................................... 12
Navigation (if equipped) ....................................\1........................................\1............ 18
Bluetooth
®HandsFreeLink®(HFL) (if equipped) ....................................\1........... 2\f
Owner Link ..........................................................\1..................................................\1.. 23
Safety Reminder ....................................\1....................................\1.............................. 24
Fuel Recommendation.........................................\1.................................................. 24
Auto Door Locks .....................................................................................................
2
Instrument Panel Indicators ................................................................................... 4
Information Display .................................................................................................. 6
Tire Pressure Monitoring System (TPMS)........................................................... 7
Driving Position Memory System (DPMS) (if equipped) ..................................8
Paddle Shifting (if equipped) ................................................................................... 9
iPod
®or USB Flash Memory ................................................................................ 1\f
BLUETOOTH®
HANDSFREELINK®p.20
VOICE RECOGNITION p.12
INSTRUMENT PANEL p.4
NAVIGATION p.18
AUDIO p.10
T E C H N O L O G Y R E F E R E N C E G U I D E
The Technology Reference Guide is designed to help you get
acquainted with your new Honda and provide basic
instructions on some of the technology items.
This guide is not intended as a substitute for the Owner’s
Manual. For complete information on vehicle controls and
operation\b please refer to the respective sections in the
Owner’s Manual.
As with the Owner’s Manual\b this guide covers all trim levels
of the Accord Coupe. Therefore\b you may find descriptions
of equipment and features that are not on your particular
vehicle.
11 Accord 2D TRG\fATG_NEW STYLE 8/3/2010 10\f49 AM Page 2

A U T O D O O R L O C K SProgram how and when the vehicle doors automatically lock and unlock.
Default Lock SettingProgramming the Auto Door Unlock Setting
The doors are preset to
lock when your vehicle
reaches about 1\f mph.
Default Unlock Setting
Only the driver’s door is
preset to unlock when
you shift into Park (P).
Programmable Auto Door Lock\bUnlock Settings
Below are the options you can choose. See Auto Door Locking/Unlockingin your owner’s
manual for instructions on programming these settings.
AUTO \fOOR UNLOCK
Auto Unlock
(all doors)
When you turn
the ignition OFFWhen you shift into Park
Auto Unlock
(only driver’s door)
When you turn
the ignition OFFWhen you shift into Park
Turn off
Auto Unlock
Operate manually
AUTO \fOOR LOCK
Auto Lock
When you
reach 1\f mphWhen you shift out of Park
Turn off
Auto Lock
Operate manually
1. Close all doors. Shiftinto Park.
2.Turn the ignition switch to ON (II).4. Within 5 seconds\b turnthe ignition
switch to LOCK (\f).
3. Press and hold the unlock side of
the master lock switch for about 1\f
seconds. In that time\b you will hear
three clicks.
23
To program all doors to unlock when you shift to Park:
11 Accord 2D TRG\fATG_NEW STYLE 8/3/2010 10\f49 AM Page 3

Malfunction IndicatorsIf an indicator remains on\b there may be a problem; see your dealerOn\bOff Indicators
Condition IndicatorsAction is needed by driver
PASSENGERAIRBAG
OFFPASSENGER AIRBAG OFF(above Hazard Warning button)
SIDE AIRBAGOFF
VSA OFF
CRUISE CONTROL on
ECOFuel economyon*
Fog lightson*
Headlights on
Turn signals/hazards on
CRUISE MAINonHigh beamson
*if equipped
Charging system
Low brake fluid
Low oil pressure
ABS(antilock brake system)
DRL(daytime running lights)
Malfunction indicator lamp(check engine light)
TPMS(tire pressure monitoring system)
VSA(vehicle stability assist)
SRS(supplemental restraint system)
Parking brake on:
Release
Door/Trunk open:
Close door(s) / trunk
Seat belt reminder:
Fasten seat belt(s)
Low fuel:
Refill
Low tire pressure:
Add air
Maintenance MinderTM:
Make dealer appointment

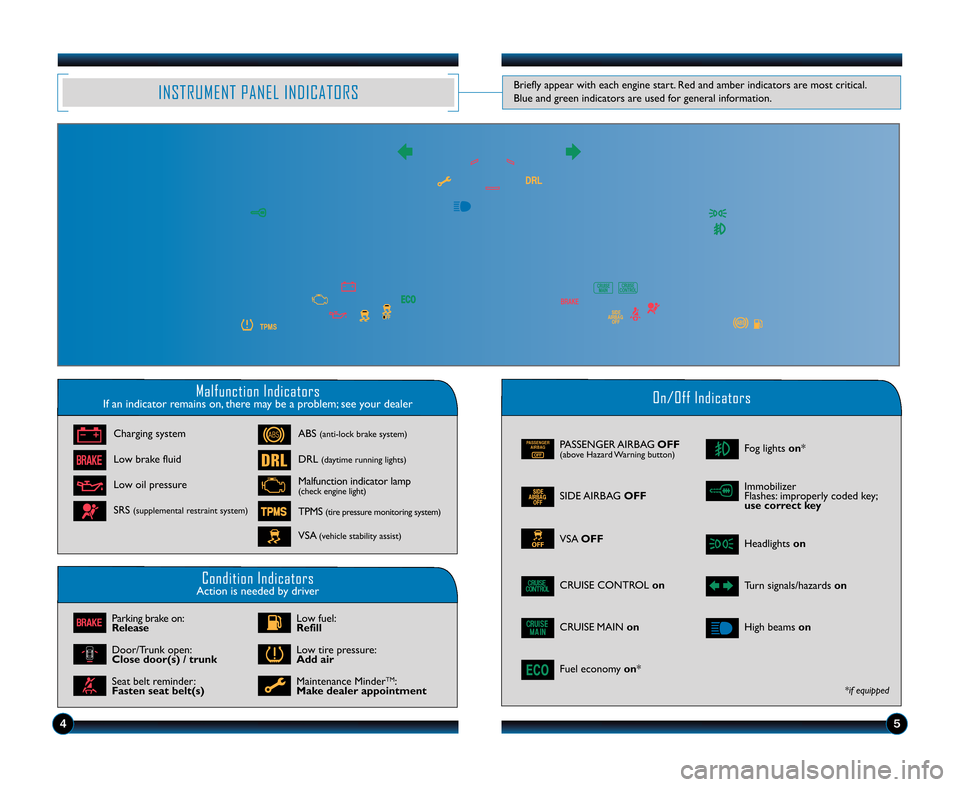

INSTRUMENT PANEL INDICATORS
Immobilizer
Flashes: improperly coded key;
use correct key
Briefly appear with each engine start. Red and amber indicators are most critical.
Blue and green indicators are used for general information.
45
11 Accord 2D TRG\fATG_NEW STYLE 8/3/2010 10\f50 AM Page 4

What to Do
Accessing the Information Display
Odometer\b Trip meter AOutside temperature*\b
Trip meter A
Oil lifeOutside temperature*\b
Trip meter B
Information Displays
* if equipped
I N F O R M A T I O N D I S P L A Y
Consists of several displays that provide you with useful information.
T I R E P R E S S U R E M O N I T O R I N G S Y S T E M ( T P M S )
Monitors the vehicle’s tire pressures.
When you start the engine\b the
information display shows your
last active selection from the
previous drive cycle.
\b7
To toggle between the different
displays\b press and release the
select/reset knob repeatedly.
1. Visually inspect the tires for
damage.
2. Use a tire air pressure gauge to
check which tire(s) have low
pressure.
3. Inflate the tire(s)\b if necessary\b
to the recommended pressures
listed on the label on the
driver’s doorjamb.
How It Works
Each tire valve stem contains
a TPMS sensor.
When the tire pressure drops
significantly below recommended
levels\b the low tire pressure
indicator comes on.
If the TPMS indicator appears\b there
may be a problem with the system.
See your dealer.
11 Accord 2D TRG\fATG_NEW STYLE 8/3/2010 10\f50 AM Page 5

89
DRIVING POSITION MEMORY SYSTEM (DPMS) (if equipped)
Store a driver’s seat position into memory for each remote transmitter.
Programming DPMS
Note\bA stored memory position is linked to the corresponding keyless remote (1
or 2). Each item begins to adjust when you unlock the driver’s door with the remote
and enter the vehicle.
1. Turn the ignition switch to
ON (II). Shiftinto Park (P).
2. Adjust your seat to the preferred
setting. 3.
Press and hold the SET button
until you hear a beep\b then release.
4. Press and hold the memory
button # corresponding to the
remote (1 or 2) you are using
until you hear two beeps.
Paddle Modes
P A D D L E S H I F T I N G *( i f e q u i p p e d )
Manually shift your vehicle’s gears up or down. Useful for engine braking or when
driving in hilly terrain or cornering.
Pull () to shift down. Pull(
+ ) to shift up.
* V6 automatic transmission model only
DPaddle Shift Mode
•
Move the shift lever to the D position.
• Pull (+) or () to shift to a higher or lower
gear.
• The selected gear number is displayed on the gear position indicator.
• When the vehicle’s speed is constant or when you press the accelerator pedal\b the mode
returns to automatic.
Sequential Shift Mode
• Move the shift lever to the S position.
• Pull (+) or () to manually shift between first
and fifth gears.
• The M indicator and selected gear number are displayed on the gear position indicator.
• Move the shift lever to the D position to
cancel this mode.
11 Accord 2D TRG\fATG_NEW STYLE 8/3/2010 10\f51 AM Page \b

I P O D®O R U S B F L A S H M E M O R Y
Play audio files from your compatible iPod or USB flash memory device through your
vehicle’s audio system.
Connecting Devices and Playing Audio Files
1.Open the center console\b and pull
out the USB adapter cable.
3.Press CD/AUX or AUX to begin
playing.
2. Connect the USB connector to your
iPod dock connector or flash drive.
4. Press the SKIP buttons to change
tracks.
1011
H O M E L I N K®( i f e q u i p p e d )
The HomeLink Universal Transceiver can be programmed to operate up to three
remotecontrolled devices around your home\b such as garage doors\b lighting\b or home
security systems.
Press and hold thebutton on the
remote and the HomeLin kbutton at
the same time. Th en, while
continuing to hold the HomeLink
button, press and release thebutton
on the remote every 2seconds.
Does the LED blink at a faster rate within 20
seconds?
Press and hold
the HomeLink
button again. Training
complete
YES
NO
HomeLink indicator
flashes for 2 seconds,
then remains on. HomeLink LED
remains on.YES
NO YES
NO
Position the remote transmitter you
wish to link 1–3 inches from the
HomeLink button you want to program.1
Press and hold the desired
HomeLink button and the button on
the remote transmitter.
Does the HomeLink indicator (LED) blink at a
faster rate after about 10 seconds?
2
a
The remote has a rolling code.
Press the “learn” button on the
remote-controlled device (e.g.,
garage door opener).
Press the programmed HomeLink
button again; the remote-controlled
device should operate. Within 30 seconds, pressand
hold the programmed HomeLink
button for 2 seconds.a
Press and hold theprogrammed
HomeLink button for about a
second.
Does the device (garage door opener) work?
3
b
4
5
Training a Button
If you have any problems programming HomeLink\b see the owner’s manual included
with the device you are trying to program\b call HomeLink at (8\f\f) 3553515\b or
visit www.homelink.com .
iPod is a registered trademark of Apple Computer, Inc ., registered in the U.S. and other countries. iPod not included. model with
navigation shown
11 Accord 2D TRG\fATG_NEW STYLE 8/3/2010 10\f51 AM Page 7

V O I C E R E C O G N I T I O N ( i f e q u i p p e d )To keep your eyes on the road and hands on the wheel\b use voice commands for
handsfree calling\b navigation\b audio\b and climate control. For a full list of commands\b say
“Information ” and “Voice Command Help. ”
Key Fu nctio ns by Voic e Com man d
B LU ETO OTH®H AN DSFR EE LIN K®p. 2\f
A U D I Op.17
C L I M A T Ep.17
N A V I G A T I O Np.18
Control four different systems with the steering wheel buttons and the ceiling
microphone.
Voice Command Tips
Press and release the HFL or Navi Talk button\b wait for a beep\b then give a
command.
For a list of available HFL commands\b
press and releasethe HFL Talk button
and say“Handsfree help.”
For a list of available navigation commands\b press and releasethe Navi Talk
button and say“Help.”
Speak in a clear\b natural voice.
Reduce all background noise.
Adjust the dashboard and side vents away from the microphone in the ceiling.
Close the windows.
HFL Talk button\b Give HFL commands or
answer incoming calls.
Navi Talk button\b Give navigation\b audio\b
and climate control commands.
Navi Back button\b Cancel a command or
return to the previous screen.
HFL Back button\b End a call\b go back to
the previous command\b or cancel an
operation.
1213
11 Accord 2D TRG\fATG_NEW STYLE 8/3/2010 10\f51 AM Page 8

Press and release the Navi Talk button before you give a command.Press and release the Navi Talk button before you give a command.
Commonly Used Voice Commands
Here are some examples of commonly used voice commands. Try some of these to
familiarize yourself with the voice command system.
Press and release the Navi Talk button before you give a command.
Locate Points of Interest
Say a command like “Display
restaurant” to see restaurant
icons appear on the map.
Say a command like “Display gas
stations” to see gas station icons
appear on the map.
Get Navigation Route
Information
After a destination is entered\b
say “How far to destination?” to
hear the remaining distance.
Say “Display entire route” to see
the routing method the system
mapped for your destination.
Press and release the Navi Talk button before you give a command.
Make Audio Selections
Say a command like “Radio 9\f.1
FM” to select that station.
Saya command like “CD play
track 1” to hear that song on a
currently inserted CD.
Adjust the Vehicle’s
Climate Setting
Say a command like “Air
conditioner on” to start the
air conditioning system.
Say a command like “Fan speed
4” to adjust the fan speed.
1415
11 Accord 2D TRG\fATG_NEW STYLE 8/3/2010 10\f52 AM Page 9

Commonly Used Voice Commands (Continued)
Here are some examples of commonly used voice commands. Try some of these
to familiarize yourself with the voice command system.
Press and release the Navi Talk button before you give a command.
G e n e r a l C o m m a n d s(Accepted on most screens to change
displays)
• Display map
• Display menu
• Information
• Display audio screen
• What time is it?
F i n d P l a c e C o m m a n d s(Accepted on Map screen)
• Find nearest: ATM Honda dealer
gas station airport
Mexican hospital restaurant bank
post office
N a v i g a t i o n C o m m a n d s(Accepted on Map screen)
• How long/far to destination?
• Display destination
• Display entire route
D i s p l a y C o m m a n d s(Accepted on Map screen)
• Display (or hide): ATM
gas station
restaurant
post office
• Display north up/heading up
• Zoom in/out
• Go home
• Display current location
Press and release the Navi Talk button before you give a command.
A u d i o C o m m a n d s(Accepted on most screens)
• Radio on
• Radio # FM/AM
• Radio preset 1/2/3/4/5/6
• XM channel #
• XM preset 1/2/3/4/5/6
• CD play
• CD play track/disc #
• CD skip forward/back
• Auxiliary (AUX) play
S e t u p C o m m a n d s(Accepted on Setup screen)
• Brightness up/down
• Volume up/down/min/max/off
• Interface dial feedback on/off
• Guidance prompts min/max/normal
C l i m a t e C o n t r o l C o m m a n d s(Accepted on most screens)
• Air conditioner on/off
• Rear defrost on/off
• Climate control recirculate/ fresh air
• Fan speed up/down
• Temperature # degrees (# = 57–87)
• Temperature max hot/cold
H e l p C o m m a n d s(Accepted on most screens)
• Help (list of available commands for current screen)
• Voice command help from INFO screen (list of all
available navigation\b audio\b and
climate control commands)
1\b17
11 Accord 2D TRG\fATG_NEW STYLE 8/3/2010 10\f52 AM Page 10
