Page 21 of 609
20
Quick Reference Guide

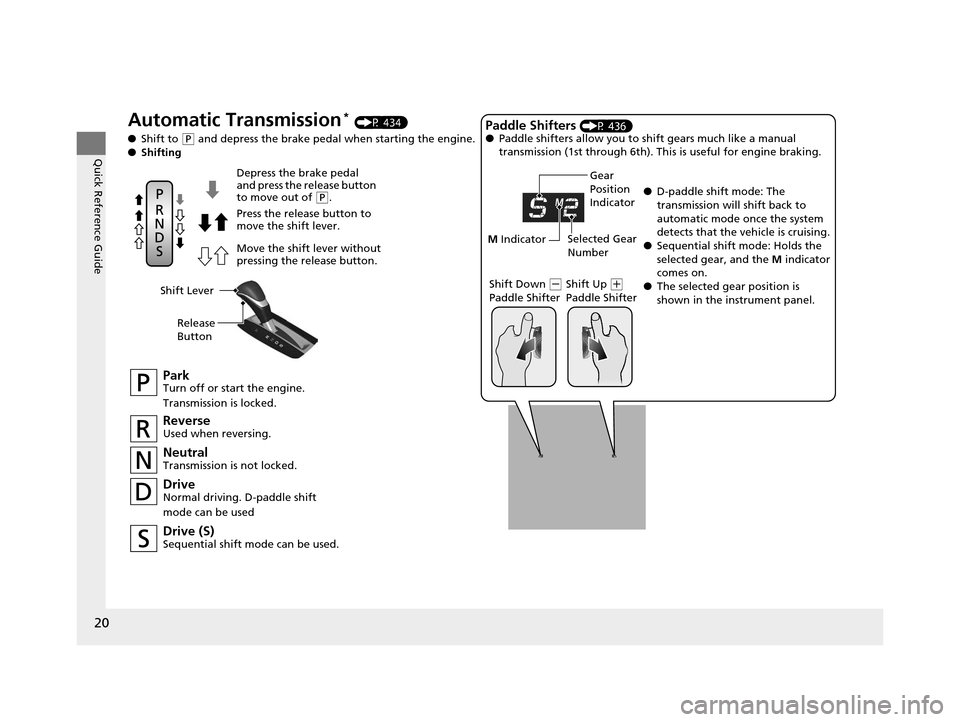

Automatic Transmission* (P 434)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
ParkTurn off or start the engine.
Transmission is locked.
NeutralTransmission is not locked.
Drive (S)Sequential shift mode can be used.
Depress the brake pedal
and press the release button
to move out of
(P.
Press the release button to
move the shift lever.
Move the shift lever without
pressing the release button.
ReverseUsed when reversing.
DriveNormal driving. D-paddle shift
mode can be used
Shift Lever
Release
Button
M Indicator Gear
Position
Indicator
Shift Down (
-
Paddle Shifter Shift Up (
+
Paddle Shifter
Paddle Shifters (P 436)
● Paddle shifters allow you to shift gears much like a manual
transmission (1st through 6th). This is useful for engine braking.
● D-paddle shift mode: The
transmission will shift back to
automatic mode once the system
detects that the vehicle is cruising.
● Sequential shift mode: Holds the
selected gear, and the M indicator
comes on.
● The selected gear position is
shown in the instrument panel.
Selected Gear
Number
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 20 ページ 2015年7月23日 木曜日 午後4時11分
Page 22 of 609
21
Quick Reference Guide

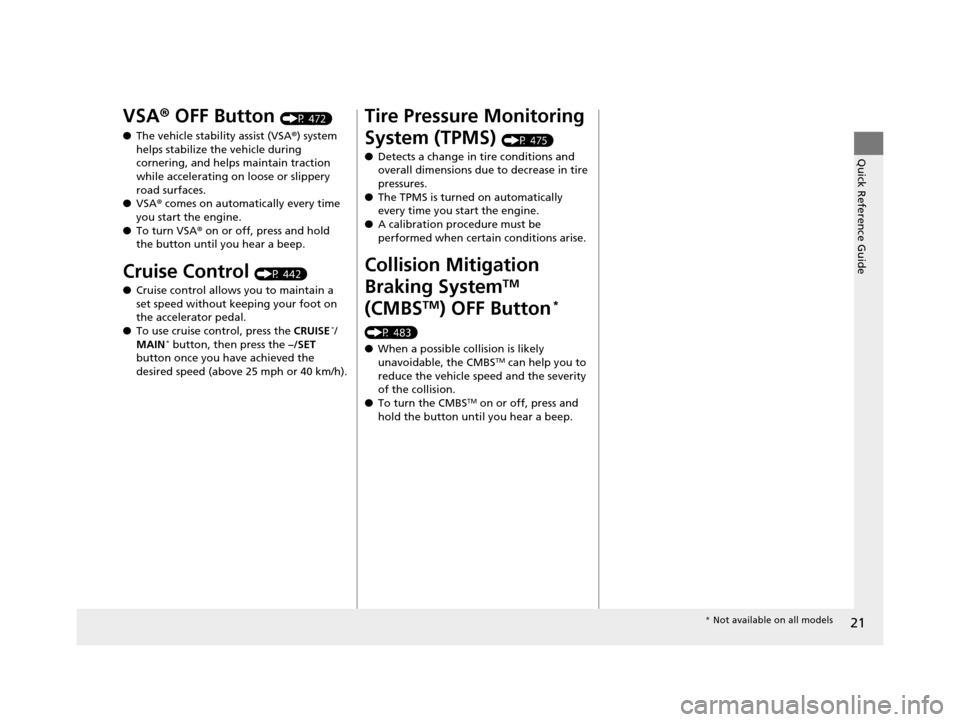

VSA® OFF Button (P 472)
● The vehicle stability assist (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control (P 442)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
*/
MAIN* button, then press the –/SET
button once you have achieved the
desired speed (above 25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P 475)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically
every time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
Collision Mitigation
Braking System
TM
(CMBS
TM) OFF Button*
(P 483)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 21 ページ 2015年7月23日 木曜日 午後4時11分
Page 23 of 609
22
Quick Reference Guide

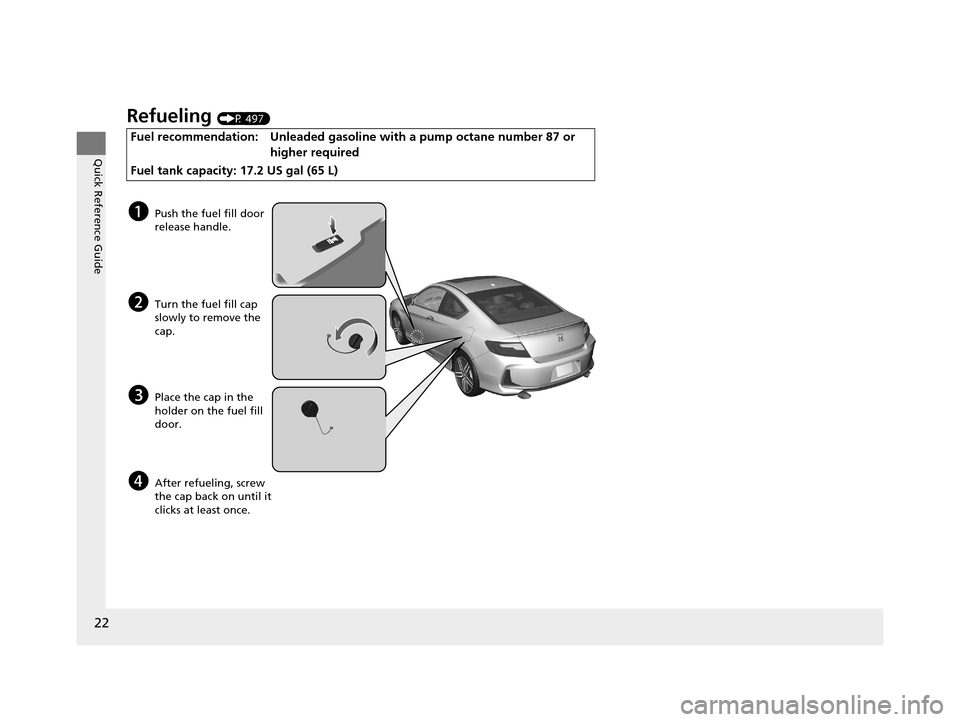

Refueling (P 497)
Fuel recommendation: Unleaded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 17.2 US gal (65 L)
aPush the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 22 ページ 2015年7月23日 木曜日 午後4時11分
Page 24 of 609
23
Quick Reference Guide

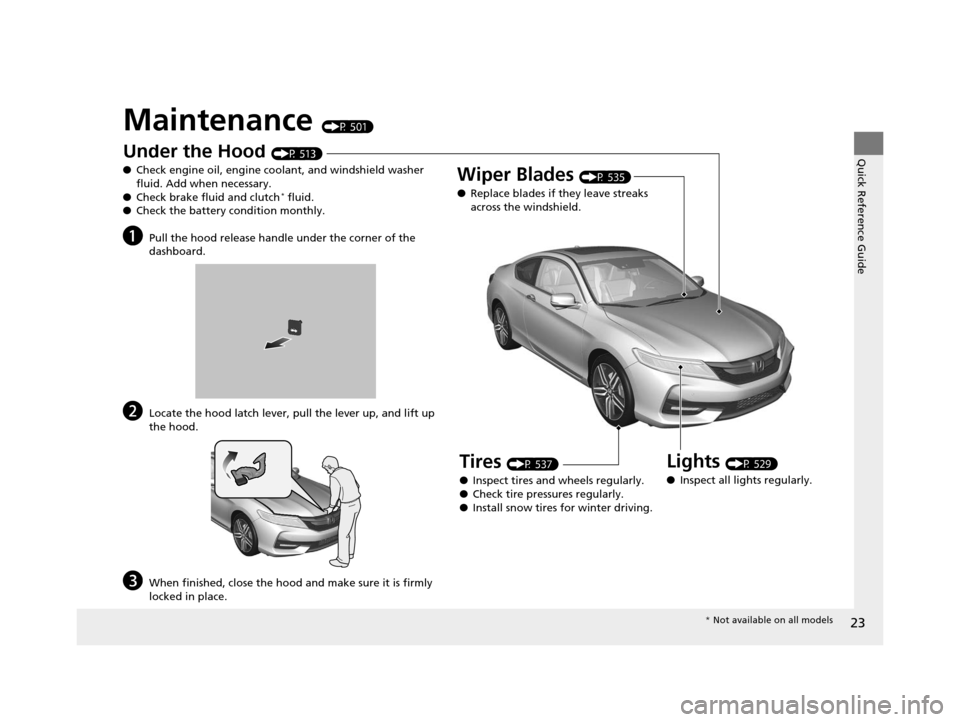

Maintenance (P 501)
Under the Hood (P 513)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid and clutch
* fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 529)
● Inspect all lights regularly.
Wiper Blades (P 535)
● Replace blades if they leave streaks
across the windshield.
Tires (P 537)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 23 ページ 2015年7月23日 木曜日 午後4時11分
Page 25 of 609
24
Quick Reference Guide

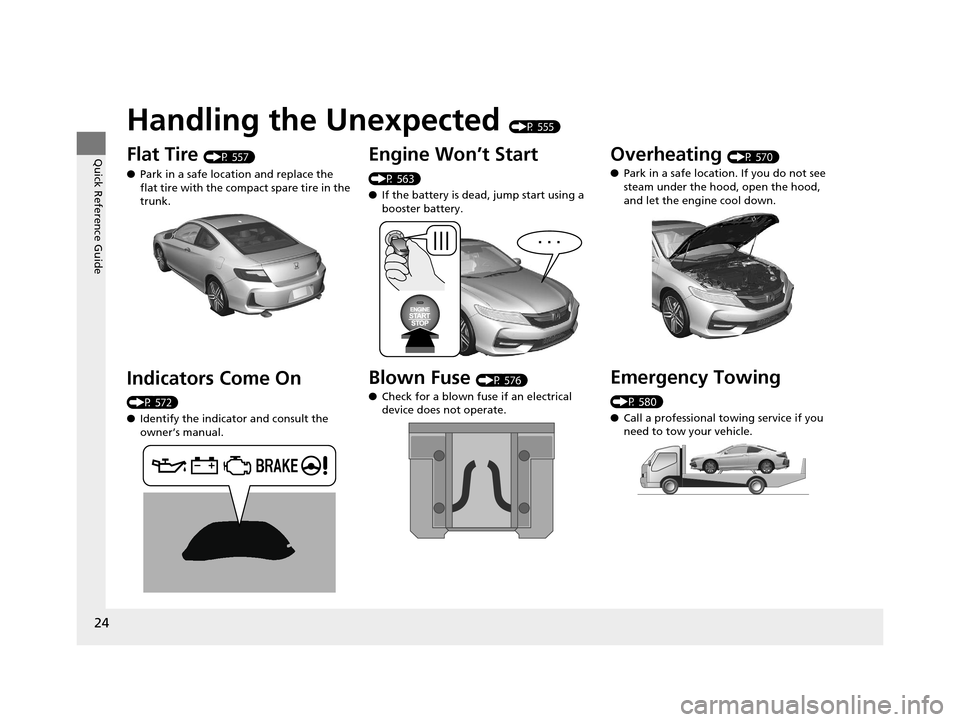

Handling the Unexpected (P 555)
Flat Tire (P 557)
● Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On
(P 572)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start
(P 563)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 576)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 570)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 580)
●Call a professional towing service if you
need to tow your vehicle.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 24 ページ 2015年7月23日 木曜日 午後4時11分
Page 26 of 609
25
Quick Reference Guide
What to Do If
*1:Except U.S. automatic transmission/CVT models
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.
●Try to turn the steering wheel left and right
while turning the ignition key.
●Move the steering wheel left and right while
pressing the ENGINE START/STOP button at the same time.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system*1
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 25 ページ 2015年7月23日 木曜日 午後4時11分
Page 27 of 609
26
Quick Reference Guide

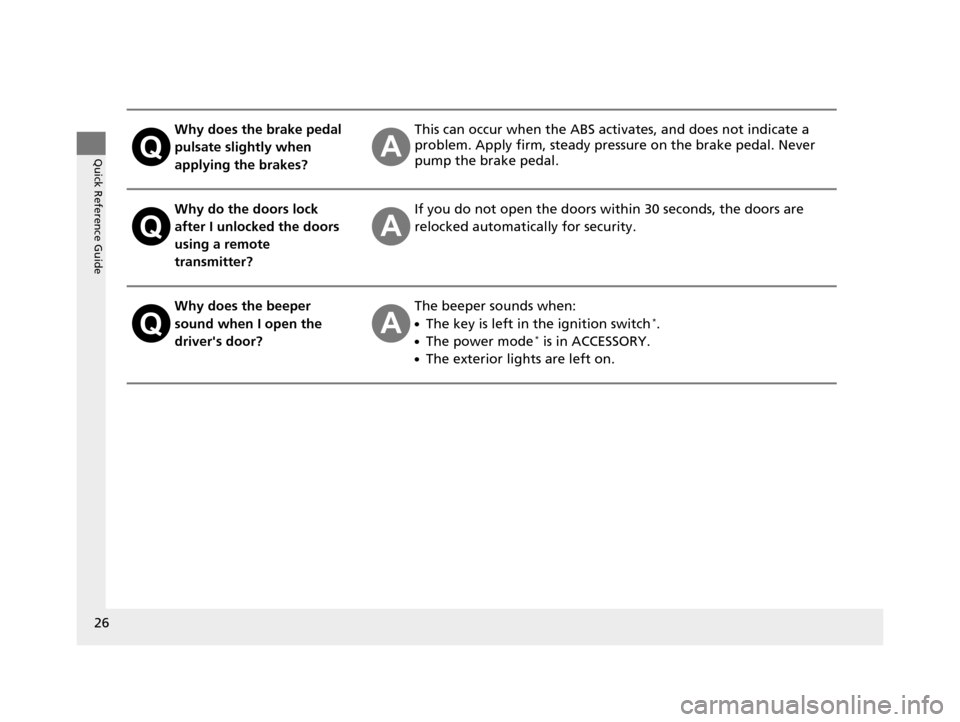

Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?The beeper sounds when:
●The key is left in the ignition switch*.
●The power mode* is in ACCESSORY.
●The exterior lights are left on.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 26 ページ 2015年7月23日 木曜日 午後4時11分
Page 28 of 609
27
Quick Reference Guide

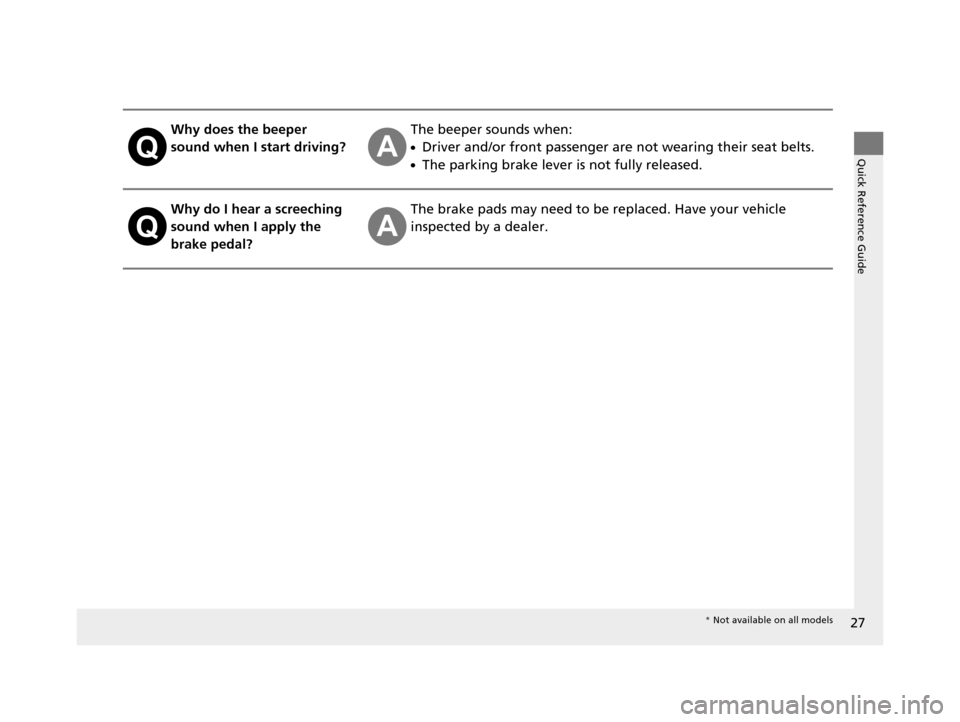

Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or front passenger are not wearing their seat belts.
●The parking brake lever is not fully released.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 27 ページ 2015年7月23日 木曜日 午後4時11分
Page 29 of 609
28
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 28 ページ 2015年7月23日 木曜日 午後4時11分
Page 30 of 609
29
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe DrivingImportant Safety Precautions ............. 30
Your Vehicle’s Safety Features............ 32
Safety CheckList................................. 33
Seat Belts About Your Seat Belts ........................ 34
Fastening a Seat Belt .......................... 37
Seat Belt Inspection............................ 40
Airbags Airbag System Components ............... 41
Types of Airbags ................................ 44
Front Airbags (SRS) ............................ 44 Side Airbags ...................................... 48
Side Curtain Airbags .......................... 50
Airbag System Indicators.................... 51
Airbag Care ....................................... 53
Child Safety Protecting Child Passengers ............... 54
Safety of Infants and Small Children.......56
Safety of Larger Children ................... 64
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 66
Safety Labels Label Locations .................................. 67
