Page 11 of 609
10
Quick Reference Guide

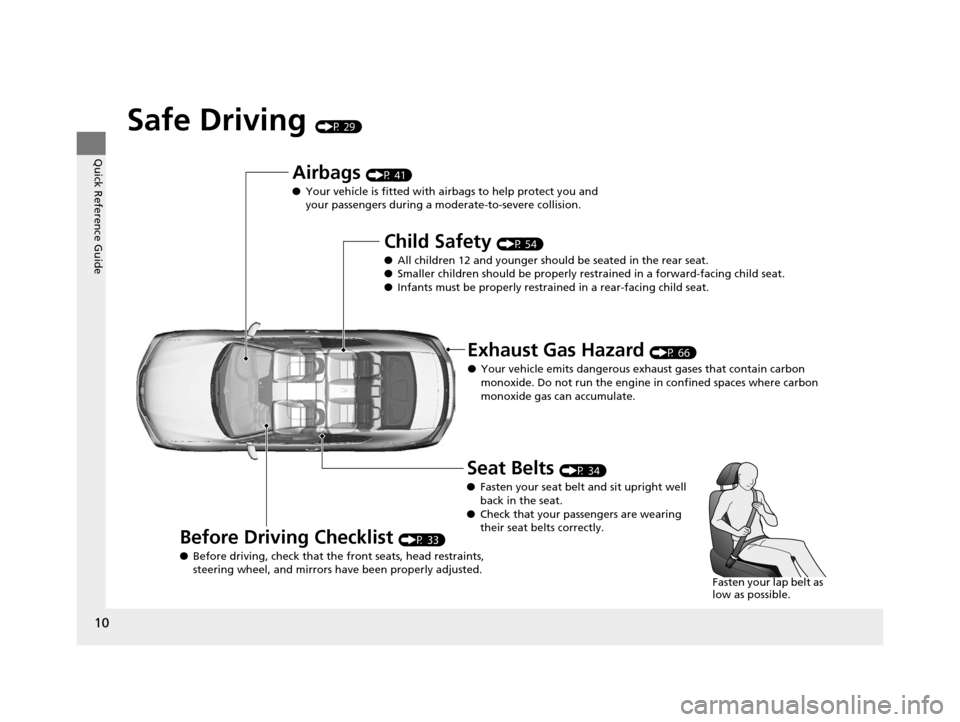

Safe Driving (P 29)
Airbags (P 41)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 54)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P 66)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 33)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 34)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 10 ページ 2015年7月23日 木曜日 午後4時11分
Page 12 of 609
11
Quick Reference Guide
Instrument Panel (P 69)
CanadaU.S.
Low Fuel Indicator
Anti-lock Brake
System (
ABS)
Indicator
Parking Brake
and Brake System
Indicator (Red)
Canada U.S.
Washer Level
Indicator
*
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Vehicle Stability
Assist (VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Immobilizer System
Indicator Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator*
Adaptive Cruise Control
(ACC) Indicator (Amber)*
CRUISE MAIN
Indicator*
Tachometer Speedometer
Fuel Gauge
Security System
Alarm Indicator
Shift Lever
Position
Indicator
*
Gauges (P 98)/Information Display* (P 99)/
Multi-Information Display
* (P 102)/System Indicators (P 70) Turn Signal and
Hazard Warning
Indicators
System Indicators
Temperature Gauge
M (7-speed manual shift
mode) Indicator/Shift
Indicator
Maintenance Minder
Indicator*
Smart Entry System
Indicator*
Starter System
Indicator*
System Message
Indicator*
ECON mode Indicator
Road Departure Mitigation
(RDM) Indicator*
Collision Mitigation Braking
SystemTM (CMBSTM) Indicator*Light Control Indicator*
Door and Trunk
Open Indicator Brake System
Indicator (Amber)
Supplemental
Restraint System
Indicator
Canada
U.S.
Models with
information
displayModels with
information
display
Auto High-Beam
Indicator (Green)*/
Auto High-Beam
Indicator (Amber)
*
Lane Keeping Assist System
(LKAS) Indicator (Amber)*
Lane Keeping Assist System
(LKAS) Indicator (White)*
Parking Sensor
System Indicator*
Adaptive Cruise Control
(ACC) Indicator (White)*
Continuously variable
transmission (CVT) models
M (Sequential Shift
Mode) Indicator/Gear
Position Indicator
Automatic transmission
models
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 11 ページ 2015年7月23日 木曜日 午後4時11分
Page 13 of 609
12
Quick Reference Guide

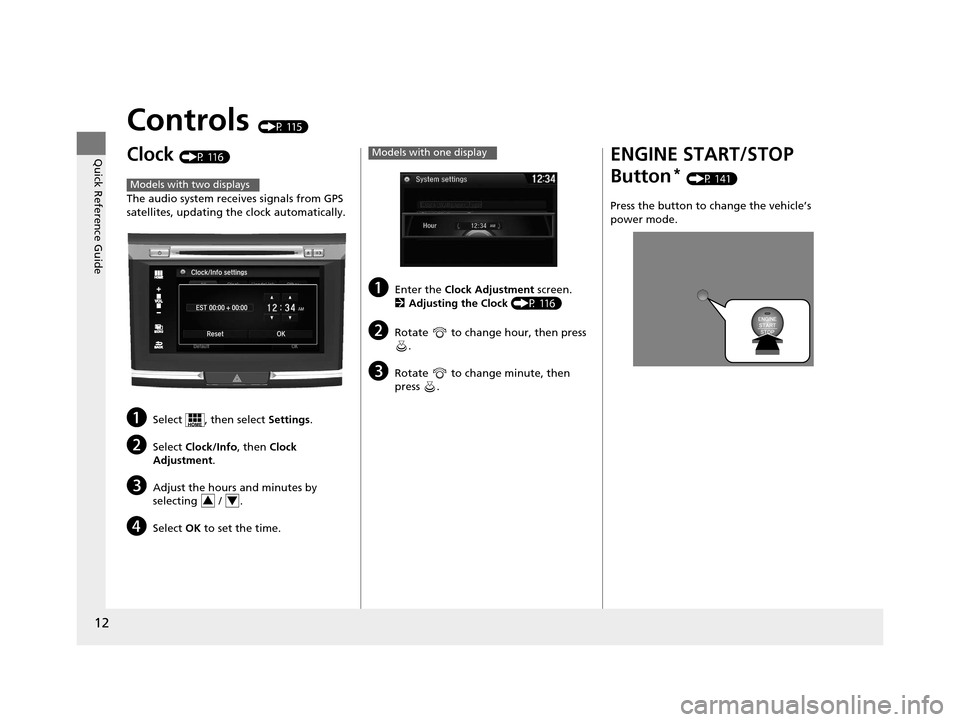

Controls (P 115)
Clock (P 116)
The audio system receives signals from GPS
satellites, updating the clock automatically.
aSelect , then select Settings .
bSelect Clock/Info , then Clock
Adjustment .
cAdjust the hours and minutes by
selecting / .
dSelect OK to set the time.
Models with two displays
34
aEnter the Clock Adjustment screen.
2 Adjusting the Clock (P 116)
bRotate to change hour, then press
.
cRotate to change minute, then
press .
Models with one displayENGINE START/STOP
Button
* (P 141)
Press the button to change the vehicle’s
power mode.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 12 ページ 2015年7月23日 木曜日 午後4時11分
Page 14 of 609
13
Quick Reference Guide

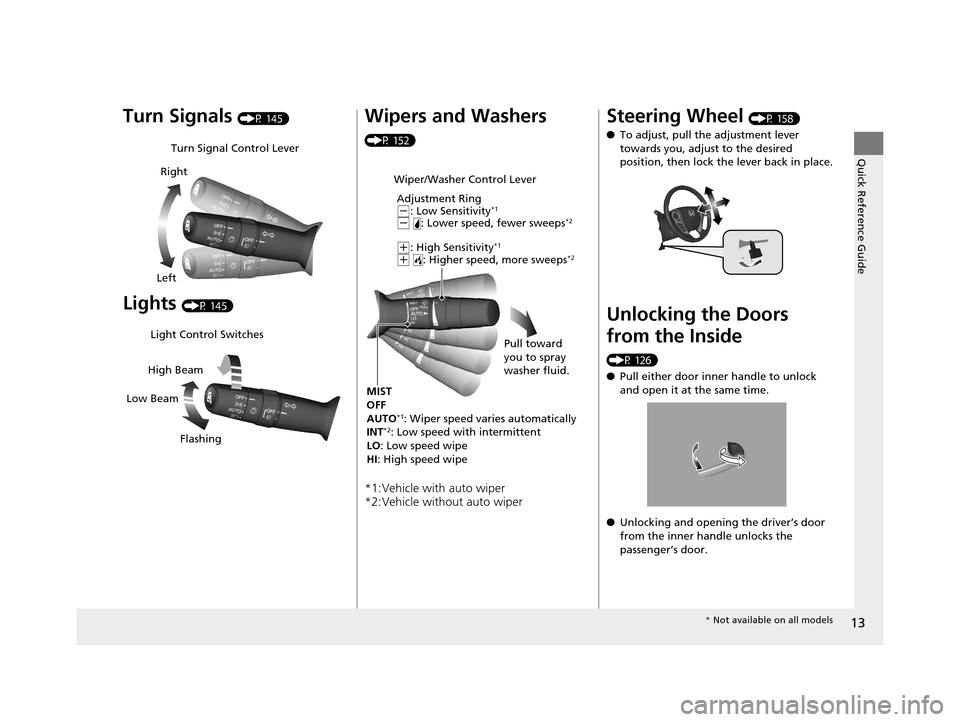

Turn Signals (P 145)
Lights (P 145)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 152)
*1:Vehicle with auto wiper
*2:Vehicle without auto wiper
Wiper/Washer Control LeverAdjustment Ring
(-: Low Sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High Sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Steering Wheel (P 158)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Doors
from the Inside
(P 126)
●Pull either door inner handle to unlock
and open it at the same time.
● Unlocking and opening the driver’s door
from the inner handle unlocks the
passenger’s door.
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 13 ページ 2015年7月23日 木曜日 午後4時11分
Page 15 of 609
14
Quick Reference Guide

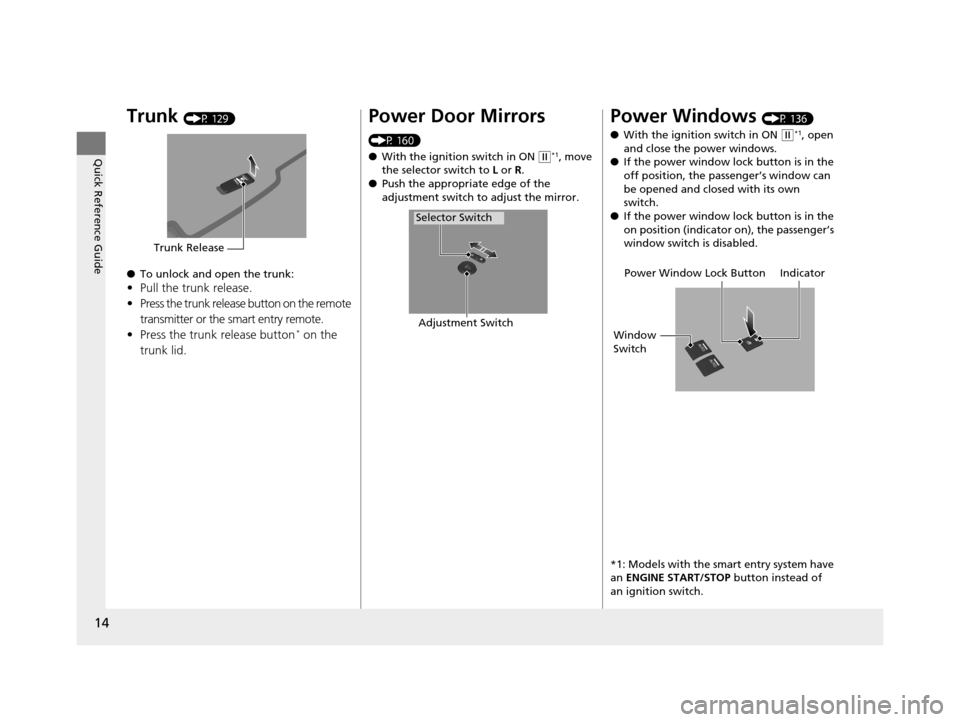

Trunk (P 129)
● To unlock and open the trunk:
•Pull the trunk release.
• Press the trunk release button on the remote
transmitter or the smart entry remote.
• Press the trunk release button
* on the
trunk lid.
Trunk Release
Power Door Mirrors
(P 160)
● With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P 136)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, the passenger’s window can
be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), the passenger’s
window switch is disabled.
*1: Models with the smart entry system have
an ENGINE START/STOP button instead of
an ignition switch.
Power Window Lock Button
Window
Switch Indicator
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 14 ページ 2015年7月23日 木曜日 午後4時11分
Page 16 of 609
15
Quick Reference Guide

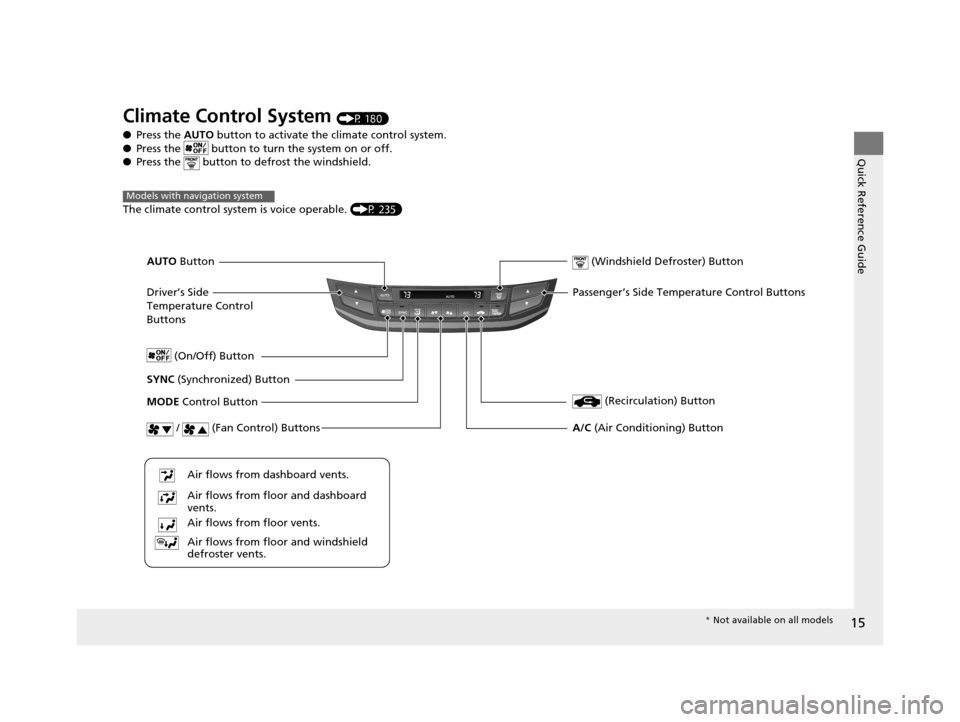

Climate Control System (P 180)
● Press the AUTO button to activate th e climate control system.
● Press the button to tu rn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. (P 235)
Models with navigation system
Driver’s Side
Temperature Control
Buttons (Windshield Defroster) Button
SYNC
(Synchronized) Button
Air flows from floor and windshield
defroster vents.
Air flows from floor vents. Air flows from floor and dashboard
vents. Air flows from dashboard vents.
AUTO
Button
(On/Off) Button
(Recirculation) ButtonMODE Control Button
/ (Fan Control) Buttons
A/C (Air Conditioning) Button
Passenger’s Side Temperature Control Buttons
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 15 ページ 2015年7月23日 木曜日 午後4時11分
Page 17 of 609
16
Quick Reference Guide

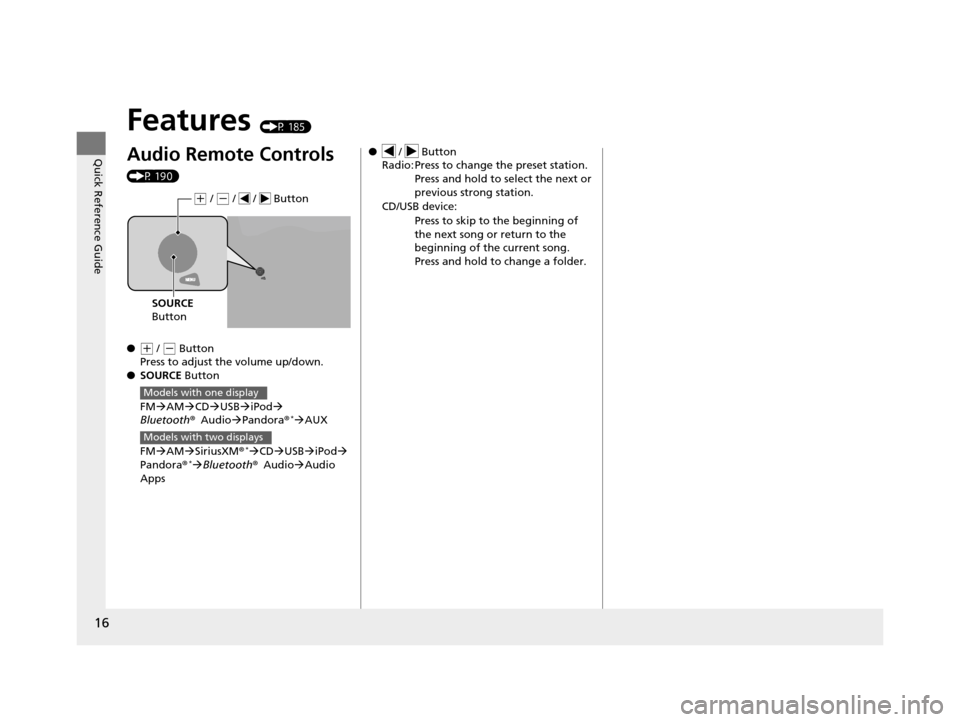

Features (P 185)
Audio Remote Controls
(P 190)
●
(+ / ( - Button
Press to adjust the volume up/down.
● SOURCE Button
FM AM CD USB iPod
Bluetooth ®Audio Pandora®
*AUX
FM AM SiriusXM ®
*CD USB iPod
Pandora®* Bluetooth ®Audio Audio
Apps
( + / (- / / Button
SOURCE
Button
Models with one display
Models with two displays
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 16 ページ 2015年7月23日 木曜日 午後4時11分
Page 18 of 609
17
Quick Reference Guide

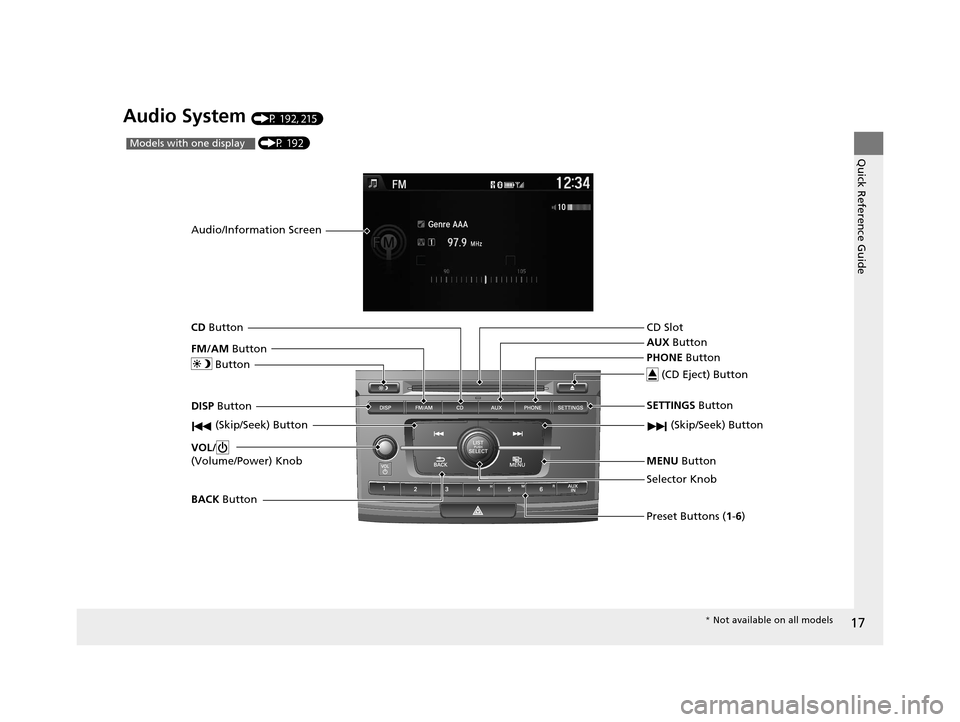

Audio System (P 192, 215)
(P 192)Models with one display
Audio/Information Screen
BACK Button
FM/AM Button
(Skip/Seek) Button
Selector Knob
Button
VOL/
(Volume/Power) Knob
CD Button
AUX Button
CD Slot
(CD Eject) Button
Preset Buttons ( 1-6)
SETTINGS Button
(Skip/Seek) Button
PHONE Button
MENU Button
DISP Button
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 17 ページ 2015年7月23日 木曜日 午後4時11分
Page 19 of 609
18

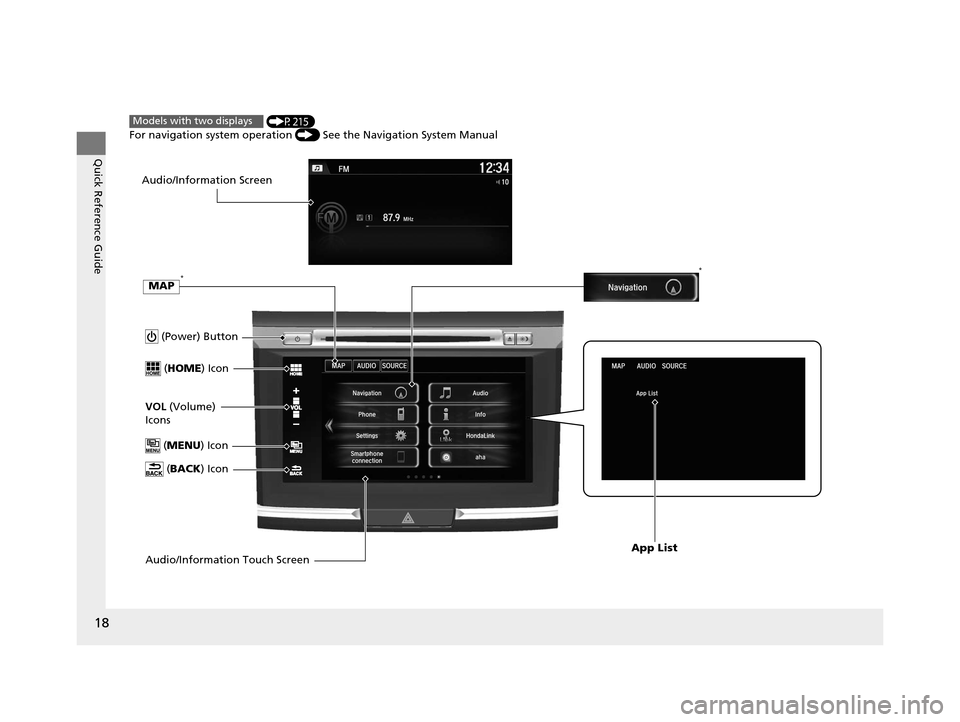

Quick Reference Guide
(Power) Button
(HOME ) Icon
VOL (Volume)
Icons
(MENU ) Icon
(BACK ) Icon
Audio/Information Touch Screen
Audio/Information Screen
App List
(P215)
For navigation system operation () See the Navigation System ManualModels with two displays
MAP* *
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 18 ページ 2015年7月23日 木曜日 午後4時11分
Page 20 of 609
19
Quick Reference Guide

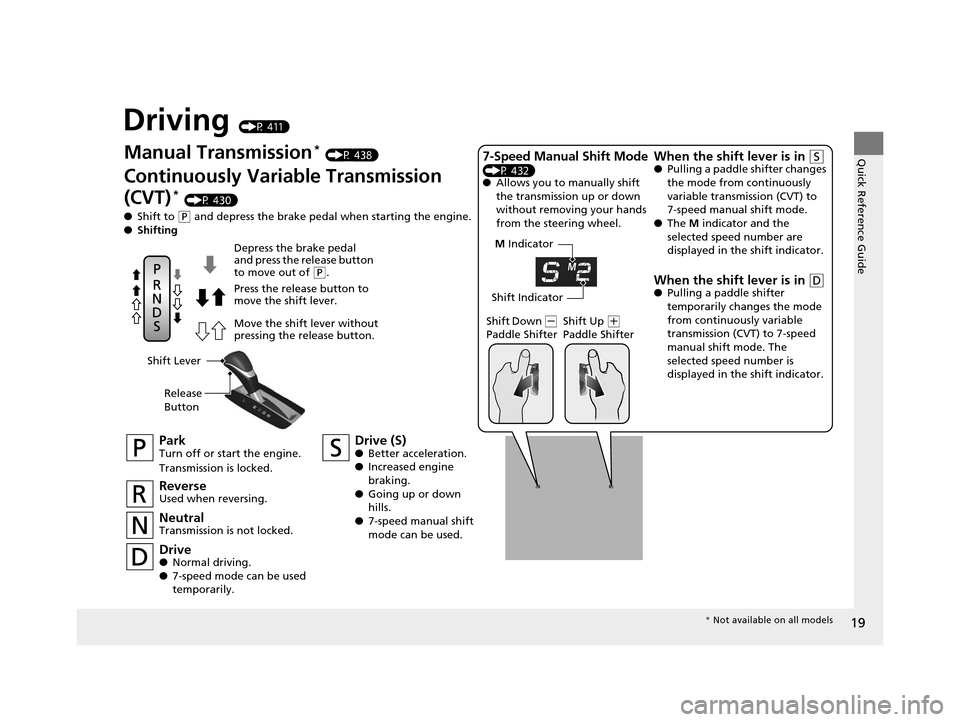

Driving (P 411)
M Indicator
Shift Indicator
Manual Transmission* (P 438)
Continuously Variable Transmission
(CVT)
* (P 430)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
ParkTurn off or start the engine.
Transmission is locked.
NeutralTransmission is not locked.
Drive (S)●Better acceleration.
● Increased engine
braking.
● Going up or down
hills.
● 7-speed manual shift
mode can be used.
Depress the brake pedal
and press the release button
to move out of
(P.
Press the release button to
move the shift lever.
Move the shift lever without
pressing the release button.
ReverseUsed when reversing.
Drive● Normal driving.
● 7-speed mode can be used
temporarily. Shift Down
(
-
Paddle Shifter Shift Up (
+
Paddle Shifter
7-Speed Manual Shift Mode
(P 432)
● Allows you to manually shift
the transmission up or down
without removing your hands
from the steering wheel.
When the shift lever is in (S●Pulling a paddle shifter changes
the mode from continuously
variable transmission (CVT) to
7-speed manual shift mode.
● The M indicator and the
selected speed number are
displayed in the shift indicator.
When the shift lever is in (D● Pulling a paddle shifter
temporarily changes the mode
from continuously variable
transmission (CVT) to 7-speed
manual shift mode. The
selected speed number is
displayed in the shift indicator.
Shift Lever
Release
Button
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 19 ページ 2015年7月23日 木曜日 午後4時11分
