buttons HONDA ACCORD COUPE 2016 9.G Quick Guide

| 1
VISUAL INDEX
1  Lights/turn signals/LaneWatch
      button*   p. 35, p. 38, p. 112
2  SEL/RESET knob   p. 27
Brightness control p. 35
3  Wipers/washers   p. 37
4  Cruise control buttons*   p. 107
Adaptive Cruise Control (ACC)
 buttons*   p. 108
Lane Keeping Assist System (LKAS)
 button*   p. 111
5 Horn
6  Voice recognition buttons   p. 73,
p. 78, p. 86
7  Instrument panel   p. 23
8 Information display*   p. 27
  Multi-information display*   p. 28
9 Info (p/q) buttons*   p. 28
  SEL/RESET button*   p. 28
10 Audio controls p. 51
11 Tire Pressure Monitoring System
  (TPMS) button*   p. 122
12 Lane Keeping Assist System (LKAS)
  button*   p. 111
13  ENGINE START/STOP button*   p. 100
14  Vehicle Stability Assist (VSA®) oFF
 button   p. 106
Collision Mitigation Braking System™
 (CMBS™) OFF button*   p. 113
road Departure Mitigation (rDM)
 button*   p. 110
Parking sensor system button*
p. 114
15 ECON button*   p. 106
VISUAL INDEX
*if equipped*if equipped
Quickly locate items in the vehicle’s interior.
Steering Wheel and Nearby Controls
12
5
107415
116
38
9121314
Making a Call ......................................81
SMS Text Messaging and E-Mail* ...83
HondaLink® Assist ..............................84
Siri™ Eyes Free ...................................85
NAVIGATION* ......................................86
Basic Navigation Operation .............86
Entering a Destination .......................88
Routing ..................................................91
DRIVING ................................................93
Before Driving .....................................93
Maximum Load Limit ..........................95
Towing a Trailer ..................................97
Remote Engine Start* .........................98
Starting to Drive ..................................99
Shifting ................................................100
Braking ...............................................105
Eco Assist System .............................106
Vehicle Stability Assist (VSA®), aka
Electronic Stability Control (ESC)
System .................................................106
Cruise Control* ..................................107
Adaptive Cruise Control (ACC)* .....108
Road Departure Mitigation
(RDM)* ................................................110
Lane Keeping Assist System
(LKAS)* ................................................111
LaneWatch™* ...................................112
Collision Mitigation Braking
System™ (CMBS™)* ........................113
Parking Sensor System* ..................114
Multi-View Rear Camera .................115
Refueling ............................................116
HANDLING THE UNEXPECTED .......117
Smart Entry Remote Battery
Strength* ............................................117
Shift Lever Does Not Move* ...........117
Jump Starting ....................................118
Overheating ........................................120
Emergency Engine Stop* .................121
Emergency Towing ...........................121
Tire Pressure Monitoring System
(TPMS) ................................................122
Changing a Flat Tire ..........................124
Fuse Locations ...................................127
MAINTENANCE .................................130
Safety Precautions ...........................130
Maintenance Minder™....................131
Under the Hood ..................................133
Engine Oil ...........................................135
Engine Coolant ..................................138
Brake Fluid .........................................139
Clutch Fluid* ......................................139
Checking the Battery ........................140
Window Washer Fluid .....................140
Changing Wiper Blades ...................141
Tire Information .................................142
Tire Labeling ......................................145
DOT Tire Quality Grading .................146
Testing of Readiness Codes ............148
SPECIFICATIONS ...............................149
CUSTOMER INFORMATION .............152
Frequently Asked Questions/
Troubleshooting ................................152
Contact Us ..........................................153
Honda Roadside Assistance ...........153
Warranty Coverages .........................154
VOICE COMMAND INDEX ................155
INDEX ..................................................157

2 || 3
SAFETYVISUAL INDEX
Dashboard and Other Controls
1  Audio system/touchscreen*/   
 navigation* system  p. 53, p. 78,
p. 86
2  Hazard warning button
3 Climate control system p. 46
4  Seat heater switches*   p. 46
5 USB port p. 49
Wireless charger*   p. 50
Accessory power socket p. 49
6 rearview mirror p. 44
7 Power window switches p. 33
Door lock switches p. 32
Door mirror controls p. 45
8 Fuel fill door release handle
p. 116
Trunk release button   p. 32
9 Shift lever p. 100
10 Hood release handle p. 134
11 Driving Position Memory System
 buttons*   p. 43
*if equipped
SAFETY INFORMATION
2
4
71
8
6
3
Your safety—and the safety of others—is very important, and operati\
ng this vehicle
safely is an important responsibility. While we strive to help you make informed 
decisions about safety, it is not practical or possible to warn you about all the 
hazards associated with operating or maintaining your vehicle. Therefore, you must 
use your own good judgment.
Important Safety Information
This guide explains many of your vehicle’s safety features and how to use them.
Please read this information carefully. Following the instructions below will also help 
to keep you and your passengers safe.
Important Safety Precautions
• Always wear your seat belt.
• Secure all children in the proper restraint system.
• Be aware of airbag hazards.
• Don’t drink and drive.
• Pay appropriate attention to the task of driving safely.
• Control your speed.
• Keep your vehicle in safe condition.
engaging in cell phone conversation or other activities that keep you fro\
m paying
close attention to the road, other vehicles, and pedestrians could lead \
to a crash.
Remember, situations can change quickly, and only you can decide when it is safe 
to divert some attention away from driving.
Safety Messages
When you see the following messages throughout this guide, pay close attention.
You WILL be KILLED or SERIOUSLY HURT if you don’t follow    
instructions.
You CAN be KILLED or SERIOUSLY HURT if you don’t follow    
instructions.
You CAN be HURT if you don’t follow instructions.
This information is intended to help you avoid damage to your
vehicle, other property, or the environment.
DANGER
WARNING
CAUTION
NOTICE
5910
11

28 || 29
INSTRUMENT PANELINSTRUMENT PANEL
Multi-Information Display (MID)*
Consists of several displays that provide you with useful information.
*if equipped
Blank screen
rangeAverage/instant fuel economy
engine oil life
elapsed time
Lower Displays
Press the SEL/RESET button to cycle through the displays shown below.
odometerTrip ATrip B
Average speed
vehicle Settings
button:
Changes the display.
Multi-information display
SEL/RESET button:
Enters the selected item.
Main Displays
Press either Info (p/q) button to cycle through the displays shown below.
Vehicle Settings
Use the MID to customize certain vehicle features when the vehicle is in Park (P) 
or the parking brake is applied. You can also use the SETTINGS button* (see page 
47).
An example of how to change the Trip A reset timing setting is below. Use the Info 
(p/q) and SEL/RESET buttons to make and enter selections.
1. Scroll to the v ehicle Settings menu and select it.
2. Scroll to Meter Setup and select it.
3. Scroll to “Trip A” reset Timing and select it.
4. Scroll through the options, and select the one
you want.
5. Scroll to exit, and select it to exit the menus.
*if equipped

42 || 43
VEHICLE CONTROLSVEHICLE CONTROLS

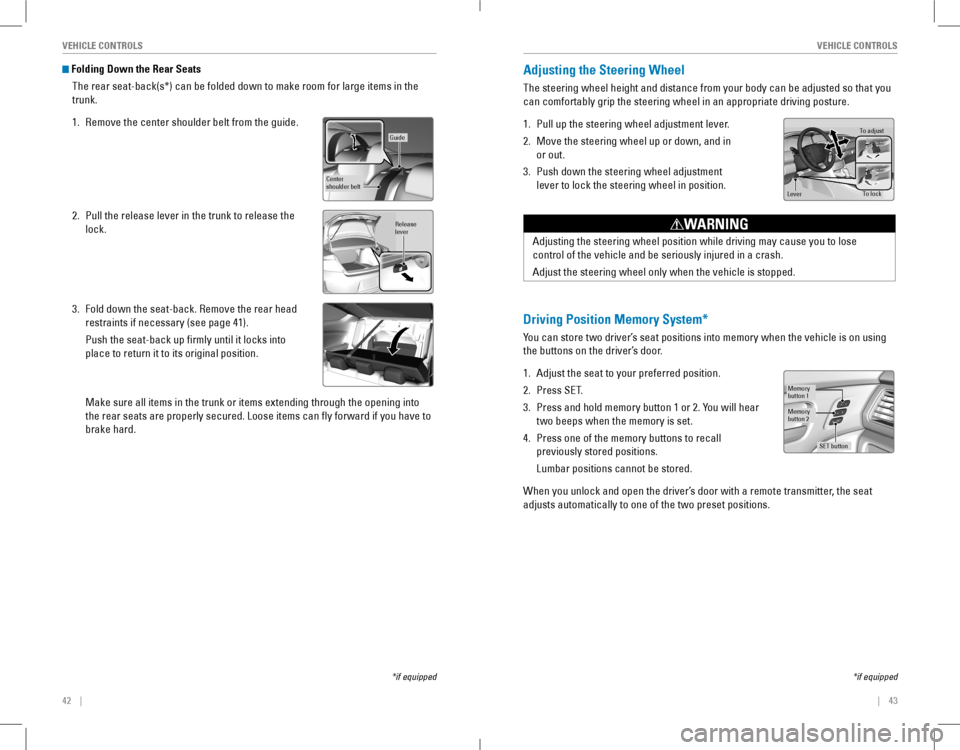

Folding Down the Rear Seats
The rear seat-back(s*) can be folded down to make room for large items in the 
trunk.
1. Remove the center shoulder belt from the guide.
2. Pull the release lever in the trunk to release the
lock.
3. Fold down the seat-back. Remove the rear head 
restraints if necessary (see page 41).
Push the seat-back up firmly until it locks into 
place to return it to its original position.
Make sure all items in the trunk or items extending through the opening \
into
the rear seats are properly secured. Loose items can fly forward if yo\
u have to
brake hard.
*if equipped
Guide
Center
shoulder belt
Release
lever
Adjusting the Steering Wheel
The steering wheel height and distance from your body can be adjusted so that you 
can comfortably grip the steering wheel in an appropriate driving posture.
1. Pull up the steering wheel adjustment lever.
2. Move the steering wheel up or down, and in
or out.
3. Push down the steering wheel adjustment
lever to lock the steering wheel in position.
To adjus t
To lock
Lever
Adjusting the steering wheel position while driving may cause you to los\
e
control of the vehicle and be seriously injured in a crash.
Adjust the steering wheel only when the vehicle is stopped.
WARNING
Driving Position Memory System*
You can store two driver’s seat positions into memory when the vehicle is on using
the buttons on the driver’s door.
1. Adjust the seat to your preferred position.
2. Press SeT.
3. Press and hold memory button 1 or 2. You will hear 
two beeps when the memory is set.
4. Press one of the memory buttons to recall 
previously stored positions.
Lumbar positions cannot be stored.
When you unlock and open the driver’s door with a remote transmitter, the seat 
adjusts automatically to one of the two preset positions.
Memory
button 1
Memory
button 2
SET button
*if equipped

44 || 45
VEHICLE CONTROLSVEHICLE CONTROLS

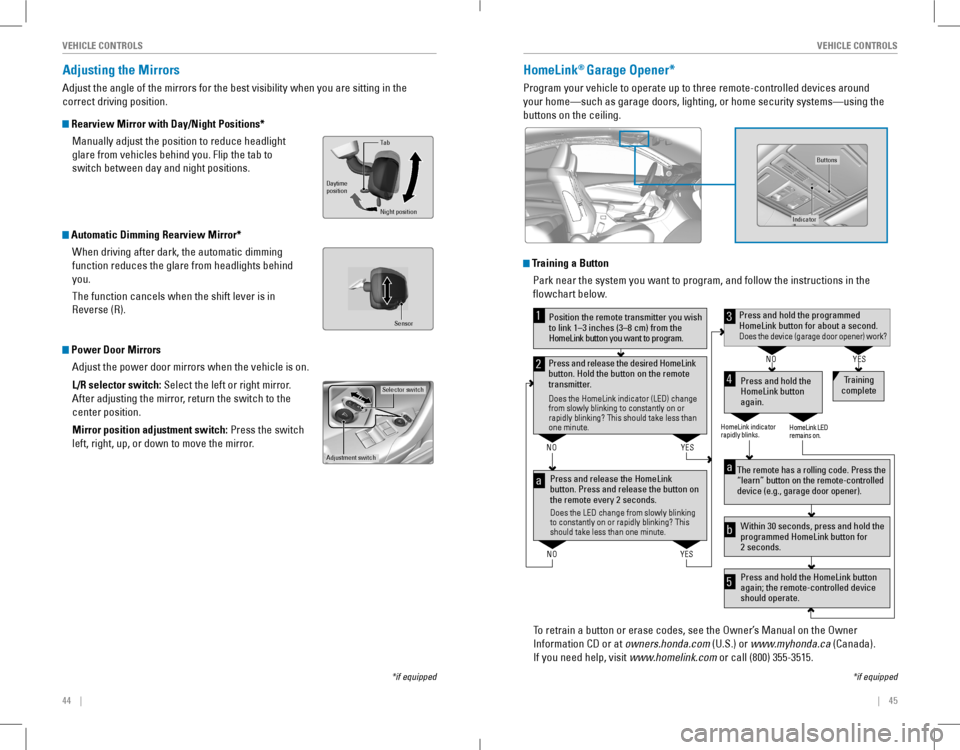

Adjusting the Mirrors
Adjust the angle of the mirrors for the best visibility when you are sitting in the 
correct driving position.
Rearview Mirror with Day/Night Positions*
Manually adjust the position to reduce headlight
glare from vehicles behind you. Flip the tab to 
switch between day and night positions.
Automatic Dimming Rearview Mirror*
When driving after dark, the automatic dimming 
function reduces the glare from headlights behind 
you.
The function cancels when the shift lever is in
reverse (r).
Power Door Mirrors
Adjust the power door mirrors when the vehicle is on.
L/R selector switch: Select the left or right mirror.
After adjusting the mirror, return the switch to the
center position.
Mirror position adjustment switch: Press the switch
left, right, up, or down to move the mirror.
Selector switch
Adjustment switch
Tab
Daytime
position
Night position
HomeLink® Garage Opener*
Program your vehicle to operate up to three remote-controlled devices ar\
ound
your home—such as garage doors, lighting, or home security systems—\
using the
buttons on the ceiling.
Training a Button
Park near the system you want to program, and follow the instructions in\
the
flowchart below.
To retrain a button or erase codes, see the Owner’s Manual on the Owner 
Information CD or at owners.honda.com (U.S.) or www.myhonda.ca (Canada).
If you need help, visit www.homelink.com or call (800) 355-3515.
Press and release the HomeLink
button. Press and release the button on
the remote every 2 seconds.
Does the LED change from slowly blinking
to constantly on or rapidly blinking? This
should take less than one minute.
Press and hold the
HomeLink button
again. T
raining
complete
YES
NO
HomeLink indicator
rapidly blinks. HomeLink LED
remains on.
YES
NO
YES
NO
Position the remote transmitter you wish
to link 1–3 inches (3–8 cm) from the
HomeLink button you want to program.1
Press and release the desired HomeLink
button. Hold the button on the remote
transmitter .
Does the HomeLink indicator (LED) change
from slowly blinking to constantly on or
rapidly blinking? This should take less than
one minute.
2
aThe remote has a rolling code. Press the
“learn” button on the remote-controlled
device (e.g., garage door opener) .
Press and hold the HomeLink button
again; the remote-controlled device
should operate. Within 30 seconds, press and hold the
programmed HomeLink button for
2 seconds.a
Press and hold the programmed HomeLink button for about a second.Does the device (garage door opener) work?
3
b
4
5
*if equipped
Indicato r
Buttons
Sensor
*if equipped

46 || 47
VEHICLE CONTROLSVEHICLE CONTROLS

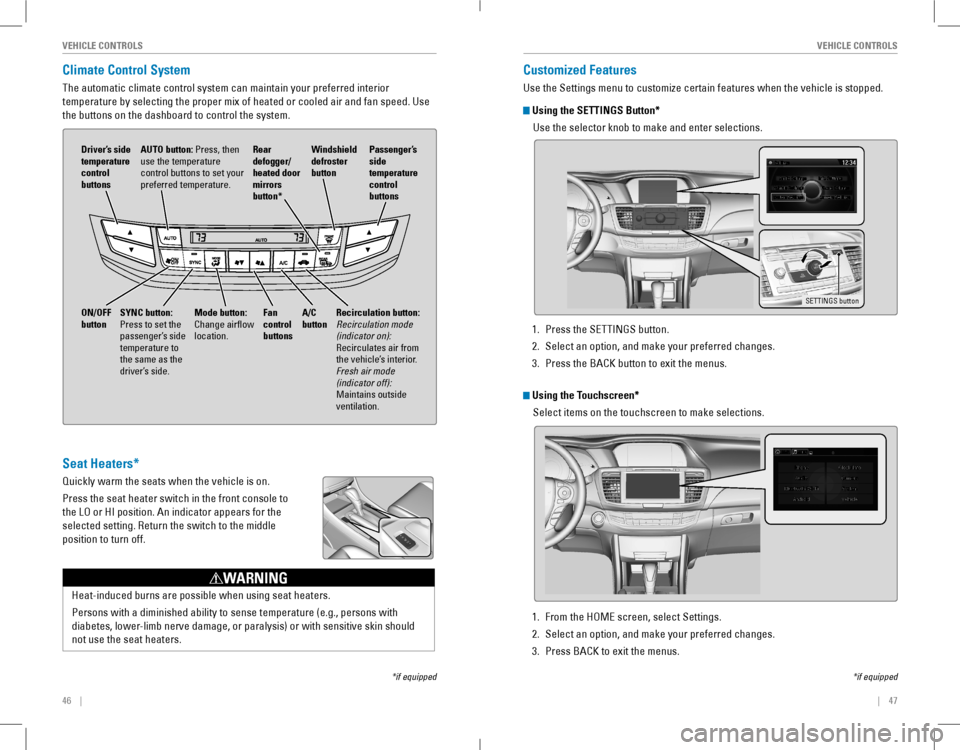

Climate Control System
The automatic climate control system can maintain your preferred interio\
r
temperature by selecting the proper mix of heated or cooled air and fan speed. Use 
the buttons on the dashboard to control the system.
AUTO button: Press, then use the temperature control buttons to set your preferred temperature.
Driver’s side temperature control buttons
A/C buttonFan control buttons
Recirculation button: Recirculation mode (indicator on): recirculates air from the vehicle’s interior. Fresh air mode (indicator off): Maintains outside ventilation.
Rear defogger/heated door mirrors button*
Windshield defroster button
ON/OFF buttonMode button: Change airflow location.
Passenger’s side temperature control buttons
SYNC button: Press to set the passenger’s side temperature to the same as the driver’s side.
Seat Heaters*
Quickly warm the seats when the vehicle is on.
Press the seat heater switch in the front console to
the LO or HI position. An indicator appears for the 
selected setting. return the switch to the middle
position to turn off.
Heat-induced burns are possible when using seat heaters.
Persons with a diminished ability to sense temperature (e.g., persons with 
diabetes, lower-limb nerve damage, or paralysis) or with sensitive skin should 
not use the seat heaters.
WARNING
*if equipped
Customized Features
Use the Settings menu to customize certain features when the vehicle is stopped.
Using the SETTINGS Button*
Use the selector knob to make and enter selections.
SETTINGS button
*if equipped
Using the Touchscreen*
Select items on the touchscreen to make selections.
1. Press the SETTINGS button.
2. Select an option, and make your preferred changes.
3. Press the BACK button to exit the menus.
1. From the HoMe screen, select Settings.
2. Select an option, and make your preferred changes.
3. Press BACK to exit the menus.

48 || 49
AUDIO AND CONNECTIVITYVEHICLE CONTROLS
Setting the Clock
Adjust the time using the steps described for your vehicle type.
Using the SETTINGS Button*
Use the selector knob to make and enter selections.
1. Press the SETTINGS button.
2. Select System Settings.
3. Select Clock.
4. Select Clock Adjustment.
5. Change the hour and minute values.
6. Press the BACK button to exit the menus.
Using the Touchscreen*
Touch items to make selections.
1. From the HoMe screen, select Settings.
2. Select Clock/Info.
3. Select Clock Adjustment.
4. Adjust the hour and minute values.
5. Select oK when complete.
on vehicles with navigation, the time is automatically set using GPS sign\
als.
*if equipped
AUDIO AND CONNECTIVITY
*if equipped
Learn how to operate the vehicle’s audio system.
Basic Audio Operation
Connect audio devices and operate buttons and displays for the audio system.
USB Port
1. open the cover in the front console.
2. Connect a USB flash drive or iPod/iPhone® cable 
connector to the USB port.
An additional USB port* is located in the center 
console.
iPod and iPhone are trademarks of Apple, Inc.
Auxiliary Input Jack*
Connect standard audio devices with a 1/8-inch
(3.5 mm) stereo miniplug.
1. open the AUX cover on the audio panel.
2. Insert the miniplug attached to the audio device 
into the jack. The audio system switches to
AUX mode. Use the device to control the audio.
State or local laws may prohibit the operation of handheld electronic devices while operating a vehicle. 
Accessory Power Socket
open the socket cover in the front console to use
power when the vehicle is on.
There is an additional power socket inside the
center console.
Do not insert an automotive type cigarette lighter element. This can ove\
rheat the
power socket.
NOTICE

50 || 51
AUDIO AND CONNECTIVITYAUDIO AND CONNECTIVITY
Canadian models
Wireless Charger*
Charge your compatible device when the vehicle is on.
1. Press and hold the power button. A green 
indicator appears when the charger is on.
2. Place the chargeable side of the device on the 
charge area. The system begins charging the 
device when the amber indicator appears.
3. The green indicator appears when charging is
complete. On some devices, the amber indicator 
may stay on even when charging is complete.
Green indicato r
Amber indicator
Charging area
(Power)
button
Notes:
• This system consumes a lot of power. It is best to charge your device when the 
engine is running.
• If the indicator light is blinking, there may be an obstacle between the 
device and charging area, the device may have moved, or the charger is
malfunctioning.
• The device may not charge if you are near strong electromagnetic waves, \
such
as at a gas station.
• The device and charging area may get warm during charging. This is norma\
l.
Do not place any magnetic devices, credit cards, or watches within the c\
harge
area while charging. The data on credit cards can be lost, and watches may stop 
working.
NOTICE
Metal objects between the charge pad and the device to be charged will get 
hot and can burn you.
• Always remove foreign objects from the charge pad before charging the 
device.
• Be sure the surface is clear of dust and other debris before charging.
• Do not spill liquids (i. e. water, drinks, etc.) on the charger and the device.
• Do not use oil, grease, alcohol, benzine or thinner for cleaning the charge 
pad.
• Do not cover the system with towels, clothing, or other objects while 
charging etc.
• Avoid using spraying hair spray, insecticides, etc, that may contact the
charge pad surface.
CAUTION
*if equipped
Steering Wheel Controls
You can operate certain functions of the audio
system using the steering wheel controls.
SOURCE button: Cycle through available audio 
modes.
/ buttons: Change presets, tracks, albums, or 
folders.
+ / - buttons: Adjust audio volume.
MENU button*: on vehicles with touchscreen, press to view options for the
current audio source. Use the other buttons to navigate through the options.
FM/AM/SiriusXM® Radio
Press or for the next or previous station.
Press and hold or for the next or previous strong station.
CD/iPod®/USB/Bluetooth® Audio
Press or for the next or previous track.
Press and hold or  for the next or previous folder (CD/USB).
Pandora® (U.S. only)
Press for the next song.
Press and hold or for the next or previous station.
*if equipped

52 || 53
AUDIO AND CONNECTIVITYAUDIO AND CONNECTIVITY

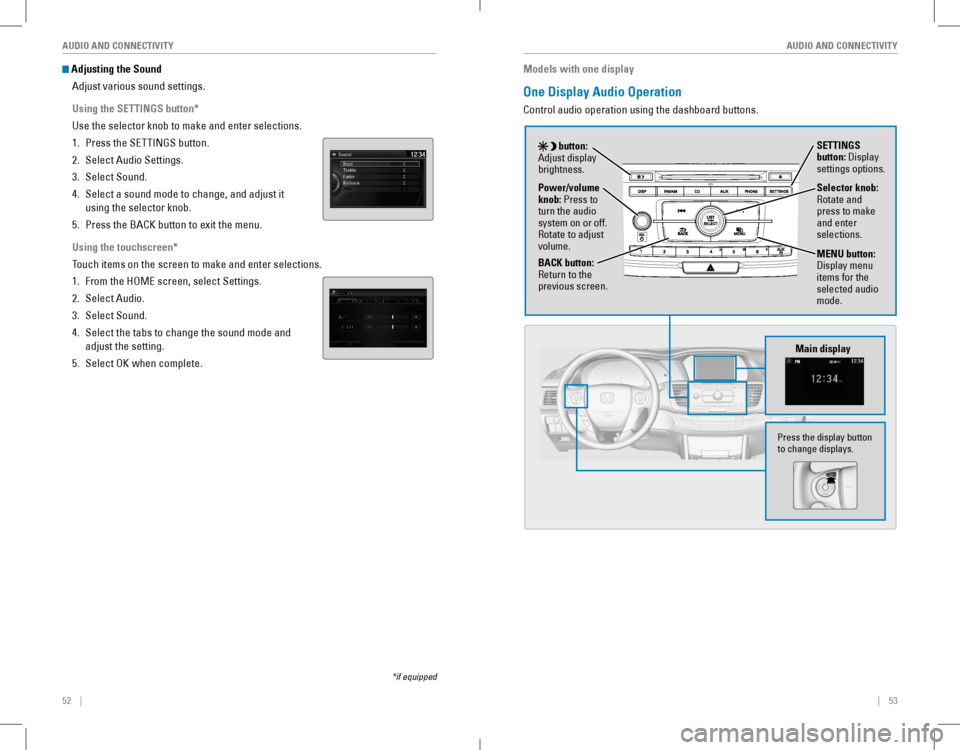

Adjusting the Sound
Adjust various sound settings.
Using the SETTINGS button*
Use the selector knob to make and enter selections.
1. Press the SETTINGS button.
2. Select Audio Settings.
3. Select Sound.
4. Select a sound mode to change, and adjust it
using the selector knob.
5. Press the BACK button to exit the menu.
Using the touchscreen*
Touch items on the screen to make and enter selections.
1. From the HoMe screen, select Settings.
2. Select Audio.
3. Select Sound.
4. Select the tabs to change the sound mode and 
adjust the setting.
5. Select oK when complete.
*if equipped
Models with one display
One Display Audio Operation
Control audio operation using the dashboard buttons.
Main display
Selector knob: rotate and press to make and enter selections.
MENU button: Display menu items for the selected audio mode.
Power/volume knob: Press to turn the audio system on or off. rotate to adjust volume.
button: Adjust display brightness.
SETTINGS button: Display settings options.
BACK button: return to the previous screen.
Press the display button to change displays.

54 || 55
AUDIO AND CONNECTIVITYAUDIO AND CONNECTIVITY
Models with one display

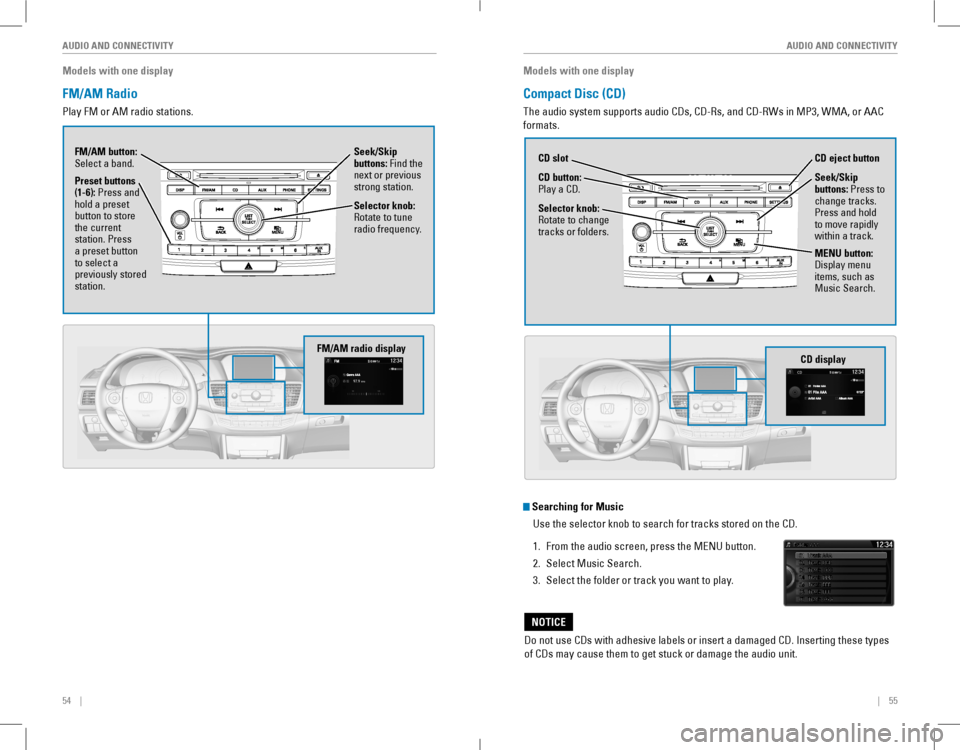

FM/AM Radio
Play FM or AM radio stations.
Seek/Skip buttons: Find the next or previous strong station.
Selector knob: rotate to tune radio frequency.
FM/AM button: Select a band.
Preset buttons (1-6): Press and hold a preset button to store the current station. Press a preset button to select a previously stored station.
FM/AM radio display
Models with one display
Compact Disc (CD)
The audio system supports audio CDs, CD-Rs, and CD-RWs in MP3, WMA, or AAC 
formats.
Do not use CDs with adhesive labels or insert a damaged CD. Inserting these types 
of CDs may cause them to get stuck or damage the audio unit.
NOTICE
Searching for Music
Use the selector knob to search for tracks stored on the CD.
1. From the audio screen, press the MENU button.
2. Select Music Search.
3. Select the folder or track you want to play.
CD display
CD button: Play a CD.
CD eject buttonCD slot
Selector knob: rotate to change tracks or folders.
MENU button: Display menu items, such as Music Search.
Seek/Skip buttons: Press to change tracks. Press and hold to move rapidly within a track.
