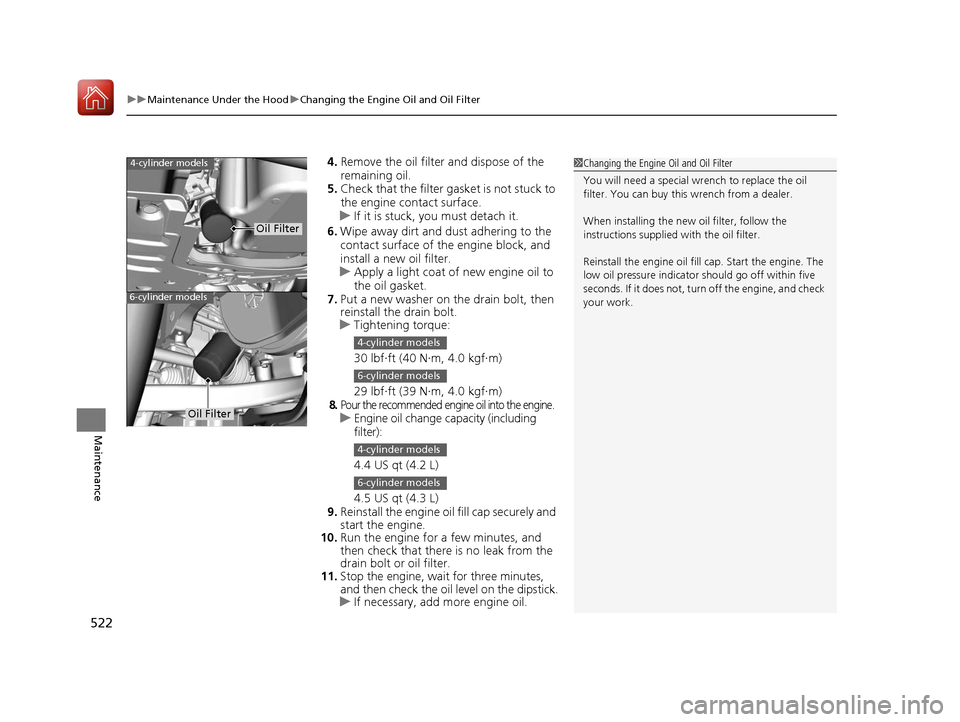

uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
522
Maintenance
4. Remove the oil filter and dispose of the
remaining oil.
5. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
6. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the oil gasket.
7. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
29 lbf∙ft (39 N∙m, 4.0 kgf∙m)
8.Pour the recommended engine oil into the engine.uEngine oil change capacity (including
filter):
4.4 US qt (4.2 L)
4.5 US qt (4.3 L)
9. Reinstall the engine oil fill cap securely and
start the engine.
10. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
11. Stop the engine, wait for three minutes,
and then check the oil level on the dipstick.
u If necessary, add more engine oil.
1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.4-cylinder models
6-cylinder models
Oil Filter
Oil Filter
4-cylinder models
6-cylinder models
4-cylinder models
6-cylinder models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 522 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

582

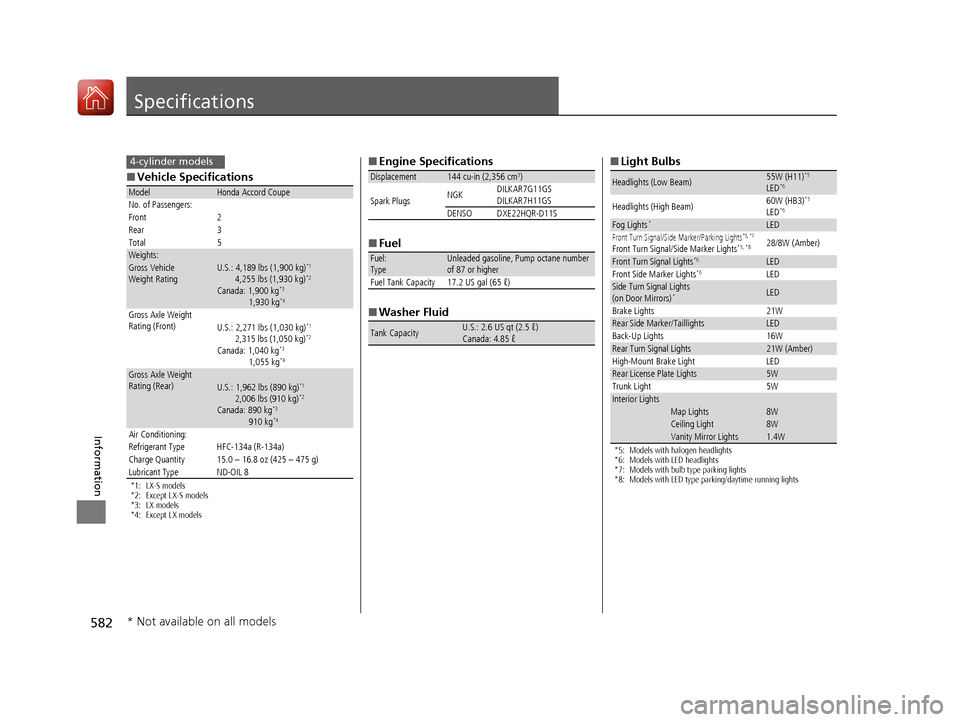

Information
Specifications
■Vehicle Specifications
*1: LX-S models
*2: Except LX-S models
*3: LX models
*4: Except LX models
ModelHonda Accord Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,189 lbs (1,900 kg)*1
4,255 lbs (1,930 kg)*2
Canada: 1,900 kg*3
1,930 kg*4
Gross Axle Weight
Rating (Front)U.S.: 2,271 lbs (1,030 kg)*1
2,315 lbs (1,050 kg)*2
Canada: 1,040 kg*3
1,055 kg*4
Gross Axle Weight
Rating (Rear)U.S.: 1,962 lbs (890 kg)*1
2,006 lbs (910 kg)*2
Canada: 890 kg*3
910 kg*4
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
4-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*5: Models with halogen headlights
*6: Models with LED headlights
*7: Models with bulb type parking lights
*8: Models with LED type parking/daytime running lights
Headlights (Low Beam)55W (H11)*5
LED*6
Headlights (High Beam) 60W (HB3)*5
LED*6
Fog Lights*LEDFront Turn Signal/Side Marker/Parking Lights*5, *7
Front Turn Signal/Side Marker Lights*5, *828/8W (Amber)
Front Turn Signal Lights*6LED
Front Side Marker Lights*6LEDSide Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21W
Rear Side Marker/TaillightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Trunk Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4W
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 582 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

583

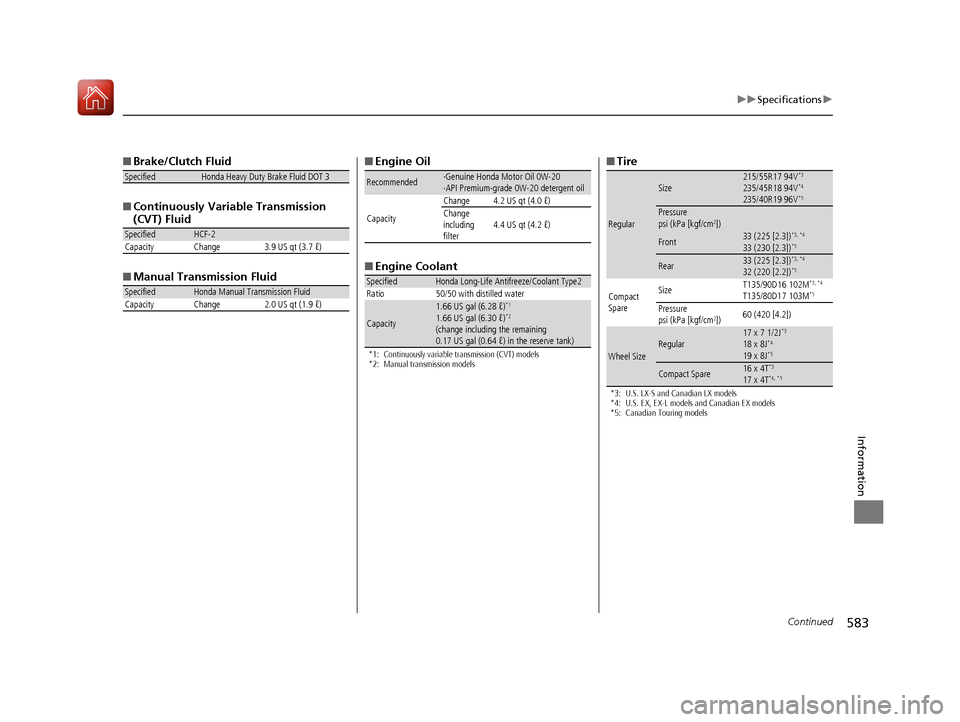

uuSpecifications u
Continued
Information
■Brake/Clutch Fluid
■ Continuously Variable Transmission
(CVT) Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHCF-2
Capacity Change 3.9 US qt (3.7 ℓ)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant
*1: Continuously variable transmission (CVT) models
*2: Manual transmission models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.28 ℓ)*1
1.66 US gal (6.30 ℓ)*2
(change including the remaining
0.17 US gal (0.64 ℓ) in the reserve tank)
■ Tire
*3: U.S. LX-S and Canadian LX models
*4: U.S. EX, EX-L models and Canadian EX models
*5: Canadian Touring models
Regular
Size215/55R17 94V*3
235/45R18 94V*4
235/40R19 96V*5
Pressure
psi (kPa [kgf/cm2])
Front33 (225 [2.3])*3, *4
33 (230 [2.3])*5
Rear33 (225 [2.3])*3, *4
32 (220 [2.2])*5
Compact
Spare Size
T135/90D16 102M
*3, *4
T135/80D17 103M*5
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*3
18 x 8J*4
19 x 8J*5
Compact Spare16 x 4T*3
17 x 4T*4, *5
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 583 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

584

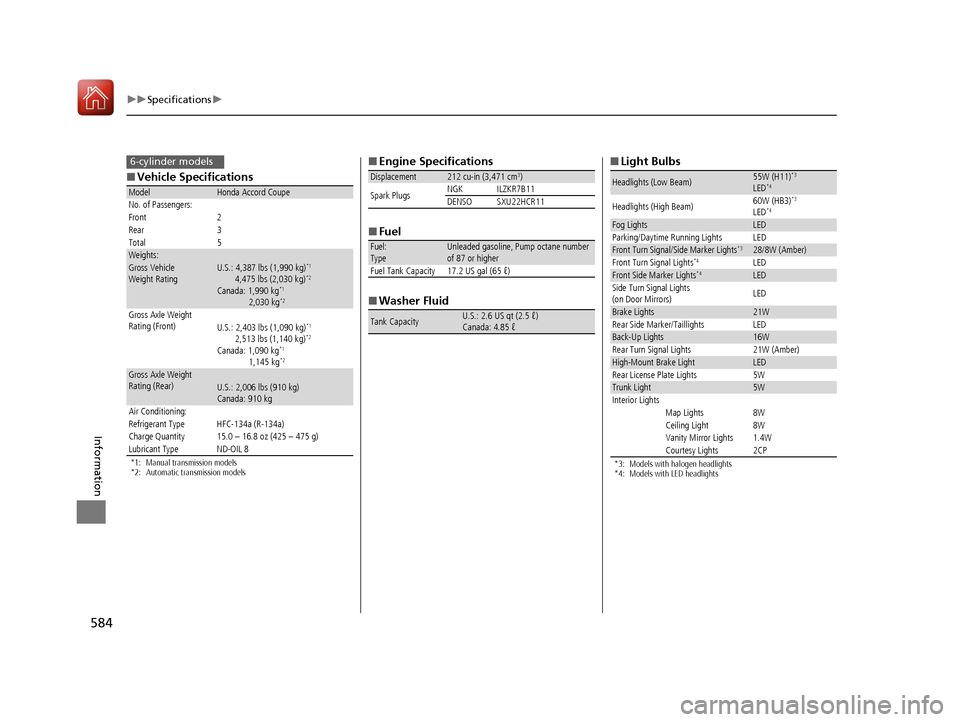

uuSpecifications u
Information
■Vehicle Specifications
*1: Manual transmission models
*2: Automatic transmission models
ModelHonda Accord Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,387 lbs (1,990 kg)*1
4,475 lbs (2,030 kg)*2
Canada: 1,990 kg*1
2,030 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,403 lbs (1,090 kg)*1
2,513 lbs (1,140 kg)*2
Canada: 1,090 kg*1
1,145 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 2,006 lbs (910 kg)
Canada: 910 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
6-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*3: Models with halogen headlights
*4: Models with LED headlights
Headlights (Low Beam)55W (H11)*3
LED*4
Headlights (High Beam) 60W (HB3)*3
LED*4
Fog LightsLED
Parking/Daytime Running Lights LED
Front Turn Signal/Side Marker Lights*328/8W (Amber)
Front Turn Signal Lights*4LEDFront Side Marker Lights*4LED
Side Turn Signal Lights
(on Door Mirrors) LED
Brake Lights21W
Rear Side Marker/Taillights LED
Back-Up Lights16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5WInterior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WCourtesy Lights2CP
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 584 ページ ２０１５年９月２５日　金曜日　午前１１時３９分

585

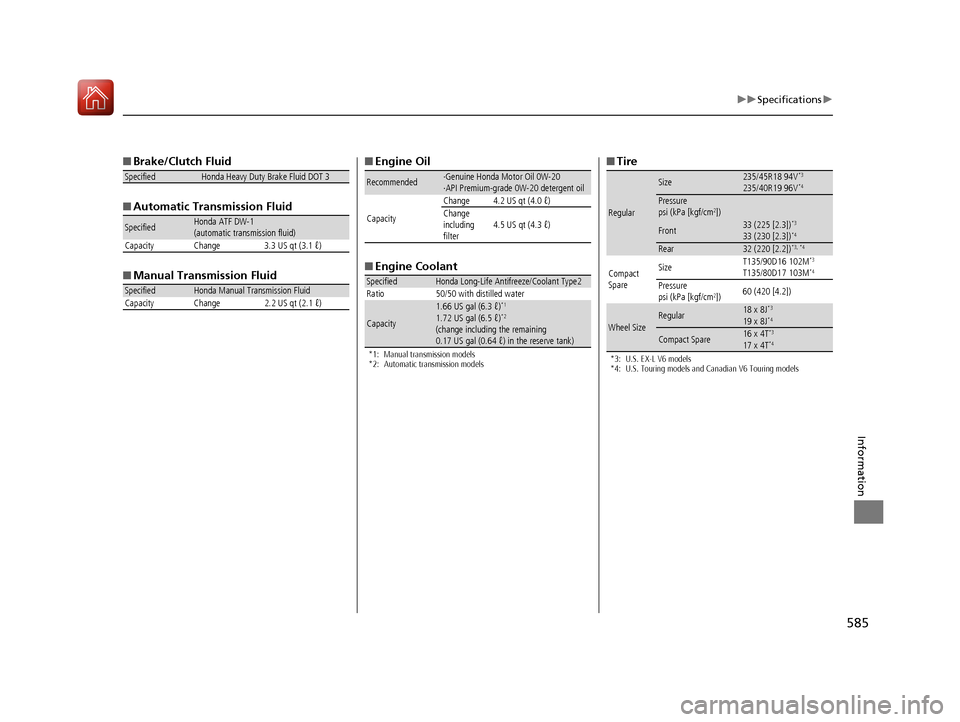

uuSpecifications u
Information
■Brake/Clutch Fluid
■ Automatic Transmission Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.3 US qt (3.1 ℓ)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.2 US qt (2.1 ℓ)
■ Engine Oil
■ Engine Coolant
*1: Manual transmission models
*2: Automatic transmission models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.3 ℓ)*1
1.72 US gal (6.5 ℓ)*2
(change including the remaining
0.17 US gal (0.64 ℓ) in the reserve tank)
■ Tire
*3: U.S. EX-L V6 models
*4: U.S. Touring models and Canadian V6 Touring models
Regular
Size235/45R18 94V*3
235/40R19 96V*4
Pressure
psi (kPa [kgf/cm2])
Front33 (225 [2.3])*3
33 (230 [2.3])*4
Rear32 (220 [2.2])*3, *4
Compact
Spare Size
T135/90D16 102M
*3
T135/80D17 103M*4
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegular18 x 8J*3
19 x 8J*4
Compact Spare16 x 4T*3
17 x 4T*4
